M terjadi

X1. X2. P1. M terjadi. M penahan. P1. P2. P2. M terjadi= M penahan P1 x X 1 = P2 x X2. T. M terjadi. M penahan. X2. C. P1. T=C. P1. X1. M terjadi= M penahan P1 x X 1 = T x X2. X1. X2. P2. P1. P2. M terjadi. M penahan. P1.

amara
Télécharger la présentation

M terjadi

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

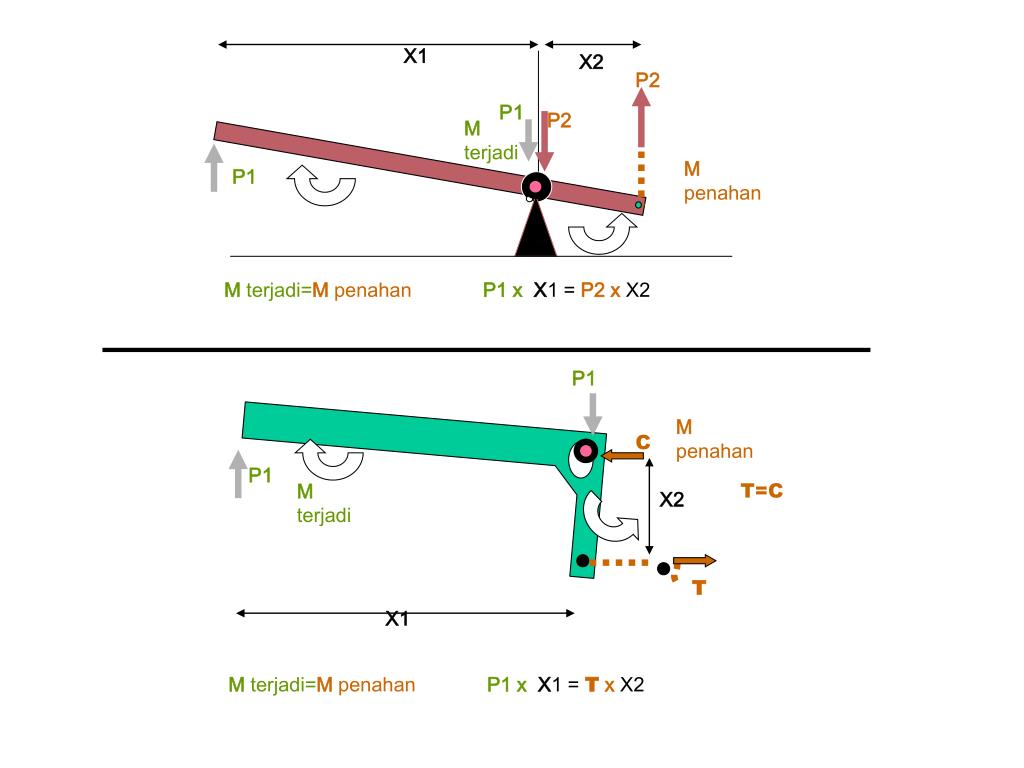

  1. X1 X2 P1 M terjadi M penahan P1 P2 P2 M terjadi=M penahan P1 xX1 = P2 x X2 T M terjadi M penahan X2 C P1 T=C P1 X1 M terjadi=M penahan P1 xX1 = T x X2

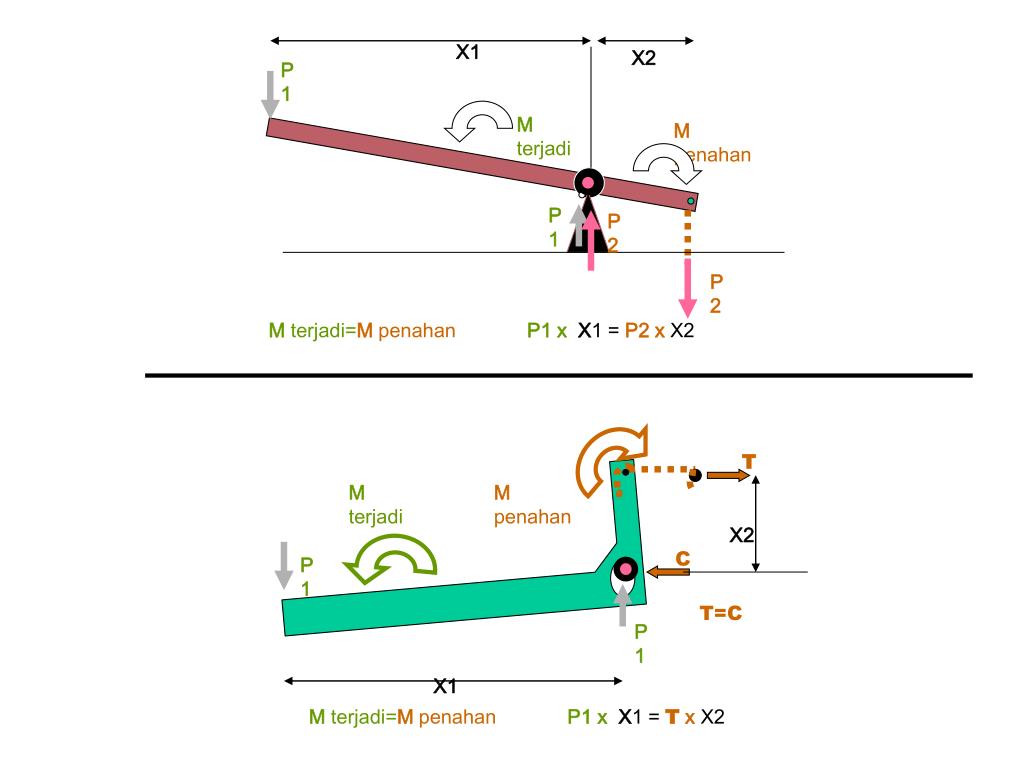

  2. X1 X2 P2 P1 P2 M terjadi M penahan P1 M terjadi=M penahan P1 xX1 = P2 x X2 P1 M penahan C P1 M terjadi T=C X2 T X1 M terjadi=M penahan P1 xX1 = T x X2

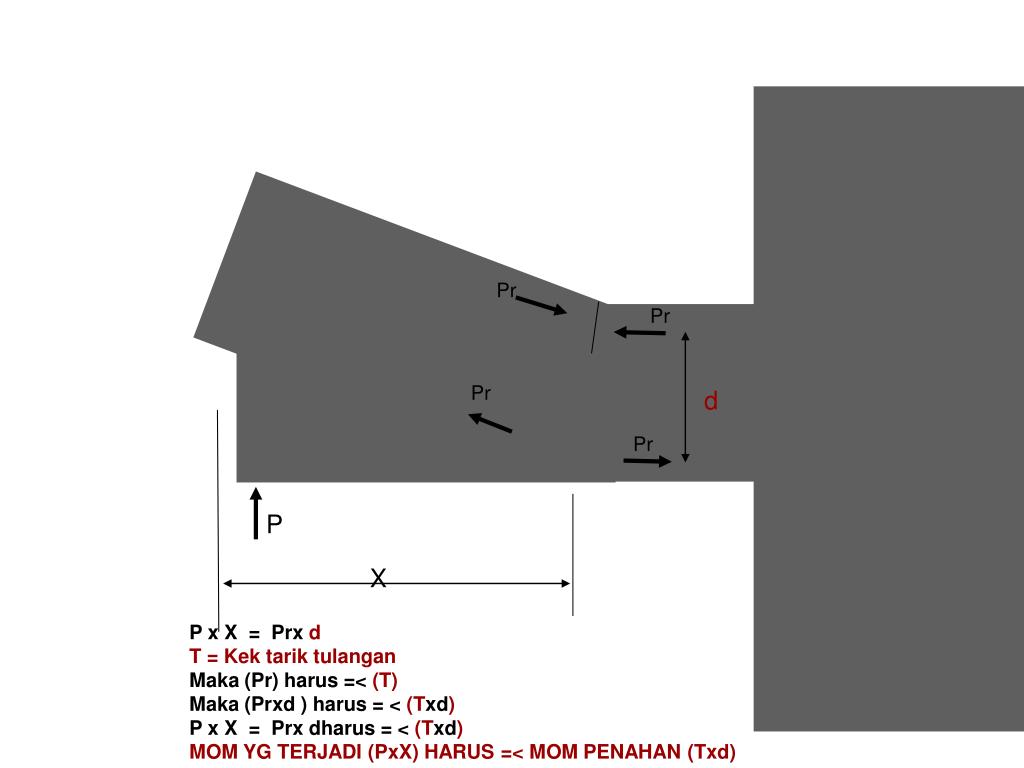

  3. Pr Pr Pr d Pr P X T P x X = Prx d T = Kek tarik tulangan Maka (Pr) harus =< (T) Maka (Prxd ) harus = < (Txd) P x X = Prx dharus = < (Txd) MOM YG TERJADI (PxX) HARUS =< MOM PENAHAN (Txd)

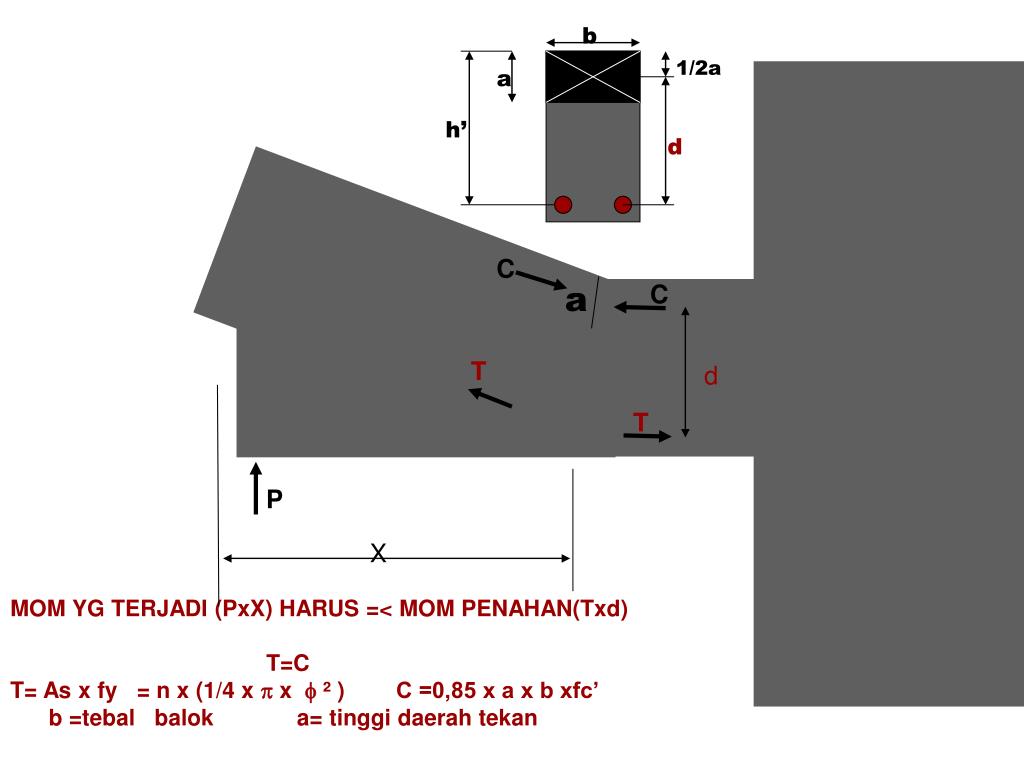

  4. b 1/2a a h’ d C C T d T P X a T MOM YG TERJADI (PxX) HARUS =< MOM PENAHAN(Txd) T=C T= As x fy = n x (1/4 x  x ² ) C =0,85 x a x b xfc’ b =tebal balok a= tinggi daerah tekan

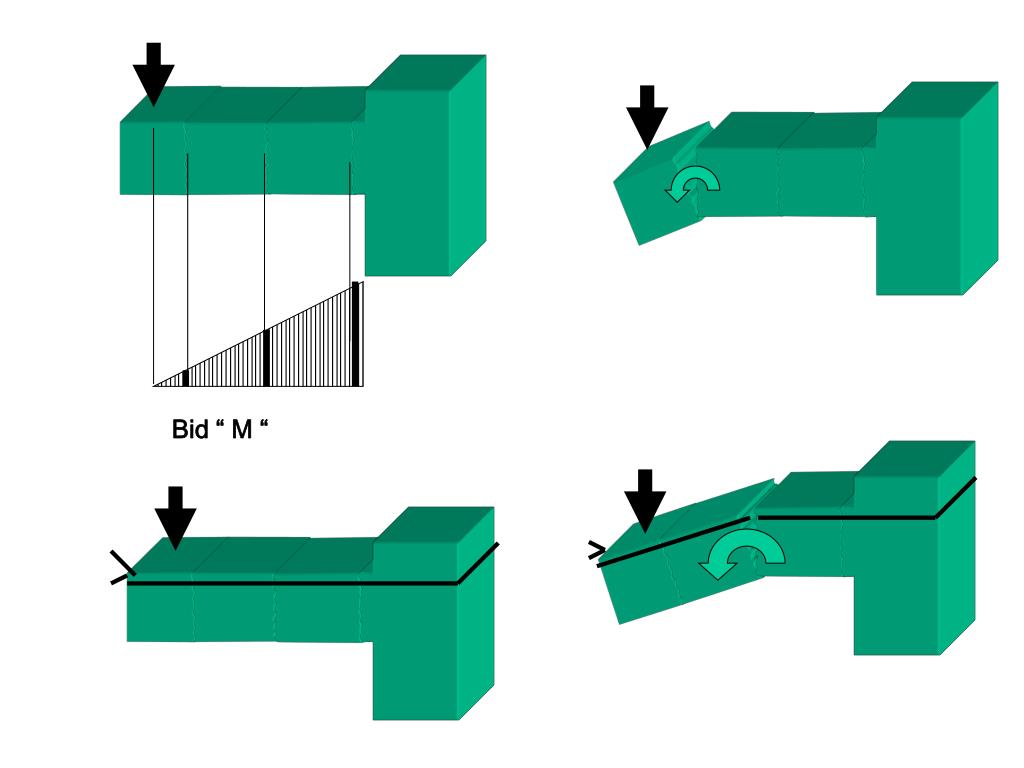

  5. Bid “ M “

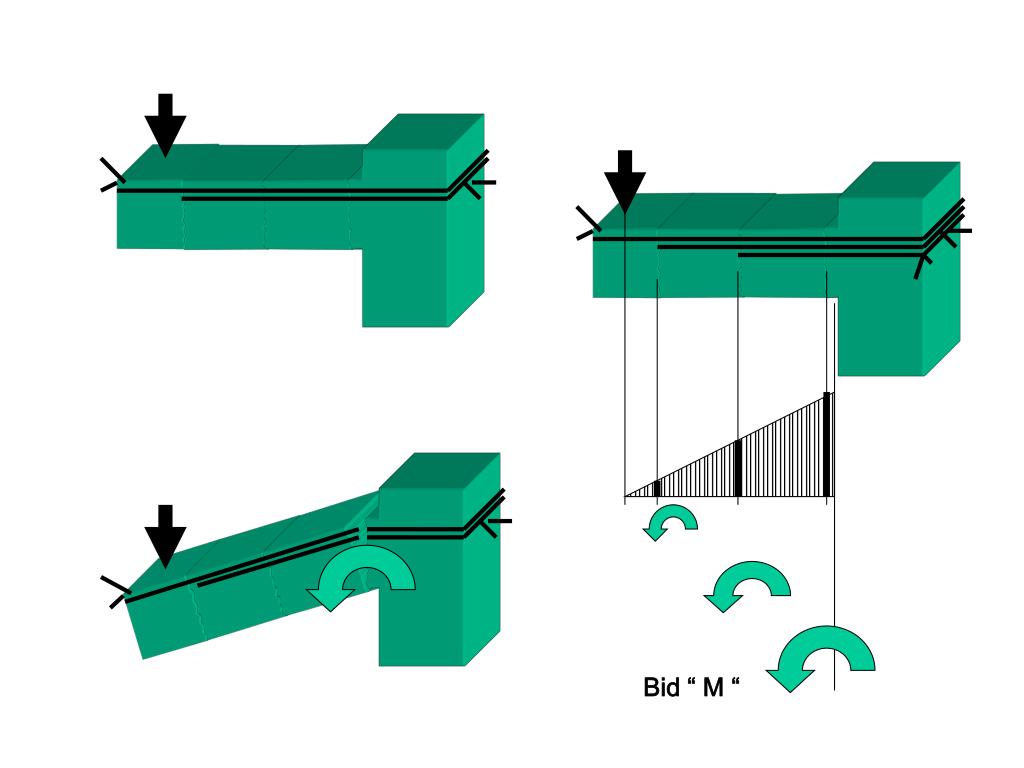

  6. Bid “ M “
