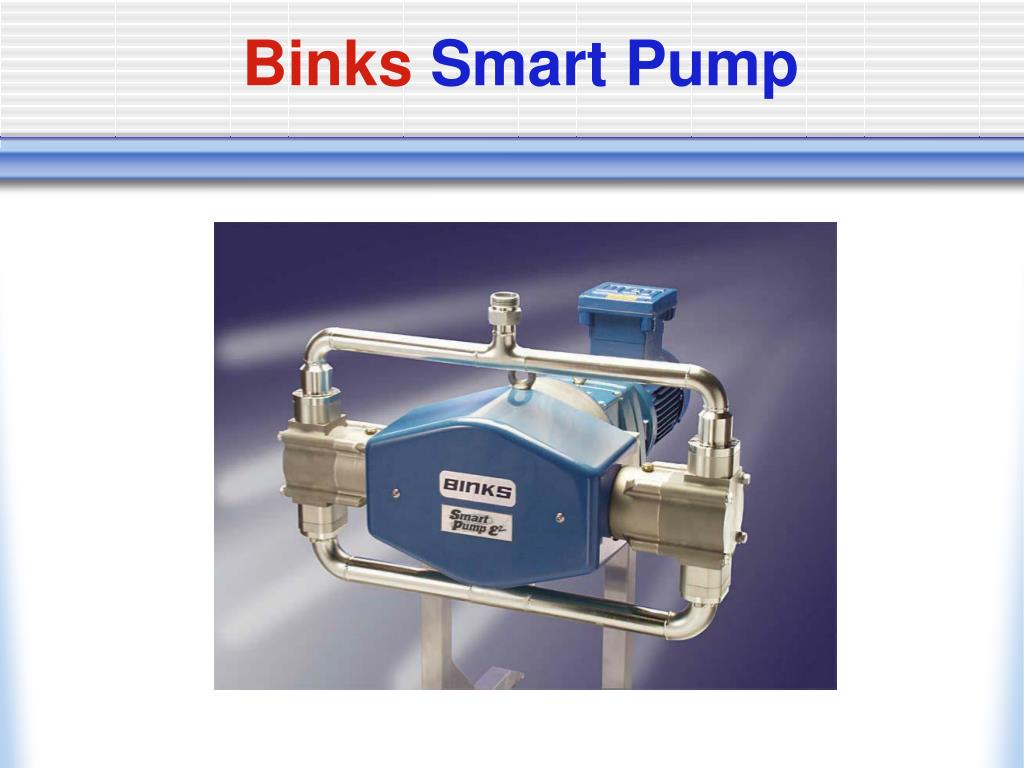

  1. Binks Smart Pump

  2. Smart Pump Product Line Electric Smart Pump E2-20: 5 GPM (260 PSI) E2-30: 8 GPM (260 PSI) E4-60: 16 GPM (260 PSI) E4-90: 24 GPM (203 PSI)

  3. Smart Pump Product Line Accessories: • Low Shear Smart BPR • ¾” to 2” Connections • Smart Card: • Automatic controls for “Smart Circ” operation

  4. Description E2-20: 5 GPM • Fluid Sections • CV Drive Section • 40:1 Gearbox • 1.5 HP AC Motor

  5. Description E2-20: 5 GPM CV Cam Slide Rails Cam Follower Tension Springs Swivel Joint

  6. Description E2-20: 5 GPM • AC Motor drives gear box and CV Cam. • Motor is controlled by inverter with either manual or PLC instruction. • The motor frequency is directly proportional to the Fluid Output!

  7. Description E2-30: 8 GPM Main Pump Assembly • Main Components • 2 HP Motor & Gearbox • Main Cam Shaft and Bearings • 2 Cylinders 4 Ball Check • Carriage and Cam Follower • Carriage Support Shaft and Linear Ball Bearing Bushes

  8. Description E2-30: 8 GPM • 2 HP motor reduced through 56:1 gearbox. • Single “constant velocity” cam & carriage assembly ensures no “hard” connections. • (2) horizontally opposed fluid sections provide 8 GPM fluid output.

  9. E2-30 Fluid Section • Quick disconnect fluid section. • Internal piston/fluid seal. • Low pressure bellows seal. • “Run to Failure” back up seal.

  10. Description E4-60 & E4-9016 & 24 GPM Main Pump Assembly • Main Components • 5 HP Motor & Gearbox • Main Cam Shaft and Bearings • 4 Cylinders 8 Ball Check • Carriage and Cam Follower • Carriage Support Shaft and Linear Ball Bearing Bushes

  11. Description E4-60: 15 GPM Cam area drives (4) horizontal fluid pistons therefore providing a (4) cylinder true positive displacement operating pump. View showing Min Max Cylinder position

  12. Quick Disconnect Fluid Section “Module” Designed Fluid Section QD Sanitary Clamp piston shaft connection Bolted connections Complete fluid section can be removed by disconnecting (4) sanitary clamps and removal of (8) bolts!

  13. Bellows: “Run to Failure” • Use of secondary chevron style seal behind bellows provides a back up seal and allows for visual indication of bellows failure. • Material flow path • Secondary Seal (vertical piston pump style seal) • Bellows location • Provides visual indication of bellows failure and allows operator time to repair before affecting production.

  14. E4-60 Energy Consumption

  15. E2-30 Energy Consumption

  16. Binks Smart Pumps ITW Ransburg – Binks ITW Group – Finishing Division 320 Phillips Ave Toledo OH 453612
