  1. NAT-PT(Network Address Translation-Protocol Translation) Speaker: 林洹緯 Date: 2010/7/29

  2. Outline • Introduction to NAT-PT • NAT-PT flavors • Application Level Gateway(ALG) • Protocol Translation(PT) • NAT-PT Operation • NAPT-PT Operation

  3. Introduction to NAT-PT • 由於IPv4和IPv6需要共存，NAT-PT因應此轉換的需求而產生 • 類似IPv4中NAT的作法 • 使用SIIT來處理不同通訊協定間的標頭轉換 • IPv4 to IPv6位址轉換格式為 PREFIX::<IPv4 address>，其中PREFIX長度為48bit

  4. NAT-PT flavors • Traditional NAT-PT • 只能由IPv6往IPv4單向建立連線 • 又分為Basic-NAT-PT 和 NAPT-PT(Network Address Port Translation-Protocol Translation)，兩者差別在於使用IPv4位址的多寡以及對應關係的不同 • Bi-Directional-NAT-PT • 可雙向建立連線，但需DNS_ALG的支援才可達成

  5. Application Level Gateway(ALG) • ALG 是對應於特定應用程式的代理人，有些應用程式會把網路位址存在封包的payload中，NAT-PT 本身並無法得知 payload 裡存的是什麼，ALG 可以協助NAT-PT 來達到這個功能 • 假設有一個由IPv4端送出的SIP封包 Header如下，經過NAT-PT Server時，NAT-PT Server會將封包的Source address 和Destination address 修改為IPv6的格式，而NAT-PTServer中處理SIP的ALG負責的就是SIPHeader中IPv4位址的轉換 INVITE sip:bob@220.132.0.100 SIP/2.0 Via: SIP/2.0/UDP 163.22.21.82:5060 From: Alice sip:alice@163.22.21.82 To: Bob sip:bob@220.132.0.100 Call-ID: 1234@163.22.21.82 CSeq: 1 INVITE Subject: meeting Contact: sip:alice@163.22.21.82 Content-Type: application/sdp Content-Length: 147

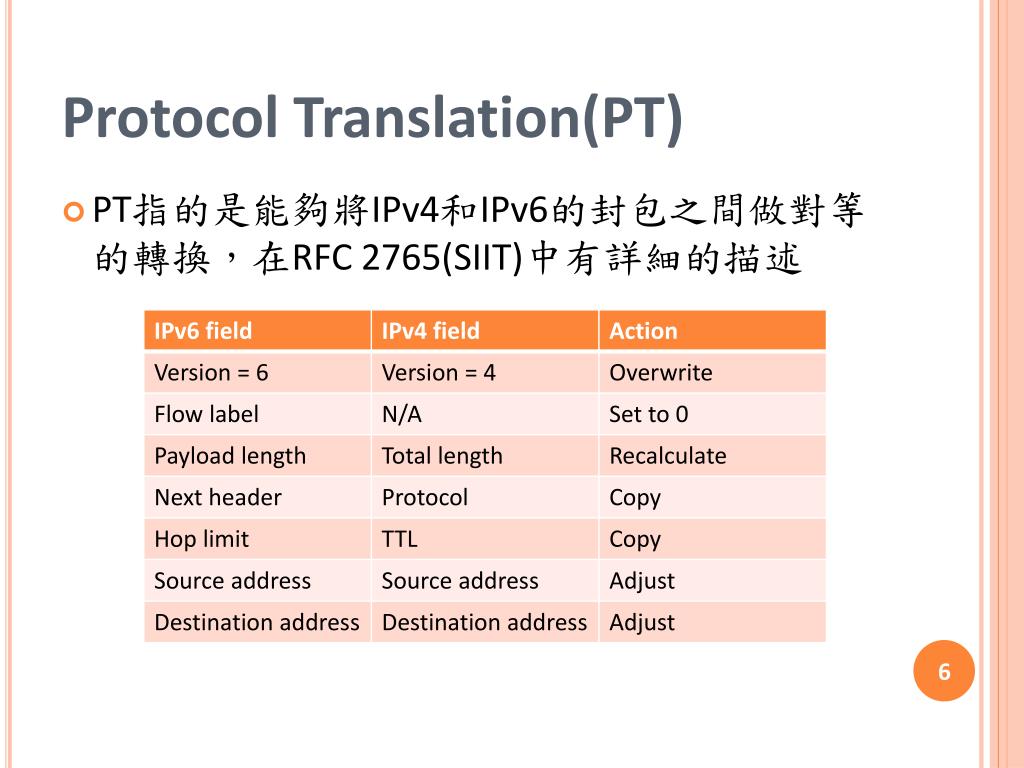

  6. Protocol Translation(PT) • PT指的是能夠將IPv4和IPv6的封包之間做對等的轉換，在RFC 2765(SIIT)中有詳細的描述

  7. NAT-PT Operation - 1 • Traditional NAT-PT(v6-to-v4), without DNS_ALG • IPv6 Host 發出v6封包，SRC=2001:6840:e10::b1，DST=PREFIX::163.22.21.82 • NAT-PT 接收到封包後查看該封包的SRC並未在 address mapping table內，於是從v4 address pool中挑選出一個尚未使用的address，將v6封包轉換成v4封包格式，並將其address對應關係記錄在mapping table中。 • 假設所分配到的IPv4 address為220.132.0.100，該mapping table為( 2001:6840:e10::b1 – 220.132.0.100，在此可能還包含其他狀態資訊) • 接著傳送v4封包 SRC=220.132.0.100， DST=163.22.21.82

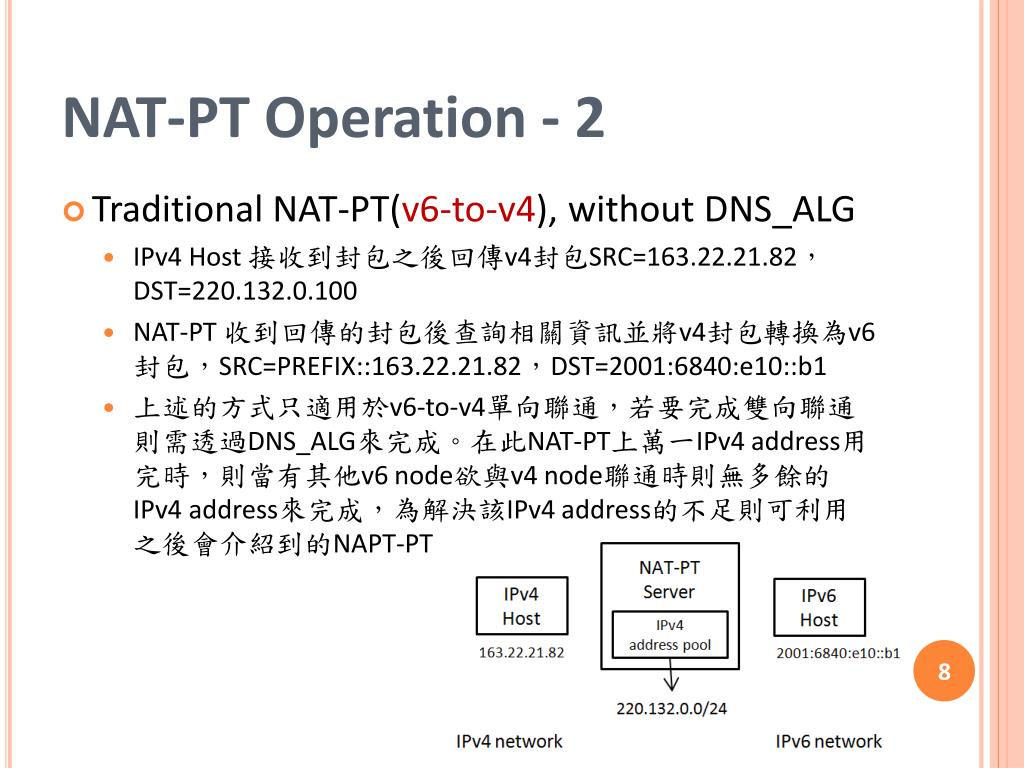

  8. NAT-PT Operation - 2 • Traditional NAT-PT(v6-to-v4), without DNS_ALG • IPv4 Host 接收到封包之後回傳v4封包SRC=163.22.21.82，DST=220.132.0.100 • NAT-PT 收到回傳的封包後查詢相關資訊並將v4封包轉換為v6封包，SRC=PREFIX::163.22.21.82，DST=2001:6840:e10::b1 • 上述的方式只適用於v6-to-v4單向聯通，若要完成雙向聯通則需透過DNS_ALG來完成。在此NAT-PT上萬一IPv4 address用完時，則當有其他v6 node欲與v4 node聯通時則無多餘的IPv4 address來完成，為解決該IPv4 address的不足則可利用之後會介紹到的NAPT-PT

  9. NAT-PT Operation - 3 • Bi-Directional-NAT-PT(v6-to-v4), with DNS_ALG • 建立連線前IPv6Host無法得知與IPv4 Host 相對應的IPv6address，於是送出DNSrequest到IPv6 DNSServer • 由於在IPv6 DNSServer中查詢不到該筆IPv4 Host的紀錄，IPv6 DNSServer轉而將此request送至NAT-PT Server處理 • NAT-PTServer中的DNS_ALG收到這個request後，將所request的紀錄格式由AAAA改為A再送至IPv4 DNSServer，IPv4 DNSServer收到request後傳回IPv4 Host的address為163.22.21.82

  10. NAT-PT Operation - 4 • Bi-Directional-NAT-PT(v6-to-v4), with DNS_ALG • DNS_ALG收到address訊息後，向NAT-PT要PREFIX，並把此address加上PREFIX變成IPv6 address=PREFIX::163.22.21.82，並且將此紀錄由A改為AAAA並傳回IPv6 DNSServer， IPv6 DNS Server再將紀錄轉傳回IPv6 Host • 接下來流程和Traditional NAT-PT相同，也就是NAT-PT由IPv4 address pool中挑出一個沒有使用的address當作與IPv6 Host相對應的IPv4address進行連線

  11. NAT-PT Operation - 5 • Bi-Directional-NAT-PT(v4-to-v6), with DNS_ALG • 建立連線前IPv4Host無法得知與IPv6 Host 相對應的IPv4位址，於是送出DNSrequest到IPv4 DNSServer • 由於在IPv4 DNSServer中查詢不到該筆IPv6 Host的紀錄，IPv4 DNSServer轉而將此request送至NAT-PT Server處理 • NAT-PTServer中的DNS_ALG收到這個request後，將所request的紀錄格式由A改為AAAA再送至IPv6 DNS伺服器，IPv6 DNS伺服器收到request後傳回IPv6 Host的位址為2001:6840:e10::b1

  12. NAT-PT Operation - 6 • Bi-Directional-NAT-PT(v4-to-v6), with DNS_ALG • NAT-PT Server收到address訊息後，從IPv4 address pool中挑出一個尚未用到的address 220.132.0.101，將紀錄格式由AAAA轉換成A送回IPv4 DNS Server，並將其address對應關係記錄在mapping table中，mapping table為(2001:6840:e10::b1 – 220.132.0.101) • IPv4 DNS Server 再將此紀錄送回IPv4 Host • IPv4Host 得知與IPv6 Host相對應的IPv4 address 後即可進行連線

  13. NAPT-PT Operation - 1 • NAPT-PT(v6-to-v4) • NAPT-PT Server 只有一個IPv4 address為220.132.0.102 • IPv6 Host A 和IPv6 Host B 都要跟IPv4 Host 建立通訊，兩者SA(Source address)資訊分別為[2001:6840:e10:b1]:1025和[2001:6840:e10:b2]:1025，都使用port 1025對外連線，DA(Destination address)則為[PREFIX::163.22.21.82]:23 • NAPT-PT Server 收到這兩個IPv6 Host的封包之後，使用隨機的port分別將兩個封包的SA轉換為220.132.0.102:123和220.132.0.102:456並儲存對應關係，轉換為v4封包後，使用同一個IPv4 address但是不同的port 與IPv4 Host 連線

  14. NAPT-PT Operation - 2 • NAPT-PT(v6-to-v4) • IPv4 Host 收到封包後分別回應到220.132.0.102:123及220.132.0.102:456，封包 SA=163.22.21.82:23，DA=220.132.0.102:123以及220.132.0.102:456 • NAPT-PT Server 收到這兩個封包之後根據對應關係，將DA=220.132.0.102:123的封包轉換成v6封包，DA修改為[2001:6840:e10:b1]:1025DA=220.132.0.102:456的封包轉換成v6封包，DA修改為[2001:6840:e10:b2]:1025 Mapping table 220.132.0.102:123 - [2001:6840:e10:b1]:1025 220.132.0.102:456 - [2001:6840:e10:b2]:1025

  15. NAPT-PT Operation - 3 • NAPT-PT – static port mapping • 除了隨機的port對應之外，NAPT-PT還可以使用static port mapping，也就是直接指定NAPT-PT Server 的IPv4 port 對應到IPv6 Host 的port • 舉例來說，IPv6網路中有一台HTTP Server，設定NAPT-PT Server的port 80對應到該Server的port 80，則所有從NAPT-PT Server port 80 進入的連線都會被轉到IPv6網路中的HTTP Server，也就是說NAPT-PT Server 底下的IPv6 網路只允許有一台HTTP Server的存在，除非其他HTTP Server 使用非預設的port 連線

  16. Reference • NAT-PT (RFC 2766) • SIIT (RFC 2765) • Cisco IOS NAT-PT for IPv6
