  1. KS3 Mathematics A5 Functions and graphs

  2. A5 Functions and graphs Contents • A A5.2 Tables and mapping diagrams • A A5.1 Function machines A5.3 Finding functions • A A5.4 Inverse functions • A A5.5 Graphs of functions • A

  3. Finding outputs given inputs

  4. Introducing functions × 3 + 2 x y Afunction is a rule which maps one number, sometimes called the input or x, onto another number, sometimes called the output or y. A function can be illustrated using a function diagram to show the operations performed on the input. A function can be written as anequation. For example, y = 3x + 2. A function can can also be be written with a mapping arrow. For example, x 3x + 2.

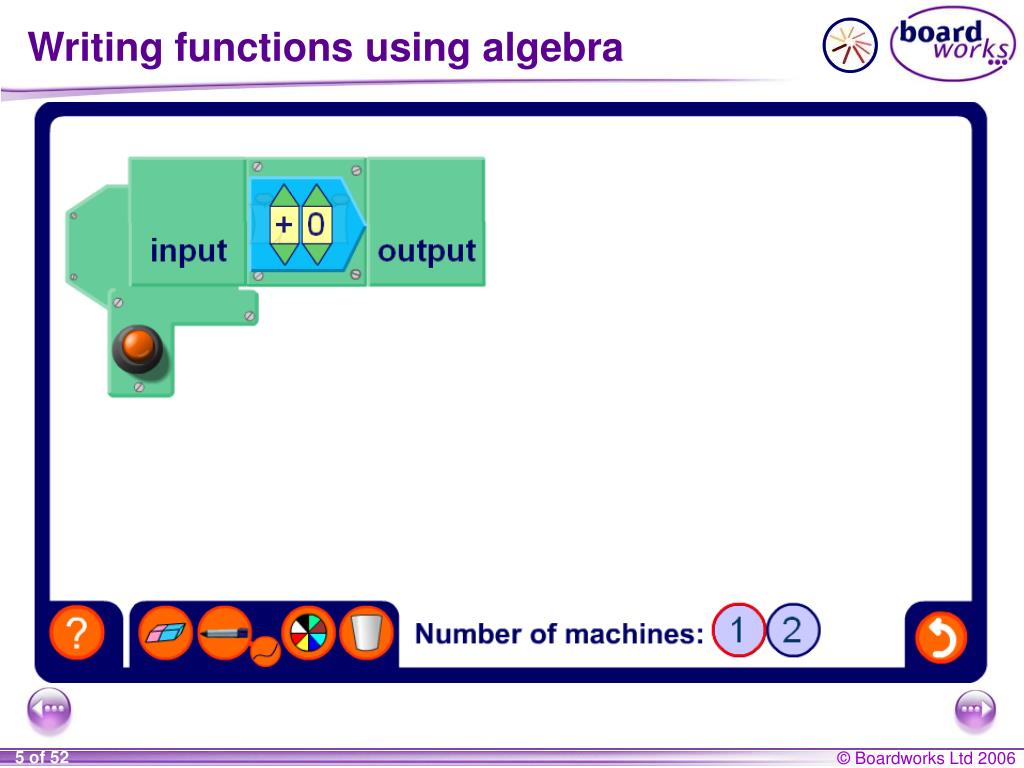

  5. Writing functions using algebra

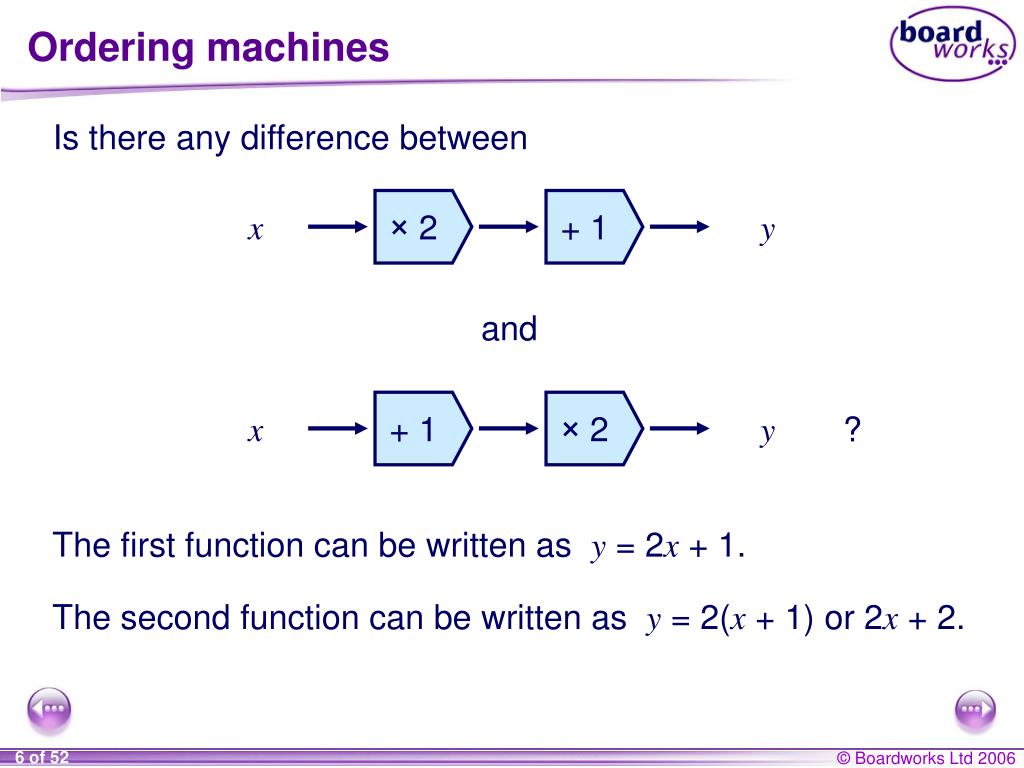

  6. Ordering machines × 2 + 1 + 1 × 2 x y x y ? Is there any difference between and The first function can be written as y = 2x + 1. The second function can be written as y = 2(x + 1) or 2x + 2.

  7. Equivalent functions + 1 × 2 × 2 + 2 x y x y Explain why is equivalent to When an addition is followed by a multiplication; the number that is added is also multiplied. This is also true when a subtraction is followed by a multiplication.

  8. Ordering machines x x x + 4 2 2 2 ÷ 2 + 4 + 4 ÷ 2 x y x y ? The first function can be written as y = + 4. The second function can be written as y = or y = + 2. Is there any difference between and

  9. Equivalent functions + 4 ÷ 2 ÷ 2 + 2 x y x y Explain why is equivalent to When an addition is followed by a division then the number that is added is also divided. This is also true when a subtraction is followed by a division.

  10. Equivalent function match

  11. A5 Functions and graphs Contents A5.1 Function machines • A • A A5.2 Tables and mapping diagrams A5.3 Finding functions • A A5.4 Inverse functions • A A5.5 Graphs of functions • A

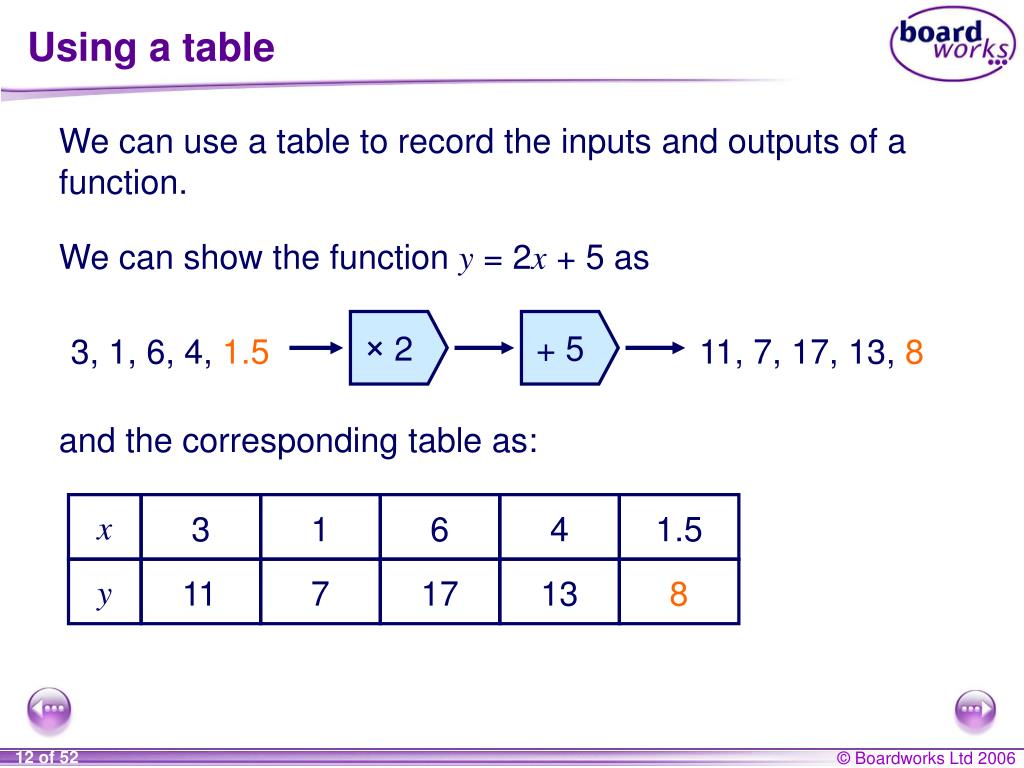

  12. Using a table × 2 + 5 x y x y We can use a table to record the inputs and outputs of a function. We can show the function y = 2x + 5 as 3 3, 1, 6, 4, 1.5 3, 1, 6, 4 3, 1, 6 3, 1 11, 7, 17 11 11, 7, 17, 13, 8 11, 7, 17, 13 11, 7 and the corresponding table as: 3 3 1 1 6 6 4 4 1.5 1.5 11 11 7 7 17 17 13 13 8

  13. Using a table with ordered values + 1 × 3 x y x y It is often useful to enter inputs into a table in numerical order. We can show the function y = 3(x + 1) as 1 1, 2, 3, 4, 5 1, 2, 3, 4 1, 2, 3 1, 2 6, 9, 12, 15 6, 9, 12, 15, 18 6, 9 6 6, 9, 12 When the inputs are ordered and the corresponding table as: 1 1 2 2 3 3 4 4 5 5 the outputs form a sequence. 6 6 9 9 12 12 15 15 18

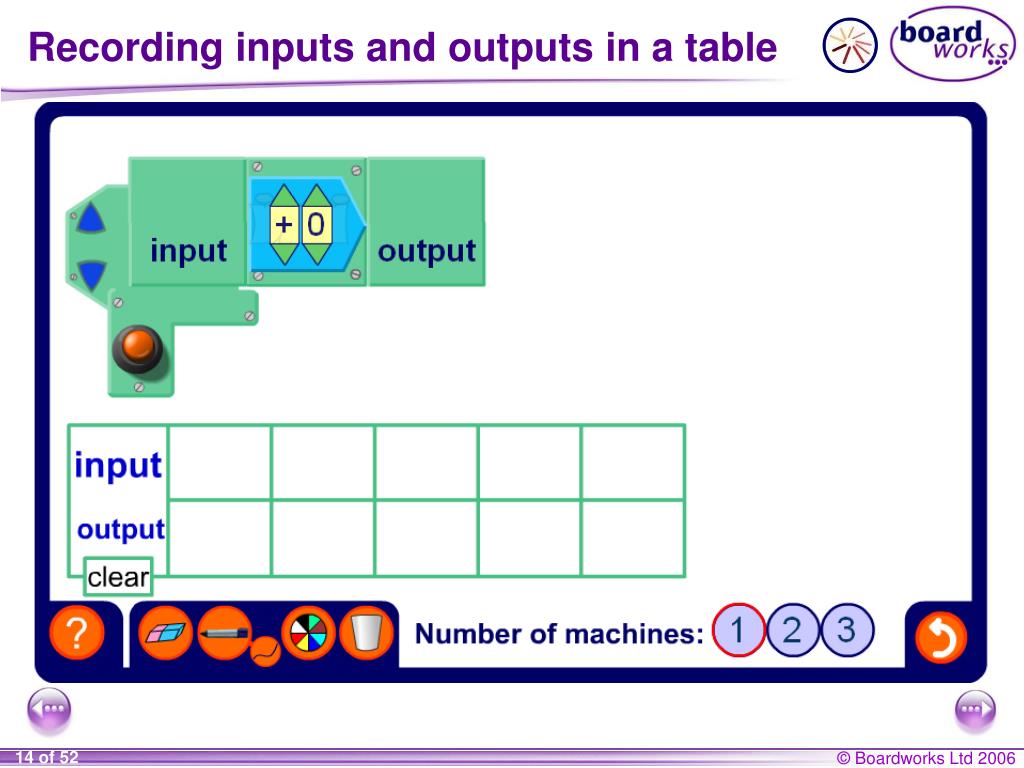

  14. Recording inputs and outputs in a table

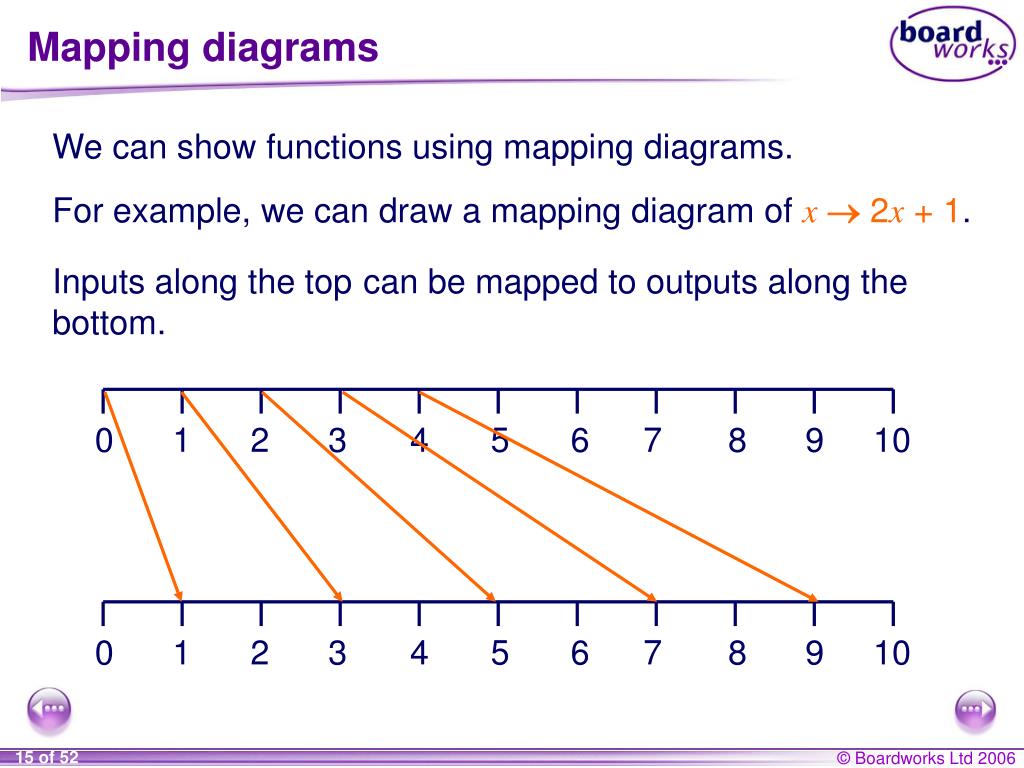

  15. Mapping diagrams 0 0 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 10 10 We can show functions using mapping diagrams. For example, we can draw a mapping diagram of x2x + 1. can be mapped to outputs along the bottom. Inputs along the top

  16. Mapping diagrams of x x + c 0 0 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 10 10 What happens when we draw the mapping diagram for a function of the form xx + c, such as xx + 1, xx + 2 or xx + 3? xx + 2 The lines are parallel.

  17. Mapping diagrams of x mx 0 0 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 10 10 What happens when we draw the mapping diagram for a function of the form xmx, such as x2x, x3x or x4x, and we project the mapping arrows backwards? For example: x 2x The lines meet at a point on the zero line.

  18. The identity function 0 0 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 10 10 The function x x is called the identity function. The identity function maps any given number onto itself. We can show this in a mapping diagram. xx Every number is mapped onto itself.

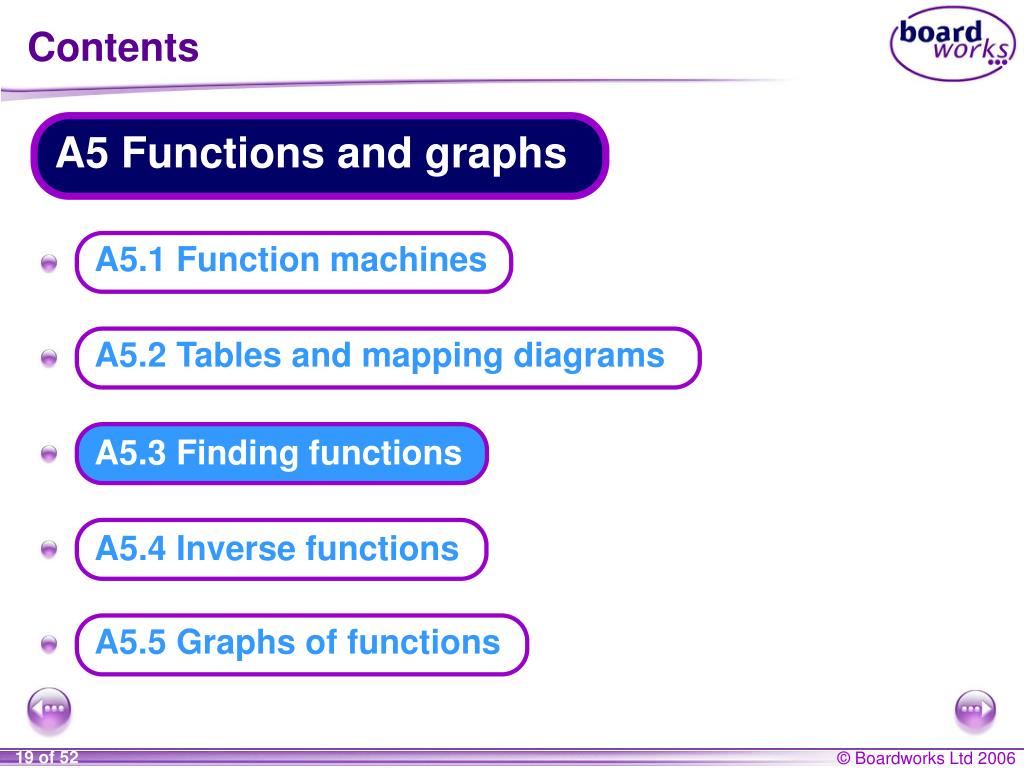

  19. A5 Functions and graphs Contents A5.1 Function machines • A A5.2 Tables and mapping diagrams • A A5.3 Finding functions • A A5.4 Inverse functions • A A5.5 Graphs of functions • A

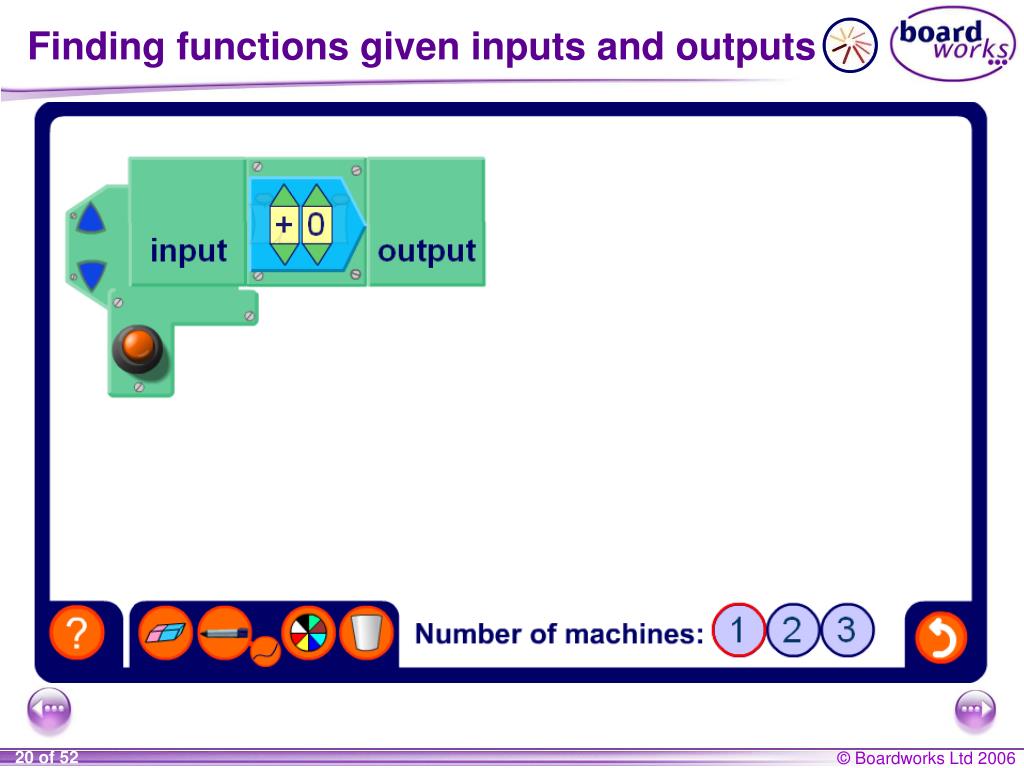

  20. Finding functions given inputs and outputs

  21. A5 Functions and graphs Contents A5.1 Function machines • A A5.2 Tables and mapping diagrams • A A5.4 Inverse functions A5.3 Finding functions • A • A A5.5 Graphs of functions • A

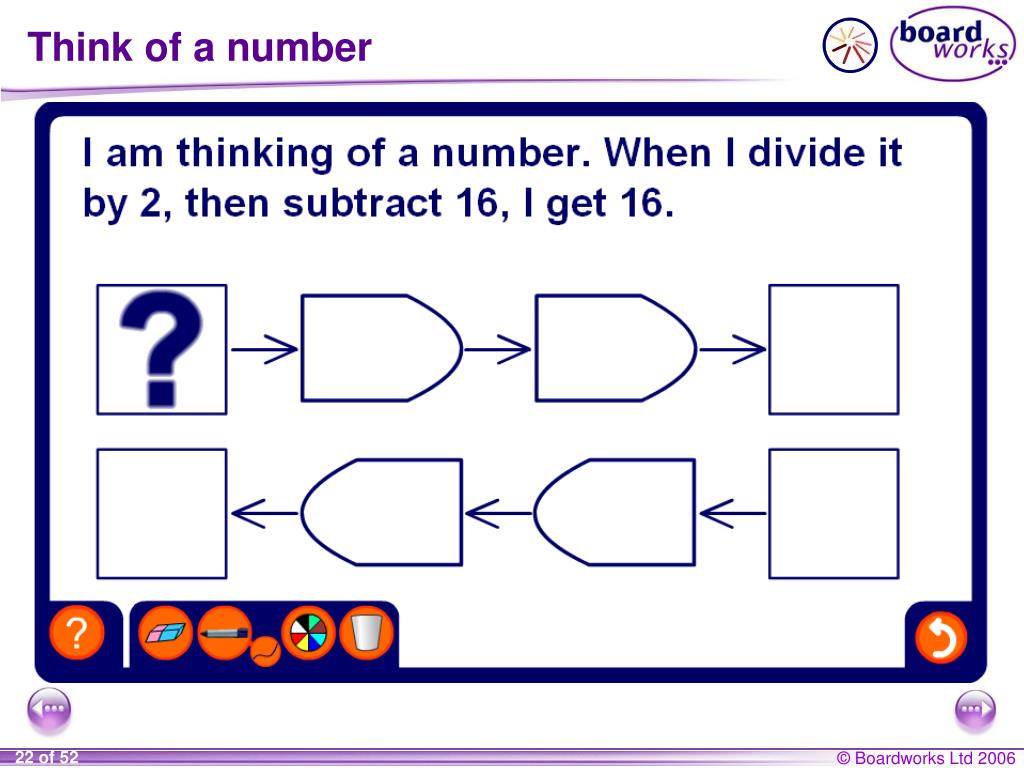

  22. Think of a number

  23. Finding inputs given outputs + 3 ÷ 8 1 x – 3 × 8 Suppose How can we find the value of x? and we perform the inverse operations in reverse order. To find the value of x we start with the output 5 1 x = 5

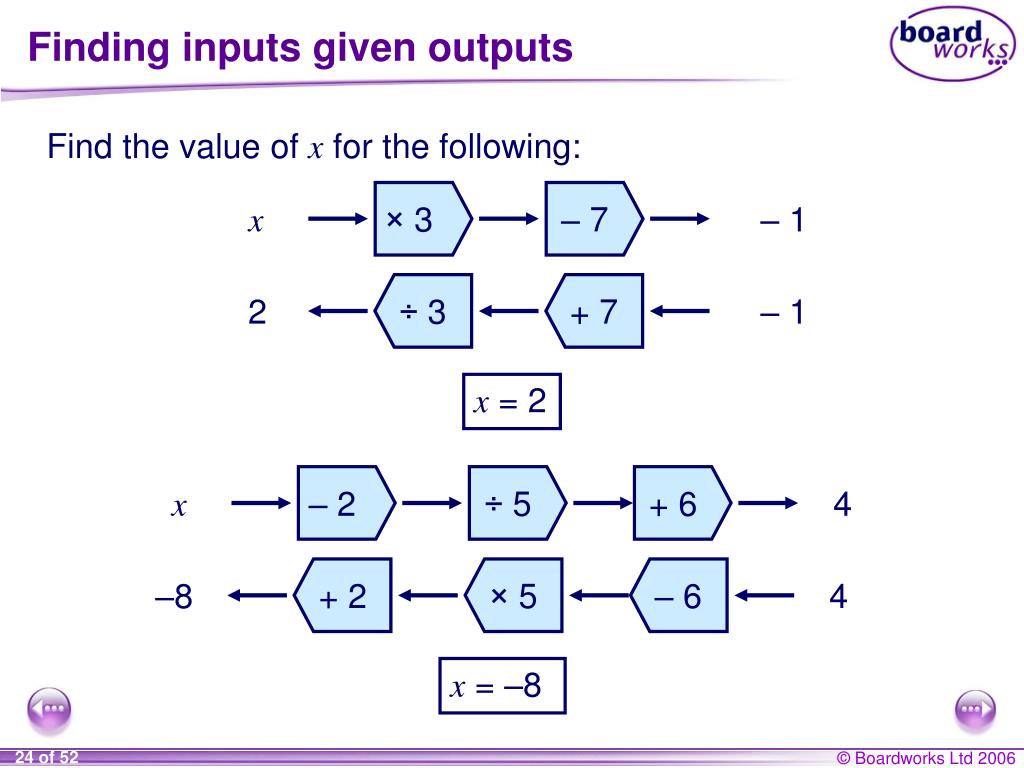

  24. Finding inputs given outputs × 3 – 7 – 1 x – 2 ÷ 5 + 6 4 x ÷ 3 + 2 × 5 + 7 – 6 Find the value of x for the following: 2 – 1 x = 2 –8 4 x = –8

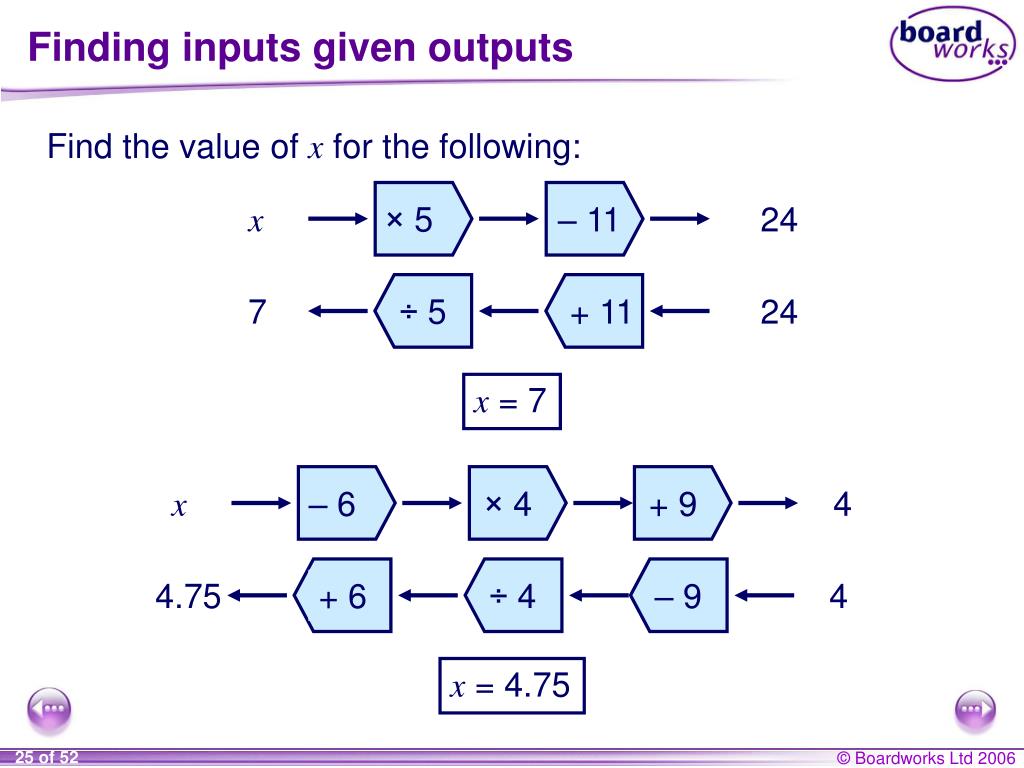

  25. Finding inputs given outputs × 5 – 11 24 x – 6 × 4 + 9 4 x ÷ 5 + 6 ÷ 4 + 11 – 9 Find the value of x for the following: 7 24 x = 7 4.75 4 x = 4.75

  26. Finding the inverse function × 3 + 5 x 3x + 5 x– 5 x– 5 – 5 ÷ 3 3 3 The inverse of x 3x + 5 is x We can write x 3x + 5 as and we perform the inverse operations in reverse order. To find the inverse of x 3x + 5 we start with x x

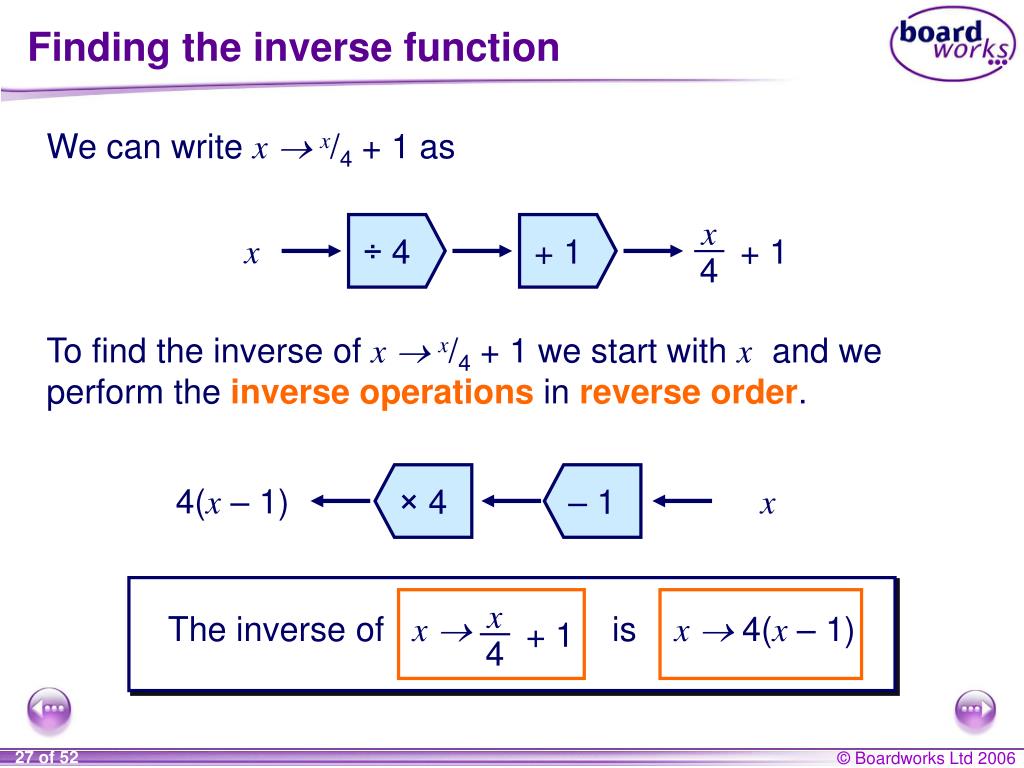

  27. Finding the inverse function ÷ 4 + 1 x x x + 1 + 1 4 4 × 4 – 1 The inverse of x is x 4(x – 1) We can write xx/4 + 1 as and we perform the inverse operations in reverse order. To find the inverse of xx/4 + 1 we start with x 4(x – 1) x

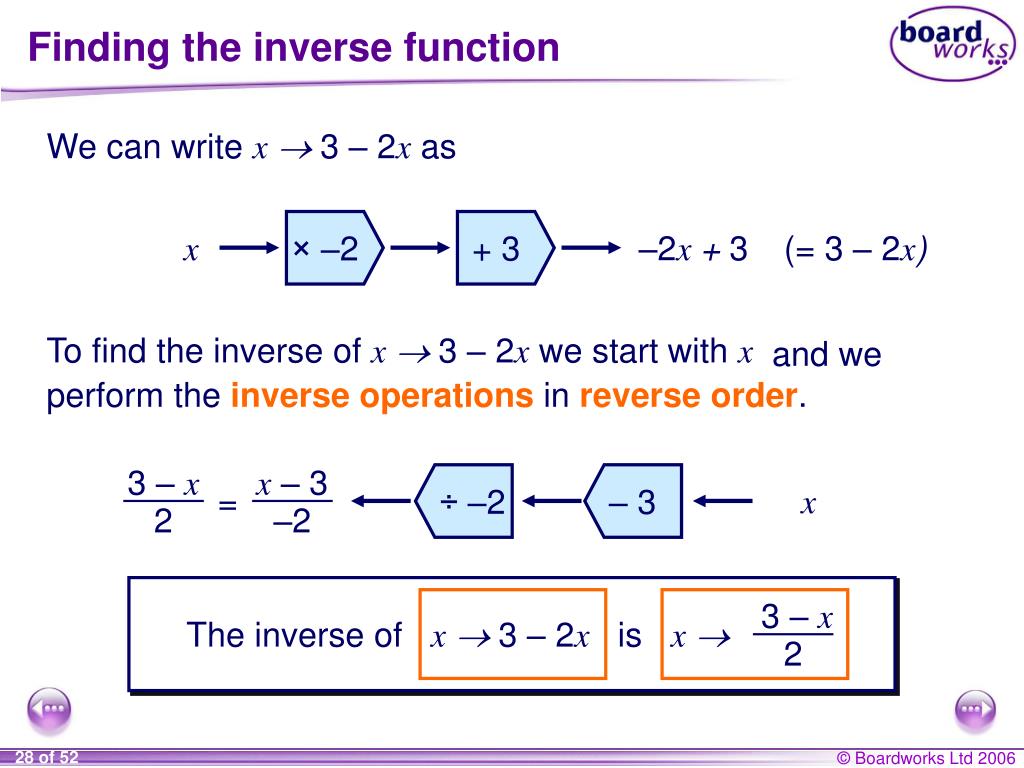

  28. Finding the inverse function ×–2 + 3 x –2x + 3 3 – x x– 3 2 –2 3 – x ÷ –2 – 3 2 The inverse of x 3 – 2x is x We can write x 3 – 2x as (= 3 – 2x) To find the inverse of x3 – 2xwe start with x and we perform the inverse operations in reverse order. = x

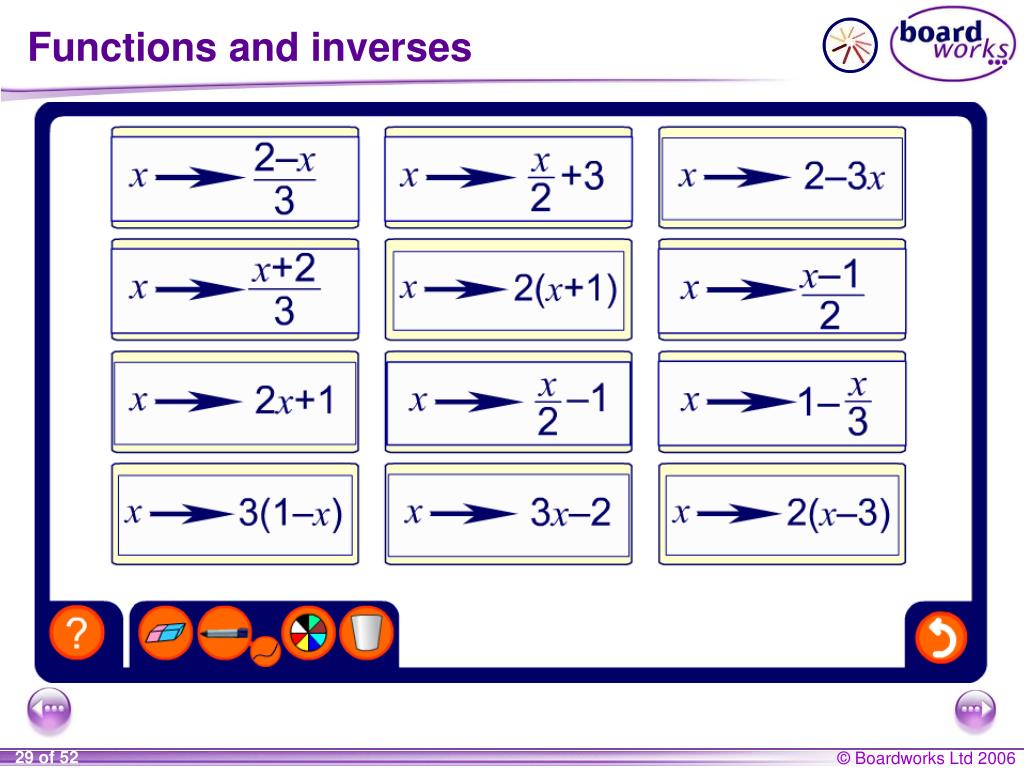

  29. Functions and inverses

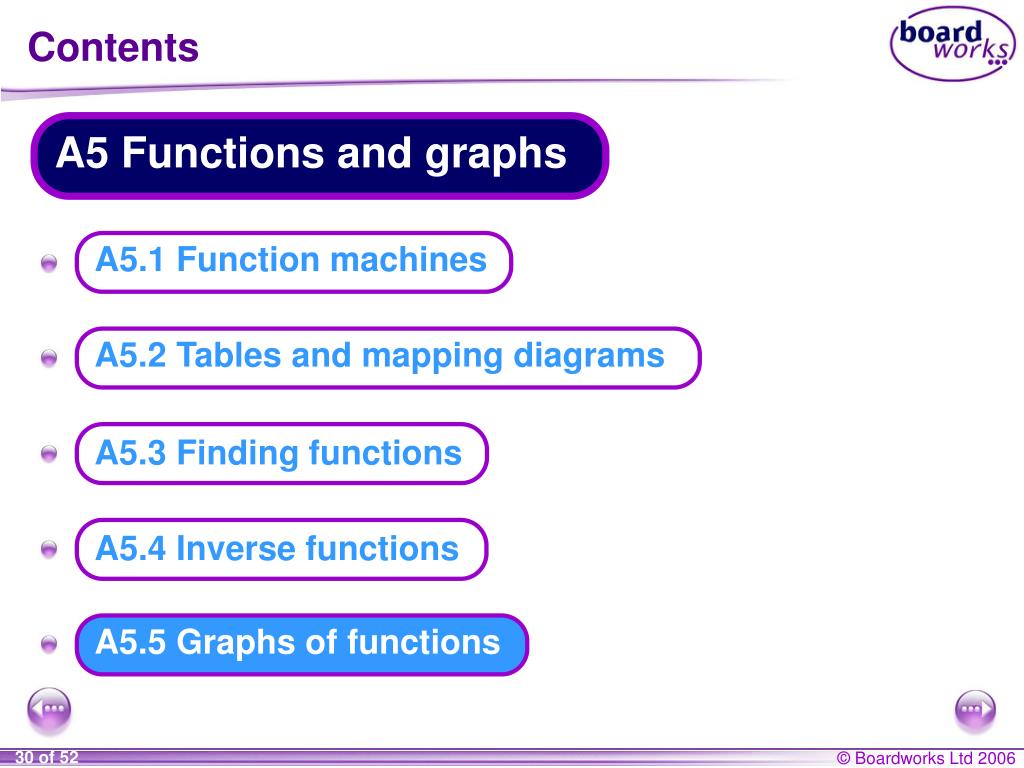

  30. A5 Functions and graphs Contents A5.1 Function machines • A A5.2 Tables and mapping diagrams • A A5.5 Graphs of functions A5.3 Finding functions • A A5.4 Inverse functions • A • A

  31. Coordinate pairs When we write a coordinate, for example, (3, 5) (3, 5) (6, 2) x-coordinate y-coordinate the first number is called the x-coordinateand the second number is called the y-coordinate. the first number is called the x-coordinateand the second number is called the y-coordinate. Together, the x-coordinate and the y-coordinate are called a coordinate pair.

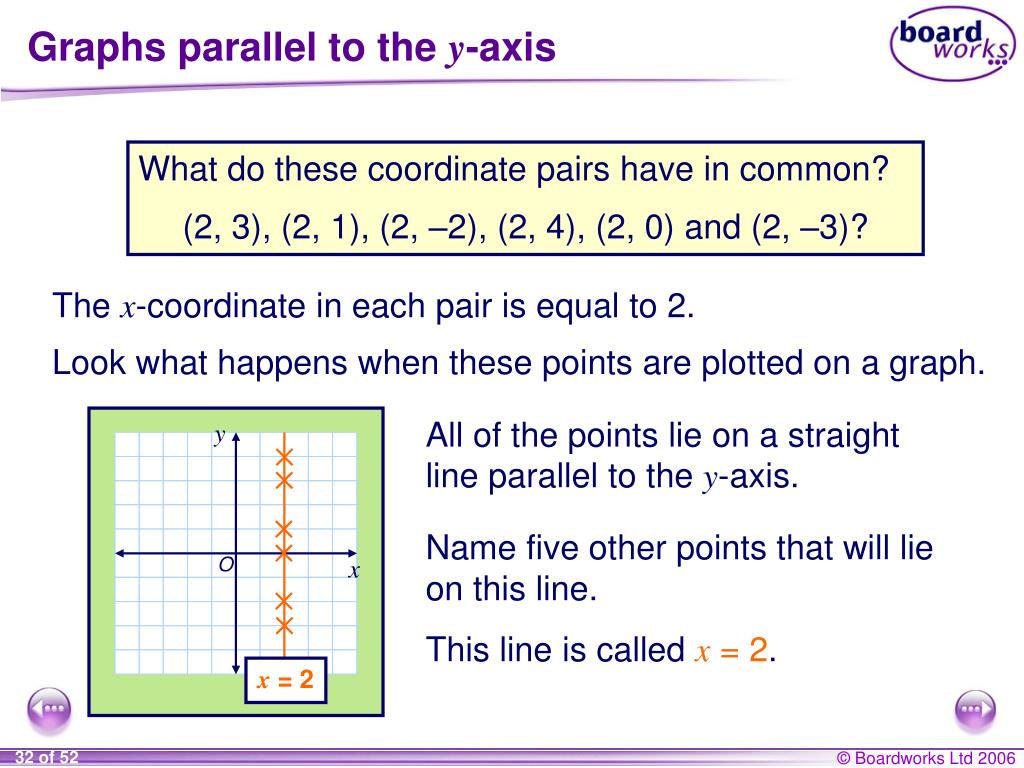

  32. Graphs parallel to the y-axis y x What do these coordinate pairs have in common? (2, 3), (2, 1), (2, –2), (2, 4), (2, 0) and (2, –3)? The x-coordinate in each pair is equal to 2. Look what happens when these points are plotted on a graph. All of the points lie on a straight line parallel to the y-axis. Name five other points that will lie on this line. O This line is called x = 2. x = 2

  33. Graphs parallel to the y-axis y x All graphs of the form x = c, where c is any number, will be parallel to the y-axis and will cut the x-axis at the point (c, 0). O x = –10 x = –3 x = 4 x = 9

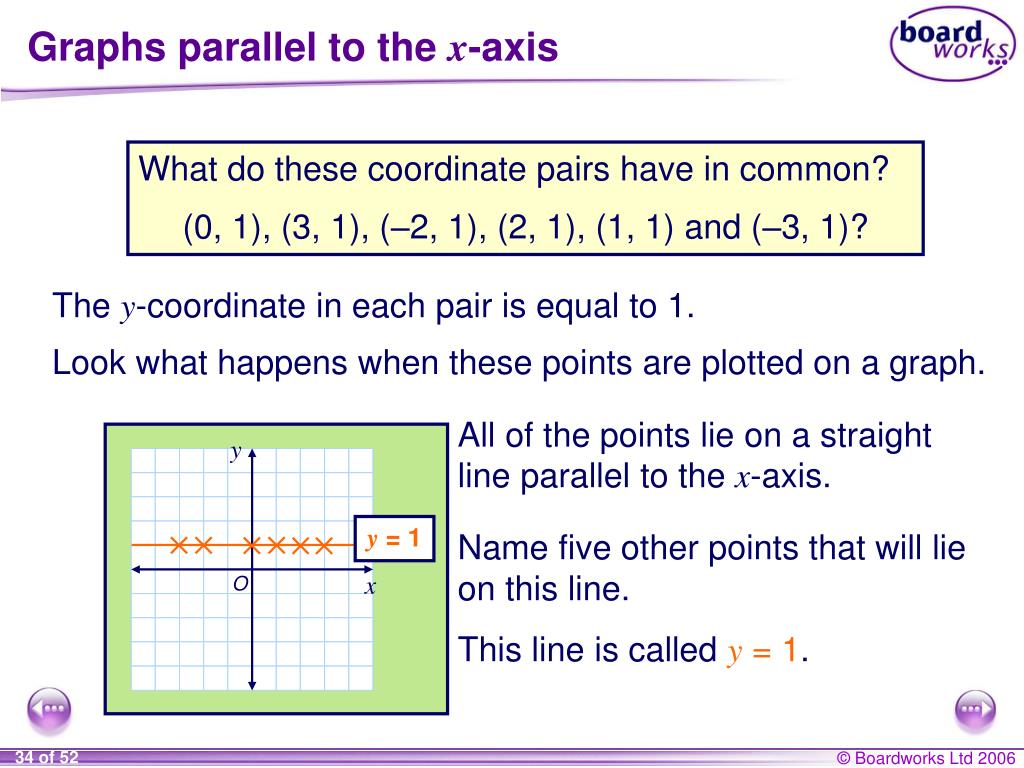

  34. Graphs parallel to the x-axis y x What do these coordinate pairs have in common? (0, 1), (3, 1), (–2, 1), (2, 1), (1, 1) and (–3, 1)? The y-coordinate in each pair is equal to 1. Look what happens when these points are plotted on a graph. All of the points lie on a straight line parallel to the x-axis. y = 1 Name five other points that will lie on this line. O This line is called y = 1.

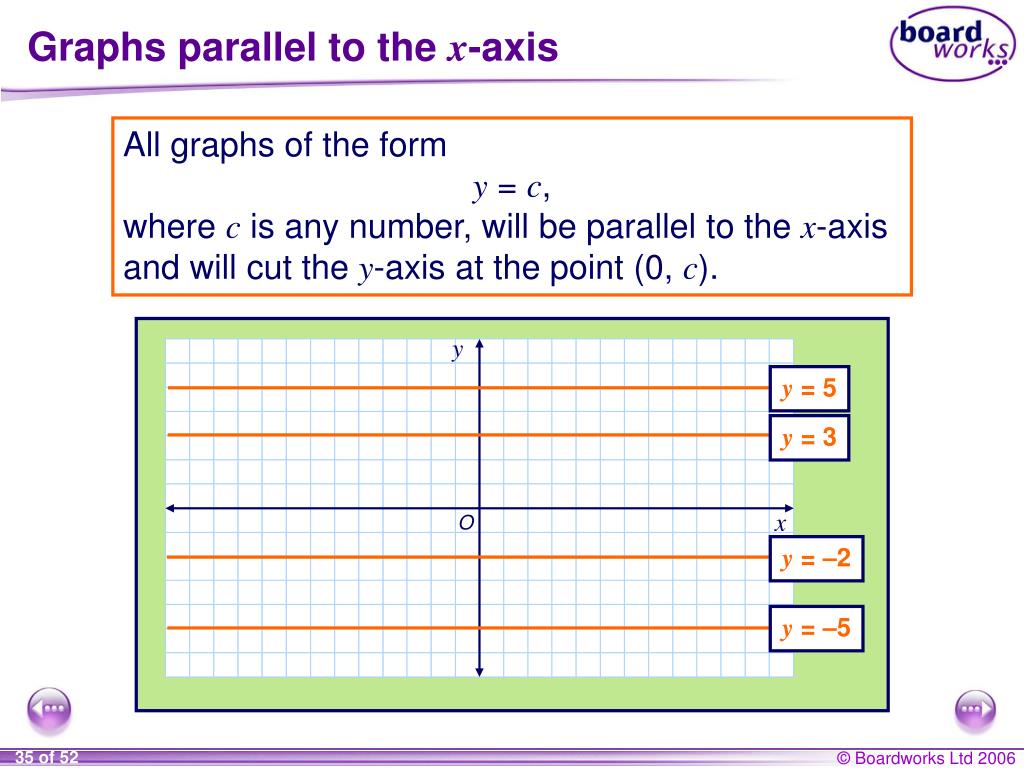

  35. Graphs parallel to the x-axis y x All graphs of the form y = c, where c is any number, will be parallel to the x-axis and will cut the y-axis at the point (0, c). y = 5 y = 3 O y = –2 y = –5

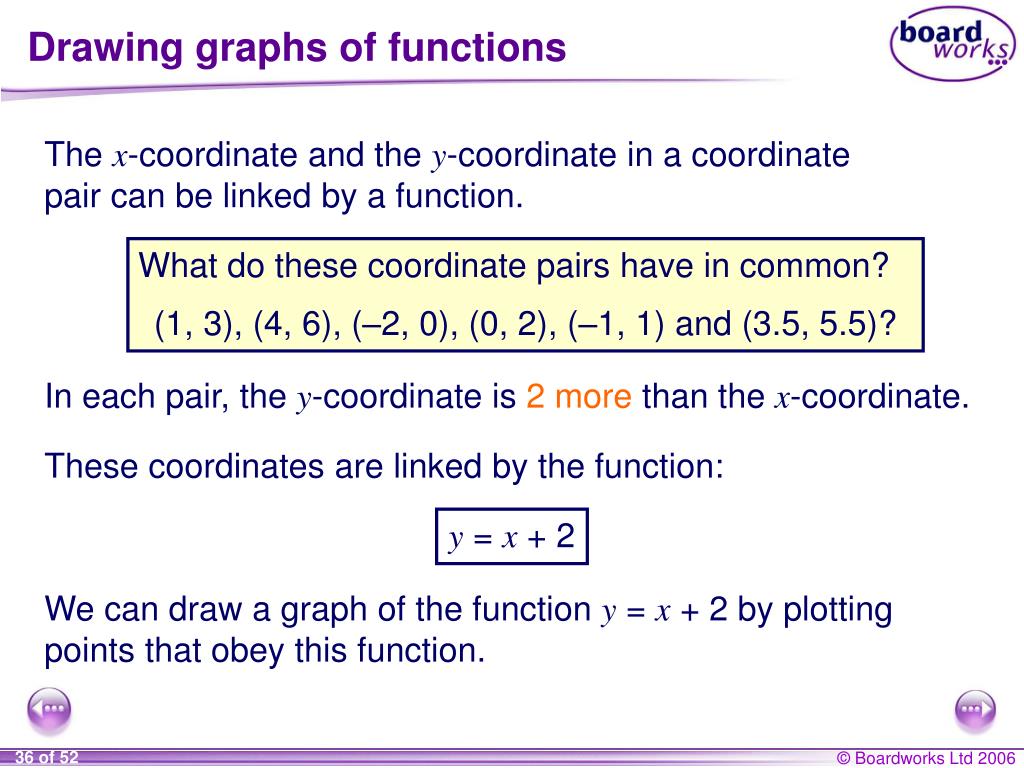

  36. Drawing graphs of functions The x-coordinate and the y-coordinate in a coordinate pair can be linked by a function. What do these coordinate pairs have in common? (1, 3), (4, 6), (–2, 0), (0, 2), (–1, 1) and (3.5, 5.5)? In each pair, the y-coordinate is 2 more than the x-coordinate. These coordinates are linked by the function: y = x + 2 We can draw a graph of the function y = x + 2 by plotting points that obey this function.

  37. Drawing graphs of functions x –3 –2 –1 0 1 2 3 y = x + 3 Given a function, we can find coordinate points that obey the function by constructing a table of values. Suppose we want to plot points that obey the function y = x + 3 We can use a table as follows: 0 1 2 3 4 5 6 (–3, 0) (–2, 1) (–1, 2) (0, 3) (1, 4) (2, 5) (3, 6)

  38. Drawing graphs of functions y x –3 –2 –1 0 1 2 3 y = x – 2 x To draw a graph of y = x– 2: 1) Complete a table of values: y = x– 2 –5 –4 –3 –2 –1 0 1 O 2) Plot the points on a coordinate grid. 3) Draw a line through the points. 4) Label the line. 5) Check that other points on the line fit the rule.

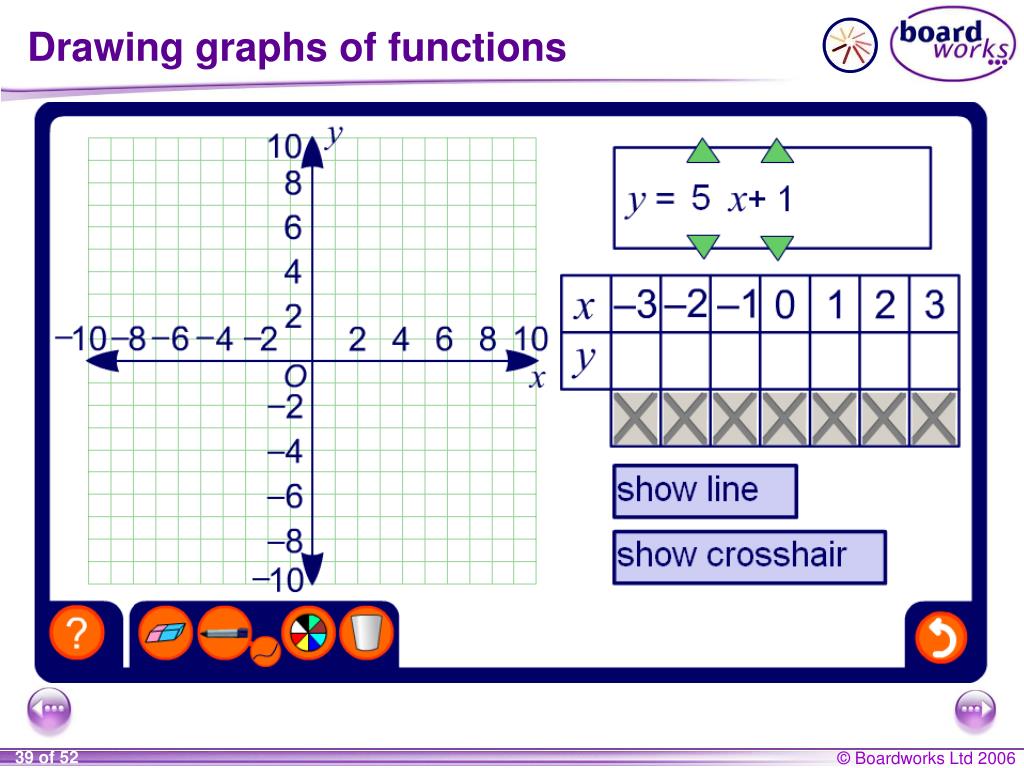

  39. Drawing graphs of functions

  40. The equation of a straight line y = mx + c The general equation of a straight line can be written as: The value of m tells us the gradient of the line. The value of c tells us where the line crosses the y-axis. This is called the y-interceptand it has the coordinate (0, c). For example, the line y = 3x + 4 has a gradient of 3 and crosses the y-axis at the point (0, 4).

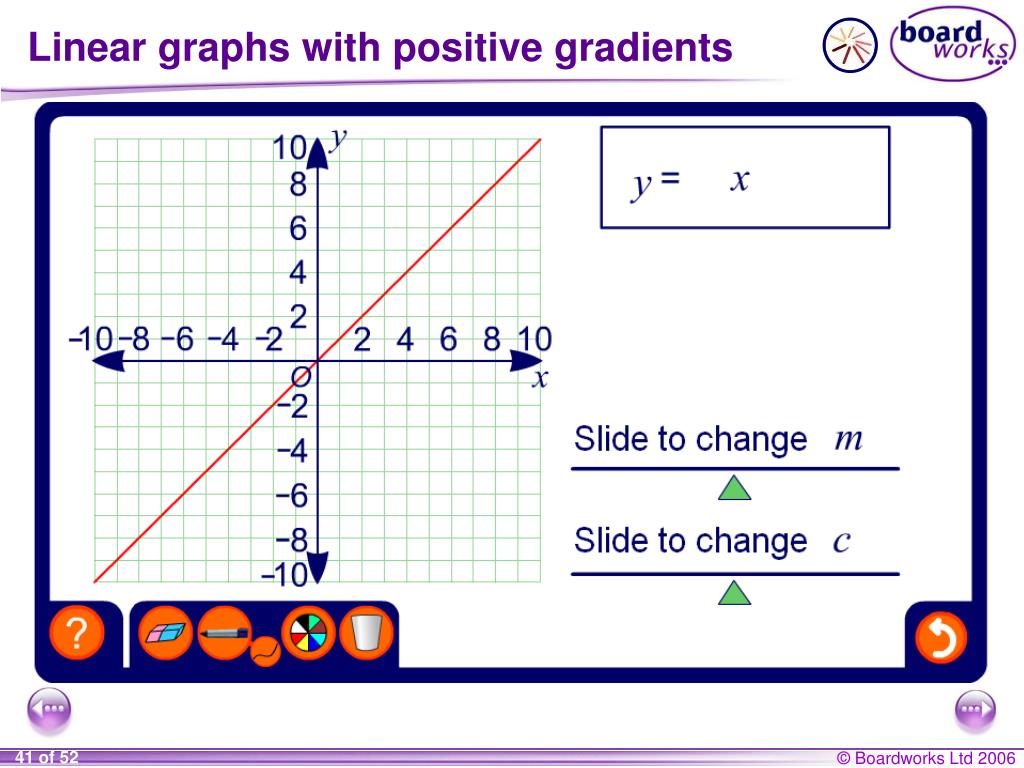

  41. Linear graphswith positive gradients

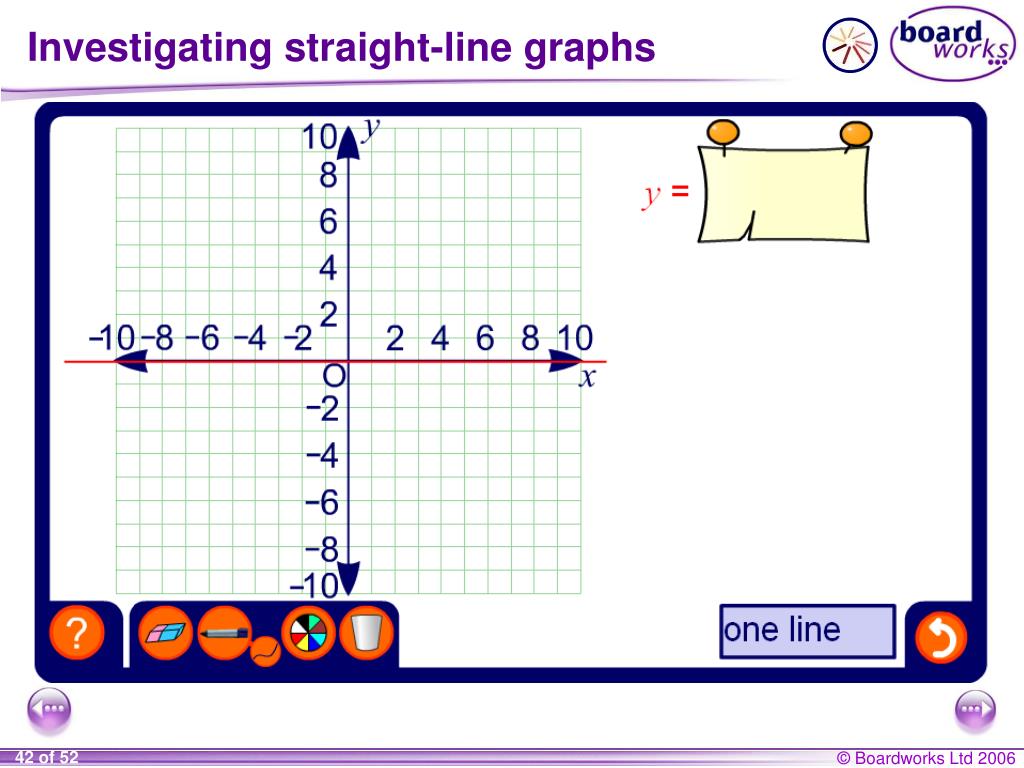

  42. Investigating straight-line graphs

  43. The gradient and the y-intercept 1 x 2 2 Complete this table: 3 (0, 4) (0, –5) (0, 2) –3 (0, 0) y = x y = –2x– 7 (0, –7)

  44. Rearranging equations into the form y = mx + c The equation of a straight line is 2y+x = 4. Find the gradient and the y-intercept of the line. 1 2 –x + 4 y = 2 y = –x + 2 Sometimes the equation of a straight line graph is not given in the form y = mx + c. We can rearrange the equation by transforming both sides in the same way: 2y + x = 4 2y = –x + 4

  45. Rearranging equations into the form y = mx + c 1 1 y = –x + 2 2 2 – Sometimes the equation of a straight line graph is not given in the form y = mx + c. The equation of a straight line is 2y+x = 4. Find the gradient and the y-intercept of the line. Once the equation is in the form y = mx + c we can determine the value of the gradient and the y-intercept. So the gradient of the line is 2. and the y-intercept is

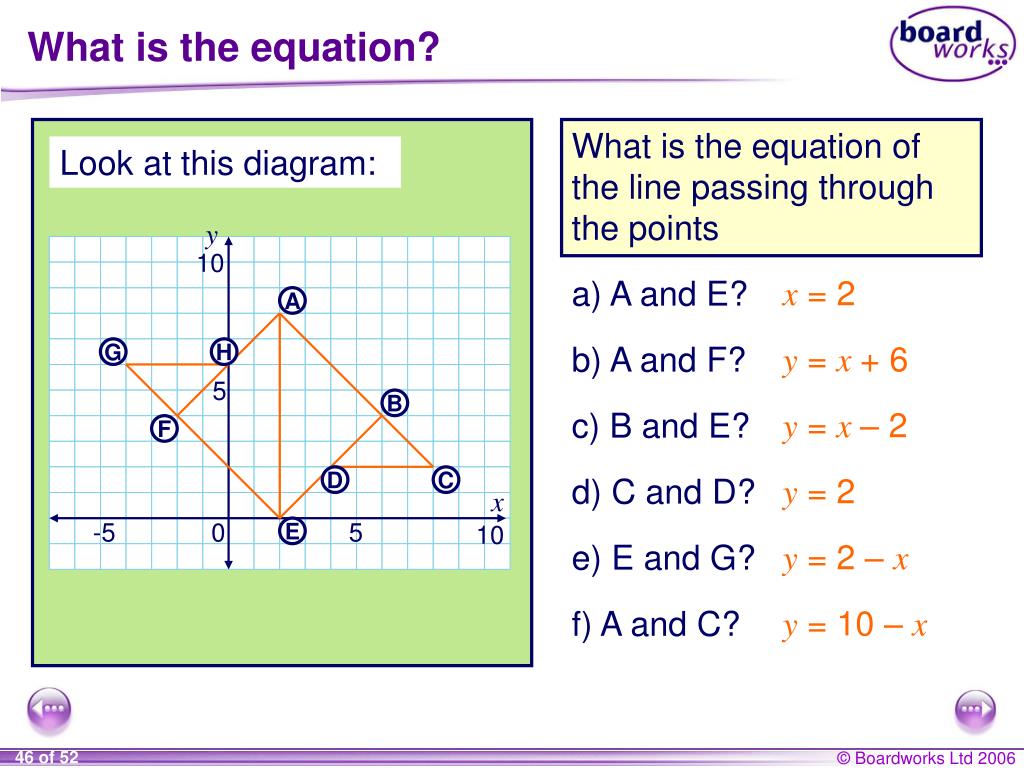

  46. What is the equation? 10 A G H 5 B F D C -5 0 5 10 E What is the equation of the line passing through the points Look at this diagram: y a) A and E? x = 2 b) A and F? y = x + 6 y = x – 2 c) B and E? d) C and D? y = 2 x e) E and G? y = 2 –x f) A and C? y = 10 –x

  47. Substituting values into equations A line with the equation y = mx + 5 passes through the point (3, 11). What is the value of m? To solve this problem we can substitute x = 3 and y = 11 into the equation y = mx + 5. This gives us: 11 = 3m + 5 Subtracting 5: 6 = 3m Dividing by 3: 2 = m m = 2 The equation of the line is therefore y = 2x + 5.

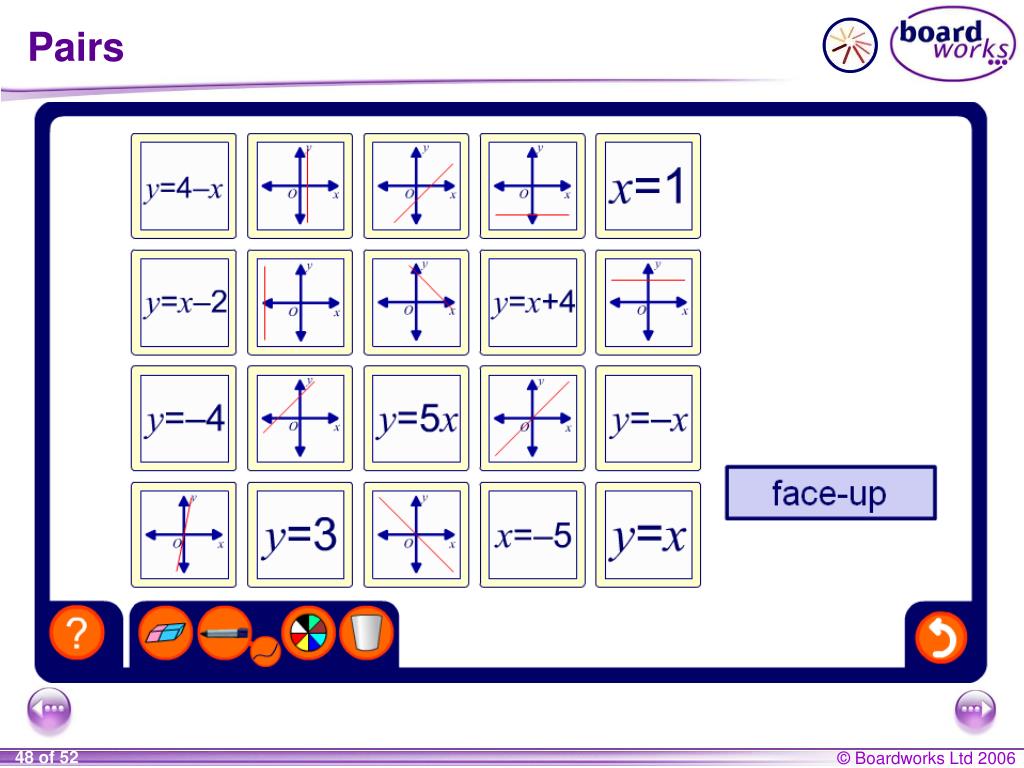

  48. Pairs

  49. Matching statements

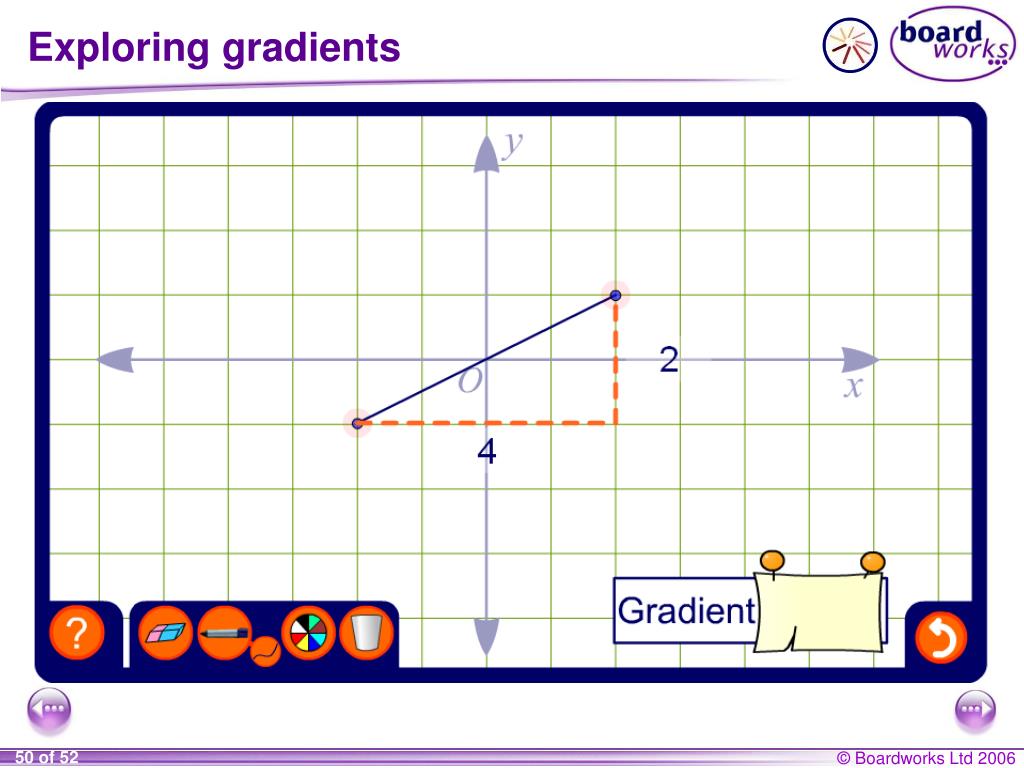

  50. Exploring gradients
