  1. PT-DZ12000Series System Projector

  2. DLP Projector Line Up NEW! NEW! 1 Chip DLPTM 3 Chip DLPTM 12,000 lm High Picture Quality DiverseSystemApplications PT-D12000 PT-DZ12000 10,000 lm Flexible Installation High Reliability PT-D10000 PT-DW10000 7,000 lm PT-D7700 PT-D5700/L 6,000 lm PT-DW5100/L PT-DW7000 5,000 lm 4,000 lm PT-D4000 After August 2008

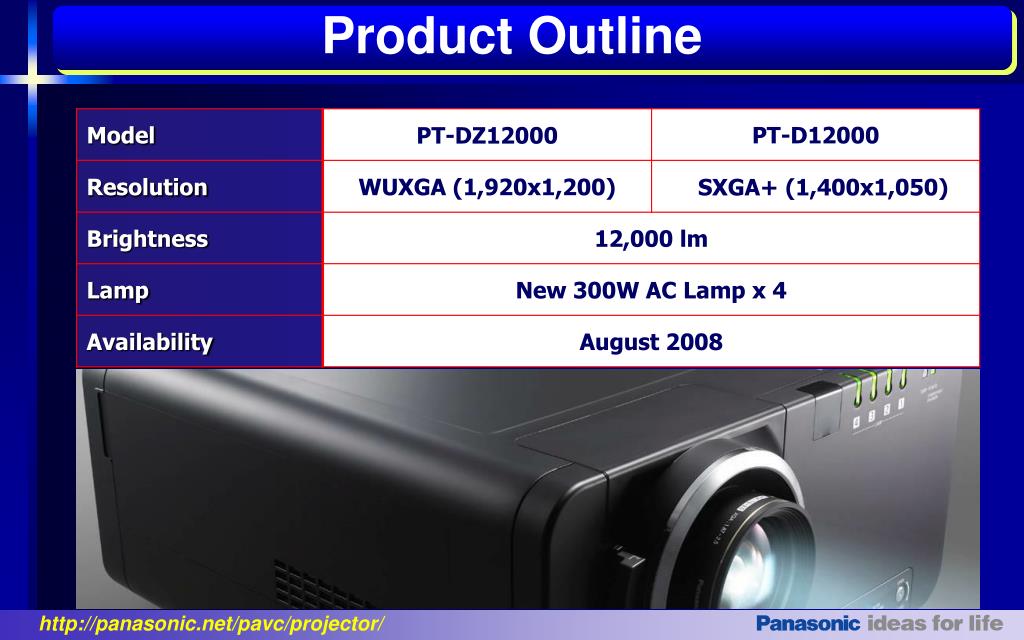

  3. Product Outline

  4. Features to Satisfy User Requirements 1 Excellent Projector Basic Features Superb Reliability for Customer’s Peace of Mind 2 3 Perfect for Diverse Installation Styles

  5. Features to Satisfy User Requirements 1 Excellent Basic Features • Need images to be bright, crisp & sharp • Need details to be clearly expressed • Need quality picture representation • Need wide/hi-res PC projection capabilities • Need easy handling 2 Superb Reliability for Customer’s Peace of Mind 3 Perfect for Diverse Projection & Installation Styles

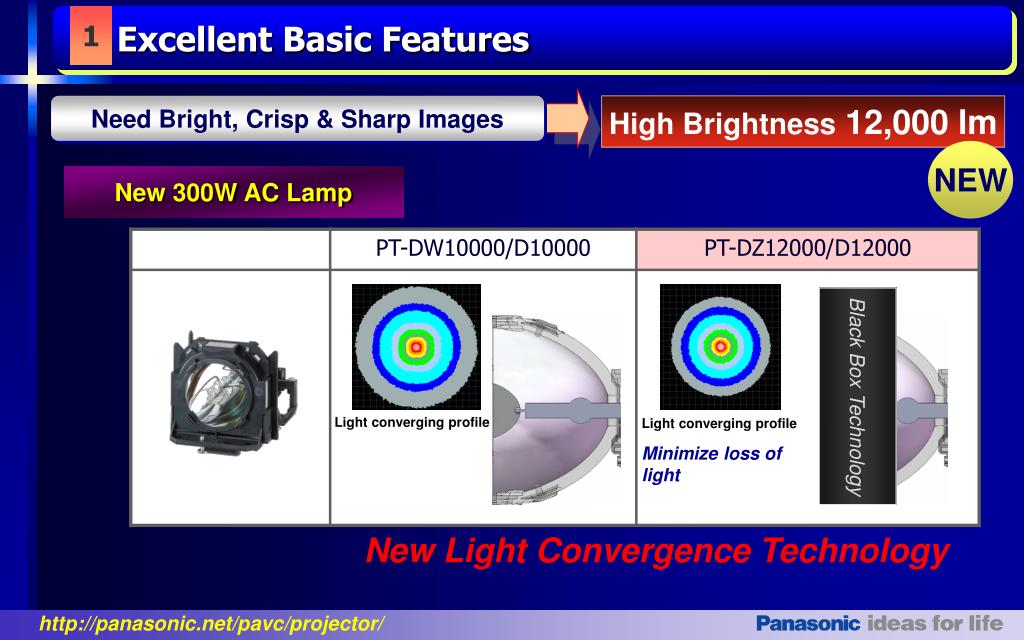

  6. 1 Excellent Basic Features くっきり、はっきりした映像が見たい Need Bright, Crisp & Sharp Images High Brightness 12,000 lm NEW New 300W AC Lamp Black Box Technology Light converging profile Light converging profile Minimize loss of light New Light Convergence Technology

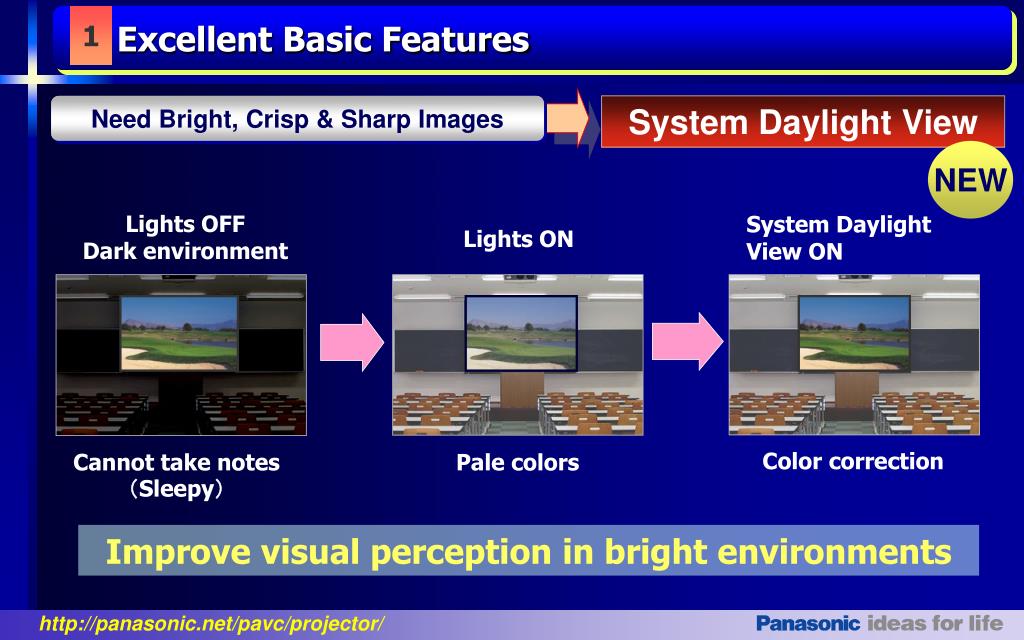

  7. 1 Excellent Basic Features くっきり、はっきりした映像が見たい Need Bright, Crisp & Sharp Images System Daylight View NEW Lights OFFDark environment System Daylight View ON Lights ON Color correction Cannot take notes （Sleepy） Pale colors Improve visual perception in bright environments

  8. System Daylight View Demo

  9. System Daylight View Demo

  10. System Daylight View Demo

  11. New digital image processing circuit for improved clarity, detail, and depth 1 1 Excellent Basic Features Need Details To Be Clearly Expressed Detail Clarity Processor NEW • Focal points and types of detail embedded in each frame are extracted and analyzed to apply necessary sharpness at varying degrees Original Image Conventional Technology Detail Clarity Processor Mediumfreq. High freq. Sharpness is applied uniformly, causing a halo or ring effect. Different degrees of sharpness is applied intelligently for natural three dimensional look. Low freq.

  12. High Contrast 5000 : 1 1 1 Excellent Basic Features Need Quality Picture Representation Full 10bit Picture Processing Circuit Smooth and natural expression • Each color of 1,024 steps is expressed without losing high definition quality. 3D Color Management System High quality and vivid images • Color saturation, hue, and brightness can be adjusted for color accuracy on large screen displays. Dynamic Iris • Mechanical iris with real-time movement according to scene. • Reproduce deeper blacks without compensation in brightness. 4:4:4HD-SDI Compatible • Doubles the amount of color information for high fidelity of color expression. Cinema Server PT-DZ12000/D12000 ＥＴ-ＭＤ１００ＳＤ４

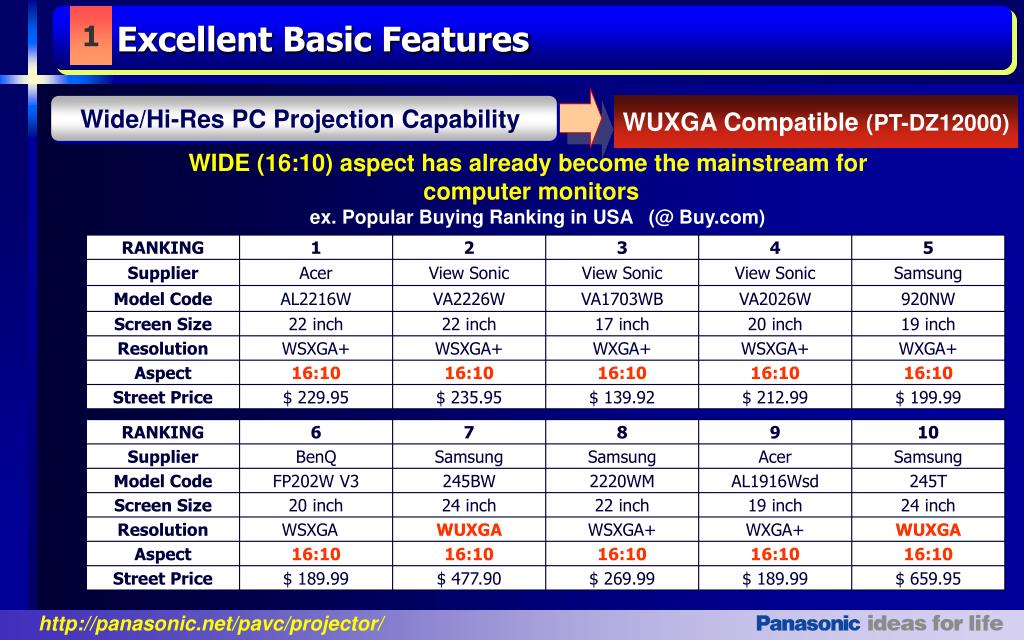

  13. 1 Excellent Basic Features Wide/Hi-Res PC Projection Capability WUXGA Compatible (PT-DZ12000) WIDE (16:10) aspect has already become the mainstream for computer monitors ex. Popular Buying Ranking in USA (@ Buy.com)

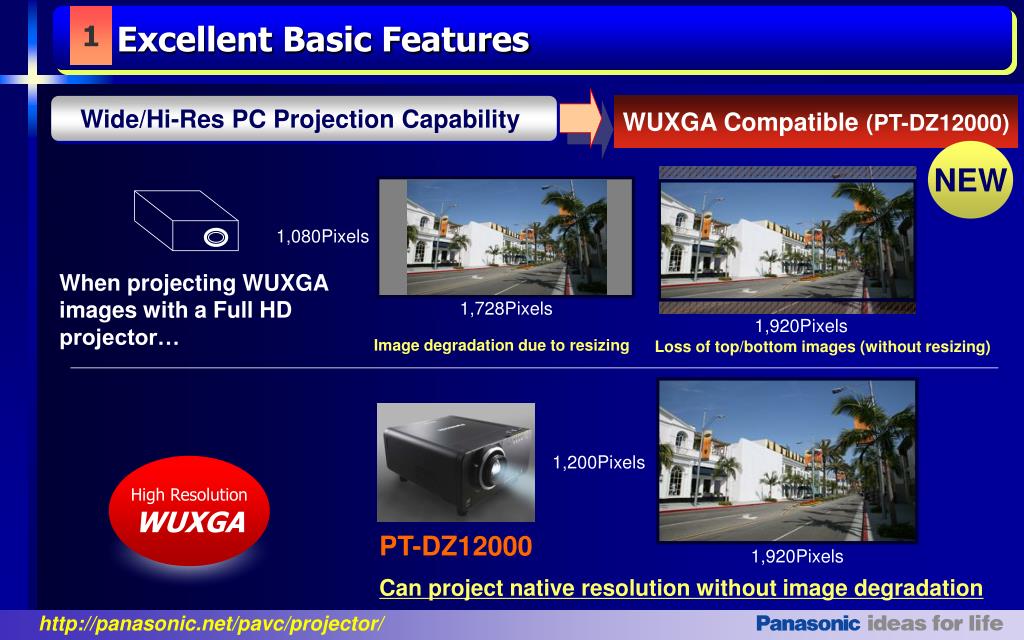

  14. 1 Excellent Basic Features Wide/Hi-Res PC Projection Capability WUXGA Compatible (PT-DZ12000) NEW 1,080Pixels When projecting WUXGA images with a Full HD projector… 1,728Pixels 1,920Pixels Image degradation due to resizing Loss of top/bottom images (without resizing) 1,200Pixels High Resolution WUXGA PT-DZ12000 1,920Pixels Can project native resolution without image degradation

  15. 1 Excellent Basic Features Wide/Hi-Res PC Projection Capability WUXGA Compatible (PT-DZ12000) Optimum use of screen when projecting Full HD sources Full HD PROJECTOR PT-DZ12000 (WUXGA) 1,920Pixels 1,920Pixels 1,080Pixels え 1,200Pixels 120Pixels “New product intro Panasonic” P in P to capitalize the extra 120 pixels available Example : Run a News Telop

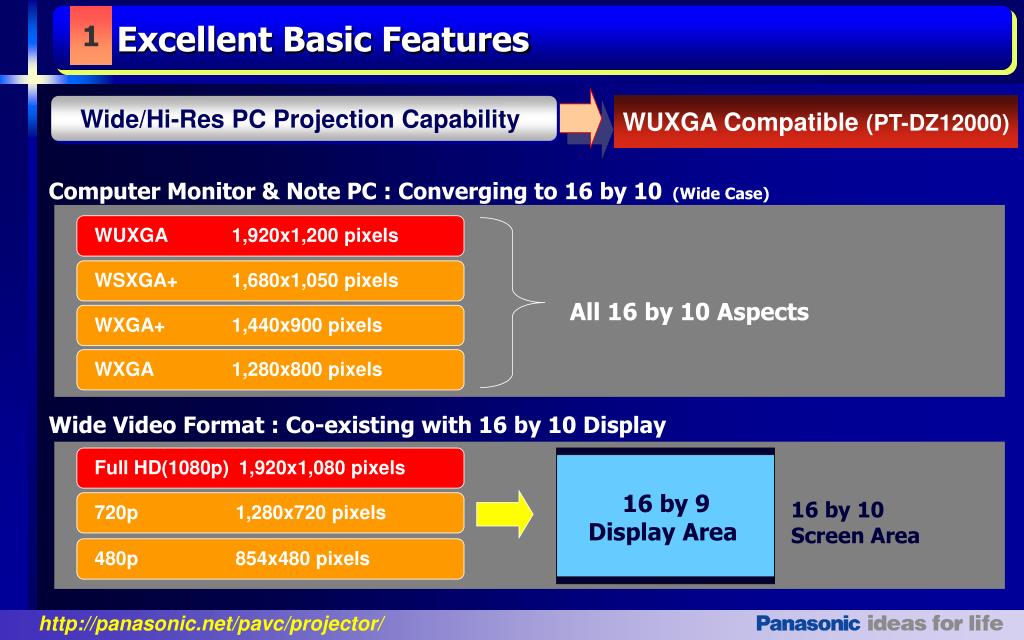

  16. 1 Excellent Basic Features Wide/Hi-Res PC Projection Capability WUXGA Compatible (PT-DZ12000) Computer Monitor & Note PC : Converging to 16 by 10 (Wide Case) WUXGA 1,920x1,200 pixels WSXGA+ 1,680x1,050 pixels All 16 by 10 Aspects WXGA+ 1,440x900 pixels WXGA 1,280x800 pixels Wide Video Format : Co-existing with 16 by 10 Display Full HD(1080p) 1,920x1,080 pixels 16 by 9Display Area 16 by 10 Screen Area 720p 1,280x720 pixels 480p 854x480 pixels

  17. 1 Excellent Basic Features Need Easy Handling Projectors World’s Lightest *12,000 lm PROJECTOR *June 2008

  18. 1 Excellent Basic Features Need Easy Handling Projectors Original technology for compact body and quiet operation 1) High Brightness in a Compact Body Optical Unit • New Original Panasonic Lamps • New Lens to Improve Light Convergence • New Lens Array 2）Quiet Operation in a Compact Body Cooling system • New improved liquid cooling system for 43dB operation

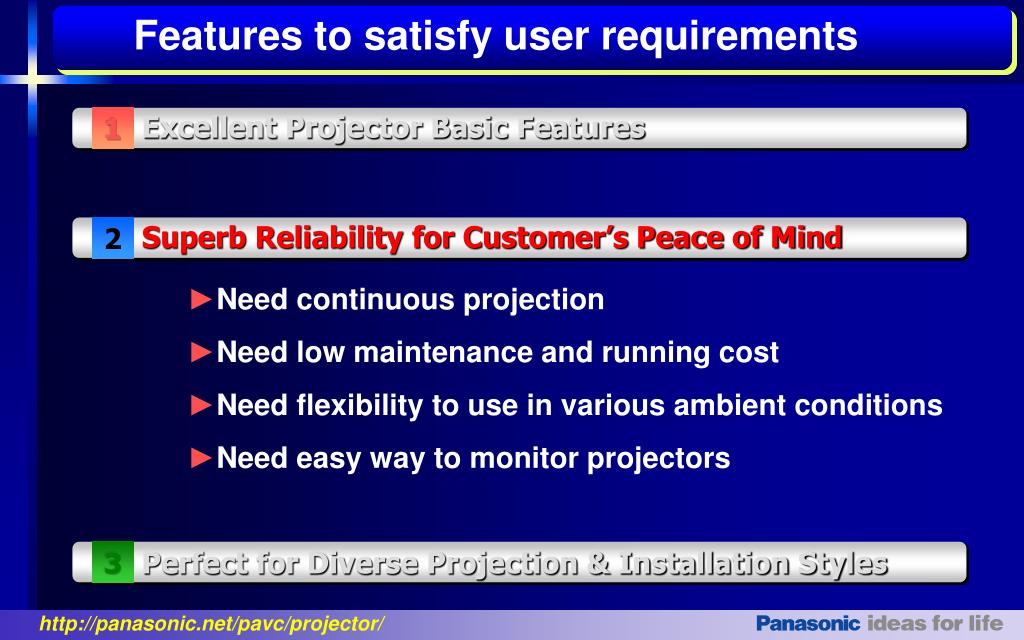

  19. Features to satisfy user requirements 1 Excellent Projector Basic Features 2 Superb Reliability for Customer’s Peace of Mind • Need continuous projection • Need low maintenance and running cost • Need flexibility to use in various ambient conditions • Need easy way to monitor projectors 3 Perfect for Diverse Projection & Installation Styles

  20. ON ON OFF ON OFF OFF 2 Superb Reliability for Customer’s Peace of Mind Need Continuous Operation Four Lamp System Have you ever experienced lamp failure during an important meeting? Panasonic Patent The use of multiple lamps & power supplies for each individual lamp Prism Lamp1 Lamp3 Prism Lamp Failure！ Lamp2 Lamp 4 Have you ever had lamps fail in a mission critical 24/7 application? Non-stop 24 hours operation with lamp relay function Example ON OFF ON lamp1 OFF OFF ON lamp2 lamp3 Lamp Failure! lamp4

  21. 2 Superb Reliability for Customer’s Peace of Mind Low Maintenance & Running Cost AUTOCLEANING ROBOT Cost Reduction Safety Concerns Projectors are usually installed on the ceiling meaning they are not easy to access. To clean the filters periodically means having to pay somebody to do so. No filter replacement for 2000h !! No need to replace the filters until you replace the lamps. Minimizes image degradation due to dust. The ACR unit put together with the micro cut filter significantly reduce the penetration of dust into the projector. The electrostatic air filter uses ions to attract and collect dust particles.

  22. 2 Superb Reliability for Customer’s Peace of Mind Ambient Condition Flexibility Original Liquid Cooling System This system provides image stability in various conditions New Liquid Cooling System using Original Technology • Withstands ambient temperatures up to 113F(45C)*. • Gives long term stable operation due to careful regulation of temperature around the DLP chips. • Cools the DLP chips directly, so less fans are needed. - Less intrusion of dirt - Quiet projector operation. * The operating temperature range is 0°C to 40°C when used in High-Altitude mode (1,400 m [4,593 feet] to 2,700 m [8,858 feet). Also, if the ambient temperature exceeds 40°C (104°F) (35°C [95°F] in High-Altitude mode) when using all four lamps, the light output may be reduced approximately 30% to protect the projector

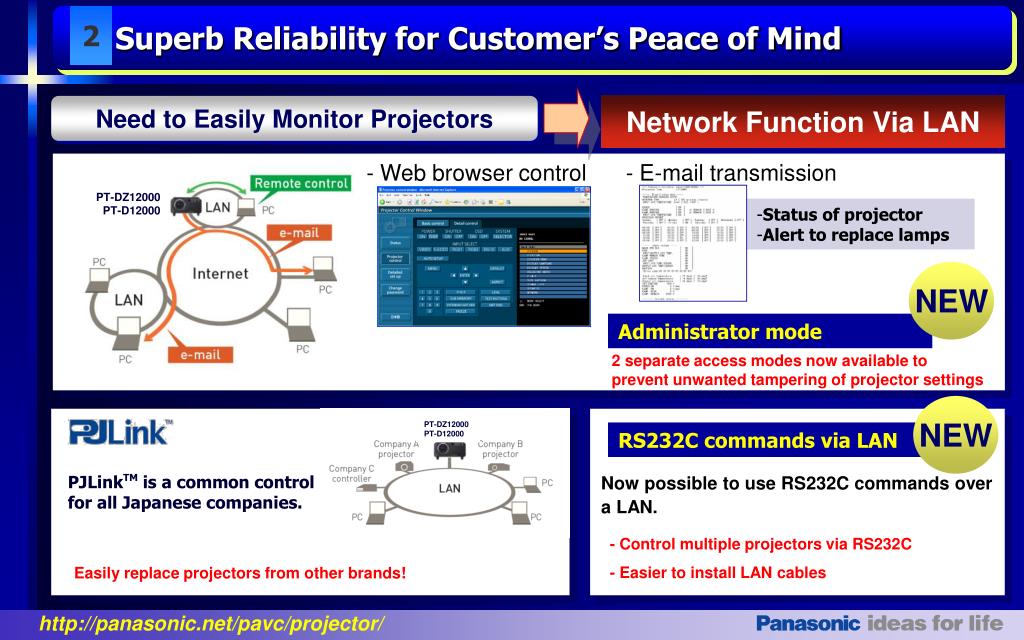

  23. PT-DZ12000 PT-D12000 2 Superb Reliability for Customer’s Peace of Mind Need to Easily Monitor Projectors Network Function Via LAN - Web browser control - E-mail transmission PT-DZ12000 PT-D12000 • Status of projector • Alert to replace lamps NEW Administrator mode 2 separate access modes now available toprevent unwanted tampering of projector settings NEW RS232C commands via LAN PJLinkTM is a common control for all Japanese companies. Now possible to use RS232C commands over a LAN. - Control multiple projectors via RS232C - Easier to install LAN cables Easily replace projectors from other brands!

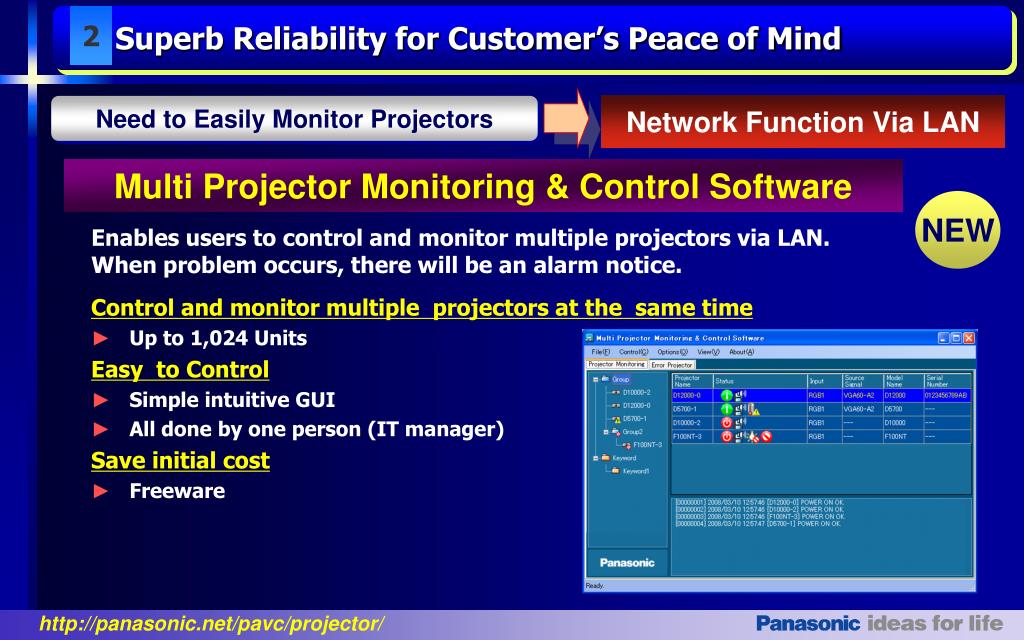

  24. 2 Superb Reliability for Customer’s Peace of Mind Need to Easily Monitor Projectors Network Function Via LAN Multi Projector Monitoring & Control Software NEW Enables users to control and monitor multiple projectors via LAN. When problem occurs, there will be an alarm notice. Control and monitor multiple projectors at the same time • Up to 1,024 Units Easy to Control • Simple intuitive GUI • All done by one person (IT manager) Save initial cost • Freeware

  25. Features to satisfy user requirements 1 Excellent Projector Basic Features 2 Superb Reliability for Customer’s Peace of Mind 3 Perfect for Diverse Projection & Installation Styles • Need flexible projection styles • Need flexible installation styles

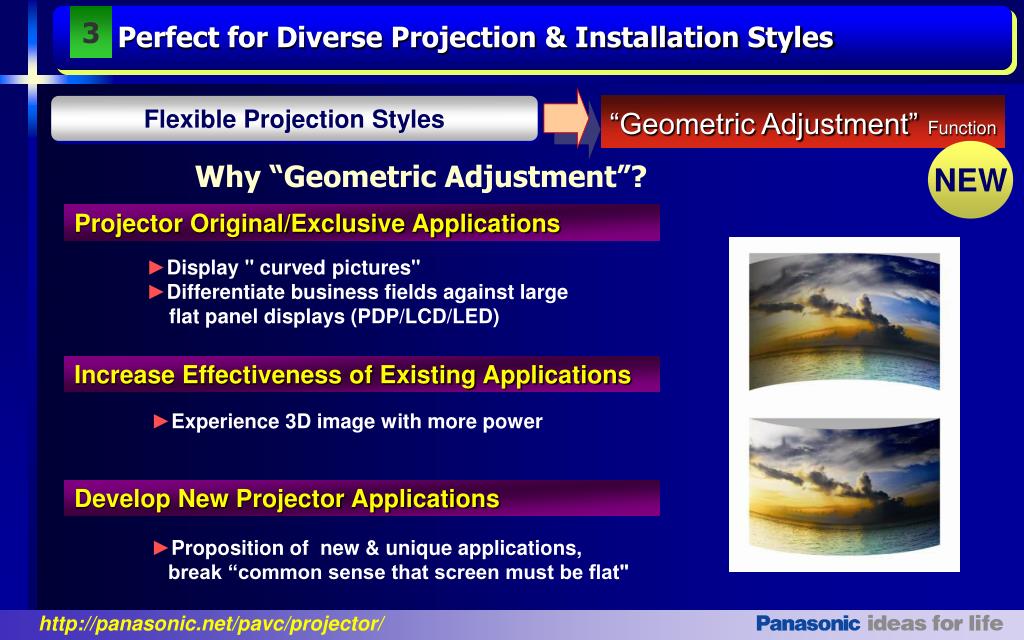

  26. 3 Perfect for Diverse Projection & Installation Styles Flexible Projection Styles “Geometric Adjustment”Function NEW Why “Geometric Adjustment”? Projector Original/Exclusive Applications • Display " curved pictures" • Differentiate business fields against large flat panel displays (PDP/LCD/LED) Increase Effectiveness of Existing Applications • Experience 3D image with more power Develop New Projector Applications • Proposition of new & unique applications, break “common sense that screen must be flat"

  27. 3 Perfect for Diverse Projection & Installation Styles Flexible Projection Styles “Geometric Adjustment”Function NEW ~What's “Geometric Adjustment" ?~ Flexible calibration for geometrical picture conversion,from “Flat Surfaces" to "Curved Surfaces" Benefits of Built-In Type Comparison VS External Box Type Easy control • Can be adjusted using the supplied remote controller

  28. 3 Perfect for Diverse Projection & Installation Styles Flexible Projection Styles Built-in multi screen support system 1. Edge blending function Adjoining edges in a 2x2 multi-screen system can be blended to create a smooth & seamless image. 2. Color matching function Slight variations in the color reproduction of individual projectors can be corrected in multi screen applications. 3. Multi-screen processor External device is unnecessary. P in P Function Can show two input sources at the same time • Main/Sub input source • Able to change sizes

  29. 3 Perfect for Diverse Projection & Installation Styles Flexible Installation Styles NEW 360 Degrees Setting Accommodate different installation conditions Downwards projection Horizontal/Vertical Lens Shift Installation flexibilityExample:avoid air ventilation Optional Lens for Various Lenses ET-D75LE6 ET-D75LE1 ET-D75LE5 ET-D75LE2 ET-D75LE3 ET-D75LE4 ET-D75LE8

  30. OTHER FEATURES Universal Design • Full Open Cover for Easy Lens Replacement • Easy Lamp Replacement All lamps accessible from the back. • 30m Long Range Wireless Remote Control • Blind Touch Operation • 4 Direction Grip for Easy Handling Built-in illumination LED • AC Cord with Built in “Pull Out Protection”

  31. OTHER FEATURES Initialize All Settings Can return to factory default settings by a touch of a button. Good for Rental and Staging companies. Save All Adjustment Data Possible to save and store all adjustment data. Can return to this saved data by a touch of a button. Input Numbers Directly Using Remote Controller Input numerical adjustment data in the menu such as positioning, size and color matching using the remote control . OSD Background Color Selection Choose from 6 different OSD background colors in the menu. For easy recognition in stacking operation.

  32. Eco Friendly • Power Consumption Comparison System Daylight View Original Lamp system Test equipment to measure Chromium (Cr) Test room • Hazardous Materials • RoHs Compliant Manufacturing Lead Cadmium Mercury Hexavalent Chromium Polybrominated Biphenyl(PBB) * Exemption: Mercury inside UHM lamp Atomic Test Equipment Molecular Test Equipment

  33. Made in JAPAN

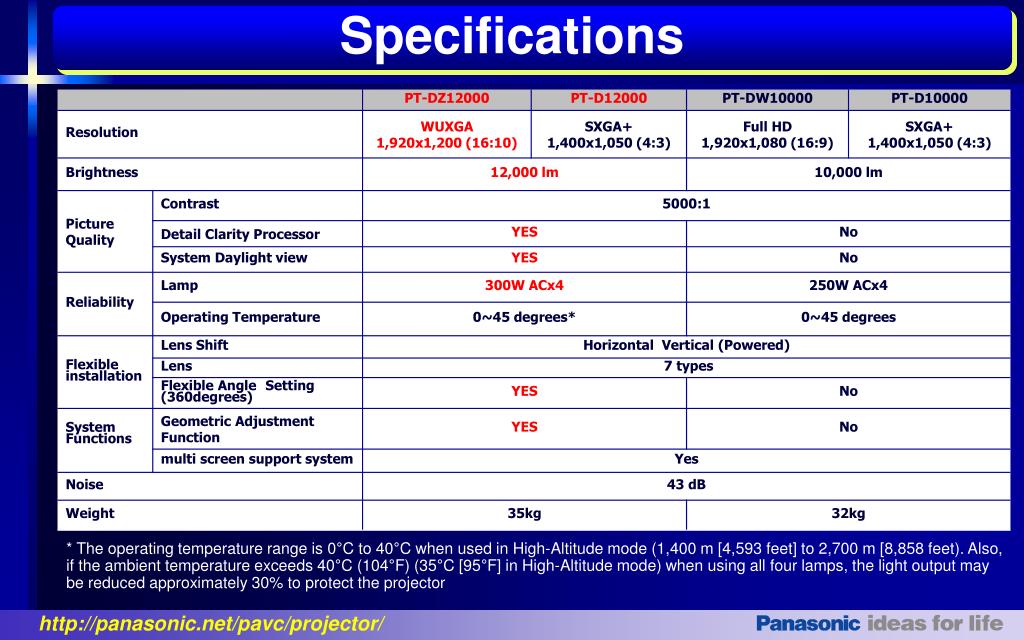

  34. Specifications * The operating temperature range is 0°C to 40°C when used in High-Altitude mode (1,400 m [4,593 feet] to 2,700 m [8,858 feet). Also, if the ambient temperature exceeds 40°C (104°F) (35°C [95°F] in High-Altitude mode) when using all four lamps, the light output may be reduced approximately 30% to protect the projector

  35. Optional Accessory Ceiling Mount Bracket Frame & Carrying Handle ET-PKD100H High-ceiling mount bracket ET-PKD100S Low-ceiling mount bracket ET-PFD100 Frame ET-HAD100 Carrying handle ET-PKD100S ET-PKD100H Input Signal Board Smoke Cut Filter ET-MD77SD1 SD-SDI Input signal board ET-SFD100 ET-MD77SD3 HD-SDI Input signal board ET-MD100SD4 Dual Link HD-SDI Input signal board ET-MD77DV DVI-D Input signal board

  36. Thank you very much!! Thank you very much!!
