Fresnel Biprism

Fresnel Biprism. Augustin-Jean Fresnel was a French physicist who contributed significantly to the establishment of the wave theory of light and optics. He gave a simple arrangement for the production of interference pattern.

americus-witt
Télécharger la présentation

Fresnel Biprism

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Fresnel Biprism Augustin-Jean Fresnel was a Frenchphysicist who contributed significantly to the establishment of the wave theory of light and optics. He gave a simple arrangement for the production of interference pattern.

  2. A prism is a wedge-shaped transparent body which causes incident light to be separated by color. The separation by color occurs since different colors corresponding to different wavelengths. Prism It is a device used to refractlight, reflect it or break it up (to disperse it) into its constituent spectral colours.

  3. C D B E A

  4. Biprism It consists of two thin acute angled prisms joined at the bases. It is constructed as a single prism of obtuse angle of 179º. The acute angle  on both side is about 30´. A portion of the incident light is refracted downward and a portion upward. 179º  

  5. a 179º   c b c a S b The prism is placed with the refracting edge parallel to the line Source S such that Sa is normal to the face bc of prism.

  6. C c A E Fringes of equal width S d a F B Fringes of large width Z2 Z1 b D

  7. When light incident from S on the lower portion of prism It bents upwards and appears to come from virtual source B. Similarly light from S incident on the upper portion of Prism bents downwards appear to come from A. So A and B are two virtual coherent sources. AB = d C is the screen Distance between source and eyepiece = D Interference fringes of equal width will be occurbetween EF portion of the screen. Beyond EF portion fringes of large width will be produced.

  8. Since C is equidistant from A and B so at C maximum fringe intensity will occur. On both sides of C alternate bright and dark fringes will appear. According to the previous theory the fringe width So position of bright fringes from C = Position of dark fringes from C = n = 0,1,2,3….

  9. So the wavelength of light will be

  10. Determination of the distance between the two sources (d) M L1 A convex lens (L1) is placed between the prism and eyepiece (M), such that the image of the virtual sources A and B are seen in the field of view of the eyepiece.

  11. Suppose the distance between the images of A and B as seen by the eyepiece is d1. So , ……..(1) Eyepiece is moved horizontally to determine the fringe width. Suppose for crossing 20 bright fringes from the field of view, the Eyepiece has moved through a distance l. So the fringe width be,

  12. Now move the lens towards eyepiece and bring it to other positon L2 So that again images of A and B are seen clearly in the the field of view Of eyepiece. Again if the distance between the two images be d2 L2 ……..(2)

  13. Multiplying (1) and (2) we get Substituting the values of , d, D we calculate the value of wavelength () of given monochromatic light.

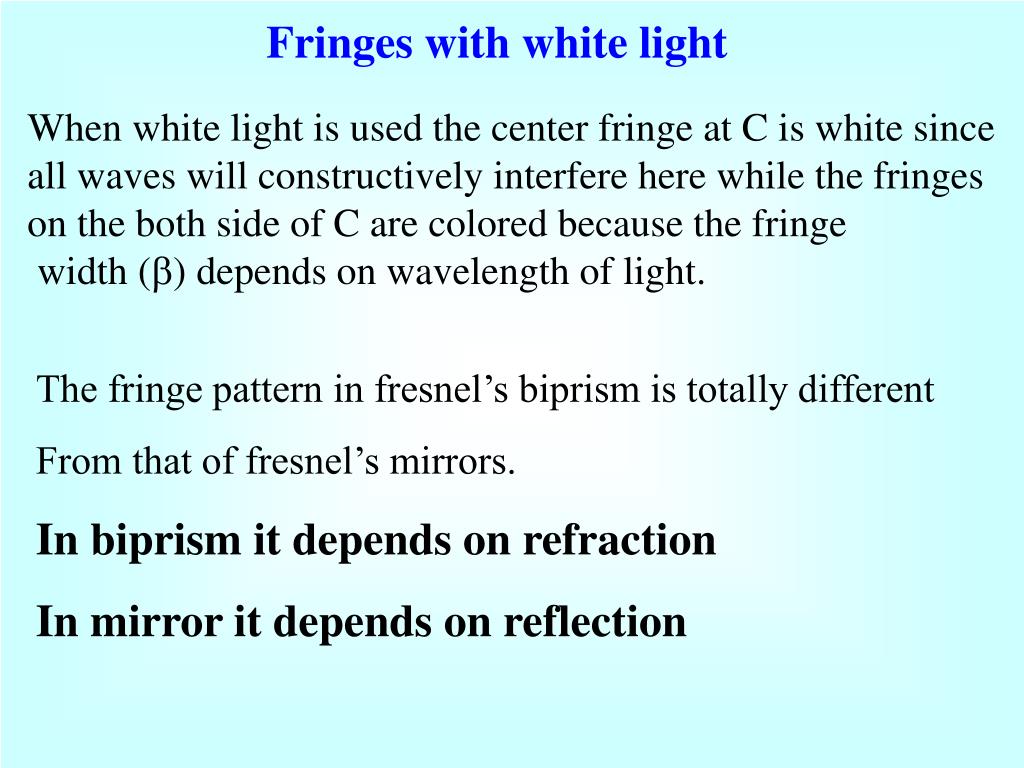

  14. Fringes with white light When white light is used the center fringe at C is white since all waves will constructively interfere here while the fringes on the both side of C are colored because the fringe width () depends on wavelength of light. The fringe pattern in fresnel’s biprism is totally different From that of fresnel’s mirrors. In biprism it depends on refraction In mirror it depends on reflection

  15. For white light the two coherent virtual sources are produced by Refraction and the distance between the two sources depends upon the refractive index which intern depends upon the wavelength. So, for green light the distance between the two sources is different to that with red light.

  16. The distance of the nth bright fringe from the centre with monochromatic light Where

  17. For green light, For red light,
