  1. Acid Rain

  2. What is acid rain? Any ppt →pH value < 5.6 → acid rain

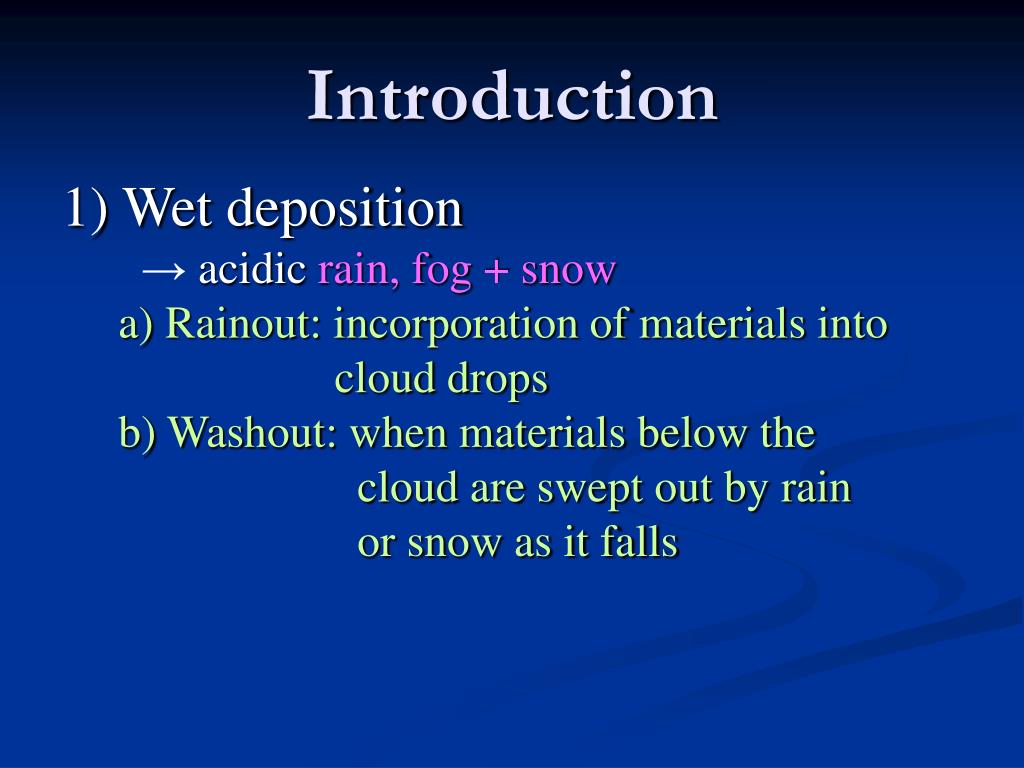

  3. Introduction 1) Wet deposition →acidicrain, fog + snow a) Rainout: incorporation of materials into cloud drops b) Washout: when materials below the cloud are swept out by rain or snow as it falls

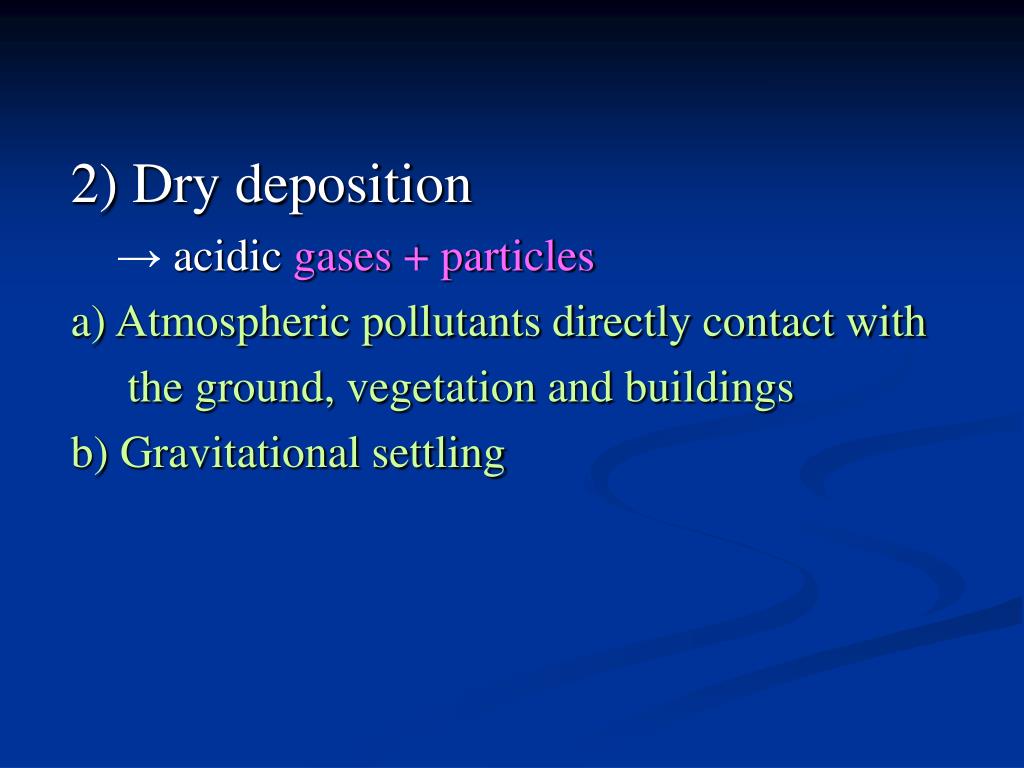

  4. 2) Dry deposition → acidic gases + particles a) Atmospheric pollutants directly contact with the ground, vegetation and buildings b) Gravitational settling

  5. Causes of acid rain Main sources 1) Sulphur dioxides (SO2) a) Natural - volcanoes - sea spray - rotting of vegetation + plankton (浮游生物) b) Human → burning of fossil fuels (coal, oil + natural gas) in power plants + factories → releases sulphur into the air → combines with oxygen → SO2

  6. SO2 Emissions from Canada & the USA in 1998 e.g. In 1998, U.S.’ SO2 emissions were 6 times greater than Canada's.

  7. 2) Nitrogen oxides (NOX) → combustion of fossil fuels in motor vehicles, residential and commercial furnaces, industrial and electrical-utility boilers and engines e.g. a) In HK, 8500 tonnes of SO2, 43200 tonnes of NO2& 5900 tonnes of particulates are emitted annually from the fleet of some 424000 licensed vehicles b) In UK, power stations are responsible for 71% of SO2, 32% ofNO233% ofCO2emission

  8. NOx Emissions from Canada & the USA in 1998 e.g. In 1998, by comparison, U.S. NOX emissions was 11 times more than Canada's. .

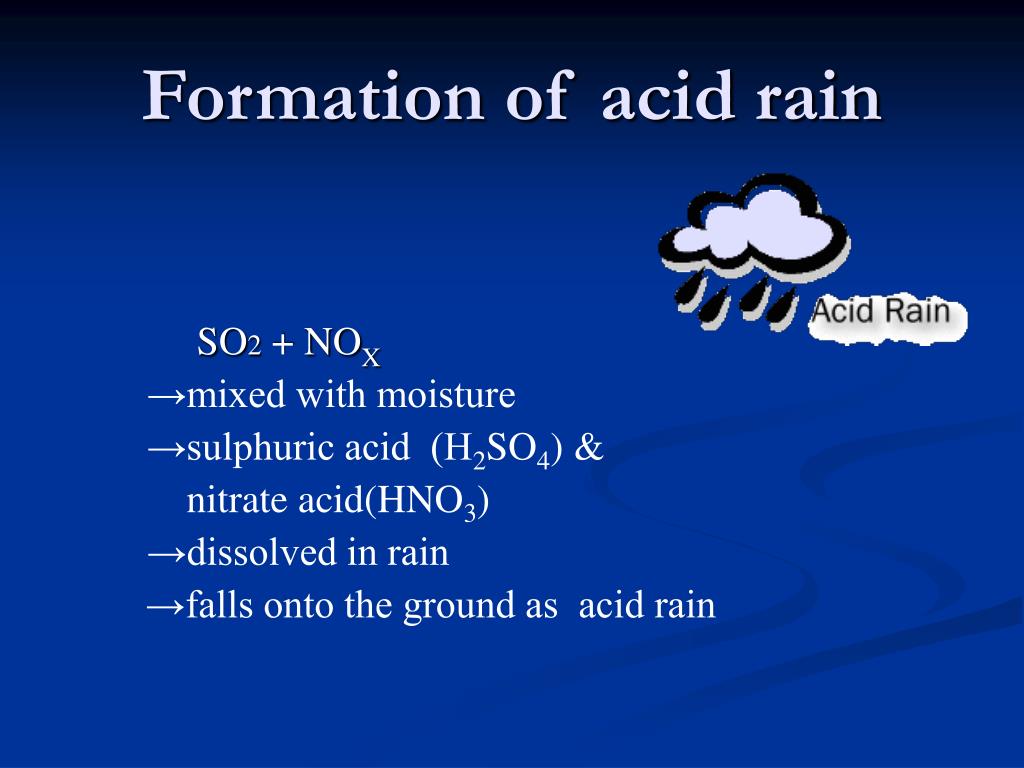

  9. Formation of acid rain SO2 + NOX →mixed with moisture →sulphuric acid (H2SO4)& nitrate acid(HNO3) →dissolved in rain →falls onto the ground as acid rain

  10. Area affected by acid rain West Europe East N. America SE China

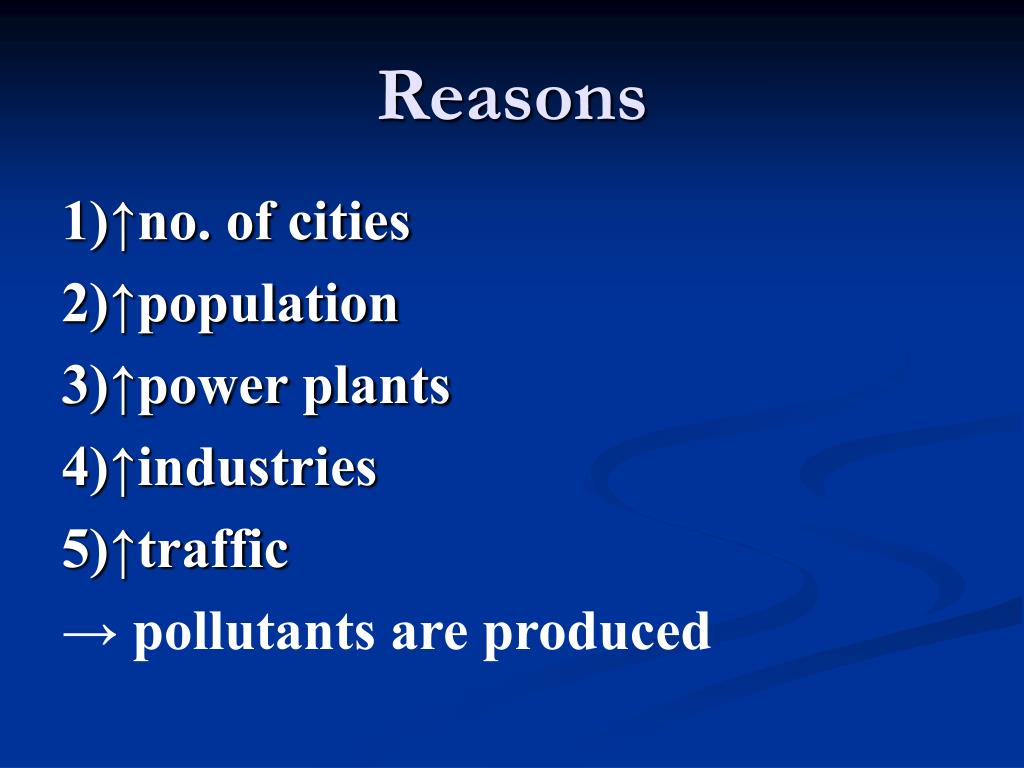

  11. Reasons 1)↑no. of cities 2)↑population 3)↑power plants 4)↑industries 5)↑traffic → pollutants are produced

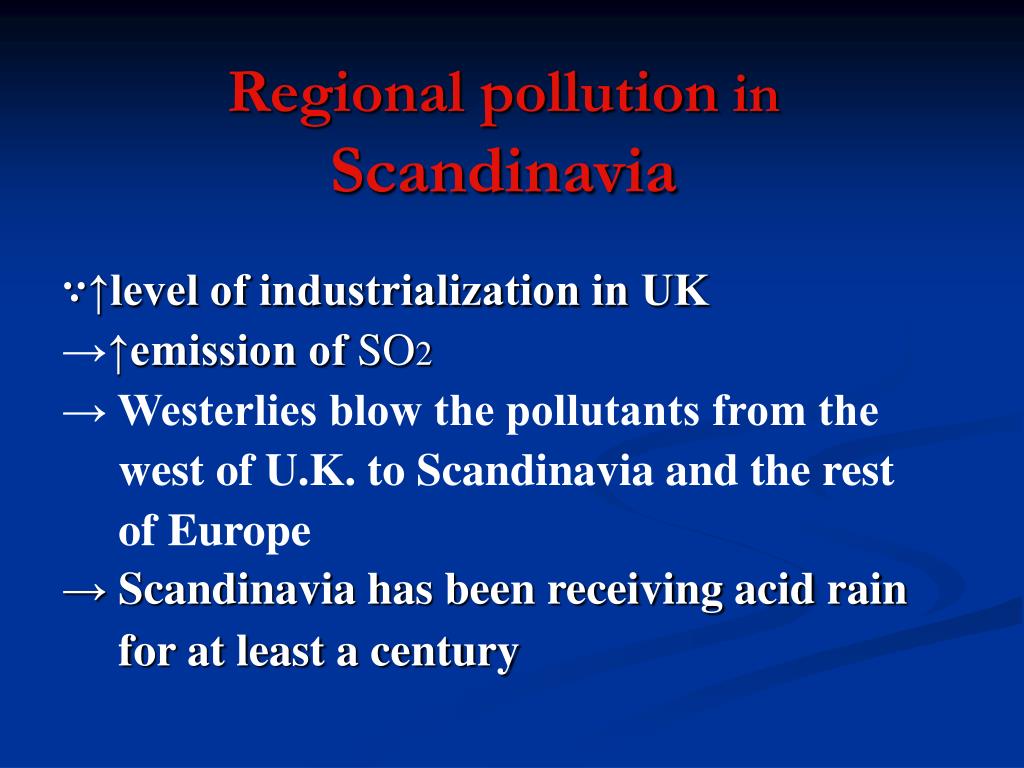

  12. Regional pollution in Scandinavia ∵↑level of industrialization in UK →↑emission of SO2 → Westerlies blow the pollutants from the west of U.K. to Scandinavia and the rest of Europe →Scandinavia has been receiving acid rain for at least a century

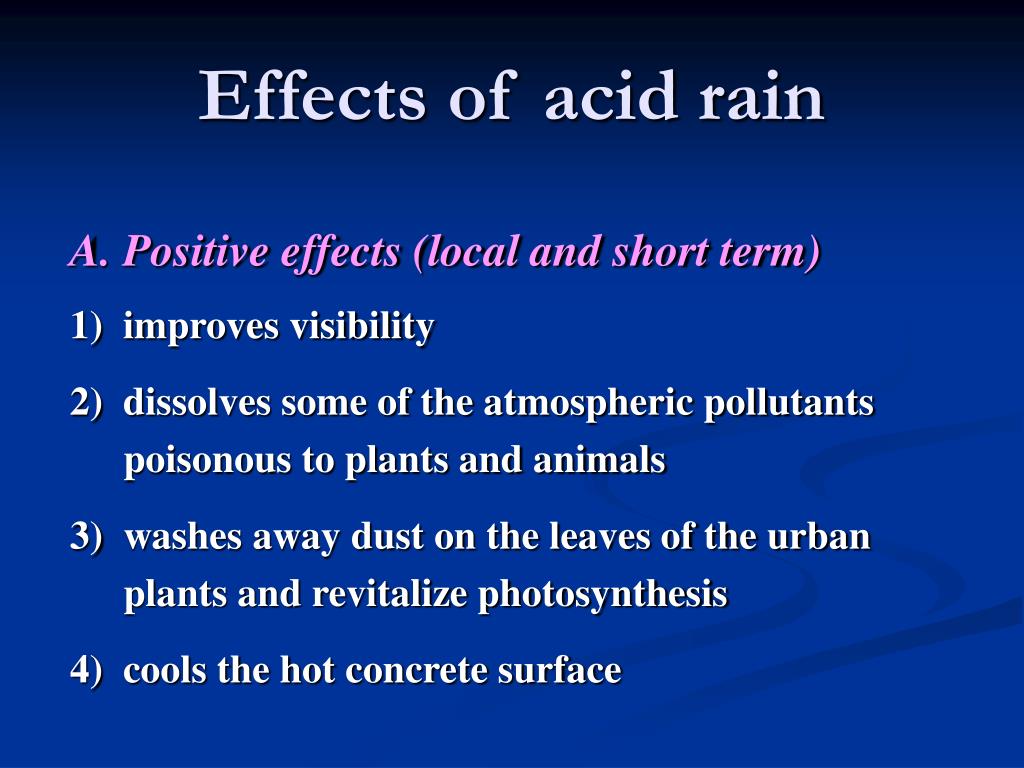

  13. Effects of acid rain A. Positive effects (local and short term) 1) improves visibility 2) dissolves some of the atmospheric pollutants poisonous to plants and animals 3) washes away dust on the leaves of the urban plants and revitalize photosynthesis 4) cools the hot concrete surface

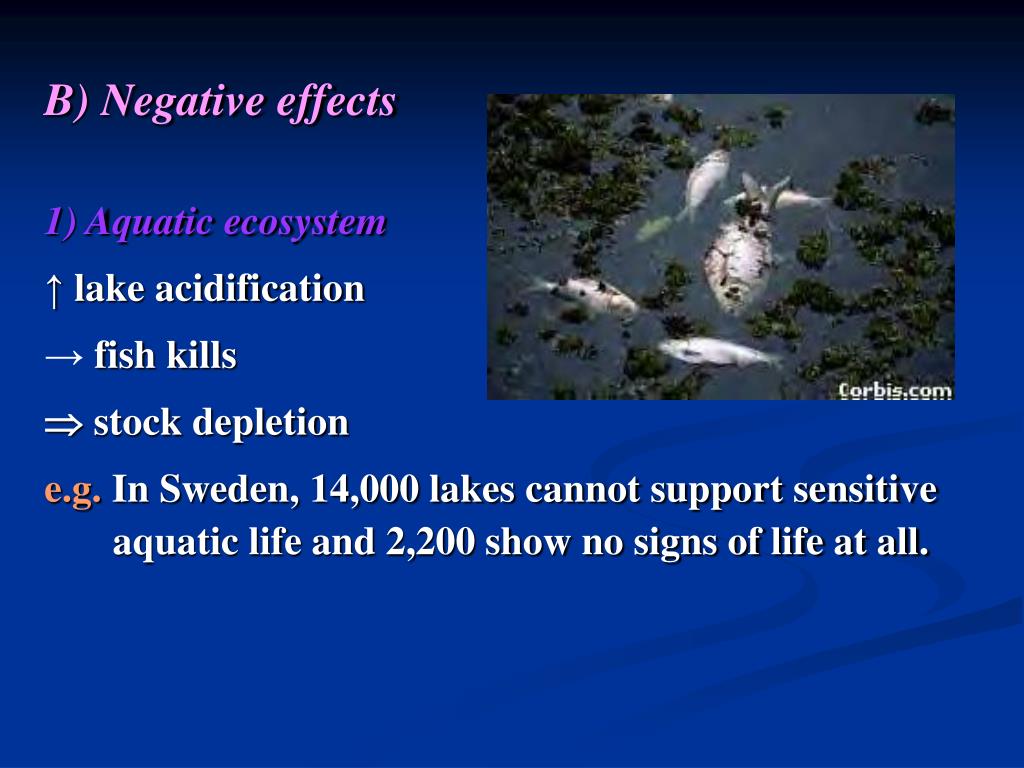

  14. B) Negative effects 1) Aquatic ecosystem ↑ lake acidification → fish kills  stock depletion e.g.In Sweden, 14,000 lakes cannot support sensitive aquatic life and 2,200 show no signs of life at all.

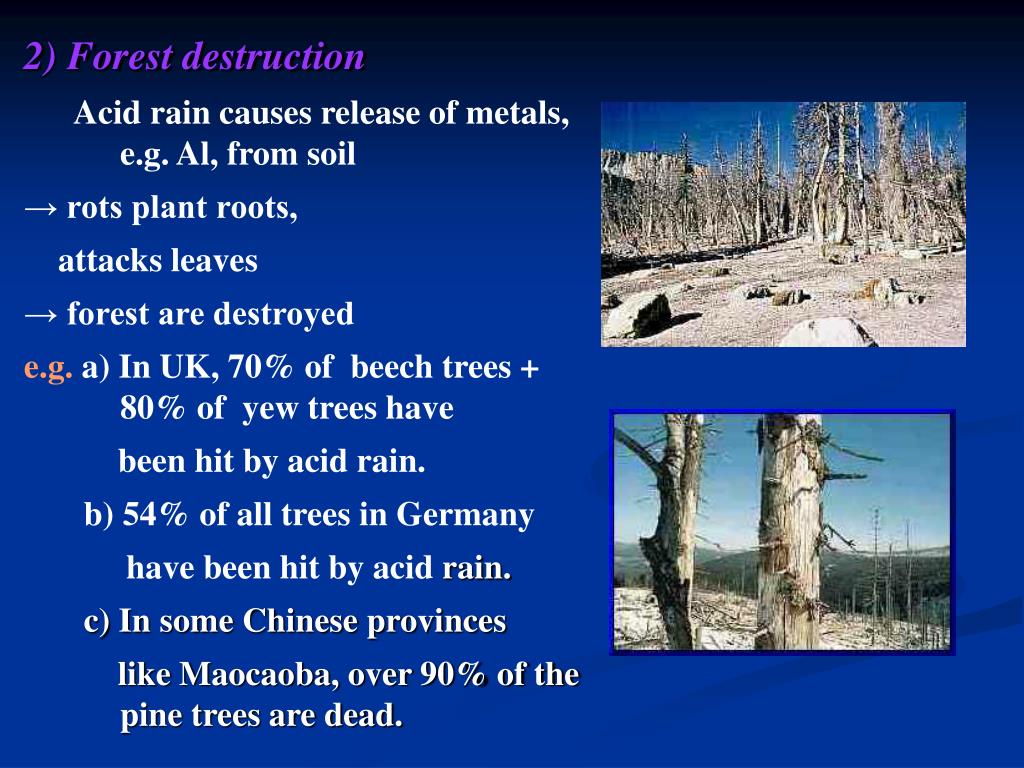

  15. 2) Forest destruction Acid rain causes release of metals, e.g. Al, from soil → rots plant roots, attacks leaves → forest are destroyed e.g. a) In UK, 70% of beech trees + 80% of yew trees have been hit by acid rain. b) 54% of all trees in Germany have been hit by acid rain. c) In some Chinese provinces like Maocaoba, over 90% of the pine trees are dead.

  16. 3) Crop yield drops ∵↑ acidity e.g. Acid rain in China causes $260 million in crop damages in the Hunan province alone. 4) Human health →contaminated fish + drinking water supplies passed on to people through the food chain e.g. a) Sweden, 1000 lakes with high concentration of mercury esp. Pregnant women’s fetuses (胎兒) are sensitive to mercury poisoning b) Sweden, drinking water with high levels of copper causes diarrhea (腹瀉 ) in young children →harms liver, kidneys c) Norway, aluminum from acid rain  pre-smile dementia (痴呆) d) N. America & Canada, in 1982, 51000 people die from Sulfur pollution e) Others: respiratory problems, asthma(哮喘), dry coughs + brain damage

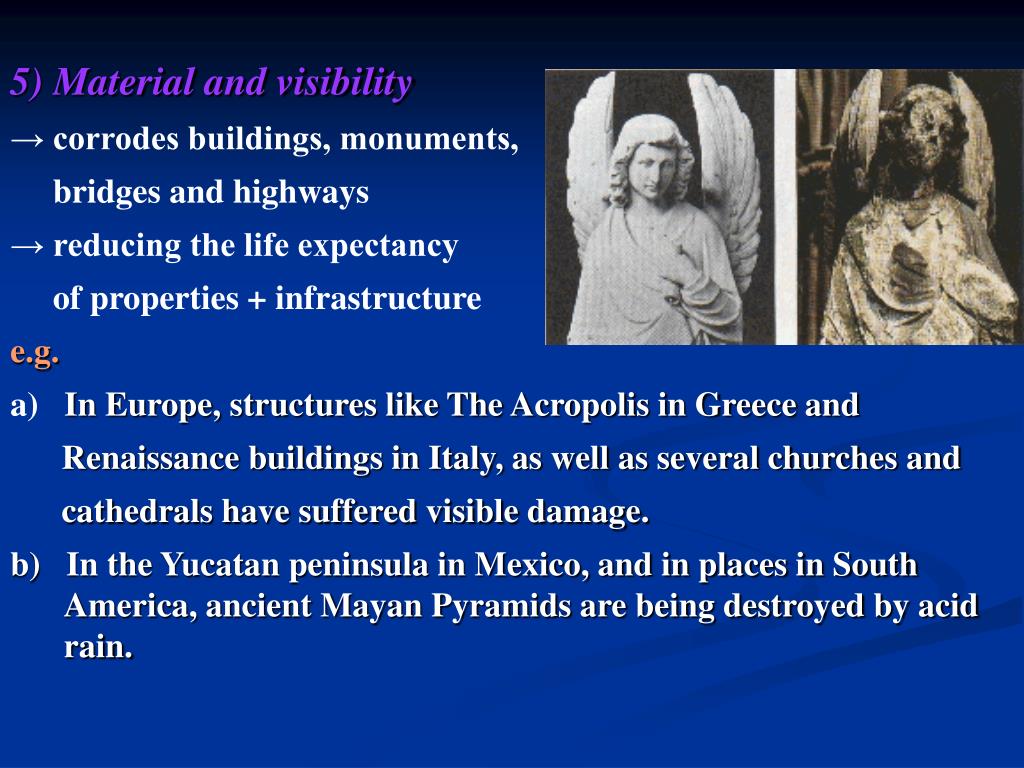

  17. 5) Material and visibility → corrodes buildings, monuments, bridges and highways → reducing the life expectancy of properties + infrastructure e.g. a) In Europe, structures like The Acropolis in Greece and Renaissance buildings in Italy, as well as several churches and cathedrals have suffered visible damage. b) In the Yucatan peninsula in Mexico, and in places in South America, ancient Mayan Pyramids are being destroyed by acid rain. .

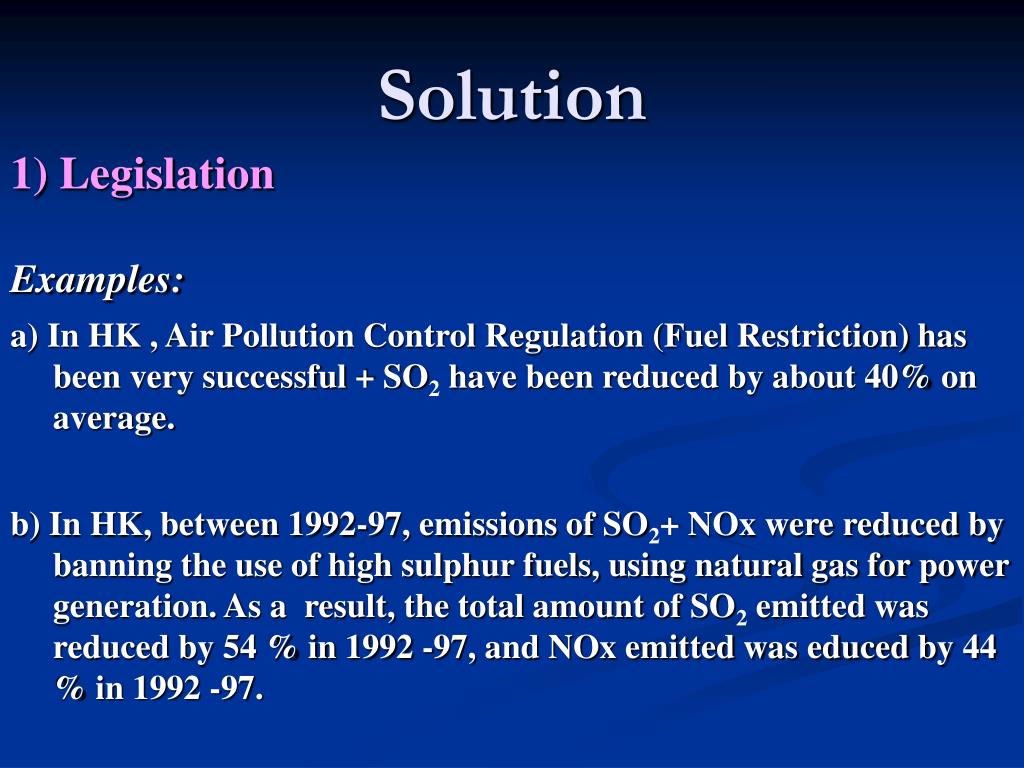

  18. Solution 1) Legislation Examples: a) In HK , Air Pollution Control Regulation (Fuel Restriction) has been very successful + SO2 have been reduced by about 40% on average. b) In HK, between 1992-97, emissions of SO2+ NOx were reduced by banning the use of high sulphur fuels, using natural gas for power generation. As a result, the total amount of SO2 emitted was reduced by 54 % in 1992 -97, and NOx emitted was educed by 44 % in 1992 -97. .

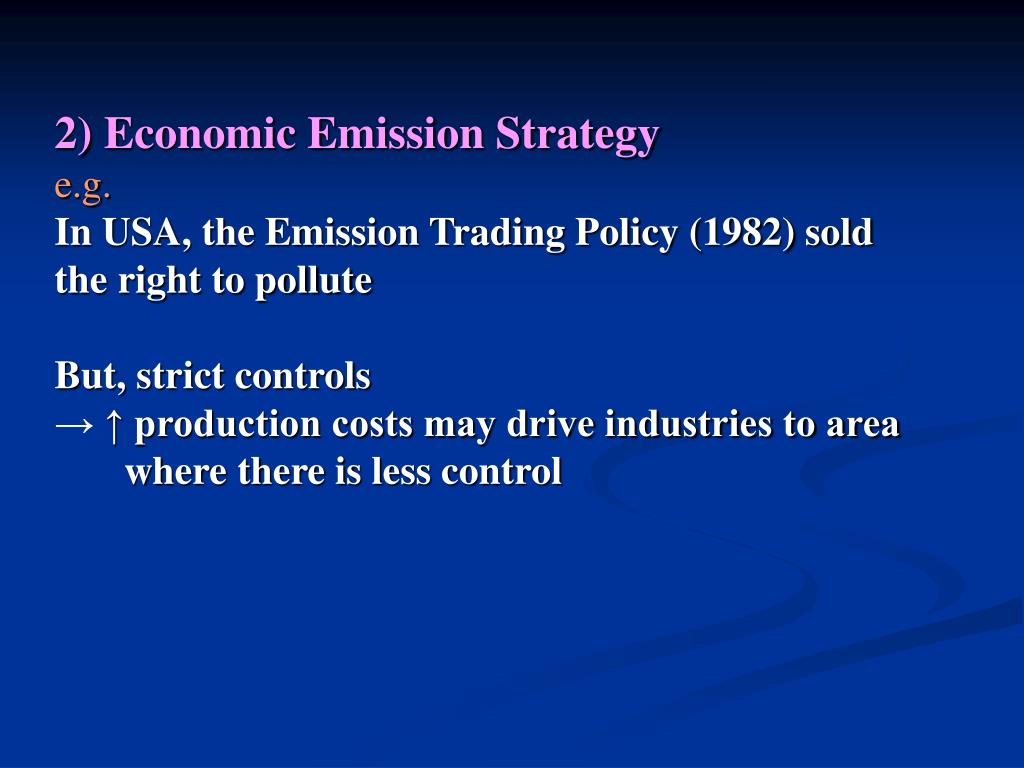

  19. 2) Economic Emission Strategy e.g. In USA, the Emission Trading Policy (1982) sold the right to pollute But, strict controls → ↑ production costs may drive industries to area where there is less control

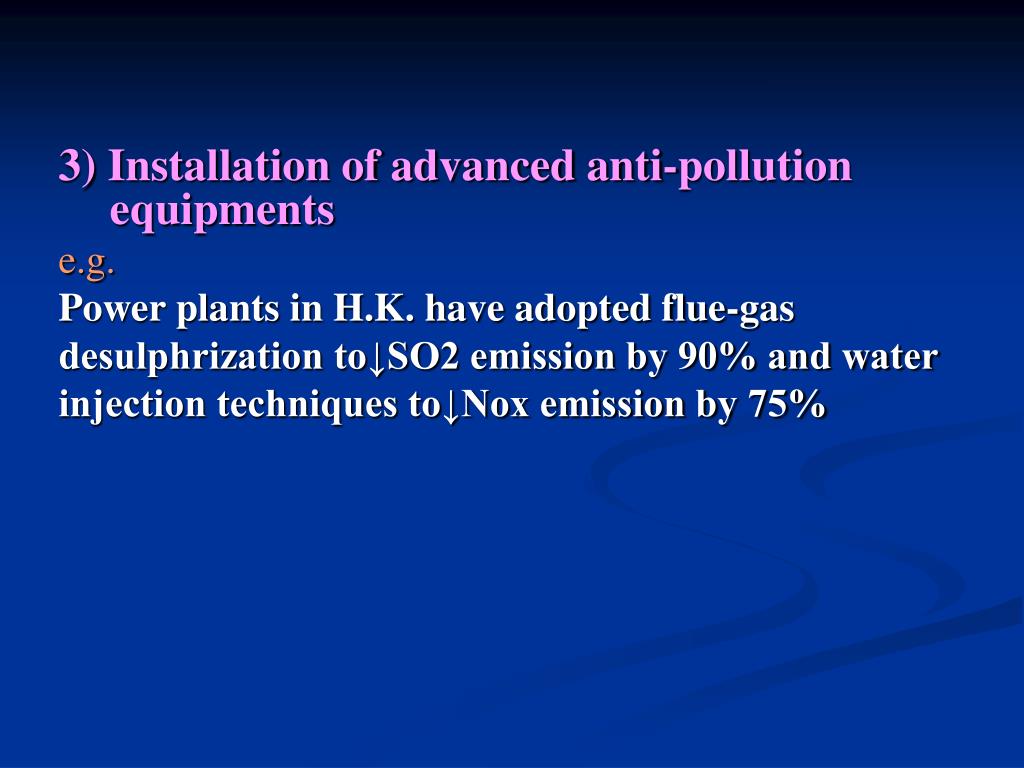

  20. 3) Installation of advanced anti-pollution equipments e.g. Power plants in H.K. have adopted flue-gas desulphrization to↓SO2 emission by 90% and water injection techniques to↓Nox emission by 75%

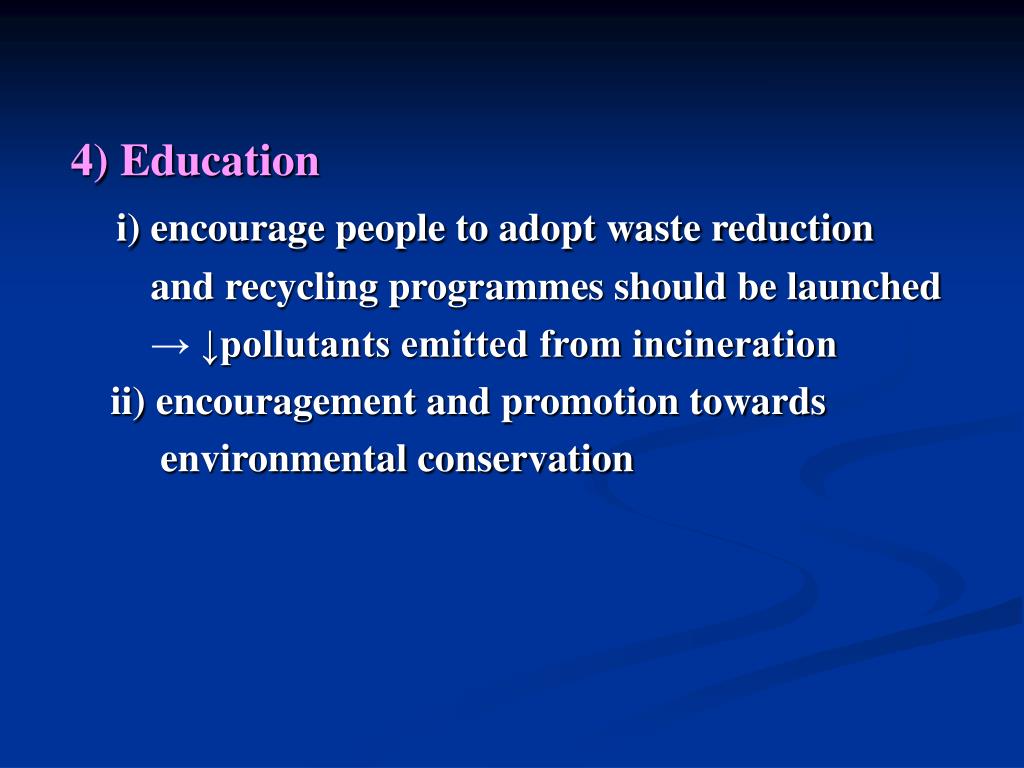

  21. 4) Education i) encourage people to adopt waste reduction and recycling programmes should be launched → ↓pollutants emitted from incineration ii) encouragement and promotion towards environmental conservation

  22. 5) Transport i) Construct mass transport system which is more efficient + uses cleaner fuel e.g. MTR, KCR ii) Encourage drivers to turn off engine while waiting iii) Encourage drivers to install catalytic converter to reduce NOx emission e.g. By the end of 1998, 75% of petrol cars were fitted with 3-way catalytic converters and using unleaded petrol iv) Encourage people to use unleaded petrol, LPG and bio-diesels e.g. No diesel taxi will be allowed after 2006 v) Encourage people to use public transport instead of driving their own car

  23. 6) Better and proper city planning i) Highly polluting industries should be separated from residential zones by buffer. ii) Highly polluting industries should be relocated to less populated areas. iii) Highly polluting industries must be carefullt sited e.g. Power plants in Tsing Yi, Lamma I sland + Tap Shek Kok are all located at the western side of H.K., which are the downwind sides of the urban area since the prevailing wind is easterly Yet, it is sometimes criticized that the city planners are simply shifting pollution problem from one part of the city to the other.

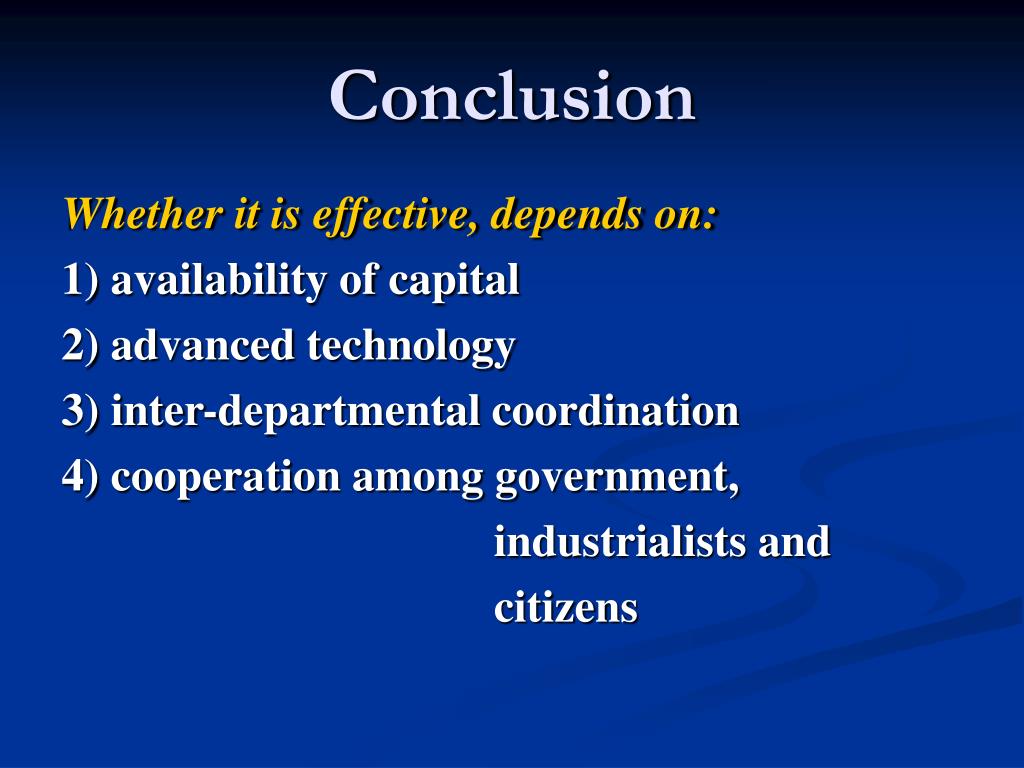

  24. Conclusion Whether it is effective, depends on: 1) availability of capital 2) advanced technology 3) inter-departmental coordination 4) cooperation among government, industrialists and citizens
