  1. Internet Services AdministrationCS35910 File Services Administration and File Access Services

  2. Backups Don’t worry, your data is safely backed up on multiple redundant RAID servers

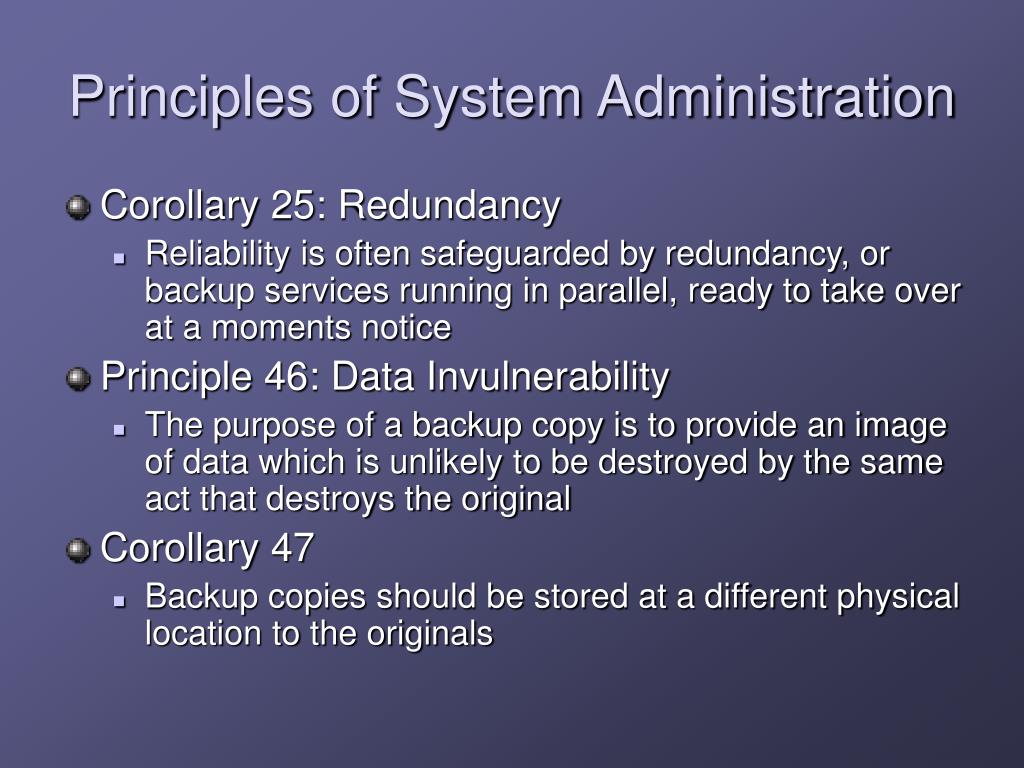

  3. Principles of System Administration • Corollary 25: Redundancy • Reliability is often safeguarded by redundancy, or backup services running in parallel, ready to take over at a moments notice • Principle 46: Data Invulnerability • The purpose of a backup copy is to provide an image of data which is unlikely to be destroyed by the same act that destroys the original • Corollary 47 • Backup copies should be stored at a different physical location to the originals

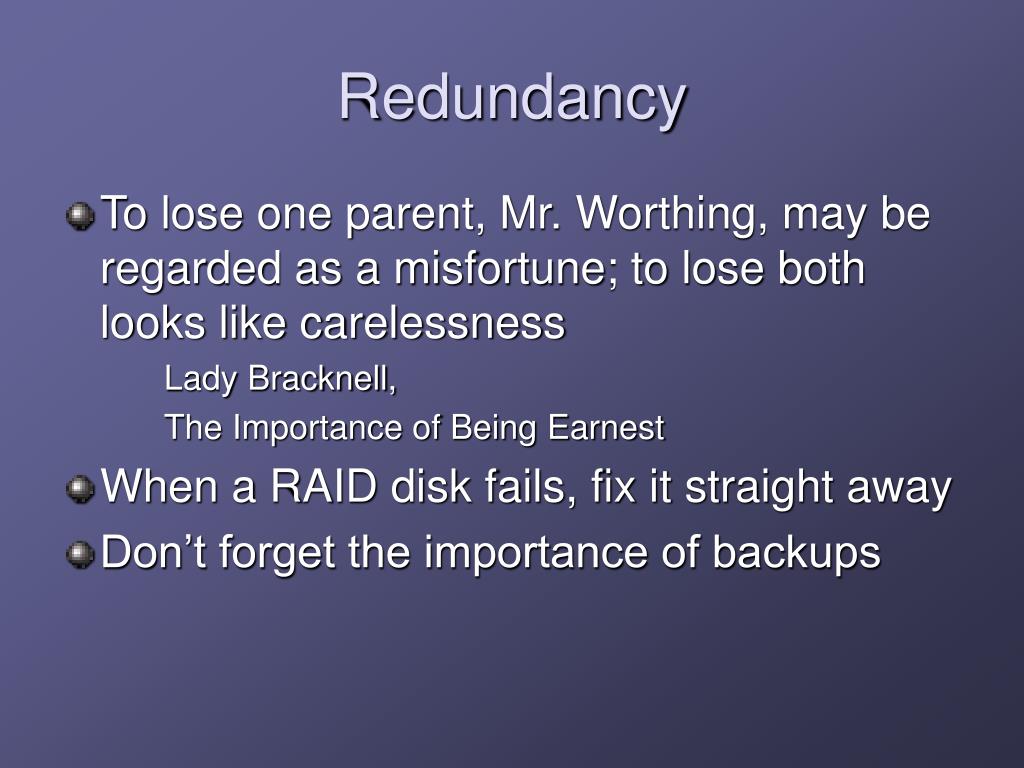

  4. Redundancy • To lose one parent, Mr. Worthing, may be regarded as a misfortune; to lose both looks like carelessness Lady Bracknell, The Importance of Being Earnest • When a RAID disk fails, fix it straight away • Don’t forget the importance of backups

  5. Backups • Full and incremental backups • Backup storage solutions • Off-site storage • Amanda and tar • Linux Journal Reader’s Choice Awards Favourite Backup Solution 1. tar (65%) 2. Amanda (5%) 3. Arkeia Network Backup (<1%)

  6. Check your Disaster Recovery • Backups always succeed • Restores always fail! The backup motel – files check in but never check out

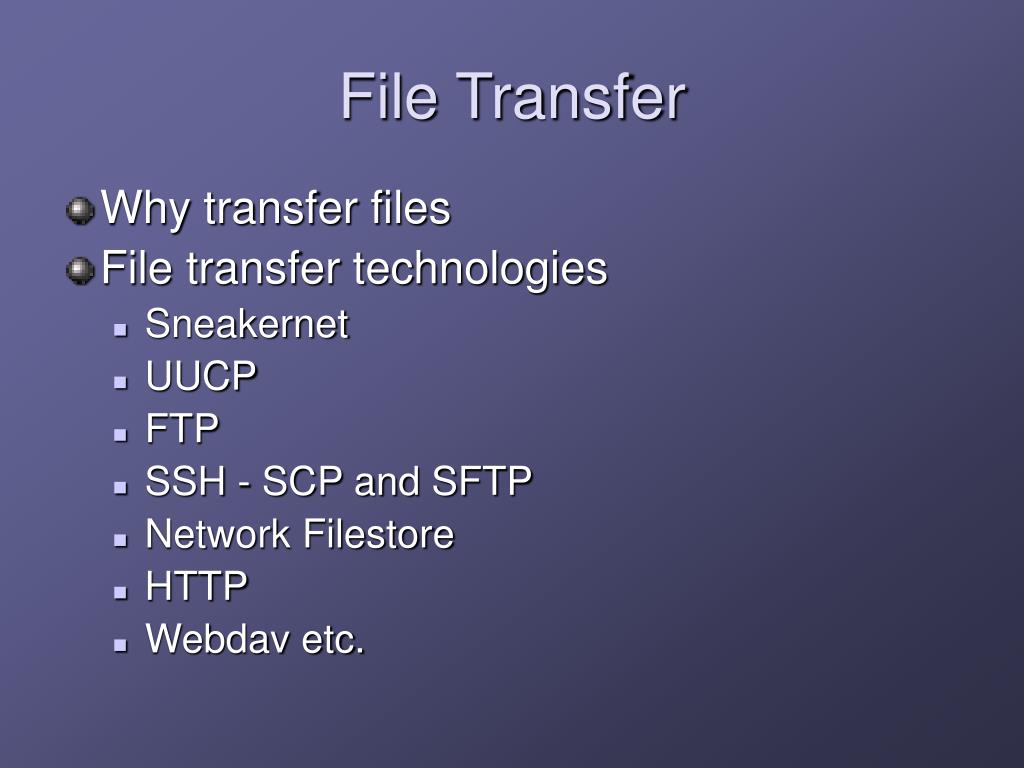

  7. File Transfer • Why transfer files • File transfer technologies • Sneakernet • UUCP • FTP • SSH - SCP and SFTP • Network Filestore • HTTP • Webdav etc.

  8. FTP Access • Advantages • Easy to set up • Well supported • Easy to use • Fast • Disadvantages • Problems with firewalls (use passive mode) • Plain text transfers, including password

  9. FTP: Anonymous or not • Problems with user FTP security: • Plain text passwords can be easily snooped • Real user accounts can allow exploits such as uploading .rhosts etc. • SCP/SFTP provides a better solution for these needs • See also SSLftp: ftp://ftp.psy.uq.oz.au/pub/Crypto/SSLapps • Problems with anonymous FTP: • Configuration needs more care • No method to uniquely identify users

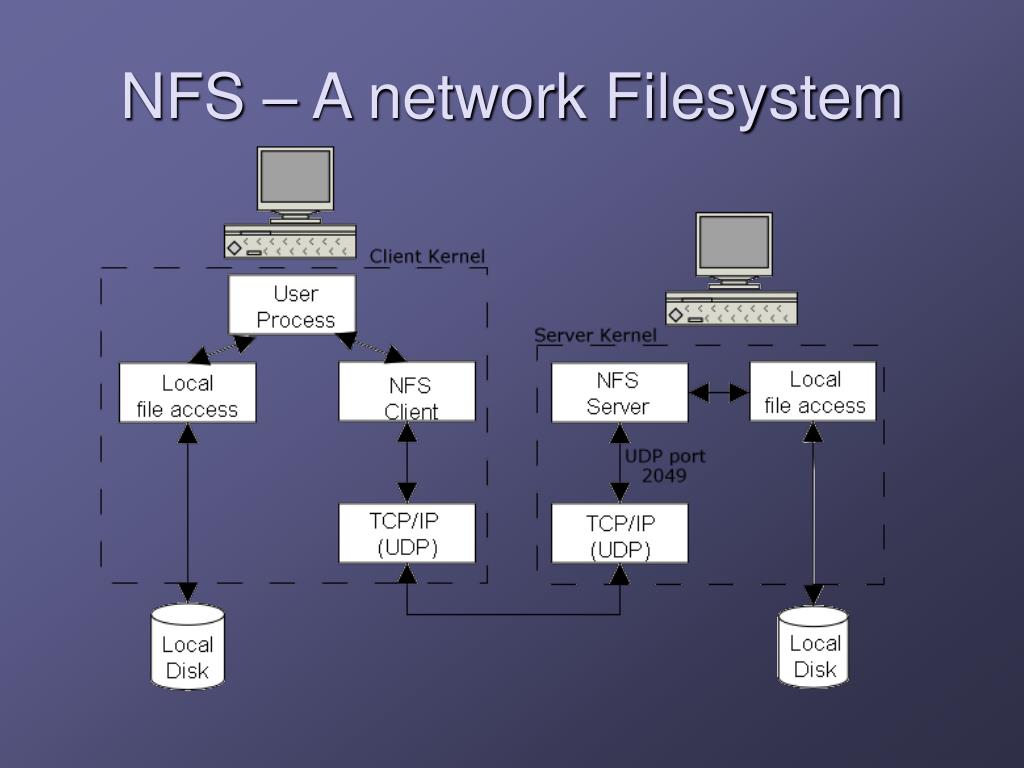

  10. NFS – A network Filesystem

  11. Management of NFS • /etc/exports • TCP Wrappers (hosts.allow, hosts.deny) protect the vulnerable portmapper • Root squashing • mountd, nfsd

  12. NFS Cookies • NFS is stateless. Cookies are passed by mountd to indicate a successful mount • Limited persistence of cookies • Cookies usually changed when remounting filestore • For crash recovery, the cookie persists across a reboot • Stateless nature makes locking very difficult • TCP may be used for NFS over routers and even on LANS, but the protocol remains stateless

  13. NFS Automounter • Administrative nightmare of cross mounting home filestore from multiple servers • Auto mounter uses maps to mount filestore on demand • Maps may be shared by RDIST, NIS or LDAP or some other means • May also be used to mount loopback filesystems • Possible to emulate a CD server using ISO images and the automounter

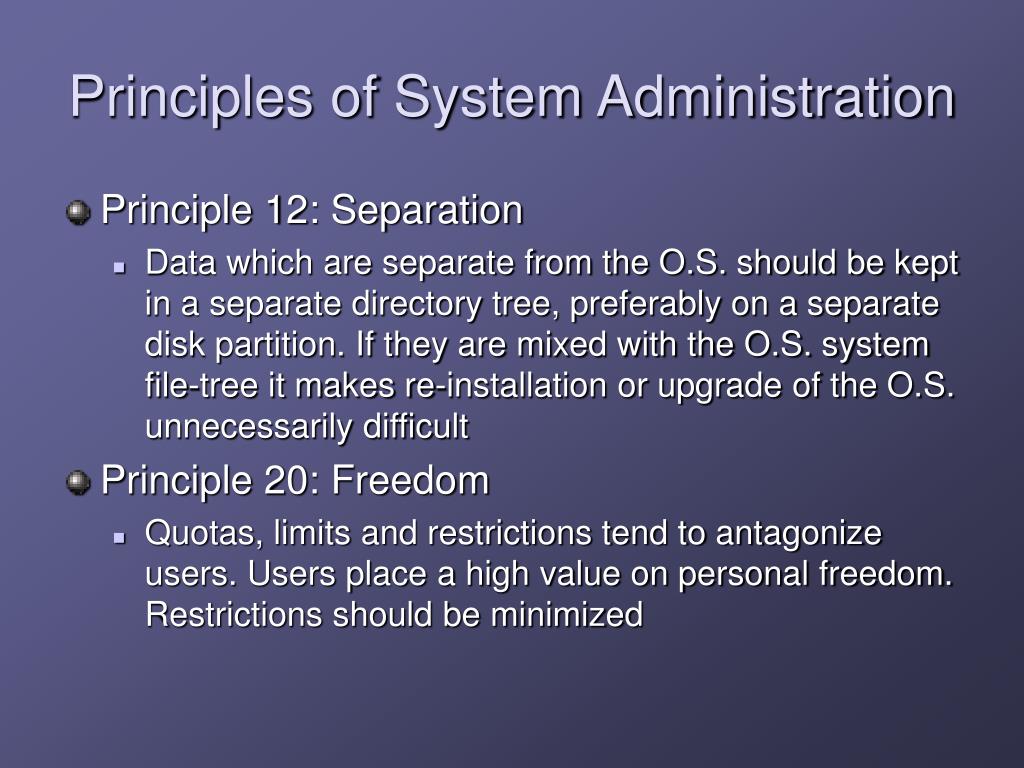

  14. Principles of System Administration • Principle 12: Separation • Data which are separate from the O.S. should be kept in a separate directory tree, preferably on a separate disk partition. If they are mixed with the O.S. system file-tree it makes re-installation or upgrade of the O.S. unnecessarily difficult • Principle 20: Freedom • Quotas, limits and restrictions tend to antagonize users. Users place a high value on personal freedom. Restrictions should be minimized

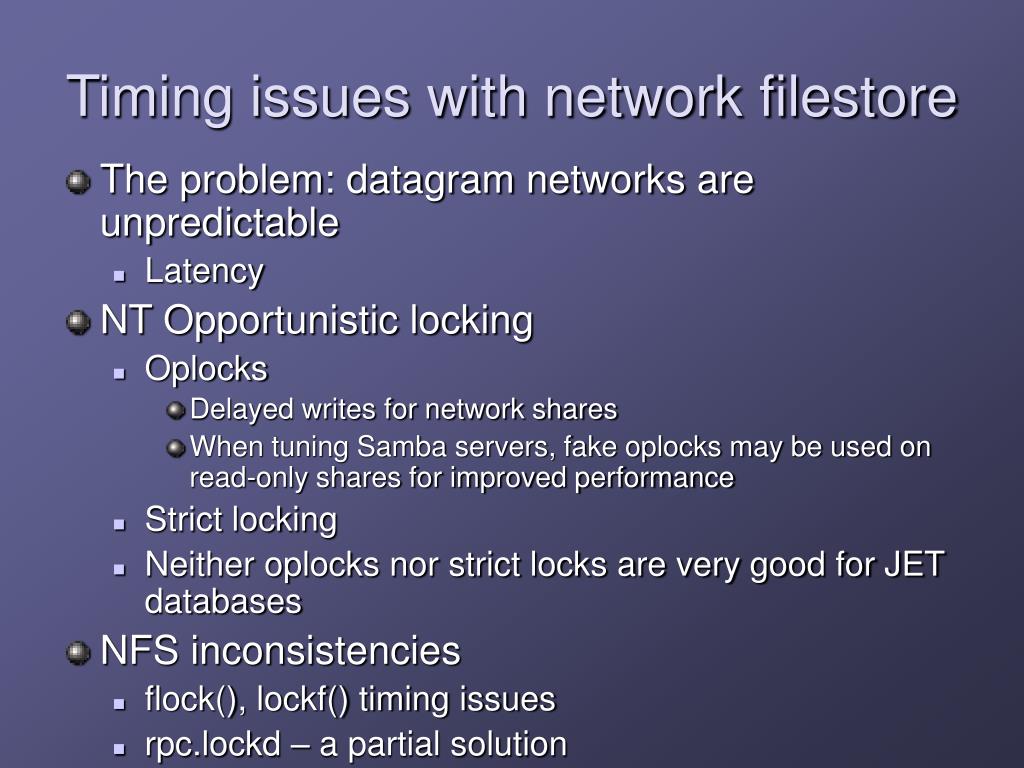

  15. Timing issues with network filestore • The problem: datagram networks are unpredictable • Latency • NT Opportunistic locking • Oplocks • Delayed writes for network shares • When tuning Samba servers, fake oplocks may be used on read-only shares for improved performance • Strict locking • Neither oplocks nor strict locks are very good for JET databases • NFS inconsistencies • flock(), lockf() timing issues • rpc.lockd – a partial solution

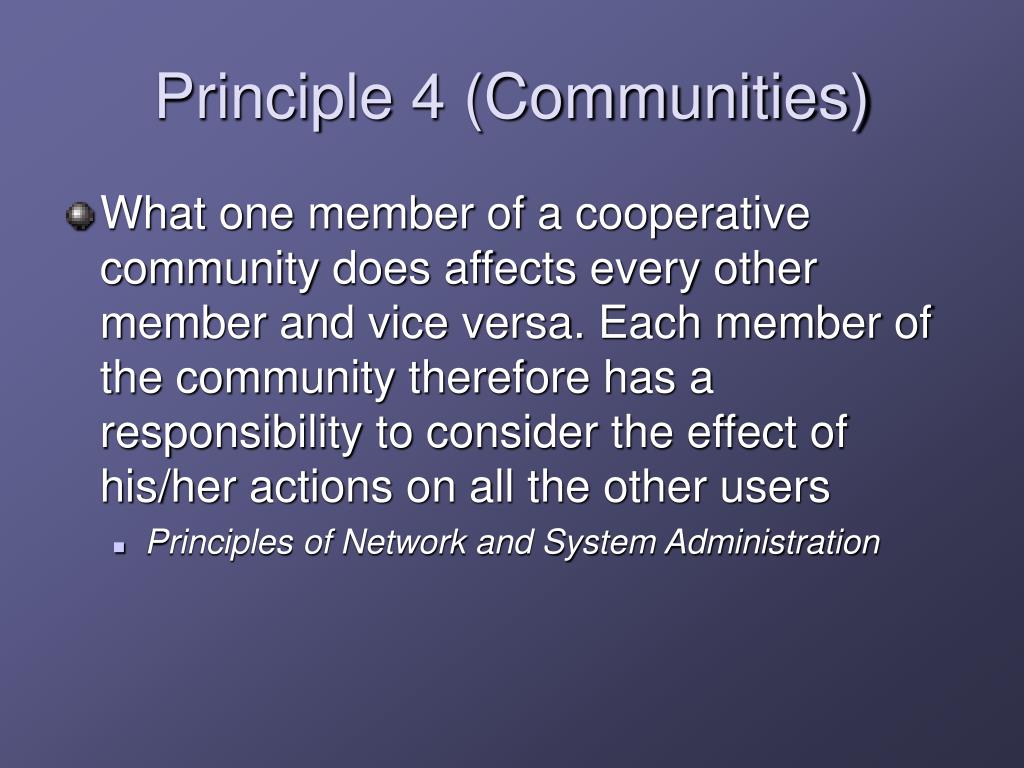

  16. Principle 4 (Communities) • What one member of a cooperative community does affects every other member and vice versa. Each member of the community therefore has a responsibility to consider the effect of his/her actions on all the other users • Principles of Network and System Administration

  17. Management of SMB • Windows NT shares • Directory Security and Share Security • Hidden shares, e.g. \\myhost\backup$ • Not very well hidden • Administrative Shares • UNIX shares with Samba • Browse lists • Read and Write lists

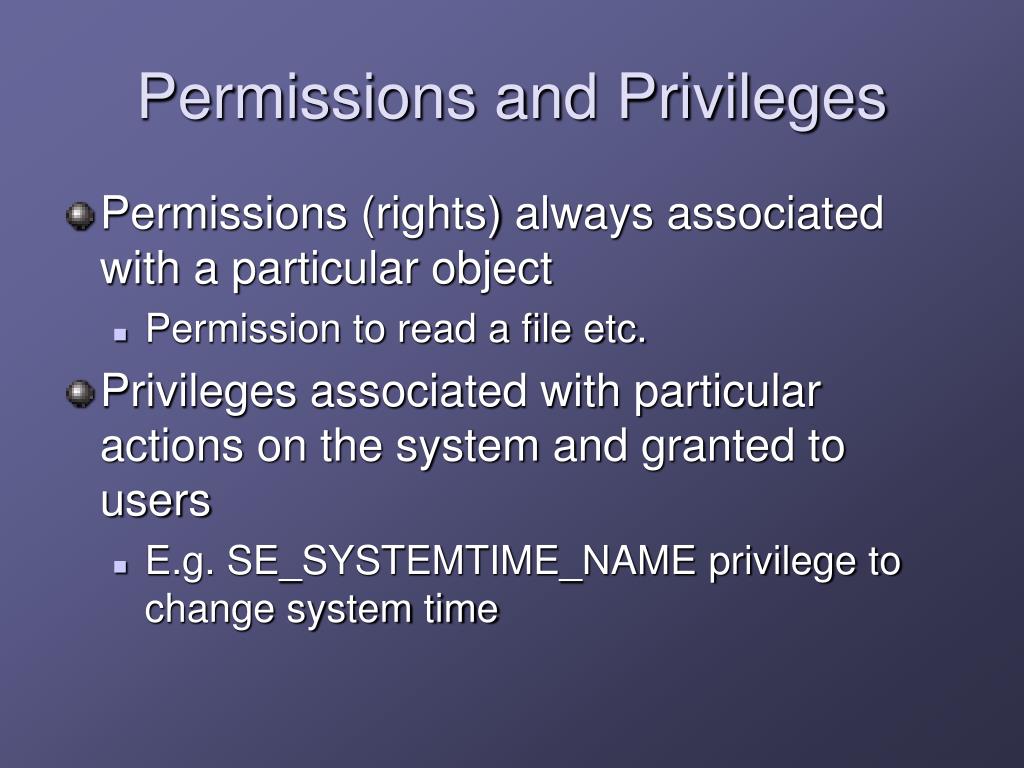

  18. Permissions and Privileges • Permissions (rights) always associated with a particular object • Permission to read a file etc. • Privileges associated with particular actions on the system and granted to users • E.g. SE_SYSTEMTIME_NAME privilege to change system time

  19. Network Attached Storage • Drives attached to embedded unit • Cut down OS provides only data storage, access and management functionality • Usually provides multiple access protocols • NFS • SMB/CIFS

  20. Storage Area Networks • Enterprise Solution • Devices attached to a network, called a fabric • Access to the device at block I/O level • SCSI protocol is usually used
