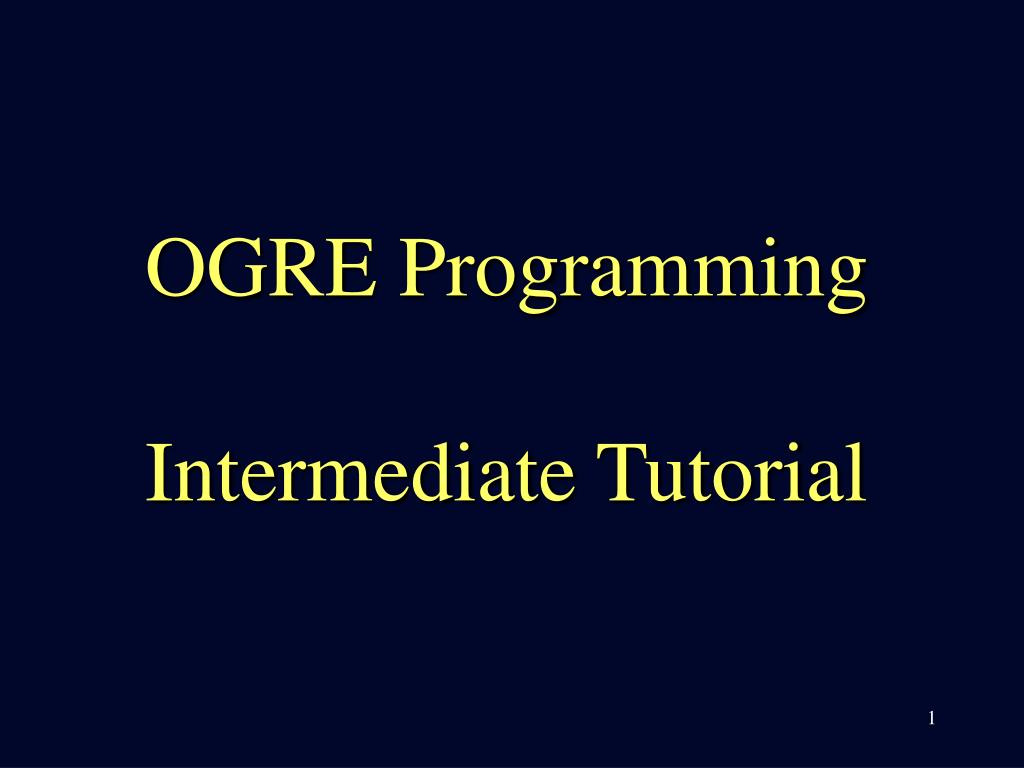

  1. OGRE Programming Intermediate Tutorial

  2. Contents • Select any object on the screen using the mouse • Restrict what is selectable 2

  3. Showing the selected object • Show the bounding box of a scene node: • mCurrentObject->showBoundingBox(true); • //mCurrentObject is a SceneNode.

  4. Process of Ray Scene Query • Setup the ray for the ray scene query • Set the sorting type for the results • Execute the ray scene query • Retrieve intersection results • Based on the results, perform the specific task

  5. Process of Ray Scene Query CEGUI::Point mousePos = CEGUI::MouseCursor::getSingleton().getPosition(); Ray mouseRay = mCamera->getCameraToViewportRay( mousePos.d_x /float( arg.state.width ) , mousePos.d_y /float( arg.state.height )); mRaySceneQuery->setRay(mouseRay); mRaySceneQuery->setSortByDistance(true); // Perform the scene query RaySceneQueryResult &result = mRaySceneQuery->execute(); RaySceneQueryResult::iterator itr = result.begin(); for (itr = result.begin(); itr != result.end(); itr++) { if (itr->movable && itr->movable->getName().substr(0, 5) != "tile[") { mCurrentObject = itr->movable->getParentSceneNode(); break; } // if else if (itr->worldFragment) { …… } } 5

  6. Query Masks • Mask: bitwise value. • The mask can be used to restrict the objects which are selectable. • Set the mask for an entity: • ent->setQueryFlags(ROBOT_MASK); • Set the ray scene query for the entity whose query flag is QMASK • mRaySceneQuery->setQueryMask(QMASK); • //now, if ROBOT_MASK & QMASK is non-zero, then the corresponding entities are returned in the query results. 6

  7. Query Type Masks • The query never returns the billboardset normally. Why? • The SceneQuery has another mask: QueryTypeMask. • It limits the selection type specified as the flag. • By default, it returns only objects of entity type. • To return BillboardSets or ParticleSystems: • mRaySceneQuery->setQueryTypeMask( • SceneManager::FX_TYPE_MASK);

  8. QueryTypeMask Six types of QueryTypeMask defined in the SceneManager class as static members: WORLD_GEOMETRY_TYPE_MASK//Returns world geometry. ENTITY_TYPE_MASK//Returns entities. FX_TYPE_MASK//Returns billboardsets / particle systems. STATICGEOMETRY_TYPE_MASK//Returns static geometry. LIGHT_TYPE_MASK//Returns lights. USER_TYPE_MASK_LIMIT//User type mask limit. The default QueryTypeMask : ENTITY_TYPE_MASK

  9. References: http://www.ogre3d.org/wiki/index.php/Intermediate_Tutorial_3
