  1. FRP Door and Frame System

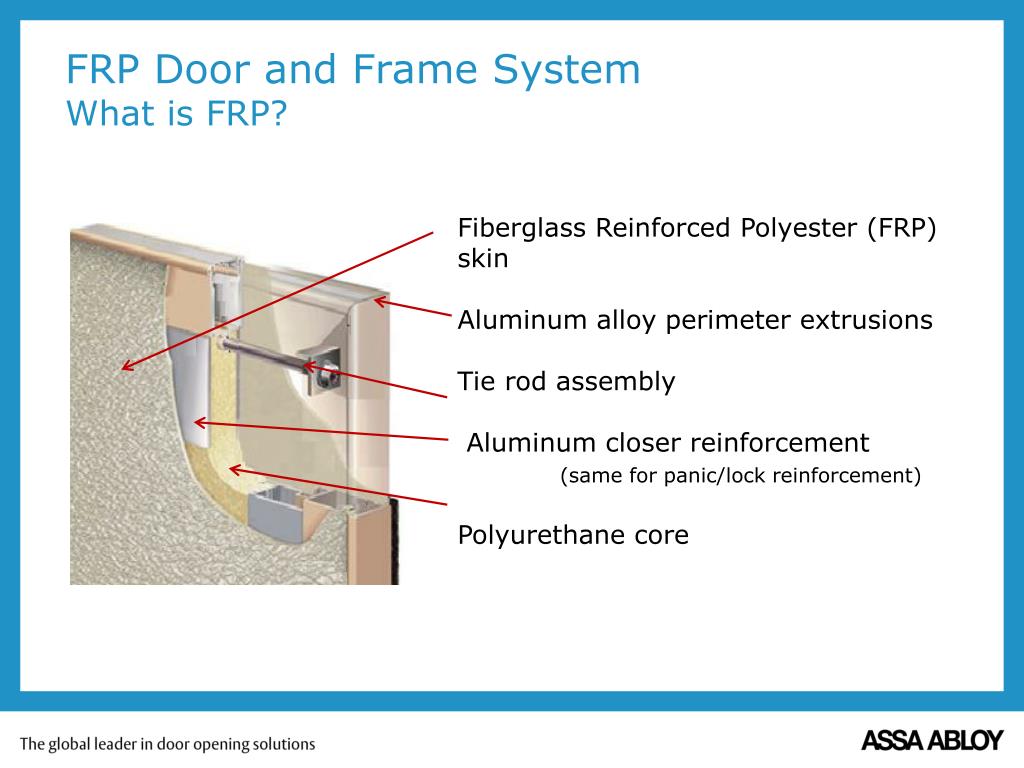

  2. FRP Door and Frame SystemWhat is FRP? Fiberglass Reinforced Polyester (FRP) skin Aluminum alloy perimeter extrusions Tie rod assembly Aluminum closer reinforcement (same for panic/lock reinforcement) Polyurethane core

  3. Fiberglas Reinforced Polyester FRP Door and Frame SystemDoor Skins .120” Thick Pebble (textured) embossed finish Long lasting and durable Never needs painting Eight standard colors: HD Aluminum Frame Skin Colors: Colonial Blue Forest Green Brick Red Dark Gray Dark Bronze Black Light Gray Tan

  4. Fiberglas Reinforced Polyester FRP Door and Frame SystemAluminum Alloy Perimeter 6063-T6 Aluminum extrusions Long lasting anodized finish Never needs painting Three standard colors: HD Aluminum Frame Skin Colors: Clear Dark Bronze Black Frame Colors: Black

  5. Fiberglas Reinforced Polyester FRP Door and Frame SystemCore and Reinforcements Aluminum closer and lock reinforcements for surface mounted hardware Foam in place polyurethane core for excellent thermal efficiency and strength Tie rod construction to add rigidity to the door Lightweight materials extends the life of the entire entrance system Can be used with standard hollow metal frames HD Aluminum Frame Skin Colors: Frame Colors: Black

  6. Fiberglas Reinforced Polyester FRP Door and Frame SystemAluminum Frame 6063-T6 Hardened aluminum alloy Tubular profile with applied door stop Jamb depths of 4-1/2”, 5” and 6” Three sided frames, single or paired Available in three colors: HD Aluminum Frame Skin Colors: Dark Bronze Black Clear Frame Colors: Black

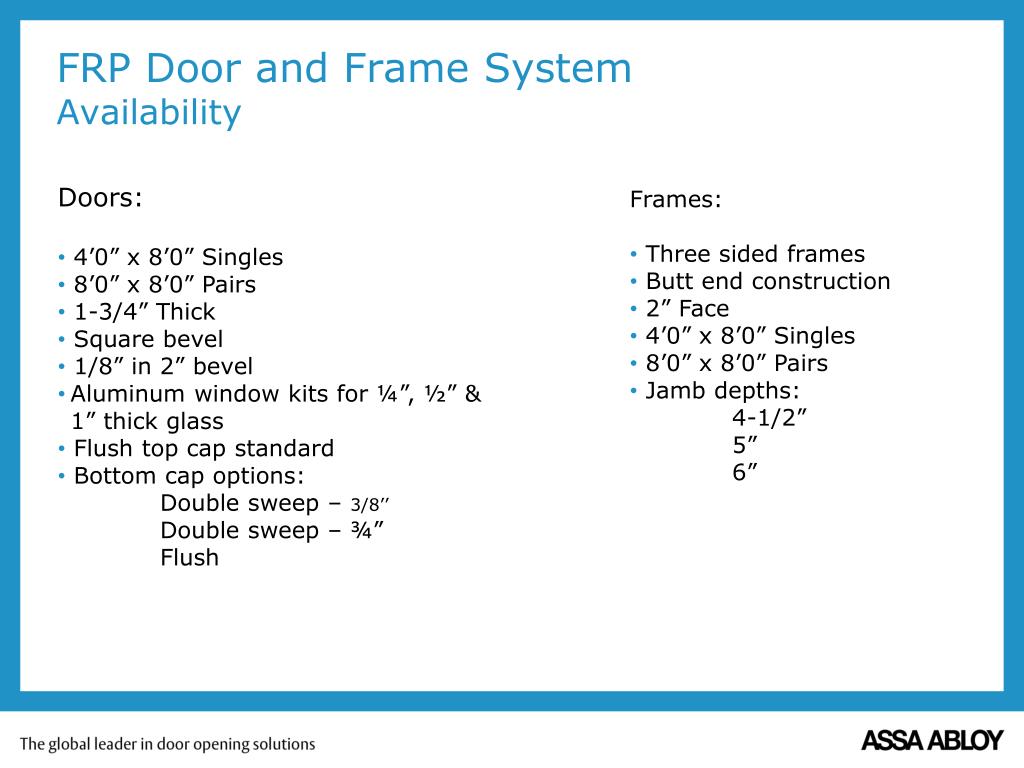

  7. Fiberglas Reinforced Polyester FRP Door and Frame SystemAvailability • Doors: • 4’0” x 8’0” Singles • 8’0” x 8’0” Pairs • 1-3/4” Thick • Square bevel • 1/8” in 2” bevel • Aluminum window kits for ¼”, ½” & 1” thick glass • Flush top cap standard • Bottom cap options: • Double sweep – 3/8’’ • Double sweep – ¾” • Flush • Frames: • Three sided frames • Butt end construction • 2” Face • 4’0” x 8’0” Singles • 8’0” x 8’0” Pairs • Jamb depths: • 4-1/2” • 5” • 6” HD Aluminum Frame Skin Colors: Frame Colors: Black

  8. Fiberglas Reinforced Polyester FRP Door and Frame SystemHardware • Hinges: • 4-1/2 standard weight • Electric hinges • Continuous • Pivots • Cylindrical and mortise locks • Rim, mortise & surface exit devices • Deadlocks • Strikes, open back strikes and electric strikes • Flush & surface bolts • Roller latches • Pulls • Hardware mullions • Astragal – Pemko 355S or 356V • ElectroLynx including PoE HD Aluminum Frame Skin Colors: Frame Colors: Black

  9. Fiberglas Reinforced Polyester FRP Door and Frame SystemCertification • Plans are in place to provide the following certifications in future generations: • Thermal • GREENGUARD • Sound- STC • Fire • Impact • Hurricane HD Aluminum Frame Skin Colors: Frame Colors: Black

  10. Fiberglas Reinforced Polyester FRP Door and Frame SystemFeatures and Benefits • Modern material and durable construction reduces lifecycle cost & cost of ownership • Durable finish reduces maintenance cost • Door skins clean easily with green cleaners to help protect the environment • Lightweight design extends the life of the entire opening • Durability and thermal performance of the core make this the perfect door for high use exterior openings, ex: schools, healthcare & hospitality HD Aluminum Frame Skin Colors: Frame Colors: Black

  11. Fiberglas Reinforced Polyester FRP Door and Frame SystemSales Tools – Promotional Sheet HD Aluminum Frame Door Features Colors Benefits Frame Features Skin Colors: Frame Colors: Black

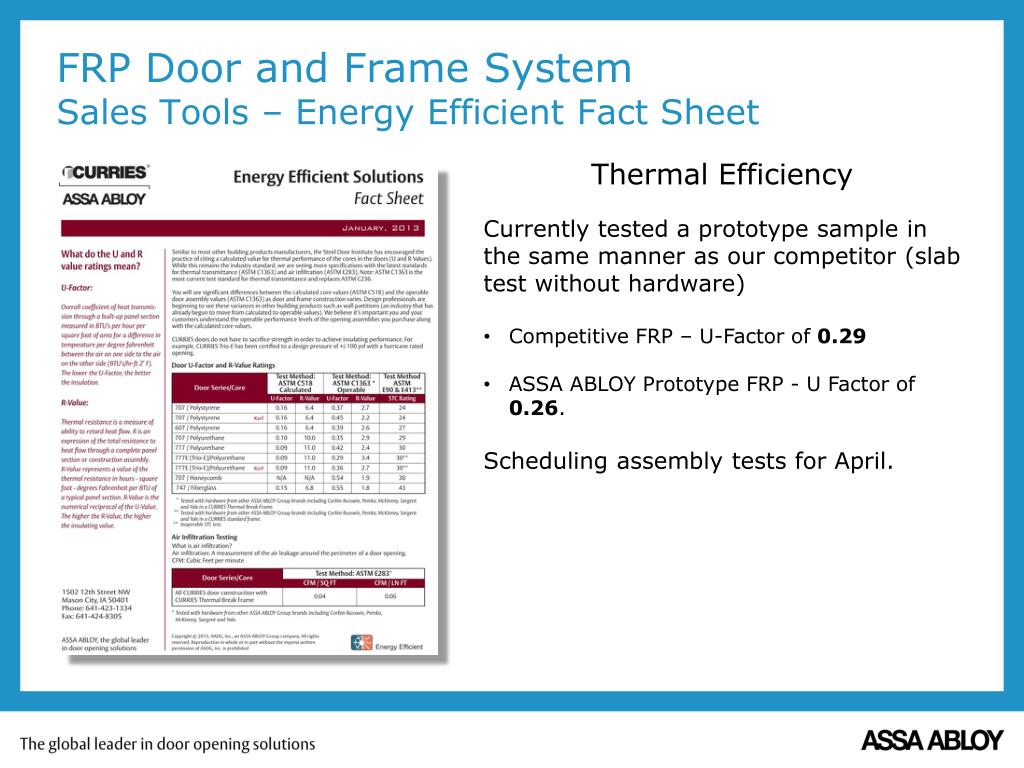

  12. Fiberglas Reinforced Polyester FRP Door and Frame SystemSales Tools – Energy Efficient Fact Sheet • Thermal Efficiency • Currently tested a prototype sample in the same manner as our competitor (slab test without hardware) • Competitive FRP – U-Factor of 0.29 • ASSA ABLOY Prototype FRP - U Factor of 0.26. • Scheduling assembly tests for April. HD Aluminum Frame Skin Colors: Frame Colors: Black

  13. Fiberglas Reinforced Polyester FRP Door and Frame SystemSales Tools – Price Pages HD Aluminum Frame Skin Colors: Frame Colors: Black

  14. Fiberglas Reinforced Polyester FRP Door and Frame SystemSales Tools – Door Technical Information HD Aluminum Frame Skin Colors: Frame Colors: Black

  15. Fiberglas Reinforced Polyester FRP Door and Frame SystemSales Tools – Frame Technical Information HD Aluminum Frame Skin Colors: Frame Colors: Black

  16. Fiberglas Reinforced Polyester FRP Door and Frame SystemSales Tools – Door, Frame & Face Type Code Charts HD Aluminum Frame Skin Colors: Frame Colors: Black

  17. Fiberglas Reinforced Polyester FRP Door and Frame SystemSales Tools – Frame Installation Instructions HD Aluminum Frame Skin Colors: Frame Colors: Black

  18. Fiberglas Reinforced Polyester FRP Door and Frame SystemSales Tools – FAQ’s FAQ’s Cover Terminology Benefits Windows Maintenance Thermal Bow ElectroLynx Warranty Materials Installation HD Aluminum Frame Skin Colors: Frame Colors: Black

  19. Fiberglas Reinforced Polyester FRP Door and Frame SystemSales Tools – Specification HD Aluminum Frame Skin Colors: Frame Colors: Black
