This guide explains the fundamental concepts of truth tables in logic, focusing on tautologies and logical contradictions. It provides real-world examples to illustrate compound propositions, emphasizing the significance of the logical operators "and" (∧) and "or" (∨). You'll learn how to construct truth tables for different logical expressions, determine if they are tautologies, contradictions, or neither, and understand logical equivalence. Additionally, practical exercises are suggested to help solidify your understanding and prepare you for quizzes on logical reasoning.

1 / 16

Télécharger la présentation

Assign Yourself and Do Now

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Assign Yourself and Do Now Thursday, January 10, 2013

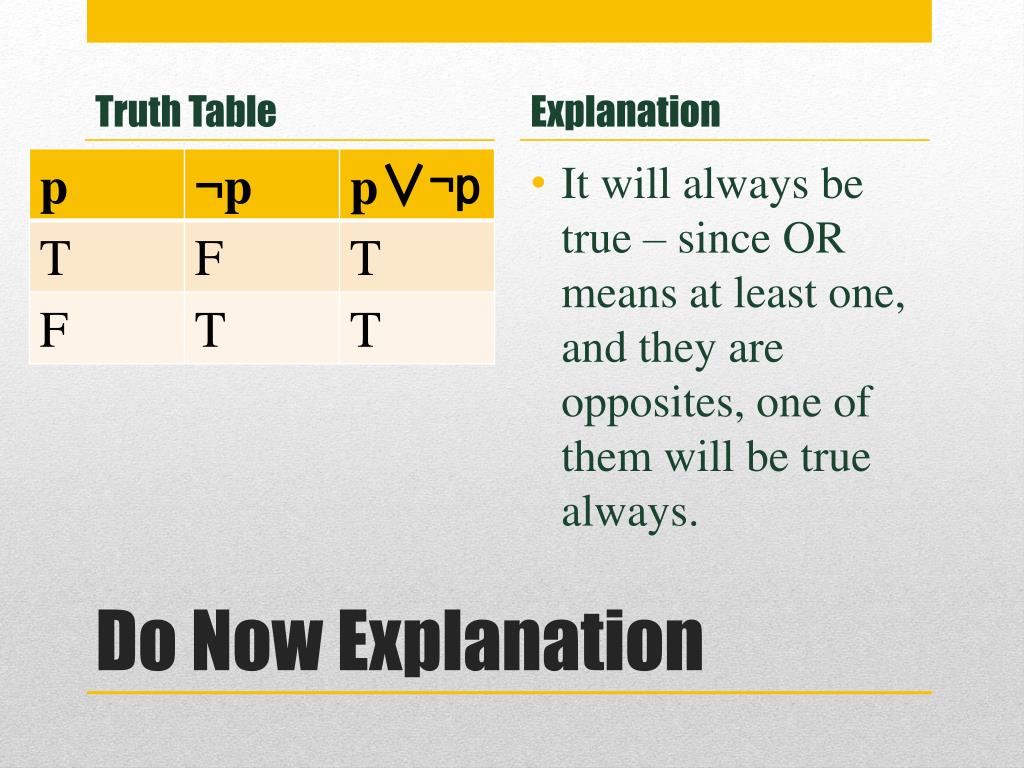

  2. Truth Table Explanation It will always be true – since OR means at least one, and they are opposites, one of them will be true always. Do Now Explanation

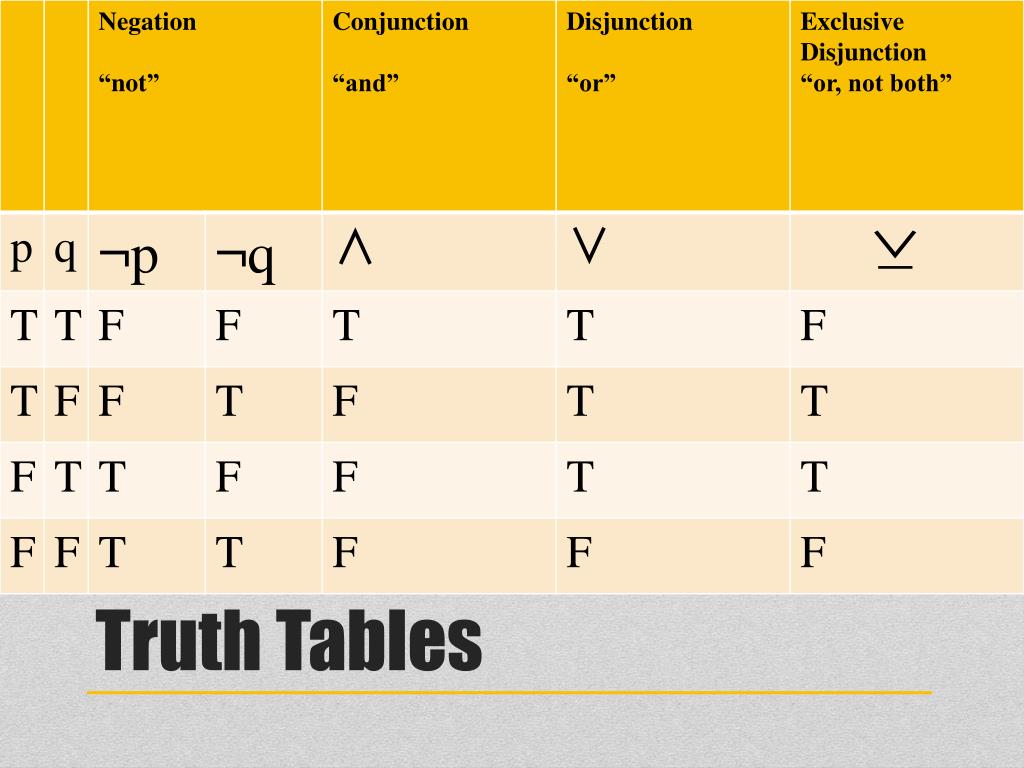

  3. Truth Tables

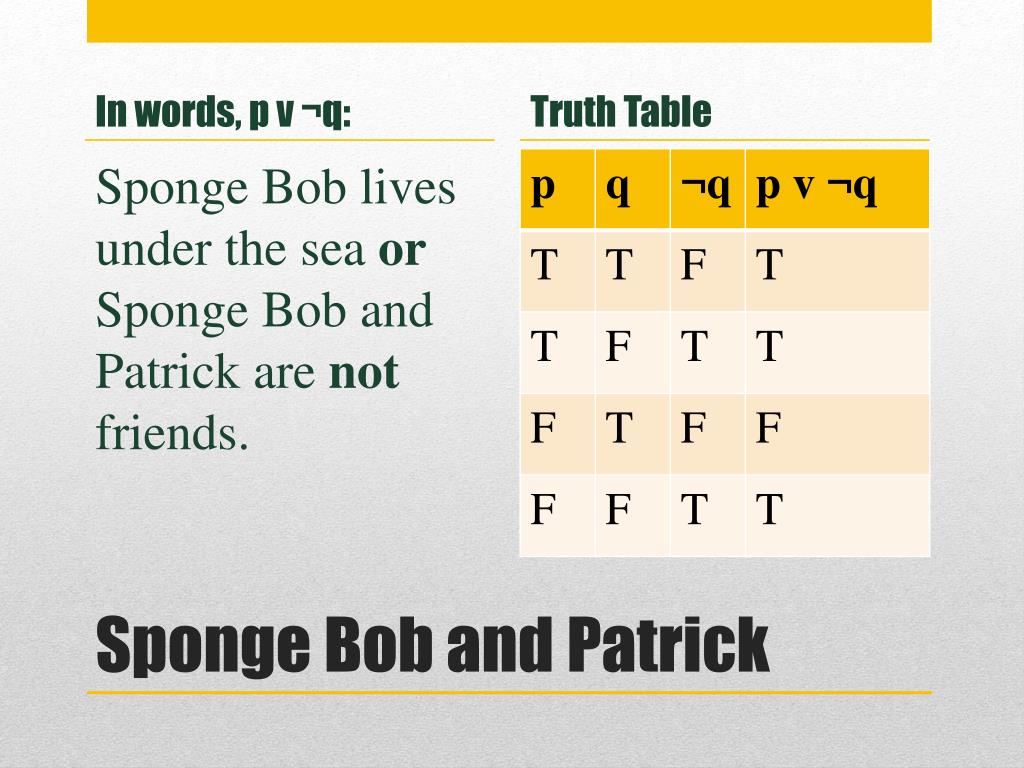

  4. In words, p v ¬q: Truth Table Sponge Bob lives under the sea or Sponge Bob and Patrick are not friends. Sponge Bob and Patrick

  5. When Sponge Bob lives under the sea • When Spongebob and Patrick are not friends • Both Under what conditions is p v ¬q true?

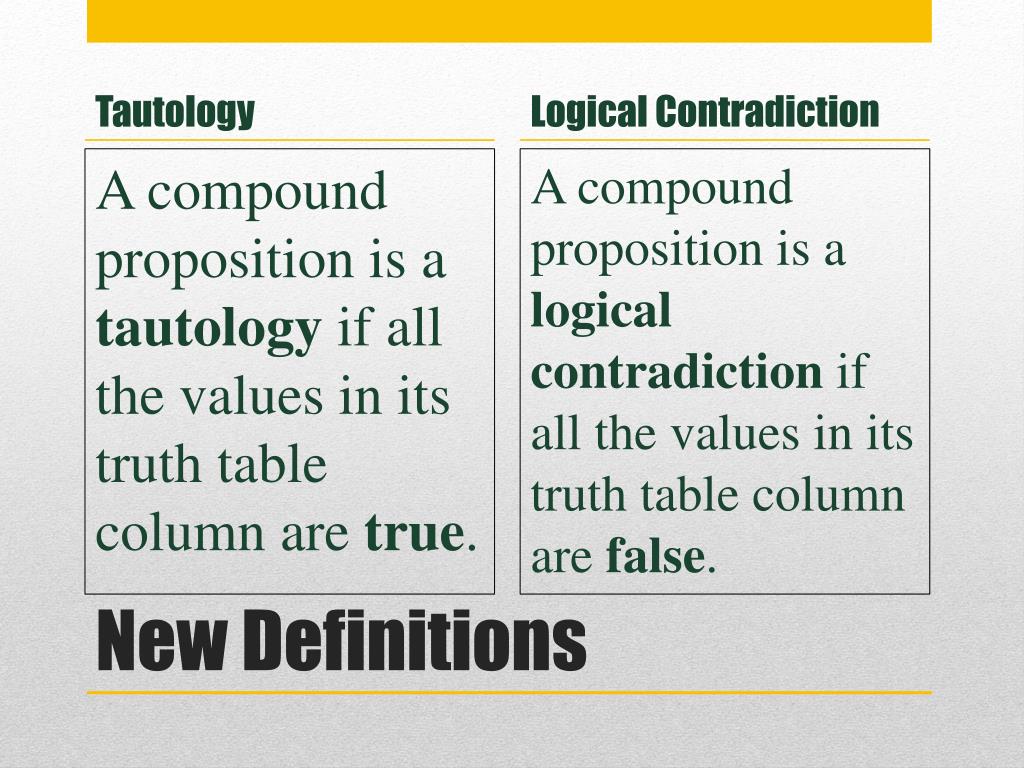

  6. Tautology Logical Contradiction A compound proposition is a logical contradiction if all the values in its truth table column are false. A compound proposition is a tautology if all the values in its truth table column are true. New Definitions

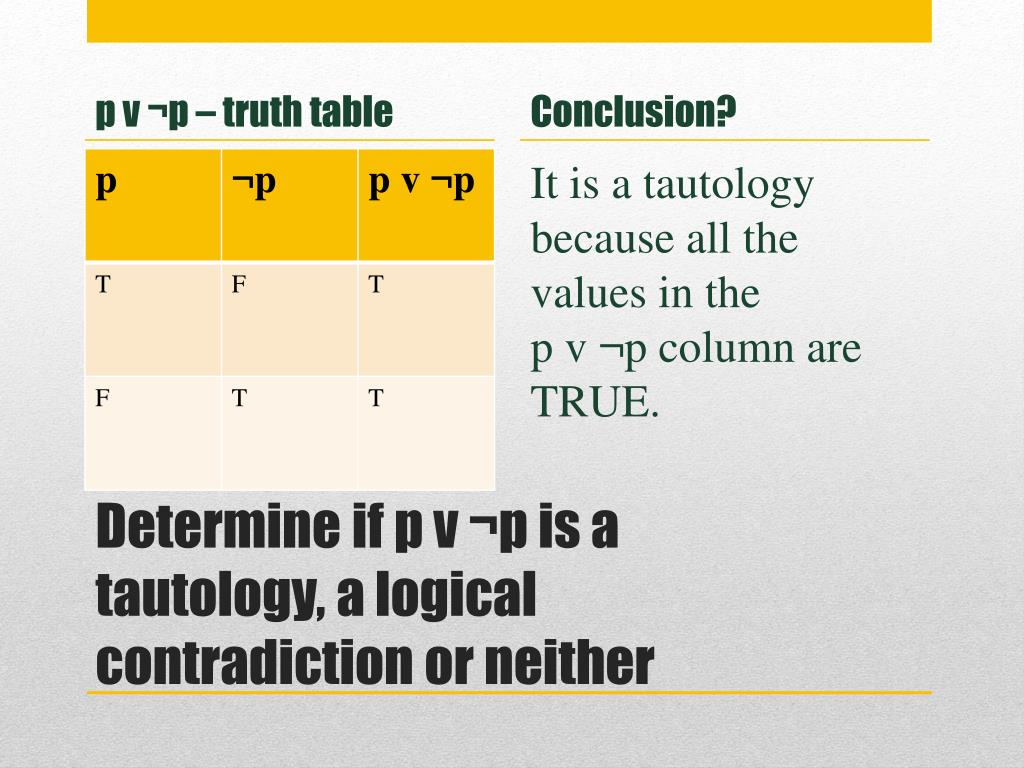

  7. p v ¬p – truth table Conclusion? It is a tautology because all the values in the p v ¬p column are TRUE. Determine if p v ¬p is a tautology, a logical contradiction or neither

  8. (p ^ q) ^ ¬ (p v q) is a logical contradiction because all of the values in its column are false. Tautology, Logical Contradiction or Neither?

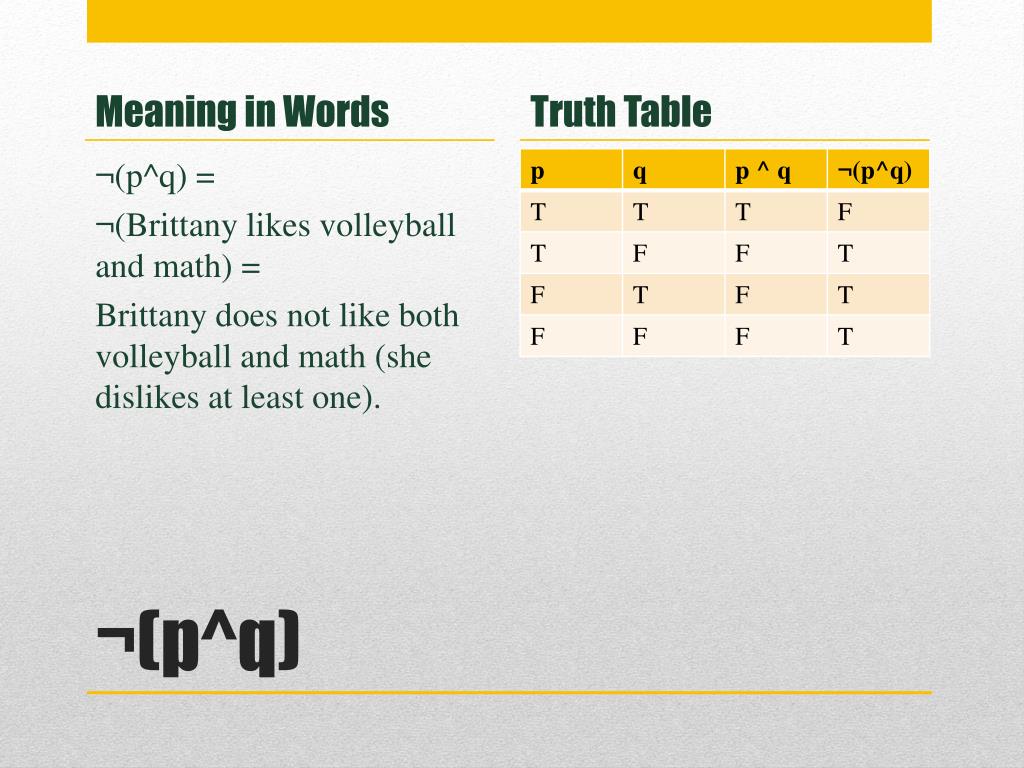

  9. Meaning in Words Truth Table ¬(p^q) = ¬(Brittany likes volleyball and math) = Brittany does not like both volleyball and math (she dislikes at least one). ¬(p^q)

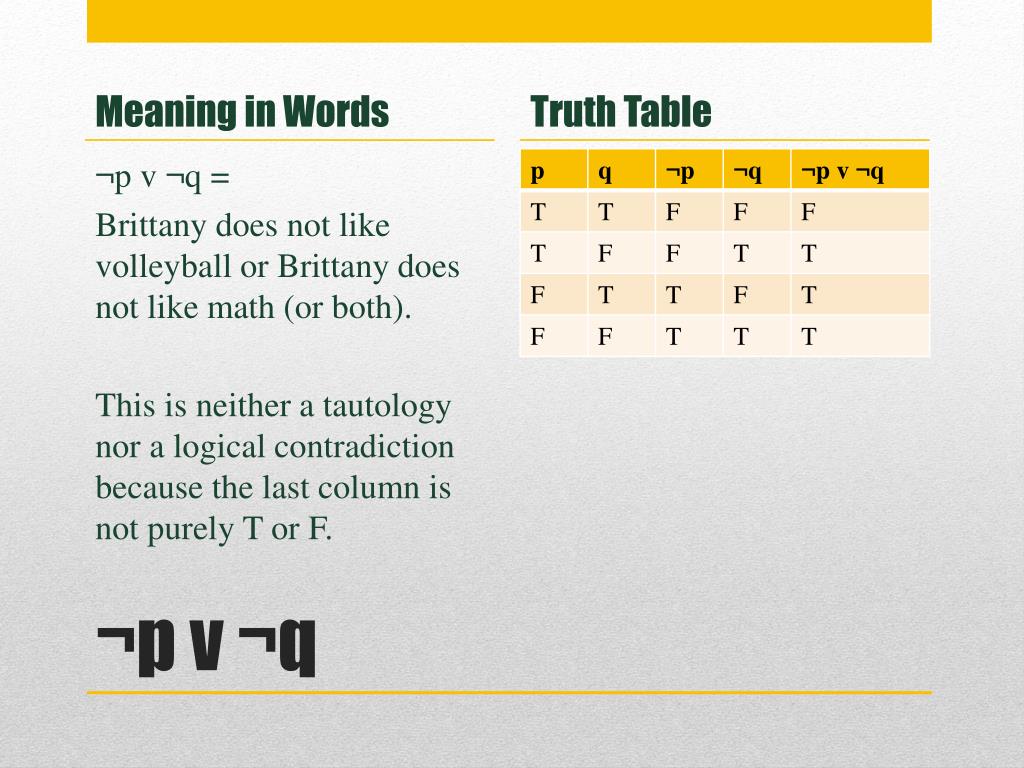

  10. Meaning in Words Truth Table ¬p v ¬q = Brittany does not like volleyball or Brittany does not like math(or both). This is neither a tautology nor a logical contradiction because the last column is not purely T or F. ¬p v ¬q

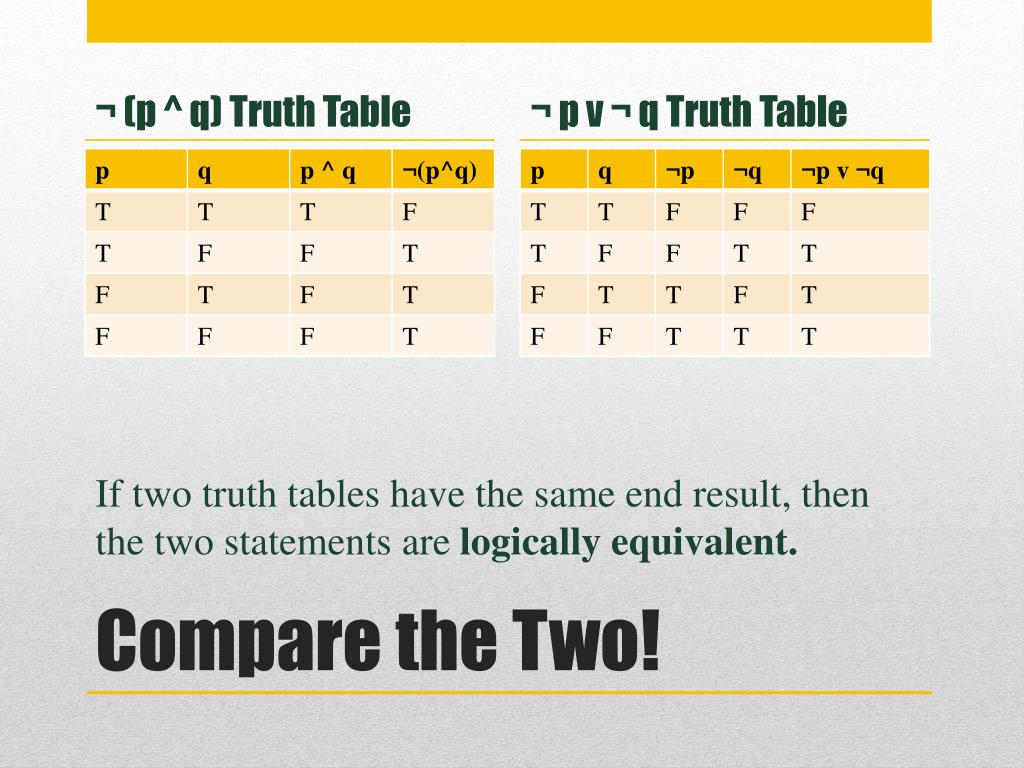

  11. ¬ (p ^ q) Truth Table ¬ p v ¬ q Truth Table If two truth tables have the same end result, then the two statements are logically equivalent. Compare the Two!

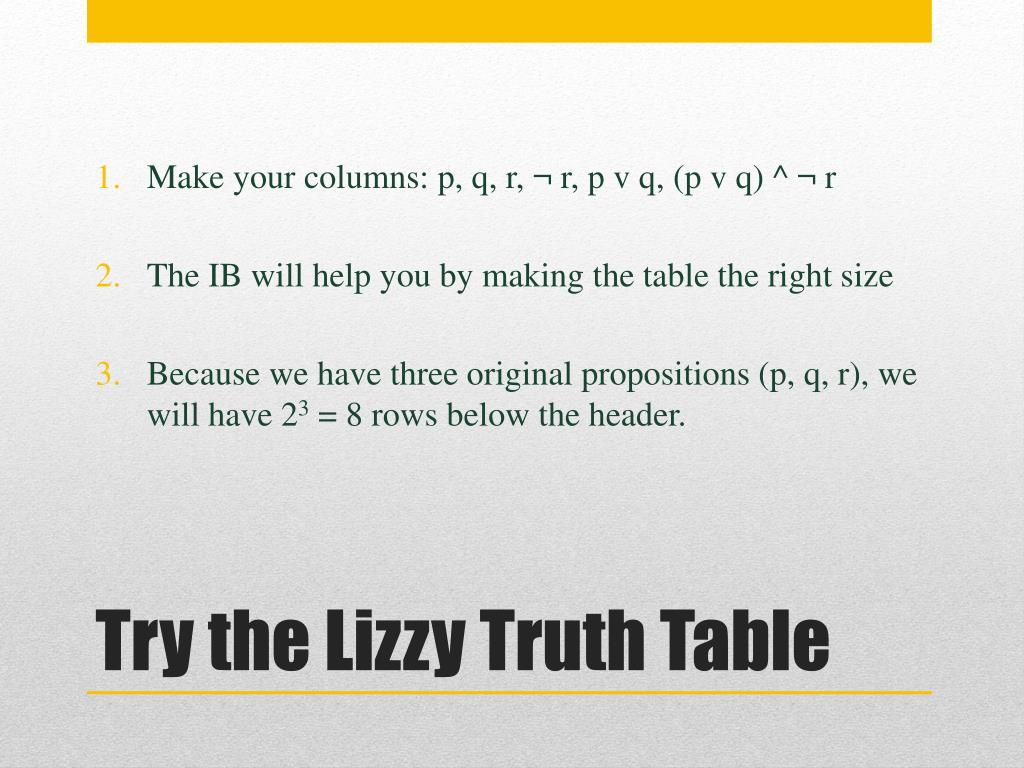

  12. Make your columns: p, q, r, ¬ r, p v q, (p v q) ^ ¬ r • The IB will help you by making the table the right size • Because we have three original propositions (p, q, r), we will have 23 = 8 rows below the header. Try the Lizzy Truth Table

  13. Lizzy Truth Table… Finish the Rest!

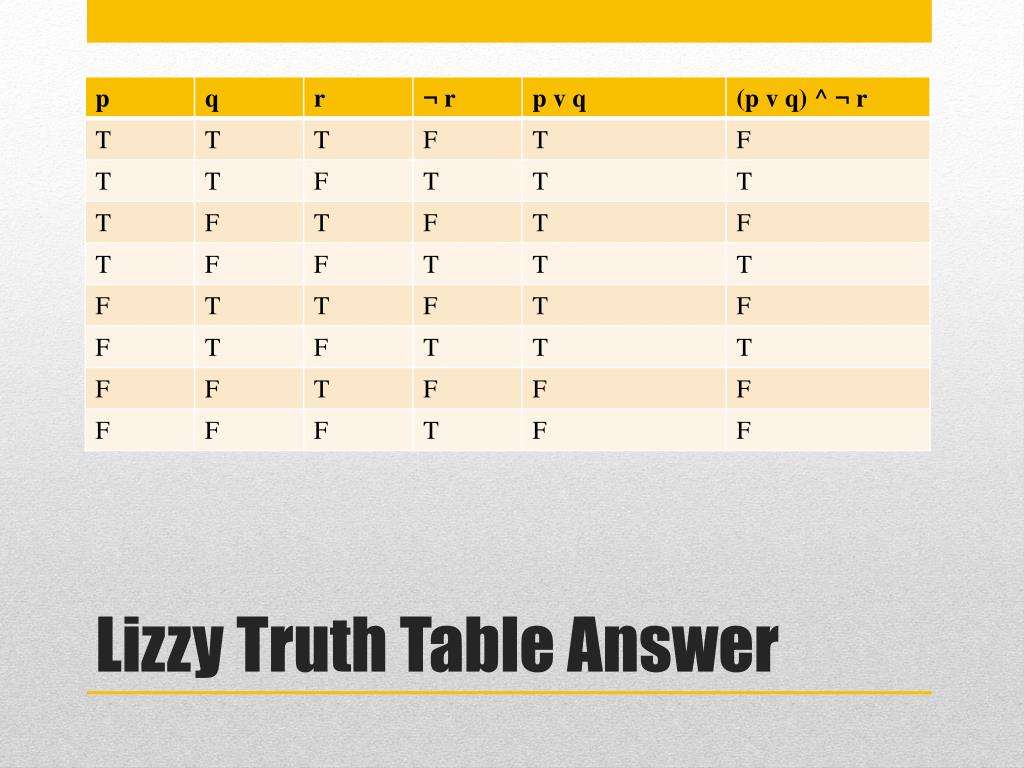

  14. Lizzy Truth Table Answer

  15. You should be able to: • Say if something is/isn’t a proposition. (Tues.) • Negate propositions. (Tues.) • Use conjunctions (and, ^), disjunctions (at least one, v), exclusive disjunctions (either/or, v). (Wed.) • Say if a statement is a tautology, logical contradiction, or neither. (Thurs.) • Say if two statements are logically equivalent. (Thurs.) For Tomorrow’s Quiz

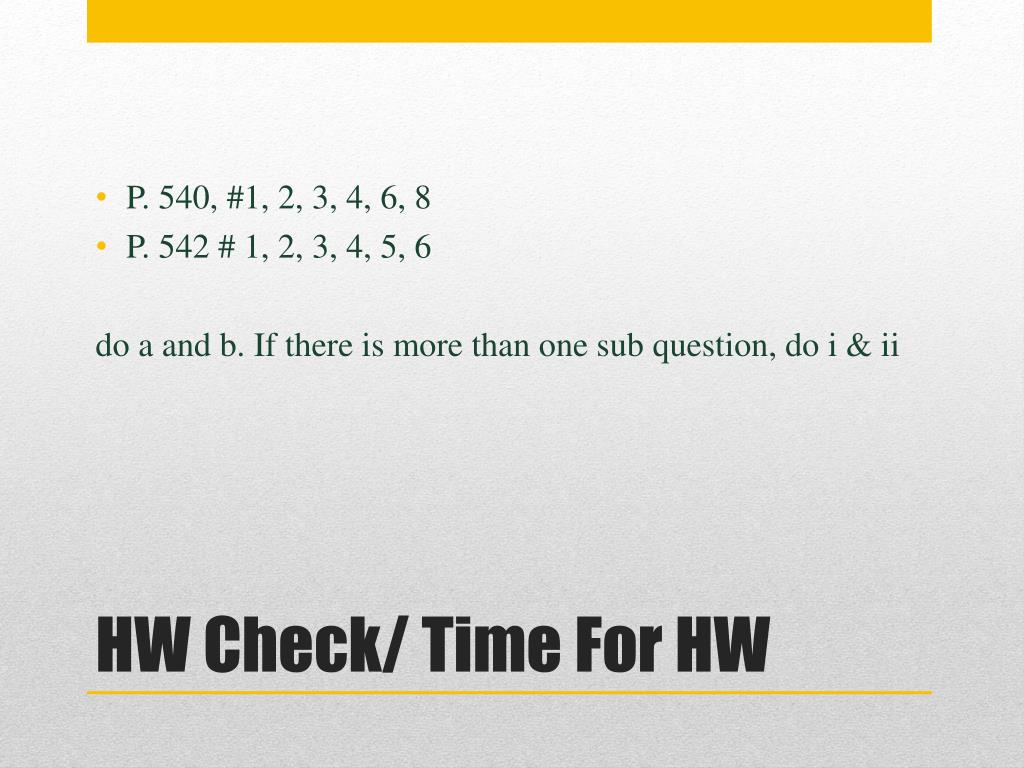

  16. P. 540, #1, 2, 3, 4, 6, 8 • P. 542 # 1, 2, 3, 4, 5, 6 do a and b. If there is more than one sub question, do i & ii HW Check/ Time For HW
