  1. Production Planning and Execution (PP) SAP University Alliances Version 2.1 Authors Bret Wagner Stefan Weidner Product SAP ERP 6.0 EhP4 Global Bike Inc. Level Beginner Focus Cross-functional integration Production Planning and Execution

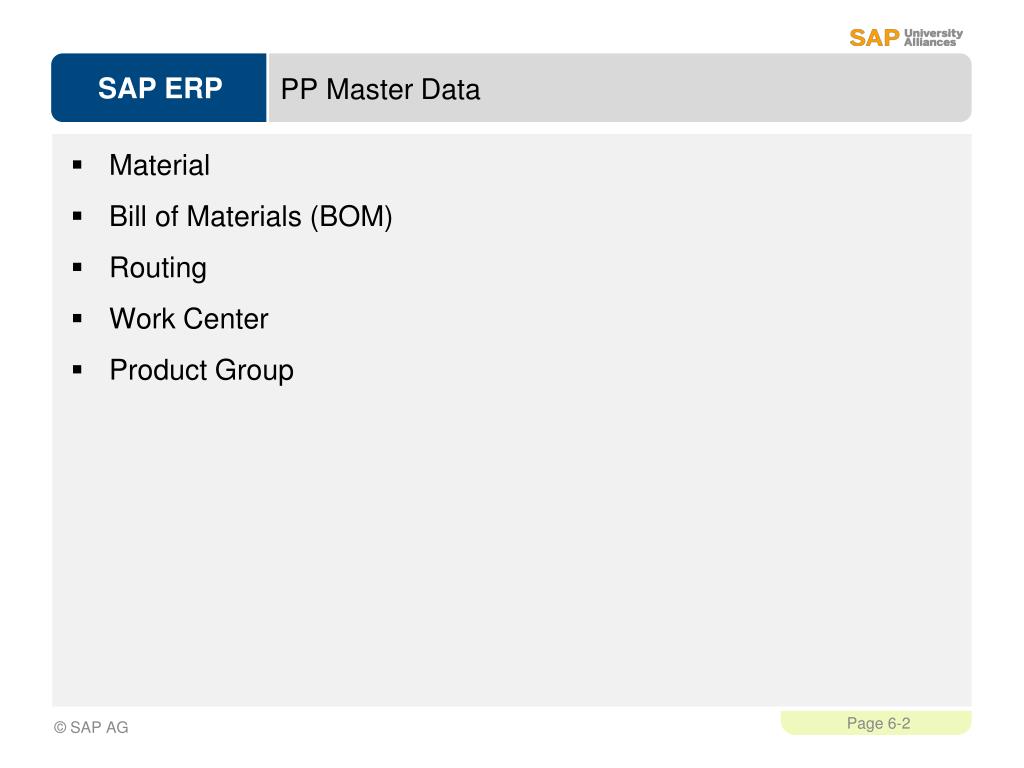

  2. PP Master Data Material Bill of Materials (BOM) Routing Work Center Product Group

  3. Material Master Record

  4. Bill of Materials (BOM) List of components that make up a product or assembly Wheel Assembly Tire Tube Wheel Hex nut Lock Washer Socket Head Bolt Frame Derailleur Gear Assembly • Seat Kit • Handle Bar • Pedal Assembly • Chain • Brake Kit • Warranty Document • Packaging

  5. Single-Level Bill of Materials (BOM) Single-Level Finished Bike Wheel Assembly Pedal Assembly Frame Chain Derailleur Gear Assembly Brake Kit Seat Kit Warranty Doc. Handle Bar Packaging

  6. Bill of Materials (BOM) Single-Level vs. Multi-Level Multi-Level Single-Level Finished Bike Single-Level Wheel Frame Derailleur Seat Handle Bar Pedal Chain Brake Doc. Pack. Tire Tube Wheel Hex nut Lock Bolt

  7. Bill of Materials (BOM) Variant Bill of Materials (BOM) Several products with a large proportion of identical parts. Single-Level Deluxe Bike (red) Single-Level Professional Bike (black) Aluminum Wheel Pedal Assembly Carbon Wheel Pedal Assembly Frame red Chain Frame black Chain Derailleur Gear Assembly Brake Kit Derailleur Gear Assembly Brake Kit Seat Kit Warranty Doc. Seat Kit Warranty Doc. Handle Bar Packaging Handle Bar Packaging

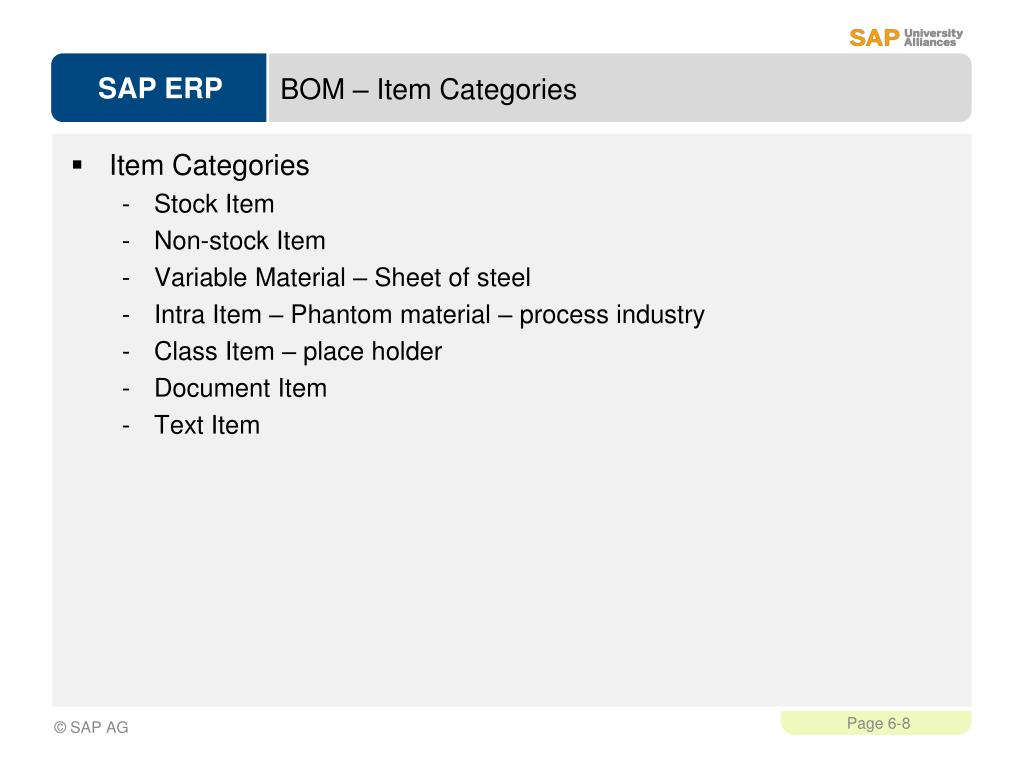

  8. BOM – Item Categories Item Categories Stock Item Non-stock Item Variable Material – Sheet of steel Intra Item – Phantom material – process industry Class Item – place holder Document Item Text Item

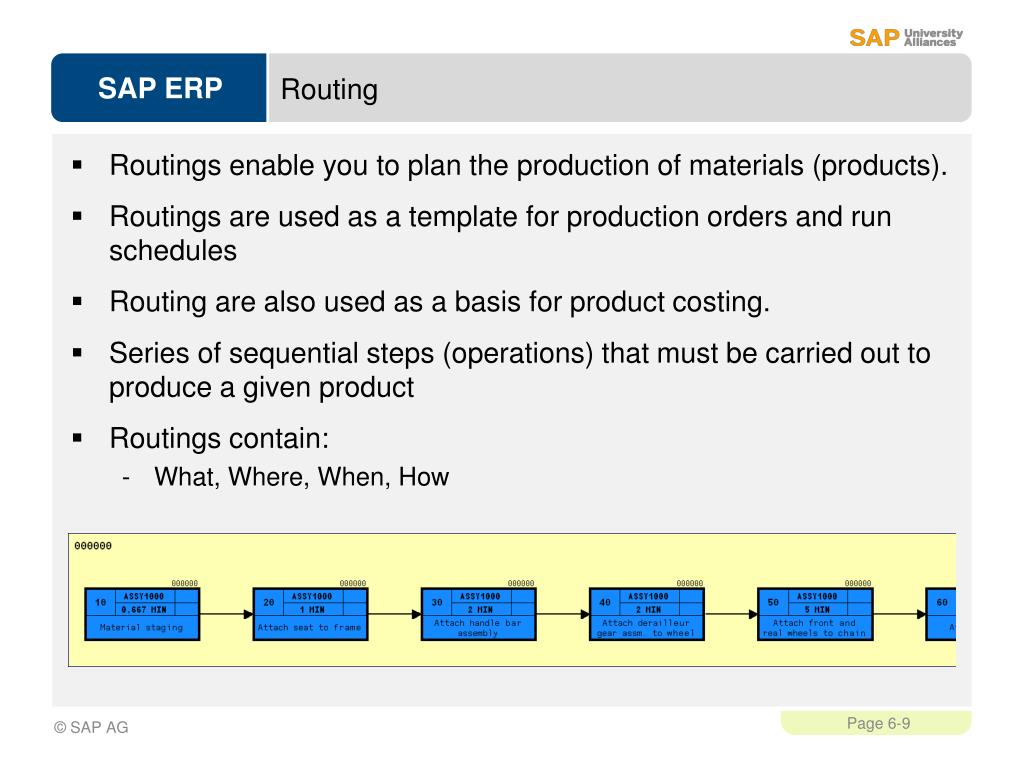

  9. Routing Routings enable you to plan the production of materials (products). Routings are used as a template for production orders and run schedules Routing are also used as a basis for product costing. Series of sequential steps (operations) that must be carried out to produce a given product Routings contain: What, Where, When, How

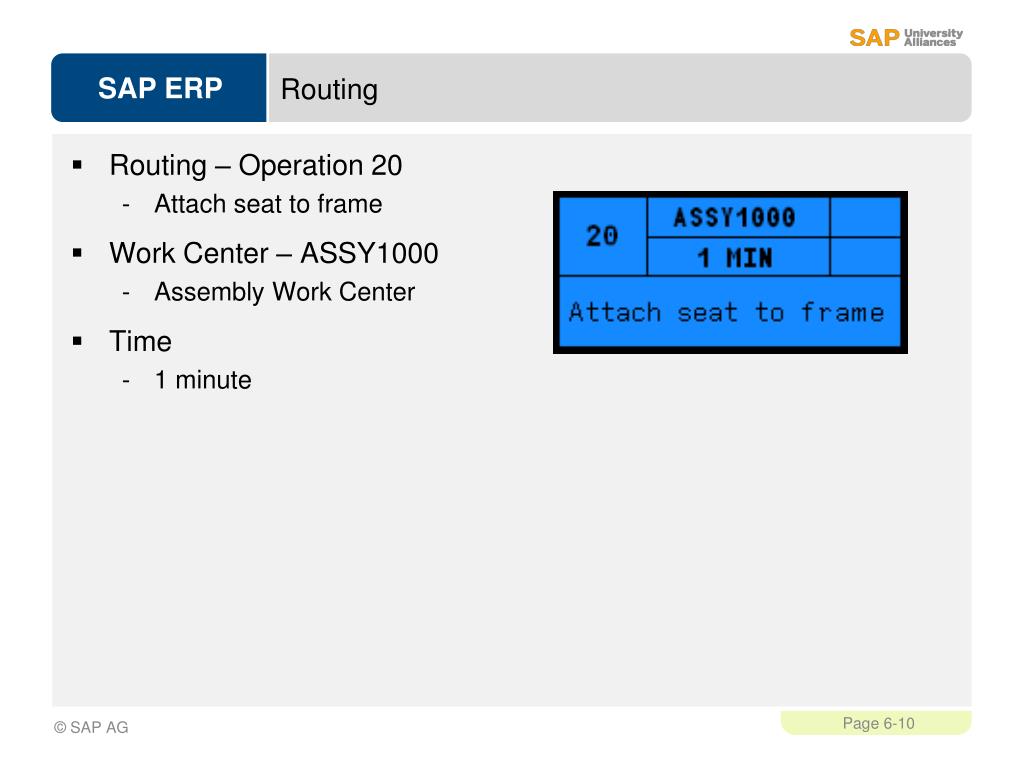

  10. Routing Routing – Operation 20 Attach seat to frame Work Center – ASSY1000 Assembly Work Center Time 1 minute

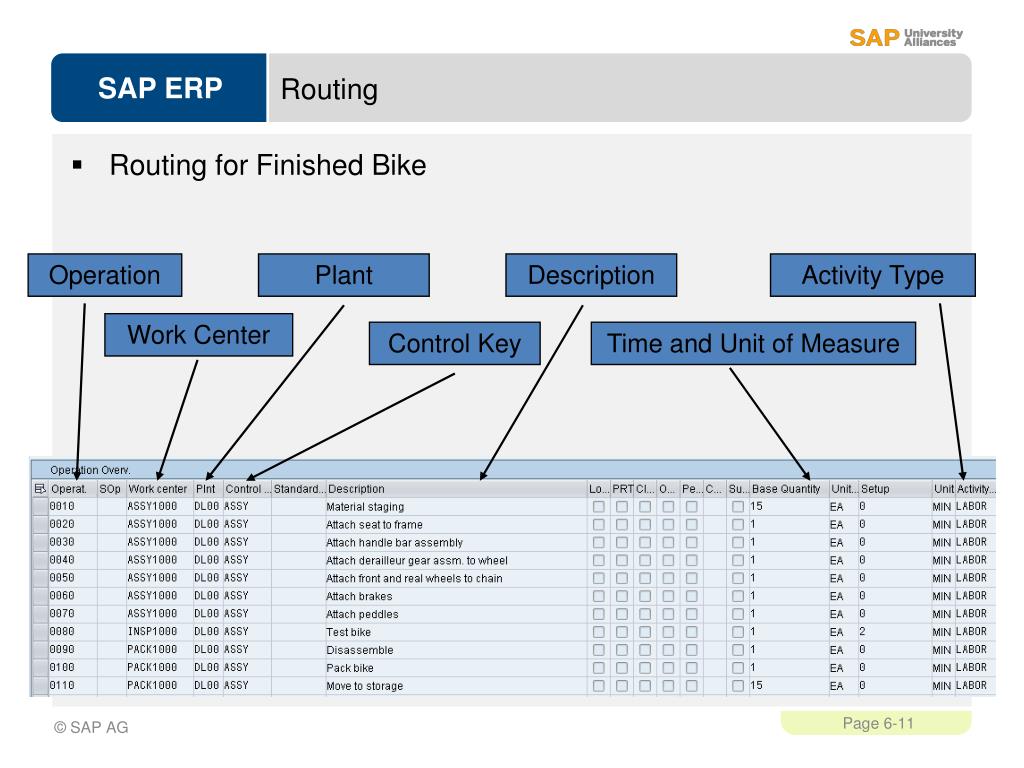

  11. Routing Routing for Finished Bike Operation Plant Description Activity Type Work Center Control Key Time and Unit of Measure

  12. Work Center A location within a plant where value-added work (operations or activities) are performed Work Centers can represent People or Groups of People Machines or Groups of Machines Assembly Lines Work center used to define capacities Labor Machine Output Emissions Capacities used in Capacity requirements planning (CRP) Detailed scheduling Costing

  13. Work Center Work centers capture and use the following Resource Related data Basic Data Person Responsible, Location of Work Center Scheduling Information Queues and Move Times (interoperation), Formula Keys Costing Data Cost Center, Activity Types Personnel Data People, Positions, Qualifications Capacity Planning Available Capacity, Formulas, Operating Time Default Data Control Key, Standard Text Key

  14. Product Group Aggregate planning that group together materials or other product groups (Product Families) Multi- or Single- Level Product Groups The lowest level must always consist of materials
