  1. Extraction and beamline progress B.Goddard TE/ABT

  2. Switch from TT20to new TT26 • Uses MBS magnets from CNGS TT41 • Replace and move 2x TT20 quadrupoles

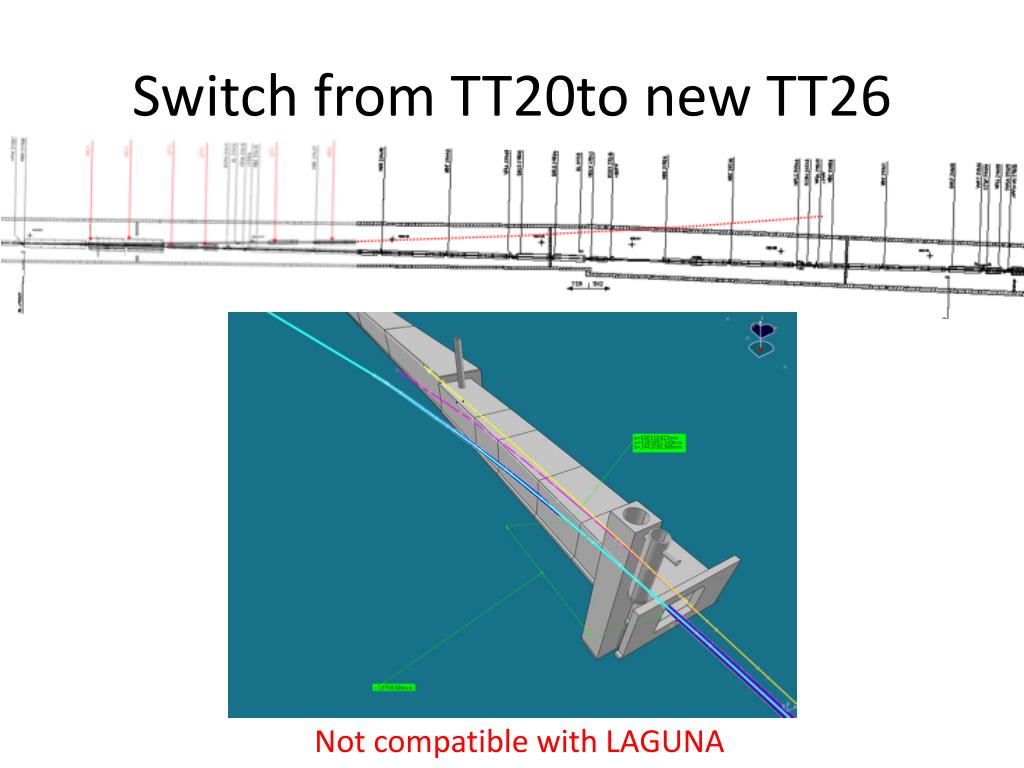

  3. Switch from TT20to new TT26 Not compatible with LAGUNA

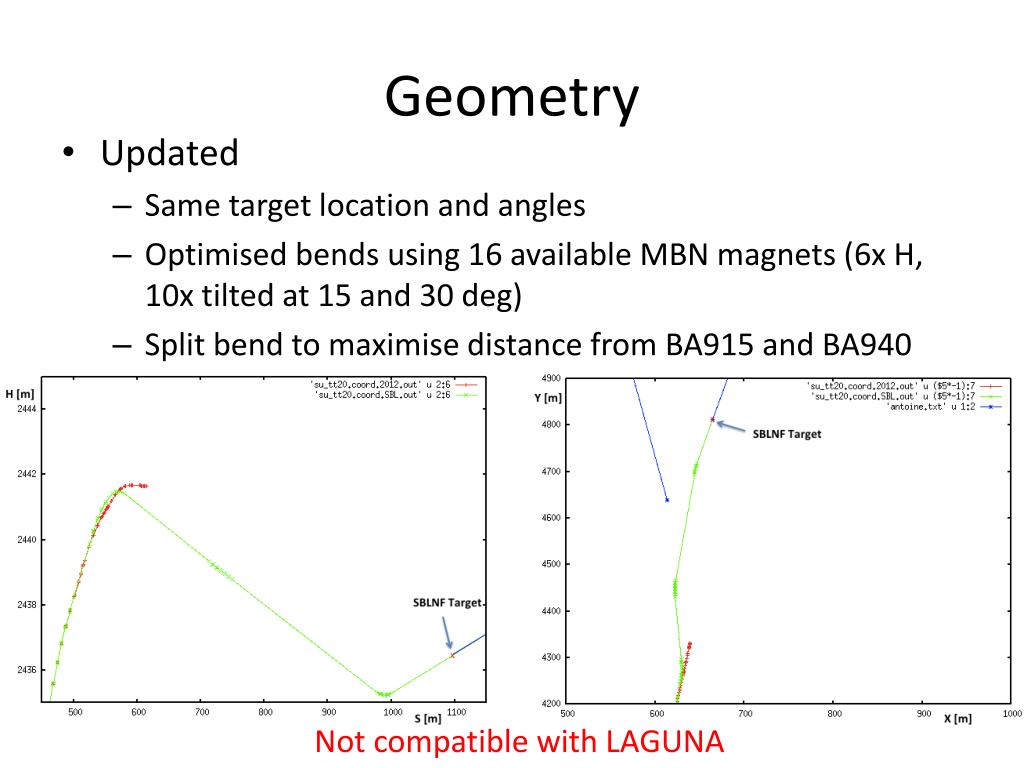

  4. Geometry • Updated • Same target location and angles • Optimised bends using 16 available MBN magnets (6x H, 10x tilted at 15 and 30 deg) • Split bend to maximisedistance from BA915 and BA940 Not compatible with LAGUNA

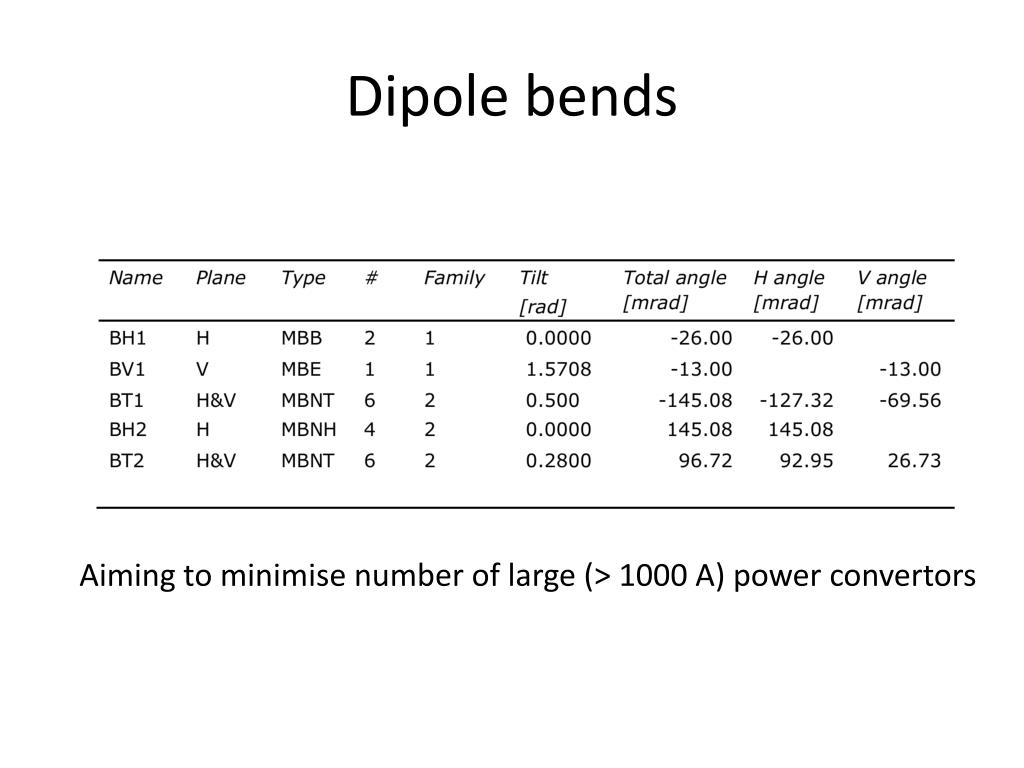

  5. Dipole bends Aiming to minimise number of large (> 1000 A) power convertors

  6. Compatibility with Laguna • SPS extraction: LSS2 changes yes, LSS1 MKP no • TT20 upgrade: yes • Switch: no (maximum 100 GeV/c) • TT26: no (maximum 100 GeV/c)

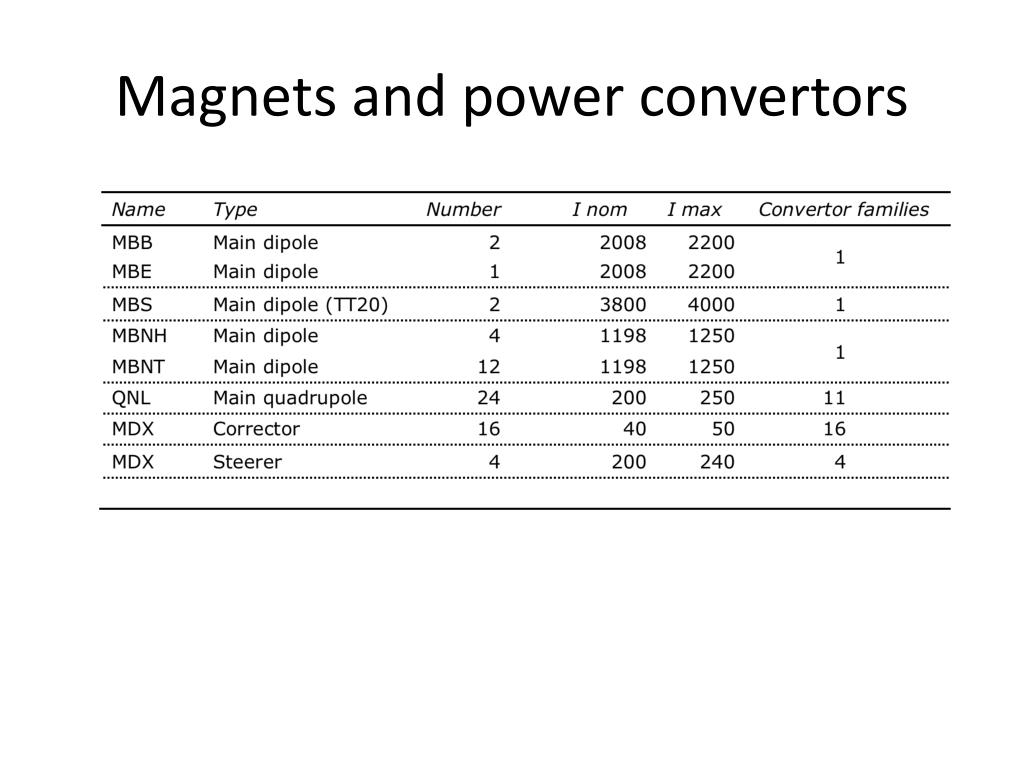

  7. Magnets and power convertors

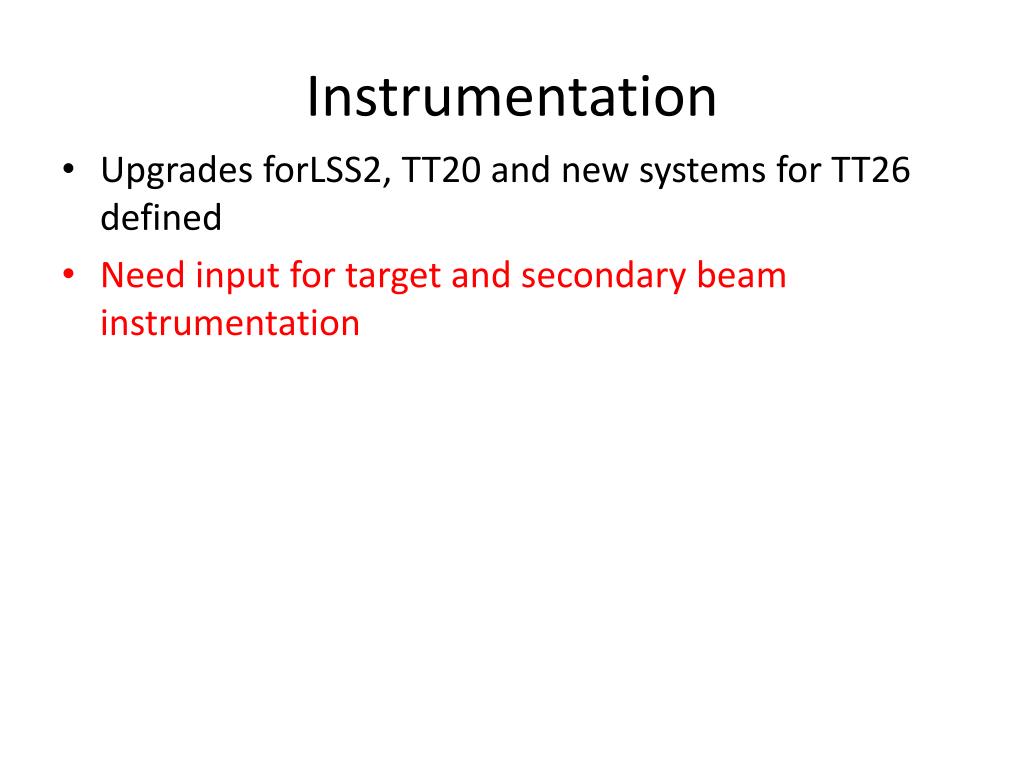

  8. Instrumentation • Upgrades forLSS2, TT20 and new systems for TT26 defined • Need input for target and secondary beam instrumentation

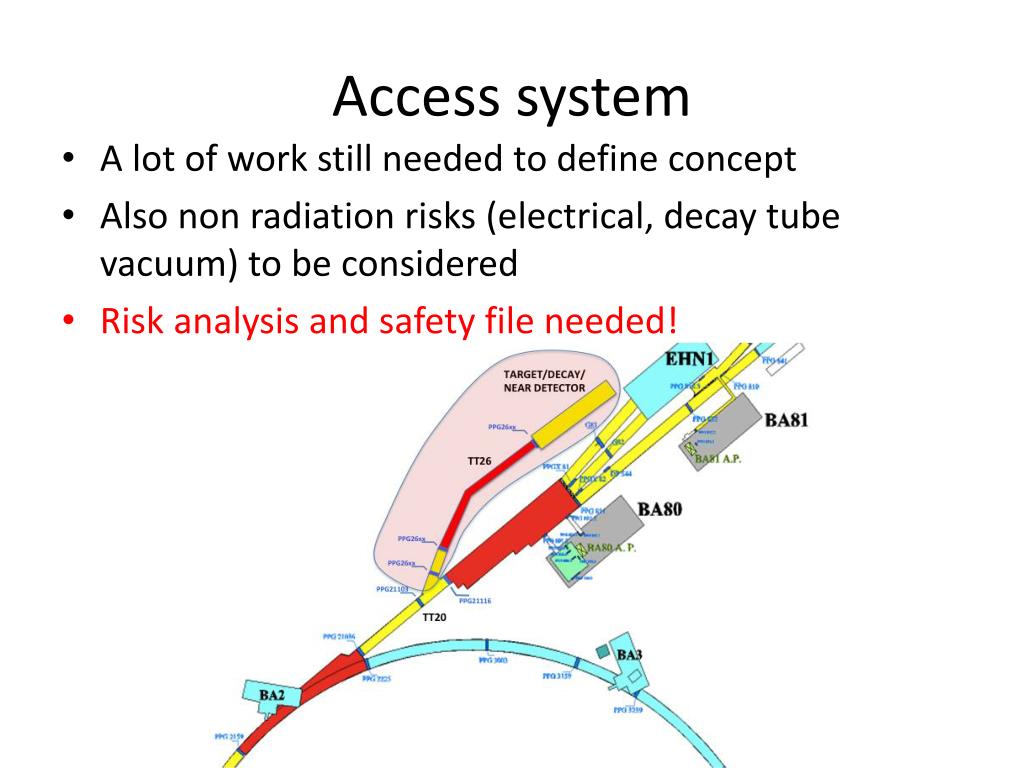

  9. Access system • A lot of work still needed to define concept • Also non radiation risks (electrical, decay tube vacuum) to be considered • Risk analysis and safety file needed!

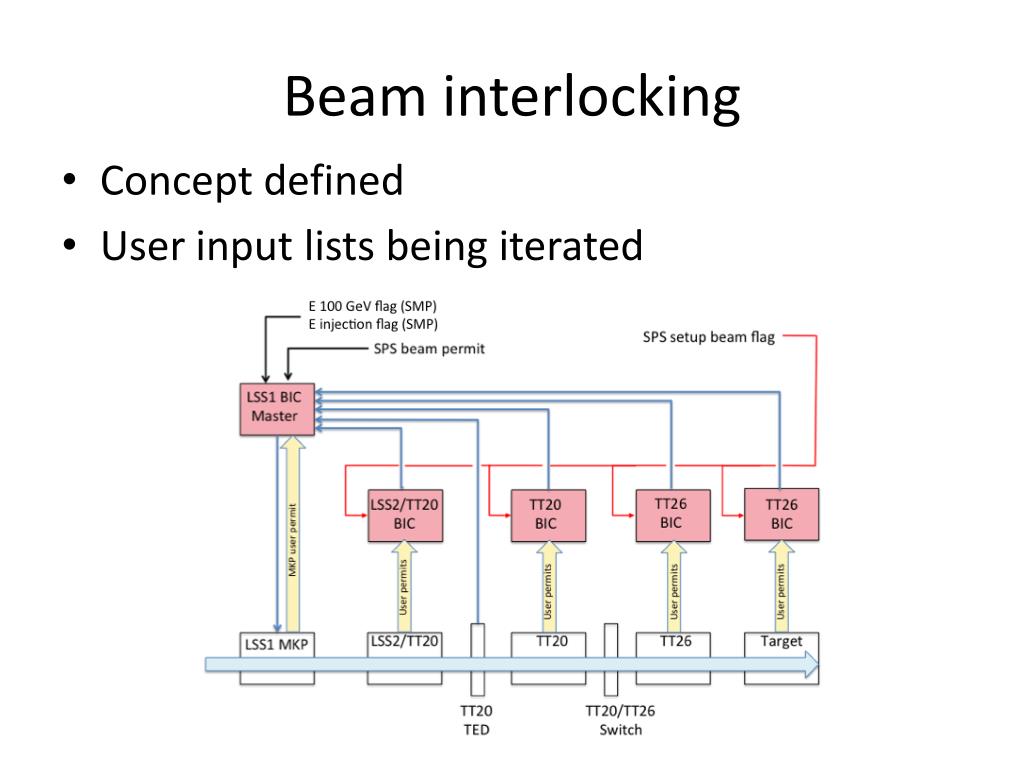

  10. Beam interlocking • Concept defined • User input lists being iterated

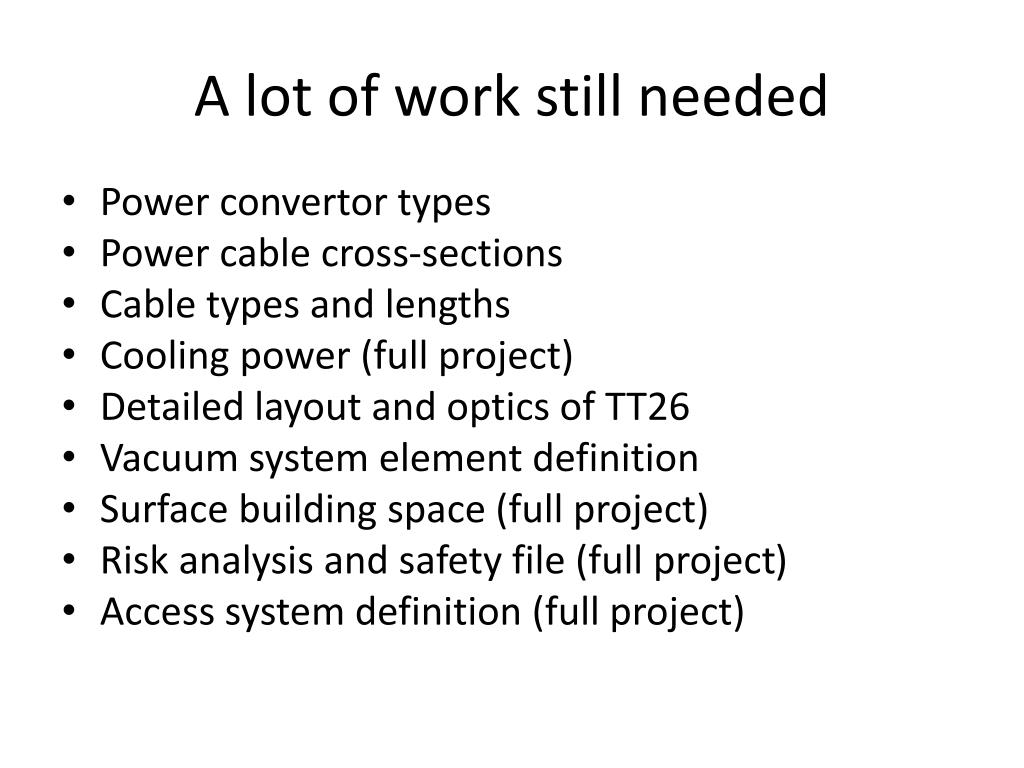

  11. A lot of work still needed • Power convertor types • Power cable cross-sections • Cable types and lengths • Cooling power (full project) • Detailed layout and optics of TT26 • Vacuum system element definition • Surface building space (full project) • Risk analysis and safety file (full project) • Access system definition (full project)

  12. Services needed before installation • Civil engineering completed; • Tunnel painting completed; • Electrical distribution installed and operating; • AUGs installed and operational; • Lighting installed and operating; • Cable trays installed and cables pulled; • Leaky feeder cables installed and operational for underground GSMs; • Ventilation completed (for personnel access at least); • All underground safety systems installed and completed • smoke detection, fire extinguishers, safety markings, emergency lighting, …; • New access shafts, personnel and material lifts installed and operational; • Access system installed and tested, or temporary shielding in place; • New or extended auxiliary surface buildings completed and installed with all services;

  13. Schedule feasibility • Main risks are: • Infrastructure preparation • Civil engineering, cabling, cooling, ventilation, … • New beam instrumentation • Large aperture BPM contract to launch 2013 • New power convertors • 2 convertors needed for TT26 dipoles (2000 and 4000 A), for which no up-to-date design yet exists • Installation interleaved with SPS/NA operation • Work needed for end of LS1, which will involve a lot of CERN design and workshop effort • MANPOWER
