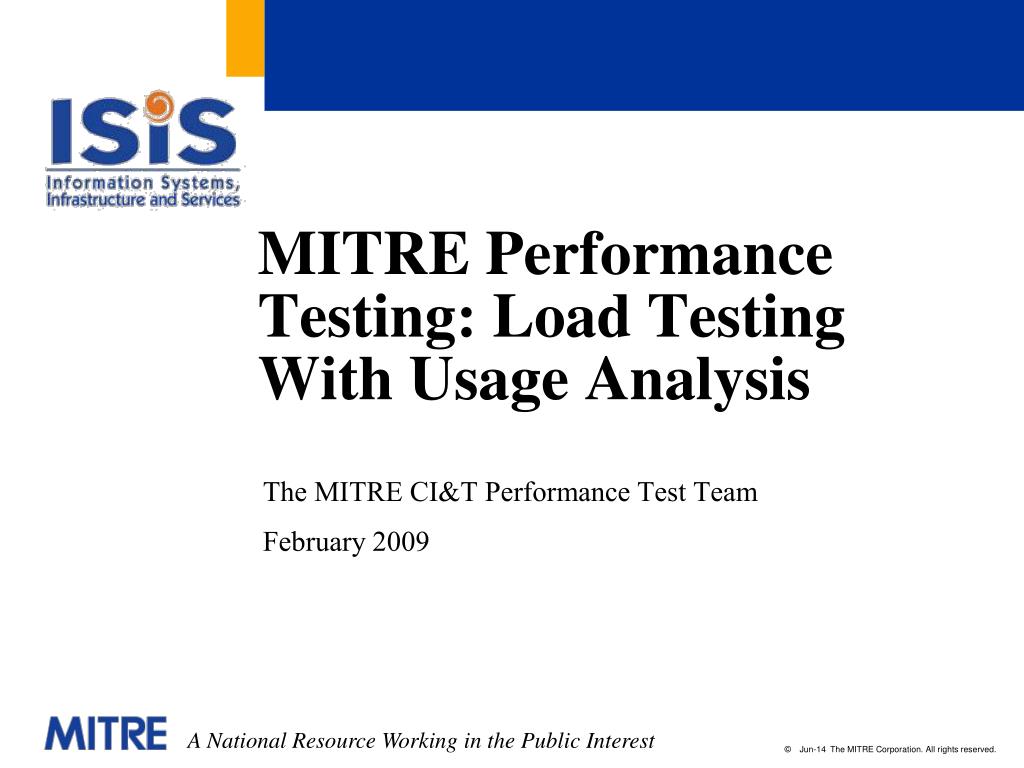

  1. MITRE Performance Testing: Load Testing With Usage Analysis The MITRE CI&T Performance Test Team February 2009

  2. Acknowledgements • This briefing was prepared by adopting material from the Fundamentals of LoadRunner 8.1 training manual • The final usage analysis method and model described in this briefing was pioneered by the MITRE CI&T Performance Test Team. • Initial methods and models were originated by Henry Amistadi and evolved with the input of Chris Alexander, Betty Kelley and Aimee Bechtle.

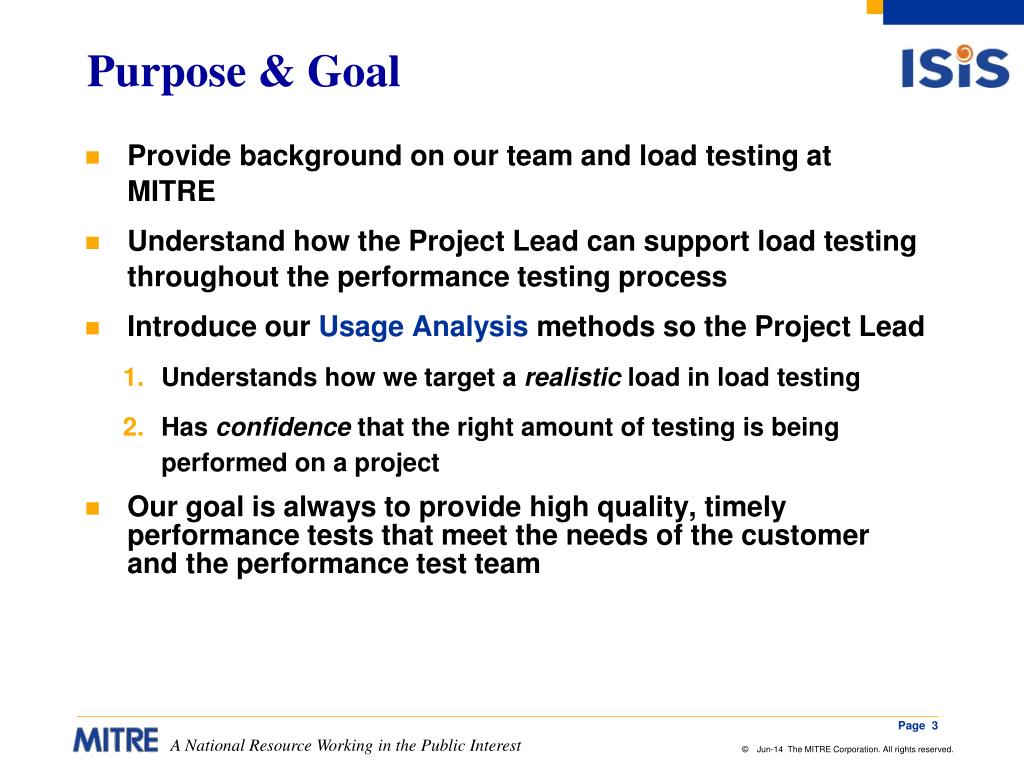

  3. Purpose & Goal • Provide background on our team and load testing at MITRE • Understand how the Project Lead can support load testing throughout the performance testing process • Introduce our Usage Analysis methods so the Project Lead • Understands how we target a realistic load in load testing • Has confidence that the right amount of testing is being performed on a project • Our goal is always to provide high quality, timely performance tests that meet the needs of the customer and the performance test team

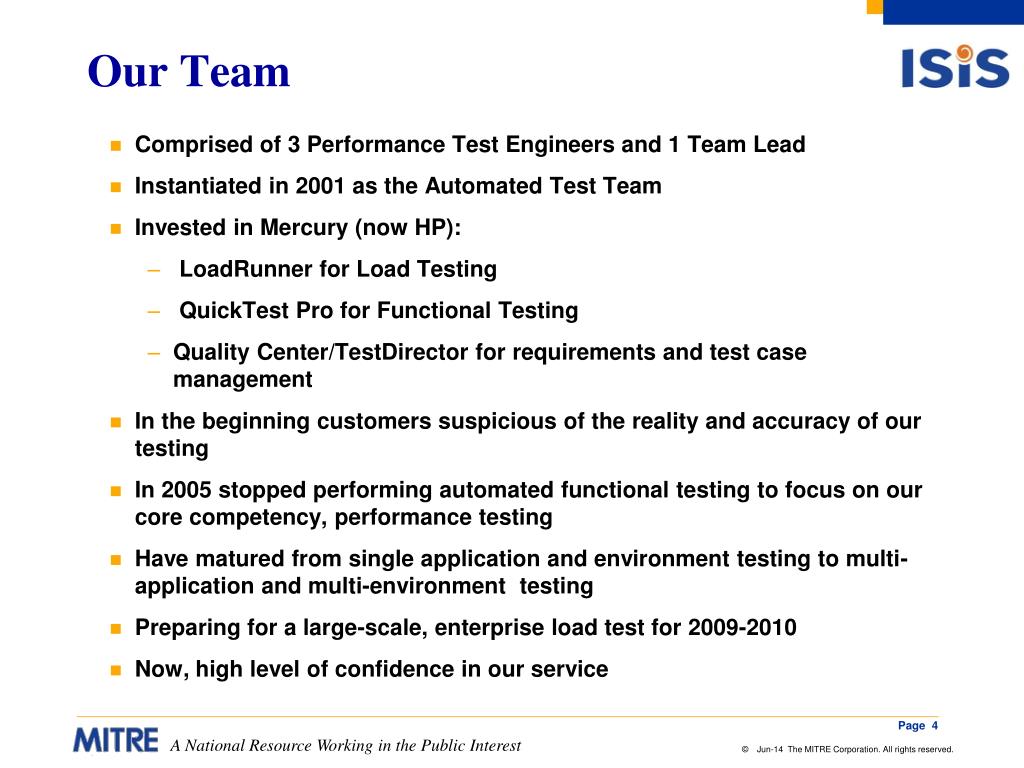

  4. Our Team • Comprised of 3 Performance Test Engineers and 1 Team Lead • Instantiated in 2001 as the Automated Test Team • Invested in Mercury (now HP): • LoadRunner for Load Testing • QuickTest Pro for Functional Testing • Quality Center/TestDirector for requirements and test case management • In the beginning customers suspicious of the reality and accuracy of our testing • In 2005 stopped performing automated functional testing to focus on our core competency, performance testing • Have matured from single application and environment testing to multi-application and multi-environment testing • Preparing for a large-scale, enterprise load test for 2009-2010 • Now, high level of confidence in our service

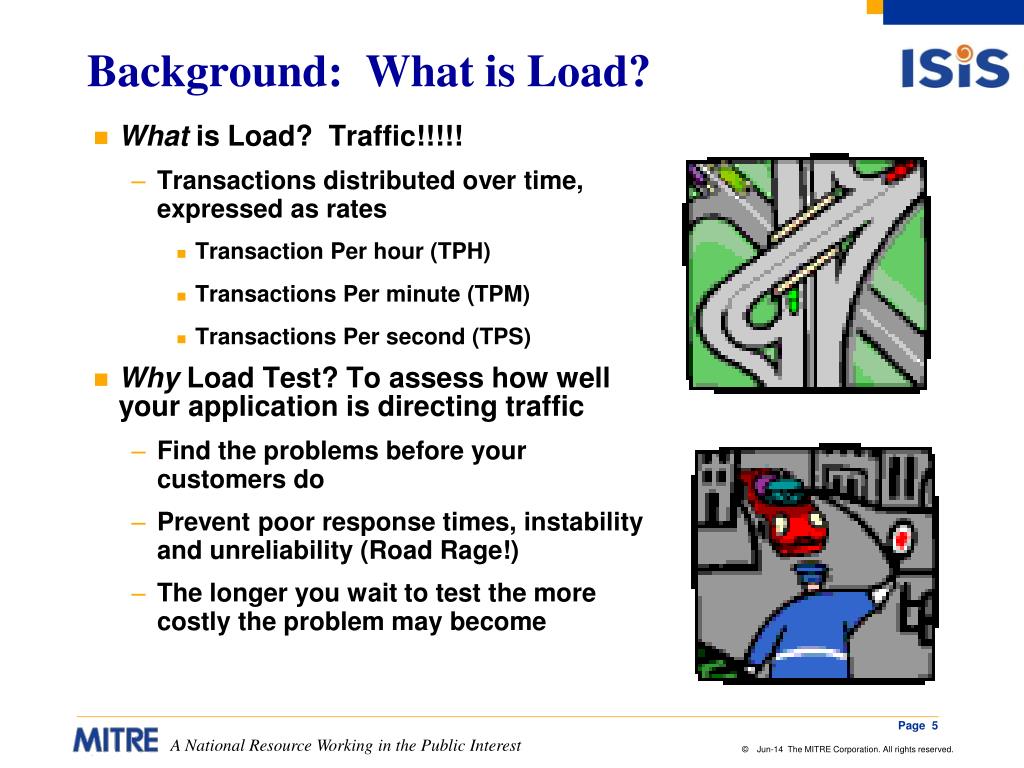

  5. Background: What is Load? • What is Load? Traffic!!!!! • Transactions distributed over time, expressed as rates • Transaction Per hour (TPH) • Transactions Per minute (TPM) • Transactions Per second (TPS) • Why Load Test? To assess how well your application is directing traffic • Find the problems before your customers do • Prevent poor response times, instability and unreliability (Road Rage!) • The longer you wait to test the more costly the problem may become

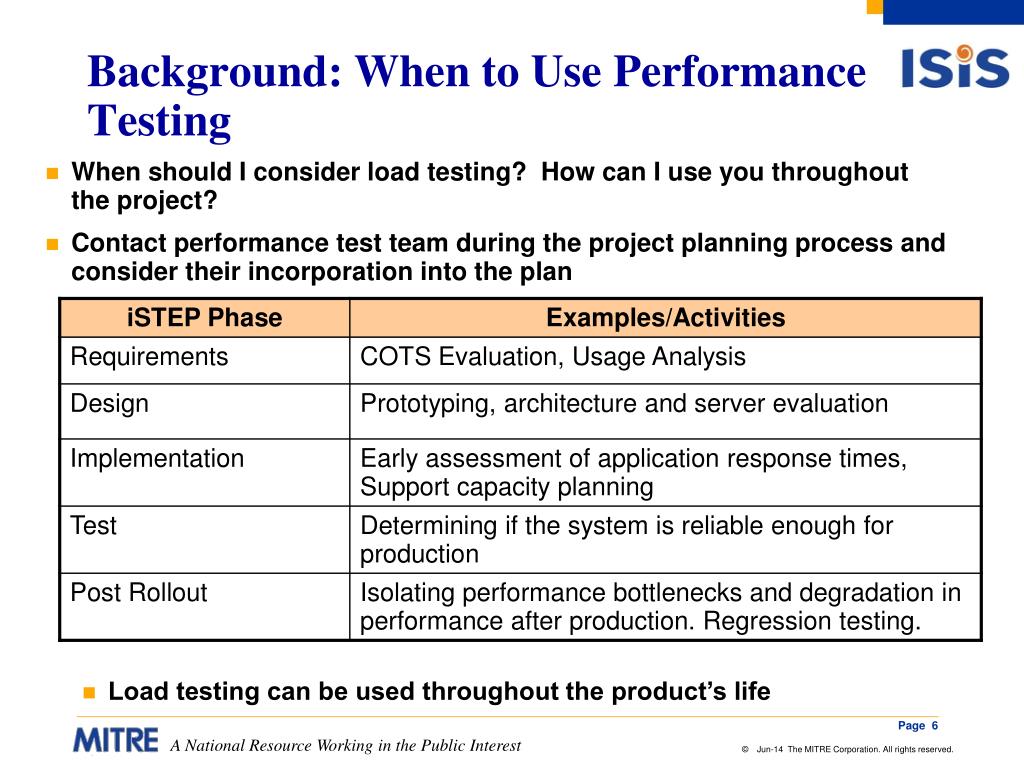

  6. Background: When to Use Performance Testing • When should I consider load testing? How can I use you throughout the project? • Contact performance test team during the project planning process and consider their incorporation into the plan • Load testing can be used throughout the product’s life

  7. Background: The Process

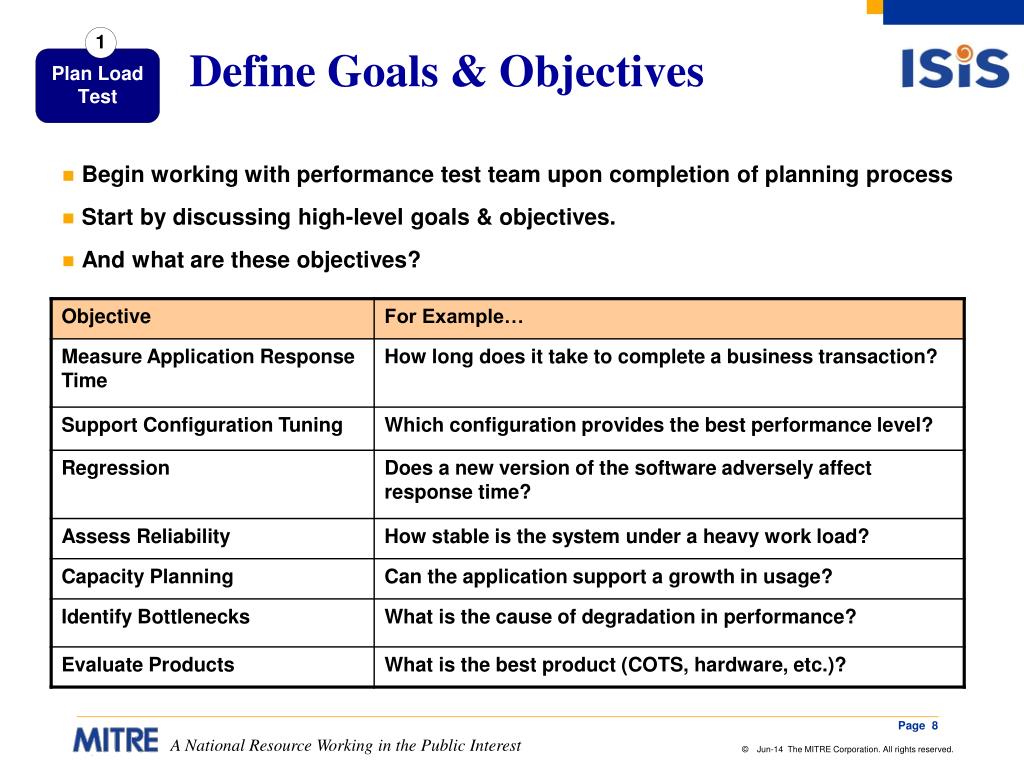

  8. Define Goals & Objectives • Begin working with performance test team upon completion of planning process • Start by discussing high-level goals & objectives. • And what are these objectives?

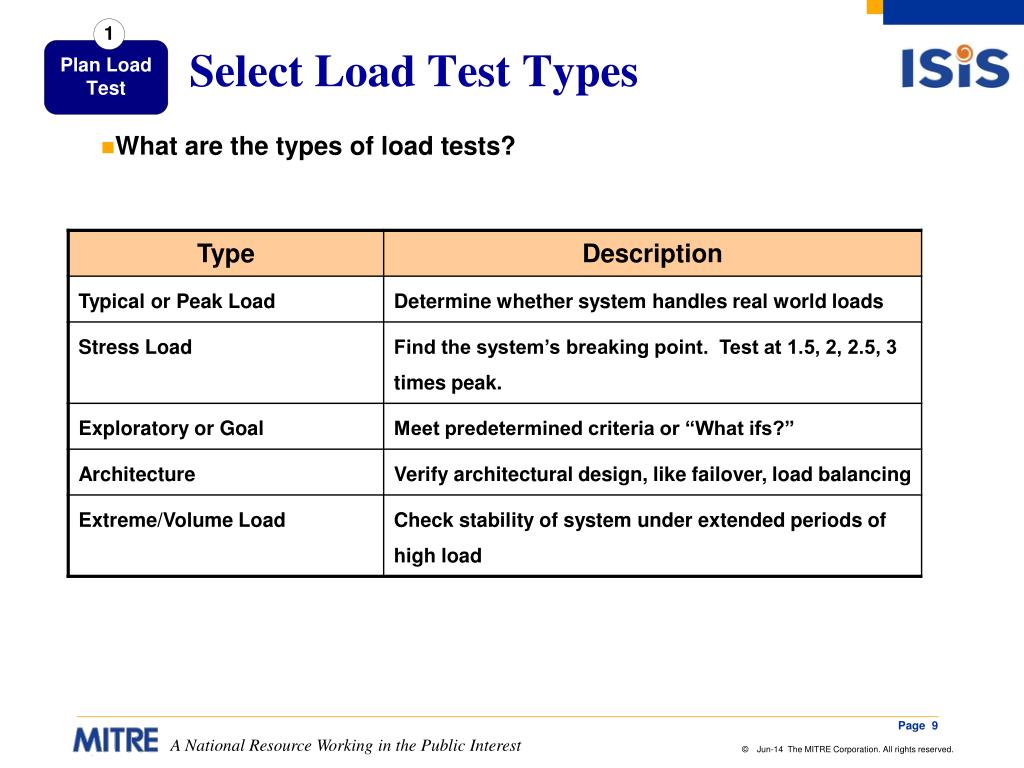

  9. Select Load Test Types • What are the types of load tests?

  10. Analyze System - Environment • Need to understand the logical and physical test environment to make the proper tool, protocol selection and to know our constraints • What is the historical CPU utilization on these machines? • What other apps are on these machines?

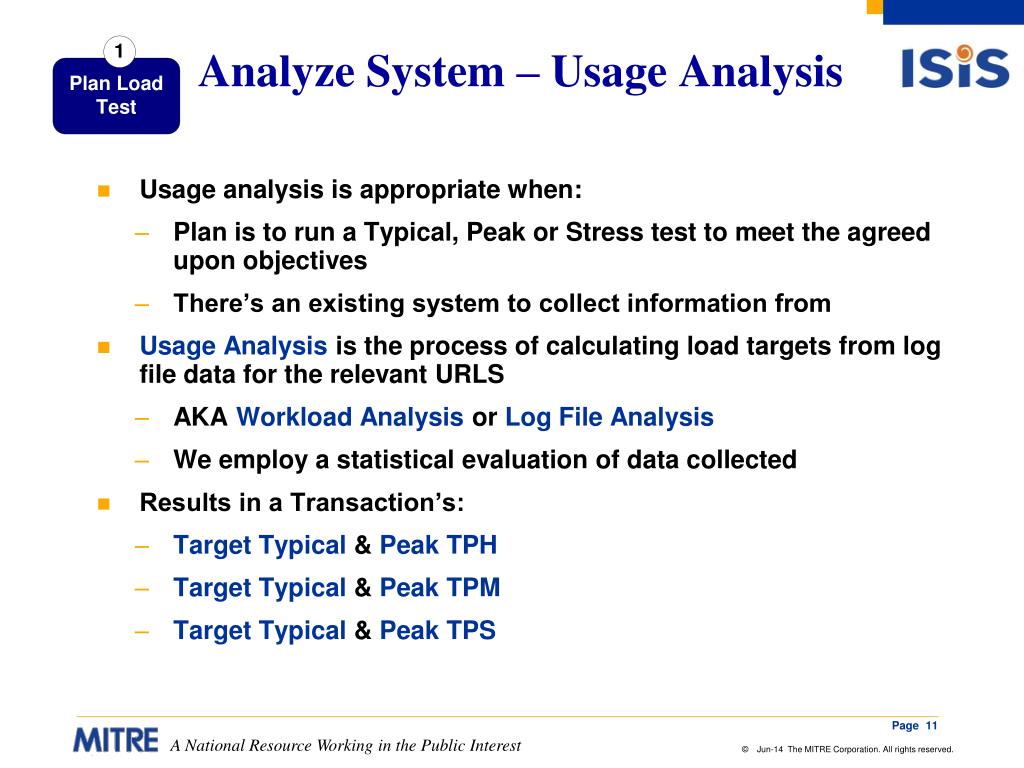

  11. Analyze System – Usage Analysis • Usage analysis is appropriate when: • Plan is to run a Typical, Peak or Stress test to meet the agreed upon objectives • There’s an existing system to collect information from • Usage Analysis is the process of calculating load targets from log file data for the relevant URLS • AKA Workload Analysis or Log File Analysis • We employ a statistical evaluation of data collected • Results in a Transaction’s: • Target Typical & Peak TPH • Target Typical & Peak TPM • Target Typical & Peak TPS

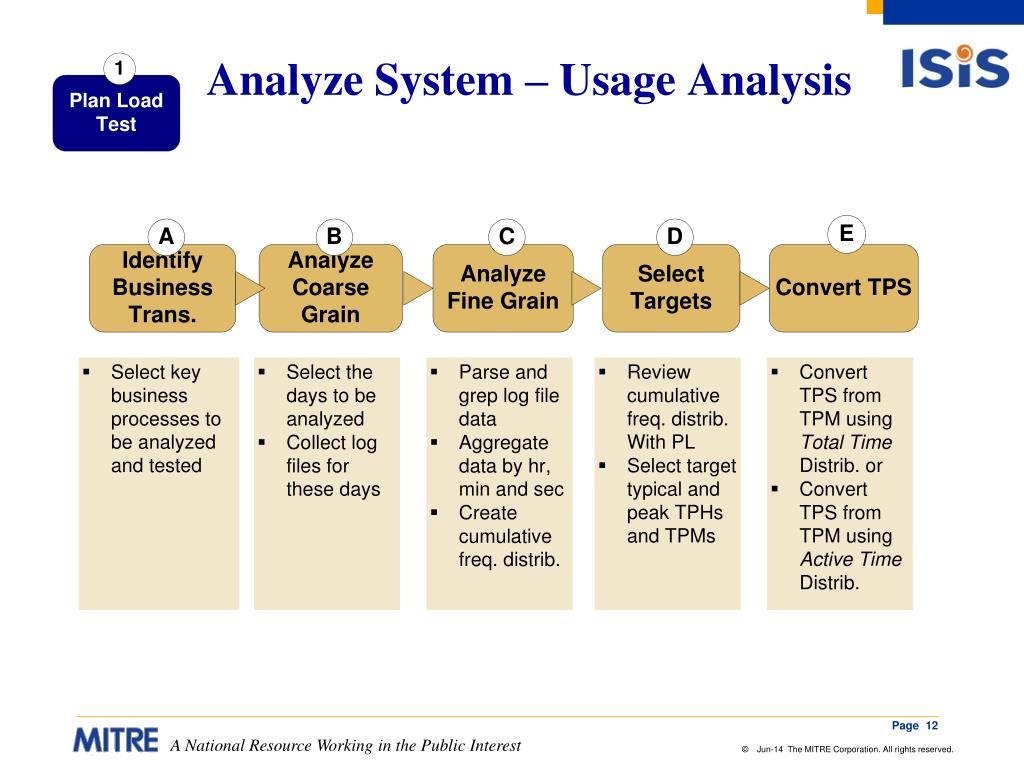

  12. Analyze System – Usage Analysis

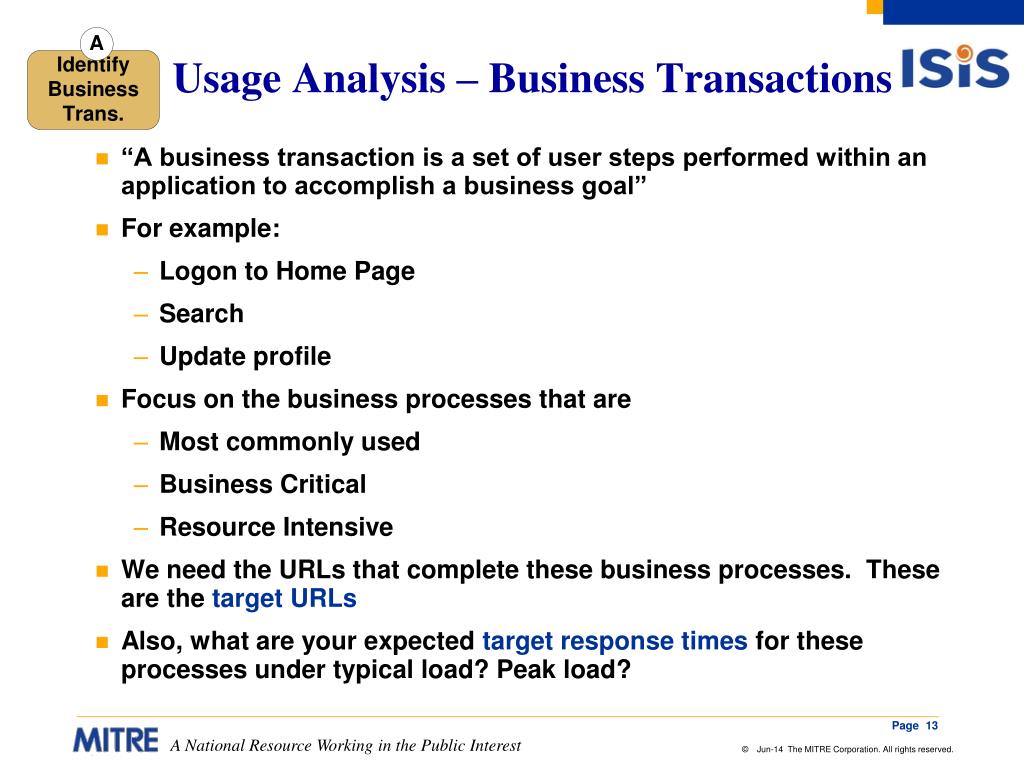

  13. Usage Analysis – Business Transactions • “A business transaction is a set of user steps performed within an application to accomplish a business goal” • For example: • Logon to Home Page • Search • Update profile • Focus on the business processes that are • Most commonly used • Business Critical • Resource Intensive • We need the URLs that complete these business processes. These are the target URLs • Also, what are your expected target response times for these processes under typical load? Peak load?

  14. Usage Analysis – Coarse Grain • Purpose is to identify Typical PeakUsage Patterns • Use WebTrends • We identify the Typical Peak by answering questions such as: • Is this application used cyclical or quarterly? • Are some months or days of the weeks higher use than others? • Is this application heavily used on a daily basis? • Is this application heavily used throughout the day or only at specific hours? • What are the highest use days and hours?

  15. Usage Analysis – Coarse Grain Example • Corporate Portal: • Looked at weekdays from Oct – Dec 2006 • Compared daily and hourly page views in WebTrends for portal/dt and amserver/UI/Login • Ranked days in terms of daily totals • Excluded two busiest days because of abnormal patterns • Selected next 8 busiest days for further analysis

  16. Usage Analysis – Fine Grain • Once the Typical Peak timeframe is determined, log files from that period are collected for more detailed analysis. • Relevant fields are isolated for inclusion, such as: • Requesting URL (as agreed upon with the project team), Response Code, Date and Time request completed, Referring URL, User information

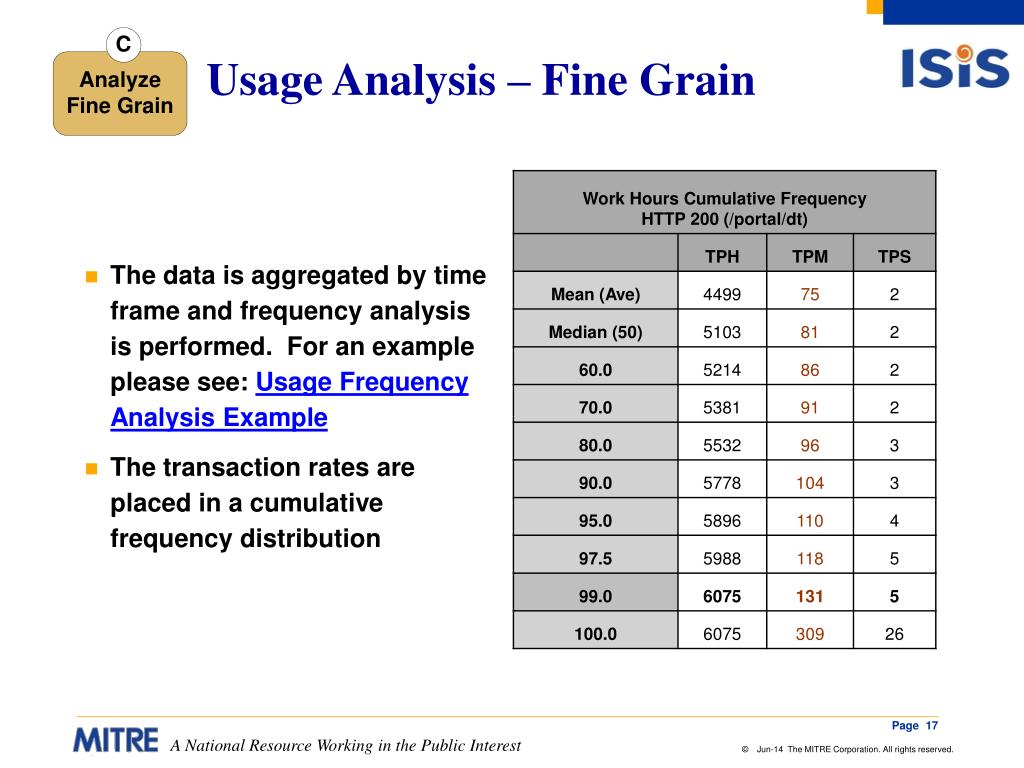

  17. Usage Analysis – Fine Grain • The data is aggregated by time frame and frequency analysis is performed. For an example please see: Usage Frequency Analysis Example • The transaction rates are placed in a cumulative frequency distribution

  18. Usage Analysis – Select Targets • Select your Typical and Peak targets • We recommend using the TPH and TPM rates at the Median, 50th Percentile, as the Typical Transaction Rates • We recommend using the TPH and TPM rates at the 99th percentile as Peak Transaction Rates • The TPS in this analysis is a reference point. • This index is a satisfaction index: • What percentage of the time are you willing to have users be satisfied/unsatisfied? • If you design a system to handle 131 TPMs your users would be satisfied with response time performance 99% of the time

  19. Usage Analysis – Convert TPS • Purpose is to know the target TPS, and at what time intervals, the transactions are going to occur in the test • We can choose from two methods • Method 1: Total Time Distribution (How?) • Assumes transactions are evenly distributed and every minute or second is active • Represents the lowest transaction rate in terms of load distribution • Method 2: Active Time Distribution (How?) • Accounts for the wave patterns of transaction activity • Assumes that not every minute and second is active • The active and inactive times are calculated

  20. Pulling It All Together • At the conclusion of the usage analysis we meet with the Project Lead and review the plan. • Ideal if conducted during development, prior to integration testing • Review Business Processes and Target Transactions Rates • Target Transactions Rates Example: “The system shall sustain a load home page transaction time of 3 seconds or less during typical hours at a rate of 2.02 transactions per second, and 3-5 seconds maximum during peak hours at a rate of 3.3 transactions per second.” * PRT = Preferred Response Time

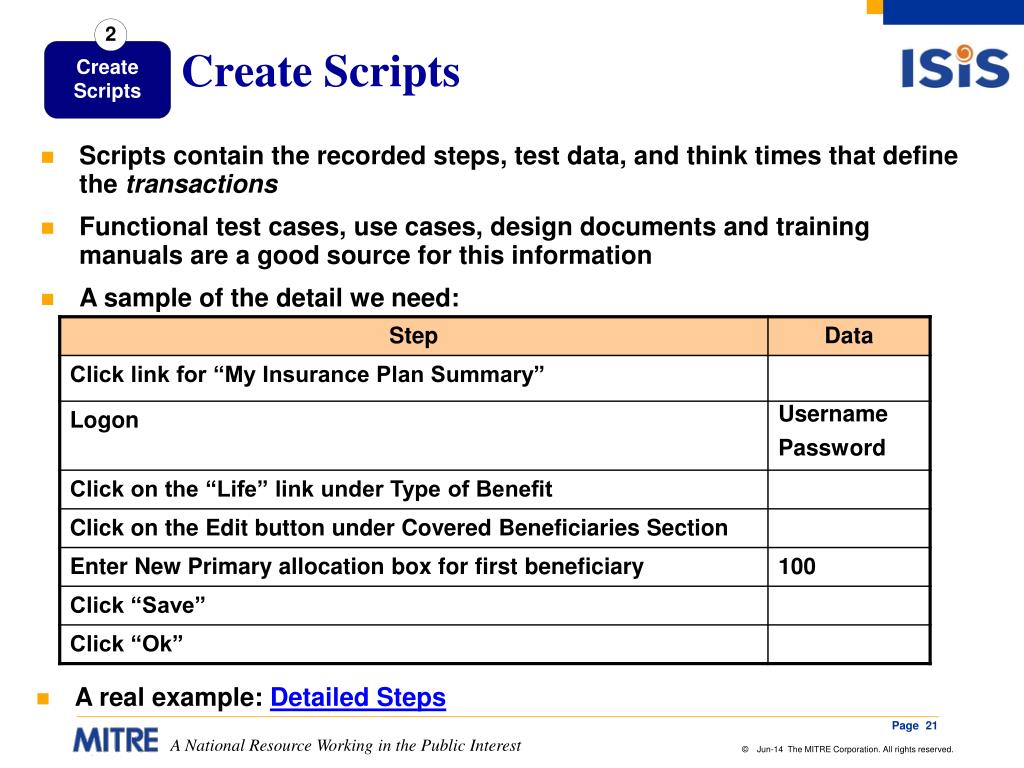

  21. Create Scripts • Scripts contain the recorded steps, test data, and think times that define the transactions • Functional test cases, use cases, design documents and training manuals are a good source for this information • A sample of the detail we need: • A real example: Detailed Steps

  22. Create Scenarios • Scenarios define the overall load test execution. The instructions. • Elements of a scenario are: • Scripts • Vusers: Emulate the steps of real users. Steps are recorded into a script. • Ramp Up Rate: The rate at which vusers are suddenly or gradually introduced into the test • Think Times: Emulates how long the user pauses when: • Executing a transaction or business process. I.e. pauses between clicks or keystrokes • Between transactions (iterations), between starting the script over • Test Duration: The length the test will run. 1 hour, 4 hours, 8 hours. Varies by test type.

  23. Script Scenarios Test Runs Home Page (Default Config) Typical Day 1x (Home Default Config) Test Run 2007-03-04-A Home Page (Default Config) Bursts Peak Second Bursts +1x (Home Default Config) Test Run 2007-03-07-D Typical Day 1x 95% Home (Default) + 5% Edits Favorites Test Run 2007-03-09-F RSS Exploratory Edits Test Run 2007-03-09-H Test Run 2007-03-09-I Center Portlet Exploratory Project Services Project Services Typical Day 1x (Home Config) Test Run 2007-03-12-L HomePage (Configured) Typical Day 3x (Home Config) Test Run 2007-03-12-N Pulling it All Together

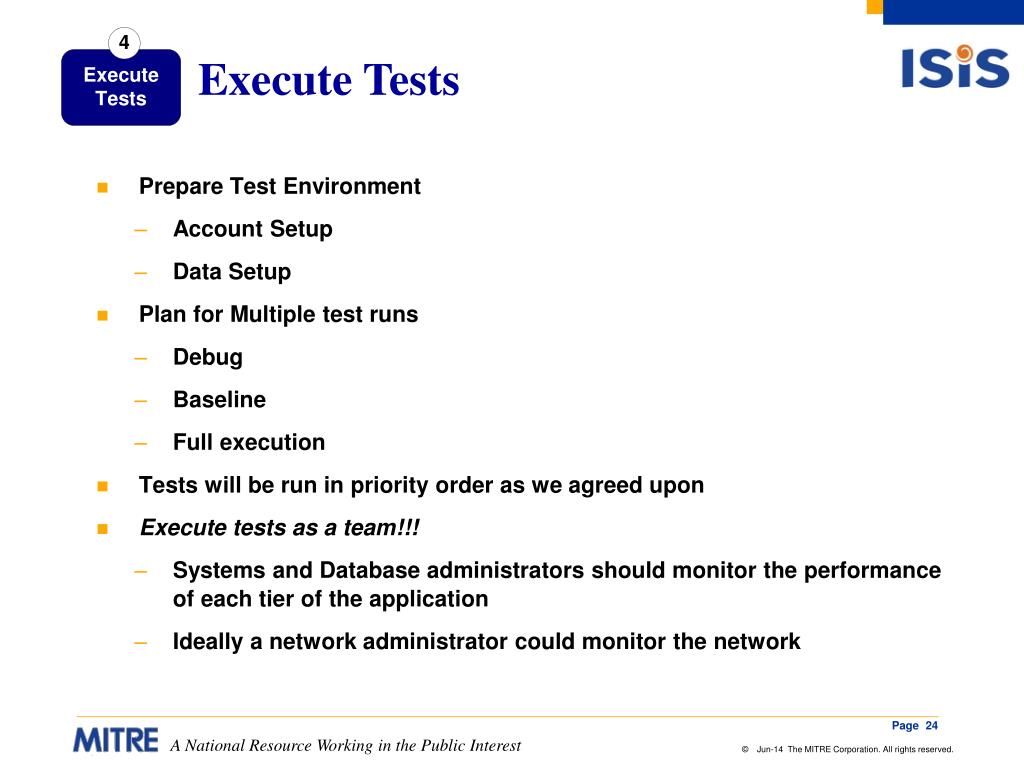

  24. Execute Tests • Prepare Test Environment • Account Setup • Data Setup • Plan for Multiple test runs • Debug • Baseline • Full execution • Tests will be run in priority order as we agreed upon • Execute tests as a team!!! • Systems and Database administrators should monitor the performance of each tier of the application • Ideally a network administrator could monitor the network

  25. Analyze Results • At the end of the test run(s) an analysis file is produced that reports: • Running Vusers • Duration • Response Times By Transaction: • Average & Maximum • Percentiles • Test Transaction Rates • Test Total Transactions (Passed/Failed) • Test Transactions Per Second • Example analysis file: Sample LoadRunner Analysis File • The Target Transaction Rates from the Usage Analysis are compared to the Test Transaction Rates. If they don’t reconcile then…

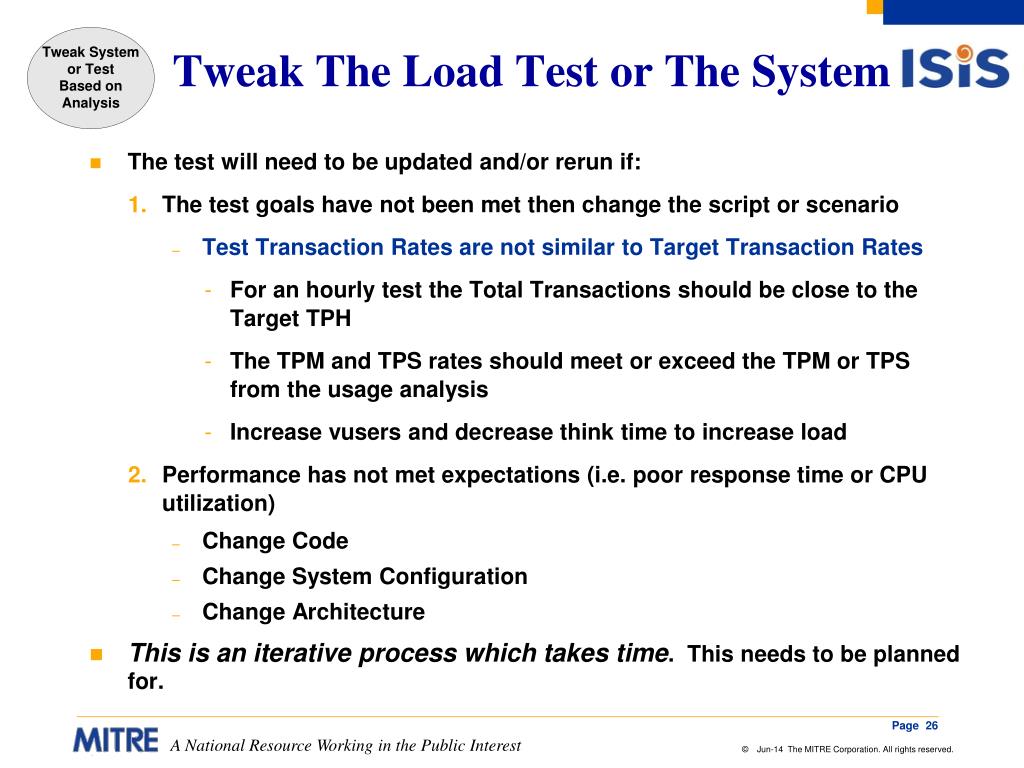

  26. Tweak The Load Test or The System • The test will need to be updated and/or rerun if: • The test goals have not been met then change the script or scenario • Test Transaction Rates are not similar to Target Transaction Rates • For an hourly test the Total Transactions should be close to the Target TPH • The TPM and TPS rates should meet or exceed the TPM or TPS from the usage analysis • Increase vusers and decrease think time to increase load • Performance has not met expectations (i.e. poor response time or CPU utilization) • Change Code • Change System Configuration • Change Architecture • This is an iterative process which takes time. This needs to be planned for.

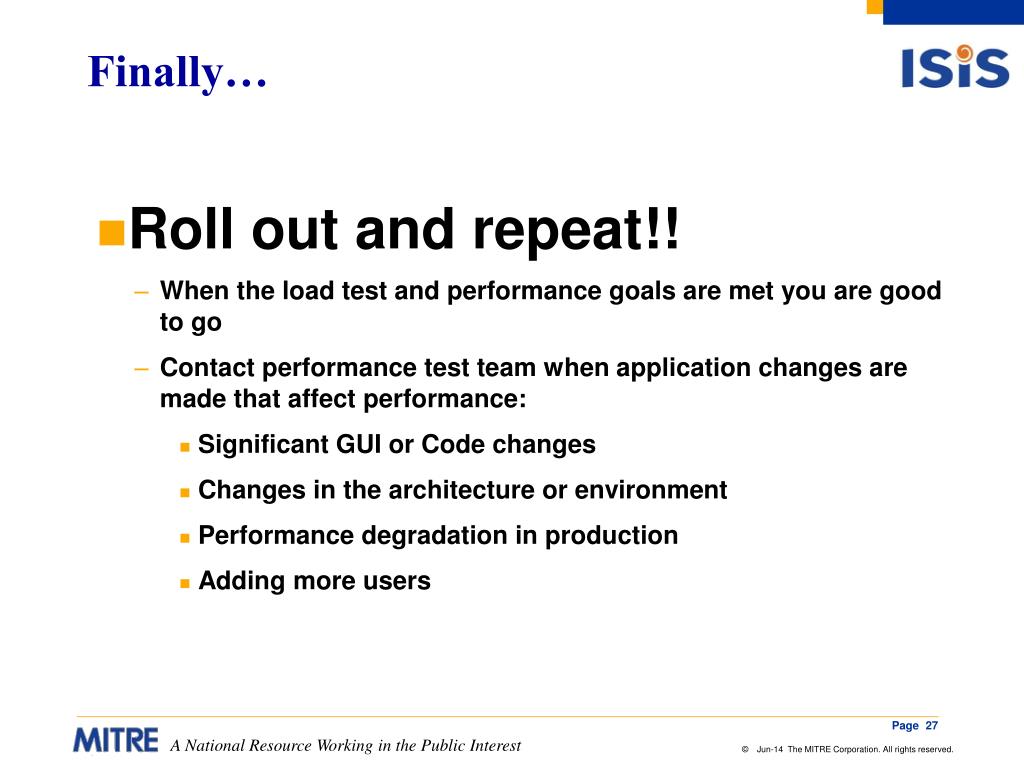

  27. Finally… • Roll out and repeat!! • When the load test and performance goals are met you are good to go • Contact performance test team when application changes are made that affect performance: • Significant GUI or Code changes • Changes in the architecture or environment • Performance degradation in production • Adding more users

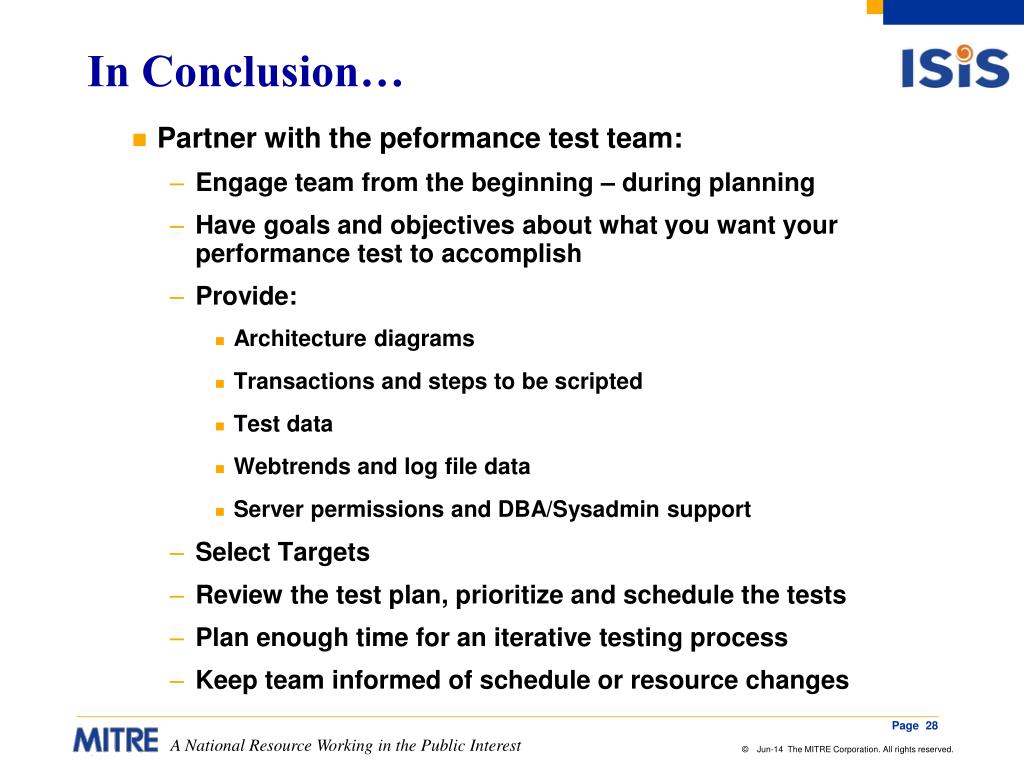

  28. In Conclusion… • Partner with the peformance test team: • Engage team from the beginning – during planning • Have goals and objectives about what you want your performance test to accomplish • Provide: • Architecture diagrams • Transactions and steps to be scripted • Test data • Webtrends and log file data • Server permissions and DBA/Sysadmin support • Select Targets • Review the test plan, prioritize and schedule the tests • Plan enough time for an iterative testing process • Keep team informed of schedule or resource changes

  29. Background • Detailed Calculation Examples

  30. Method 1: Even Distribution - Example • Evenly divide the TPH and TPM transaction rate by 60 • TPM = TPH/60 • TPS = TPM/3600 % TPH TPS TPM • For example: • TPM = 6075/60 • TPS = 131/60 101.3 2.2 (We would use this one)

  31. Method 2: Active Time Distribution Calculate Active Time from log as the percentage of time requests are written to the log • We calculate the Active Time per hour of day in terms of: • Active Minutes per Hour • Active Seconds per Minute • For example: • At 9 o’clock every minute in the hour had at least 1 transaction, but every second did not. • Only 46.7 seconds of the minute were active

  32. Method 2: Active Time Distribution - Example • Evenly divide the TPH transaction rate by Average Active Time • TPM = TPH/Active Minutes in a Hour • TPS = TPM/Active Seconds in a Minute TPH TPS % TPM • For example: • TPM = 6075/59.9 • TPS = 131/40.1 101.4 3.3

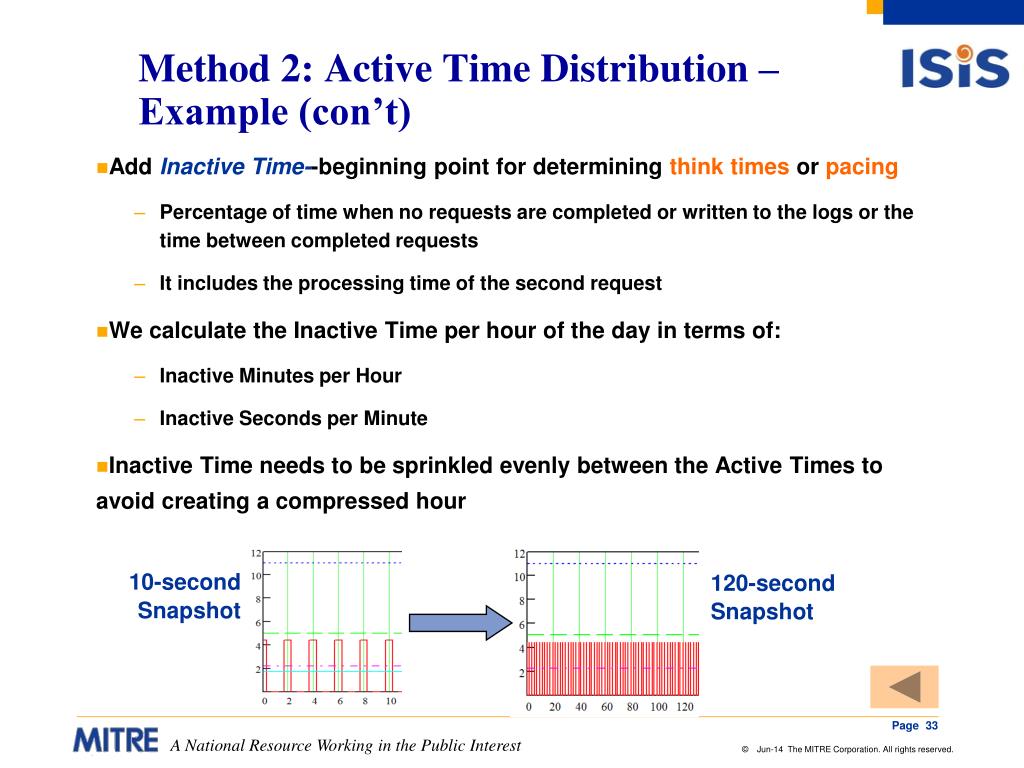

  33. Method 2: Active Time Distribution – Example (con’t) • Add Inactive Time--beginning point for determining think times or pacing • Percentage of time when no requests are completed or written to the logs or the time between completed requests • It includes the processing time of the second request • We calculate the Inactive Time per hour of the day in terms of: • Inactive Minutes per Hour • Inactive Seconds per Minute • Inactive Time needs to be sprinkled evenly between the Active Times to avoid creating a compressed hour 10-second Snapshot 120-second Snapshot
