AP Environmental Science Mr. Grant Lesson 102

1. AP Environmental Science • Mr. Grant • Lesson 102 Wind Energy & Geothermal Energy

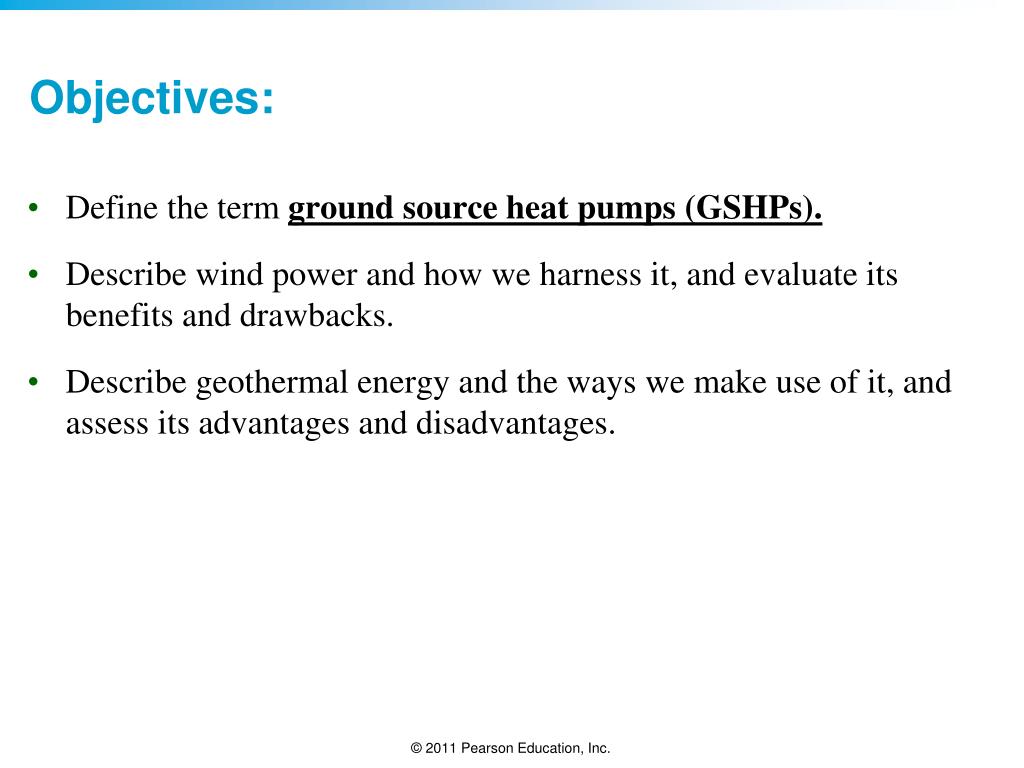

2. Objectives: • Define the term ground source heat pumps (GSHPs). • Describe wind power and how we harness it, and evaluate its benefits and drawbacks. • Describe geothermal energy and the ways we make use of it, and assess its advantages and disadvantages.

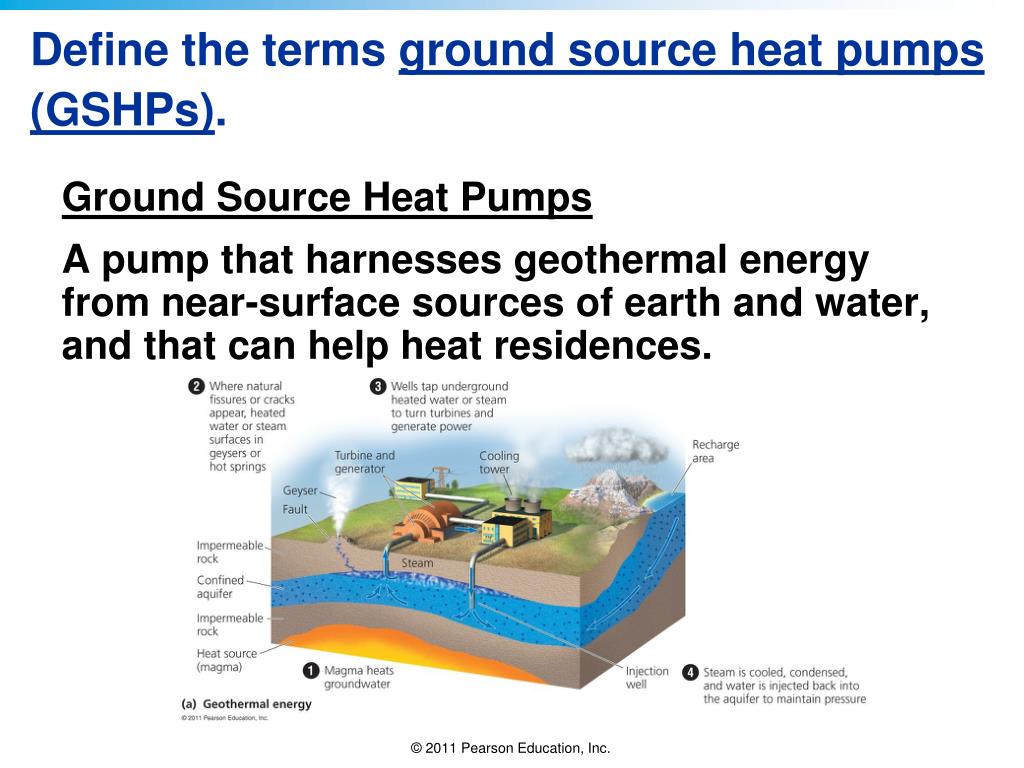

3. Define the terms ground source heat pumps (GSHPs). Ground Source Heat Pumps A pump that harnesses geothermal energy from near-surface sources of earth and water, and that can help heat residences.

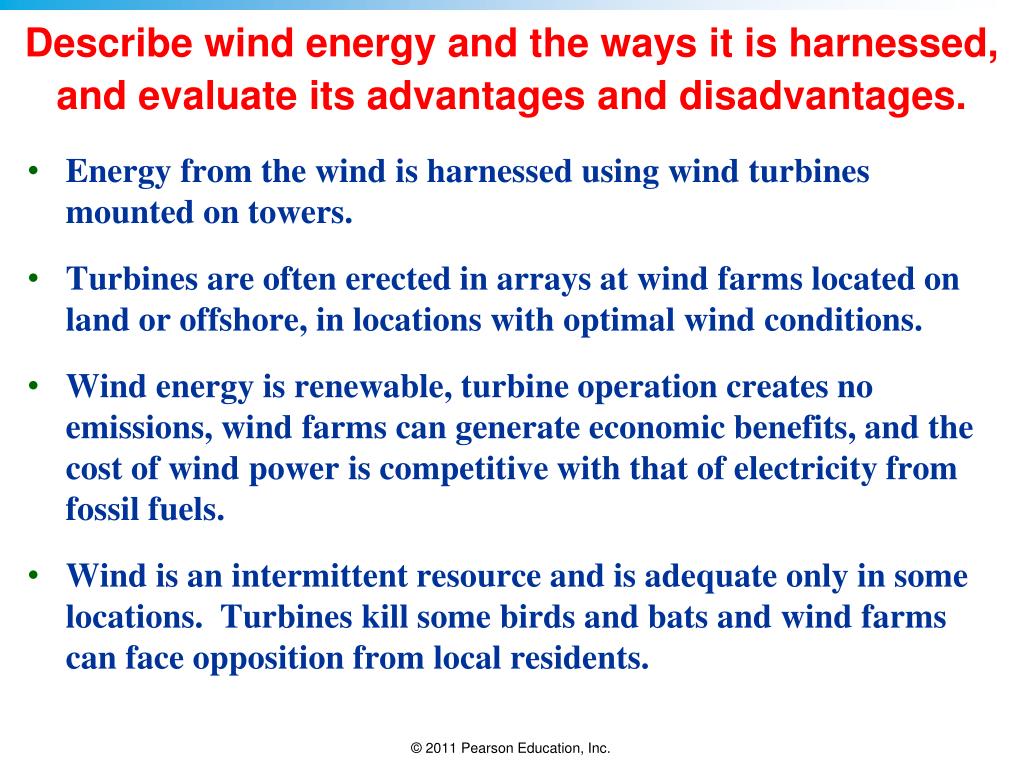

4. Describe wind energy and the ways it is harnessed, and evaluate its advantages and disadvantages. • Energy from the wind is harnessed using wind turbines mounted on towers. • Turbines are often erected in arrays at wind farms located on land or offshore, in locations with optimal wind conditions. • Wind energy is renewable, turbine operation creates no emissions, wind farms can generate economic benefits, and the cost of wind power is competitive with that of electricity from fossil fuels. • Wind is an intermittent resource and is adequate only in some locations. Turbines kill some birds and bats and wind farms can face opposition from local residents.

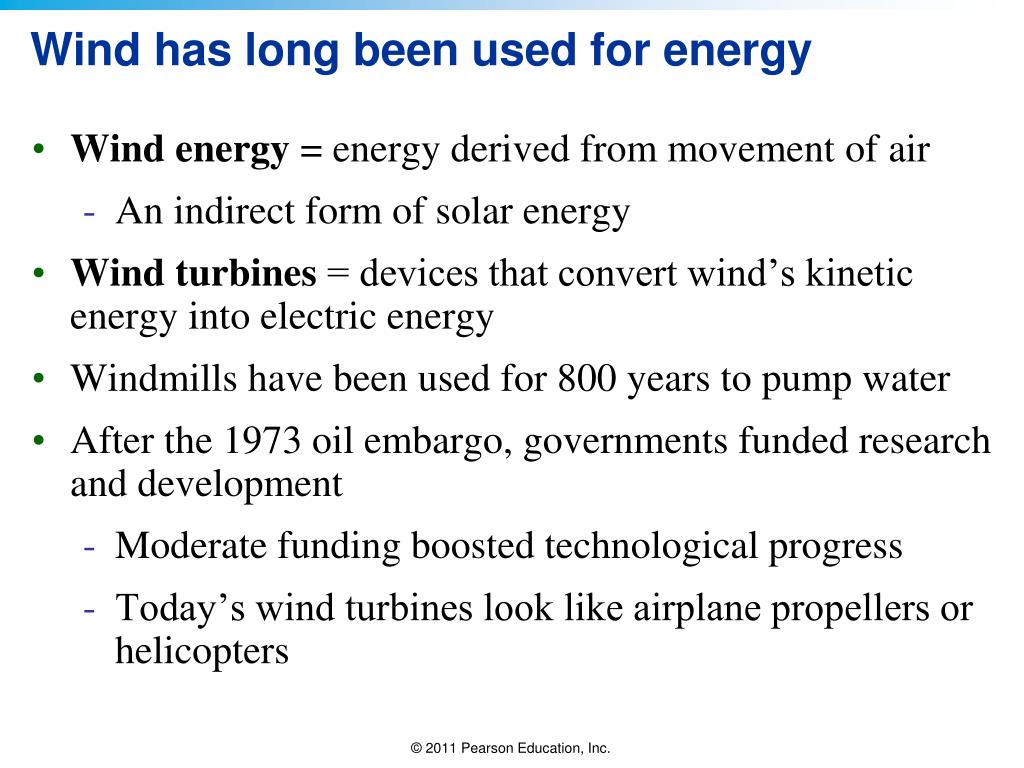

5. Wind has long been used for energy • Wind energy = energy derived from movement of air • An indirect form of solar energy • Wind turbines = devices that convert wind’s kinetic energy into electric energy • Windmills have been used for 800 years to pump water • After the 1973 oil embargo, governments funded research and development • Moderate funding boosted technological progress • Today’s wind turbines look like airplane propellers or helicopters

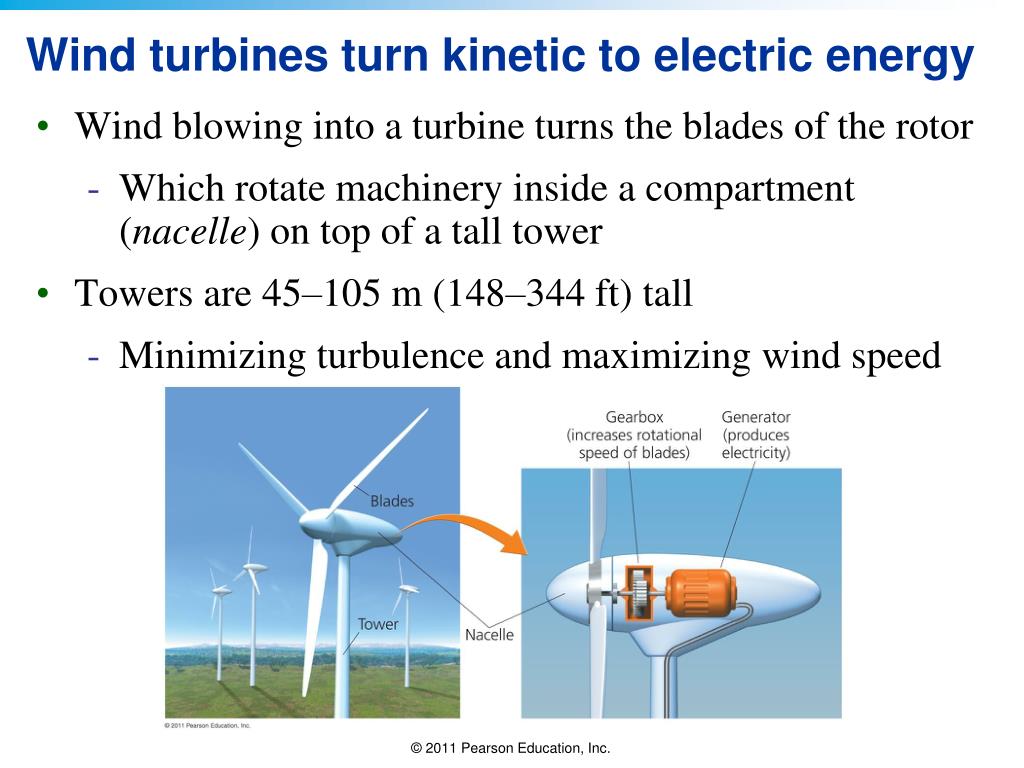

6. Wind turbines turn kinetic to electric energy • Wind blowing into a turbine turns the blades of the rotor • Which rotate machinery inside a compartment (nacelle) on top of a tall tower • Towers are 45–105 m (148–344 ft) tall • Minimizing turbulence and maximizing wind speed

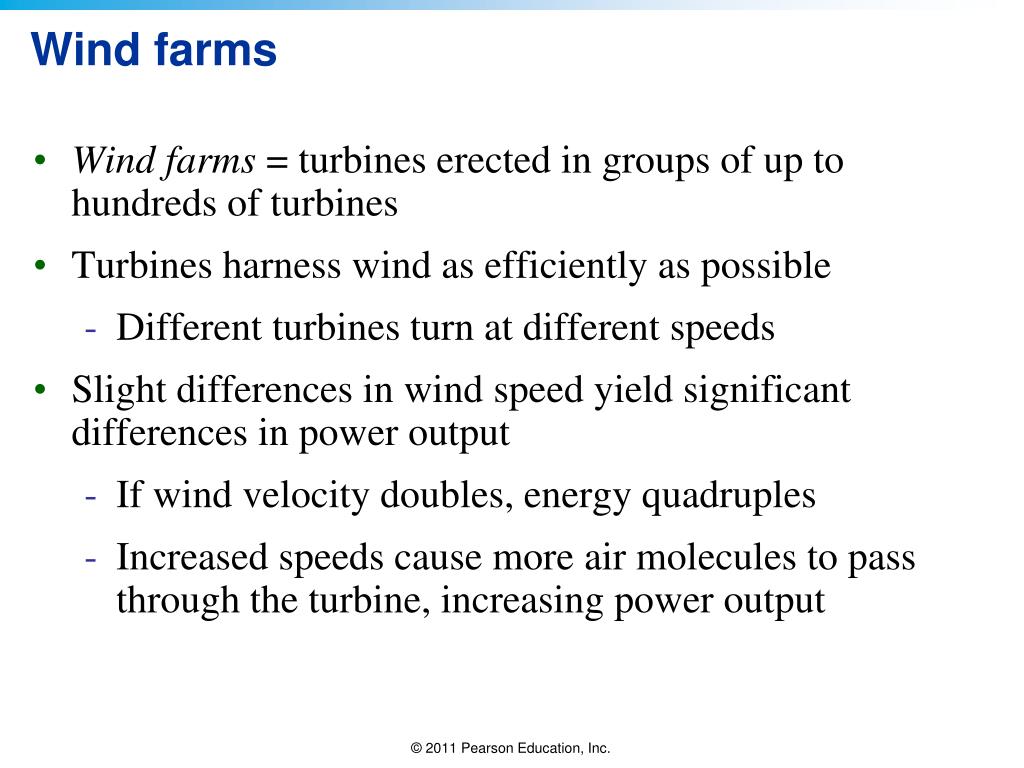

7. Wind farms • Wind farms = turbines erected in groups of up to hundreds of turbines • Turbines harness wind as efficiently as possible • Different turbines turn at different speeds • Slight differences in wind speed yield significant differences in power output • If wind velocity doubles, energy quadruples • Increased speeds cause more air molecules to pass through the turbine, increasing power output

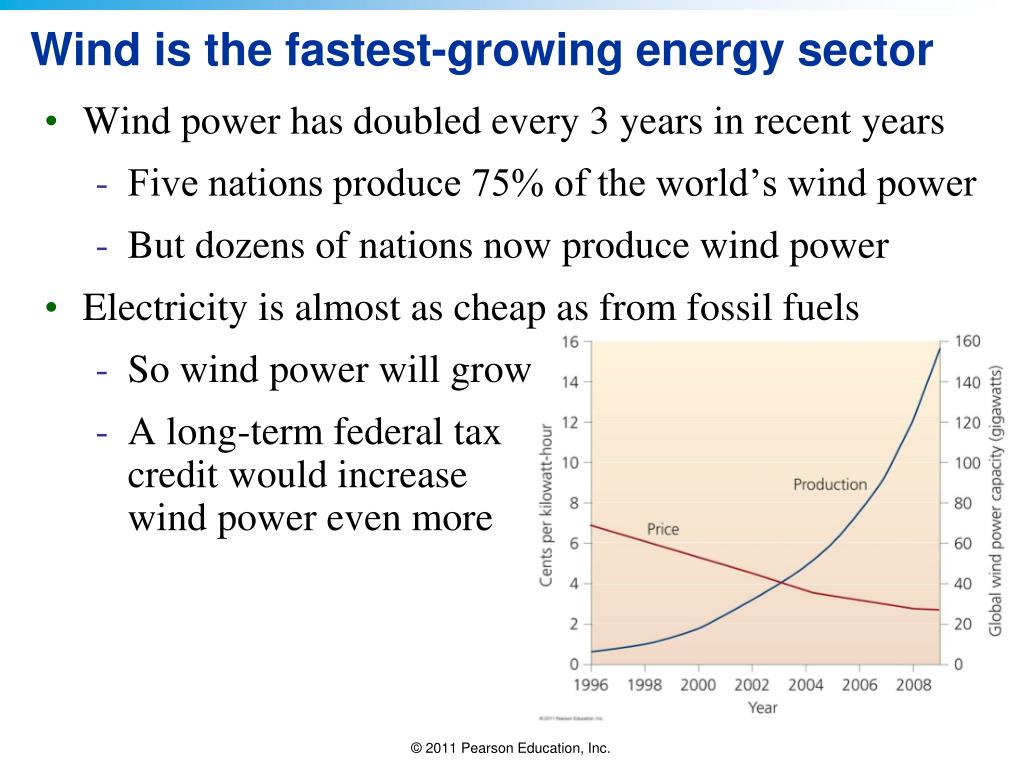

8. Wind is the fastest-growing energy sector • Wind power has doubled every 3 years in recent years • Five nations produce 75% of the world’s wind power • But dozens of nations now produce wind power • Electricity is almost as cheap as from fossil fuels • So wind power will grow • A long-term federal tax credit would increase wind power even more

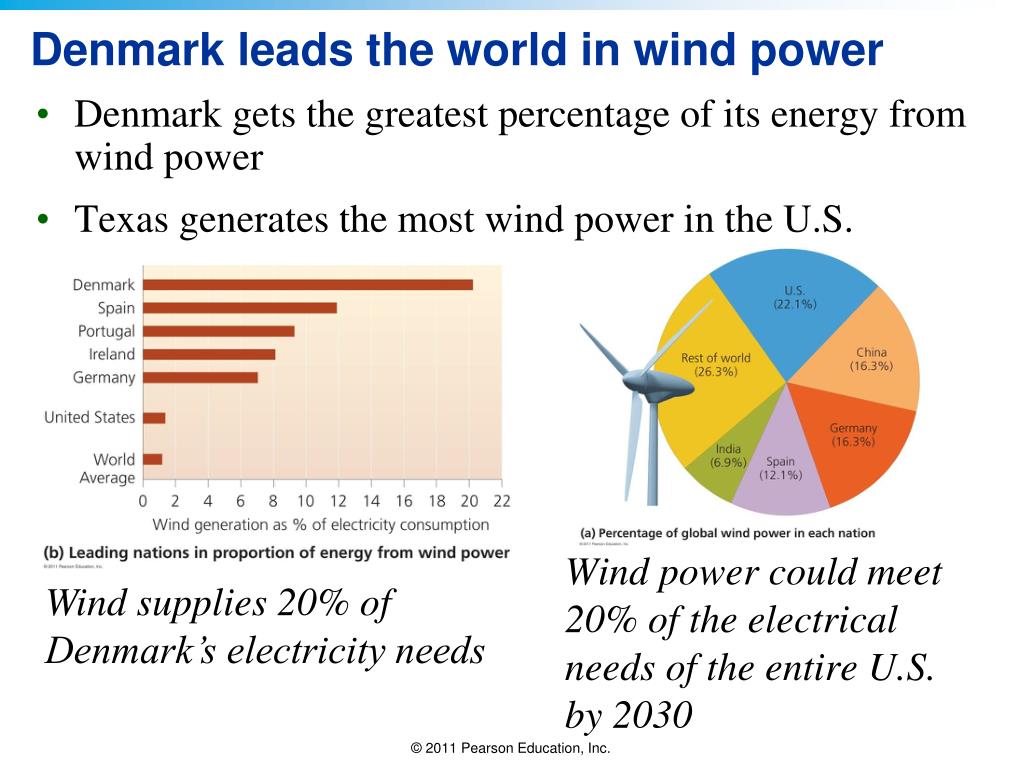

9. Denmark leads the world in wind power • Denmark gets the greatest percentage of its energy from wind power • Texas generates the most wind power in the U.S. Wind power could meet 20% of the electrical needs of the entire U.S. by 2030 • Wind supplies 20% of Denmark’s electricity needs

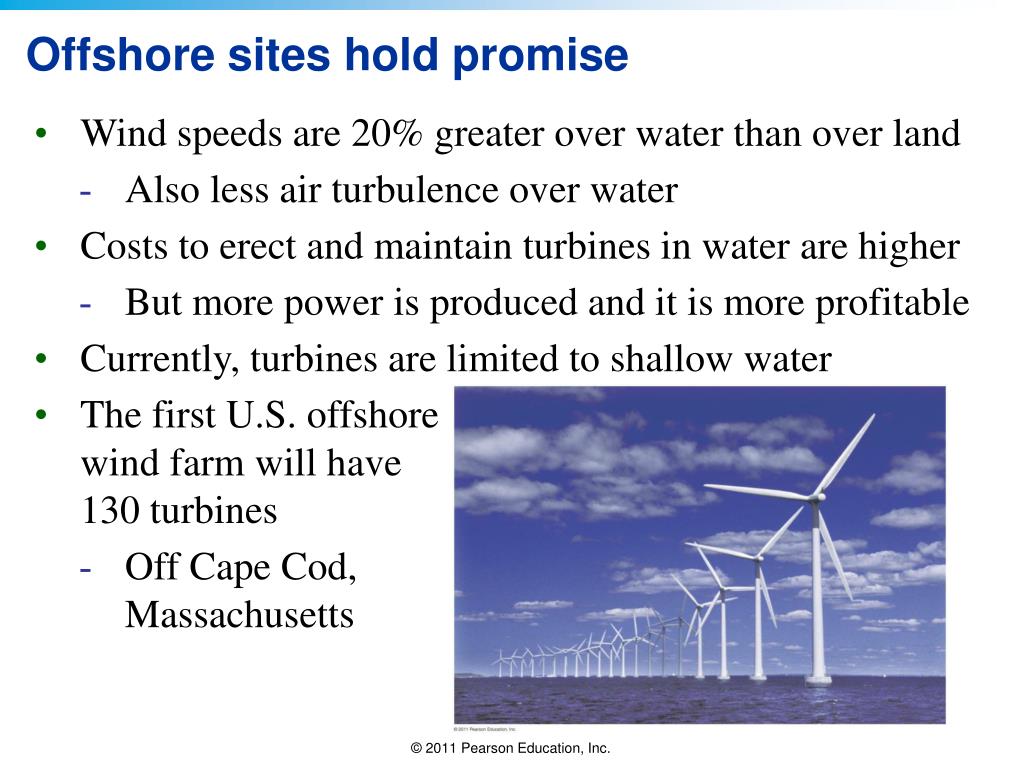

10. Offshore sites hold promise • Wind speeds are 20% greater over water than over land • Also less air turbulence over water • Costs to erect and maintain turbines in water are higher • But more power is produced and it is more profitable • Currently, turbines are limited to shallow water • The first U.S. offshore wind farm will have 130 turbines • Off Cape Cod, Massachusetts

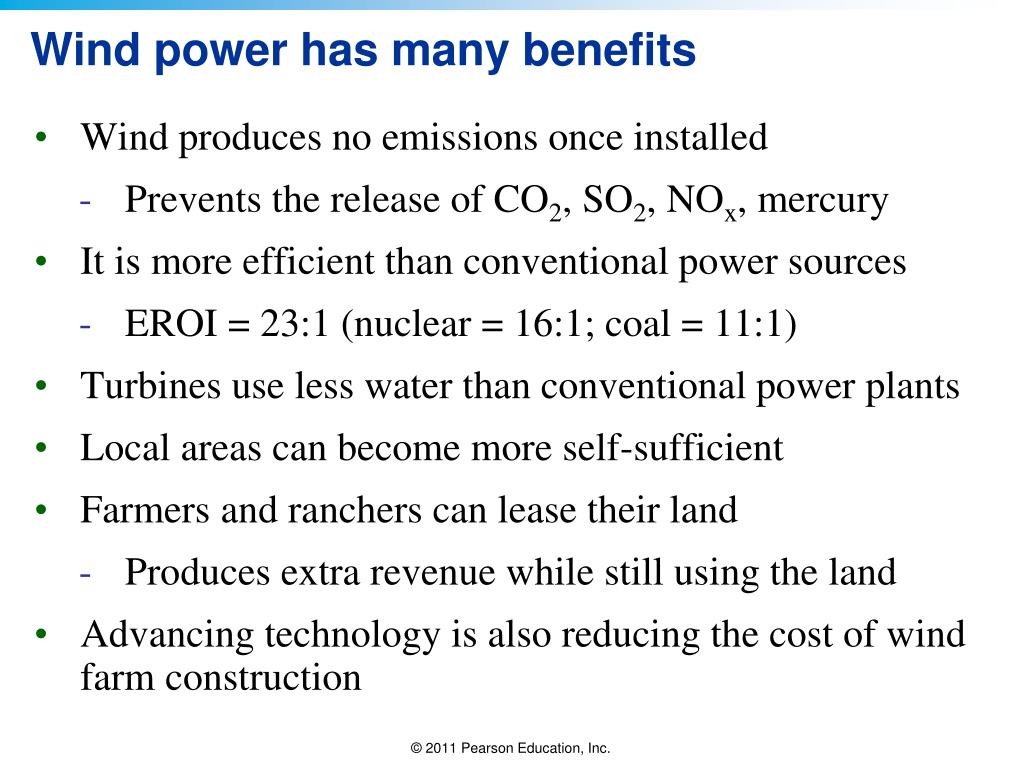

11. Wind produces no emissions once installed Prevents the release of CO2, SO2, NOx, mercury It is more efficient than conventional power sources EROI = 23:1 (nuclear = 16:1; coal = 11:1) Turbines use less water than conventional power plants Local areas can become more self-sufficient Farmers and ranchers can lease their land Produces extra revenue while still using the land Advancing technology is also reducing the cost of wind farm construction Wind power has many benefits

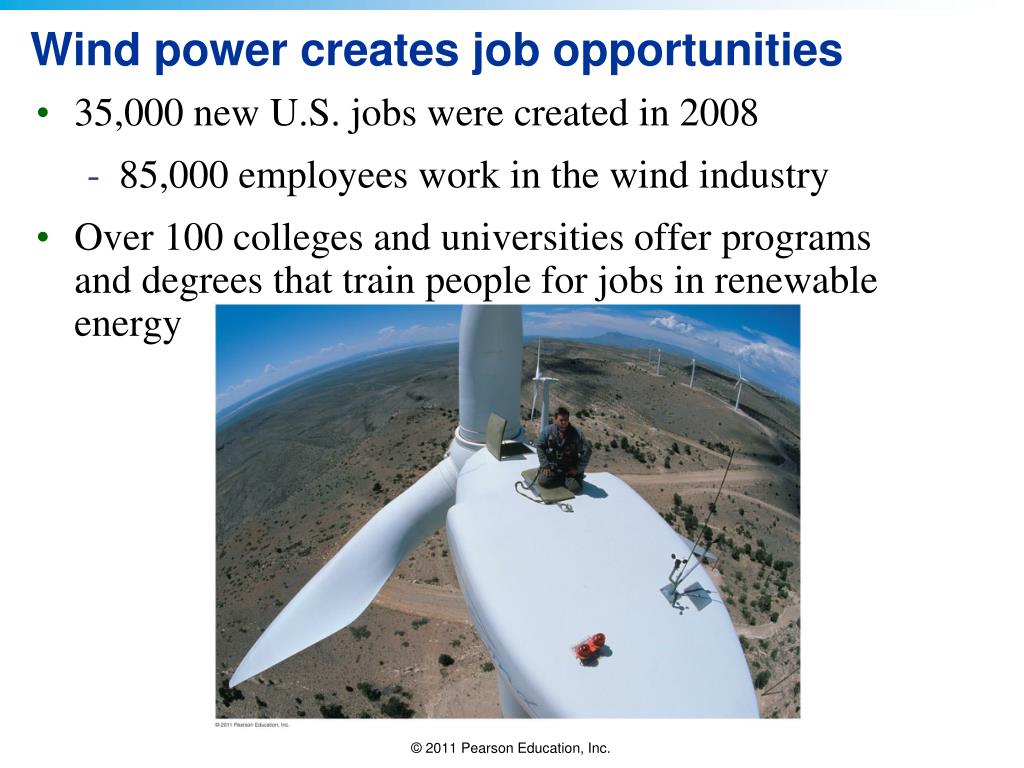

12. Wind power creates job opportunities • 35,000 new U.S. jobs were created in 2008 • 85,000 employees work in the wind industry • Over 100 colleges and universities offer programs and degrees that train people for jobs in renewable energy

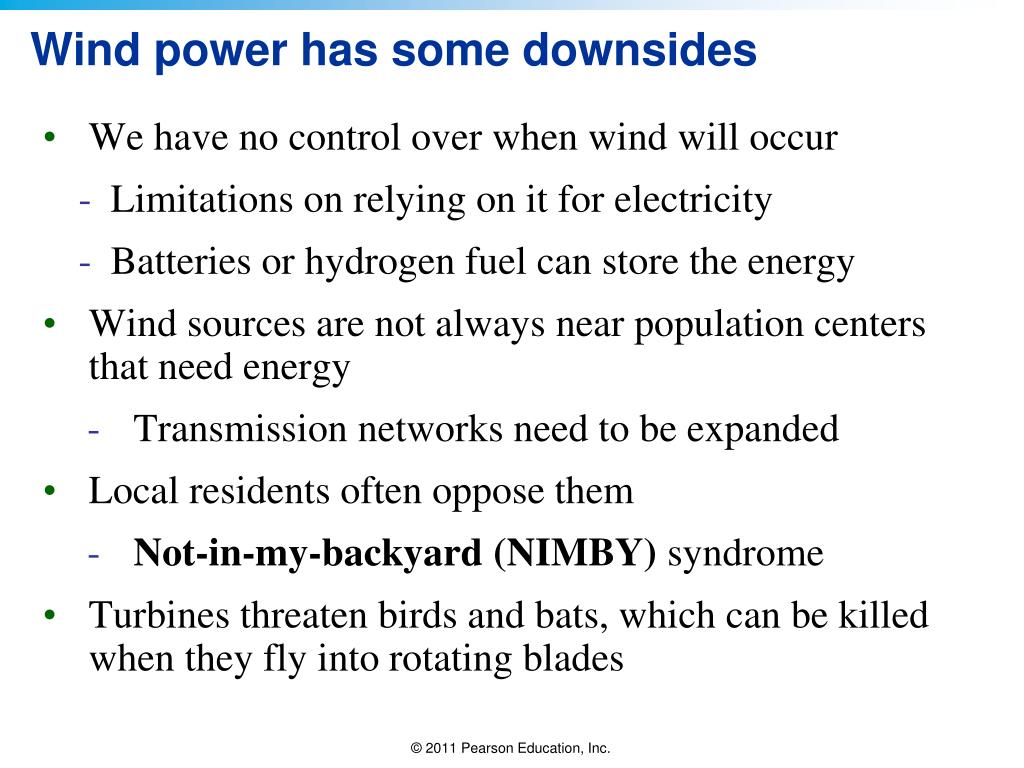

13. We have no control over when wind will occur Limitations on relying on it for electricity Batteries or hydrogen fuel can store the energy Wind sources are not always near population centers that need energy Transmission networks need to be expanded Local residents often oppose them Not-in-my-backyard (NIMBY) syndrome Turbines threaten birds and bats, which can be killed when they fly into rotating blades Wind power has some downsides

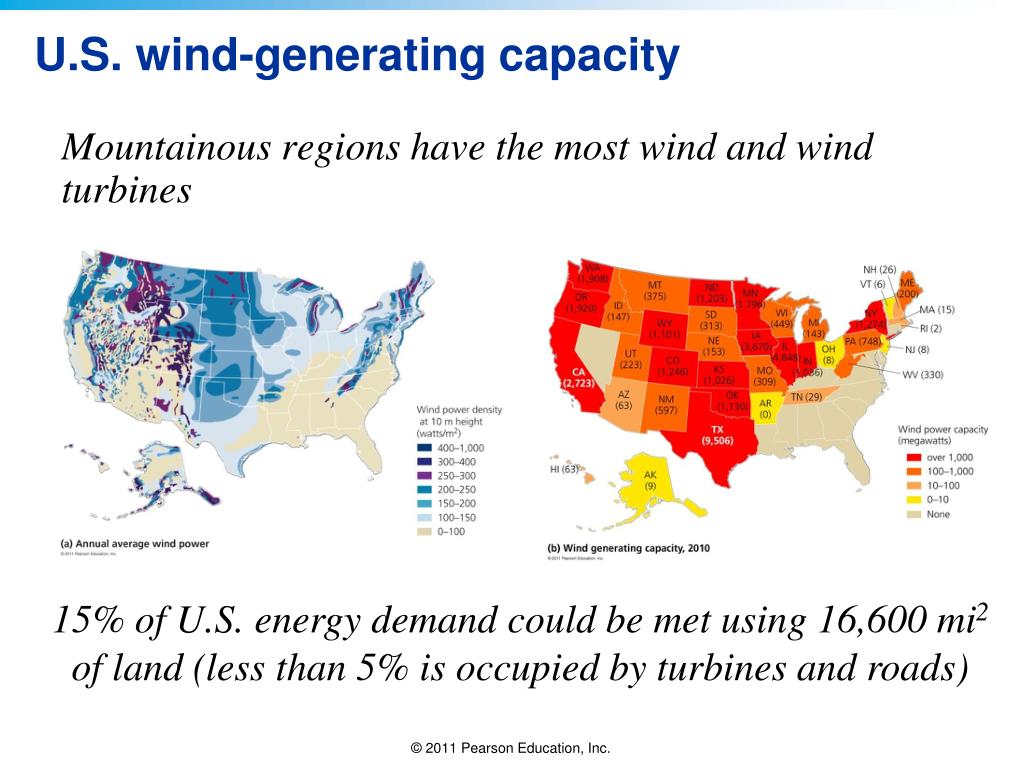

14. U.S. wind-generating capacity Mountainous regions have the most wind and wind turbines 15% of U.S. energy demand could be met using 16,600 mi2 of land (less than 5% is occupied by turbines and roads)

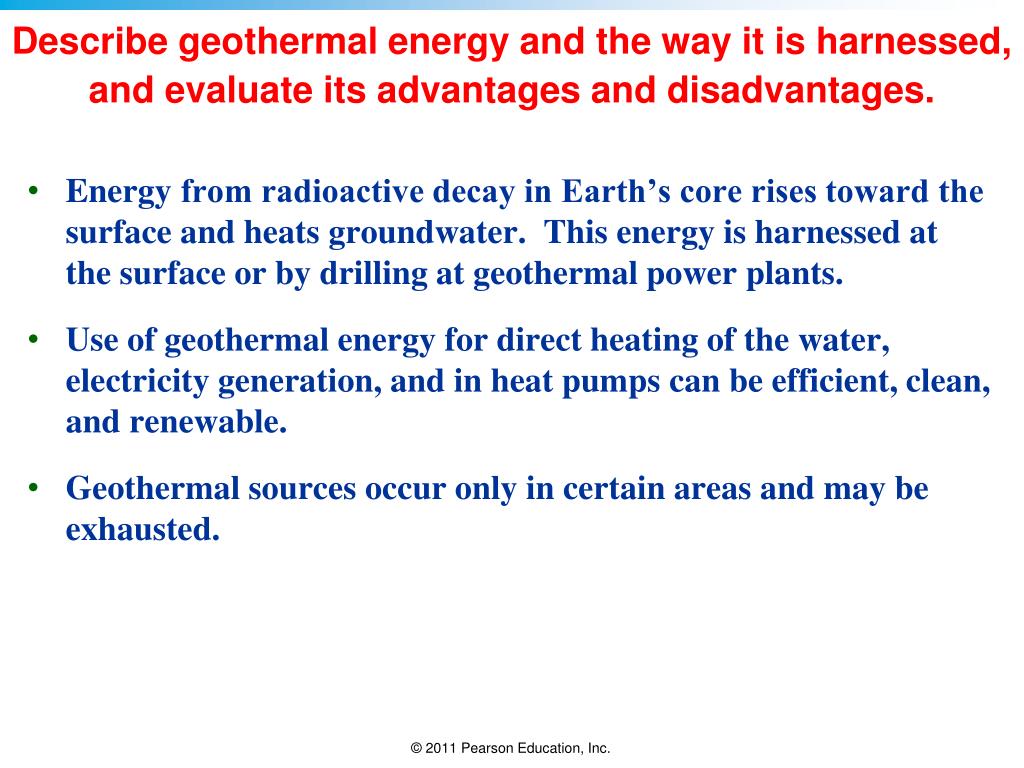

15. Describe geothermal energy and the way it is harnessed, and evaluate its advantages and disadvantages. • Energy from radioactive decay in Earth’s core rises toward the surface and heats groundwater. This energy is harnessed at the surface or by drilling at geothermal power plants. • Use of geothermal energy for direct heating of the water, electricity generation, and in heat pumps can be efficient, clean, and renewable. • Geothermal sources occur only in certain areas and may be exhausted.

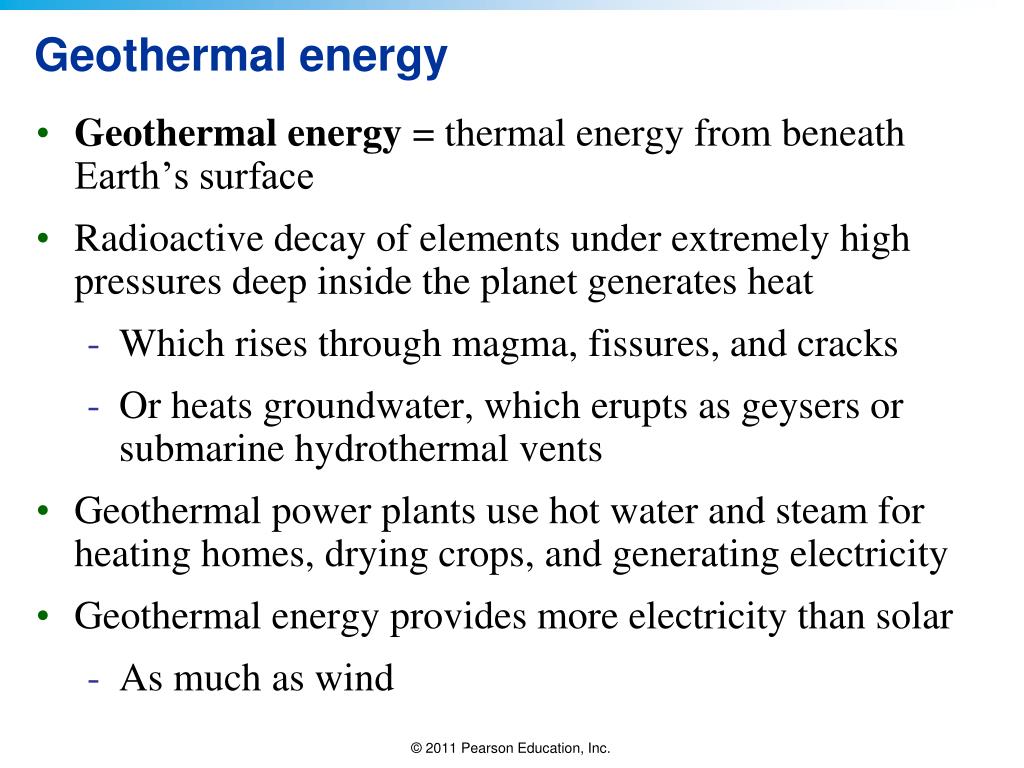

16. Geothermal energy • Geothermal energy = thermal energy from beneath Earth’s surface • Radioactive decay of elements under extremely high pressures deep inside the planet generates heat • Which rises through magma, fissures, and cracks • Or heats groundwater, which erupts as geysers or submarine hydrothermal vents • Geothermal power plants use hot water and steam for heating homes, drying crops, and generating electricity • Geothermal energy provides more electricity than solar • As much as wind

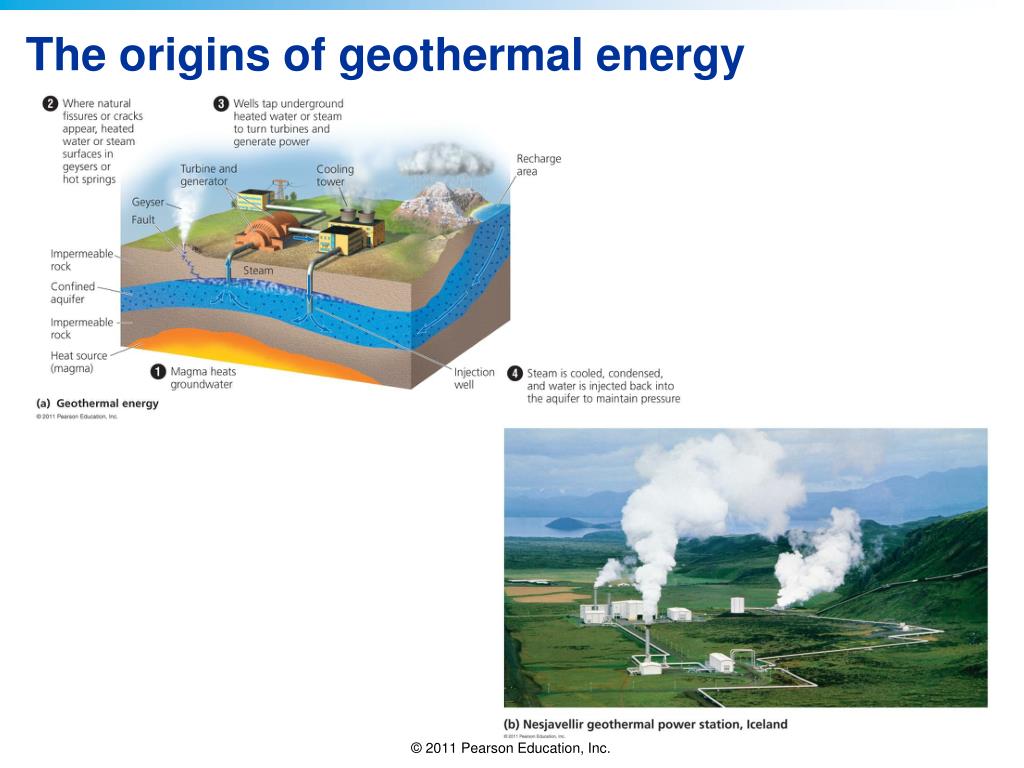

17. The origins of geothermal energy

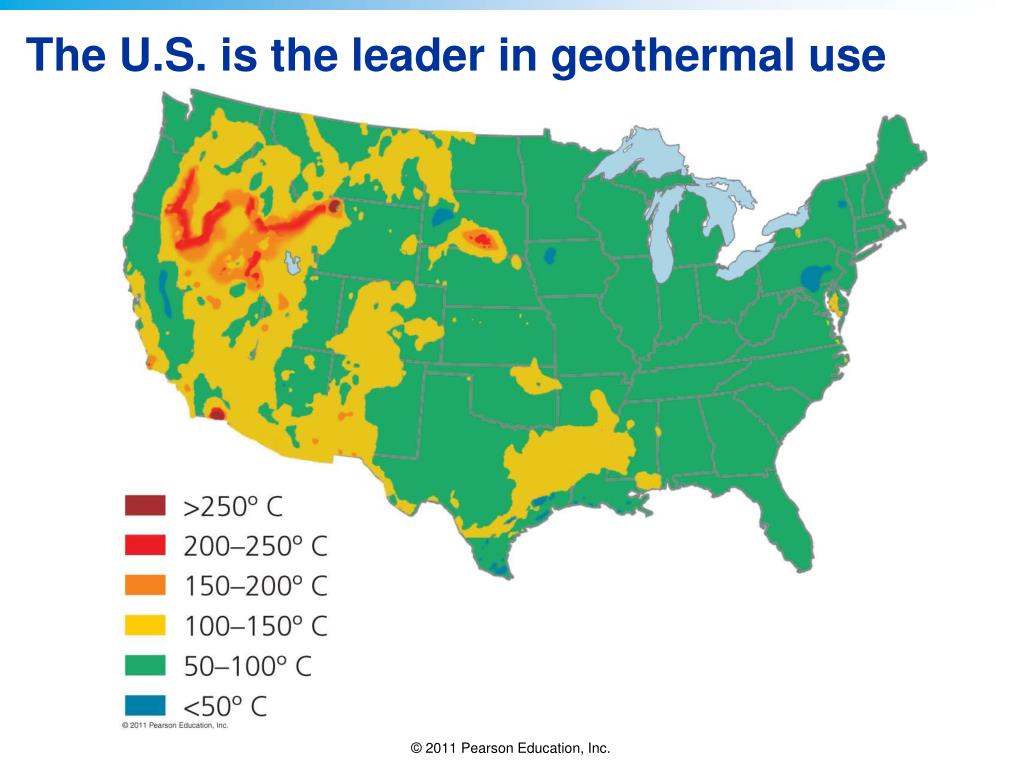

18. The U.S. is the leader in geothermal use

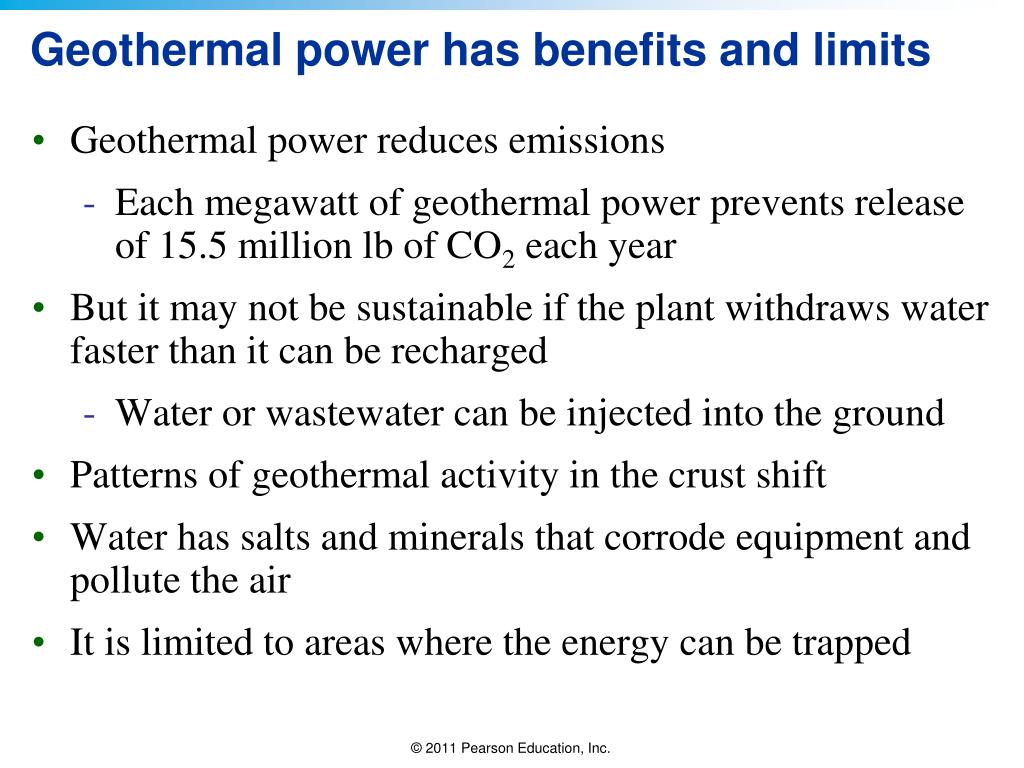

19. Geothermal power has benefits and limits • Geothermal power reduces emissions • Each megawatt of geothermal power prevents release of 15.5 million lb of CO2 each year • But it may not be sustainable if the plant withdraws water faster than it can be recharged • Water or wastewater can be injected into the ground • Patterns of geothermal activity in the crust shift • Water has salts and minerals that corrode equipment and pollute the air • It is limited to areas where the energy can be trapped

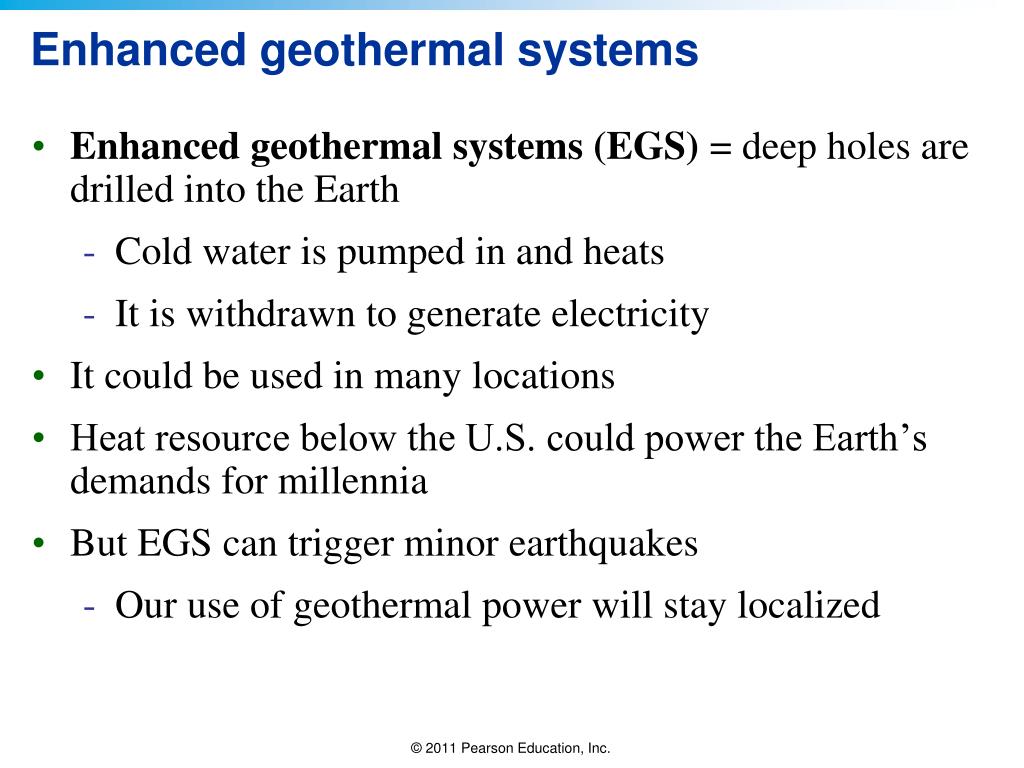

20. Enhanced geothermal systems • Enhanced geothermal systems (EGS) = deep holes are drilled into the Earth • Cold water is pumped in and heats • It is withdrawn to generate electricity • It could be used in many locations • Heat resource below the U.S. could power the Earth’s demands for millennia • But EGS can trigger minor earthquakes • Our use of geothermal power will stay localized

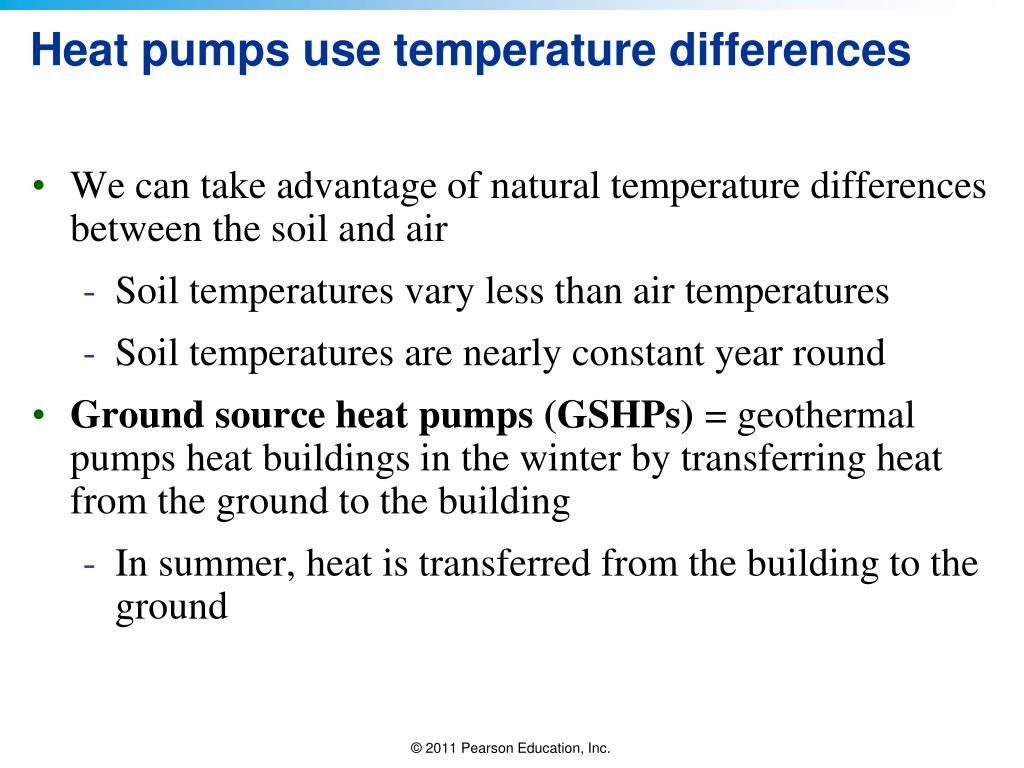

21. Heat pumps use temperature differences • We can take advantage of natural temperature differences between the soil and air • Soil temperatures vary less than air temperatures • Soil temperatures are nearly constant year round • Ground source heat pumps (GSHPs) = geothermal pumps heat buildings in the winter by transferring heat from the ground to the building • In summer, heat is transferred from the building to the ground

22. GSHPs are efficient • More than 600,000 U.S. homes use GSHPs • GSHPs heat spaces 50–70% more efficiently • Cool spaces 20–40% more efficiently • Reduce electricity use 25–60% • Reduce emissions up to 70%
