  1. Window Storage Server 2012 R2

  2. Great Storage Improvements with 2012! Windows Server 2012 & Windows Storage Server 2012 Storage Spaces 64-node clusters SMB3 Scale-Out File Server 8,000 VMs per Cluster 64-node clusters SMB3 Scale-Out File Server 8,000 VMs per Cluster Offload Data Transfer Dedup Hyper-V Replica Virtual Fibre Channel VM Prioritization Offload Data Transfer Dedup Hyper-V Replica Virtual Fibre Channel ReFS Cluster-Aware Updating iSCSI Target Server VM Storage Migration VHDX SM API SMI-S Storage Service NFS 4.1 NTFS Trim / Unmap CSVFS online CHKDSK

  3. New Approach to Storage Strategic shifts to reducing storage costs with Windows Server 2012 Software-Defined Storage File Based Storage High Performance SMB Protocol for SQL Server and Hyper-V Storage over Ethernet networks Storage Spaces Cost-Effective Business Critical Storage

  4. New Storage Features in 2012 R2 Software-Defined Storage Appliances Continuously Available File and Block Storage • Synchronization: Work Folders and DFS-R • Failover Clustering with Hyper-V • Storage Spaces with SSD tiering and caching • New Storage Management APIs • End to end storage management with SCVMM • Simple Setup and Configuration (OOBE) • Protocol Improvements: SMB 3.0 and iSCSITarget

  5. WSS 2012 R2 Workgroup vs. WSS 2012 R2 Standard • Differentiators: • Key Workgroup Limits: • 50 Users • 250 SMB Connectiond • 1 Socket • 32GB RAM • 6 Disks, no external SAS • Premium Features In Standard: • Deduplication • Hosted BranchCache • Clustering • Virtualization Rights • Network infrastructure for a branch office • WSS Features Removed: • Domain Controller, Certificate Services, Federation Services, Rights Management • Application Server, Network Policy Server, Terminal Services, WDS and Fax Server

  6. R2Work Folders

  7. Introducing Work Folders Allow information workers to access their individual data … that is centrally located on a traditional file server … from all of their devices … from wherever they are … while remaining in compliance with policies

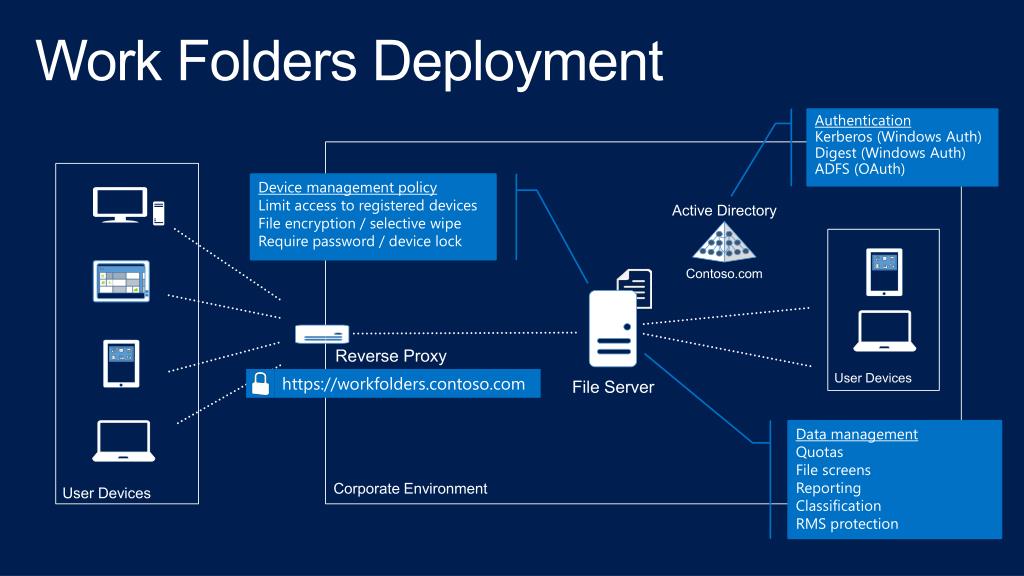

  8. Work Folders Deployment Authentication Kerberos (Windows Auth) Digest (Windows Auth) ADFS (OAuth) Active Directory Device management policy Limit access to registered devices File encryption / selective wipe Require password / device lock Contoso.com File Server Reverse Proxy https://workfolders.contoso.com User Devices Data management Quotas File screens Reporting Classification RMS protection Corporate Environment User Devices

  9. SMB 3.0

  10. IaaS Vision – SMB3 is a key component • Dramatically lowering the costs and effort of delivering Private Clouds • Disaggregated compute and storage • Independent manage and scale at each layer • Industry standard servers, networking and storage • Inexpensive networks • Inexpensive shared JBOD storage Hyper-V Clusters SMB3 Scale-Out File Server Clusters Storage Spaces Virtualization and Resiliency System Center Shared JBODStorage

  11. SMB3 – File Server Features • SMB Transparent Failover - Continuous availability • SMB Scale-Out – Active/active clusters with auto-rebalancing • SMB Multichannel – Network fault tolerance and throughput • SMB Direct (SMB over RDMA) - Low latency, low CPU utilization • SMB Encryption – Security in flight, without IPSec or PKI • Directory Leasing – Coherent caching of file and folder metadata • VSS for SMB File Shares – Application-consistent backup/restore • SMB PowerShell and VMM Support – Manage and automate

  12. More information • Technet - SMB Overview • Blog – http://smb3.info

  13. R2 Distributed File System Replication (DFSR)

  14. DFSR in Windows Server 2012 R2

  15. DFSR drill down Windows PowerShell WMI v2 Supported Limits Cloning Cross-file RDC disable & staging tune Database merge and auto-recover Restore preserved

  16. Cluster Shared Volumes in R2

  17. Cluster Shared Volumes in Windows Server 2012 R2 Enables the Private Cloud • Access to storage from any node despite physical storage connectivity • Common namespace that is consistent across all servers • Resilient and Reliable

  18. Cluster Shared Volumes in Windows Server 2012 R2 Enhancements • Automatic distribution across servers • Scale out file server optimization • Rebalancing of CSV ownership • SMB improvements • Dedicated SMB instances for CSV traffic • Storage feature integration • Dedupe, Tiering, ReFS, …. • More • Virtual disk (storage pools) • CSV read cache

  19. R2 Storage Spaces Scott M. JohnsonSenior Program ManagerWindows Storage Server

  20. Infrastructure-as-a-Service Storage Vision • Dramatically lowering the costs and effort of delivering IaaS storage services • Disaggregated compute + storage • Independent manage and scale at each layer • Industry standard servers, networking and storage • Inexpensive networks • Inexpensive shared JBOD storage Hyper-V Clusters SMB Scale-Out File Server Clusters Storage Spaces Virtualization and Resiliency PowerShell & SCVMM 2012 R2 Management Shared JBODStorage

  21. Familiar deployment model Windows file server cluster with storage spaces Traditional storage with FC/iSCSI storage array Hyper-V compute nodes Hyper-V compute nodes FC/iSCSI (Block) SMB direct (File) Storage compute Storage compute EmbeddedCPUs and controllers (proprietary hardware) Windows file server cluster (Industry Standard hardware) Shared SAS JBOD FC/SAS disk shelf FC/SAS disk shelf Shared SAS JBOD FC/SAS disk shelf Shared SAS JBOD

  22. Private Cloud Storage Hyper V SMB Scale out file server cluster Storage space Storage space Storage space Block storage Storage pool Storage pool Storage pool

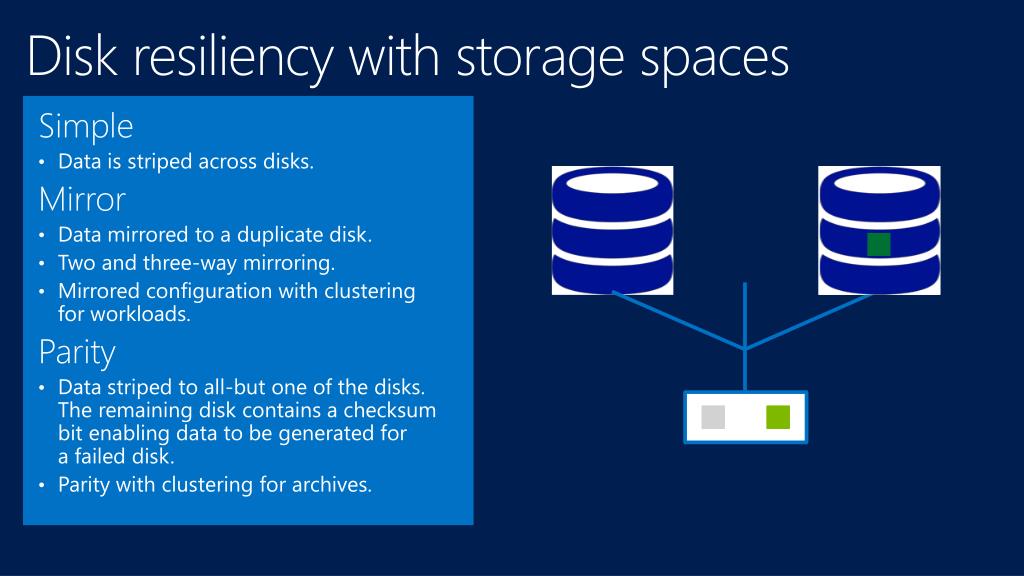

  23. Disk resiliency with storage spaces Simple • Data is striped across disks. Mirror • Data mirrored to a duplicate disk. • Two and three-way mirroring. • Mirrored configuration with clustering for workloads. Parity • Data striped to all-but one of the disks. The remaining disk contains a checksum bit enabling data to be generated for a failed disk. • Parity with clustering for archives.

  24. Hybrid storage pools & tiered storage • SSDs and HDDs used as different tiers. • Windows automatically tracks data temperature and moves them at sub-file level. • Write-back cache improves performance for real-world workloads. • Only hot regions of a file (VHD, database, etc.) need to move to SSDs, the cold regions can reside on HDDs. • Ability to pin files to different tiers Hot data Cold data Tiered space Hybrid storage pool SSDs HDDs

  25. R2 Data Deduplication

  26. 2012 R2 Data Deduplication Transparently removes duplication, without changing access semantics. Post-processing approach: Optimization jobs identify files. Chunking algorithm is applied to the files. Chunks are inserted into a chunk store and selectively compressed. Original files are replaced with reparse points. Remove primary data stream. Efficiently store, transfer and back up fewer bits.

  27. Use dedup for VDI storage Hyper-V VDI Scale-out File Server Dedup Spaces-BasedVirtualizedStorage VHD VHD Cluster Shared Volumes Yes, CSV volumes are now supported Improved optimization performance SMB Optimization of open files Improved read/write performance

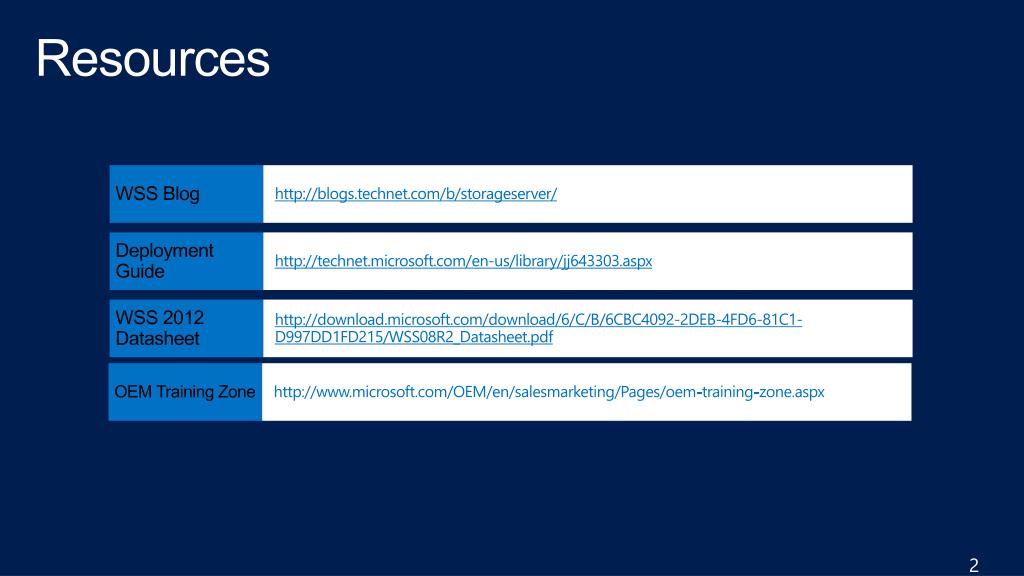

  28. Resources WSS Blog http://blogs.technet.com/b/storageserver/ Deployment Guide http://technet.microsoft.com/en-us/library/jj643303.aspx WSS 2012 Datasheet http://download.microsoft.com/download/6/C/B/6CBC4092-2DEB-4FD6-81C1-D997DD1FD215/WSS08R2_Datasheet.pdf OEM Training Zone http://www.microsoft.com/OEM/en/salesmarketing/Pages/oem-training-zone.aspx

  29. WSS 2012 R2 Licensing

  30. Storage Server – Summary Windows Storage Server 2012 R2 Standard : Cont. Avail. Clustered Storage for File Serving and Application Storage Hero SKU: Preinstall, ROK - No retail WSS SKU available How to buy: • Create cost-effective, continuously-available storage appliances • Deployment services and Tech Support services for life of the product • Sell additional Memory, HD capacity, storage management applications, Backup Cloud Services, etc. • Selling highly available storage dense server solutions Partner Opportunity: Selling Motion: OEM Server vendors , Appliance vendors, Reseller community Resources: http://technet.microsoft.com/en-us/library/jj643303.aspx

  31. Windows Storage Server 2012 R2 31

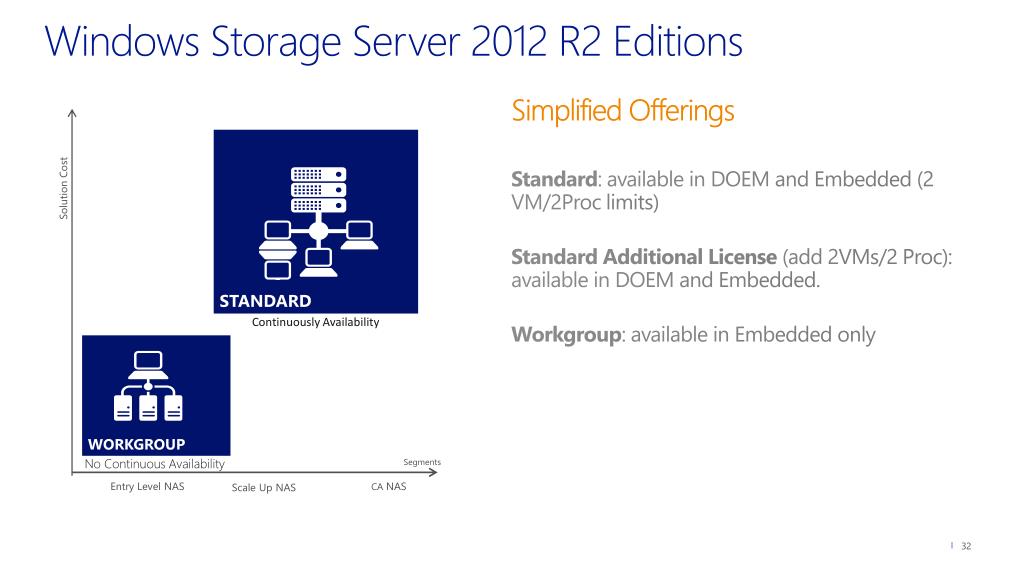

  32. Windows Storage Server 2012 R2 Editions • Simplified Offerings • Standard: available in DOEM and Embedded (2 VM/2Proc limits) • Standard Additional License (add 2VMs/2 Proc): available in DOEM and Embedded. • Workgroup: available in Embedded only STANDARD Solution Cost Continuously Availability WORKGROUP Segments No Continuous Availability CA NAS Entry Level NAS Scale Up NAS

  33. WSS 2012 R2 Workgroup vs. WSS 2012 R2 Standard • Differentiators: • Key Workgroup Limits: • 50 Users • 250 SMB Connectiond • 1 Socket • 32GB RAM • 6 Disks, no external SAS • Premium Features In Standard: • Deduplication • Hosted BranchCache • Clustering • Virtualization Rights • Network infrastructure for a branch office • WSS Features Removed: • Domain Controller, Certificate Services, Federation Services, Rights Management • Application Server, Network Policy Server, Terminal Services, WDS and Fax Server Note: Unless specifically mentioned all limits are technical limits

  34. Windows Storage Server 2012 R2 Editions 2 OS Editions (Workgroup and Standard) 19 Full Edition Language DVDs and Language PacksEnglish, German, Japanese, French, Spanish, Chinese-Simplified, Chinese-Traditional, Chinese-Hong Kong, Italian, Dutch, Korean, Polish, Hungarian, Russian, Brazilian Portuguese, Swedish, Portuguese, Turkish, Czech 8 Evaluation DVDs available on the download centerChinese Simplified, English, French, German, Italian, Japanese, Russian, Spanish

  35. Licensing Comparison Windows Storage Server 2012 Workgroup Windows Storage Server 2012 R2 Workgroup Windows Storage Server 2012 Standard Windows Storage Server 2012 R2 Standard Additions/Enhancements

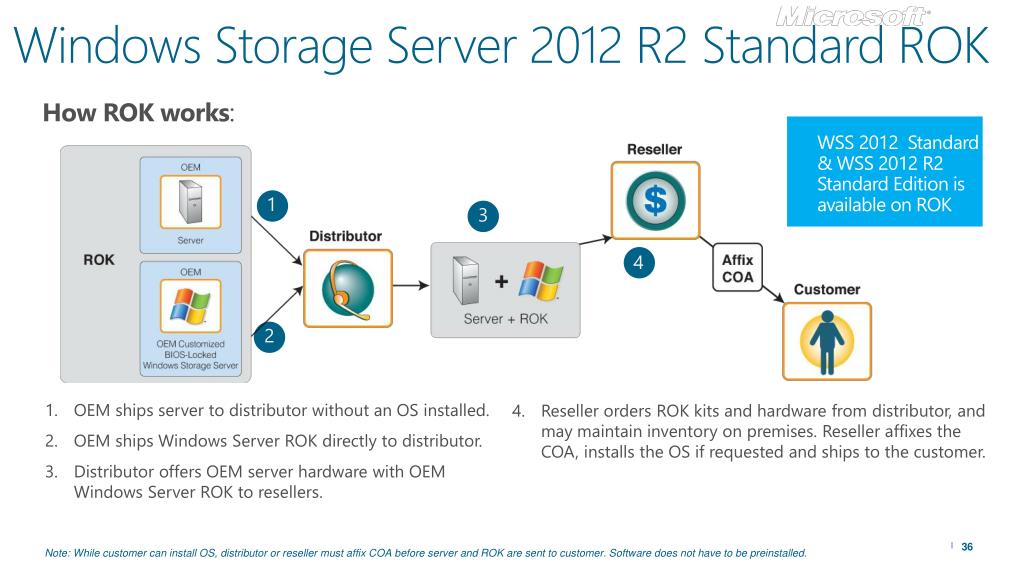

  36. Windows Storage Server 2012 R2 Standard ROK How ROK works: 4 WSS 2012 Standard & WSS 2012 R2 Standard Edition is available on ROK 1 3 2 • OEM ships server to distributor without an OS installed. • OEM ships Windows Server ROK directly to distributor. • Distributor offers OEM server hardware with OEM Windows Server ROK to resellers. Reseller orders ROK kits and hardware from distributor, and may maintain inventory on premises. Reseller affixes the COA, installs the OS if requested and ships to the customer. Note: While customer can install OS, distributor or reseller must affix COA before server and ROK are sent to customer. Software does not have to be preinstalled. 36
