  1. Mario Szpuszta Solutions Architect Microsoft Austria, Vienna Identity 2.0:The IdentityMetasystem Vision

  2. Agenda • Digital identity crisis • Real world as metaphor • The Identity Metasystem as model • Agreement on a model • Common, consistent User Experience • Claims-based security • Federation & claims-transformation • Summary

  3. Digital Identities Today – Identity Silos Identity ??? Identity ??? Naming DNS Connectivity IP

  4. Digital Identities Today – Major Problem www.antiphishing.org

  5. Identity is more than just User & Password

  6. Agenda • Digital identity crisis • Real world as metaphor • The Identity Metasystem as model • Agreement on a model • Common, consistent User Experience • Claims-based security • Federation & claims-transformation • Summary

  7. Identity – „You“ and „Claims“

  8. Roles in the Real World Windows CardSpace

  9. Roles in the Real World Windows CardSpace

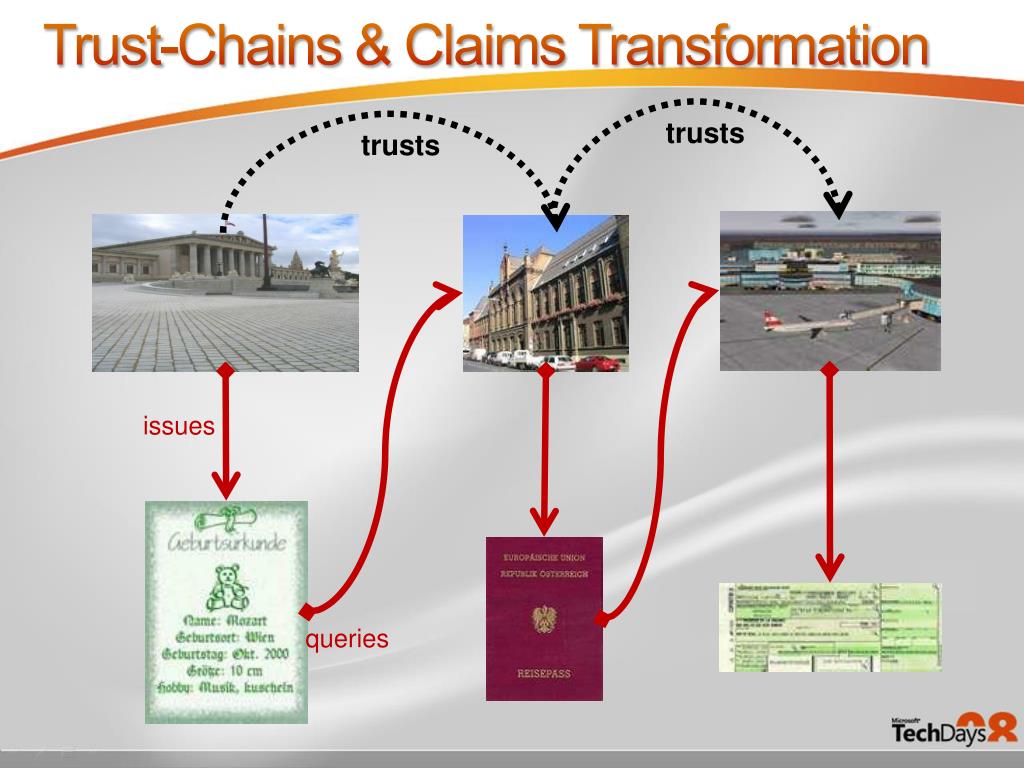

  10. Trust-Chains & Claims Transformation trusts trusts issues queries

  11. Agenda • Digital identity crisis • Real world as metaphor • The Identity Metasystem as model • Agreement on a model • Common, consistent User Experience • Claims-based security • Federation & claims-transformation • Summary

  12. The goals of the identity metasystem are to connect individual identity systems, allowing seamless interoperation between them, to provide applications with a technology-independent representation of identities, and to provide a better, more consistent user experience with all of them! http://msdn2.microsoft.com/en-us/library/ms996422.aspx Identity Vision Statement

  13. The Laws of Identity • User control and consent • Minimal disclosure for a defined use • Justifiable parties • Directional identity • Pluralism of operators and technologies • Human integration • Consistent experience across contexts

  14. Understanding theRequirements Clear definitionofroles Technology-independentprotocols Consistent User Experience Claims-based Security Federationandclaims-transformation

  15. Roles, Responsibilities, Protocols SecurityTokenService Identity Provider App-lication Relying Party WS-PolicyWS-MetadataExch. SAMLKerberosX.509 etc. Auth“Z“ happenshere Auth“N“ happenshere IdentitySelector Subject WS-Trust WS-SecurityWS-SecureConversation Information cardsOpenID, LID, Yadis…

  16. Microsoft Technologies in the Model AD Cert. AD Cert. AD LDS AD SecurityTokenService App-lication AD LDS ADFS ADFS WCF WCF WS-* WS-* WCF WCF IdentitySelector ILM CardSpace

  17. Other Technologies in the Model SecurityTokenService App-lication Xmldap Eclipse Higgins Ruby Forge InfoCard PHP Verisign PIP Eclipse Higgins Bandit J2EE J2EE, PHP, Python, Ruby… WS-* WS-* WCF WCF IdentitySelector Kevin Millers Selector Bandit Project Eclipse Higgins

  18. Understanding theRequirements Clear definitionofroles Technology-independentprotocols Consistent User Experience Claims-based Security Federationandclaims-transformation

  19. Consistent User Experience • Digital Identity Selector • „Digital Wallet“ • Youcarry „digital cards“ withyou • Eachcardbelongsto1identityprovider IP Three IP One IP Two

  20. What is CardSpace? • CardSpace is an identity selector • Part of .NET Framework 3.0 • Uses WCF for its WS-* standards • User’s digital identities = information cards • CardSpace is an STS • Self-issued cards • Creates SAML v1.0 tokens • Requires no 3rd party identity provider • User is in control ofwhich IP is used  which claims exposed

  21. Self-Issued Cards demo Mario Szpuszta Solutions Architect Microsoft Austria, Vienna

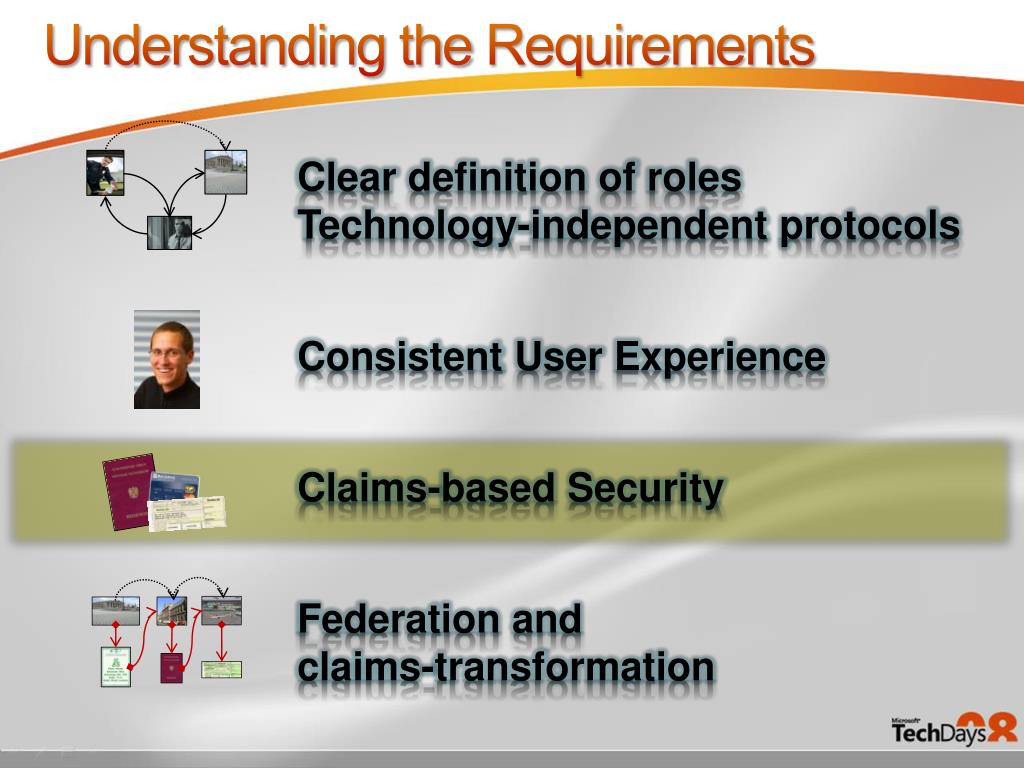

  22. Understanding theRequirements Clear definitionofroles Technology-independentprotocols Consistent User Experience Claims-based Security Federationandclaims-transformation

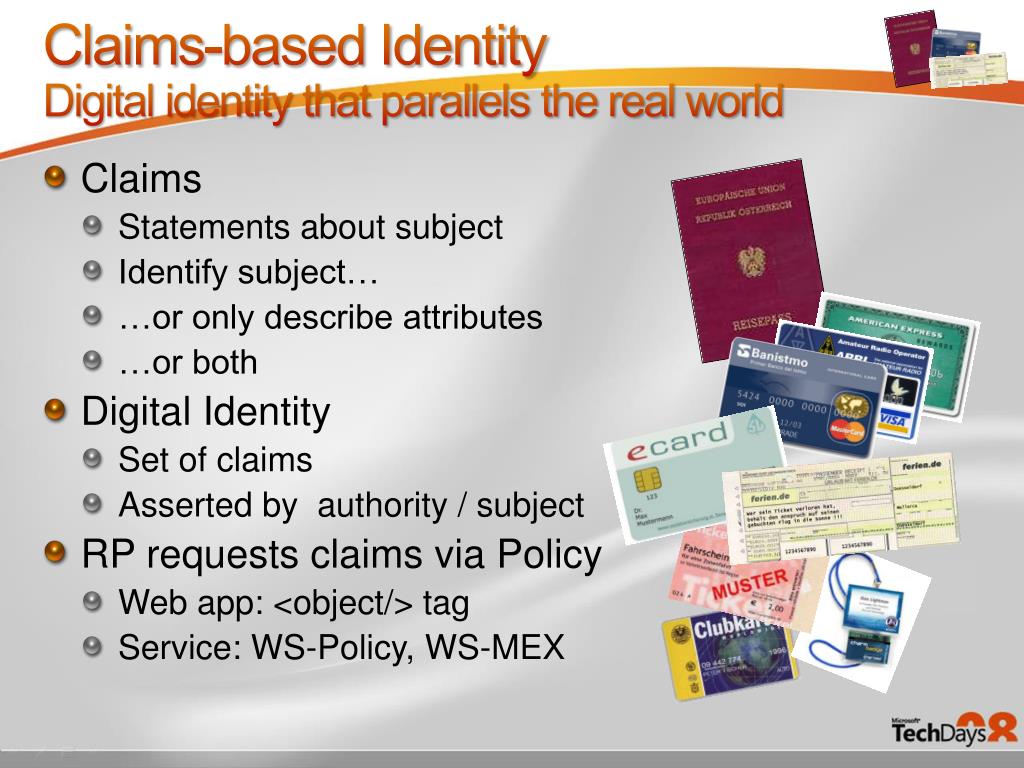

  23. Claims-based IdentityDigital identity that parallels the real world • Claims • Statements about subject • Identify subject… • …or only describe attributes • …or both • Digital Identity • Set of claims • Asserted by authority / subject • RP requests claims via Policy • Web app: <object/> tag • Service: WS-Policy, WS-MEX

  24. ClaimType is the claim URI as a string Right can be one of two things Identity PossessProperty Resource is the value of the claim Claims in .NET 3.0 namespaceSystem.IdentityModel.Claims { publicclassClaim { public Claim(stringclaimType, objectresource, string right); publicstringClaimType { get; } publicstring Right { get; } publicobject Resource { get; } // ... } }

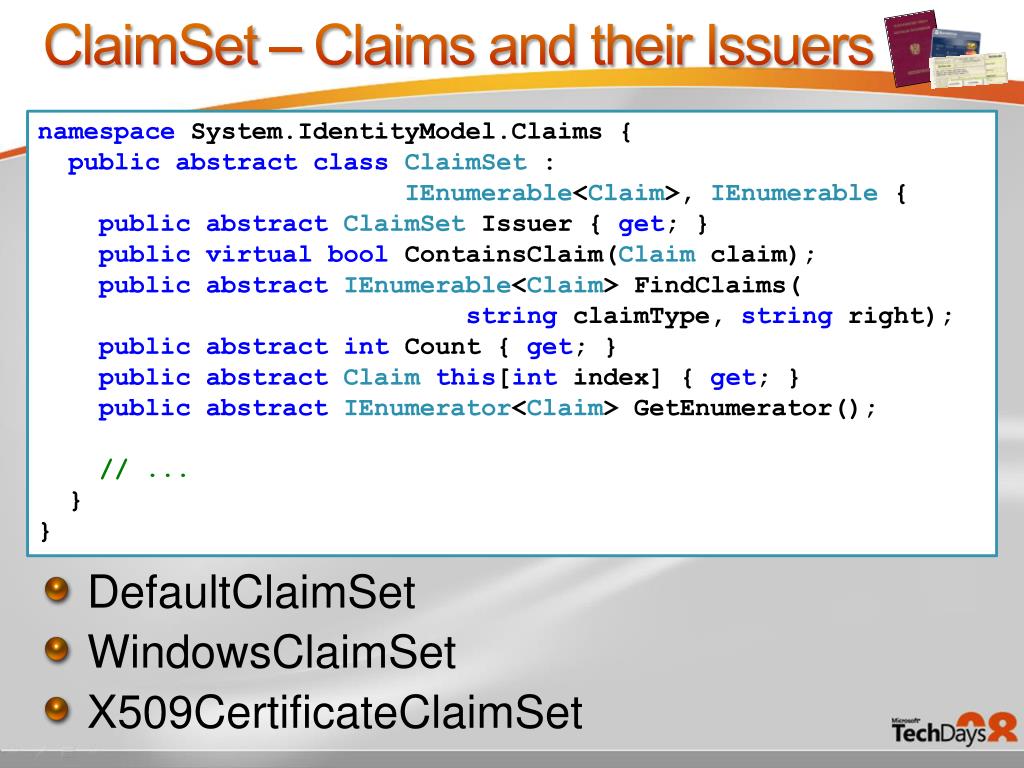

  25. ClaimSet – Claims and their Issuers namespaceSystem.IdentityModel.Claims { publicabstractclassClaimSet : IEnumerable<Claim>, IEnumerable { publicabstractClaimSet Issuer { get; } publicvirtualboolContainsClaim(Claimclaim); publicabstractIEnumerable<Claim> FindClaims( stringclaimType, string right); publicabstractint Count { get; } publicabstractClaimthis[int index] { get; } publicabstractIEnumerator<Claim> GetEnumerator(); // ... } } • DefaultClaimSet • WindowsClaimSet • X509CertificateClaimSet

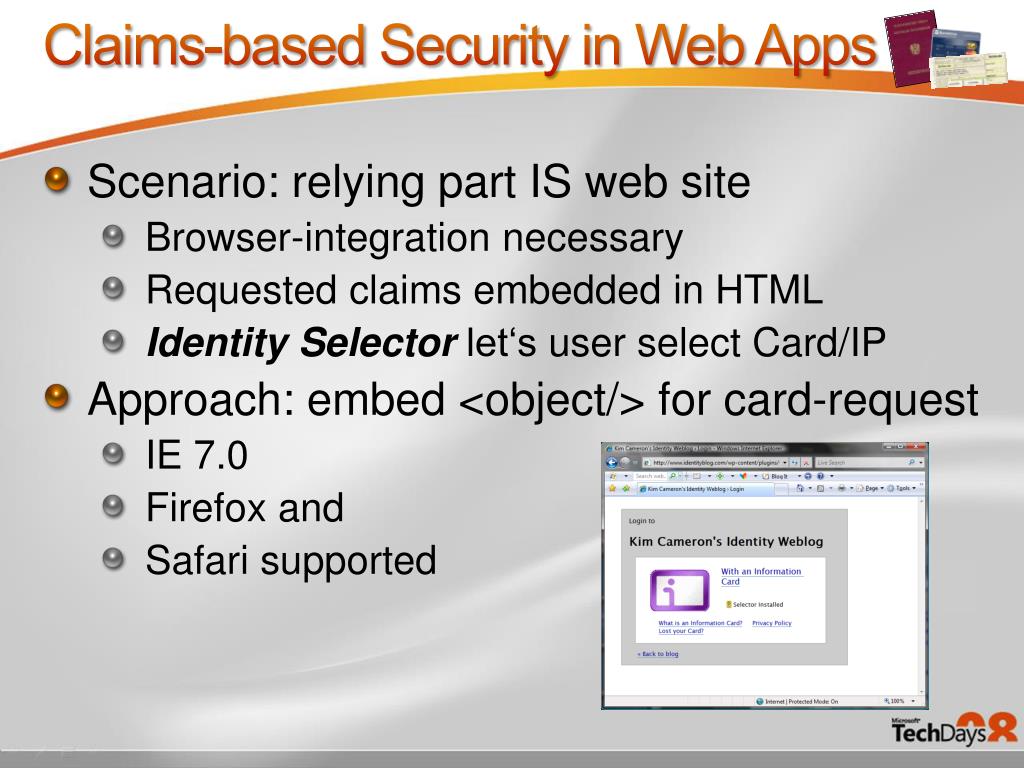

  26. Claims-based Security in Web Apps • Scenario: relyingpart IS web site • Browser-integrationnecessary • Requestedclaimsembedded in HTML • Identity Selectorlet‘suserselect Card/IP • Approach: embed <object/> forcard-request • IE 7.0 • Firefoxand • Safari supported

  27. Examplebased on CardSpace Identity Provider The IP authenticates RST… If successful, builds & signs the requested token Identities Store The website authenticates the token STS User’s PC Website User picks a card The IP sends back the token in a RSTR GET login page Browser Read policies The Browser POSTs the token to the website Cardspace sends a RST CardSpace gives the token to the app & exits Token Policy Filter card collection & show cardspace UI Pass policies to CardSpace Cards Store SAML SAML

  28. Sample Web Login Page <!-- ... --> <buttononclick="javascript:returninfocardlogin.submit();"> Sign in with your Information Card </button> <formname="infocardlogin"target="_self"method="post"> <objecttype="application/x-informationcard"name="xmlToken"> <paramname="tokenType" value="urn:oasis:names:tc:SAML:1.0:assertion"> <paramname="issuer" value="http://schemas..../identity/issuer/self"> <paramname="requiredClaims" value="http://.../claims/givenname, http://.../claims/surname,http://../claims/emailaddress, http://.../claims/privatepersonalidentifier"> </object> </form> <!-- ... -->

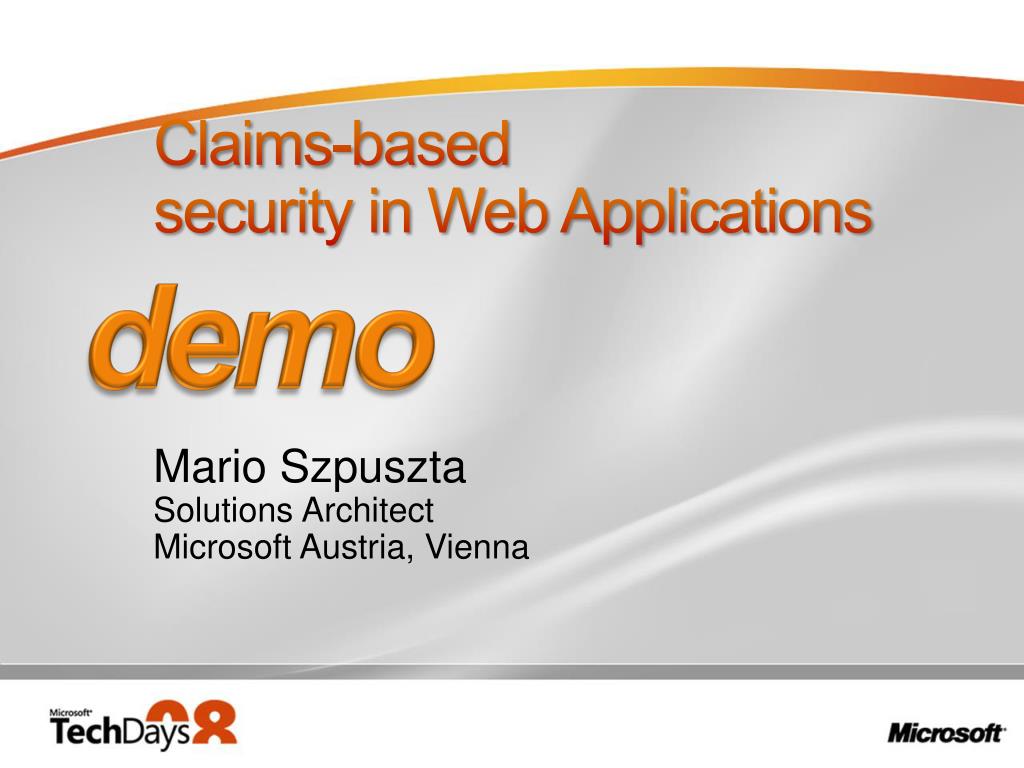

  29. Claims-basedsecurity in Web Applications demo Mario Szpuszta Solutions Architect Microsoft Austria, Vienna

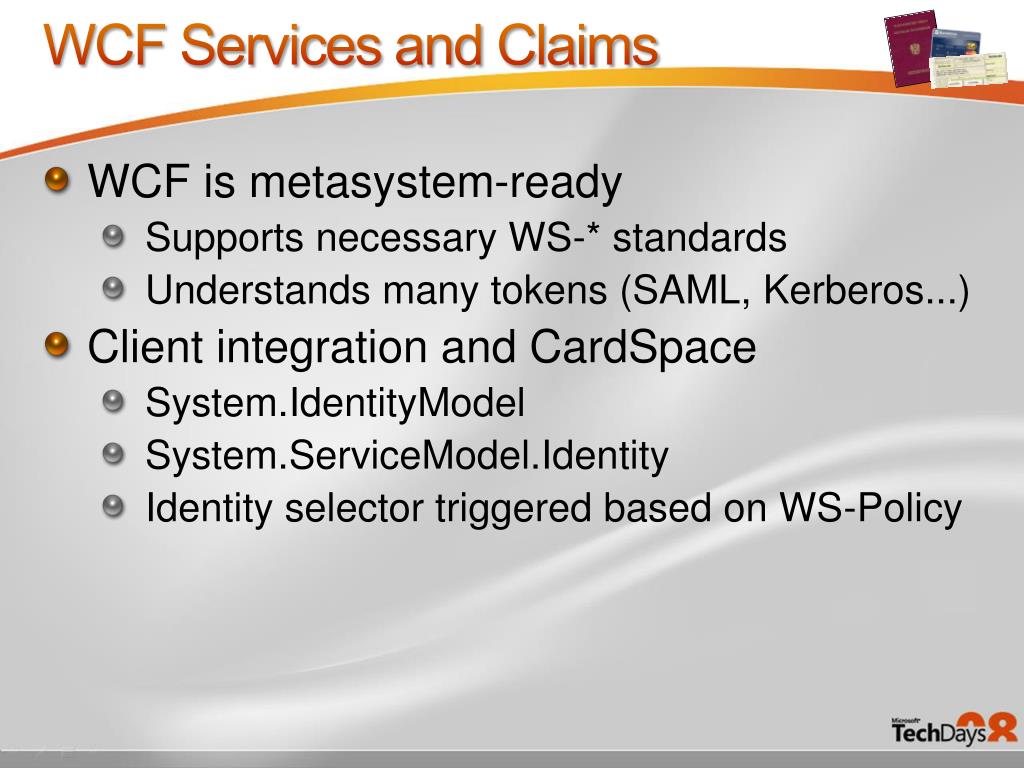

  30. WCF Services and Claims • WCF is metasystem-ready • Supports necessary WS-* standards • Understands many tokens (SAML, Kerberos...) • Client integration and CardSpace • System.IdentityModel • System.ServiceModel.Identity • Identity selector triggered based on WS-Policy

  31. WCF Service Configuration <wsFederationHttpBinding> <bindingname="TestFederationBinding" bypassProxyOnLocal="true"> <security> <message issuedTokenType="http://docs.oasis-open.org/wss/oasis-wss-saml-token-profile-1.1#SAMLV1.1" negotiateServiceCredential="false"> <claimTypeRequirements> <addclaimType="claim-uri" isOptional="false" /> </claimTypeRequirements> <issueraddress="http://schemas.xmlsoap.org/ws/2005/05/identity/issuer/self" /> </message> </security> </binding> </wsFederationHttpBinding>

  32. Claims-basedsecurity in WCF Services demo Mario Szpuszta Solutions Architect Microsoft Austria, Vienna

  33. Understanding theRequirements Clear definitionofroles Technology-independentprotocols Consistent User Experience Claims-based Security Federationandclaims-transformation

  34. Federation and Trust-Chains • Relying party does not manage identity • IP authenticates / proves identity • Relying party determines truth based on • IP with closest relationship to subject • IP authentication of subject • Consensus of multiple IPs • Federation bridges silos!! relies on

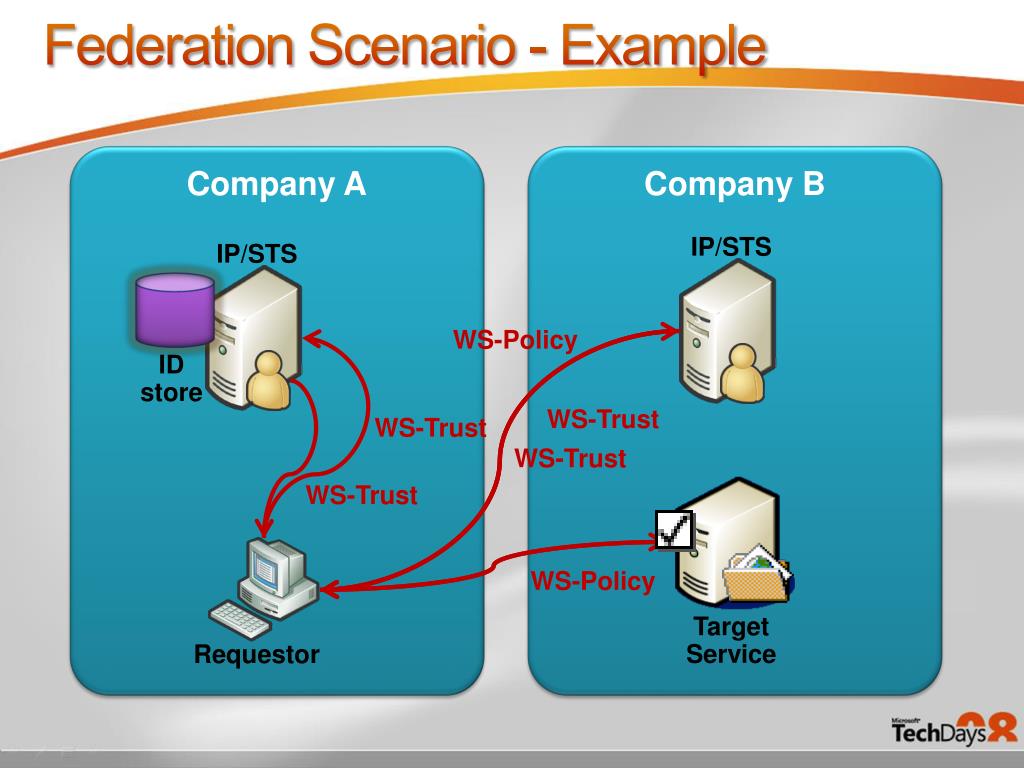

  35. Federation Scenario - Example Company A Company B IP/STS IP/STS IDstore WS-Policy WS-Trust WS-Policy WS-Trust Target Service WS-Trust WS-Trust Requestor

  36. Claims-Transformation & Federation Company A Company B Content Trust Format Local Actionable Claim Partner Claim • Issues • Name • Date ofBirth • Passport Nr. • Passport Valid • … IP/STS IP/STS Transforms from „Date ofBirth“ To „Age >= 21?“ Access Right Role IDstore SAML token X.509 Cert • Asksfor • Age >= 21 Target Service Requestor

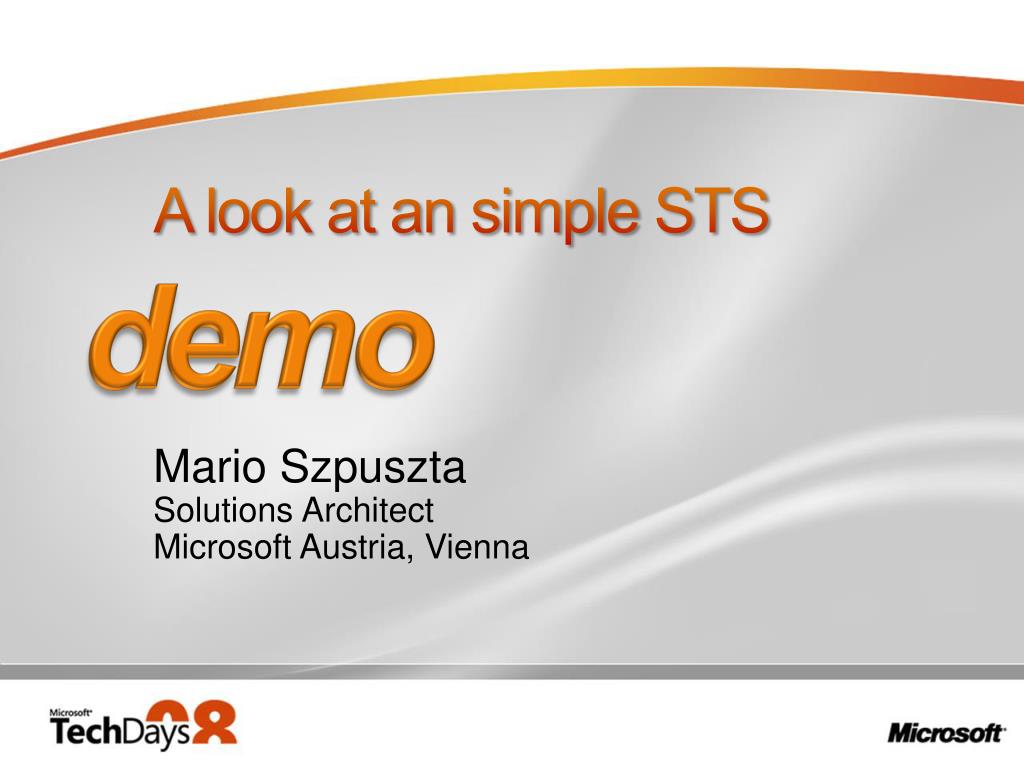

  37. A look at an simple STS demo Mario Szpuszta Solutions Architect Microsoft Austria, Vienna

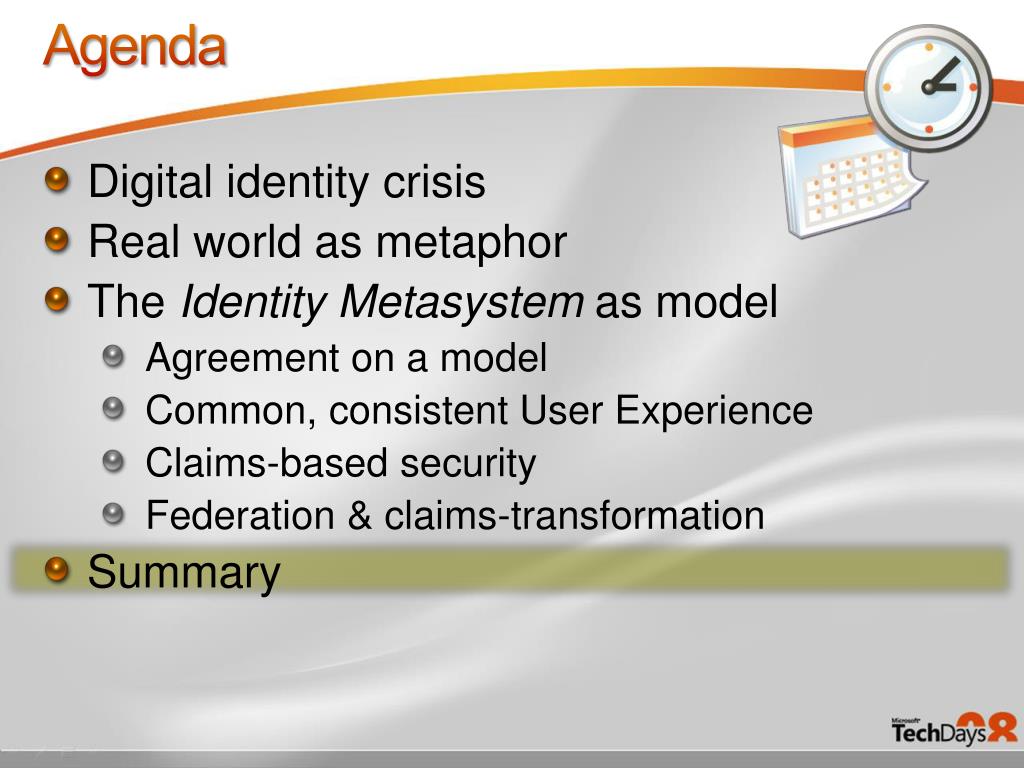

  38. Agenda • Digital identity crisis • Real world as metaphor • The Identity Metasystem as model • Agreement on a model • Common, consistent User Experience • Claims-based security • Federation & claims-transformation • Summary

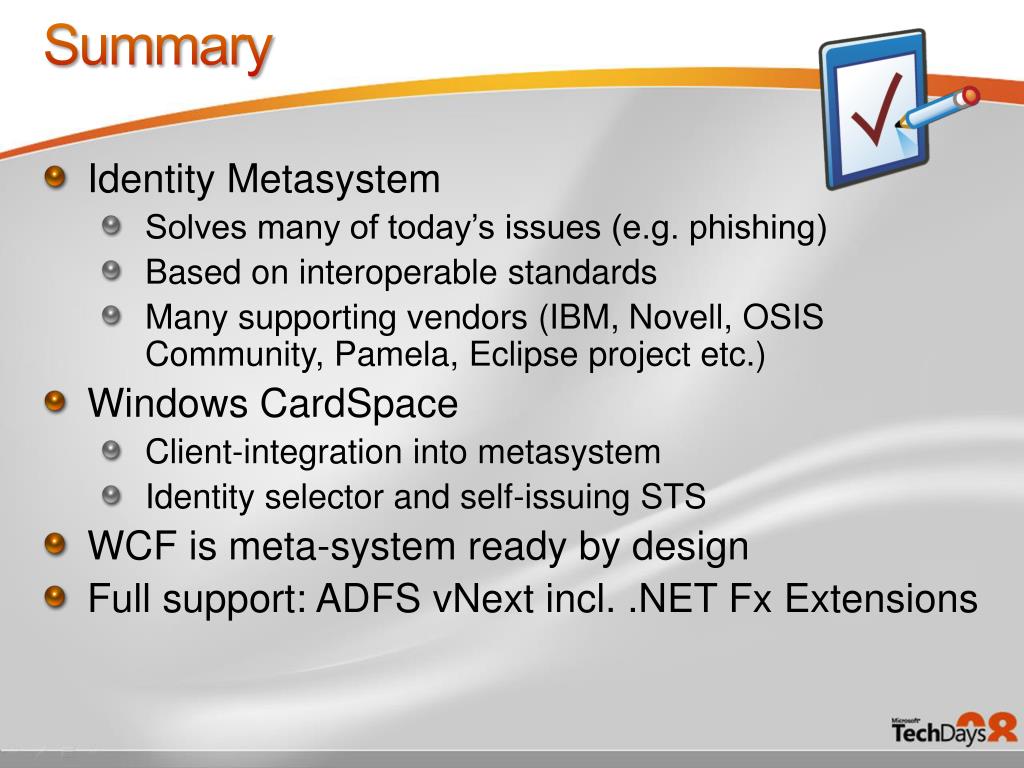

  39. Summary • Identity Metasystem • Solves many of today’s issues (e.g. phishing) • Based on interoperable standards • Many supporting vendors (IBM, Novell, OSIS Community, Pamela, Eclipse project etc.) • Windows CardSpace • Client-integration into metasystem • Identity selector and self-issuing STS • WCF is meta-system ready by design • Full support: ADFS vNext incl. .NET Fx Extensions

  40. Microsoft Open Specification Promise (OSP) • Perpetual legal promise that Microsoft will never bring legal action against anyone for using the protocols listed • Includes all the protocols underlying CardSpace • Issued September 2006 • http://www.microsoft.com/interop/osp

  41. Resources and Links • Community site, samples, news • http://cardspace.nefx3.com • MSDN Forum • http://forums.microsoft.com/MSDN/ShowForum.aspx?ForumID=784&SiteID=1 • MSDN Home Page • http://msdn.microsoft.com/identity • Blogs • http://identityblog.com • http://blogs.msdn.com/card • http://self-issued.info/ • http://identity-des.com/ • http://blogs.msdn.com/vbertocci • www.leastprivilege.com

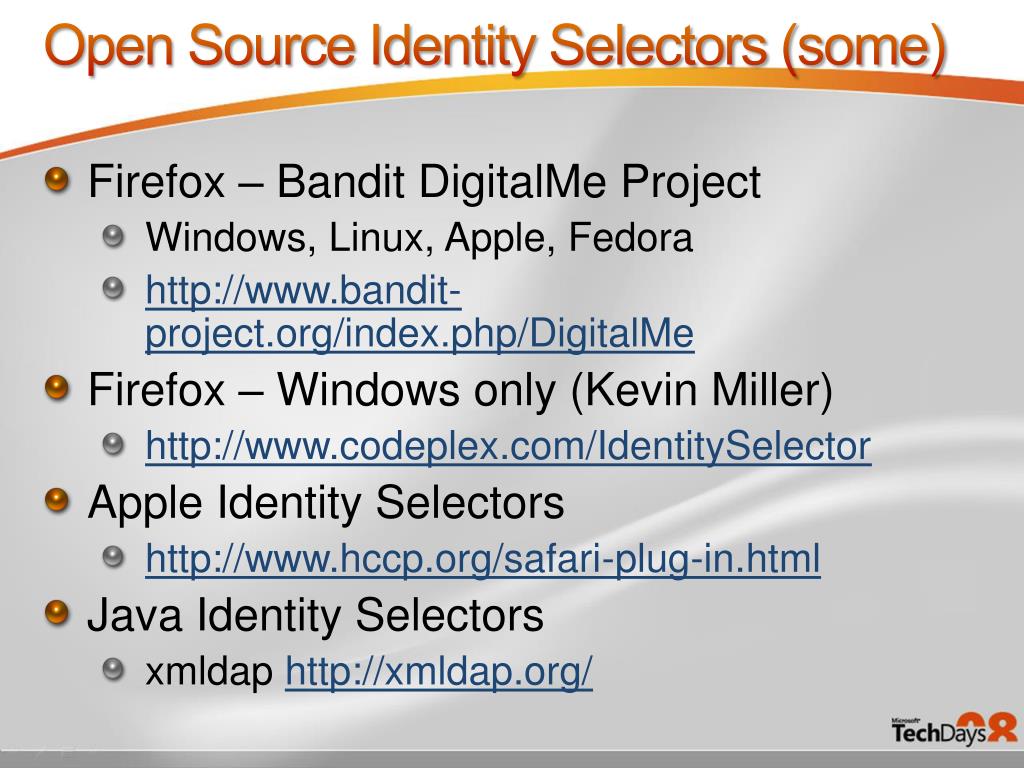

  42. Open Source Identity Selectors (some) • Firefox – Bandit DigitalMe Project • Windows, Linux, Apple, Fedora • http://www.bandit-project.org/index.php/DigitalMe • Firefox – Windows only (Kevin Miller) • http://www.codeplex.com/IdentitySelector • Apple Identity Selectors • http://www.hccp.org/safari-plug-in.html • Java Identity Selectors • xmldap http://xmldap.org/

  43. Open Source Relying Parties (some) • Ruby RP projects • http://rubyforge.org/projects/informationcard/ • http://www.codeplex.com/informationcardruby • Java RP projects • http://www.eclipse.org/org/press-release/20080221_higgins.php • http://sourceforge.net/projects/informationcard/ • http://www.codeplex.com/informationcardjava • C and PHP projects • https://infocard-demo.labs.pingidentity.com/ • Python and PHP projects • http://code.bandit-project.org/trac/wiki/PythonInfoCard • http://code.google.com/p/py-self-issued-rp/ • http://www.codeplex.com/InformationCardPHP

  44. Open Source Identity Providers (some) • Verisign PIP • https://pip.verisignlabs.com/ • Bandigt IP Framework • https://cards.bandit-project.org/BanditIdP/index.jsp • Higgings Frameworks • http://www.eclipse.org/higgins/
