EXAMPLE 3

WYZ XZY. PROVE. Redraw the triangles so they are side by side with corresponding parts in the same position. Mark the given information in the diagram. EXAMPLE 3. Use the Hypotenuse-Leg Congruence Theorem. Write a proof. GIVEN. WY XZ , WZ ZY , XY ZY. SOLUTION. STATEMENTS.

angelica-farley
Télécharger la présentation

EXAMPLE 3

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

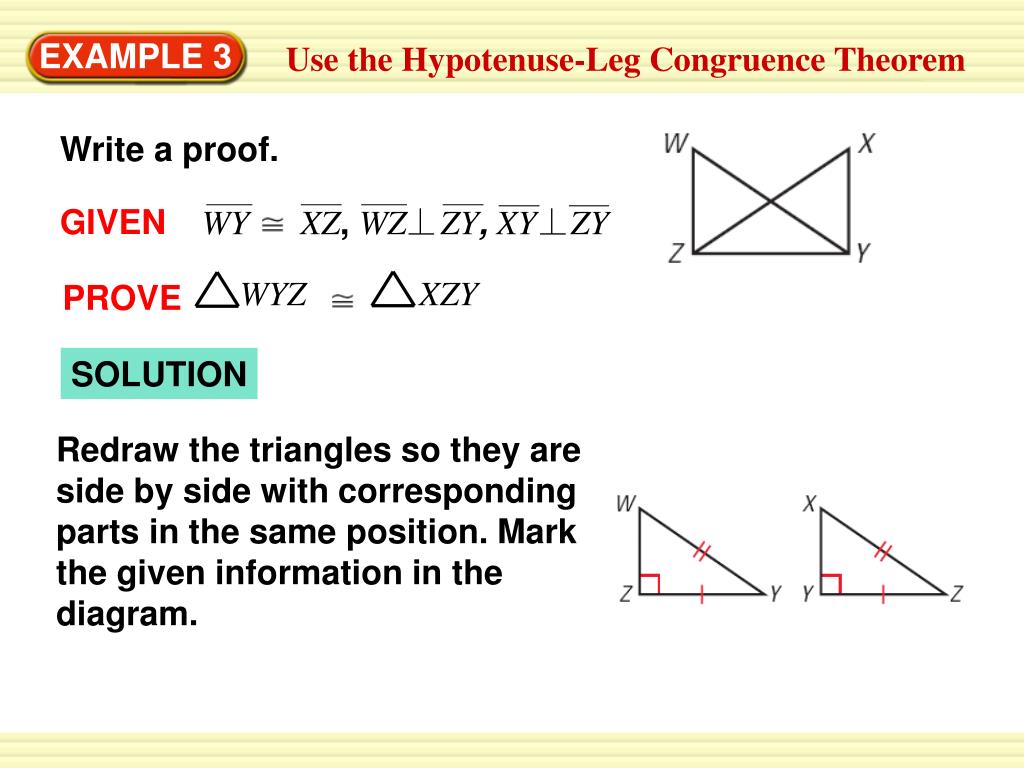

  1. WYZXZY PROVE Redraw the triangles so they are side by side with corresponding parts in the same position. Mark the given information in the diagram. EXAMPLE 3 Use the Hypotenuse-Leg Congruence Theorem Write a proof. GIVEN WY XZ,WZ ZY, XY ZY SOLUTION

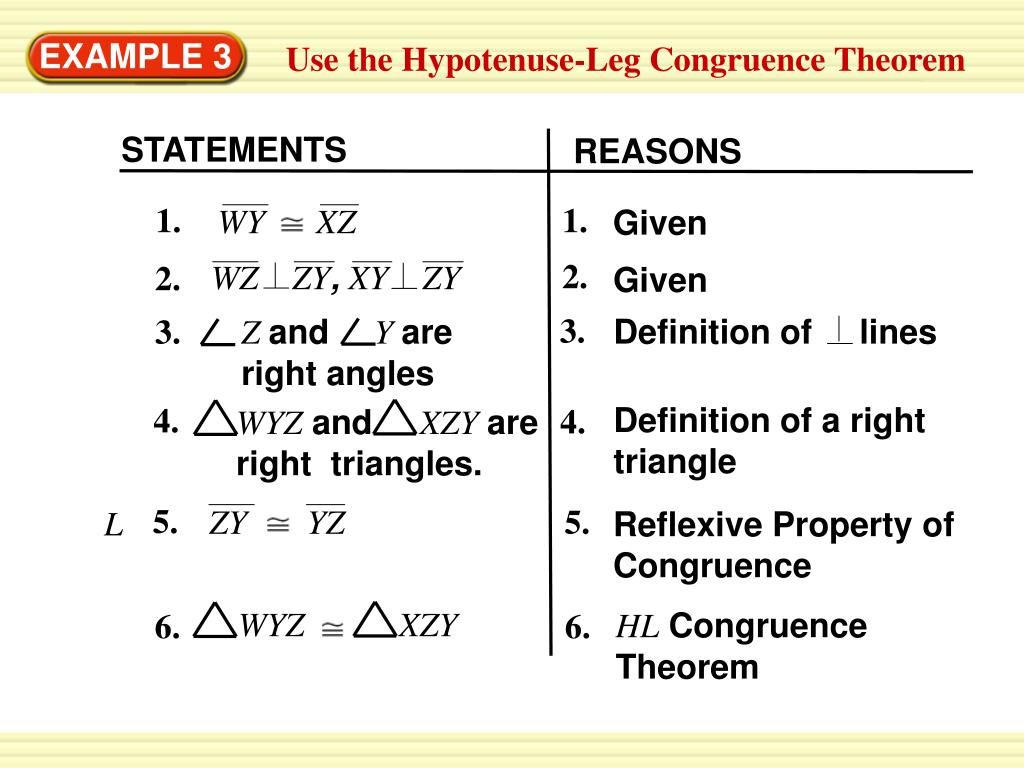

  2. STATEMENTS REASONS WY XZ Given WZ ZY, XY ZY Given Definition of lines Z andY are right angles Definition of a right triangle WYZand XZY are right triangles. ZY YZ L Reflexive Property of Congruence WYZXZY HL Congruence Theorem EXAMPLE 3 Use the Hypotenuse-Leg Congruence Theorem

  3. EXAMPLE 4 Choose a postulate or theorem Sign Making You are making a canvas sign to hang on the triangular wall over the door to the barn shown in the picture. You think you can use two identical triangular sheets of canvas. You knowthatRP QS and PQ PS. What postulate or theorem can you use to conclude that PQRPSR?

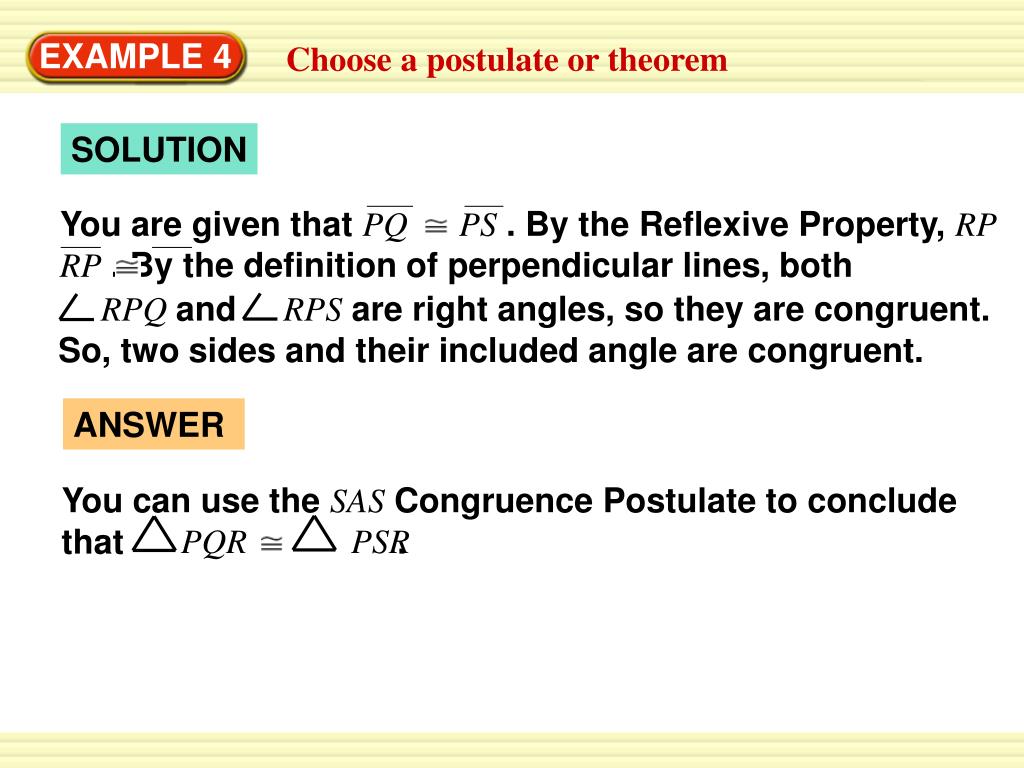

  4. You are given that PQ PS. By the Reflexive Property, RP RP. By the definition of perpendicular lines, both RPQ and RPSare right angles, so they are congruent. So, two sides and their included angle are congruent. ANSWER You can use the SAS Congruence Postulate to conclude that . PQRPSR EXAMPLE 4 Choose a postulate or theorem SOLUTION

  5. Redraw ACBand DBCside by side with corresponding parts in the same position. for Examples 3 and 4 GUIDED PRACTICE Use the diagram at the right.

  6. BC CB L Reflexive Property of Congruence ACBDBC HL Congruence Theorem for Examples 3 and 4 GUIDED PRACTICE STATEMENTS REASONS

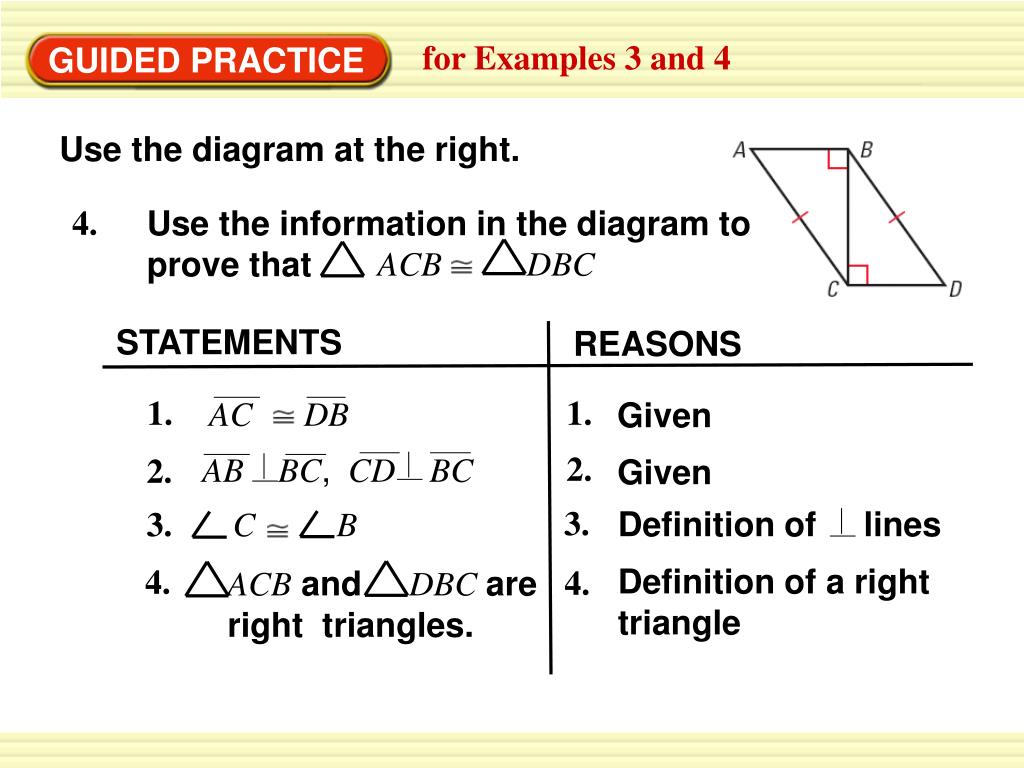

  7. STATEMENTS REASONS AC DB Given AB BC, CD BC Given Definition of lines C B Definition of a right triangle ACBand DBC are right triangles. for Examples 3 and 4 GUIDED PRACTICE Use the diagram at the right. Use the information in the diagram to prove that ACBDBC
