Presentation Transcript

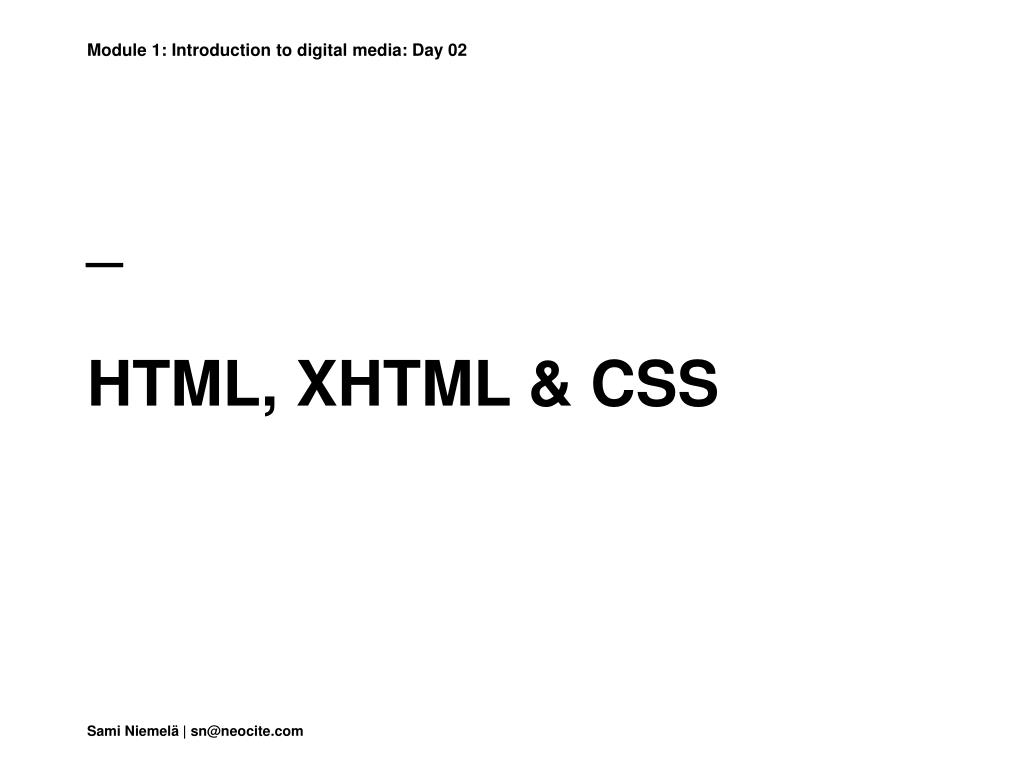

  1. Module 1: Introduction to digital media: Day 02 _HTML, XHTML & CSS Sami Niemelä | sn@neocite.com

  2. Module 1: Introduction to digital media: Day 02 What is HTML? • HTML stands for Hyper Text Markup Language • An HTML file is a text file containing small markup tags • The markup tags tell the Web browser how to display the page • An HTML file must have an .htm or .html file extension. • An HTML file can be created using a simple text editor Sami Niemelä | sn@neocite.com

  3. Module 1: Introduction to digital media: Basic html file structure <html> <head> <title>Title of page</title> </head> <body> <p>Hello world!<b>This text is bold</b> </p></body> </html> Sami Niemelä | sn@neocite.com

  4. Module 1: Introduction to digital media: Tags + elements • HTML tags are used to mark-up HTML elements • HTML tags are surrounded by the angle brackets • HTML tags come in pairs like <b> and </b> • The first tag in a pair is the start tag, the second tag is the end tag. These have to be nested properly. • The text between the start and end tags is the element content • HTML tags are in general not case sensitive, but HTML 4.01 & XHTML specs require writing lowercase tags. Sami Niemelä | sn@neocite.com

  5. Module 1: Introduction to digital media: Tags & attributes • HTML tags can have attributes that display aditional information • <tag attribute="value”>foo bar</tag> • Attributes can for example define a value to an element, identify it Sami Niemelä | sn@neocite.com

  6. Module 1: Introduction to digital media: Basic HTML elements • Required document elements:<html>, <body>, <head> • Headings: <h1></h1>...<h6></h6> • Paragraph: <p></p> • Line break <br> • Comment: <!-- meh! --> • HTML 4.01 Spec athttp://www.w3.org/TR/html401/ Sami Niemelä | sn@neocite.com

  7. Module 1: Introduction to digital media: Text formatting • <b>Defines bold text • <big>Defines big text • <em>Defines emphasized text  • <i>Defines italic text • <small>Defines small text • <strong>Defines strong text • <sub>Defines subscripted text • <sup>Defines superscripted text Sami Niemelä | sn@neocite.com

  8. Module 1: Introduction to digital media: Hyperlinking • <a href="http://www.hkkk.fi/">Click</a> • ”target” - attribute defines where the link pointstarget=”_blank”target=”_top”target=”_self”target=”frameName”etc Sami Niemelä | sn@neocite.com

  9. Module 1: Introduction to digital media: Hyperlinking cont’d • Linking an image:<a href=http://www.hkkk.fi/ target=”_blank”><img src=”button.gif” border=”0” alt=”HKKK”></a> • Anchor tag<a name=”page_top”></a>...<a href=”#page_top”>Go to the top</a> Sami Niemelä | sn@neocite.com

  10. Module 1: Introduction to digital media: Frames • Can be used to display more than one page at the time • Can cause usability & accesibility issues • Always remember <noframes>-content Sami Niemelä | sn@neocite.com

  11. Module 1: Introduction to digital media: Frames <html> <frameset rows=”50,*"> <frame src=”top_frame.html"> <frame src=”content.html"> <noframes> <body>Your browser does not handle frames! Enter the content here</body> </noframes> </frameset> </html> Sami Niemelä | sn@neocite.com

  12. Module 1: Introduction to digital media: Tables • Designed to diplay tabular data but are commonly used also as a layout tool <table border="1” width=”600”> <tr> <td>100</td> <td>200</td> <td>300</td> </tr> </table> Sami Niemelä | sn@neocite.com

  13. Module 1: Introduction to digital media: Tables cont’d • Problem: table cells with no content are not displayed very well in most browsers.Solution: pixel.gif or &nbsp; • Useful attributes:cellpaddingcellspacingborder, width, height Sami Niemelä | sn@neocite.com

  14. Module 1: Introduction to digital media: Cascading Style Sheets • Styles define how to display HTML elements • Styles are normally stored in Style Sheets • Styles were added to HTML 4.0 to solve a problem; separating the diplay from the content itself • External Style Sheets can save you a lot of work • External Style Sheets are stored in CSS files http://www.w3schools.com/css/demo_default.htm Sami Niemelä | sn@neocite.com

  15. Module 1: Introduction to digital media: CSS Cont’d • Styles define how to display HTML elements • Styles are normally stored in Style Sheets • Styles were added to HTML 4.0 to solve a problem; separating the display from the content itself • Usign CSSwill save you a lot of work • External Style Sheets are stored in CSS files http://www.w3schools.com/css/demo_default.htm Sami Niemelä | sn@neocite.com

  16. Module 1: Introduction to digital media: CSS Syntax • The CSS syntax is made up of three parts: a selector, a property and a value:selector {property: value} p { text-align:center;color:red} Sami Niemelä | sn@neocite.com

  17. Module 1: Introduction to digital media: CSS Syntax • Grouping:selector1, selector2, selector3 {property: value} h1,h2,h3,h4,h5,h6 { color: green } Sami Niemelä | sn@neocite.com

  18. Module 1: Introduction to digital media: CSS Syntax • Class selectorselector class {property: value}.class {property: value} p.right {text-align: right} p.center {text-align: center}...<p class=”right”>foo!</p><p class=”center”>bar!</p> Sami Niemelä | sn@neocite.com

  19. Module 1: Introduction to digital media: What is XHTML? • EXtensible HyperTextMarkup Language • is aimed to replace HTML • almost identical to HTML 4.01, exceptis a stricter and cleaner version of HTML • XHTML is HTML defined as an XML application • XHTML 1.0 became an official W3C Recommendation January 26, 2000. Sami Niemelä | sn@neocite.com

  20. Module 1: Introduction to digital media: XHTML vs HTML? • XML is a markup language where everything has to be marked up correctly, which results in "well-formed" documents. • XML was designed to describe data where HTML was designed to display data.  • XHTML combines the strenghts of XML & HTML while staying accesibl to current browsers Sami Niemelä | sn@neocite.com

  21. Module 1: Introduction to digital media: XHTML vs HTML? The Most Important Differences: • XHTML elements must be properly nested • XHTML documents must be well-formed • Tag names must be in lowercase • All XHTML elements must be closed, including the empty elements like <br /> Sami Niemelä | sn@neocite.com

  22. Module 1: Introduction to digital media: XHTML vs HTML? • Attribute names must be in lower case • Attribute values must be quoted • Attribute minimization is forbidden • The id attribute replaces the name attribute • The XHTML DTD defines mandatory elements http://www.w3schools.com/xhtml/xhtml_syntax.asp Sami Niemelä | sn@neocite.com
