  1. Overview of Multiservice Switching Forum (MSF)Technical Activities and Direction Dave McDysan, WorldCom Technical Committee Chair

  2. MSF Organization Board of Directors 11 People Technical Committee Dave McDysan WorldCom Marketing Awareness Committee Carol Waller Marconi Liaison Committee Larry Gabuzda Lucent Architecture WG Mark Klerer Nortel Management Framework WG Avri Doria Nortel Interoperability WG Open Switch Control WG Simon Crosby Cplane Media Control WG Petros Mouchtaris Telcordia MEGACO Brian Rosen Marconi GSMP Open

  3. MSF Technical Committee Charter • Overall system and life-cycle view • Requirements, architecture, protocol specification, implementation details, facilitate interoperation • Leverage other standards bodies and activities wherever possible • Liaison with other standards bodies to communicate requirements, define protocols, co-sponsor events

  4. 1999 Accomplishments • Media Gateway control requirements input to IETF/ITU-T MEGACO/H.248 • Based switch control on IETF GSMP • Adopted concept of switch partitioning • Completed Straw Ballot of Release 1 Architecture Document • Established Interoperability Working Group

  5. 2000 Accomplishments • Completed Final Ballot of Release 1 Architecture Document • Final Ballot for Switch Control (GSMP) • Co-hosted First MEGACO/H.248 Interoperability Event in August at UNH • Established Management Framework Working Group • Drafted Implementation Agreements for MEGACO/H.248

  6. Overall 2001 Objectives • Release 2 Incremental Architecture Documents • Application/ Management Plane • Extensions in support of Mobility • Extensions to support IP, MPLS • Media Control Implementation Agreements • MEGACO Profiles (Access, Trunking, Residential) • MEGACO Package (CAS) • MGC-MGC Protocols (BICC, SIP-T)

  7. Overall 2001 Objectives • At least two Media Control Interoperability Events • Switch Partitioning Documents • MIB, Requirements • Technical Reports • Vendor White Papers • Liaisons to IETF, ITU, ISC, Others

  8. Architecture Charter • Define overall terminology and framework for the MSF, building upon Release 1 architecture document • Release 2 • IP Support • MPLS Support • Mobility Support • Application Plane Architecture • Statistical Switch Partitioning (if possible)

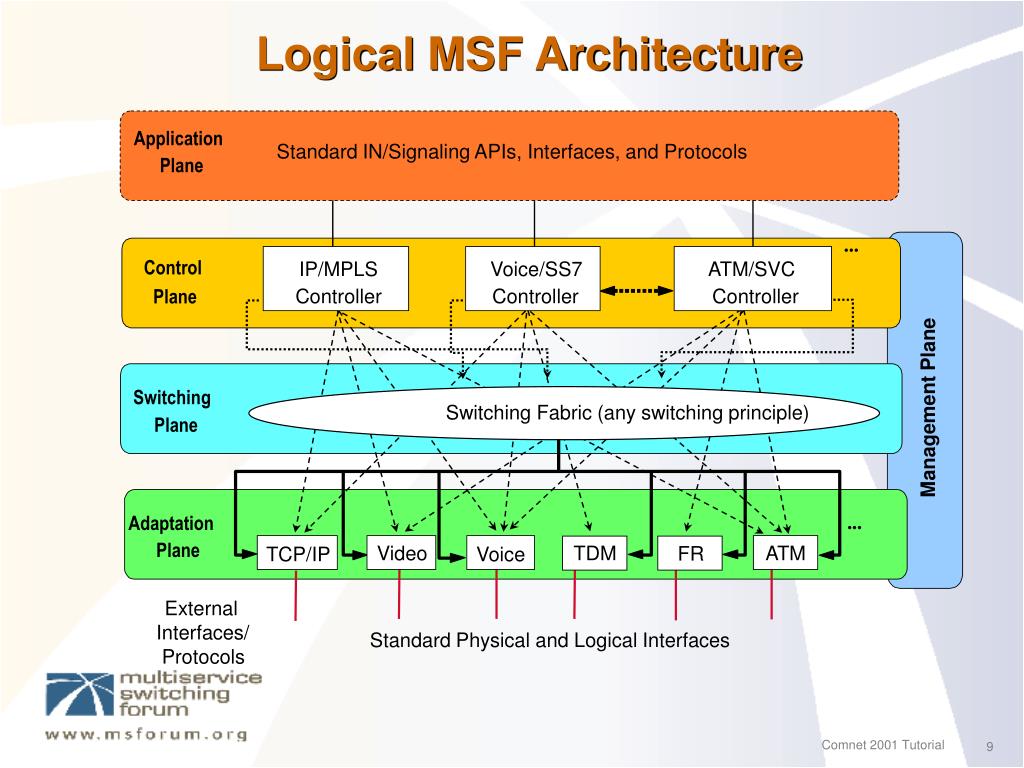

  9. Application Standard IN/Signaling APIs, Interfaces, and Protocols Plane ... Control IP/MPLS Voice/SS7 ATM/SVC Plane Controller Controller Controller Switching ManagementPlane Multiservice Switching Fabric (any switching principle) Plane ... Adaptation Plane Video TDM ATM FR TCP/IP Voice External Interfaces/ Standard Physical and Logical Interfaces Protocols Logical MSF Architecture

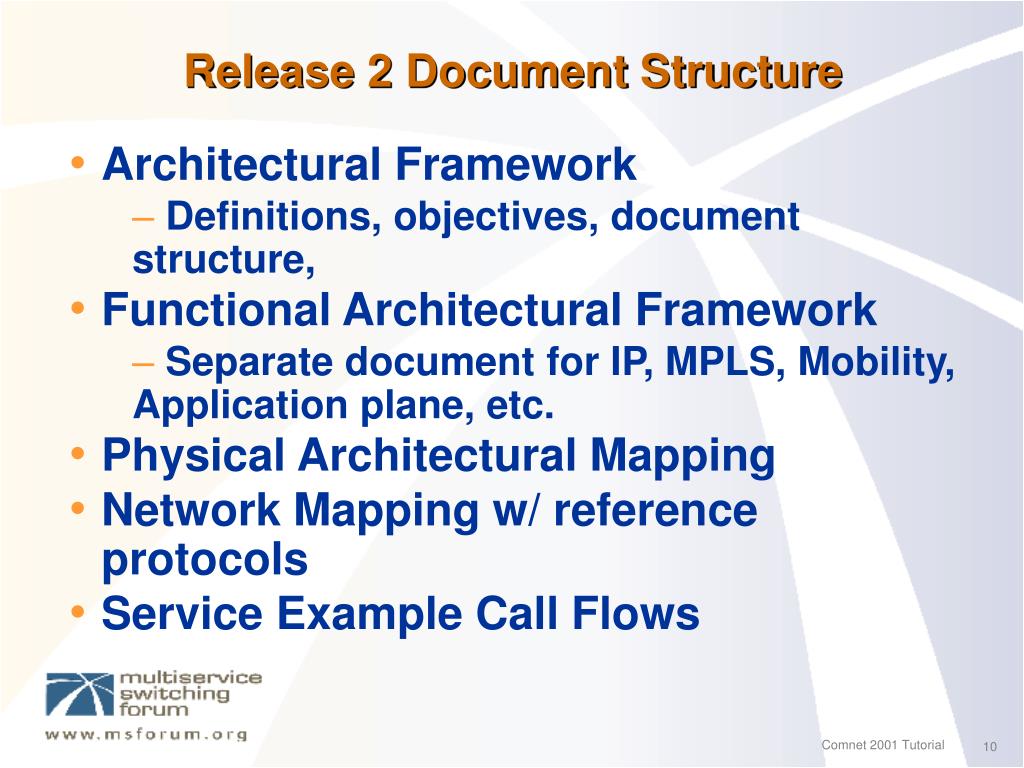

  10. Release 2 Document Structure • Architectural Framework • Definitions, objectives, document structure, • Functional Architectural Framework • Separate document for IP, MPLS, Mobility, Application plane, etc. • Physical Architectural Mapping • Network Mapping w/ reference protocols • Service Example Call Flows

  11. Architecture WG Schedule • Application Plane Functional Framework • Straw Ballot 9/01 • Final Ballot 12/01 • Mobility Functional Framework • Straw Ballot 9/01 • Final Ballot 12/01 • IP/MPLS Functional Framework • Straw Ballot 9/01 • Final Ballot 12/01

  12. Media Control Working Group Charter • MG-MG Interface • Media Gateway Control (MEGACO)/ H.248 Jointly developed by IETF & ITU-T • MGC-MGC Interface • Session Initiation Protocol (SIP) or Bearer Independent Call Control (BICC) • MGC-Telephony Interfaces • SS7, ISDN, Channel Associated Signaling (CAS), etc.

  13. Media Control Functions and Interfaces SIP-T, BICC, H.225 Media Gateway Controller (MGC) Media Gateway Controller (MGC) SS7, ISUP SS7, ISUP MEGACO/H.248 Trunking Gateway Trunking Gateway PSTN PSTN IP or ATM Network ISDN, CAS POTS, BRA, SIP, H.323 Residential Gateway Access Gateway PBX Media (VoIP, VoATM, TDM) Signaling MEGACO/H.248

  14. Detailed Media Control Charter • MEGACO/H.248 • MEGACO/H.248 Profile for Access Gateway/MGC • MEGACO/H.248 Profile for Trunking Gateway/MGC • MEGACO/H.248 Profile for Residential Gateway/MGC • CAS package (new work item) • ia reference point • SIP-T • BICC • Legal Intercept (new work item) • Management Interface for MGC and MG (inviting contributions) – To be done in conjunction with management framework working group • 14

  15. Media Control Schedule • MEGACO/H.248 Work Items • CAS Package (Added as a new work item) • Draft 2/01 • Straw ballot 5/01 • Final ballot 8/01 • Two implementation agreements currently under development for MEGACO/H.248 • MEGACO/H.248 Profile for Access Gateway/MGC • MEGACO/H.248 Profile for Trunking Gateway/MGC • Draft implementation Agreements available now • Straw ballot 5/01 • Final ballot 8/01 • MEGACO/H.248 Profile for Residential Gateway/MGC • TBD • 15

  16. Media Control Schedule (cont.) • ia reference point • BICC • BICC outline for implementation agreement (8/00) • Draft BICC Implementation Agreement (2/01) • Straw ballot BICC Implementation Agreement (5/01) • Final ballot BICC Implementation Agreement (8/01) • SIP-T • Draft SIP-T Implementation Agreement (11/00) • Straw ballot SIP-T Implementation Agreement (5/01) • Final ballot SIP-T Implementation Agreement (8/01) • 16

  17. Media Control Schedule (cont.) • Legal Intercept • New work item. • Invite contributions • Dates TBD until next meeting • Management Interface for MGC and MG (inviting contributions) • No progress to date. • Can the management group take it over? • 17

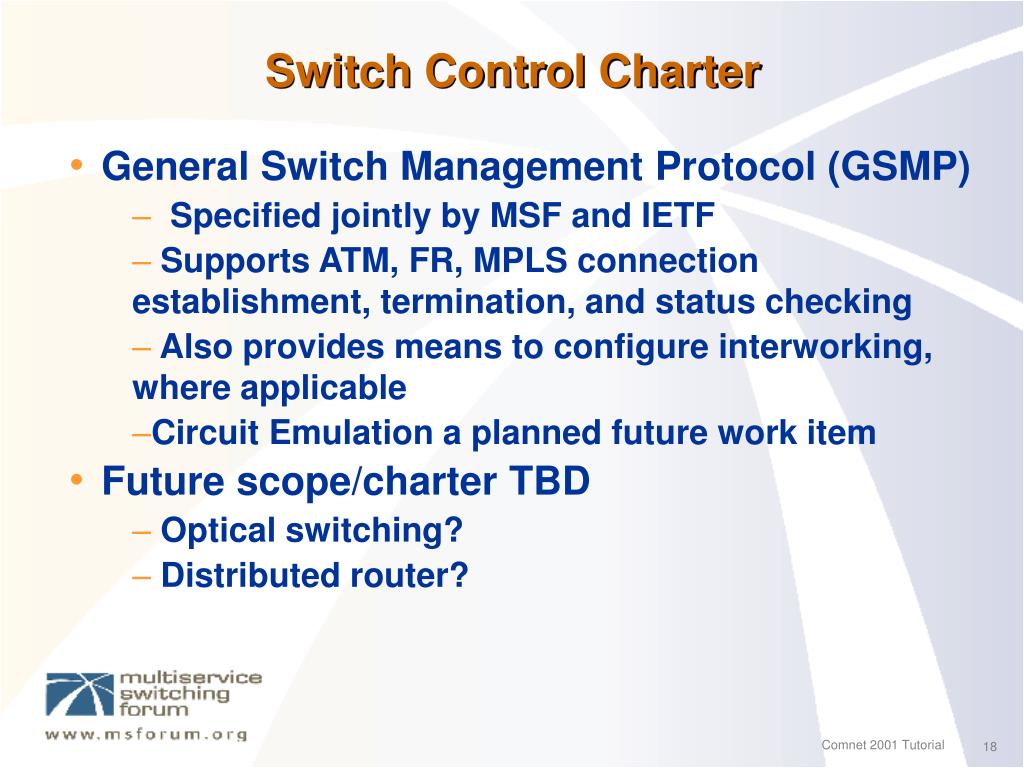

  18. Switch Control Charter • General Switch Management Protocol (GSMP) • Specified jointly by MSF and IETF • Supports ATM, FR, MPLS connection establishment, termination, and status checking • Also provides means to configure interworking, where applicable • Circuit Emulation a planned future work item • Future scope/charter TBD • Optical switching? • Distributed router?

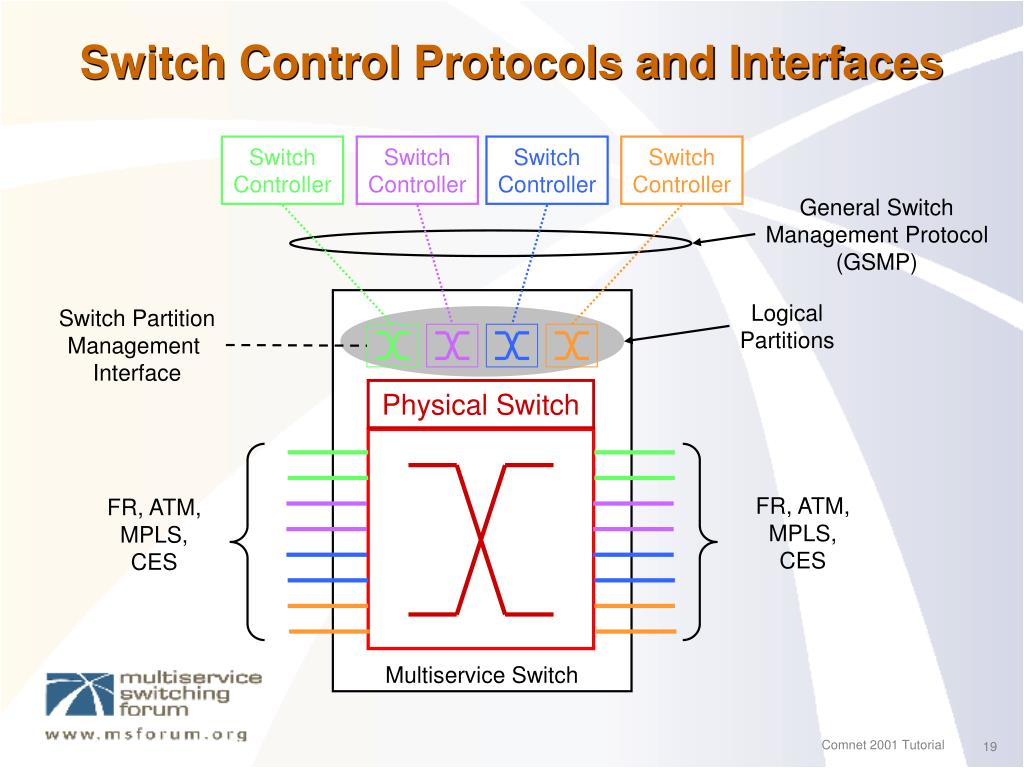

  19. Switch Control Protocols and Interfaces Switch Controller Switch Controller Switch Controller Switch Controller General Switch Management Protocol (GSMP) Logical Partitions Switch Partition Management Interface Physical Switch FR, ATM, MPLS, CES FR, ATM, MPLS, CES Multiservice Switch

  20. Switch Control Schedule • Straw Ballot GSMP (without CES) • Approved 1/01 • Final Ballot GSMP (with CES) • February, 2001 • CES additions to GSMP – TBD? • Issue: No MSF contributions or member support for this effort. No effort in IETF either.

  21. Management Framework Charter • Management for Media and Switch Control Components • Initial Focus on MIB for Partition Management of GSMP-Controlled Switch • Next Major Efforts • Partition Management of a MEGACO Controlled Media Gateway • Partitioning of Virtual Routers

  22. Switch PartitioningManagement Interface Switch Control Interface (SCI) Multiservice Switch Switch Partition Management Logical Switch Partitions Switch Partitioning Function

  23. Management Framework Schedule • Partitioning MIB • Straw Ballot – 6/01 • Final Ballot – 9/01 • General Partitioning Framework • Straw Ballot –9/01 • Final Ballot – 12/01 • MIB/PIB for MG & MGC management • TBD • MIB/PIB for partitioned MG (w/ Media Control) • TBD • MIB/PIB for partitioning Router • TBD

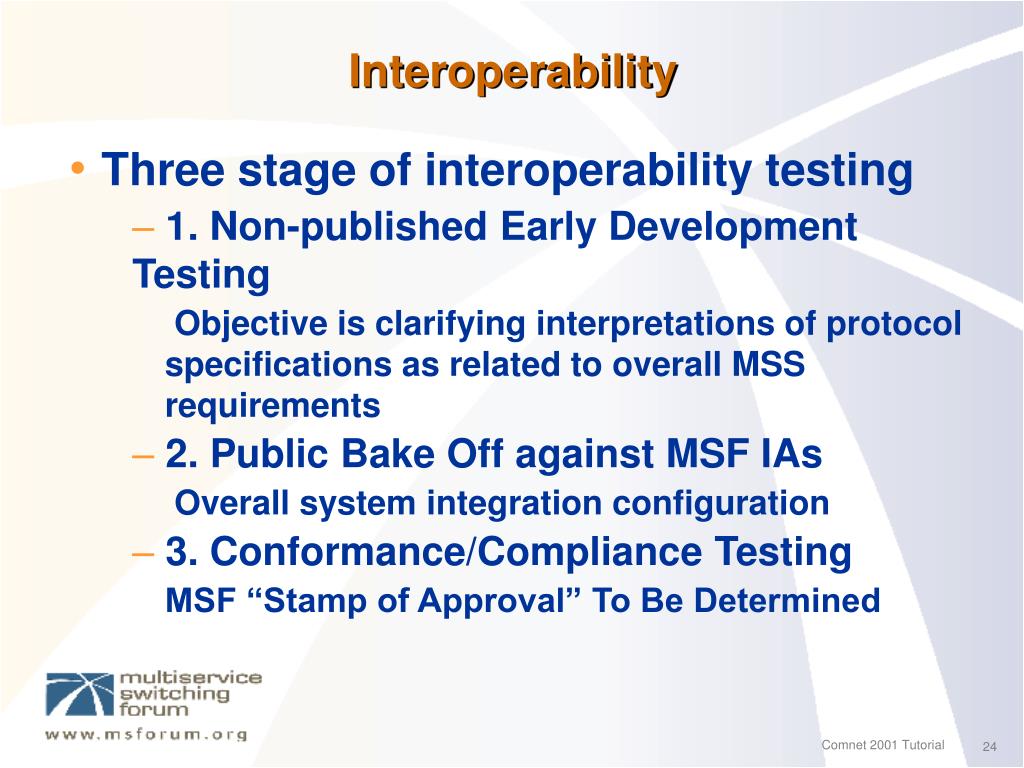

  24. Interoperability • Three stage of interoperability testing • 1. Non-published Early Development Testing • Objective is clarifying interpretations of protocol specifications as related to overall MSS requirements • 2. Public Bake Off against MSF IAs • Overall system integration configuration • 3. Conformance/Compliance Testing • MSF “Stamp of Approval” To Be Determined

  25. 2001 Interoperability Plans • MEGACO/H.248 Interoperability Event co-sponsored with ISC 8/2000 at UNH • Next MEGACO/H.248 Interoperability Event targeted for Jan/Feb 2001 • Plan to Sponsor MGC-MGC Interoperability Events • Plan to Sponsor GSMP Interoperability Events
