Mining Data Streams AMCS/CS 340 : Data Mining Xiangliang Zhang King Abdullah University of Science and Technology

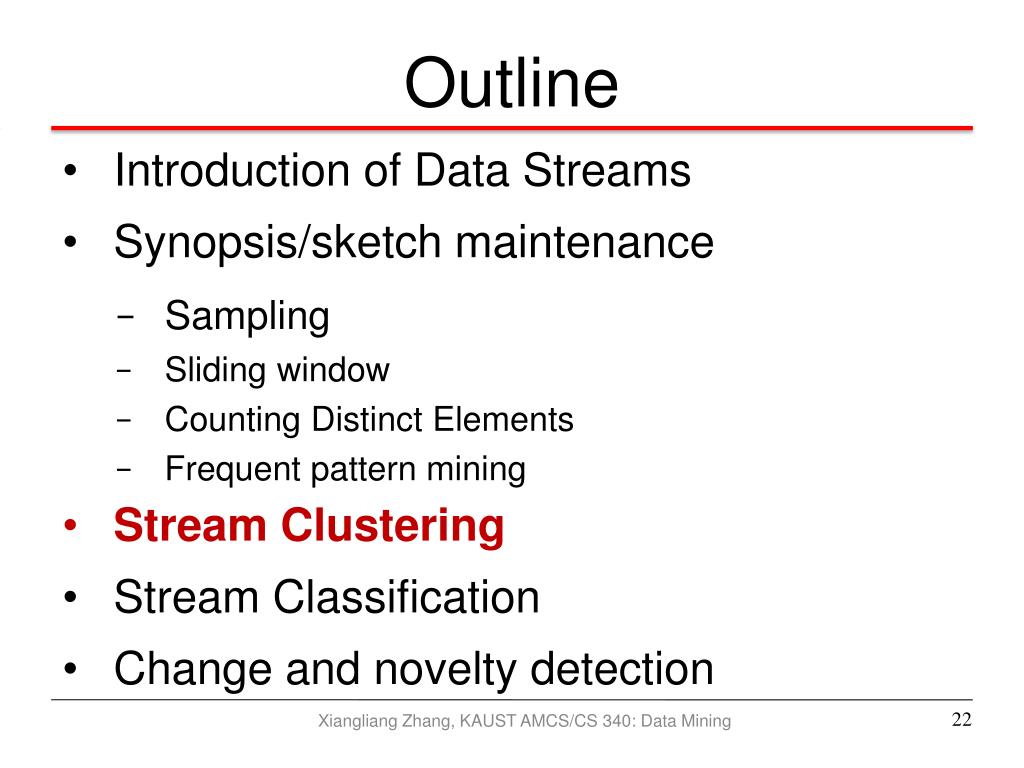

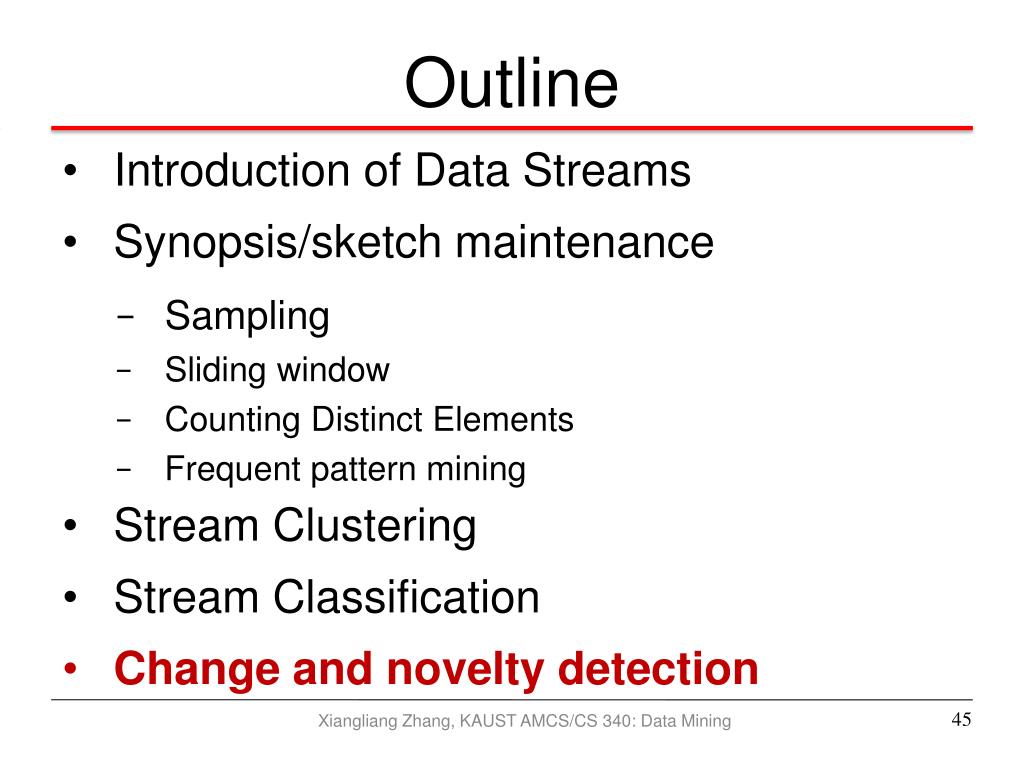

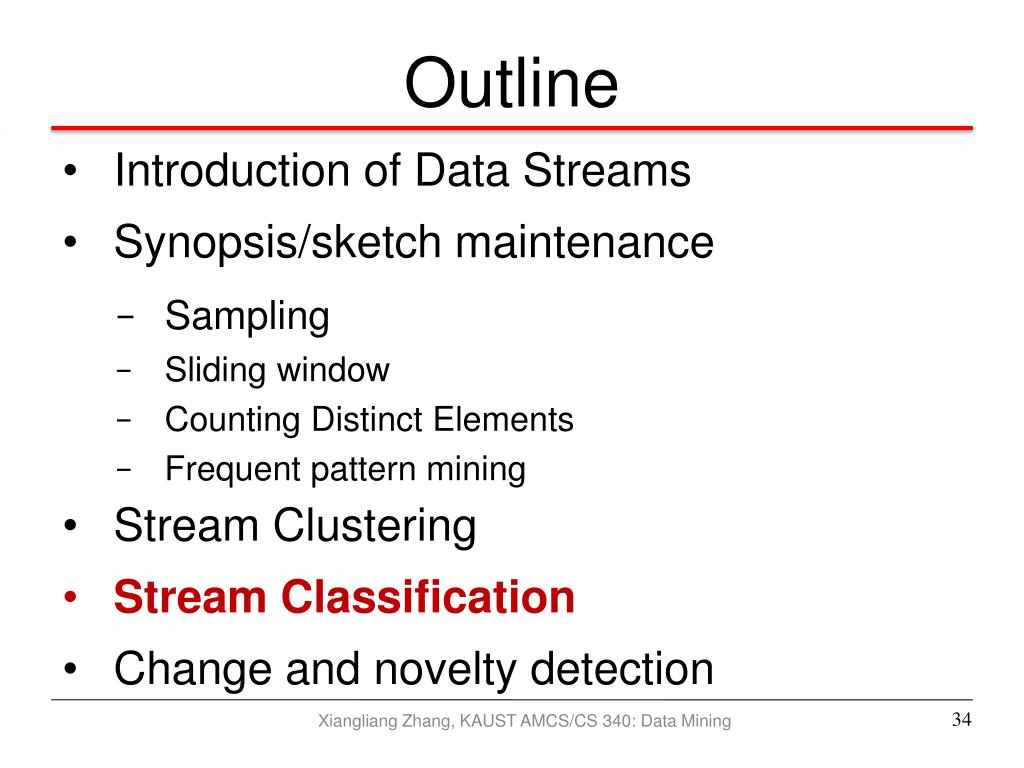

Outline • Introduction of Data Streams • Synopsis/sketch maintenance • Sampling • Sliding window • Counting Distinct Elements • Frequent pattern mining • Stream Clustering • Stream Classification • Change and novelty detection 2 Xiangliang Zhang, KAUST AMCS/CS 340: Data Mining

A large number of applications generate data streams – Telecommunication (call records) – System management (network events) – Surveillance (sensor network, audio/video) – Financial market (stock exchange) – Day to day business (credit card, ATM transactions, etc) Tasks: Real time query answering, statistics maintenance, and pattern discovery on data streams Motivations 3 Xiangliang Zhang, KAUST AMCS/CS 340: Data Mining

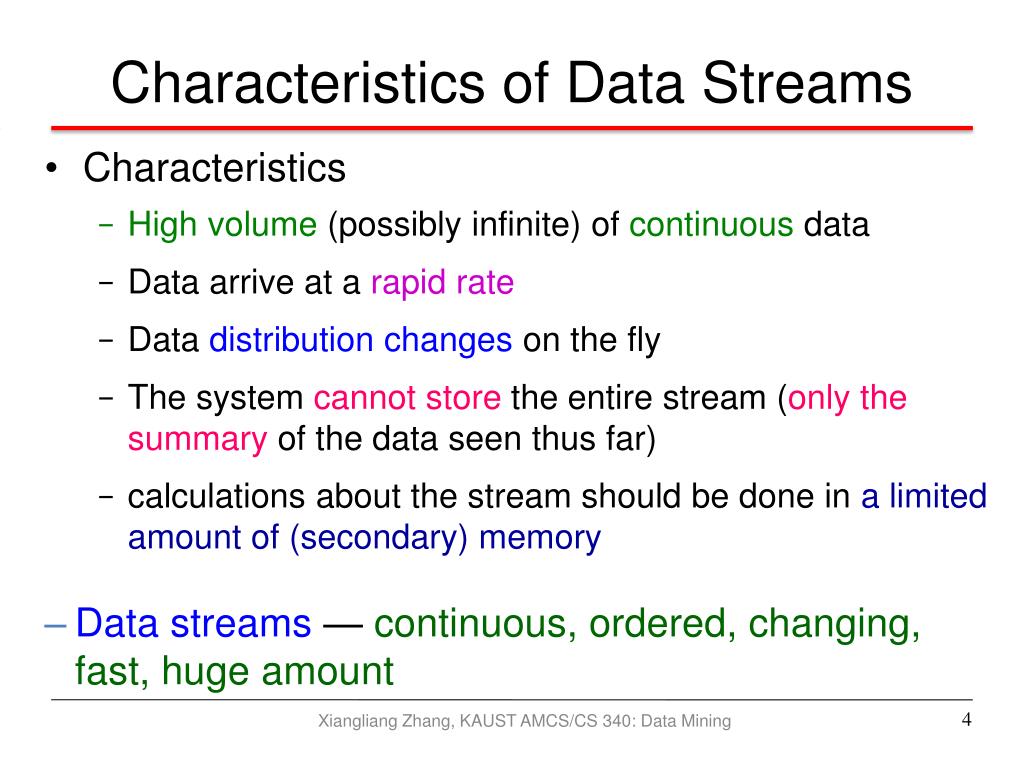

Characteristics High volume (possibly infinite) of continuousdata Data arrive at a rapid rate Data distribution changes on the fly The system cannot store the entire stream (only the summary of the data seen thus far) calculations about the stream should be done in a limited amount of (secondary) memory Data streams — continuous, ordered, changing, fast, huge amount Characteristics of Data Streams 4 Xiangliang Zhang, KAUST AMCS/CS 340: Data Mining

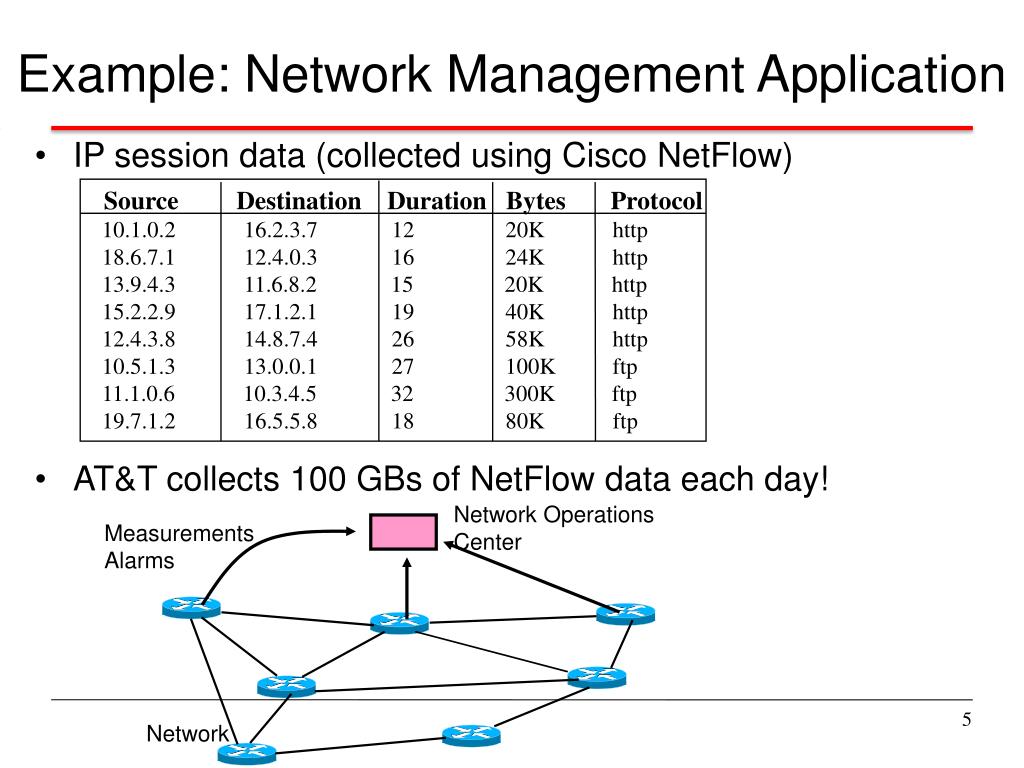

IP session data (collected using Cisco NetFlow) AT&T collects 100 GBs of NetFlow data each day! Example: Network Management Application Source Destination DurationBytes Protocol 10.1.0.2 16.2.3.7 12 20K http 18.6.7.1 12.4.0.3 16 24K http 13.9.4.3 11.6.8.2 15 20K http 15.2.2.9 17.1.2.1 19 40K http 12.4.3.8 14.8.7.4 26 58K http 10.5.1.3 13.0.0.1 27 100K ftp 11.1.0.6 10.3.4.5 32 300K ftp 19.7.1.2 16.5.5.8 18 80K ftp Network Operations Center Measurements Alarms 5 Network

Data stream processing in network management Monitor link bandwidth usage, estimate traffic demands How many bytes were sent between a pair of IP addresses? What fraction network IP addresses are active? List the top 100 IP addresses in terms of traffic Quickly detect faults, congestion and isolate root cause List all sessions that transmitted more than 1000 bytes Identify all sessions whose duration was more than twice the normal List all IP addresses that have witnessed a sudden spike in traffic Load balancing, improve utilization of network resources Example: Network Management Application 6 Xiangliang Zhang, KAUST AMCS/CS 340: Data Mining

Mining query streams Google wants to know what queries are more frequent today than yesterday. Mining click streams Yahoo wants to know which of its pages are getting an unusual number of hits in the past hour. Mining social network news feeds Look for trending topics on Twitter, Facebook Mining call records Summarize telephone call records into customer bills. More Applications 7 Xiangliang Zhang, KAUST AMCS/CS 340: Data Mining

Stream processing requirements • Single pass: Each record is examined at most once • Bounded storage: Limited Memory (M) for storing synopsis • Real-time: Per record processing time (to maintain synopsis) must be low Queries / Statistics / Classification / Clustering Processor . . . 1, 5, 2, 7, 0, 9, 3 . . . a, r, v, t, y, h, b . . . 0, 0, 1, 0, 1, 1, 0 time Streams Entering Output Limited Storage 8

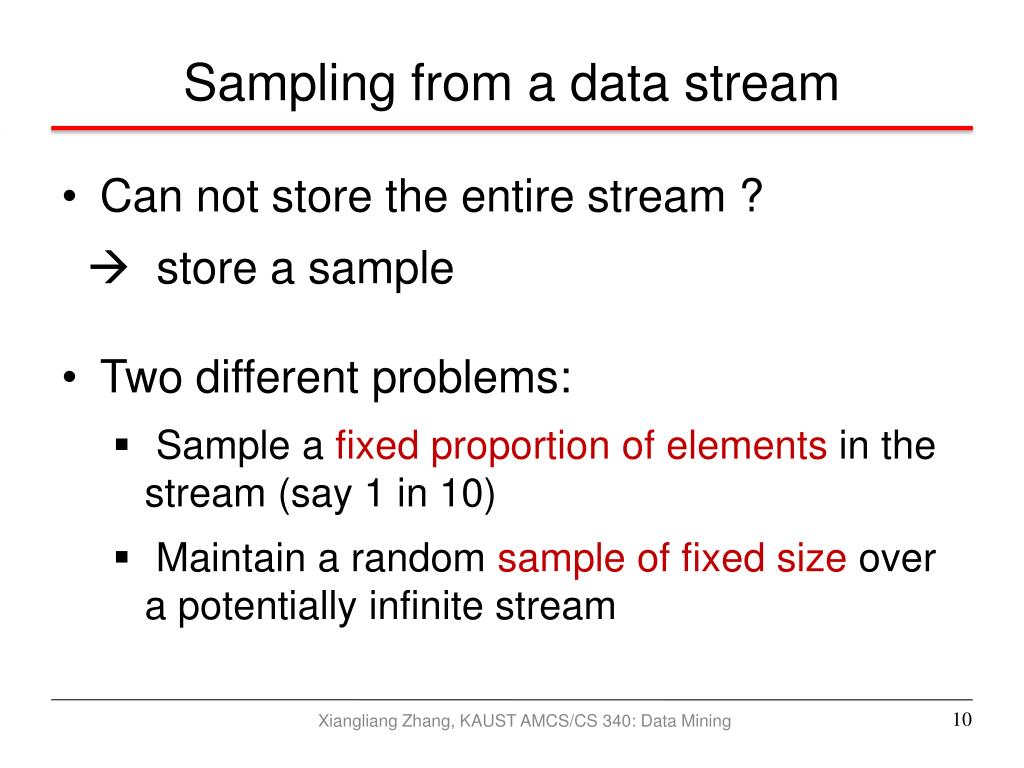

Can not store the entire stream ?  store a sample Two different problems: Sample a fixed proportion of elements in the stream (say 1 in 10) Maintain a random sample of fixed size over a potentially infinite stream Sampling from a data stream 10 Xiangliang Zhang, KAUST AMCS/CS 340: Data Mining

A useful model of stream processing is that queries are about a window of length N--- the N most recent elements received. q w e r t y u i o p a s d f g h j k l z x c v b n m q w e r t y u i o p a s d f g h j k l z x c v b n m q w e r t y u i o p a s d f g h j k l z x c v b n m q w e r t y u i o p a s d f g h j k l z x c v b n m Sliding Windows • Maintaining statistics – Count/Sum of non-zero elements – Variance Past Future 11 Xiangliang Zhang, KAUST AMCS/CS 340: Data Mining

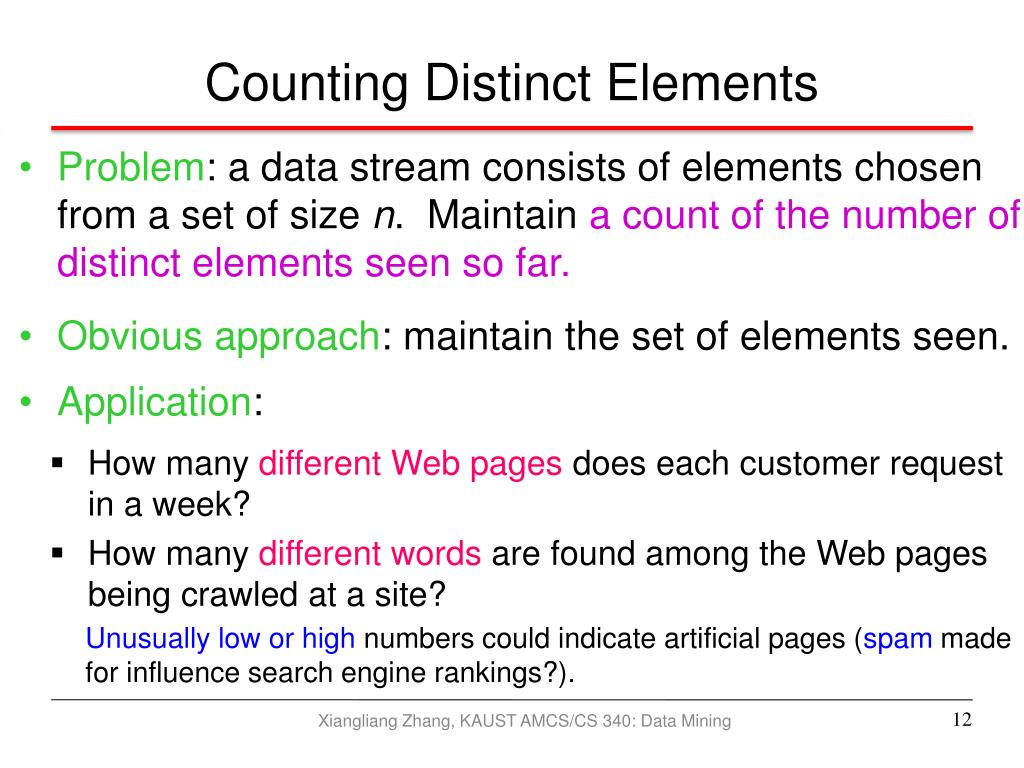

Problem: a data stream consists of elements chosen from a set of size n. Maintain a count of the number of distinct elements seen so far. Obvious approach: maintain the set of elements seen. Application: How many different Web pages does each customer request in a week? How many different words are found among the Web pages being crawled at a site? Unusually low or high numbers could indicate artificial pages (spam made for influence search engine rankings?). Counting Distinct Elements 12 Xiangliang Zhang, KAUST AMCS/CS 340: Data Mining

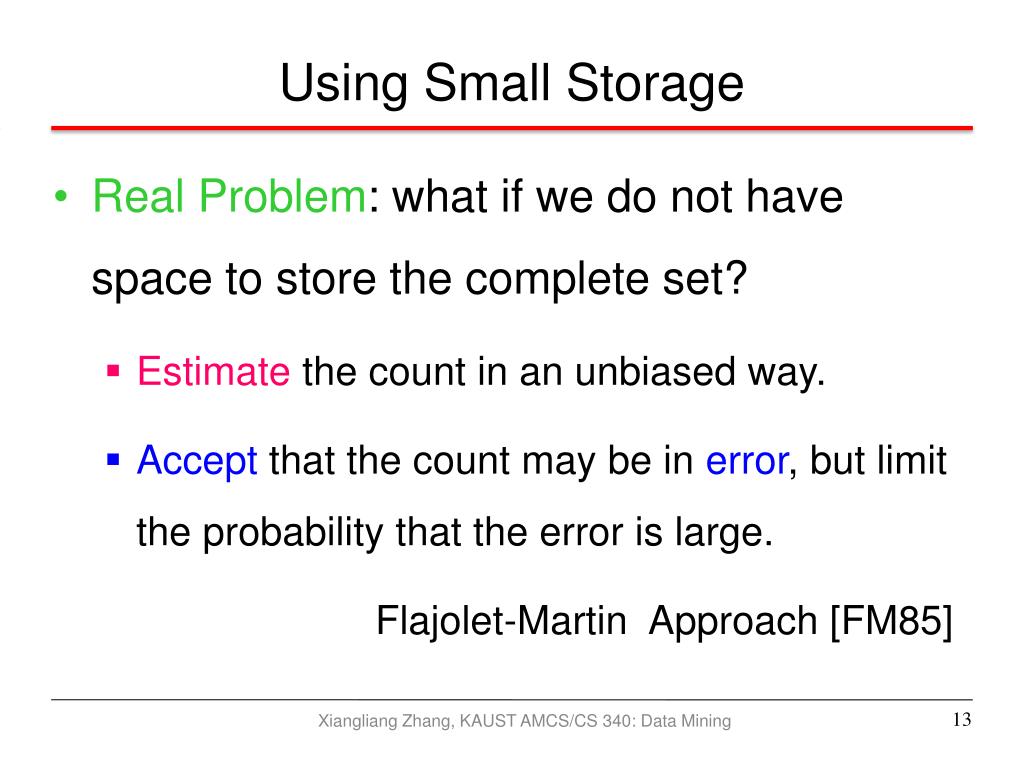

Real Problem: what if we do not have space to store the complete set? Estimate the count in an unbiased way. Accept that the count may be in error, but limit the probability that the error is large. Flajolet-Martin Approach [FM85] Using Small Storage 13 Xiangliang Zhang, KAUST AMCS/CS 340: Data Mining

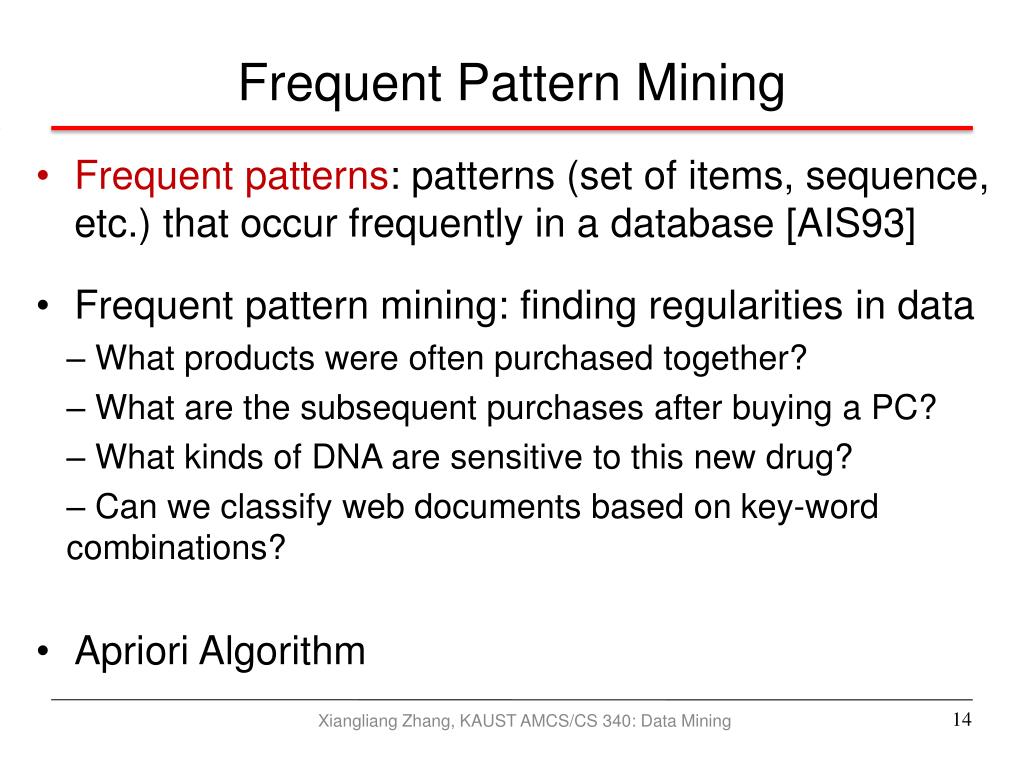

Frequent Pattern Mining 14 • Frequent patterns: patterns (set of items, sequence, etc.) that occur frequently in a database [AIS93] • Frequent pattern mining: finding regularities in data – What products were often purchased together? – What are the subsequent purchases after buying a PC? – What kinds of DNA are sensitive to this new drug? – Can we classify web documents based on key-word combinations? • Apriori Algorithm Xiangliang Zhang, KAUST AMCS/CS 340: Data Mining

Frequent Pattern in Data Streams – Challenges 15 • Maintaining exact counts for all (frequent) itemsetsneeds multiple scans of the stream – Maintain approximation of counts • Finding the exact set of frequent itemsetsfrom data streams cannot be online – Have to scan data streams multiple times – Space overhead – Finding approximation of set of frequent itemsets Xiangliang Zhang, KAUST AMCS/CS 340: Data Mining

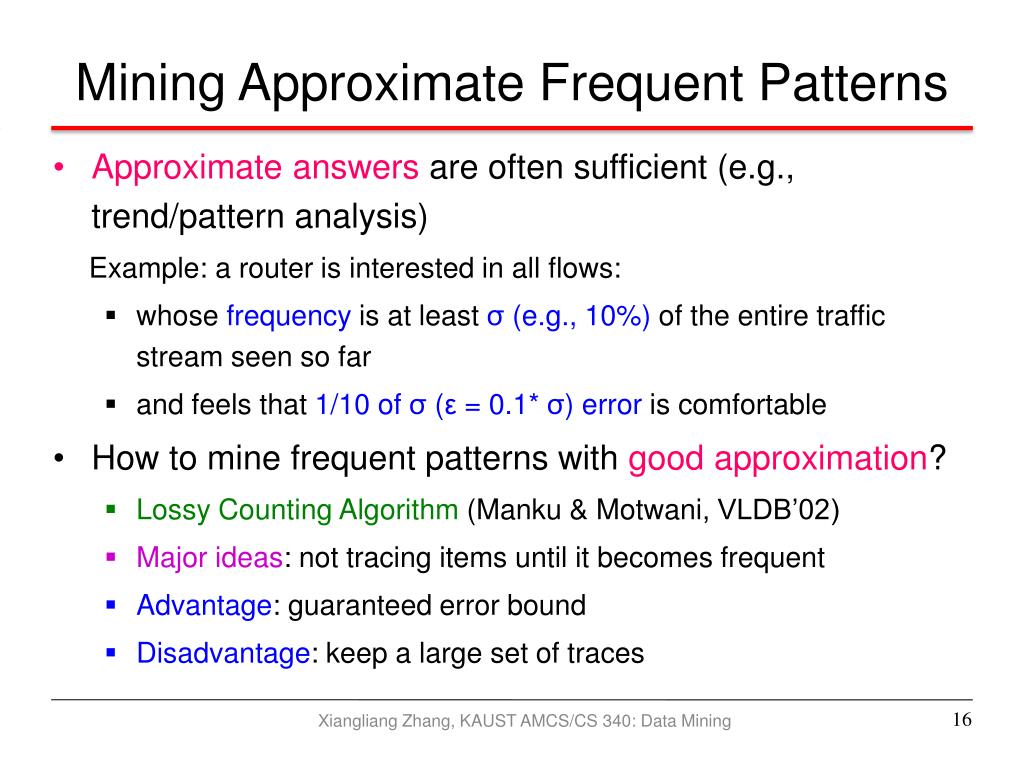

Approximate answers are often sufficient (e.g., trend/pattern analysis) Example: a router is interested in all flows: whose frequency is at least σ (e.g., 10%)of the entire traffic stream seen so far and feels that 1/10 of σ (ε= 0.1*σ) error is comfortable How to mine frequent patterns with good approximation? Lossy Counting Algorithm (Manku & Motwani, VLDB’02) Major ideas: not tracing items until it becomes frequent Advantage: guaranteed error bound Disadvantage: keep a large set of traces Mining Approximate Frequent Patterns 16 Xiangliang Zhang, KAUST AMCS/CS 340: Data Mining

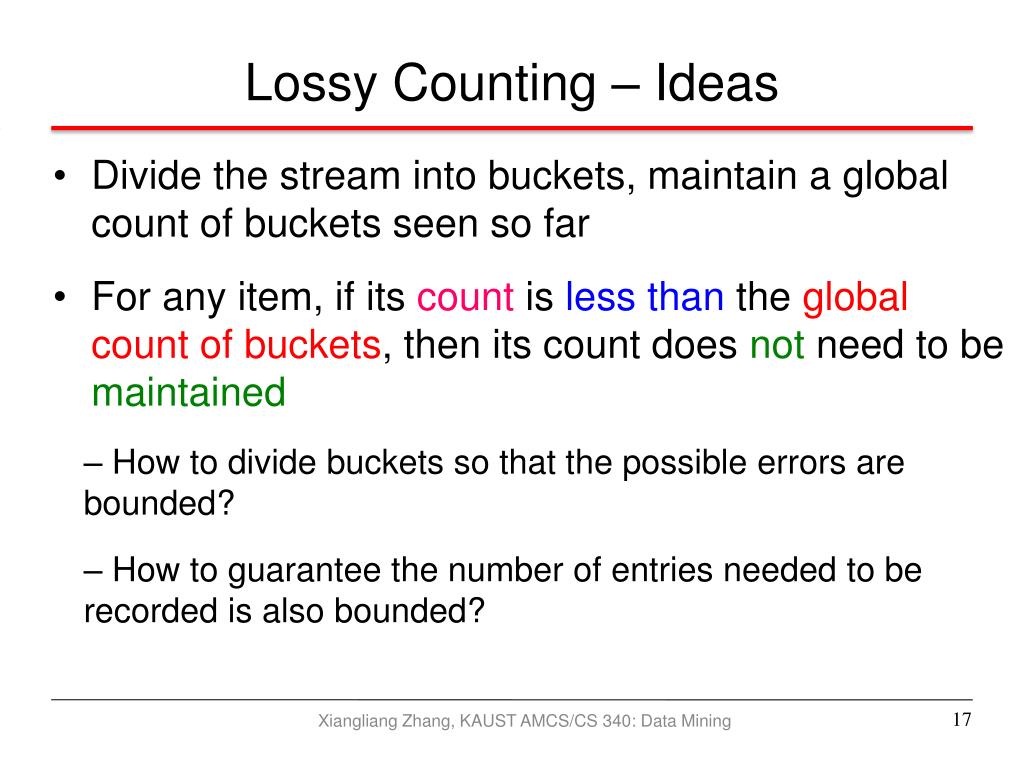

Lossy Counting – Ideas 17 • Divide the stream into buckets, maintain a global count of buckets seen so far • For any item, if its count is less than the global count of buckets, then its count does not need to be maintained – How to divide buckets so that the possible errors are bounded? – How to guarantee the number of entries needed to be recorded is also bounded? Xiangliang Zhang, KAUST AMCS/CS 340: Data Mining

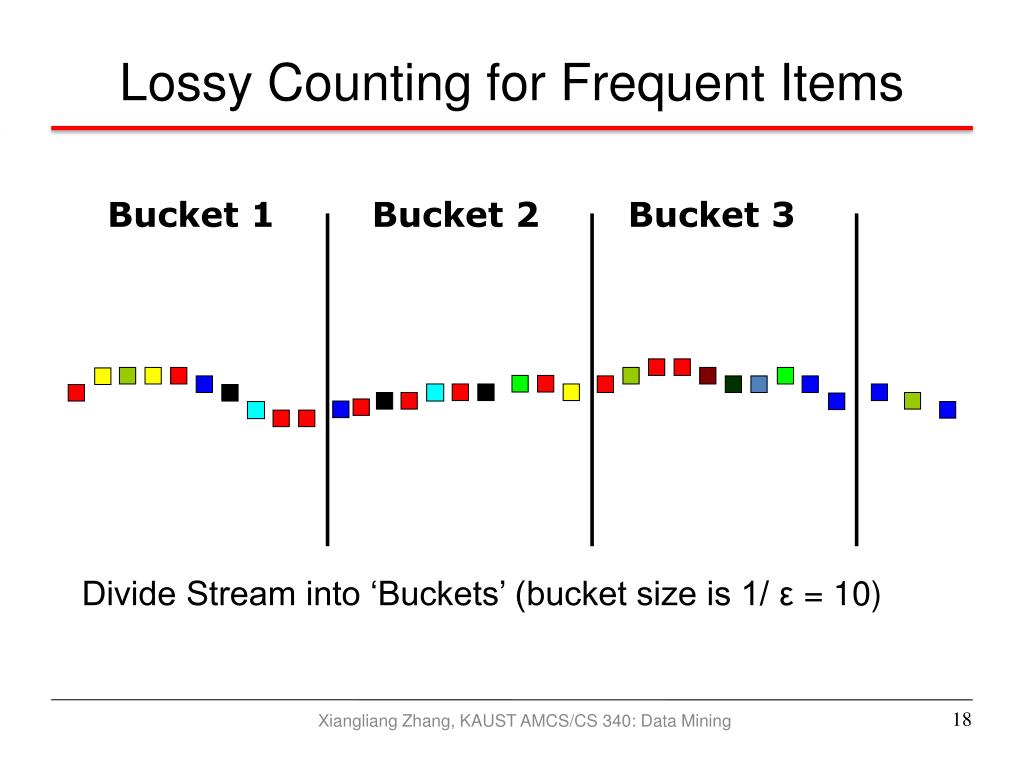

Bucket 1 Bucket 2 Bucket 3 Lossy Counting for Frequent Items Divide Stream into ‘Buckets’ (bucket size is 1/ ε = 10) 18 Xiangliang Zhang, KAUST AMCS/CS 340: Data Mining

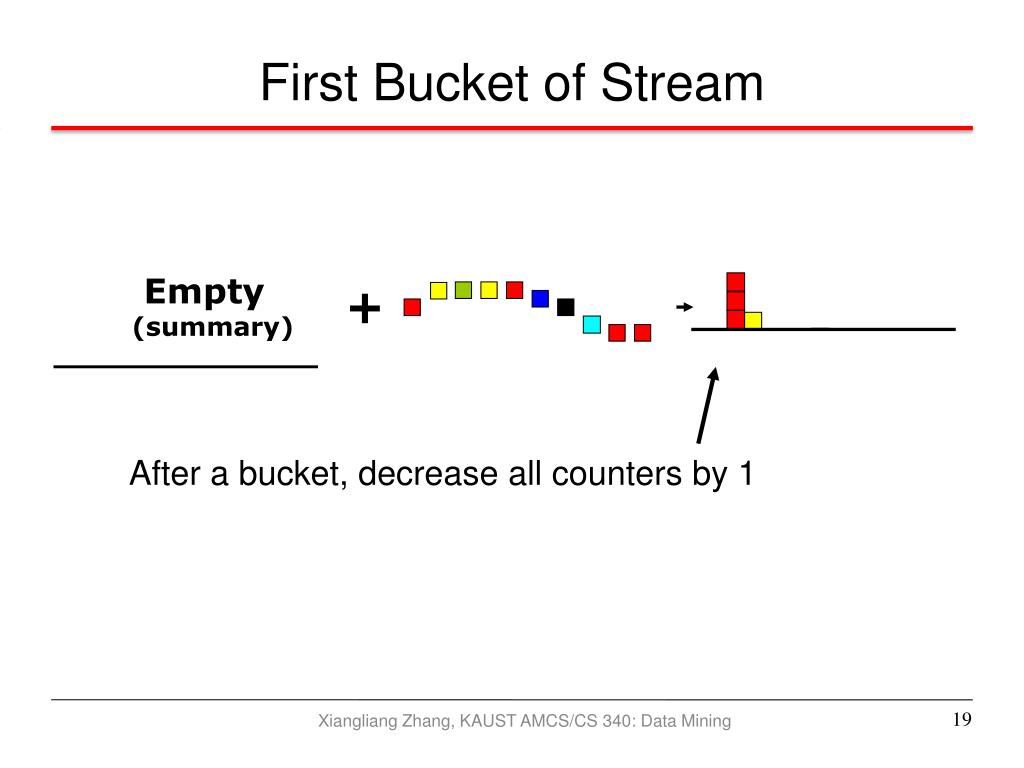

Empty (summary) + After a bucket, decrease all counters by 1 First Bucket of Stream 19 Xiangliang Zhang, KAUST AMCS/CS 340: Data Mining

+ After a bucket, decrease all counters by 1 Next Bucket of Stream 20 Xiangliang Zhang, KAUST AMCS/CS 340: Data Mining

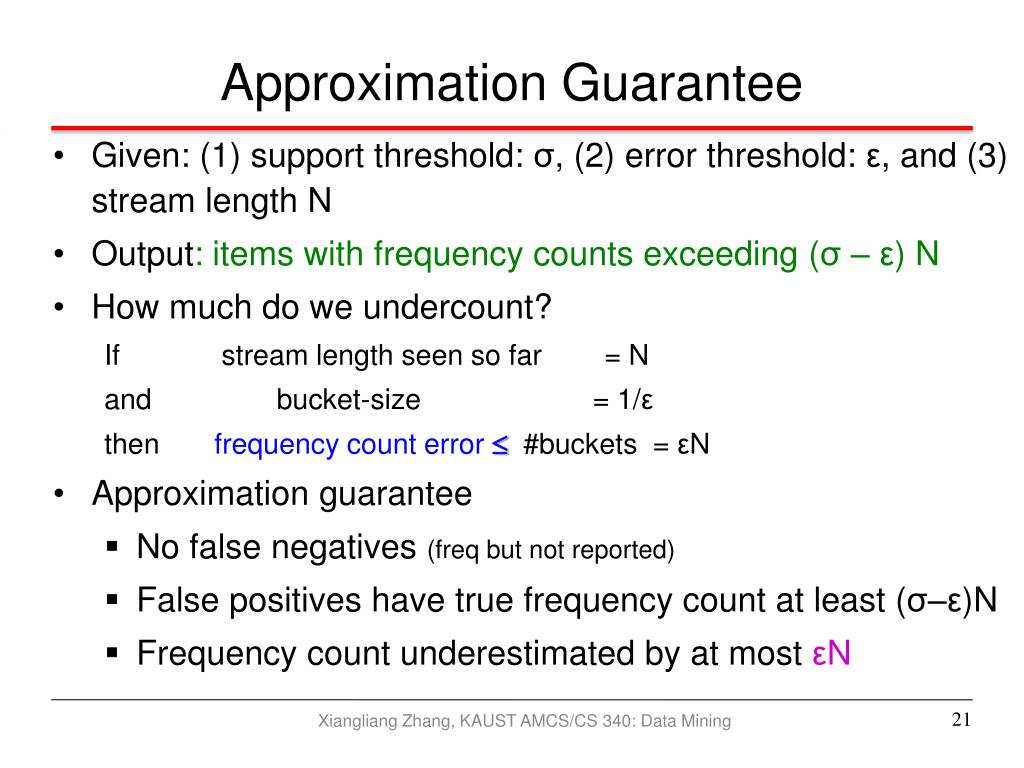

Given: (1) support threshold: σ, (2) error threshold: ε, and (3) stream length N Output: items with frequency counts exceeding (σ–ε) N How much do we undercount? If stream length seen so far = N and bucket-size = 1/ε then frequency count error  #buckets = εN Approximation guarantee No false negatives (freq but not reported) False positives have true frequency count at least (σ–ε)N Frequency count underestimated by at most εN Approximation Guarantee 21 Xiangliang Zhang, KAUST AMCS/CS 340: Data Mining

Clustering Data Streams 23 Xiangliang Zhang, KAUST AMCS/CS 340: Data Mining

CluStream: Clustering On-line Streams 24 Xiangliang Zhang, KAUST AMCS/CS 340: Data Mining

CluStream: Clustering On-line Streams • Online micro-cluster maintenance • Initial creation of q micro-clusters • q is usually significantly larger than the number of natural clusters • Online incremental update of micro-clusters • If new point is within max-boundary, insert into the micro-cluster • Otherwise, create a new cluster • May delete obsolete micro-cluster or merge two closest ones • Offline query-based macro-clustering • Based on a user-specified time-horizon h and the number of macro-clusters K, compute macro-clusters using clustering algorithm, e.g. k-means, DbScan. 25 Xiangliang Zhang, KAUST AMCS/CS 340: Data Mining

Clustering Streams, Model + Reservoir 26 Xiangliang Zhang, KAUST AMCS/CS 340: Data Mining

Clustering Streams, Model + Reservoir 32

Summary – Clustering • • Clustering data stream with one scan and limited main memory • – Clustering in a sliding window • – Clustering the whole stream (online) • • How to handle evolving data? • – Online summarization and offline analysis • – Change detection • • Applications and extensions • – Outlier detection, nearest neighbor search, reverse nearest neighbor queries, … 33 Xiangliang Zhang, KAUST AMCS/CS 340: Data Mining

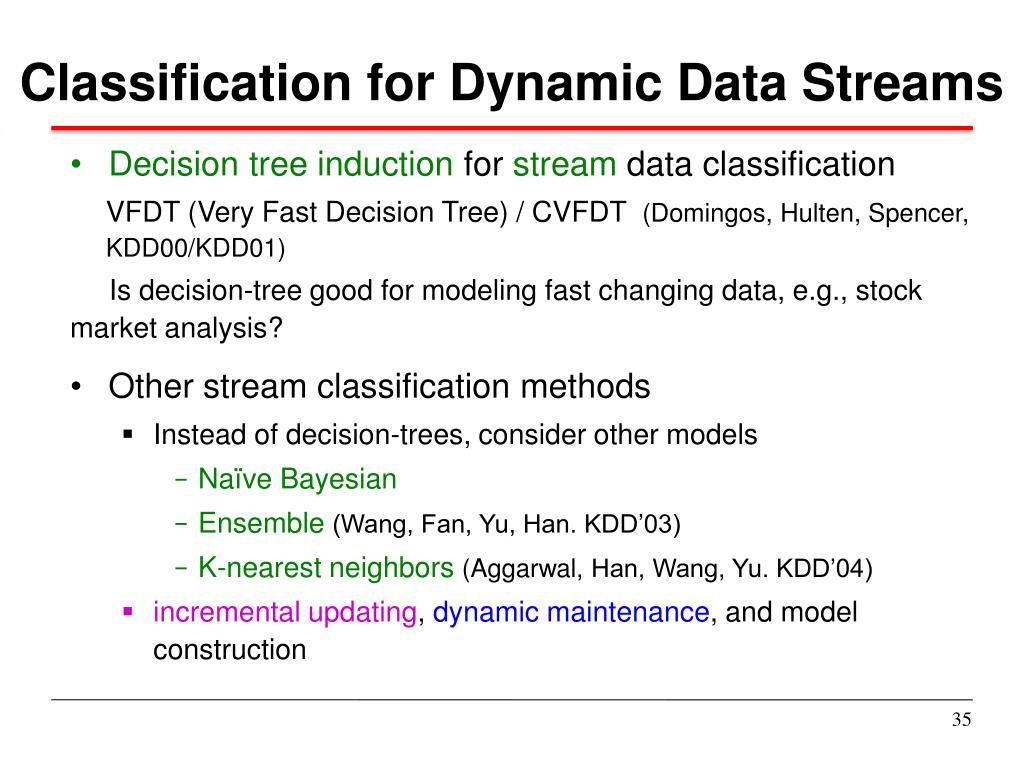

Decision tree induction for stream data classification VFDT (Very Fast Decision Tree) / CVFDT (Domingos, Hulten, Spencer, KDD00/KDD01) Is decision-tree good for modeling fast changing data, e.g., stock market analysis? Other stream classification methods Instead of decision-trees, consider other models Naïve Bayesian Ensemble(Wang, Fan, Yu, Han. KDD’03) K-nearest neighbors (Aggarwal, Han, Wang, Yu. KDD’04) incremental updating, dynamic maintenance, and model construction Classification for Dynamic Data Streams 35

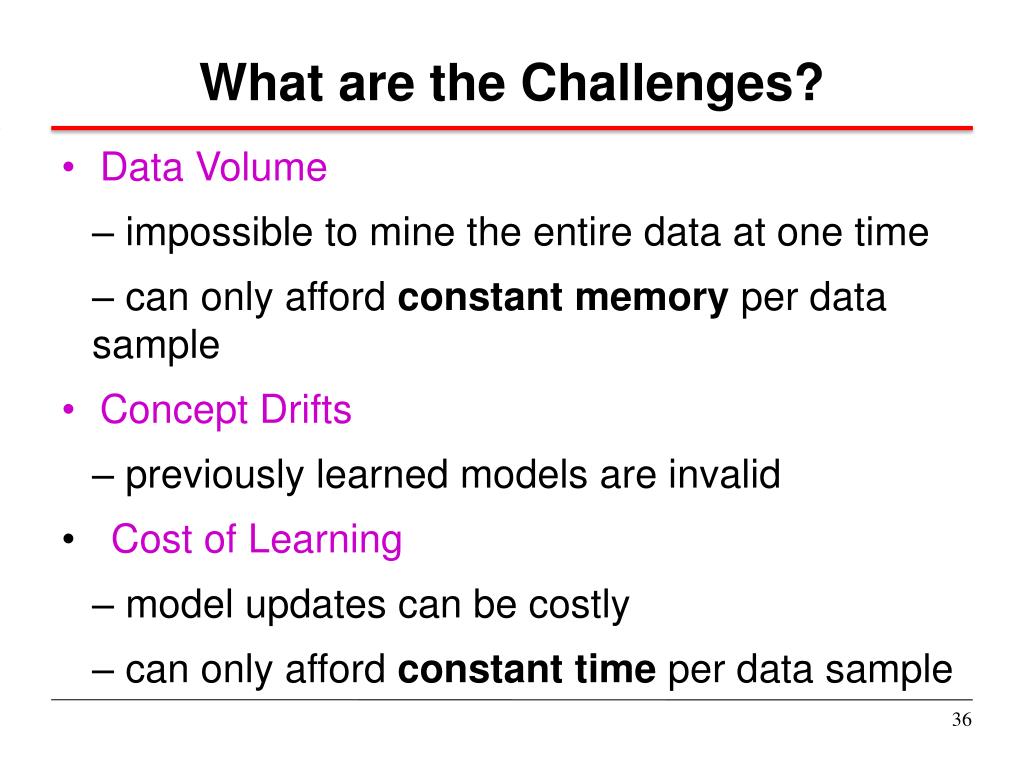

What are the Challenges? 36 • Data Volume – impossible to mine the entire data at one time – can only afford constant memory per data sample • Concept Drifts – previously learned models are invalid • Cost of Learning – model updates can be costly – can only afford constant time per data sample

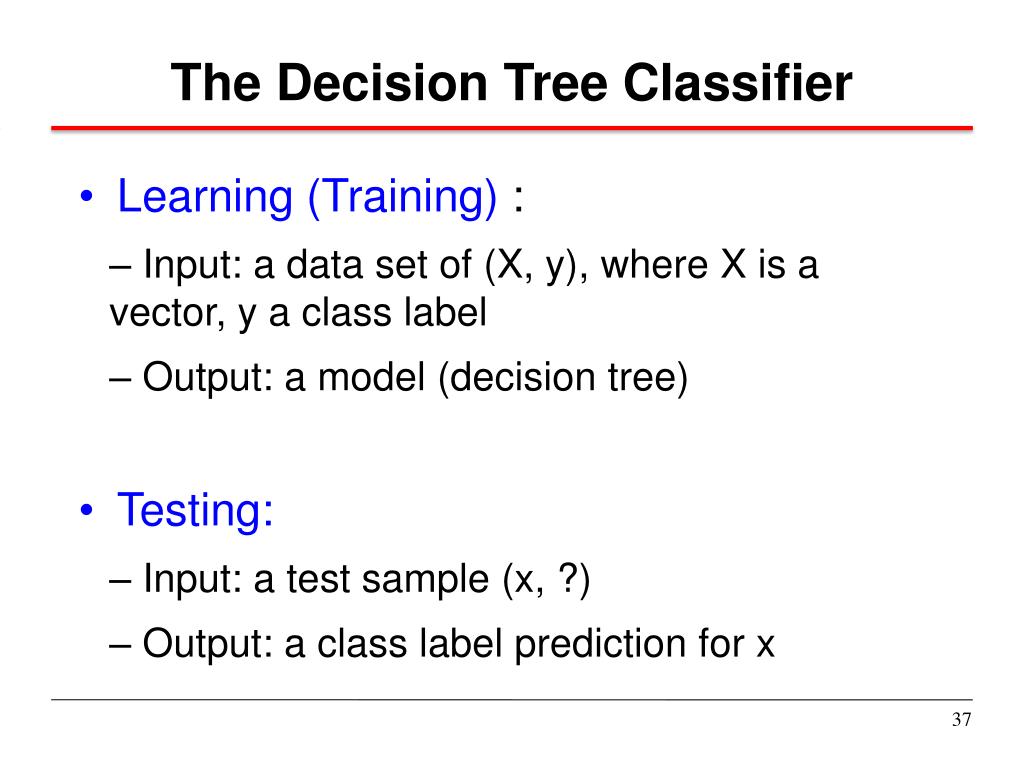

The Decision Tree Classifier 37 • Learning (Training) : – Input: a data set of (X, y), where X is a vector, y a class label – Output: a model (decision tree) • Testing: – Input: a test sample (x, ?) – Output: a class label prediction for x

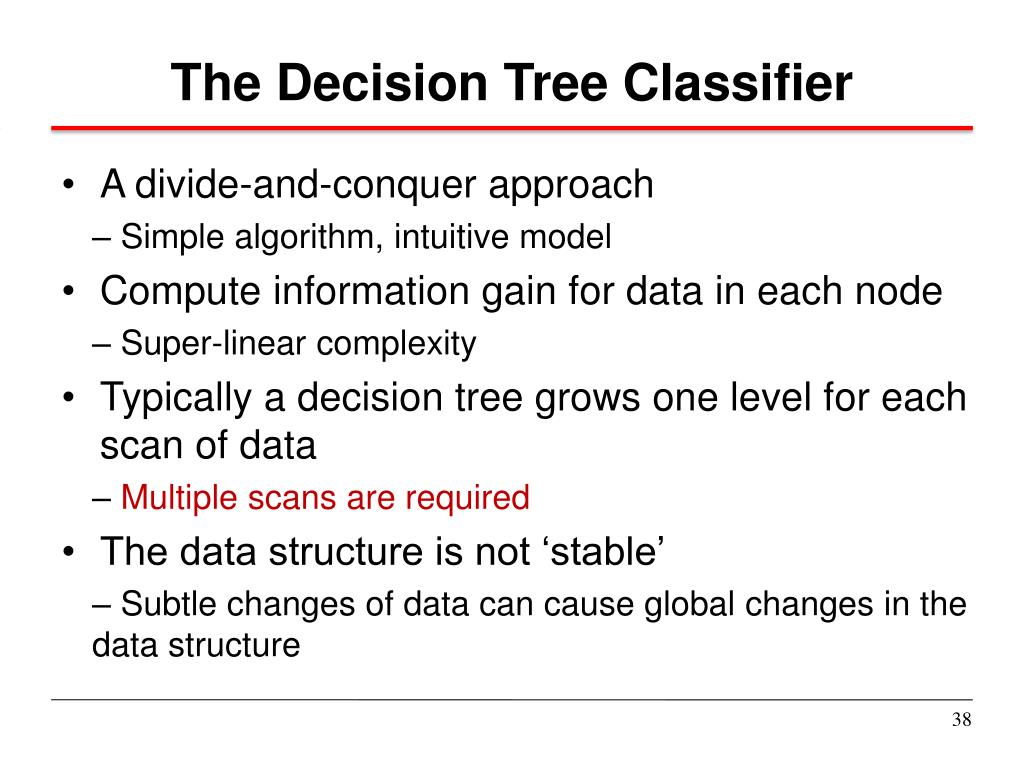

The Decision Tree Classifier 38 • A divide-and-conquer approach – Simple algorithm, intuitive model • Compute information gain for data in each node – Super-linear complexity • Typically a decision tree grows one level for each scan of data – Multiple scans are required • The data structure is not ‘stable’ – Subtle changes of data can cause global changes in the data structure

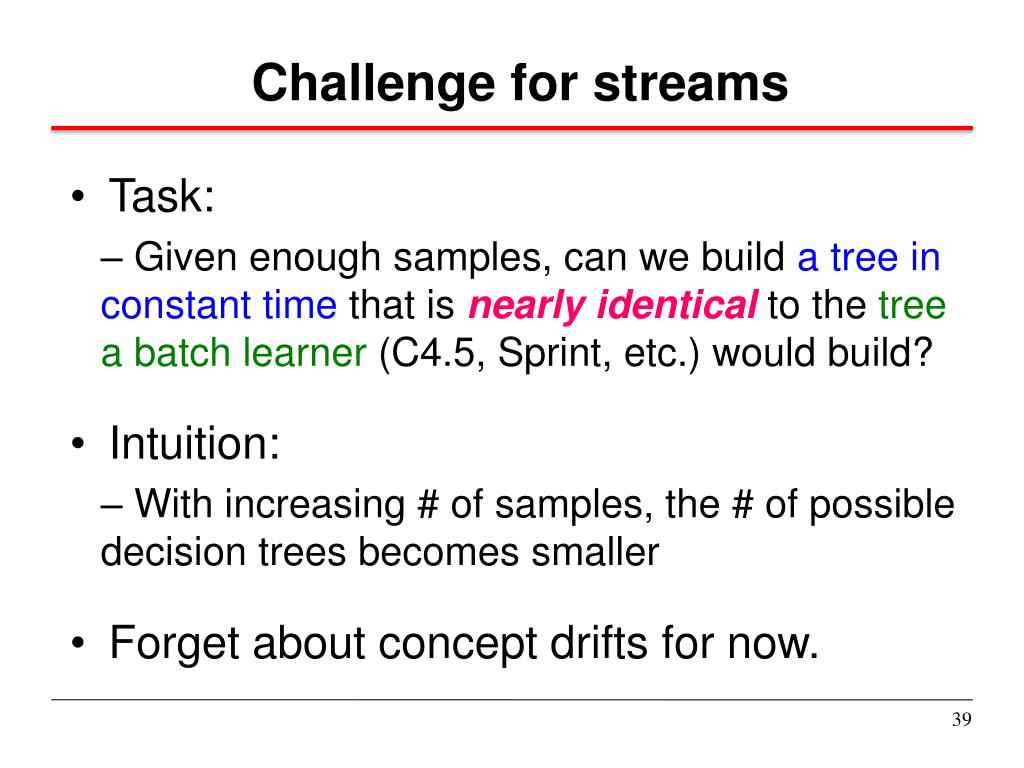

Challenge for streams 39 • Task: – Given enough samples, can we build a tree in constant time that is nearly identical to the tree a batch learner (C4.5, Sprint, etc.) would build? • Intuition: – With increasing # of samples, the # of possible decision trees becomes smaller • Forget about concept drifts for now.

Decision-Tree Induction with Data Streams Packets > 10 Data Stream yes no • At each node, we shall accumulate enough samples (n) before we make a split • Problem: How many examples are necessary? n=? Protocol = http Packets > 10 Data Stream yes no Bytes > 60K Protocol = http yes Protocol = ftp Ack. From Gehrke’s SIGMOD tutorial slides

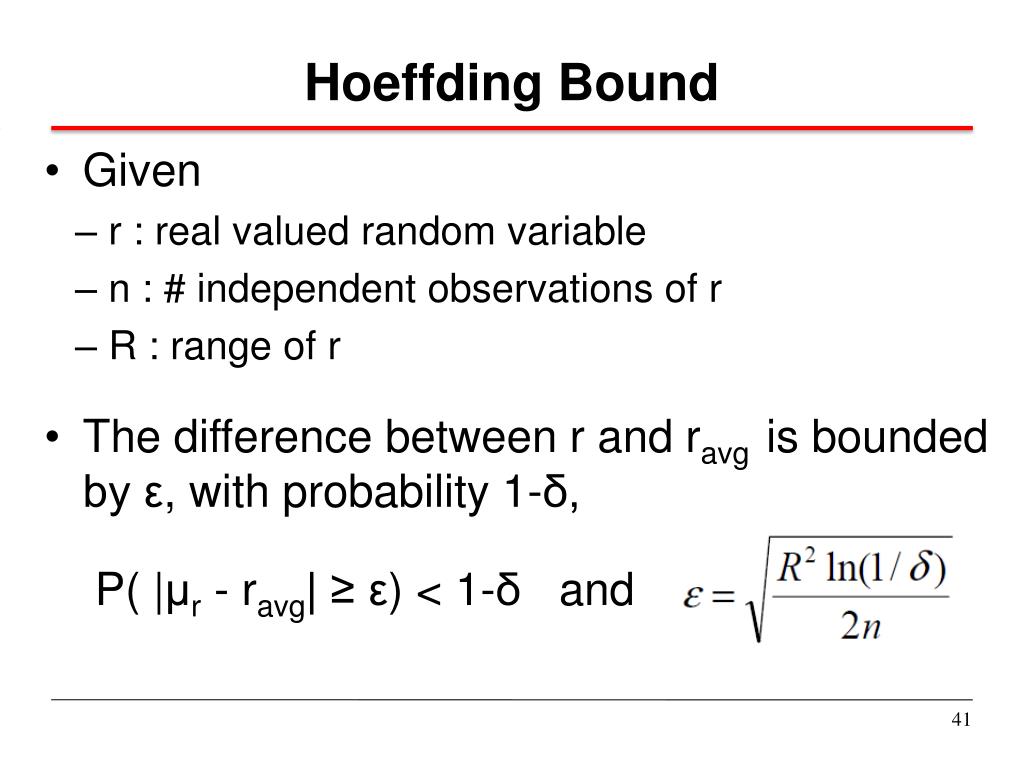

Hoeffding Bound 41 • Given – r : real valued random variable – n : # independent observations of r – R : range of r • The difference between r and ravgis bounded by ε, with probability 1-δ, P( |μr- ravg| ≥ ε) <1-δand

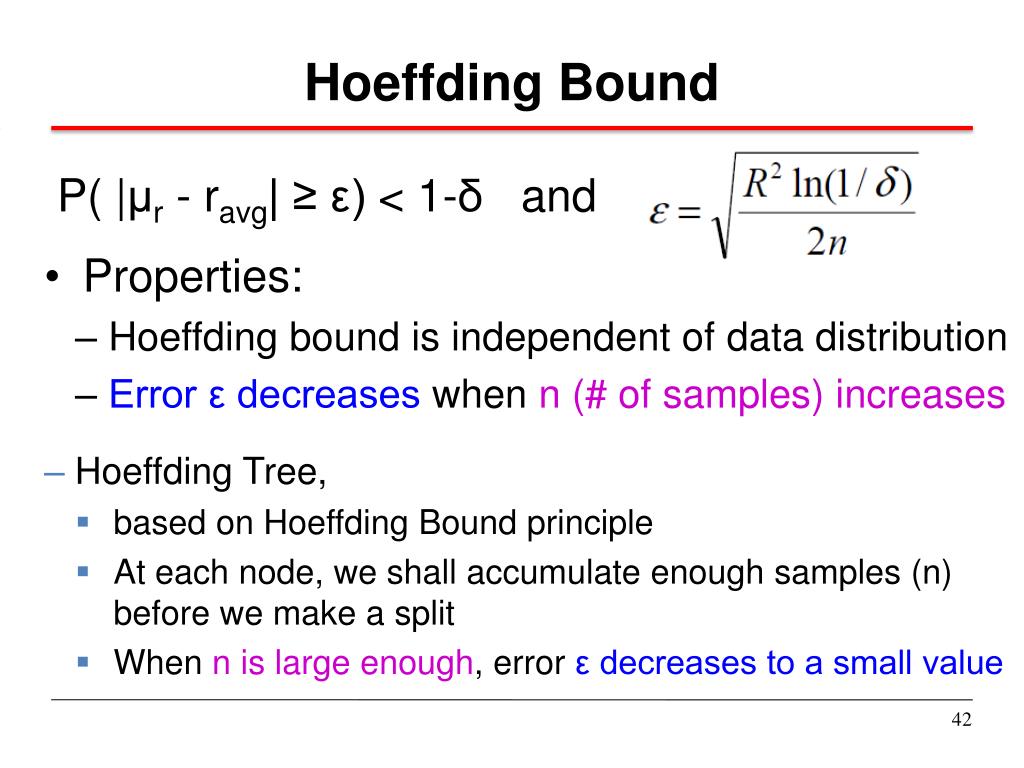

Hoeffding Bound 42 P( |μr - ravg| ≥ ε) < 1-δ and • Properties: – Hoeffding bound is independent of data distribution – Error ε decreases when n (# of samples) increases • Hoeffding Tree, • based on Hoeffding Bound principle • At each node, we shall accumulate enough samples (n) before we make a split • When n is large enough, error ε decreases to a small value

Hoeffding Tree Input S: sequence of examples X: attributes G( ): evaluation function, e.g., Gini gain Hoeffding Tree Algorithm for each example in S retrieve G(Xa) and G(Xb) //two highest G(Xi) if ( G(Xa) – G(Xb) > ε ) εis computed by using hoeffding bound split on Xa recursively go to next node Hoeffding Tree Algorithm 43

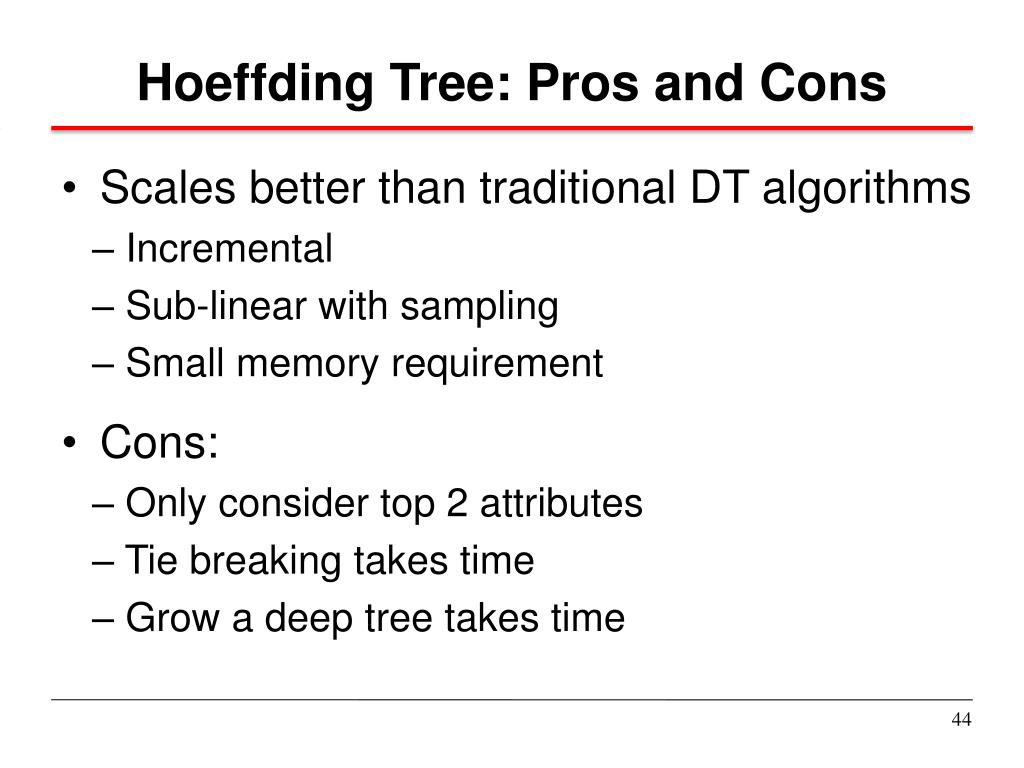

Hoeffding Tree: Pros and Cons 44 • Scales better than traditional DT algorithms – Incremental – Sub-linear with sampling – Small memory requirement • Cons: – Only consider top 2 attributes – Tie breaking takes time – Grow a deep tree takes time

Change detection reference distribution Kullback-Leibler distance can be used to measure the difference between two given distributions [Dasu et al, 2006] 46 General idea: compare a reference distribution with a current window of events Xiangliang Zhang, KAUST AMCS/CS 340: Data Mining

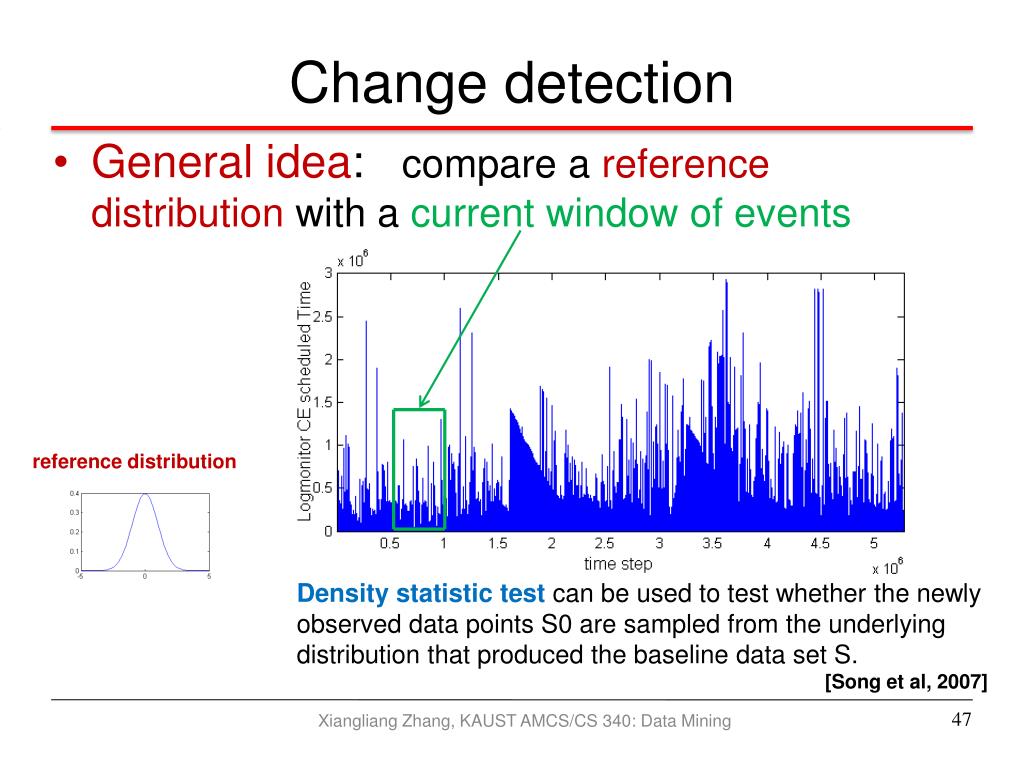

Change detection reference distribution Density statistic test can be used to test whether the newly observed data points S0 are sampled from the underlying distribution that produced the baseline data set S. [Song et al, 2007] 47 General idea: compare a reference distribution with a current window of events Xiangliang Zhang, KAUST AMCS/CS 340: Data Mining

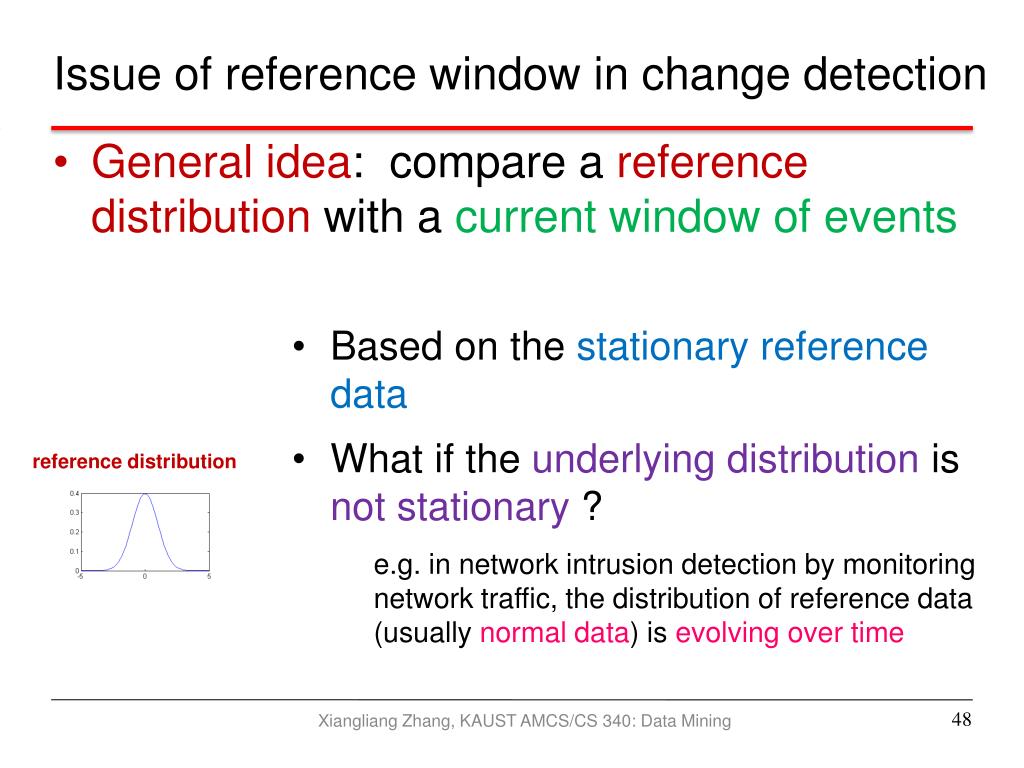

Issue of reference window in change detection • Based on the stationary reference data • What if the underlying distribution is not stationary ? • e.g. in network intrusion detection by monitoring network traffic, the distribution of reference data (usually normal data) is evolving over time reference distribution 48 General idea: compare a reference distribution with a current window of events Xiangliang Zhang, KAUST AMCS/CS 340: Data Mining

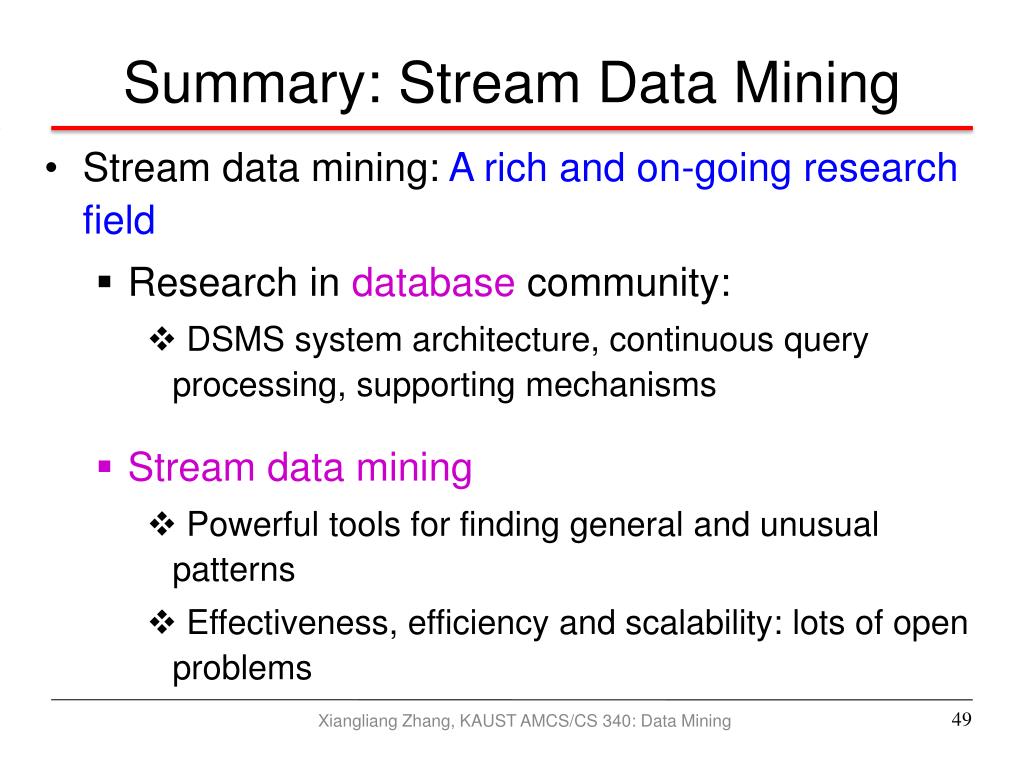

Stream data mining: A rich and on-going research field Research in database community: DSMS system architecture, continuous query processing, supporting mechanisms Stream data mining Powerful tools for finding general and unusual patterns Effectiveness, efficiency and scalability: lots of open problems Summary: Stream Data Mining 49 Xiangliang Zhang, KAUST AMCS/CS 340: Data Mining

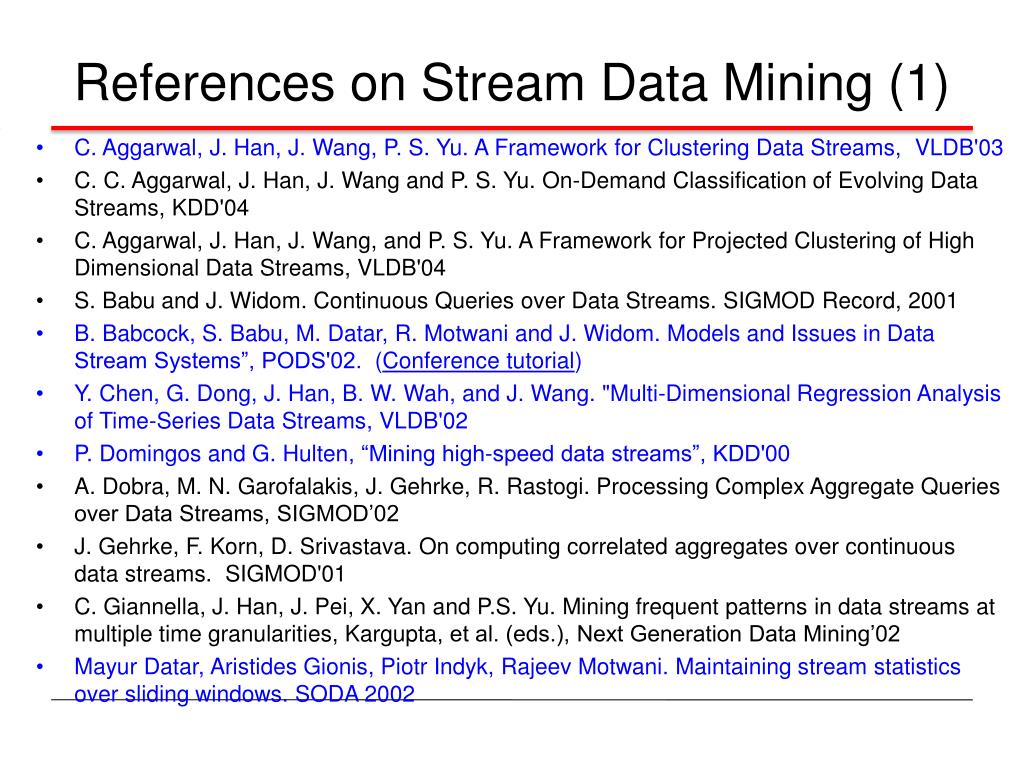

C. Aggarwal, J. Han, J. Wang, P. S. Yu. A Framework for Clustering Data Streams, VLDB'03 C. C. Aggarwal, J. Han, J. Wang and P. S. Yu. On-Demand Classification of Evolving Data Streams, KDD'04 C. Aggarwal, J. Han, J. Wang, and P. S. Yu. A Framework for Projected Clustering of High Dimensional Data Streams, VLDB'04 S. Babu and J. Widom. Continuous Queries over Data Streams. SIGMOD Record, 2001 B. Babcock, S. Babu, M. Datar, R. Motwani and J. Widom. Models and Issues in Data Stream Systems”, PODS'02. (Conference tutorial) Y. Chen, G. Dong, J. Han, B. W. Wah, and J. Wang. "Multi-Dimensional Regression Analysis of Time-Series Data Streams, VLDB'02 P. Domingos and G. Hulten, “Mining high-speed data streams”, KDD'00 A. Dobra, M. N. Garofalakis, J. Gehrke, R. Rastogi. Processing Complex Aggregate Queries over Data Streams, SIGMOD’02 J. Gehrke, F. Korn, D. Srivastava. On computing correlated aggregates over continuous data streams. SIGMOD'01 C. Giannella, J. Han, J. Pei, X. Yan and P.S. Yu. Mining frequent patterns in data streams at multiple time granularities, Kargupta, et al. (eds.), Next Generation Data Mining’02 MayurDatar, Aristides Gionis, PiotrIndyk, Rajeev Motwani. Maintaining stream statistics over sliding windows. SODA 2002 References on Stream Data Mining (1)
