  1. Wind Turbines A Basic Analysis

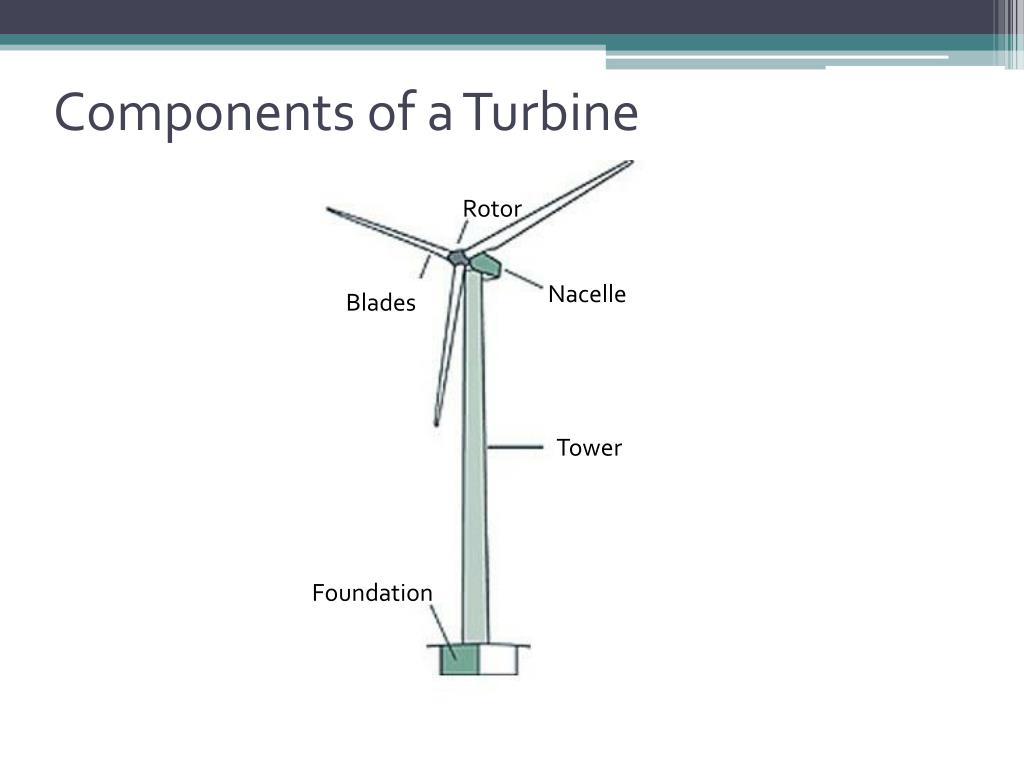

  2. Components of a Turbine Rotor Nacelle Blades Tower Foundation

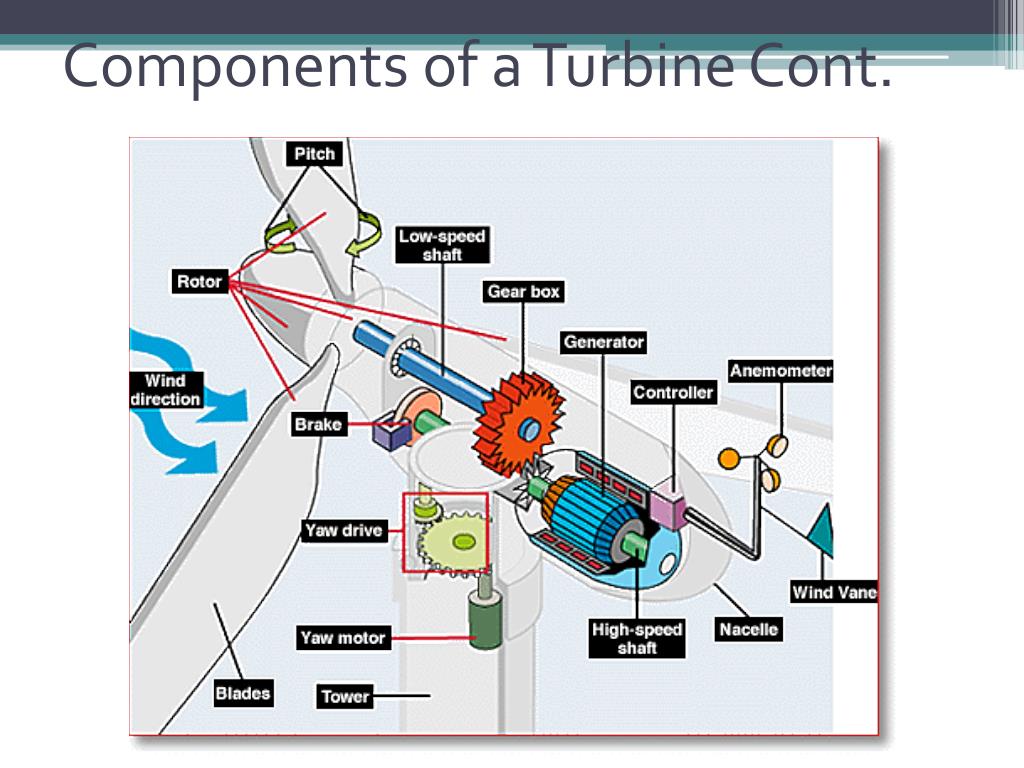

  3. Components of a Turbine Cont.

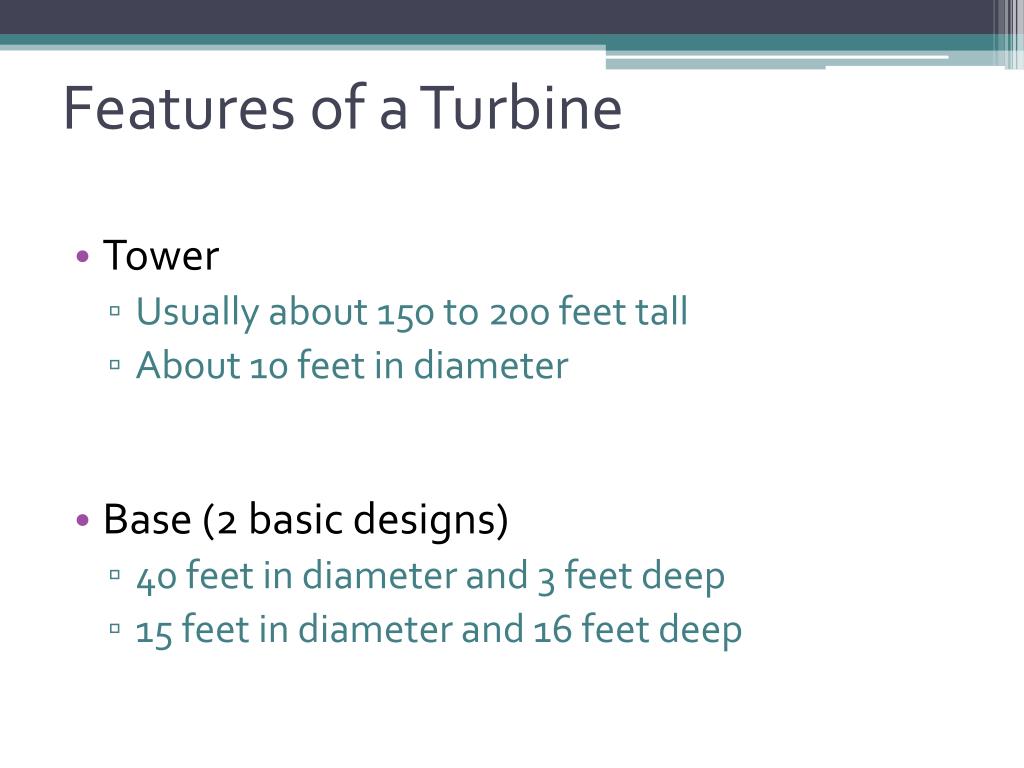

  4. Features of a Turbine • Tower • Usually about 150 to 200 feet tall • About 10 feet in diameter • Base (2 basic designs) • 40 feet in diameter and 3 feet deep • 15 feet in diameter and 16 feet deep

  5. Materials • Nacelle and often blades made of fiberglass • Blades are hollow • Tower made of steel • Base made of steel and reinforced concrete

  6. Putting it all together… • http://www.youtube.com/watch?v=tsZITSeQFR0

  7. Cool Stuff! • Tower weighs about 19,000 pounds • Nacelle about 22,000 • Typical fiberglass blade is app. 2,500 pounds
