Chelating Agents: Comprehensive Guide with EDTA Complex Diagrams

Explore β-alanine, cyclohexylenedinitriloacetic acid, and other chelating agents, including their properties and uses. Learn about metal-EDTA complexes, formation constants, and optimal pH for successful titration. Contains fractional composition diagrams for EDTA and valuable information on typical metal-EDTA titration conditions.

anneke
Télécharger la présentation

Chelating Agents: Comprehensive Guide with EDTA Complex Diagrams

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

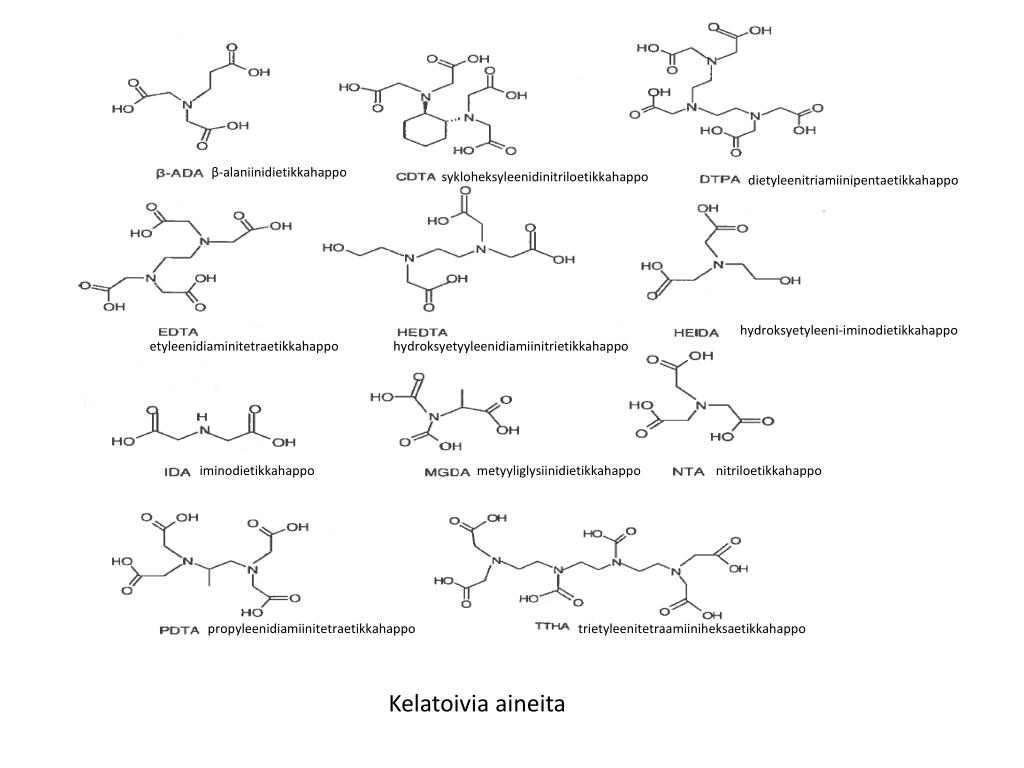

  1. β-alaniinidietikkahappo sykloheksyleenidinitriloetikkahappo dietyleenitriamiinipentaetikkahappo hydroksyetyleeni-iminodietikkahappo etyleenidiaminitetraetikkahappo hydroksyetyyleenidiamiinitrietikkahappo iminodietikkahappo metyyliglysiinidietikkahappo nitriloetikkahappo propyleenidiamiinitetraetikkahappo trietyleenitetraamiiniheksaetikkahappo Kelatoivia aineita

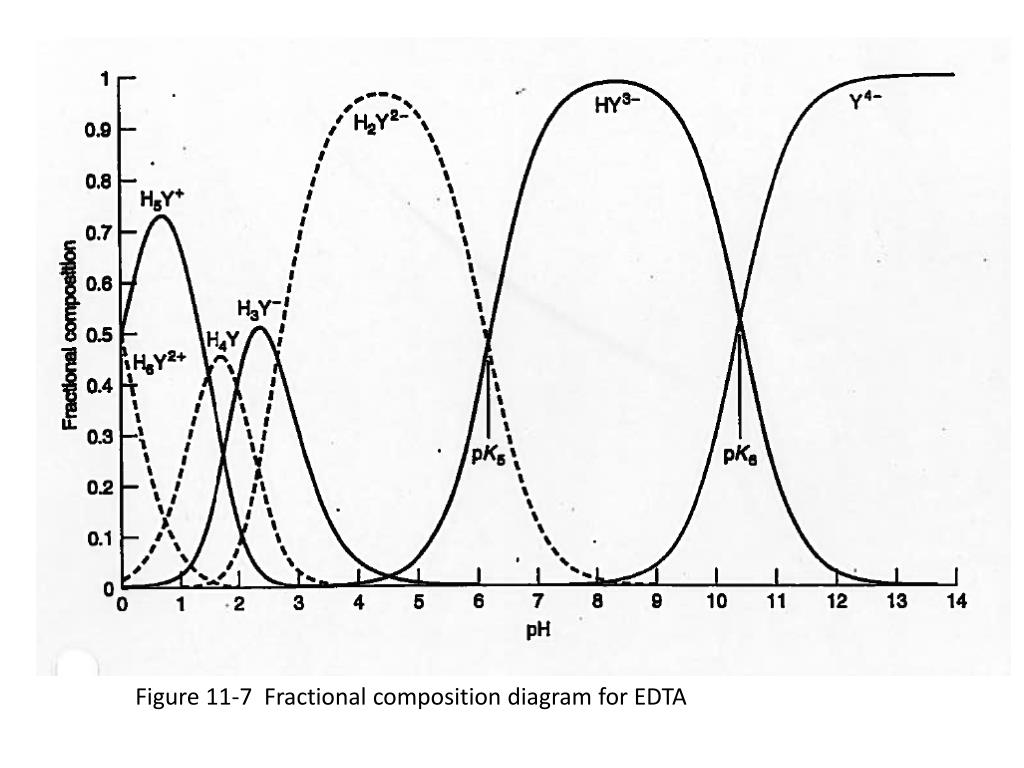

  2. Figure 11-7 Fractionalcompositiondiagram for EDTA

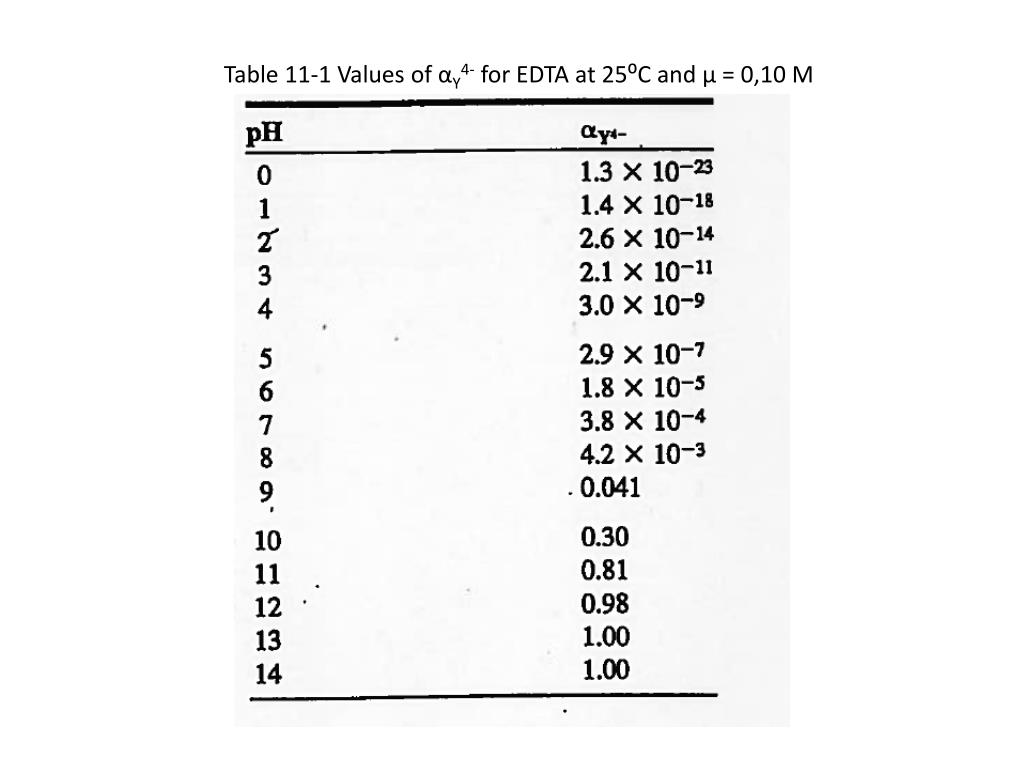

  3. Table 11-1 Values of αY4- for EDTA at 25⁰C and µ = 0,10 M

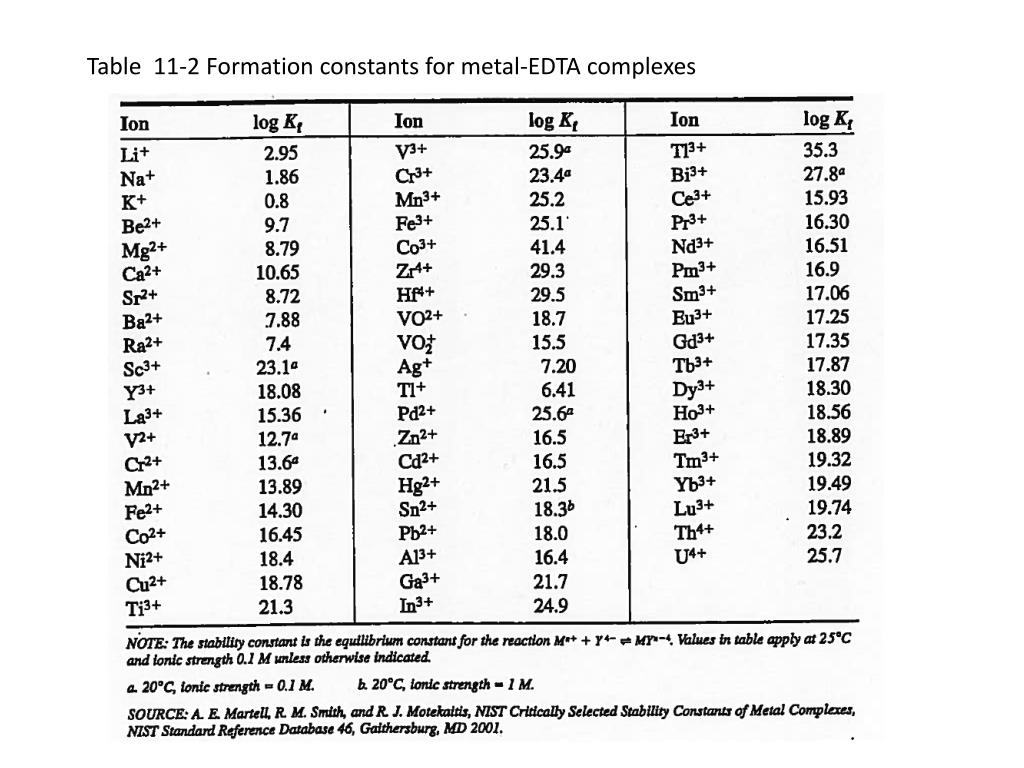

  4. Table 11-2 Formationconstants for metal-EDTAcomplexes

  5. Pienin pH, jossa metalli-ioni voidaan titrata onnistuneesti EDTA:lla. Kyseisessä pH:ssa metalli-ionin EDTA kompleksin Kf´ = 108

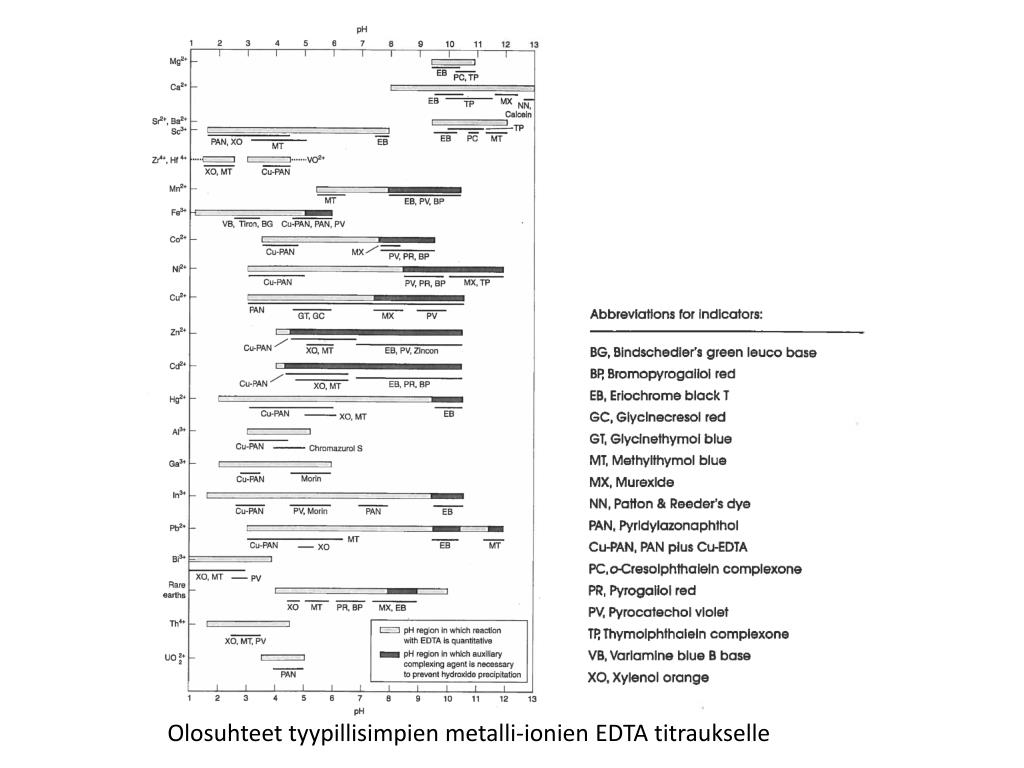

  6. Olosuhteet tyypillisimpien metalli-ionien EDTA titraukselle
