to wan Router. to Internet Router. Internet Firewall. Wan Firewall. 10.72.0.4/29 Vlan 720. 10.71.0.4/29 Vlan 710. 10.71.0.2/29 Vlan 710. 10.71.0.1/29 Vlan 710. 10.72.0.1/29 Vlan 720. 10.72.0.2/29 Vlan 720. Core 1. Core 2. 10.72.0.3=HSRP IP. 10.61.0.4/29 Vlan 610.

anneke
Télécharger la présentation

Server

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

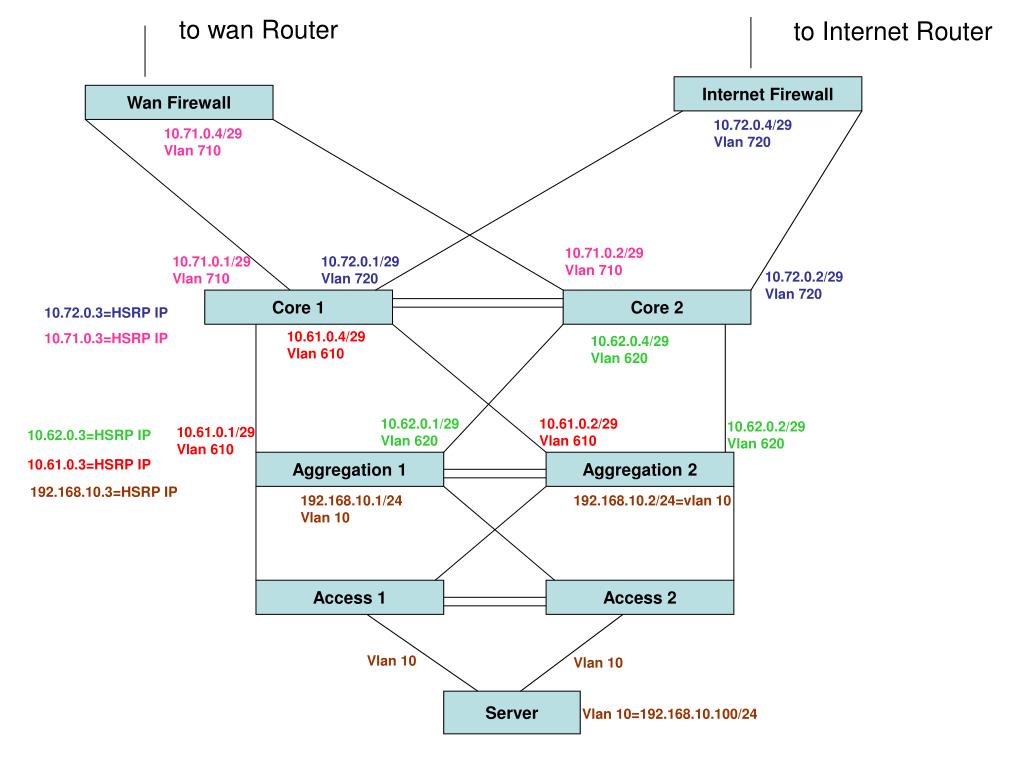

  1. to wan Router to Internet Router Internet Firewall Wan Firewall 10.72.0.4/29 Vlan 720 10.71.0.4/29 Vlan 710 10.71.0.2/29 Vlan 710 10.71.0.1/29 Vlan 710 10.72.0.1/29 Vlan 720 10.72.0.2/29 Vlan 720 Core 1 Core 2 10.72.0.3=HSRP IP 10.61.0.4/29 Vlan 610 10.71.0.3=HSRP IP 10.62.0.4/29 Vlan 620 10.62.0.1/29 Vlan 620 10.61.0.2/29 Vlan 610 10.62.0.2/29 Vlan 620 10.61.0.1/29 Vlan 610 10.62.0.3=HSRP IP 10.61.0.3=HSRP IP Aggregation 1 Aggregation 2 192.168.10.3=HSRP IP 192.168.10.1/24 Vlan 10 192.168.10.2/24=vlan 10 Access 1 Access 2 Vlan 10 Vlan 10 Server Vlan 10=192.168.10.100/24

  2. vlan 10==User==vrf test • Vlan 610==Between Agg1-core1 &core 2==vrf test • Vlan 620==Between Agg2-core1 &core 2==vrf test • Vlan 710==Between wan firewall-core1 &core 2==vrf test • Vlan 620==Between internet firewalll-core1 &core 2==vrf test
