  1. On Standardization of Kerberos Names in X.509 Certificates Paul Rabinovich Exostar, LLC 6th Annual PKI R&D Workshop April 18, 2007

  2. Names Subject Subject alternative name E-mail address DNS name IP address URI X.500 name Other Name constraints Other name Type Name proper Examples Federal Agency Smart Credential Number (FASC-N) Permanent identifier (RFC 4043) User principal name Names in X.509 Certificates

  3. MS Windows Kerberos Ubiquitous in enterprise Primary name: UPN UNIX Vintela Authentication Service Centrify DirectControl J2EE GSS-API and Kerberos Ubiquitous in enterprise Kerberos names Ubiquitous Unique Stable Kerberos Names: Applicability

  4. Requirements • Standardize • Name representation • Name constraint representation

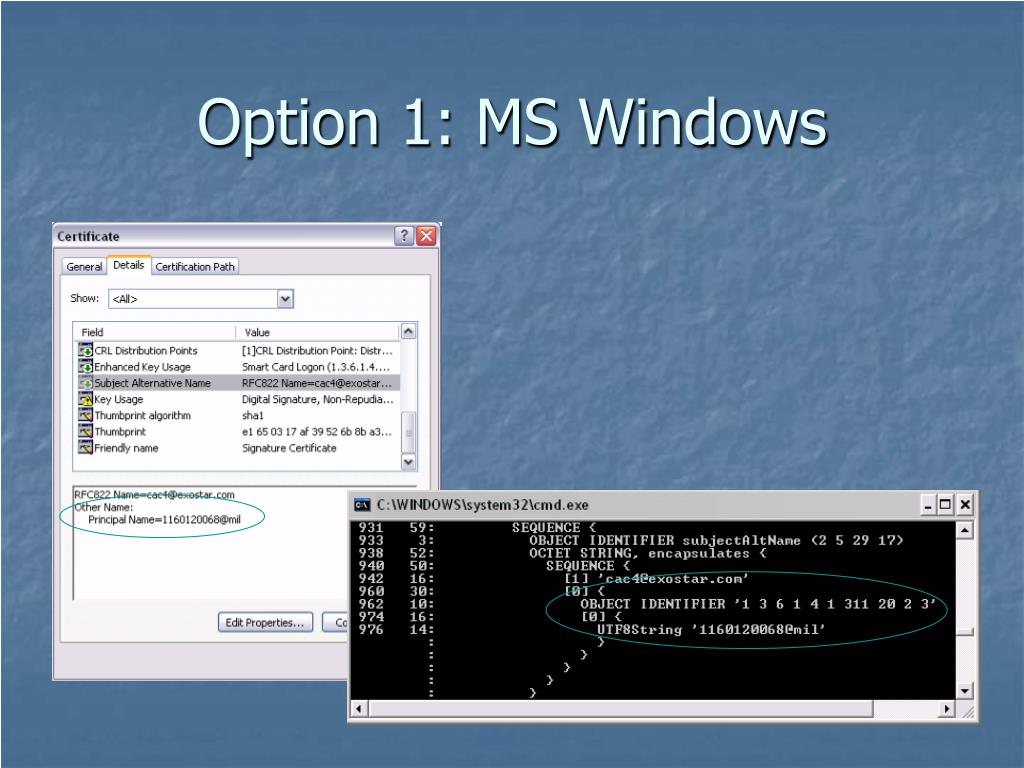

  5. Option 1: MS Windows

  6. Option 1: Name Constraints [NameConstraintsExtension] Include=Permit Exclude=Exclude Critical=TRUE [Permit] UPN=xyz.com UPN=.xyz.com [Exclude] Exact match Subtree match

  7. Option 1: Analysis • Pros • Available everywhere MS Windows is • Cons • Proprietary object ID

  8. Option 2: RFC 1964 • Object ID • iso(1) member-body(2) United States(840) mit(113554) infosys(1) gssapi(2) krb5(2) krb5_name(1) • Name encoding • As in MS Windows • Name constraints • As in MS Windows

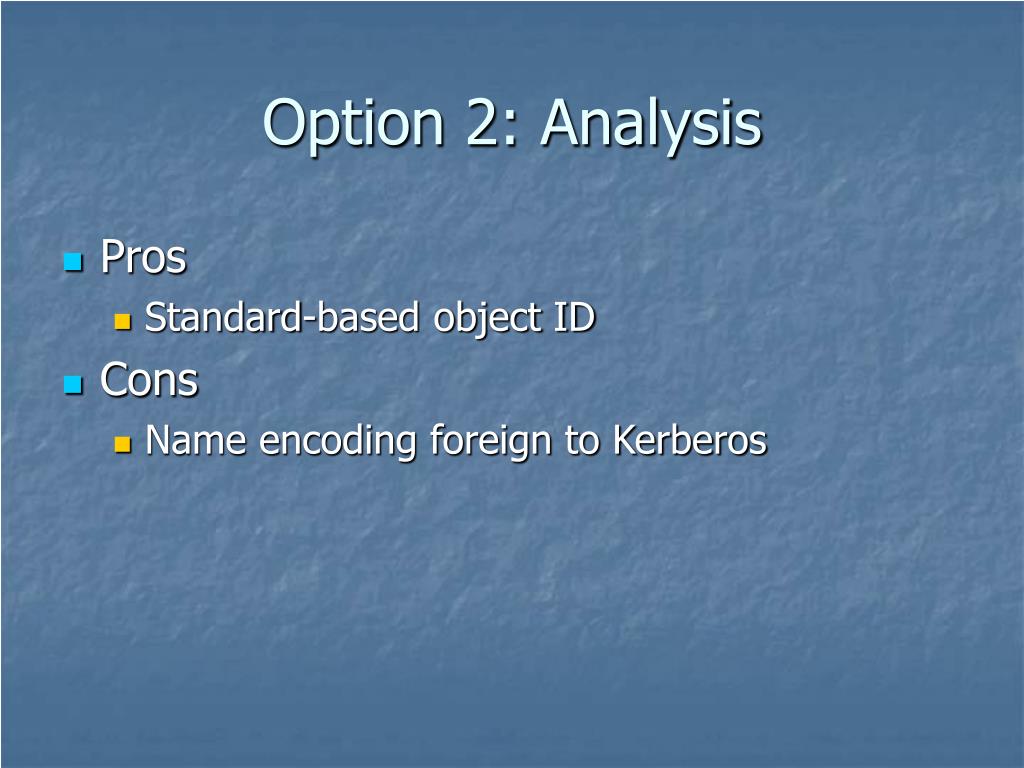

  9. Option 2: Analysis • Pros • Standard-based object ID • Cons • Name encoding foreign to Kerberos

  10. Option 3: PKINIT KerberosString ::= IA5String Realm ::= KerberosString PrincipalName ::= SEQUENCE { name-type [0] Int32, name-string [1] SEQUENCE OF KerberosString } id-pkinit-san OBJECT IDENTIFIER ::= { iso(1) org(3) dod(6) internet(1) security(5) kerberosv5(2) x509SanAN (2) } KRB5PrincipalName ::= SEQUENCE { realm [0] Realm, principalName [1] PrincipalName } NT_PRINCIPAL OtherName type OtherName value

  11. Option 3: Name Constraints • Exact match • EXAMPLE.COM matches EXAMPLE.COM • Suffix match • %EXAMPLE.COM matches FOO.EXAMPLE.COM • Escaping • \%EXAMPLE.COM matches %EXAMPLE.COM • \\%EXAMPLE.COM matches \%EXAMPLE.COM

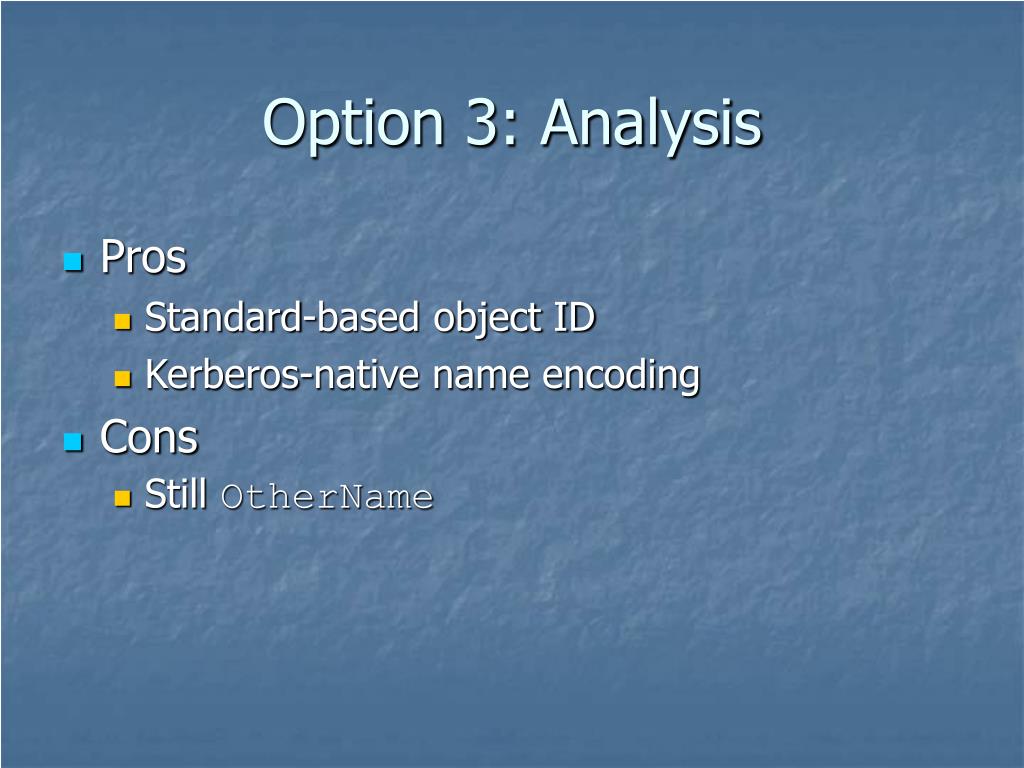

  12. Option 3: Analysis • Pros • Standard-based object ID • Kerberos-native name encoding • Cons • Still OtherName

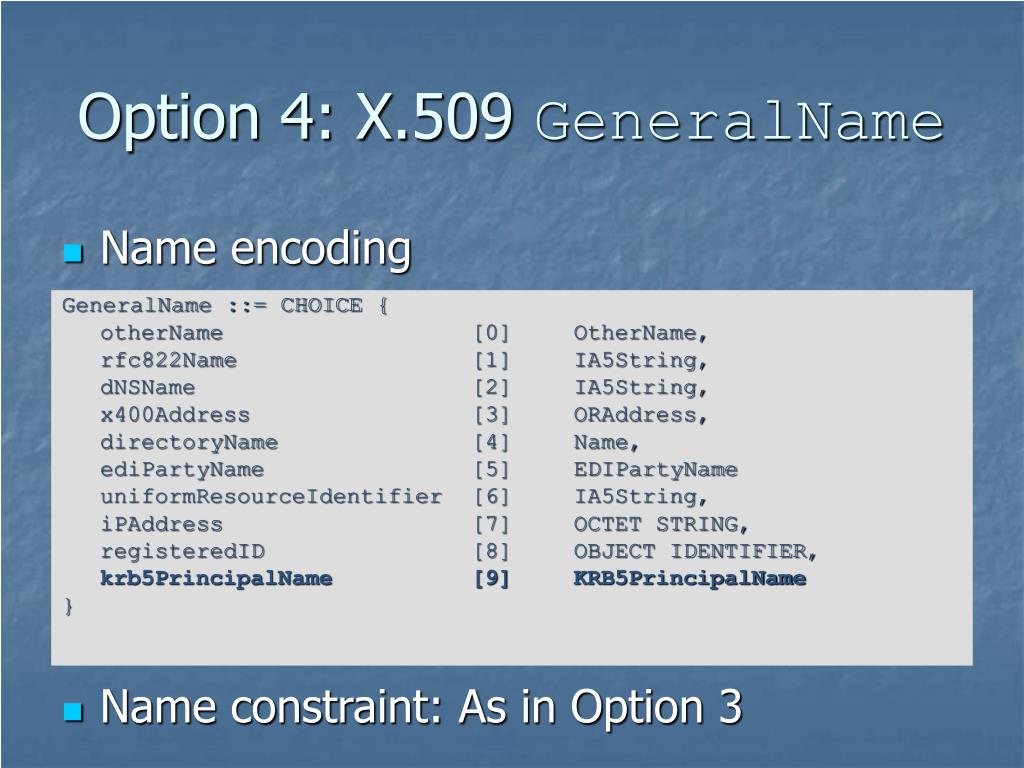

  13. Option 4: X.509 GeneralName • Name encoding • Name constraint: As in Option 3 GeneralName ::= CHOICE { otherName [0] OtherName, rfc822Name [1] IA5String, dNSName [2] IA5String, x400Address [3] ORAddress, directoryName [4] Name, ediPartyName [5] EDIPartyName uniformResourceIdentifier [6] IA5String, iPAddress [7] OCTET STRING, registeredID [8] OBJECT IDENTIFIER, krb5PrincipalName [9] KRB5PrincipalName }

  14. Option 4: Analysis • Pros • Well-known name type • Kerberos-native name encoding • Cons • Requires change to X.509 GeneralName • Not too bad: backward compatibility still maintained

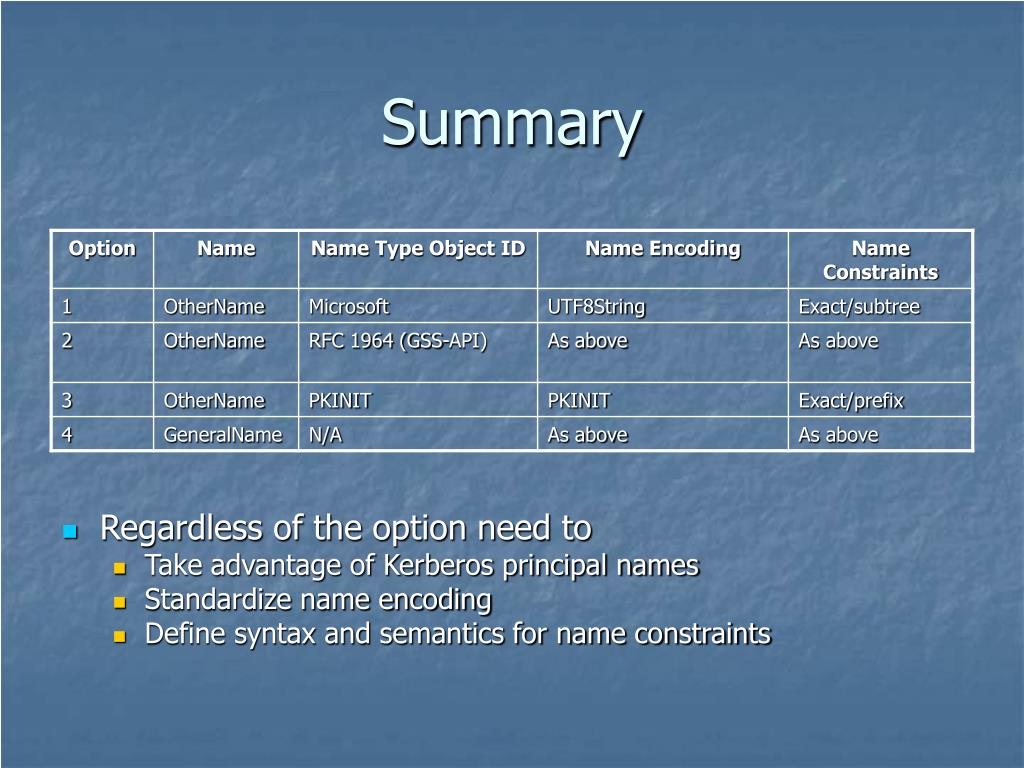

  15. Summary • Regardless of the option need to • Take advantage of Kerberos principal names • Standardize name encoding • Define syntax and semantics for name constraints

  16. Acknowledgement • David Cooper (NIST) for helpful suggestions

  17. Thank You.
