TEM GRID vs. DIME. How do they look under microscope?. Square Grid. Hexagonal Grid. 200 mesh 55% open area, 28 µm bar width Thick:17.8 µm . 3 mm. TEM Grid Preparation. There are two sides in carbon coated ultra-thin grid

annice
Télécharger la présentation

TEM GRID vs. DIME

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. TEM GRID vs. DIME

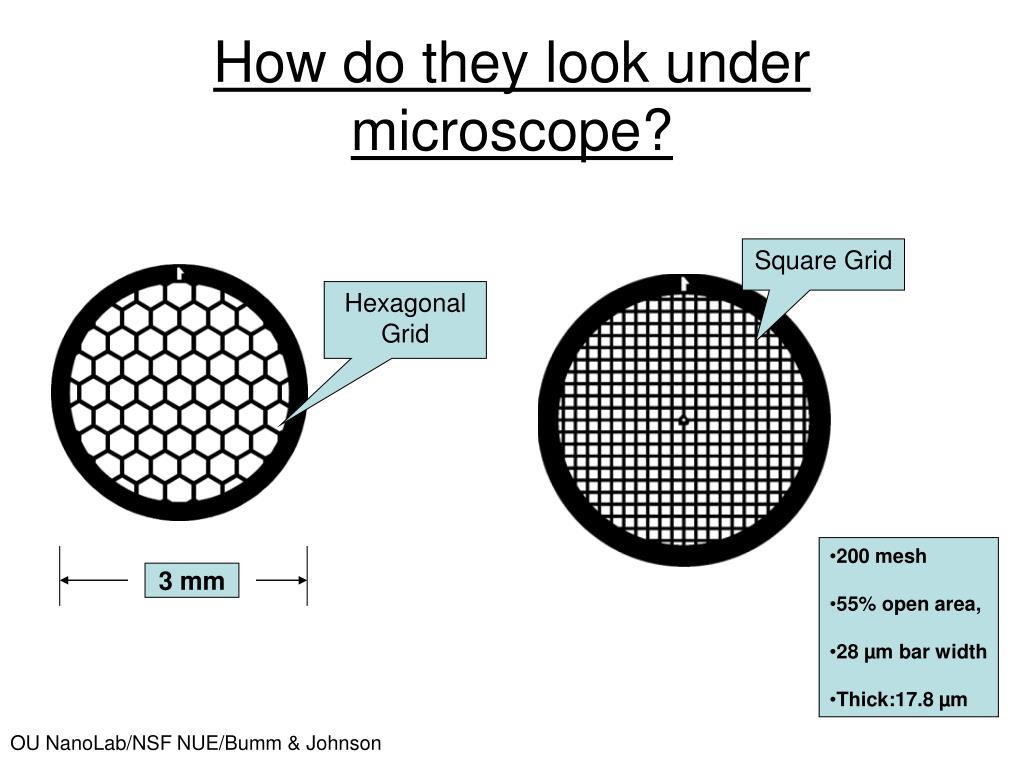

  2. How do they look under microscope? Square Grid Hexagonal Grid • 200 mesh • 55% open area, • 28 µm bar width • Thick:17.8 µm 3 mm

  3. TEM Grid Preparation • There are two sides in carbon coated ultra-thin grid • Formvar side - lighter side (less hydrophobic than the carbon film) • Carbon film is on the darker side.

  4. TEM Grid Preparation • Hold the grid with tweezers. • Do not touch/contaminate the grid. • Do not bend the grid.

  5. TEM GRID PREPARATION • Take a micropipette and put a droplet on top the grid. Let the solution sit on the grid. • After 10-12 min, wick away the rest of the solution with filter paper. Do not touch the grid! • Finally let it sit until the grid dries off.
