  1. DC New Arrivals Prepared by: ThomasCheng Date: XX-XX-2012

  2. MTSCAgenda Confidential

  3. DC New Arrivals • PCI Express Card: C32010T/PCIEL • M12 • Device Server: NPort 5x50AI-M12 • Ethernet-to-Fiber Converter: PTC-101-M12 • PROFIBUS-to-Fiber Converter: • ICF-1180, ICF-1280 (Ring) • Fast Roaming • Device Server: NPort W2x50A • Embedded Module: MiiNePort W1 • Surge Protector: ISD-1110/1130-T, ISD-1210/1230-T Confidential

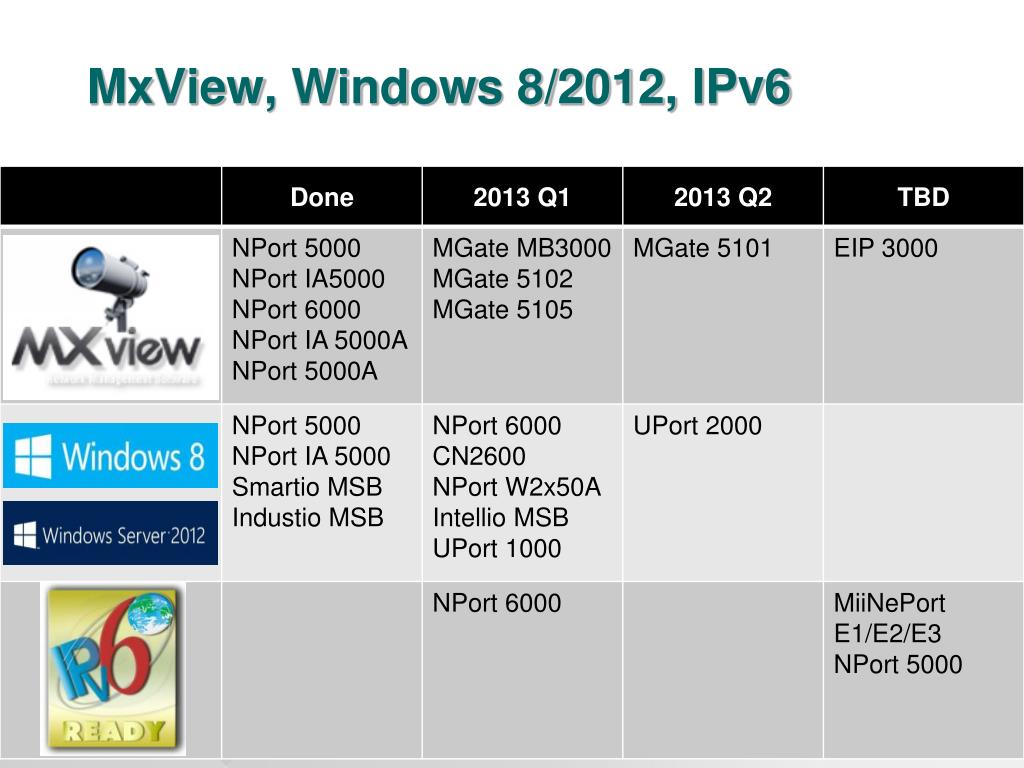

  4. MxView,Windows8/2012,IPv6

  5. IECEx • Harsh Environment • Ex: Power, Miming, Oil & Gas • Available Date: End of this year • Product Family: • IMC-101, IMC-101G, ICF-1150 • NPort IA5000, NPort IA5000A • MGate MB3x70, EIP3x70 Confidential

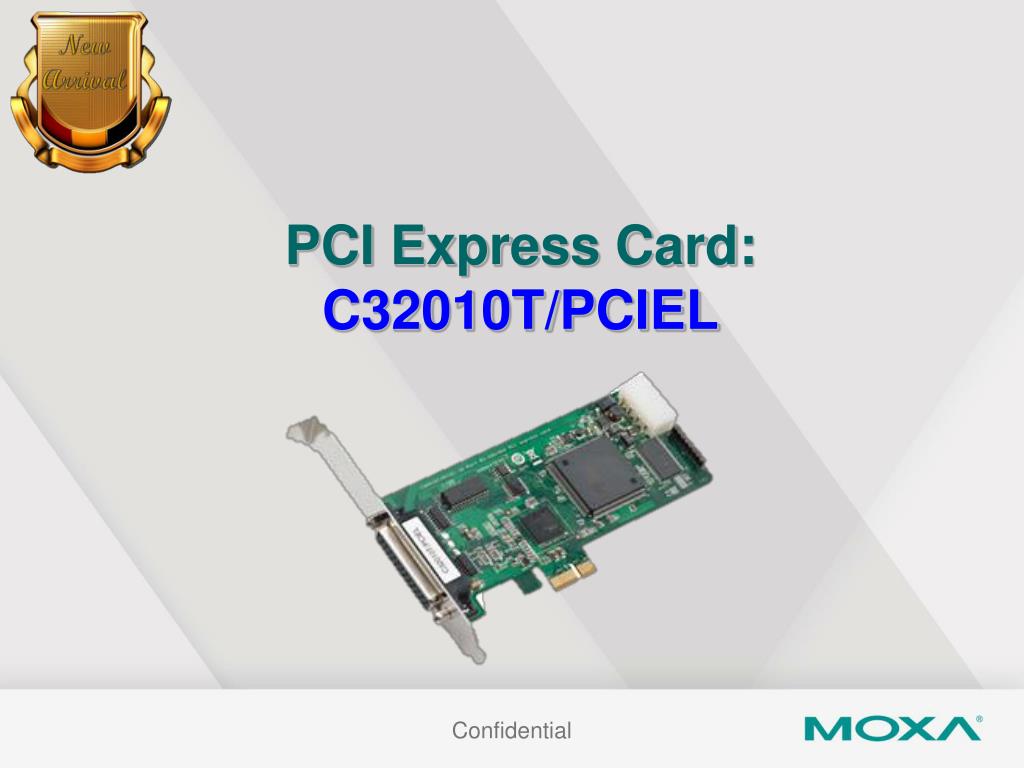

  6. New Arrival PCI Express Card: C32010T/PCIEL Confidential

  7. Features PCI Express x1 complaint Low profileform factor fits small-sized PCs Dramatically decreases host CPU loading Supports 128 high-performance serial ports per system 460.8 Kbps maximum baudrate Confidential

  8. Low Profile Suitable for small or shoebox PCs Height: 79 mm (Low profile) Confidential

  9. Hardware Installation • Onboard power connector (Like POS-104UL) • MUST be connected to host IDE power connector to get enough power, or • Connected toan externalpoweradaptorandcableusing C32050T Confidential

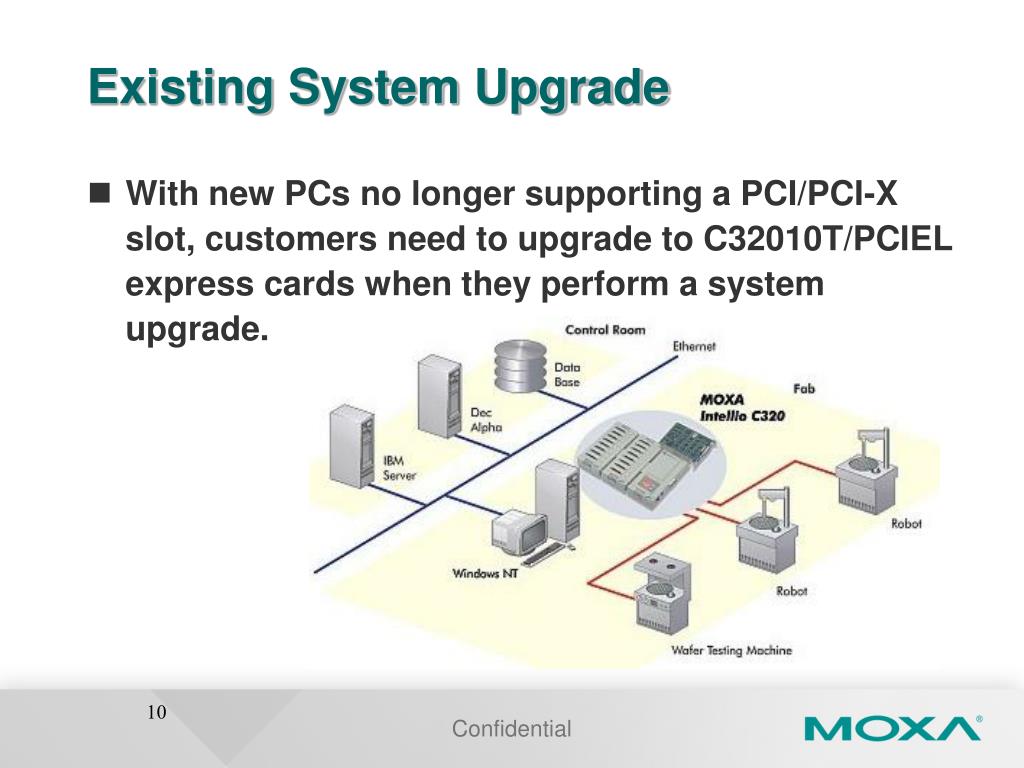

  10. Existing System Upgrade With new PCs no longer supporting a PCI/PCI-X slot, customers need to upgrade to C32010T/PCIEL express cards when they perform a system upgrade. Confidential

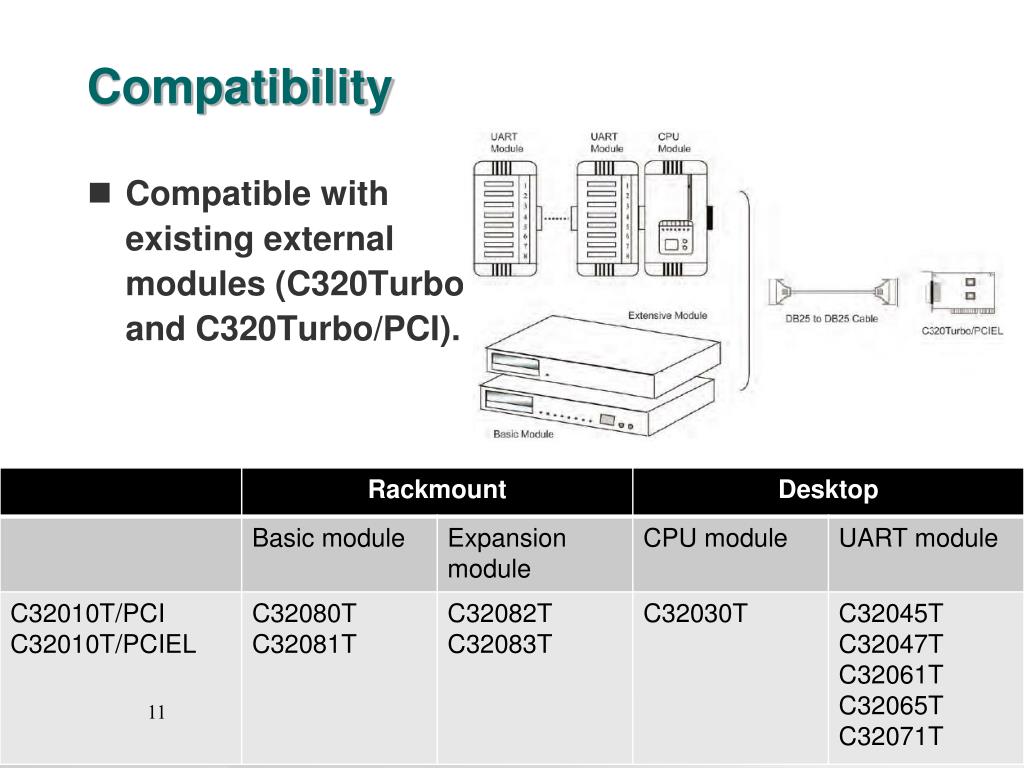

  11. Compatibility • Compatible with existing external modules (C320Turbo and C320Turbo/PCI). Confidential

  12. New Arrival M12 Device Server: NPort 5x50AI-M12 Confidential

  13. Features Compliant with EN 50121-4 and essential sections of EN 50155 M12 connector and IP40 metal housing Remote Management/LLDP supportthroughMXview 2 kV isolation for serial signals Confidential

  14. Product View • 1/2/4 Serial Ports, DB9 • 10/100 Ethernet Port (M12) • 12 to 48 VDCPower Input(M12) • Wide Temperature(-T model) • Conformal Coating(-CT model)

  15. Rail Certification • Rail Orientation • Temperature • Power Input • 24/48/72/96/110 V • More Reliability • Surge • EN 50121-3-2 • Vibration • EN 61373 Confidential

  16. MXview Support • Integration Tool for Management • Easy Configuration • Visible Topology • Full LLDP Support • SNMP Support Confidential

  17. Transportation Application Security Passenger Information Display System Application Topology LED Display LED Display LED Display LED Display LED Display LED Display LED Display LED Display Ethernet Product Used NPort 5150AI-M12 RS-485 Benefits • EN 50155 certification • Easy Configuration • High Quality and Stability PIDS Controller PIDS Controller

  18. New Arrival M12 EthernetMediaConverter: PTC-101-M12 Confidential

  19. Features 10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X Link Fault Pass-Through (LFP) Power failure alarm by relay output Redundant dual DC power inputs -40 to 85°C operating temperature range M12 anti-vibration connector Confidential

  20. PTC-101-M12 Series Reliable Communication M12 connector Passed EN 50121-4 Wayside certification Wide Temp -40 to 85 ℃ Confidential

  21. Specifications • 10/100BaseT(X) to 100BaseFX Media Converter • M12 connector • DIP switch for flexible configuration • Auto Negotiation • Force TP Speed • Force TP Duplex • Link Fault Pass Through • Operating Mode (Pass through/Store and forward) • Power input • 20 to 72 VDC • Designed for Harsh Environments • EN 50155, EN 50121-4 • Vibration: EN 50125-3 • -40 to 85℃ operating temperature • Fiber Modes and Connectors • Single-mode fiber (40KM) • SC / ST connectors Confidential

  22. New Arrival PROFIBUS-to-Fiber Converter:ICF-1180, ICF-1280 (Ring) Confidential

  23. Why PROFIBUS-to-Fiber • PROFIBUS cable is limited to 1.2 km to avoid signal interference. • Optical fiber is immune from signal interference, even for • High voltage environments • Harsh environments • The transmission distance is up to 45 km for single-mode fiber. Confidential

  24. Features Auto baudrate detection and data speed up to 12 Mbps PROFIBUS bus fail prevents corrupted datagram in functioning segment Fiber inverse feature /Alarm by relay output 2 kV galvanic isolation protection Dual power inputs for redundancy (Reverse power protection) Confidential

  25. Product View – ICF-1180I • 2 power inputs (terminal block) • Relay output • DIP switches: • - Baudrate setting • - Fiber link monitor • - Fiber inverse function • LED indicators: • - PW1/PWR2 • - System status • - Fiber status • - PROFIBUS status • 100BaseFX port • multi/single-mode, ST • connector • DIN-Rail mounting kit • PROFIBUS DB9 female • Metal housing Confidential

  26. Specifications • PROFIBUS Port: • Interface: PROFIBUS DP • Connector type: DB9 • Port number: 1 • Baudrate: Auto detection (Up to 12 Mbps) • Isolation protection: 2 KV • Fiber Port: • Port number: 1 • Multi-mode/single-mode • ST connector • Power: • Terminal block • Polarity protection • 12 to 48 VDC • Certification: • CE/FCC • UL 508 • Operating Temperature: • Standard model: 0 to 60°C • Wide temp. model: -40 to 75°C Confidential

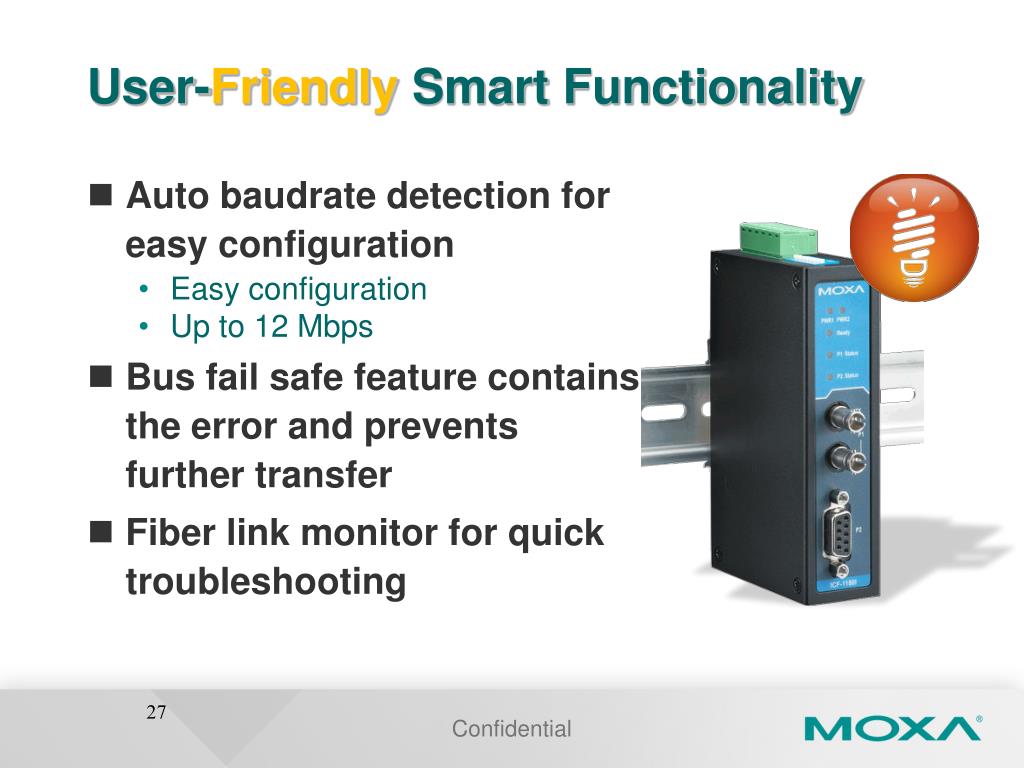

  27. User-Friendly Smart Functionality • Auto baudrate detection for easy configuration • Easy configuration • Up to 12 Mbps • Bus fail safe feature contains the error and prevents further transfer • Fiber link monitor for quick troubleshooting Confidential

  28. Auto Baudrate Detection • Auto baudrate setting • Eliminates the need to worry about the baudrate setting of PROFIBUS devices • The ICF-1180I will automatically detect and set the baudrate according to the PROFIBUS devices • Supports baudrate of 9.6, 19.2, 45.45, 93.75, 187.5, 500, 1500, 3000, 6000, 12000 Kbps Confidential

  29. Bus Fail Safe ICF-1180IPROFIBUS-to-Fiber Converter PROFIBUS PROFIBUS • Without it • If a PROFIBUS device fails in one segment, error signals may be generated and transferred to the adjacent segment.

  30. Bus Fail Safe Bus Fail Safe PROFIBUS PROFIBUS ICF-1180IPROFIBUS-to-Fiber Converter • With it • It can detect corrupted signals and stop them from being transferred to the adjacent segment.

  31. Fiber Link Monitor PROFIBUS PROFIBUS ICF-1180IPROFIBUS-to-Fiber Converter The status of the optical fiber is unknown since the distance may extend to 45 km. Engineers couldn’t control the media situation. With fiber link monitor, an alarm system triggered by relay output will activate when the optical fiber shows abnormal behavior. Confidential

  32. Point-to-Point Topology *Only one fiber port is required for point-to-point structure. *Suitable for an independent system or small applications. Confidential

  33. ICF-1180I features one fiber port, and is used in the beginning and end of a line. • ICF-1280I features two fiber ports. • Applied in production, factory production automation Linear Topology Confidential

  34. Redundant transmission • Applied in production or combined many factories with production process Redundant Ring Topology Confidential

  35. PROFIBUS-to-Fiber Converters Preliminary Confidential

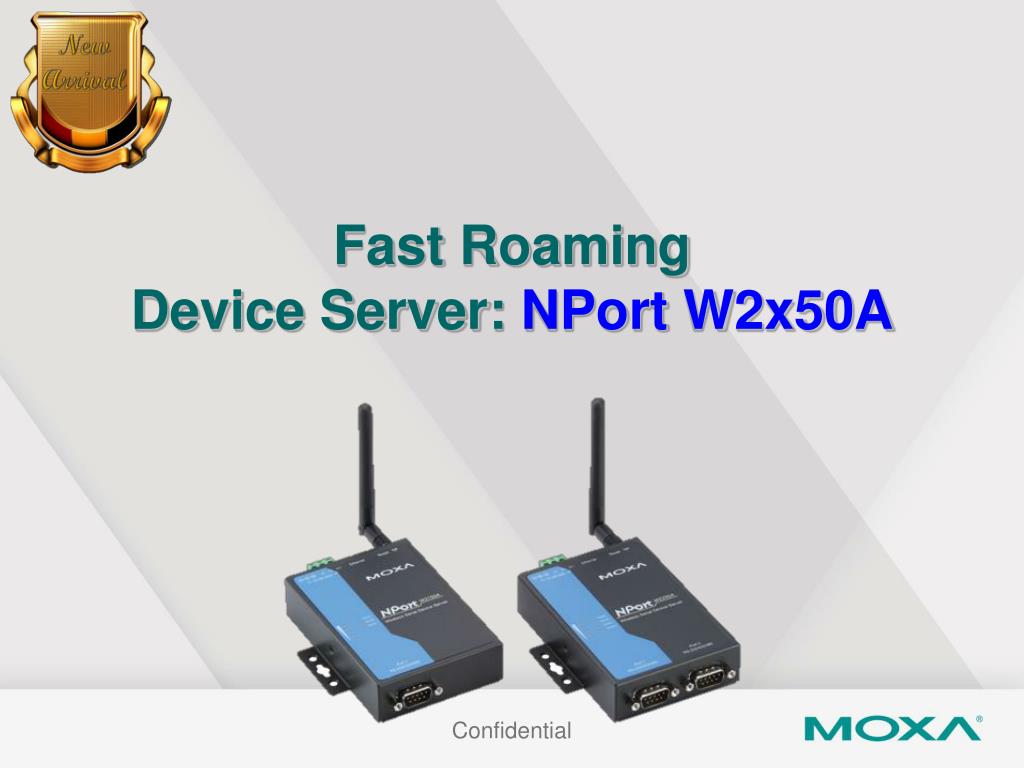

  36. New Arrival Fast Roaming Device Server: NPort W2x50A Confidential

  37. Features Link any serial device to an IEEE 802.11a/b/g network Secure data access with WEP, WPA, WPA2 Built-in WLAN site survey tool Automatic wireless fast roaming Offline port buffering and serial data log Enhanced surge protection for serial, LAN, and power supply Confidential

  38. NPort W2x50A Product View 2 dbi Omni-antenna Reset button 10/100 Ethernet Software selectable RS-232/422/485 interface 12 – 48 VDC power jack/terminal block 5 LEDs (for signal strength) Wall mountable Data or serial console ports Confidential

  39. Wireless Roaming Fast Roaming AGV NPort W2x50A: 500 ms 802.11 a/b/g: 5~10 s AP2 AP1 • Benefits of fast roaming • Fast roaming improves reliable transmission during the period of switching APs. Confidential

  40. Factory Automation Security Wireless CNC Management System Product Used NPort W2150A Application Topology Access Point Benefits • Needed where installing wire is not possible, or would be very costly • Difficult-to-wire environments NPort W2150A RS-232 CNC

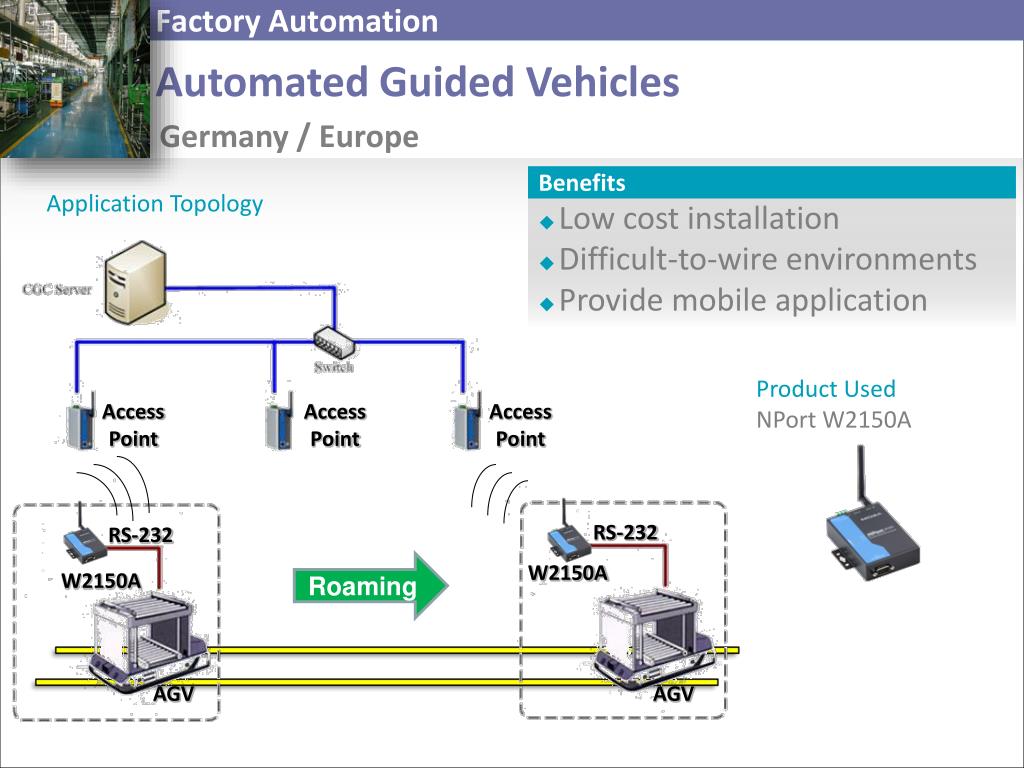

  41. Factory Automation Security Automated Guided Vehicles Germany / Europe Application Topology Product Used NPort W2150A Access Point Access Point Access Point RS-232 RS-232 Roaming W2150A W2150A Benefits • Low cost installation • Difficult-to-wire environments • Provide mobile application AGV AGV

  42. Comparison Confidential

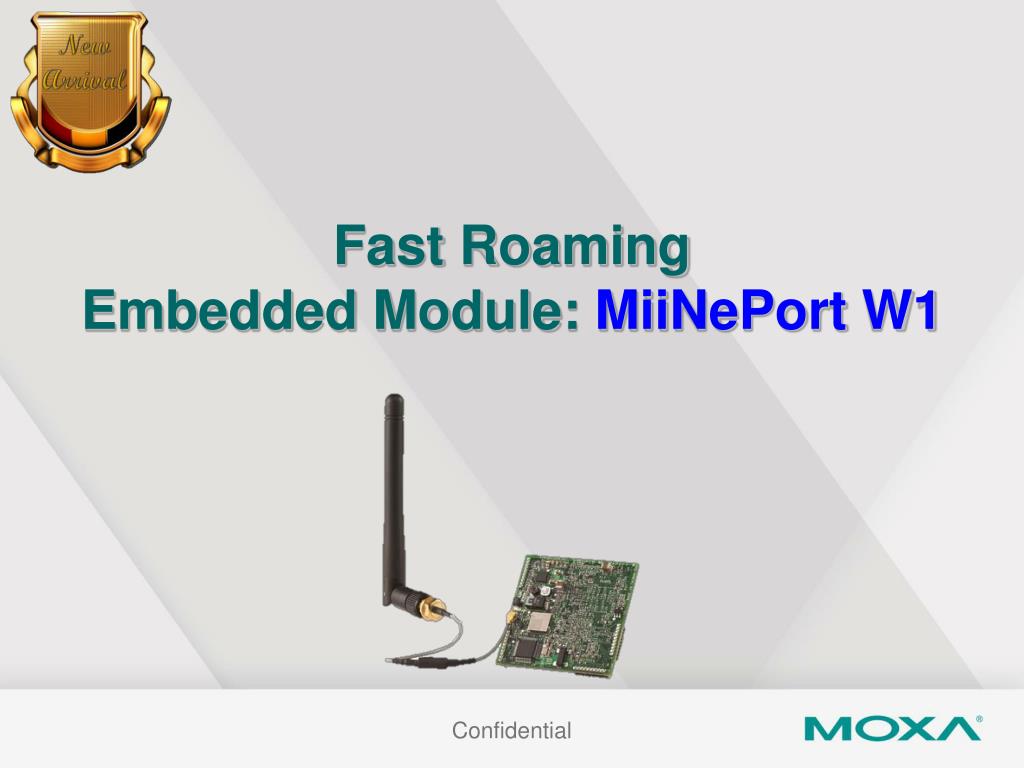

  43. New Arrival Fast Roaming Embedded Module: MiiNePort W1 Confidential

  44. Features IEEE 802.11 b/g compatible AES, WEP 64/128-bit, WPA, WPA2, PSK, 802.11i security support Low power consumption (1.18 W) 1 serial port, up to 921.6 Kbps 1 Ethernet port, 10/100 Mbps HTTPS/SSH support for configuration Fast roaming to enhance connection reliability Confidential

  45. Product View Antenna Power jack RJ45 connector Debug and serial port DI/O LED indicator W1 module DI/O LED indicator Starter kit Confidential

  46. Starter Kit Confidential

  47. Advanced software integration function for added value Fast Roaming Supported Product MiiNePort W1 Confidential

  48. Comparison Confidential

  49. New Arrival SerialDataLineSurge Protector:ISD-1100, ISD-1200Series Confidential

  50. What are Surges? ON OFF • Sources: • Lightning electromagnetic pulse (big) • Switching electromagnetic pulse (continuous) Coupling: • The coupling can be caused by a power line, which induces a voltage in an adjacent data line. • Surges are EVERYWHERE! Confidential Confidential Confidential
