Sound Power Testing Techniques for Powered Hand Tools

Sound Power Testing Techniques for Powered Hand Tools. Brian Kim Edward Zechmann, M.S. Chuck Hayden, M.S., P.E. Dept of Health and Human Services US Public Health Service Centers for Disease Control and Prevention National Institute for Occupational Safety and Health. Overview.

annora
Télécharger la présentation

Sound Power Testing Techniques for Powered Hand Tools

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Sound Power Testing Techniques for Powered Hand Tools Brian Kim Edward Zechmann, M.S. Chuck Hayden, M.S., P.E. Dept of Health and Human Services US Public Health Service Centers for Disease Control and Prevention National Institute for Occupational Safety and Health

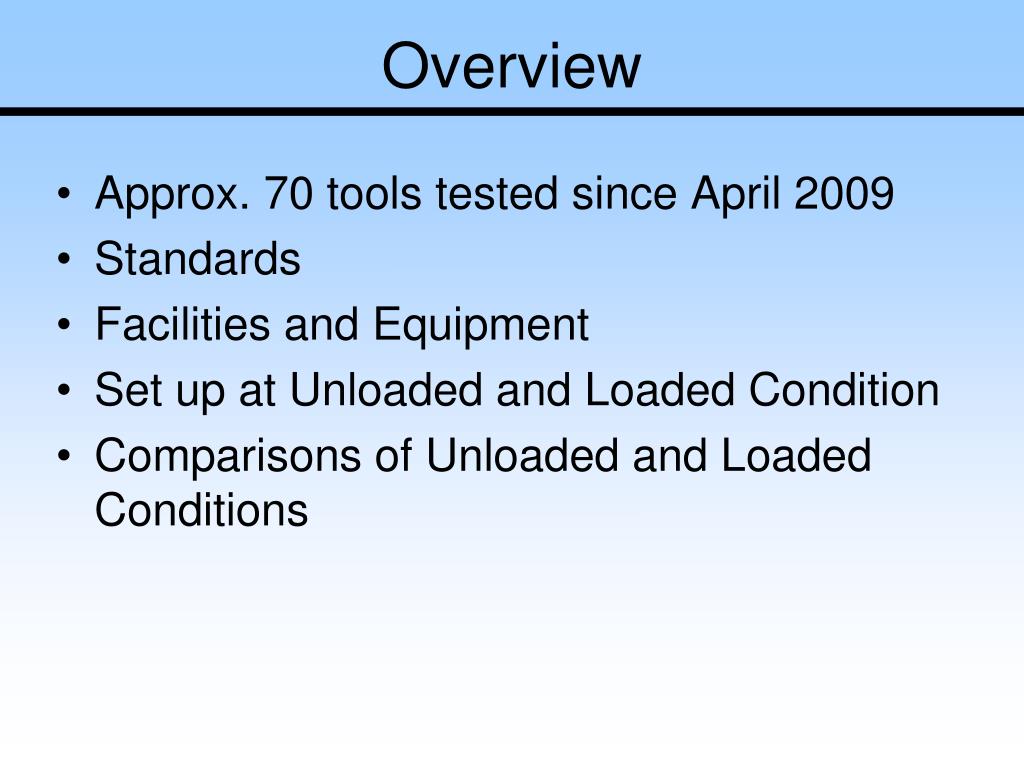

  2. Overview • Approx. 70 tools tested since April 2009 • Standards • Facilities and Equipment • Set up at Unloaded and Loaded Condition • Comparisons of Unloaded and Loaded Conditions

  3. Standards • ANSI S12.15-1992 • Tool Testing Standard • Specifies Test Jigs • Loading conditions • ISO 3744:1994(E) • Measurement Standard • 10-Microphone Array • Engineering Grade Standard

  4. Equipment and Facilities • Measure Sound Power • Sound Intensity integrated over measurement surface • Laboratory Environment • Hemi-Anechoic Chamber • Monitoring Equipment • Electrical power, humidity, speed, feed rate, etc.

  5. Hemi-Anechoic Lab Steel Structure 11th Microphone One Microphone of the ten-microphone array Reference Sound Source (RSS)

  6. Unloaded Test - Grinder

  7. Loaded Test Jig • Circular saw • Tools held by hand to cut wood • Oak Boards Resiliently Mounted

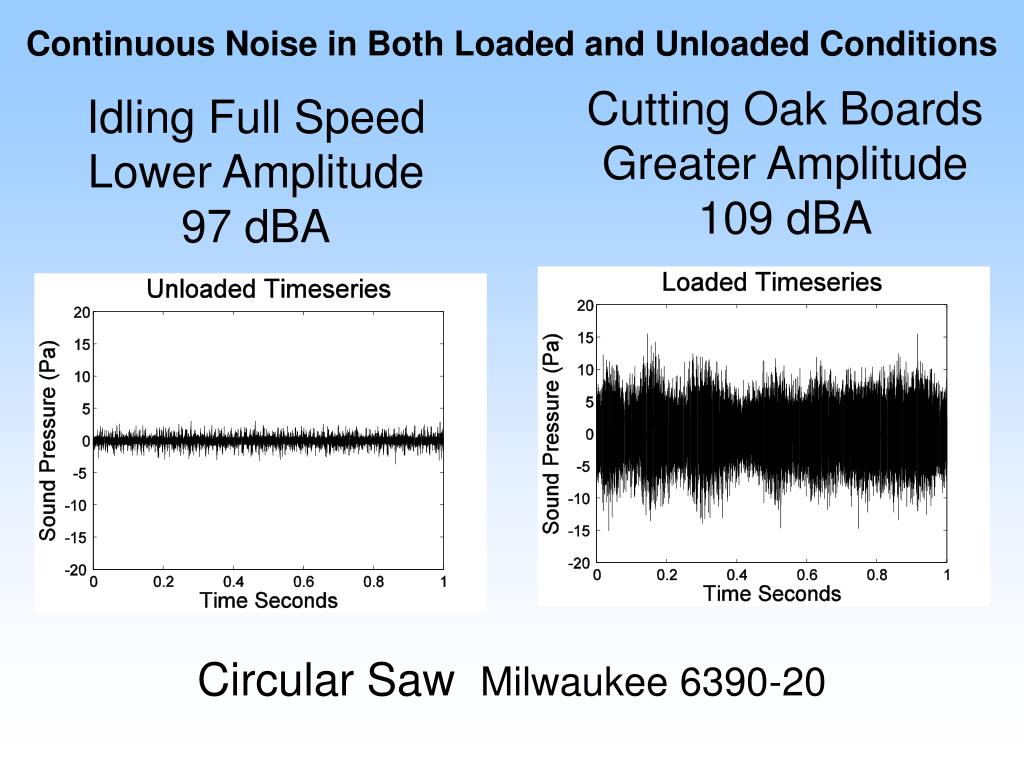

  8. Continuous Noise in Both Loaded and Unloaded Conditions Idling Full SpeedLower Amplitude97 dBA Cutting Oak BoardsGreater Amplitude109 dBA Circular Saw Milwaukee 6390-20
