Mechanism Design and Computer Security

1. Mechanism Design and Computer Security John Mitchell Vanessa Teague Stanford University

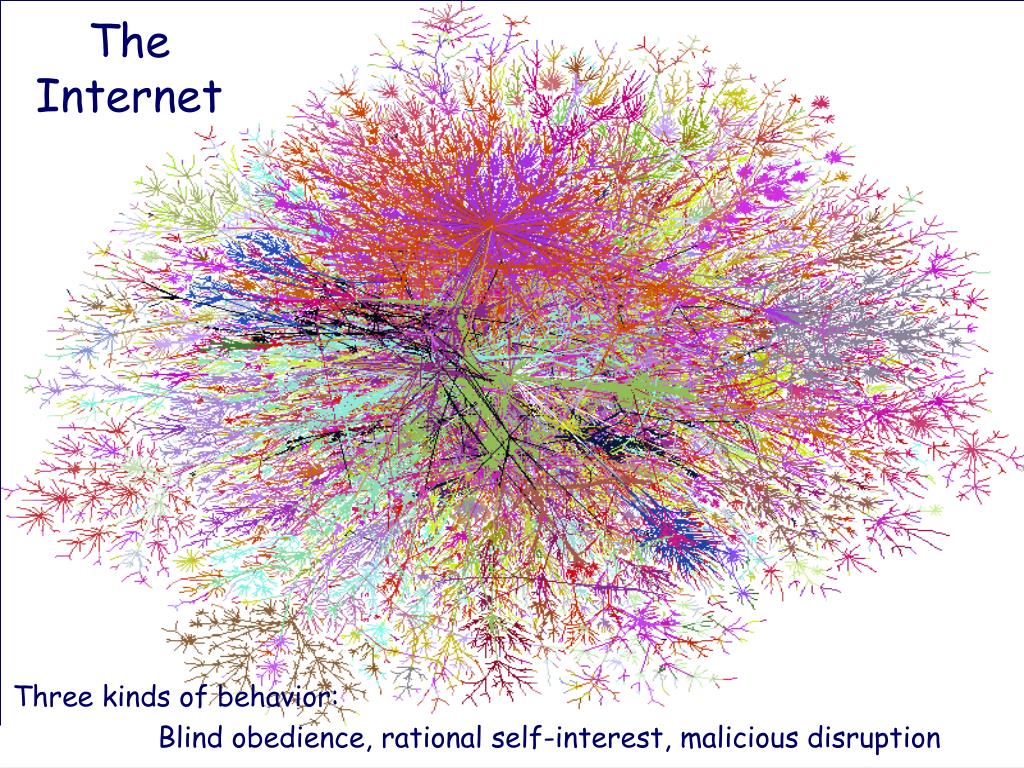

2. The Internet Three kinds of behavior: Blind obedience, rational self-interest, malicious disruption

3. Outline for this workshop talk • Some network problems • Congestion control, Interdomain routing • Algorithmic mechanism design • Pricing function provides incentives • Distributed mechanisms and security • Distributed impl by rational agents • Prevent malicious acts by rational agents • Open problem: irrational malicious agents Warning: bait and switch

4. TCP/IP Transmission • TCP guarantees packet delivery • Source packets have sequence number • Destination acknowledges • If packet lost, source resends Source Destination

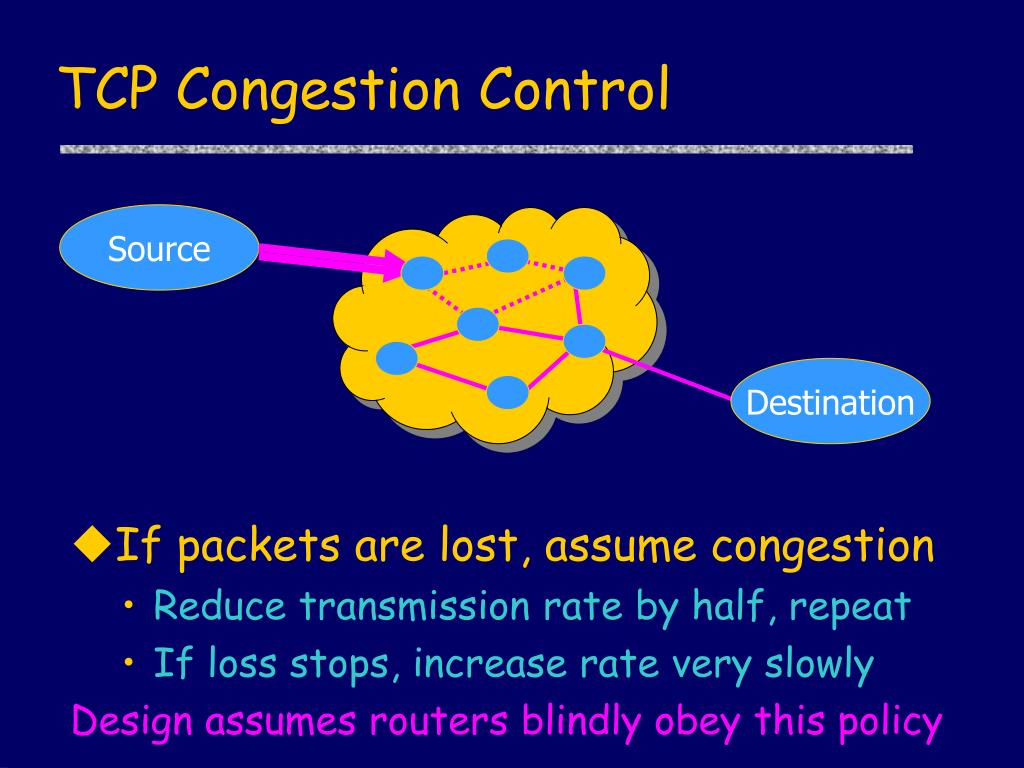

5. TCP Congestion Control • If packets are lost, assume congestion • Reduce transmission rate by half, repeat • If loss stops, increase rate very slowly Design assumes routers blindly obey this policy Source Destination

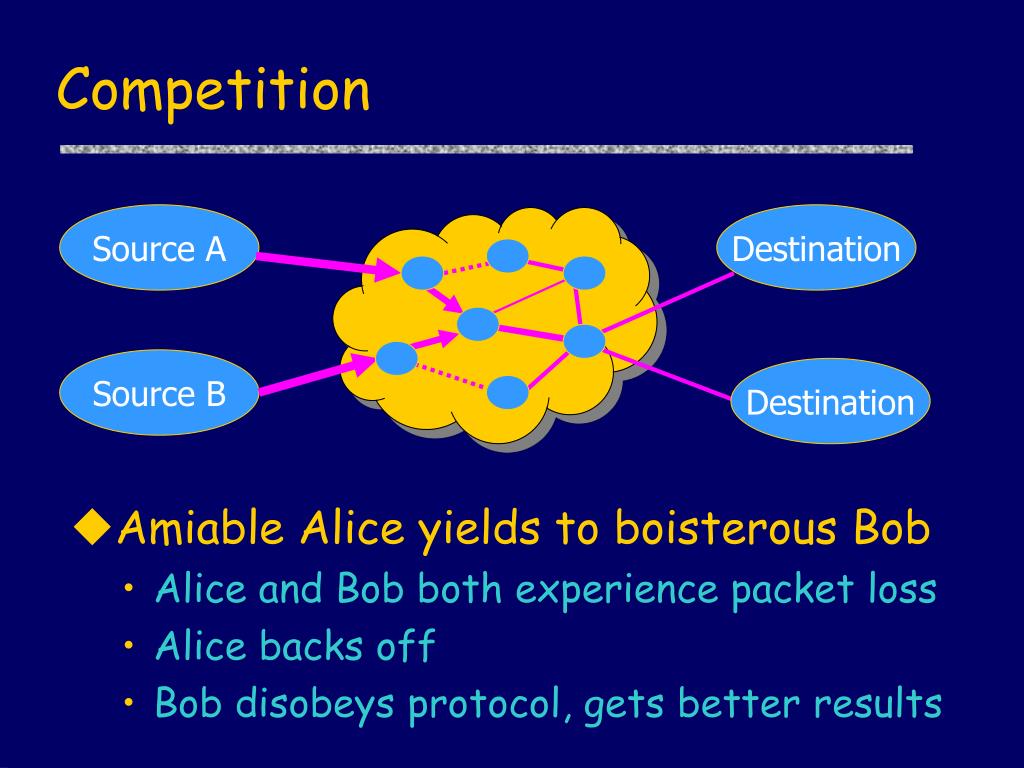

6. Competition • Amiable Alice yields to boisterous Bob • Alice and Bob both experience packet loss • Alice backs off • Bob disobeys protocol, gets better results Source A Destination Source B Destination

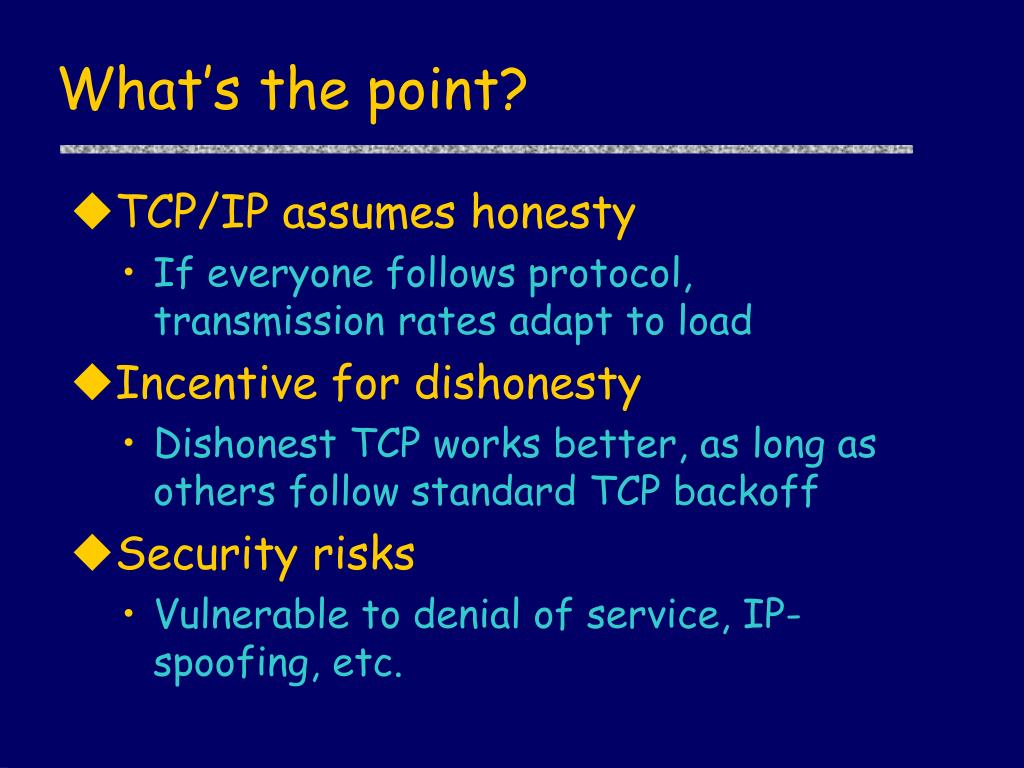

7. What’s the point? • TCP/IP assumes honesty • If everyone follows protocol, transmission rates adapt to load • Incentive for dishonesty • Dishonest TCP works better, as long as others follow standard TCP backoff • Security risks • Vulnerable to denial of service, IP-spoofing, etc.

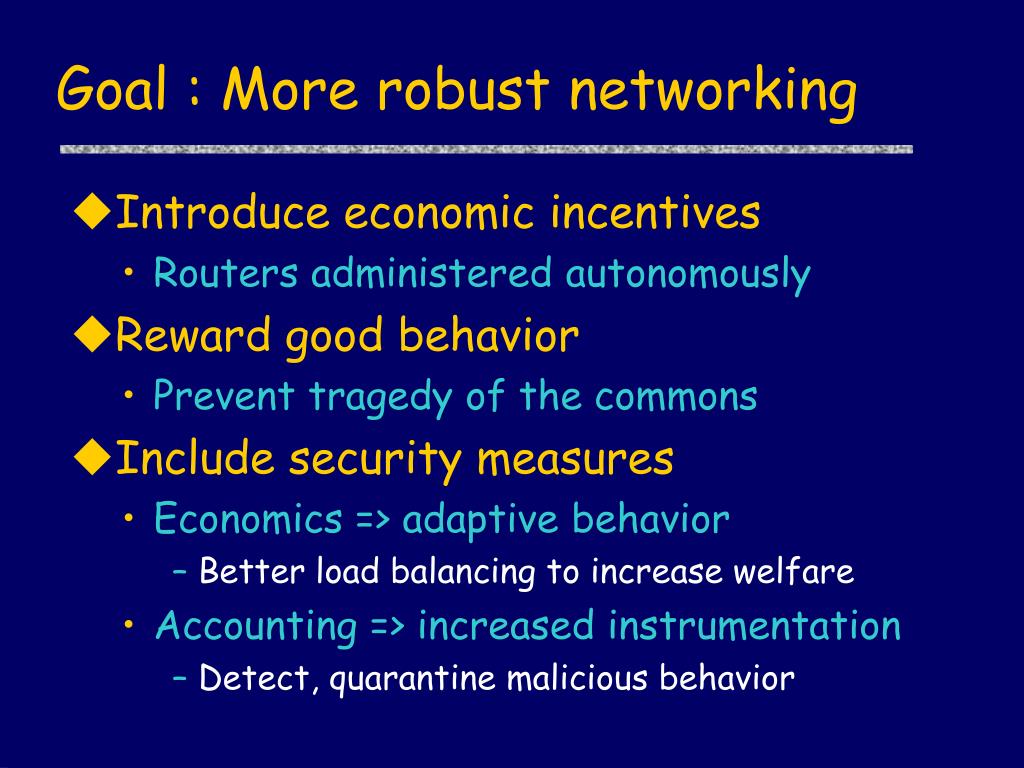

8. Goal : More robust networking • Introduce economic incentives • Routers administered autonomously • Reward good behavior • Prevent tragedy of the commons • Include security measures • Economics => adaptive behavior • Better load balancing to increase welfare • Accounting => increased instrumentation • Detect, quarantine malicious behavior

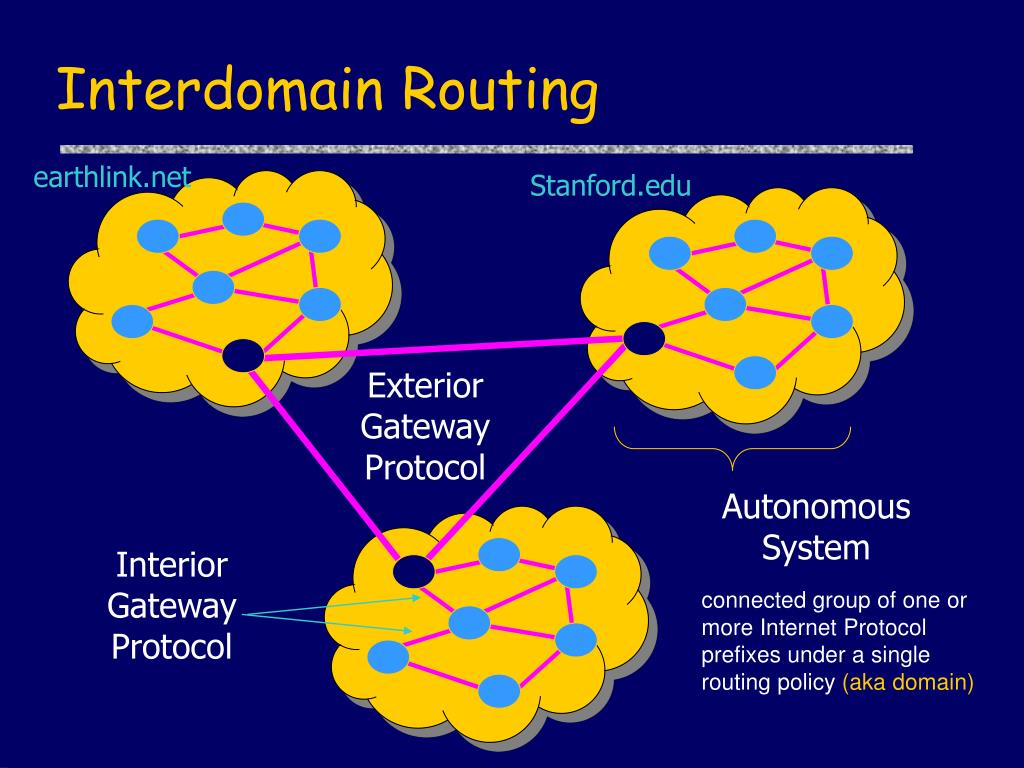

9. Interdomain Routing earthlink.net Stanford.edu Exterior Gateway Protocol Autonomous System Interior Gateway Protocol connected group of one or more Internet Protocol prefixes under a single routing policy (aka domain)

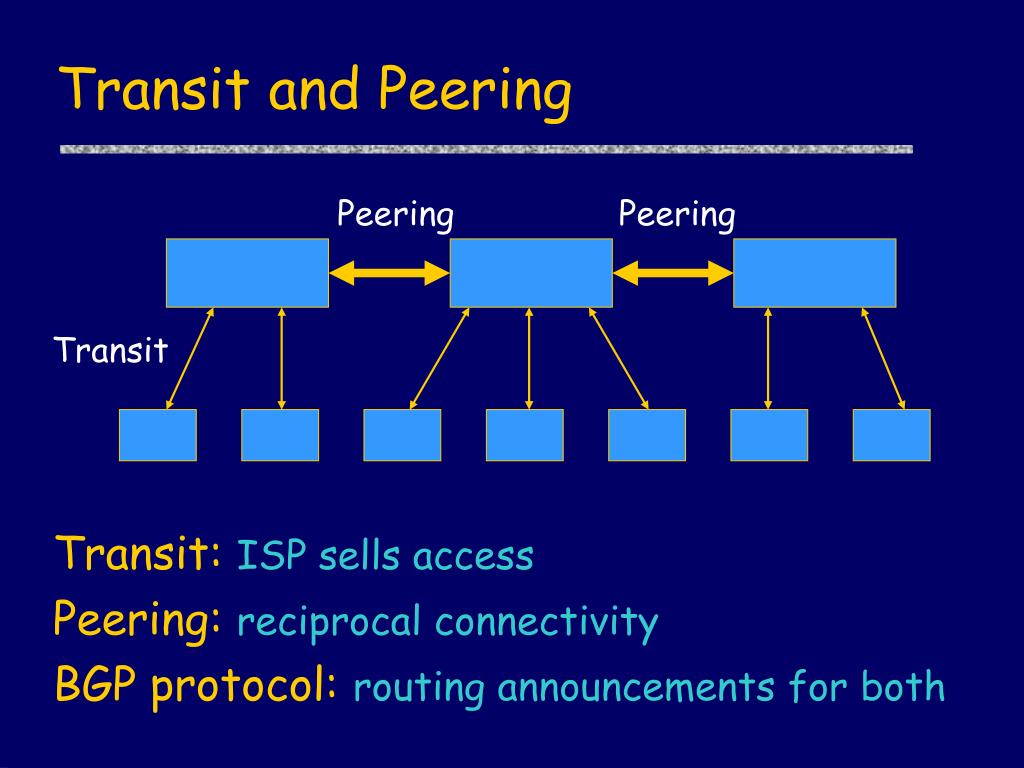

10. Transit and Peering Transit: ISP sells access Peering: reciprocal connectivity BGP protocol: routing announcements for both Peering Peering Transit

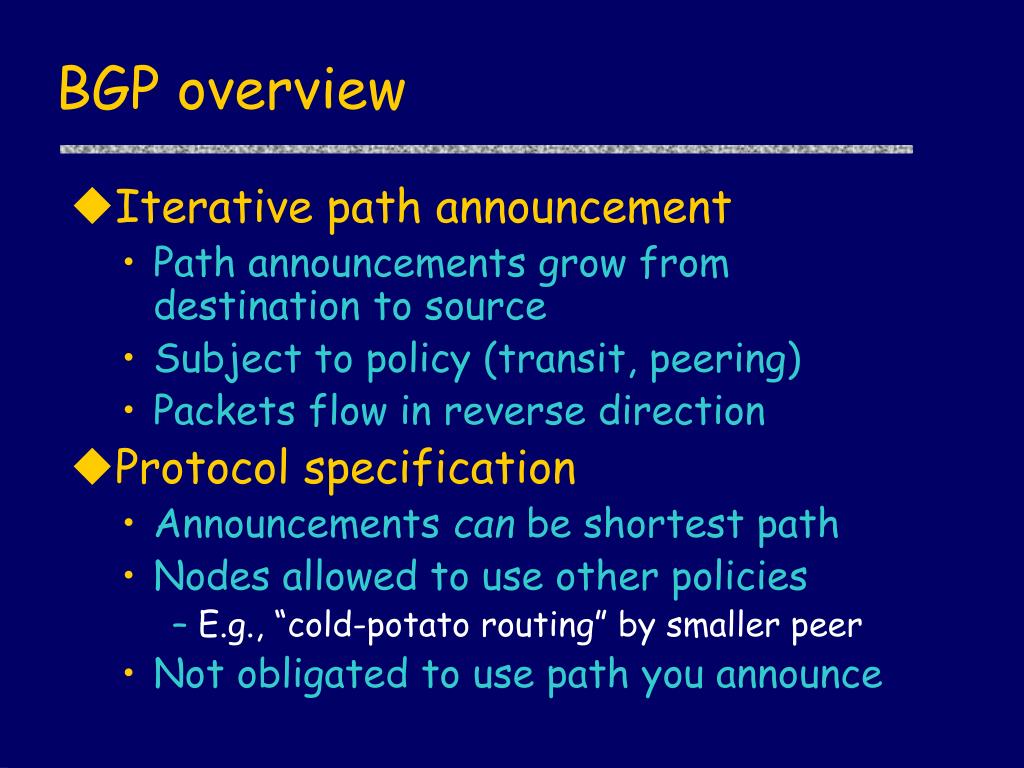

11. BGP overview • Iterative path announcement • Path announcements grow from destination to source • Subject to policy (transit, peering) • Packets flow in reverse direction • Protocol specification • Announcements can be shortest path • Nodes allowed to use other policies • E.g., “cold-potato routing” by smaller peer • Not obligated to use path you announce

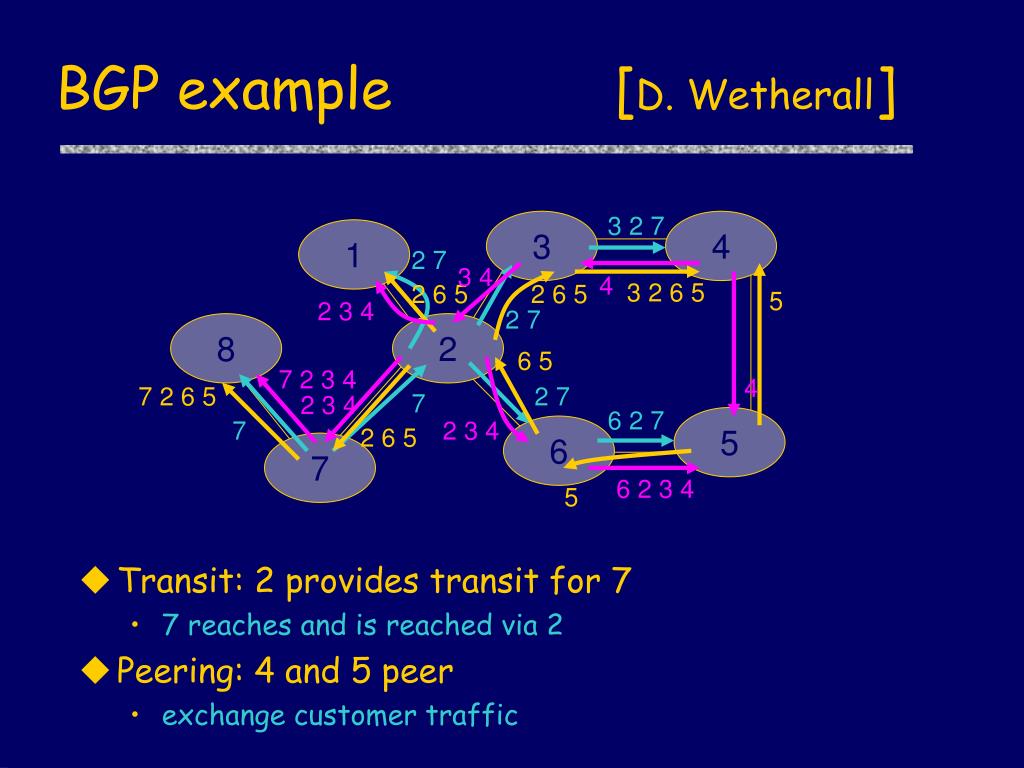

12. 3 2 7 2 7 3 4 4 3 2 6 5 2 6 5 2 6 5 5 2 3 4 2 7 6 5 7 2 3 4 4 7 2 6 5 2 7 7 2 3 4 6 2 7 7 2 3 4 2 6 5 6 2 3 4 5 BGP example [D. Wetherall] • Transit: 2 provides transit for 7 • 7 reaches and is reached via 2 • Peering: 4 and 5 peer • exchange customer traffic 3 4 1 8 2 5 6 7

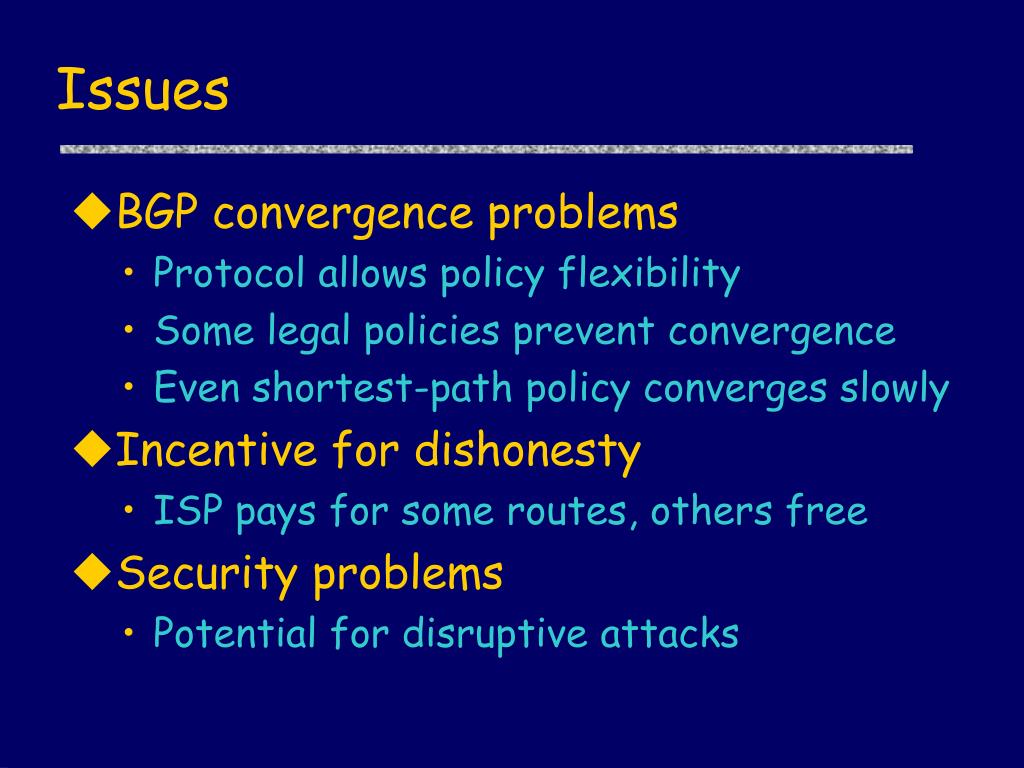

13. Issues • BGP convergence problems • Protocol allows policy flexibility • Some legal policies prevent convergence • Even shortest-path policy converges slowly • Incentive for dishonesty • ISP pays for some routes, others free • Security problems • Potential for disruptive attacks

14. Evidence: Asymmetric Routes Alice Bob • Alice, Bob use cheapest routes to each other • These are not always shortest paths • Asymmetic routes are prevalent • AS asymmetry in 30% of measured routes • Finer-grained asymmetry far more prevalent

15. Mechanism Design • Charge for goods • Assume agents have rational self-interest • Provide incentives via pricing function • Traditional use • Maximize social welfare • Make honesty the best policy (revelation principle) • Network applications • Maximize throughput, resilience to attack • Fake money as good as real money

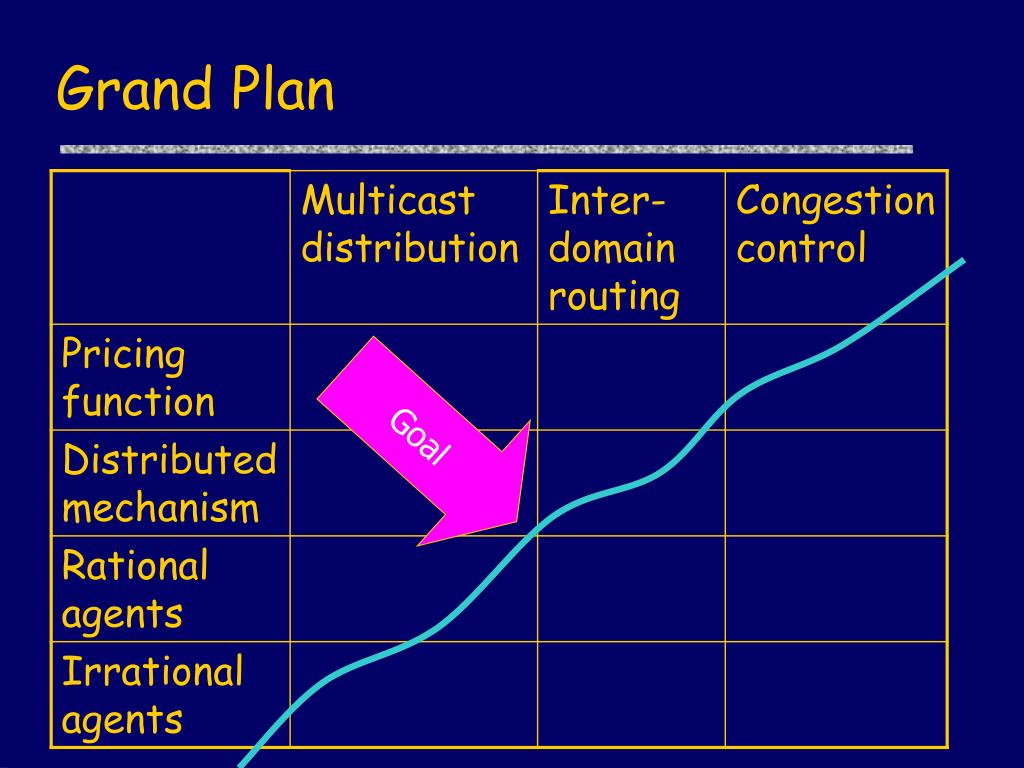

16. Grand Plan Goal

17. Multicast cost sharing Node link Node • Distribute some good • Each node has some utility for the good • Each link has some cost • Which nodes get the transmission? link link Node Node

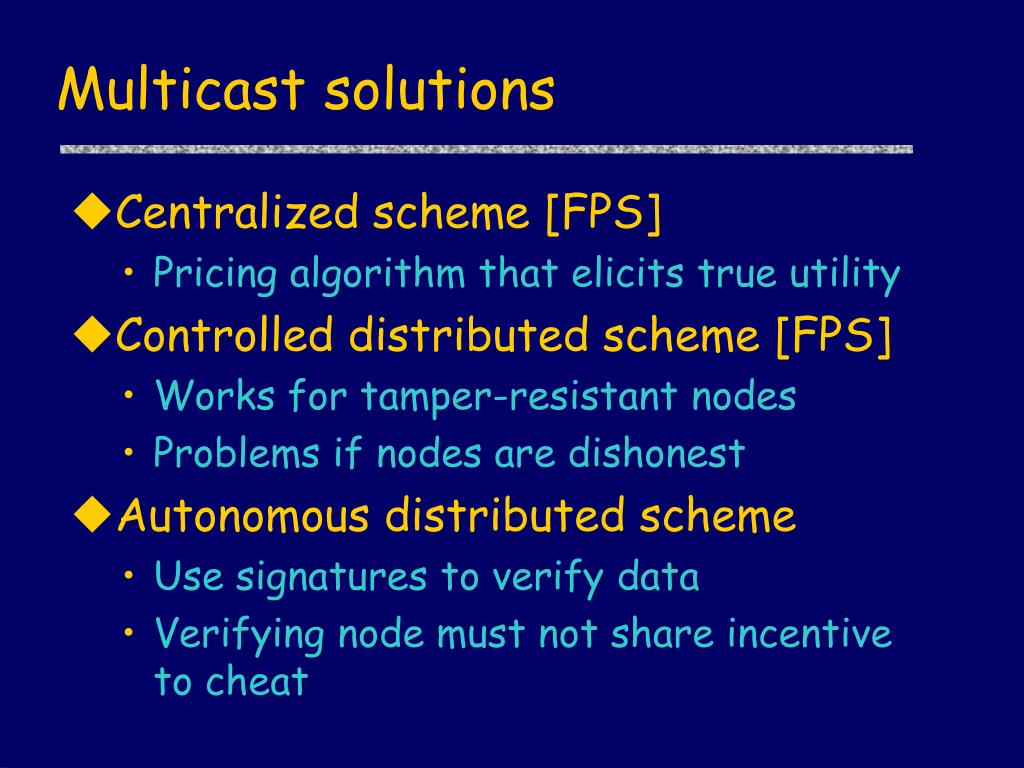

18. Multicast solutions • Centralized scheme [FPS] • Pricing algorithm that elicits true utility • Controlled distributed scheme [FPS] • Works for tamper-resistant nodes • Problems if nodes are dishonest • Autonomous distributed scheme • Use signatures to verify data • Verifying node must not share incentive to cheat

19. Traditional Goals • Efficient • Maximize overall welfare • Welfare = total utility of agents that get good  total network costs for links used • Strategyproof • Agent cannot gain by lying about its utility May not maximize profit for sender

20. FPS Network Assumptions • Nodes and agents • Each node has trusted router • Router connected to untrusted agents • Transmission costs • Link cost known to the two nodes at each end Simplification: will assume one agent per node

21. Centralized Scheme • Data collection • Agent reports utility to central authority • Computation • Compute welfare of each subtree • Routing decision • Transmit good to subtree if welfare  0

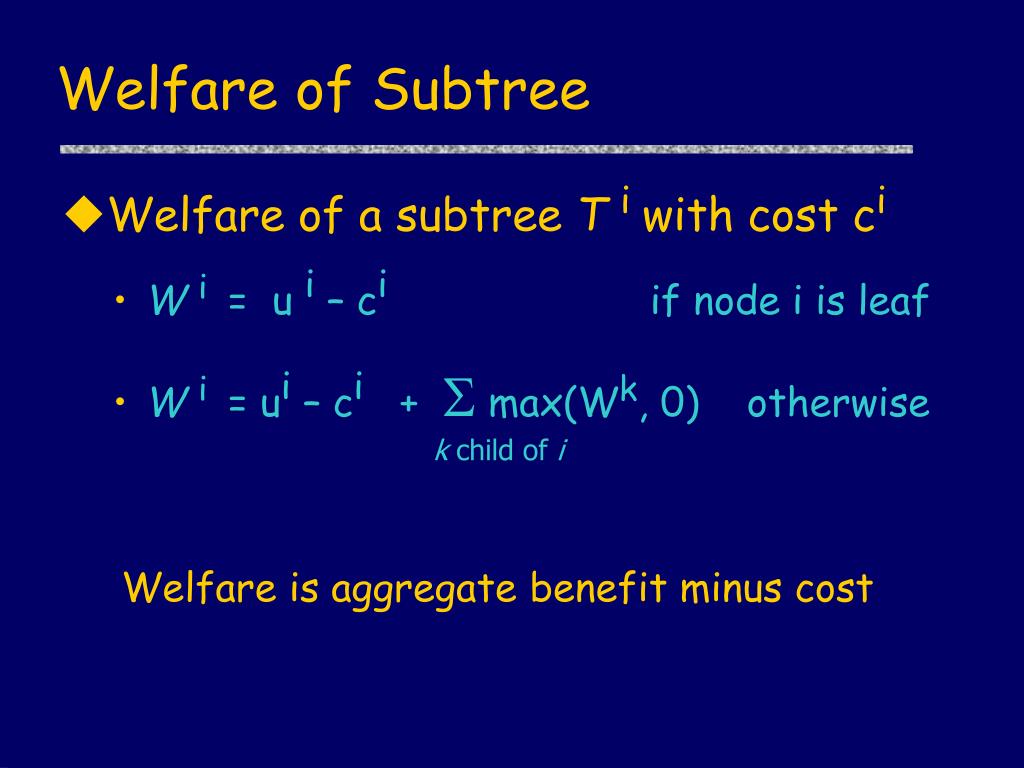

22. Welfare of Subtree • Welfare of a subtree T i with cost ci • Wi = u i – ci if node i is leaf • Wi = ui – ci +  max(Wk, 0) otherwise Welfare is aggregate benefit minus cost k child of i

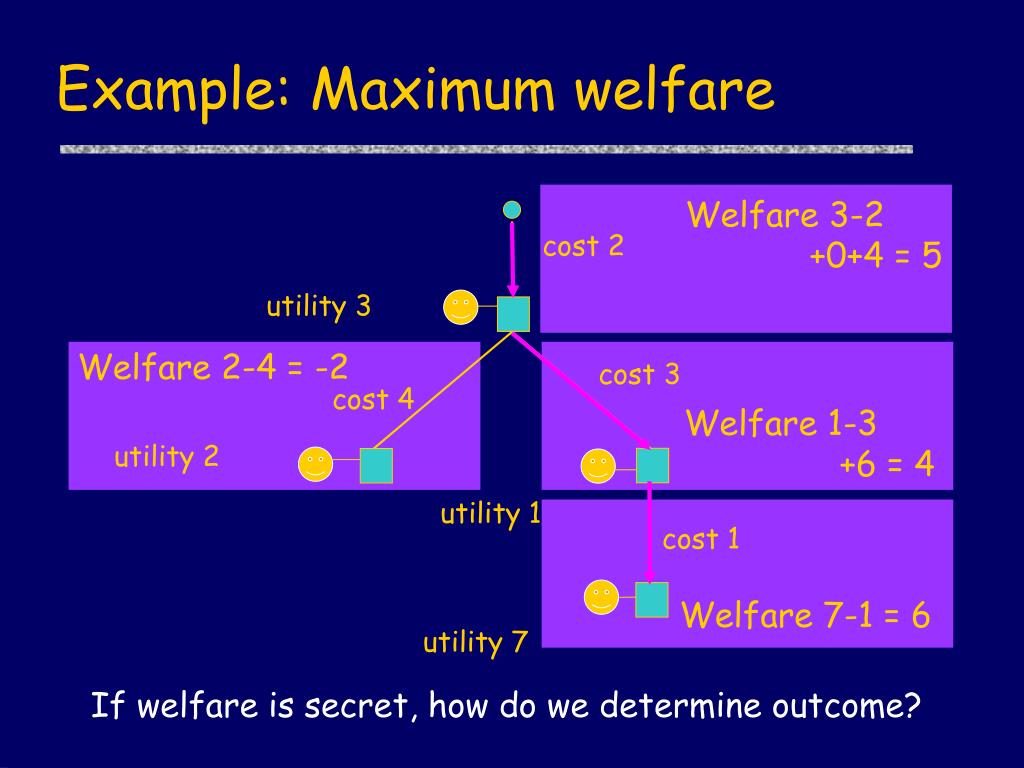

23. Welfare 3-2 +0+4 = 5 Welfare 2-4 = -2 Welfare 1-3 +6 = 4 Welfare 7-1 = 6 Example: Maximum welfare cost 2 utility 3 cost 3 cost 4 utility 2 utility 1 cost 1 utility 7 If welfare is secret, how do we determine outcome?

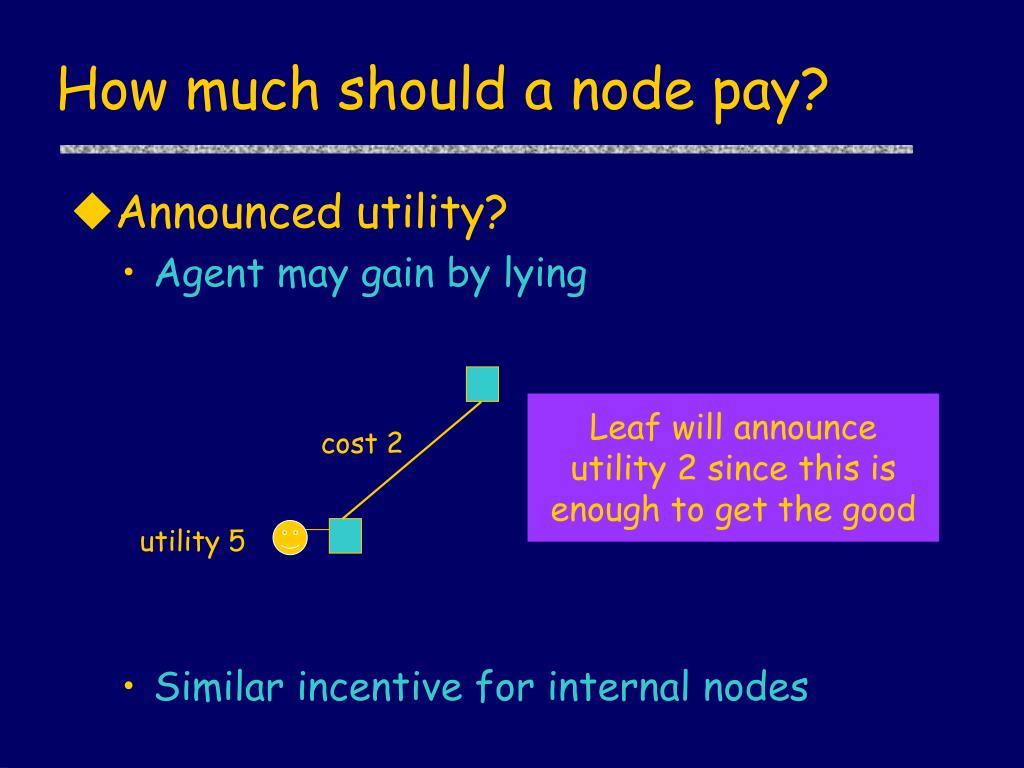

24. How much should a node pay? • Announced utility? • Agent may gain by lying Leaf will announce utility 2 since this is enough to get the good cost 2 utility 5 • Similar incentive for internal nodes

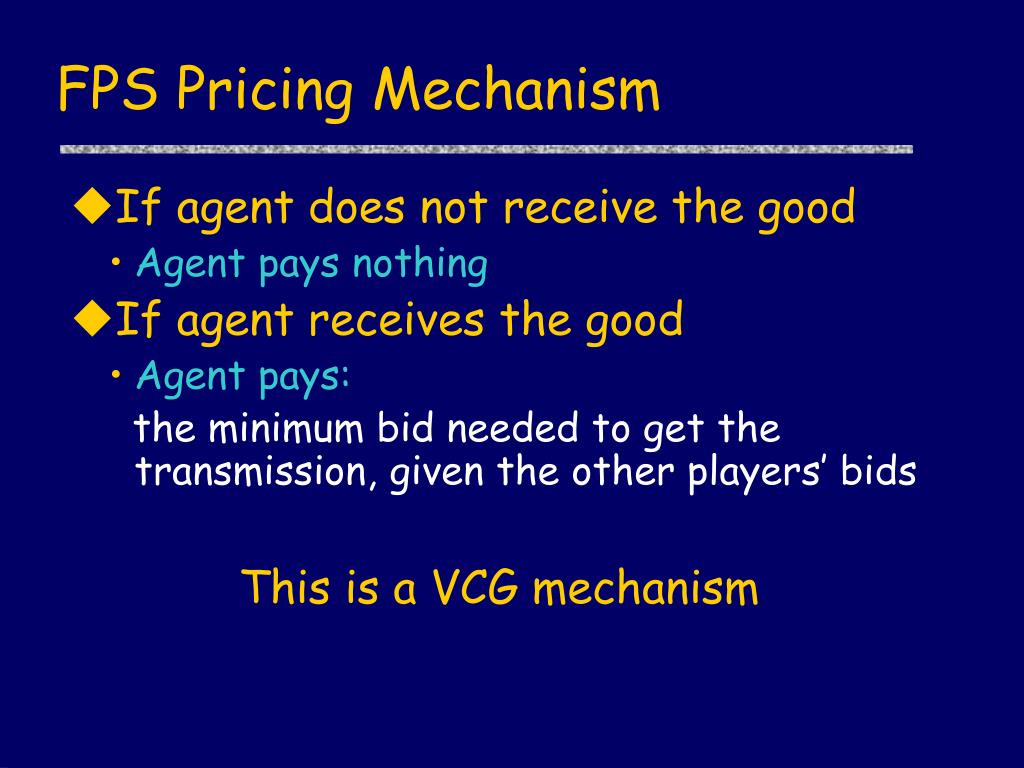

25. FPS Pricing Mechanism • If agent does not receive the good • Agent pays nothing • If agent receives the good • Agent pays: the minimum bid needed to get the transmission, given the other players’ bids This is a VCG mechanism

26. Welfare 3-2 +0+4 = 3 0 1 Welfare 2-4 = -2 0 2 3 2 3 Example price calculations cost 2 utility 3 Welfare 1-3 +6 = 4 cost 3 cost 4 Agent pays 0 utility 2 utility 1 Welfare 7-1 = 6 cost 1 Agent pays 3 utility 7

27. Strategyproof and Efficient • Efficient (max welfare) by construction • Add omitted subtree -> decrease welfare • Remove routed subtree -> decrease welfare This argument assumes agents tell truth • Agent can bid true utility • Payment is independent of bid, given outcome • Bid more than utility  • doesn’t help, or pay too much • Bid less than utility  • doesn’t help, or don’t get the transmission

28. Tell truth if you buy the good Don’t get transmission min bid to get transmission Get transmission utility bid true u Don’t get good you want

29. Tell truth if you don’t buy good Pay more than u Don’t get transmission min bid to get transmission Get transmission utility bid true u

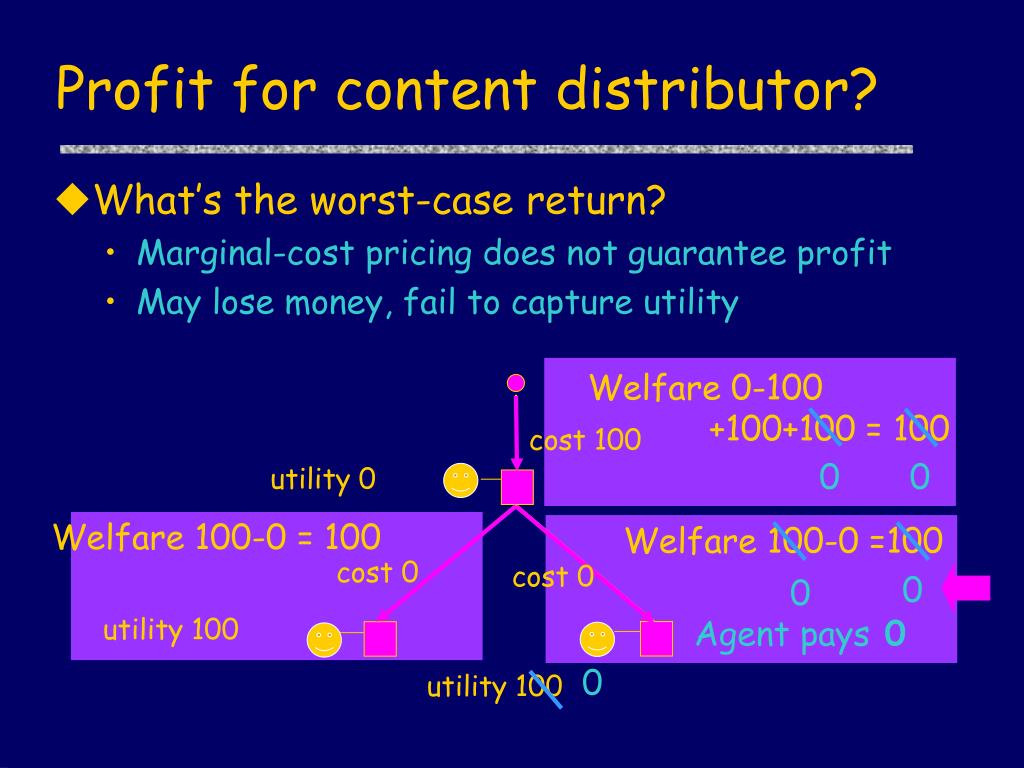

30. Welfare 0-100 +100+100 = 100 Welfare 100-0 = 100 0 0 Welfare 100-0 =100 0 0 0 Profit for content distributor? • What’s the worst-case return? • Marginal-cost pricing does not guarantee profit • May lose money, fail to capture utility cost 100 utility 0 cost 0 cost 0 utility 100 Agent pays 0 utility 100

31. Wmin = 5 Welfare 3 - 2 + 4 = 5 Wmin = 5 Welfare 1-3 + 6 = 4 Welfare 2-4 = -2 “No transmission” Wmin = 4 Welfare 7-1 = 6 Distributed implementation cost 2 utility 3 cost 3 cost 4 utility 1 utility 2 cost 1 1) Send welfare up tree 2) Send min welfare Wmindown tree 3) Compute payment = utility -Wmin utility 7

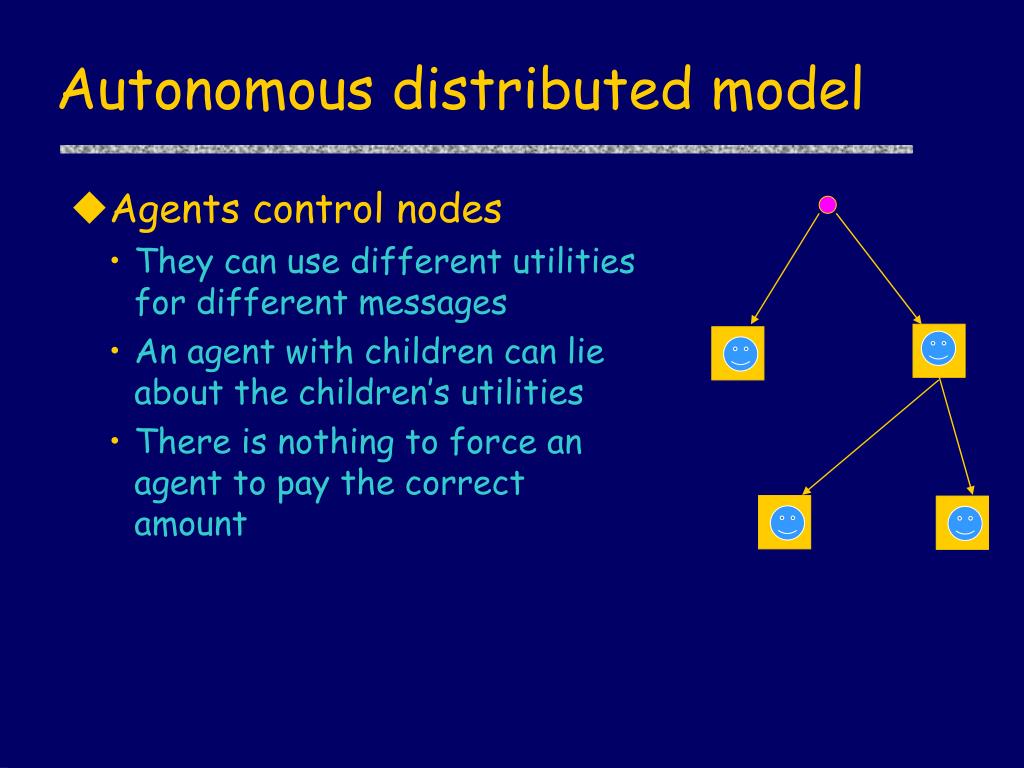

32. Autonomous distributed model • Agents control nodes • They can use different utilities for different messages • An agent with children can lie about the children’s utilities • There is nothing to force an agent to pay the correct amount

33. Welfare 2-3+2 = 1 Welfare 2-3+2 = 1 Wmin = 1 Wmin = 1 Welfare 7-5 = 2 Welfare 2 Wmin = 1 Wmin = 0 Node can cheat its children The truth The cheat source source cost 3 cost 3 utility 2 utility 2 cost 5 cost 5 utility 7 utility 7 Parent pays 0 Child pays 7 Parent pays 1 Child pays 6 Child can’t see that parent doesn’t pay

34. More ways to cheat • Second example • Node can cheat but all messages look consistent • Conclusion • Need to use payment and messages to detect cheating

35. Wmin = 0 Welfare 2 - 2 + 0 = 0 Wmin = 0 Welfare 1 - 1 = 0 Welfare 1 - 1 = 0 Wmin = 0 Pay: 2 1 1 Second Example Truthful computation source cost 2 utility 2 1 cost 1 cost 1 utility 1 3 utility 1 2

36. Wmin = 2 Wmin = 2 Welfare 2 Welfare 2-2+0+2=2 Welfare 1-1=0 Welfare 3-1=2 Wmin = 2 Wmin = 2 Wmin = 2 Wmin = 2 Welfare 1-1=0 Welfare 1-1=0 Pay: Pay: 0 0 1 1 1 1 Example 2 Agent 1 behaves as if utility=4 until time to pay, then utility=2 Each child thinks other has utility 3 What agent 3 thinks Deception source source cost 2 cost 2 utility 4? utilty 2 1 1 cost 1 cost 1 cost 1 cost 1 3 3 2 2 utility 1 utility 1 utility 1 utility 3

37. Prevent cheating • Assume public-key infrastructure • Each node has verifiable signature • Augment messages • Sign data from FPS algorithm • Parent returns signed W to child • Nodes send payment + proof • Proof is signed data showing payment is calculated correctly Two improvements yet to come

38. Node J sends payment and proof New data – used in j’s proof p Sign(p, Wmin), Sign(p, W j ) Sign(j, W j) j Sign(d2, W d2 ) Sign (d1, W d1 ) Sign(j, Wmin) Sign(j, Wmin) utility Wd2 d2 utility Wd1 d1 Agent j pays Pj = Uj – min(Wmin, Wj) where Uj = cj + Wj – (Wd1 + Wd2) Calculation of Pj is verifiable from messages signed by p, d1, d2.

39. Node J sends payment and proof • Lemma • If parent p and children d1, …, dk are honest, then node j cannot improve own welfare by not sending correct values • Proof idea • If node does not send correct proof, we punish j  node sends correct W j • Node j cannot gain by sending incorrect data down tree, since these do not change P j

40. Shortcomings • Proof checked by central authority • Node can be mischievous • Node cannot increase own welfare by sending bad values down tree • But node can make life worse for others Wmintoo low => nodes below pay too much Wmintoo high => pay too little, distributor loses

41. Randomized checking • Nodes pay and save proof • Randomly select node to audit • If node has correct proof, OK • If node cannot show proof, punish • Fine node, or prohibit from further transmission (route around bad node) • Make punishment high enough so expected benefit of cheating is negative • Reduce traffic, same outcome Bombay bus fine…

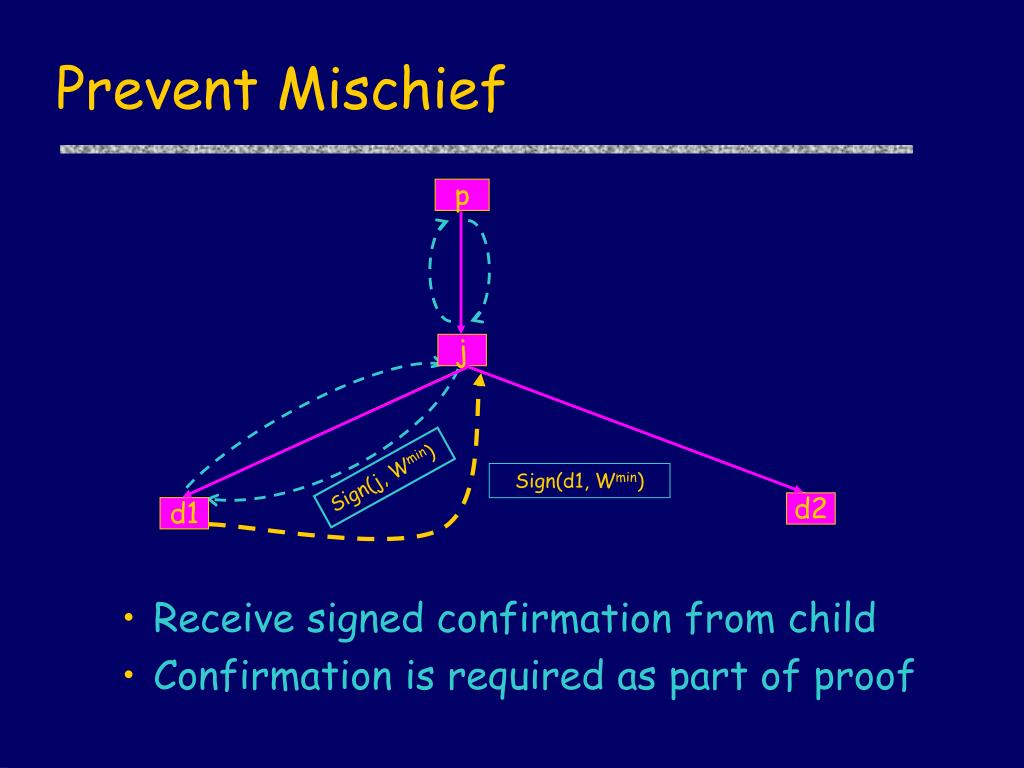

42. Prevent Mischief • Receive signed confirmation from child • Confirmation is required as part of proof p j Sign(j, Wmin) Sign(d1, Wmin) d2 d1

43. Status of Multicast Cost Sharing • Pricing function provides incentive • Distributed algorithm computes price • Techniques to encourage compliance • Nodes save signed confirmation of msgs • Randomized auditing incents compliance • Alternative: neighbors rewarded for turning in cheaters • Route around nodes that cause trouble

44. Grand Plan Goal
