  1. Deployment and Wrapping of legacy applications with ProActive Stephane Mariani Stephane.Mariani@sophia.inria.fr http://ProActive.ObjectWeb.org OASIS Team March, 13th

  2. Outline • Motivation • Research Goals • Infrastructure Model • Deploying • Simply deploy • Simply program • Interacting • Concept • System overview • Programming • Conclusion • Future Works Stephane Mariani

  3. Motivation • Grid Computing: large scale resource sharing, high performance. • We want to run parallel programs, or couple parallel applications. • Parallel programming requires a suitable programming model: e.g message passing (MPI), threads (OpenMP)… • MPI implementations for Grids are available: e.g MPICH-G2 • weaknesses: not designed for grid requirements: e.g MPICH-G2 requires the Globus toolkit to be installed in all domains (to adress the issues of security, cross domain communications). • ProActive: provides an API to simplify the programming of Grid Computing applications: on LAN, cluster, Internet Grids. Stephane Mariani

  4. Research Goals • Ease the deployment and interaction between several MPI (legacy) codes on the Grid • Use available resources transparently • Manage the execution and interoperability of parallel MPI applications on multiple ressources in Grid environment (intranet desktop grids, clusters) • High-level programming model Stephane Mariani

  5. Infrastructure model DeployingInteracting Stephane Mariani

  6. Deploying Stephane Mariani

  7. Internet Deploying Cluster Cluster Intranet Desktop Grid Stephane Mariani

  8. Internet Deploying mpi application mpi application Cluster mpi application Cluster Intranet Desktop Grid Stephane Mariani

  9. Deploying Simply deploy A key principle: Virtual Node (VN) + XML deployment file • Mapping of VN to JVMs • Register or Lookup VNs • Create or Acquire JVMs • Identified as a string name • Used in program source • Configured (mapped) in the XML descriptor file --> Nodes Stephane Mariani

  10. VirtualNode Internet VirtualNode Deploying mpi application mpi application Cluster (PBS) mpi application VirtualNode Cluster (LSF) Intranet Desktop Grid Stephane Mariani

  11. Deploying Simply deploy Virtual Node definition <virtualNodesDefinition> <virtualNode name="deskGridVN"/> <virtualNode name="clustLSFVN"/> <virtualNode name="clustPBSVN"/> </virtualNodesDefinition> <map virtualNode="deskGridVN"> <jvmSet> <vmName value="deskGridJvm"/> </jvmSet> </map> <map virtualNode="clustLSFVN"> <jvmSet> <vmName value="clustLSFJvm"/> </jvmSet> </map> <map virtualNode="clustPBSVN"> <jvmSet> <vmName value="clustPBSJvm"/> </jvmSet> </map> How to deploy? Definition of Virtual Nodes Definitions and mapping Mapping of Virtual Nodes Stephane Mariani

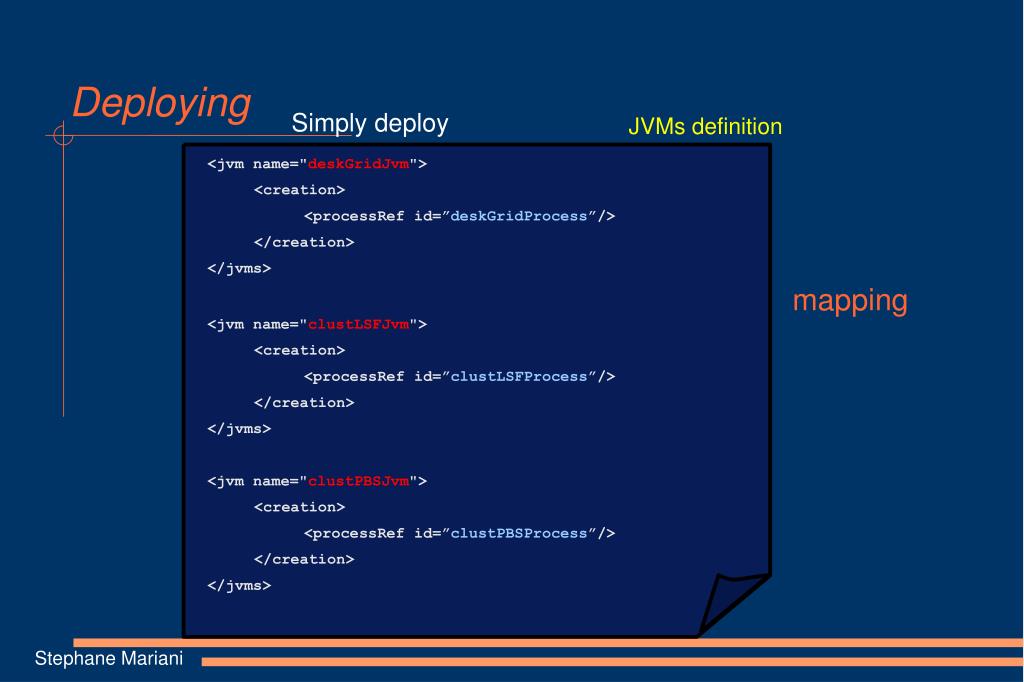

  12. Deploying Simply deploy JVMs definition <jvm name="deskGridJvm"> <creation> <processRef id=”deskGridProcess”/> </creation> </jvms> <jvm name="clustLSFJvm"> <creation> <processRef id=”clustLSFProcess”/> </creation> </jvms> <jvm name="clustPBSJvm"> <creation> <processRef id=”clustPBSProcess”/> </creation> </jvms> How to deploy? mapping Stephane Mariani

  13. Deploying Simply deploy Process or Service definition <processDefinition id=”deskGridProcess”> <dependentProcessSequence class=”org.objectweb.proactive.core.process.DependentListProcess”> <serviceRef refid=”p2pservice”/> <processRef refid=”mpiProcessDeskGrid”/> </processDefinition> <processDefinition id=”clustLSFProcess”> <dependentProcessSequence class=”org.objectweb.proactive.core.process.DependentListProcess”> <processRef refid=”LSFProcess”/> <processRef refid=”mpiProcessClustLSF”/> </processDefinition> <processDefinition id=”clustPBSProcess”> <dependentProcessSequence class=”org.objectweb.proactive.core.process.DependentListProcess”> <processRef refid=”PBSProcess”/> <processRef refid=”mpiProcessClustPBS”/> </processDefinition> How to deploy? Infrastructure informations Stephane Mariani

  14. Deploying Simply deploy MPI process definition <processDefinition id=”mpiProcessClustPBS”> <mpiProcess class=”org.objectweb.proactive.core.process.mpi.MPIDependentProcess” mpiFileName=”myexec” mpiCommandOptions=”-option input.data output.res”> <commandPath value="/opt/mpich/gnu/bin/mpirun"/> <mpiOptions> <processNumber>16</processNumber> <localRelativePath> <relativePath origin="user.home" value="MPIRep" /> </localRelativePath> <remoteAbsolutePath> <absolutePath value="/home/smariani/MPIRep" /> </remoteAbsolutePath> </mpiOptions> </mpiProcess> </processDefinition> How to deploy? Infrastructure informations Stephane Mariani

  15. Deploying Simply program • Descriptor pad = ProActive.getDescriptor("file:DeploymentDescriptor.xml"); • VirtualNode vnDeskGrid = pad.getVirtualNode ("deskGridVN"); • VirtualNode vnClustLSF = pad.getVirtualNode ("clustLSFVN"); • VirtualNode vnClustPBS = pad.getVirtualNode ("clustPBSVN"); • // triggers JVMs creation and creates MPISpmd Active Object from Virtual Nodes • MPISpmd deskGridSpmd = MPI.newMPISpmd ("vnDeskGrid"); • MPISpmd clustLSFSpmd = MPI.newMPISpmd ("vnClustLSF"); • MPISpmd clustPBSSpmd = MPI.newMPISpmd ("vnClustPBS"); • // triggers the mpi codes execution and return a Future on MPIResult object • MPIResult deskGridRes = deskGridSpmd.startMPI(); • MPIResult clustLSFRes = clustLSFSpmd.startMPI(); • MPIResult clustPBSRes = clustPBSSpmd.startMPI(); Stephane Mariani

  16. mpi process mpi process mpi process mpi process mpi process mpi process mpi process mpi process mpi process mpi process mpi process mpi process mpi process mpi process mpi process mpi process mpi process mpi process mpi process mpi process mpi process mpi process mpi process mpi process mpi process Deploying mpi application mpi application mpi process mpi process Cluster mpi process MPISpmd mpi application MPISpmd mpi process MPISpmd mpi process Cluster mpi process Intranet Desktop Grid Stephane Mariani

  17. Deploying Simply program • MPI_UNSTARTED • MPI_RUNNING • MPI_STOPPED • MPI_KILLED • MPI_FINISHED // prints current status of object log(" Current Status of MPI code on Desktop Grid: "+deskGridSpmd.getStatus()) reStartMPI MPI.newMPISpmd(...) startMPI MPI UNSTARTED MPI RUNNING reStartMPI wait-by-necessity stopMPI reStartMPI startMPI reStartMPI stopMPI MPI STOPPED MPI FINISHED IllegalMPIStateException startMPI stopMPI stopMPI startMPI reStartMPI stopMPI startMPI killMPI killMPI MPI KILLED killMPI killMPI Stephane Mariani

  18. Deploying Simply program Code synchronization // prints result value of mpi code execution log(" Result of MPI code on Desktop Grid: "+deskGridRes.getReturnValue()); Wait-by-necessity blocks the thread until deskGridRes object is available. Stephane Mariani

  19. Interacting Stephane Mariani

  20. Internet mpi application mpi application 0 0 0 0 0 1 1 1 1 1 0 3 8 2 1 0 3 2 1 1 1 1 0 0 0 0 0 4 6 7 5 9 5 4 7 6 Interacting Concept • Just few changes in source code • No extension to MPI • Usage of vendor implemented MPI for internal communication. • Usage of ProActive for external communication. Stephane Mariani

  21. JVM JVM JVM JVM JVM JVM JVM JVM JVM JVM JVM JVM JVM JVM JVM JVM JVM JVM JVM JVM Creating or acquiring JVMs Interacting Cluster Intranet Desktop Grid System overview Cluster Stephane Mariani

  22. JVM JVM JVM JVM JVM JVM JVM AO AO AO JVM JVM JVM JVM AO AO AO JVM JVM JVM JVM JVM JVM JVM JVM JVM Deploying Active Objects using Groups Interacting Cluster Intranet Desktop Grid AO AO AO AO AO AO AO AO System overview AO Cluster AO AO AO AO AO AO AO AO AO AO AO Stephane Mariani

  23. AO Req. queue AO Req. queue JVM JVM C2S QUEUE S2C QUEUE JVM AO Loading Library and initializing Message queues Interacting Cluster JVM JVM Active Object Active Object idJob=0 JNI (Java Native Int) JNI (Java Native Int.) System overview C2S QUEUE AO Cluster idJob=1 AO Stephane Mariani

  24. IPC: message queues Interacting Basic idea: • Two or more processes can exchange information via access to a common system message queue. • Can be seen as an internal linked list stored inside the kernel’s memory space. • New messages are added at the end of the queue. Efficiency: • Synchronization is provided automatically by the kernel unlike Shared Memory. • Messages may be obtained from the queue either in a FIFO manner (default) or by requesting a specific type of message. System overview Stephane Mariani

  25. AO Req. queue AO Req. queue JVM JVM C2S QUEUE S2C QUEUE JVM AO Triggering MPI execution using API Interacting Cluster JVM JVM Application Application Active Object Active Object idJob=0 MPI MPI IPCmodule Network Network JNI (Java Native Int) JNI (Java Native Int.) System overview C2S QUEUE AO Cluster idJob=1 AO Stephane Mariani

  26. Registering Active Object with mpi process rank AO Req. queue AO Req. queue JVM JVM C2S QUEUE C2S QUEUE S2C QUEUE JVM AO Interacting Cluster JVM JVM Application Application Active Object Active Object idJob=0 MPI MPI IPCmodule IPCmodule Network Network JNI (Java Native Int) JNI (Java Native Int.) rank System overview AO Register(idJob, rank) Cluster idJob=1 AO Stephane Mariani

  27. Point-to-point inter-communication AO Req. queue AO Req. queue AO Req. queue JVM JVM C2S QUEUE C2S QUEUE C2S QUEUE C2S QUEUE S2C QUEUE JVM AO S2C QUEUE Interacting Cluster JVM JVM Application Application Active Object Active Object idJob=0 MPI MPI IPCmodule Network Network JNI (Java Native Int.) JNI (Java Native Int) data System overview AO send(idJob, rank, data ) send Cluster idJob=1 JVM JVM AO Application Application Active Object Active Object MPI MPI IPCmodule Network Network JNI (Java Native Int.) JNI (Java Native Int) Stephane Mariani

  28. JVM WAN 1 1 2 2 0 0 0 1 1 1 0 0 Using IPCModule functions: point-to-point communication Interacting Cluster idJob=0 Intranet Desktop Grid MPI_Init(); ProActiveMPI_Init(myrank); If (myrank==0) { ProActiveMPI_Send(2,&bufSnd,cnt,myrank,MPI_CHAR,0,0); } Else if (myrank==1) { ProActiveMPI_Recv(1, &bufRcv, cnt, 1, MPI_CHAR, 0); } ProActiveMPI_Finalize(); MPI_Finalize(); MPI_Init(); ProActiveMPI_Init(myrank); If (myrank==0) { ProActiveMPI_Recv(2, &buf, cnt, 1, MPI_CHAR, 0); MPI_Send(&buf, cnt, MPI_CHAR, 1, 0, MPI_COMM_WORLD); } Else if (myrank==1) { MPI_Recv(&buf, cnt, MPI_CHAR, 0, 0, MPI_COMM_WORLD, &status); ProActiveMPI_Send(0, &buf, cnt, myrank, MPI_CHAR, 1, 0); } ProActiveMPI_Finalize(); MPI_Finalize(); idJob=1 Programming idJob=2 Cluster MPI_Init(); ProActiveMPI_Init(myrank); If (myrank==0) { ProActiveMPI_Recv(0,&buf,cnt,0,MPI_CHAR,0); MPI_Send(&buf, cnt, MPI_CHAR, 1, 0, MPI_COMM_WORLD); } Else if (myrank==1) { MPI_Recv(&buf, cnt, MPI_CHAR, 0, 0, MPI_COMM_WORLD, &status); ProActiveMPI_Send(1,&buf,cnt,myrank,MPI_CHAR,0,0); } ProActiveMPI_Finalize(); MPI_Finalize(); Stephane Mariani

  29. JVM WAN 1 1 2 2 0 0 1 0 1 0 1 0 1 Using IPCModule functions: point-to-point communication Interacting Cluster idJob=0 Intranet Desktop Grid MPI_Init(); ProActiveMPI_Init(myrank); If (myrank==0) { ProActiveMPI_Send(2,&bufSnd,cnt,myrank,MPI_CHAR,0,0); } Else if (myrank==1) { ProActiveMPI_Recv(1, &bufRcv, cnt, 1, MPI_CHAR, 0); } ProActiveMPI_Finalize(); MPI_Finalize(); MPI_Init(); ProActiveMPI_Init(myrank); If (myrank==0) { ProActiveMPI_Recv(2, &buf, cnt, 1, MPI_CHAR, 0); MPI_Send(&buf, cnt, MPI_CHAR, 1, 0, MPI_COMM_WORLD); } Else if (myrank==1) { MPI_Recv(&buf, cnt, MPI_CHAR, 0, 0, MPI_COMM_WORLD, &status); ProActiveMPI_Send(0, &buf, cnt, myrank, MPI_CHAR, 1, 0); } ProActiveMPI_Finalize(); MPI_Finalize(); idJob=1 Programming 1 idJob=2 Cluster MPI_Init(); ProActiveMPI_Init(myrank); If (myrank==0) { ProActiveMPI_Recv(0,&buf,cnt,0,MPI_CHAR,0); MPI_Send(&buf, cnt, MPI_CHAR, 1, 0, MPI_COMM_WORLD); } Else if (myrank==1) { MPI_Recv(&buf, cnt, MPI_CHAR, 0, 0, MPI_COMM_WORLD, &status); ProActiveMPI_Send(1,&buf,cnt,myrank,MPI_CHAR,0,0); } ProActiveMPI_Finalize(); MPI_Finalize(); Stephane Mariani

  30. JVM WAN 1 1 2 2 0 0 1 0 1 0 1 0 1 Using IPCModule functions: point-to-point communication Interacting Cluster idJob=0 Intranet Desktop Grid MPI_Init(); ProActiveMPI_Init(myrank); If (myrank==0) { ProActiveMPI_Send(2,&bufSnd,cnt,myrank,MPI_CHAR,0,0); } Else if (myrank==1) { ProActiveMPI_Recv(1, &bufRcv, cnt, 1, MPI_CHAR, 0); } ProActiveMPI_Finalize(); MPI_Finalize(); MPI_Init(); ProActiveMPI_Init(myrank); If (myrank==0) { ProActiveMPI_Recv(2, &buf, cnt, 1, MPI_CHAR, 0); MPI_Send(&buf, cnt, MPI_CHAR, 1, 0, MPI_COMM_WORLD); } Else if (myrank==1) { MPI_Recv(&buf, cnt, MPI_CHAR, 0, 0, MPI_COMM_WORLD, &status); ProActiveMPI_Send(0, &buf, cnt, myrank, MPI_CHAR, 1, 0); } ProActiveMPI_Finalize(); MPI_Finalize(); idJob=1 Programming 1 idJob=2 Cluster MPI_Init(); ProActiveMPI_Init(myrank); If (myrank==0) { ProActiveMPI_Recv(0,&buf,cnt,0,MPI_CHAR,0); MPI_Send(&buf, cnt, MPI_CHAR, 1, 0, MPI_COMM_WORLD); } Else if (myrank==1) { MPI_Recv(&buf, cnt, MPI_CHAR, 0, 0, MPI_COMM_WORLD, &status); ProActiveMPI_Send(1,&buf,cnt,myrank,MPI_CHAR,0,0); } ProActiveMPI_Finalize(); MPI_Finalize(); Stephane Mariani

  31. JVM WAN 1 1 2 2 0 0 1 0 1 0 1 0 1 2 2 Using IPCModule functions: point-to-point communication Interacting Cluster idJob=0 Intranet Desktop Grid MPI_Init(); ProActiveMPI_Init(myrank); If (myrank==0) { ProActiveMPI_Send(2,&bufSnd,cnt,myrank,MPI_CHAR,0,0); } Else if (myrank==1) { ProActiveMPI_Recv(1, &bufRcv, cnt, 1, MPI_CHAR, 0); } ProActiveMPI_Finalize(); MPI_Finalize(); MPI_Init(); ProActiveMPI_Init(myrank); If (myrank==0) { ProActiveMPI_Recv(2, &buf, cnt, 1, MPI_CHAR, 0); MPI_Send(&buf, cnt, MPI_CHAR, 1, 0, MPI_COMM_WORLD); } Else if (myrank==1) { MPI_Recv(&buf, cnt, MPI_CHAR, 0, 0, MPI_COMM_WORLD, &status); ProActiveMPI_Send(0, &buf, cnt, myrank, MPI_CHAR, 1, 0); } ProActiveMPI_Finalize(); MPI_Finalize(); idJob=1 Programming 1 idJob=2 Cluster MPI_Init(); ProActiveMPI_Init(myrank); If (myrank==0) { ProActiveMPI_Recv(0,&buf,cnt,0,MPI_CHAR,0); MPI_Send(&buf, cnt, MPI_CHAR, 1, 0, MPI_COMM_WORLD); } Else if (myrank==1) { MPI_Recv(&buf, cnt, MPI_CHAR, 0, 0, MPI_COMM_WORLD, &status); ProActiveMPI_Send(1,&buf,cnt,myrank,MPI_CHAR,0,0); } ProActiveMPI_Finalize(); MPI_Finalize(); Stephane Mariani

  32. JVM WAN 1 1 2 2 0 0 1 0 1 0 1 0 1 2 2 Using IPCModule functions: point-to-point communication Interacting Cluster idJob=0 Intranet Desktop Grid MPI_Init(); ProActiveMPI_Init(myrank); If (myrank==0) { ProActiveMPI_Send(2,&bufSnd,cnt,myrank,MPI_CHAR,0,0); } Else if (myrank==1) { ProActiveMPI_Recv(1, &bufRcv, cnt, 1, MPI_CHAR, 0); } ProActiveMPI_Finalize(); MPI_Finalize(); MPI_Init(); ProActiveMPI_Init(myrank); If (myrank==0) { ProActiveMPI_Recv(2, &buf, cnt, 1, MPI_CHAR, 0); MPI_Send(&buf, cnt, MPI_CHAR, 1, 0, MPI_COMM_WORLD); } Else if (myrank==1) { MPI_Recv(&buf, cnt, MPI_CHAR, 0, 0, MPI_COMM_WORLD, &status); ProActiveMPI_Send(0, &buf, cnt, myrank, MPI_CHAR, 1, 0); } ProActiveMPI_Finalize(); MPI_Finalize(); idJob=1 Programming 1 idJob=2 Cluster MPI_Init(); ProActiveMPI_Init(myrank); If (myrank==0) { ProActiveMPI_Recv(0,&buf,cnt,0,MPI_CHAR,0); MPI_Send(&buf, cnt, MPI_CHAR, 1, 0, MPI_COMM_WORLD); } Else if (myrank==1) { MPI_Recv(&buf, cnt, MPI_CHAR, 0, 0, MPI_COMM_WORLD, &status); ProActiveMPI_Send(1,&buf,cnt,myrank,MPI_CHAR,0,0); } ProActiveMPI_Finalize(); MPI_Finalize(); Stephane Mariani

  33. JVM WAN 1 1 2 2 0 0 1 0 1 0 1 0 3 1 2 3 2 Using IPCModule functions: point-to-point communication Interacting Cluster idJob=0 Intranet Desktop Grid MPI_Init(); ProActiveMPI_Init(myrank); If (myrank==0) { ProActiveMPI_Send(2,&bufSnd,cnt,myrank,MPI_CHAR,0,0); } Else if (myrank==1) { ProActiveMPI_Recv(1, &bufRcv, cnt, 1, MPI_CHAR, 0); } ProActiveMPI_Finalize(); MPI_Finalize(); MPI_Init(); ProActiveMPI_Init(myrank); If (myrank==0) { ProActiveMPI_Recv(2, &buf, cnt, 1, MPI_CHAR, 0); MPI_Send(&buf, cnt, MPI_CHAR, 1, 0, MPI_COMM_WORLD); } Else if (myrank==1) { MPI_Recv(&buf, cnt, MPI_CHAR, 0, 0, MPI_COMM_WORLD, &status); ProActiveMPI_Send(0, &buf, cnt, myrank, MPI_CHAR, 1, 0); } ProActiveMPI_Finalize(); MPI_Finalize(); idJob=1 Programming 1 idJob=2 Cluster MPI_Init(); ProActiveMPI_Init(myrank); If (myrank==0) { ProActiveMPI_Recv(0,&buf,cnt,0,MPI_CHAR,0); MPI_Send(&buf, cnt, MPI_CHAR, 1, 0, MPI_COMM_WORLD); } Else if (myrank==1) { MPI_Recv(&buf, cnt, MPI_CHAR, 0, 0, MPI_COMM_WORLD, &status); ProActiveMPI_Send(1,&buf,cnt,myrank,MPI_CHAR,0,0); } ProActiveMPI_Finalize(); MPI_Finalize(); Stephane Mariani

  34. JVM WAN 1 1 2 2 0 0 1 0 1 0 1 0 1 1 Global communication: Broadcast Interacting Cluster idJob=0 Intranet Desktop Grid MPI_Init(); ProActiveMPI_Init(myrank); If (myrank==0) { ProActiveMPI_AllSend(2,&buf,cnt,myrank,MPI_CHAR,0); ProActiveMPI_AllSend(1,&buf,cnt,myrank,MPI_CHAR,0); } ProActiveMPI_Finalize(); MPI_Finalize(); MPI_Init(); ProActiveMPI_Init(myrank); ProActiveMPI_AllRecv(0, &buf, cnt, MPI_CHAR, 0); ProActiveMPI_Finalize(); MPI_Finalize(); idJob=1 Programming idJob=2 Cluster MPI_Init(); ProActiveMPI_Init(myrank); ProActiveMPI_AllRecv(0,&buf,cnt,MPI_CHAR,0); ProActiveMPI_Finalize(); MPI_Finalize(); Stephane Mariani

  35. JVM WAN 1 1 2 2 0 0 1 0 1 0 1 0 2 1 2 1 Global communication: Broadcast Interacting Cluster idJob=0 Intranet Desktop Grid MPI_Init(); ProActiveMPI_Init(myrank); If (myrank==0) { ProActiveMPI_AllSend(2,&buf,cnt,myrank,MPI_CHAR,0); ProActiveMPI_AllSend(1,&buf,cnt,myrank,MPI_CHAR,0); } ProActiveMPI_Finalize(); MPI_Finalize(); MPI_Init(); ProActiveMPI_Init(myrank); ProActiveMPI_AllRecv(0, &buf, cnt, MPI_CHAR, 0); ProActiveMPI_Finalize(); MPI_Finalize(); idJob=1 Programming idJob=2 Cluster MPI_Init(); ProActiveMPI_Init(myrank); ProActiveMPI_AllRecv(0,&buf,cnt,MPI_CHAR,0); ProActiveMPI_Finalize(); MPI_Finalize(); Stephane Mariani

  36. Interacting Programming • Descriptor pad = ProActive.getDescriptor("file:DeploymentDescriptor.xml"); • VirtualNode vnDeskGrid = pad.getVirtualNode ("deskGridVN"); • VirtualNode vnClustLSF = pad.getVirtualNode ("clustLSFVN"); • VirtualNode vnClustPBS = pad.getVirtualNode ("clustPBSVN"); • // triggers JVMs creation and creates MPISpmd Active Object from Virtual Nodes • MPISpmd deskGridSpmd = MPI.newMPISpmd ("vnDeskGrid"); • MPISpmd clustLSFSpmd = MPI.newMPISpmd ("vnClustLSF"); • MPISpmd clustPBSSpmd = MPI.newMPISpmd ("vnClustPBS"); • // creates a JobManager • JobManager j_m = (JobManager) ProActive.newActive (JobManager.class.getName()); • ArrayList myJobs = new ArrayList(); • myjobs.add (deskGridSpmd); myjobs.add (clustLSFSpmd); myjobs.add (clustPBSSpmd); • // starts the JobManager with a list of jobs • j_m.startJobManager (myJobs); Stephane Mariani

  37. Conclusion Stephane Mariani

  38. Conclusion • Non-interacting context • Provides user the way to run automatically and transparently an MPI executive without worrying about resources booking, just by finalizing an XML file descriptor and 3 lines of code. • Interacting context • Just few changes in source code • No extension to MPI • Usage of vendor implemented MPI for intra-communication. • Usage of ProActive for external communication. • Ongoing Works • Specification of an API for point-to-point and collectives operations. • Fortran interface. Stephane Mariani
