Video Communication Winter 2013 Homework Assignment #2. M023010094 Chen yen Ping E.E Nsysu. Outline. Bit Error Rate: Add different bit error rate(1%, 5%, 10%, 15%) Implement 4-bit IGS code LSB is zero LSB is random Design LSB by yourself Error correction

apollo
Télécharger la présentation

Video Communication Winter 2013 Homework Assignment #2

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Video CommunicationWinter 2013 Homework Assignment #2 M023010094 Chen yen Ping E.E Nsysu

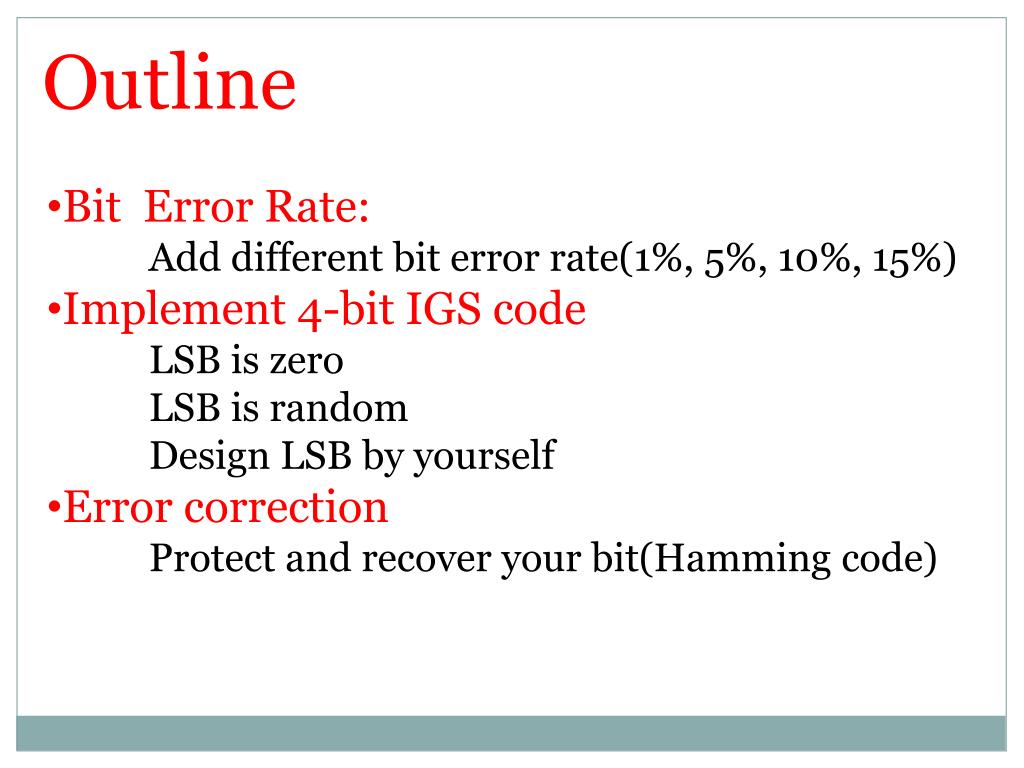

  2. Outline • Bit Error Rate: • Add different bit error rate(1%, 5%, 10%, 15%) • Implement 4-bit IGS code • LSB is zero • LSB is random • Design LSB by yourself • Error correction • Protect and recover your bit(Hamming code)

  3. Flow Chart

  4. Comparison BER 5% BER 15%

  5. Comparison(Cont.) • LSB is zero ,BER1% Original

  6. Comparison • LSB is random,BER5% • LSB is design,BER5%

  7. Hamming Code • Original • LSB is zero, BER1 %

  8. The method of design 4bits: I think that the sum of four bits are range from zero to fifteen , so I guess the middle figure, 7. The results may not get lots of mistakes that compare to the original figure.

  9. Hamming Code(Cont.) • Original • LSB is design, BER1 %

  10. Hamming Code(Cont.) • Original • LSB is design, BER15 %

  11. Comparison

  12. Comparison(Hamming Code)

  13. Conclusion As the figure,the last 4 digits that all show zeros are the best in the PSNR and the worst is show random. I figure that I didn’t take the sum into account so that it’s not only has the error seven.

  14. Thank you
