  1. Reasoning about Software Defined Networks MoolySagiv msagiv@acm.org 03-640-7606 Tel Aviv University Thursday 16-18 (Physics 105) Monday 14-16 Schrieber 317 Adviser: Michael Shapira Hebrew University http://www.cs.tau.ac.il/~msagiv/courses/rsdn.html

  2. Content • Challenges in SDNs • Programming Language Abstractions • Programming Language Principles • Program Language Tools • Other useful tools Beyond SDNs

  3. Challenges in SDN • Programming complexity • Modularity • Composing operations • Handling Updates • Reliability • Performance • Testing • Productivity • Non-expert programmers

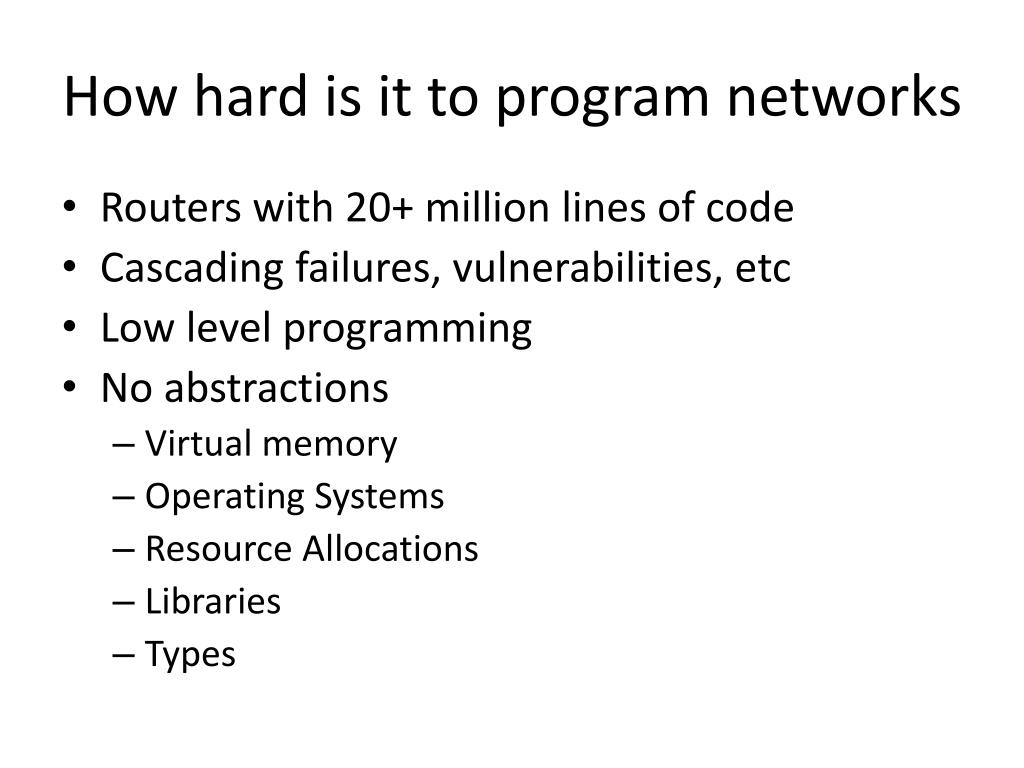

  4. How hard is it to program networks • Routers with 20+ million lines of code • Cascading failures, vulnerabilities, etc • Low level programming • No abstractions • Virtual memory • Operating Systems • Resource Allocations • Libraries • Types

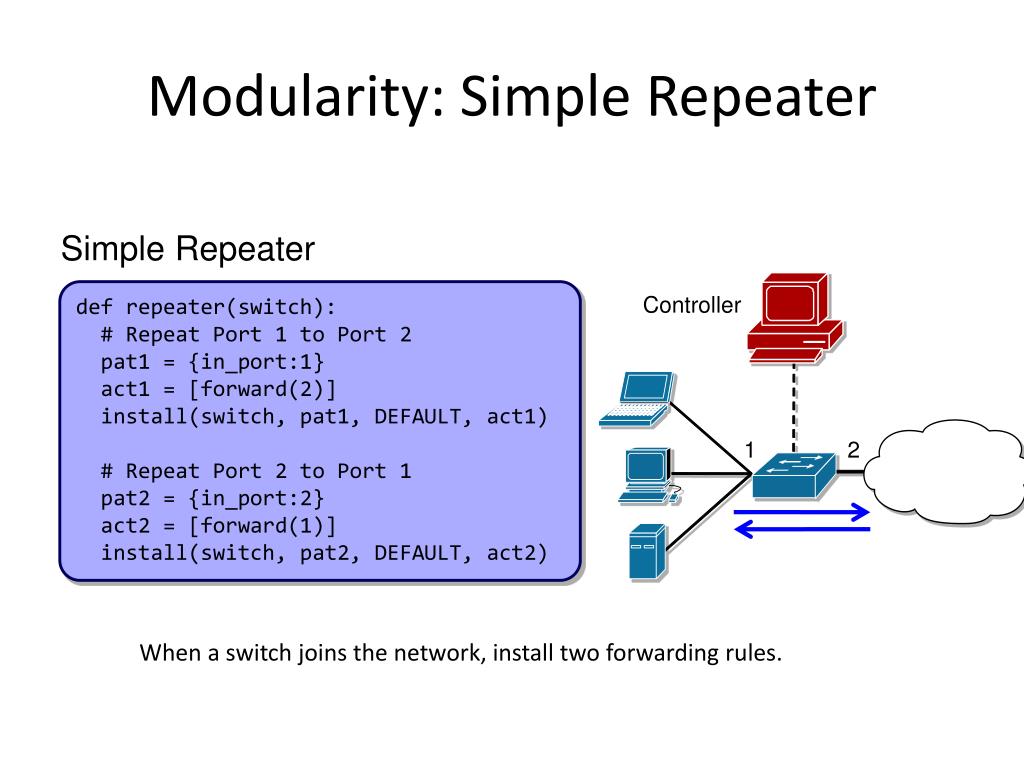

  5. Modularity: Simple Repeater Simple Repeater def repeater(switch): # Repeat Port 1 to Port 2 pat1 = {in_port:1} act1 = [forward(2)] install(switch, pat1, DEFAULT, act1) # Repeat Port 2 to Port 1 pat2 = {in_port:2} act2 = [forward(1)] install(switch, pat2, DEFAULT, act2) Controller 1 2 When a switch joins the network, install two forwarding rules.

  6. Composition: Web Traffic Monitor Monitor Web (“port 80”) traffic def web_monitor(switch)): # Web traffic from Internet pat = {inport:2,tp_src:80} install(switch, pat, DEFAULT, []) query_stats(switch, pat) def stats_in(switch, pat, bytes, …) print bytes sleep(30) query_stats(switch, pat) 1 2 Web traffic When a switch joins the network, install one monitoring rule.

  7. Composition: Repeater + Monitor Repeater + Monitor def switch_join(switch): pat1 = {inport:1} pat2 = {inport:2} pat2web = {in_port:2, tp_src:80} install(switch, pat1, DEFAULT, None, [forward(2)]) install(switch, pat2web, HIGH, None, [forward(1)]) install(switch, pat2, DEFAULT, None, [forward(1)]) query_stats(switch, pat2web) def stats_in(switch, xid, pattern, packets, bytes): print bytes sleep(30) query_stats(switch, pattern) Must think about both tasks at the same time.

  8. Concurrency: Switch-Controller Delays • Common programming idiom • First packet goes to the controller • Controller installs rules packets

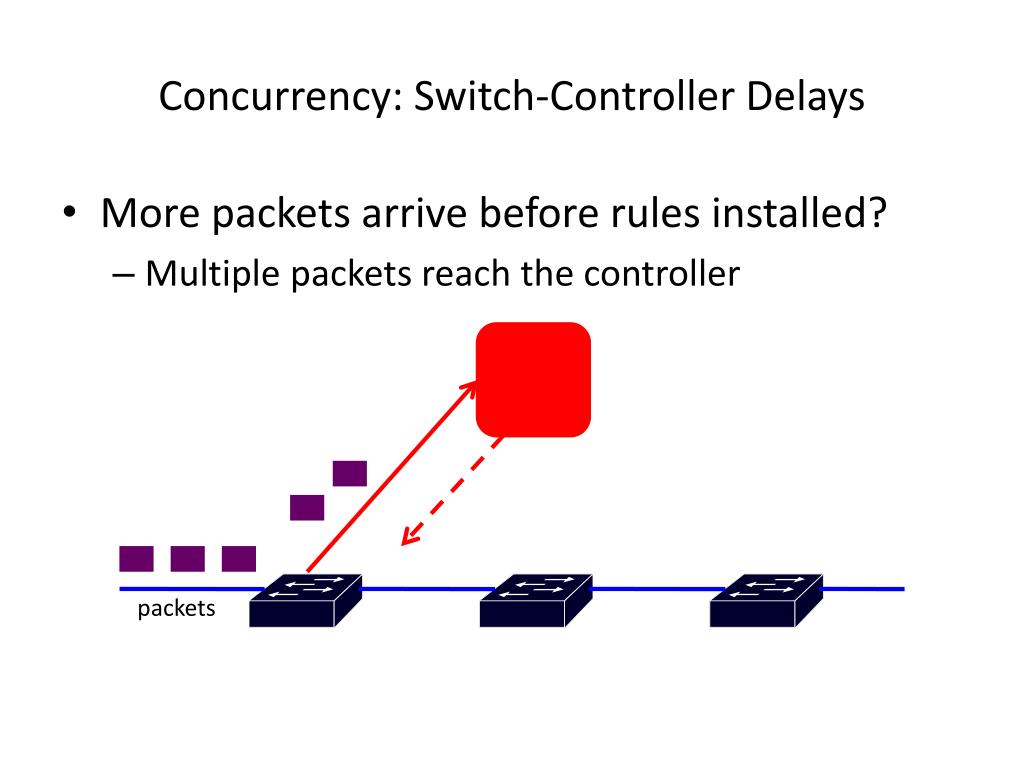

  9. Concurrency: Switch-Controller Delays • More packets arrive before rules installed? • Multiple packets reach the controller packets

  10. Concurrency: Switch-Controller Delays • Rules along a path installed out of order? • Packets reach a switch before the rules do packets Must think about all possible packet and event orderings.

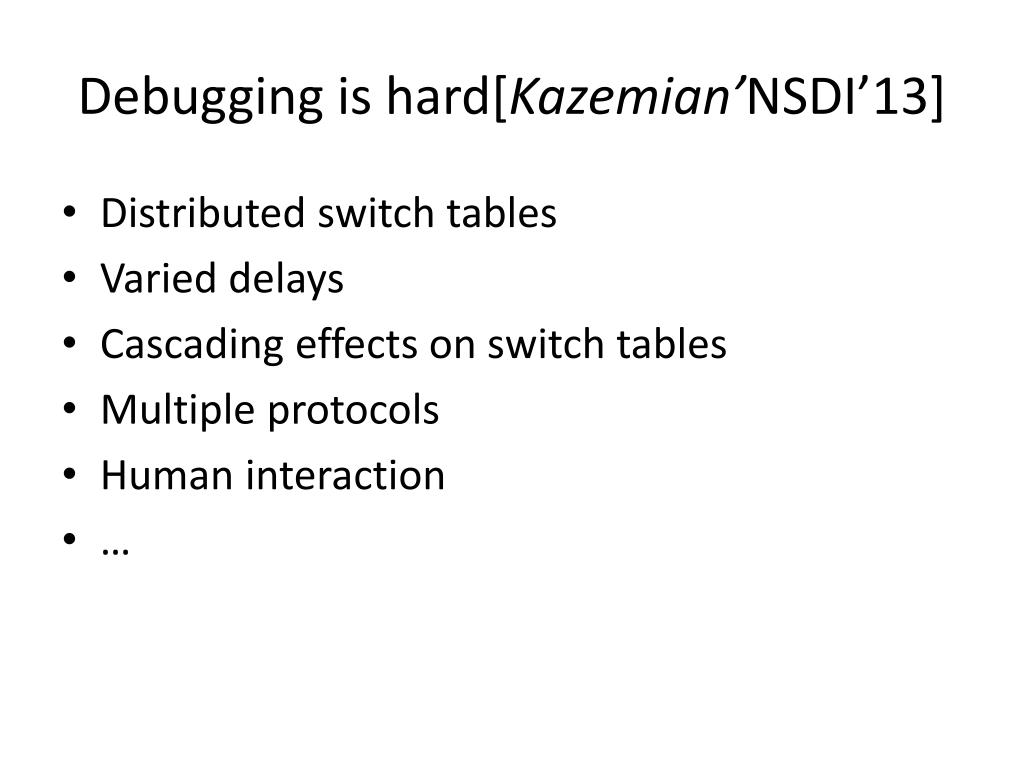

  11. Debugging is hard[Kazemian’NSDI’13] • Distributed switch tables • Varied delays • Cascading effects on switch tables • Multiple protocols • Human interaction • …

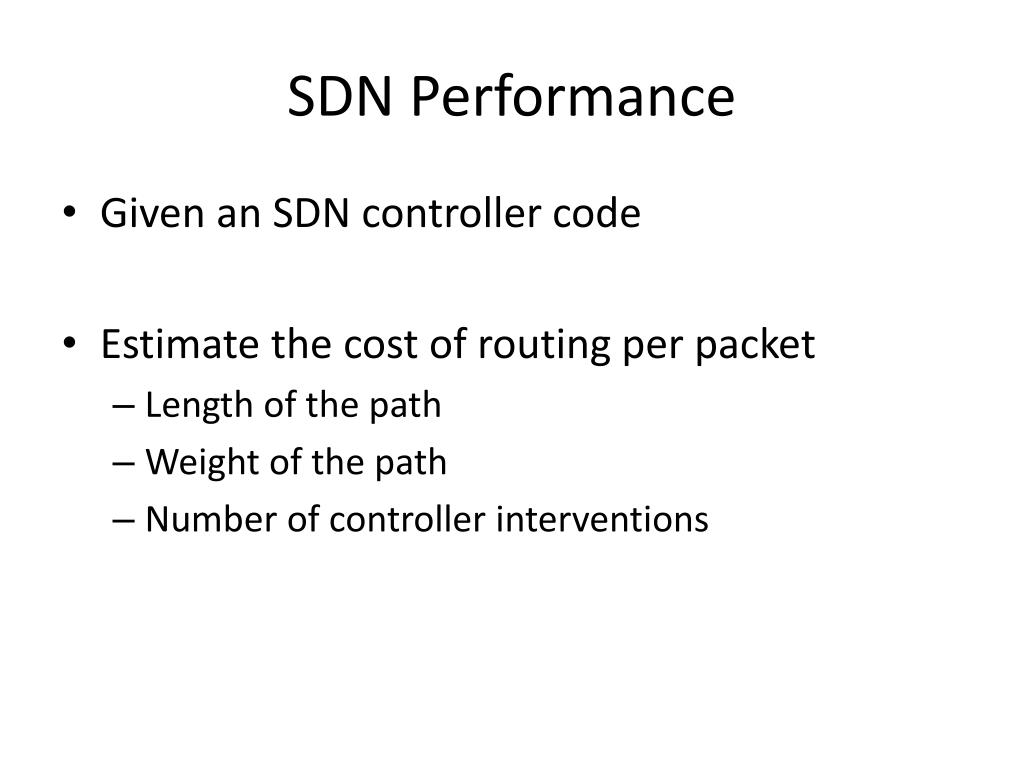

  12. SDN Performance • Given an SDN controller code • Estimate the cost of routing per packet • Length of the path • Weight of the path • Number of controller interventions

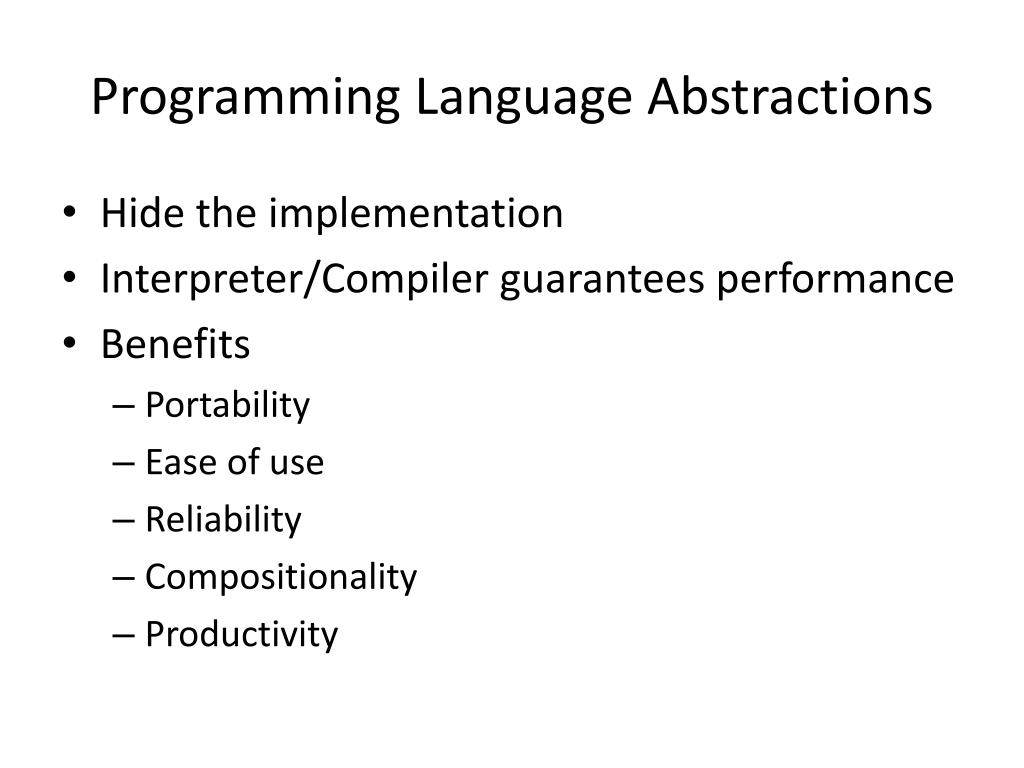

  13. Programming Language Abstractions • Hide the implementation • Interpreter/Compiler guarantees performance • Benefits • Portability • Ease of use • Reliability • Compositionality • Productivity

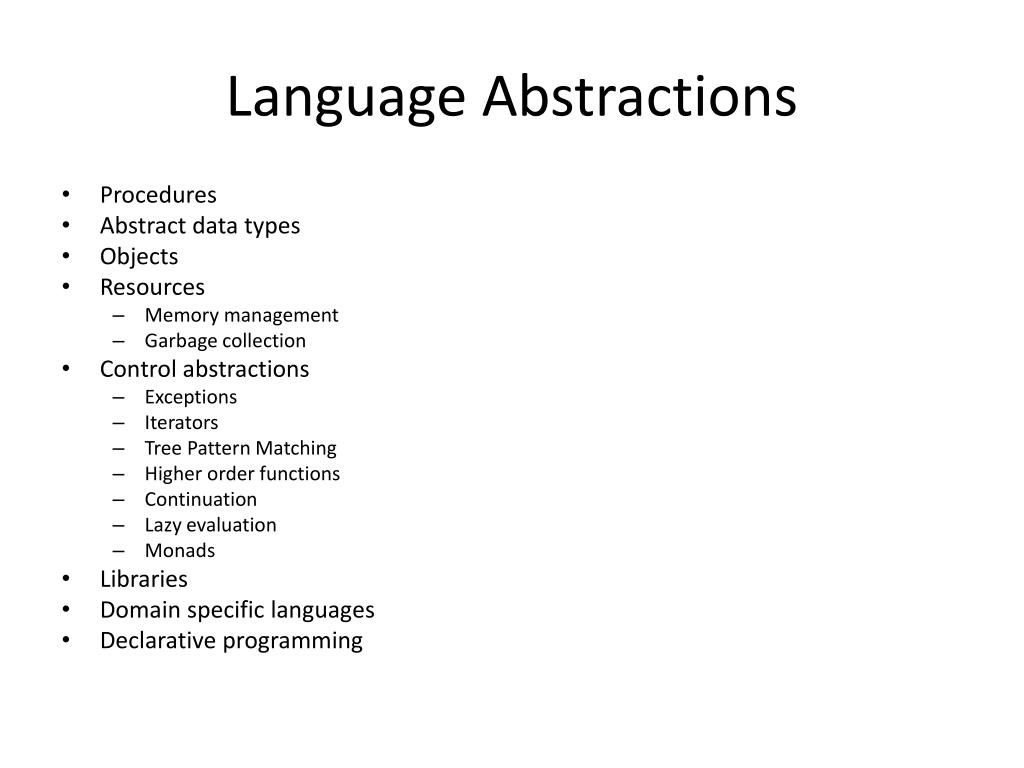

  14. Language Abstractions • Procedures • Abstract data types • Objects • Resources • Memory management • Garbage collection • Control abstractions • Exceptions • Iterators • Tree Pattern Matching • Higher order functions • Continuation • Lazy evaluation • Monads • Libraries • Domain specific languages • Declarative programming

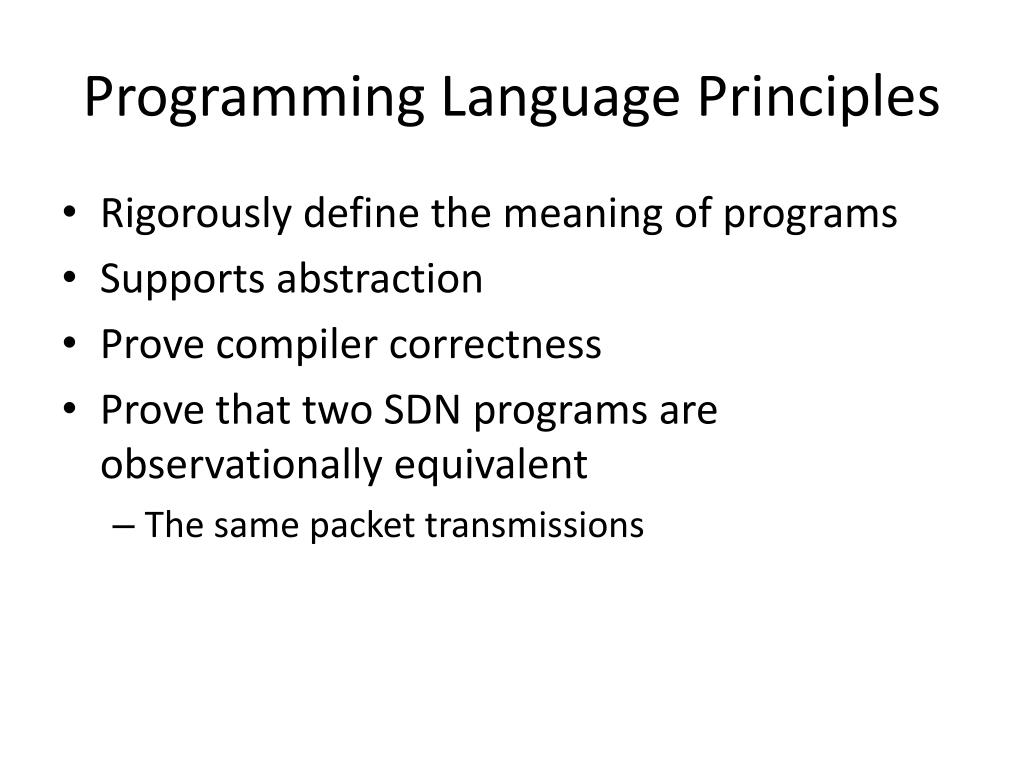

  15. Programming Language Principles • Rigorously define the meaning of programs • Supports abstraction • Prove compiler correctness • Prove that two SDN programs are observationally equivalent • The same packet transmissions

  16. A Simple Example • Numeric Expressions • <exp> ::= <exp> + <exp> | < exp> * <exp> | number • The semantic of expressions is a numberE: <exp> int • Inductively defined • En = n • Ee1+ e2 = Ee1 + Ee2 • Ee1* e2 = Ee1 * Ee2 • Compositional • Fully abstract • e1 e2iff Ee1 = Ee2 • 5 + 6  7 + 3 + 1

  17. A Simple Example + Var • Numeric Expressions • <exp> ::= <exp> + <exp> | <exp> * <exp> | number | id • Need to introduce statesVar Int • Examples • [x 2, y3] x = • [x 2, y3] z = 2 • [x 2, y3][z  5] = [x 2, y3,z  5] • [x 2, y3][x  5] = [x 5, y3] • [x 2, y3][x  5]x = 5 • [x 2, y3][x  5]y = 2

  18. A Simple Example + Var • Numeric Expressions • <exp> ::= <exp> + <exp> | <exp> * <exp> | number | id • The semantic of expressions is a function from states to numbersE: exp (Var Int)  Int • Inductively defined • En= n • Ee1+ e2 = Ee1+ Ee2 • Ee1* e2 = Ee1* Ee2 • Eid = id • Ex+2[x 5] =Ex[x 5] + E2 [x 5] = [x 5]x + 2 = 5 + 2 =7 • x + x  2 * x

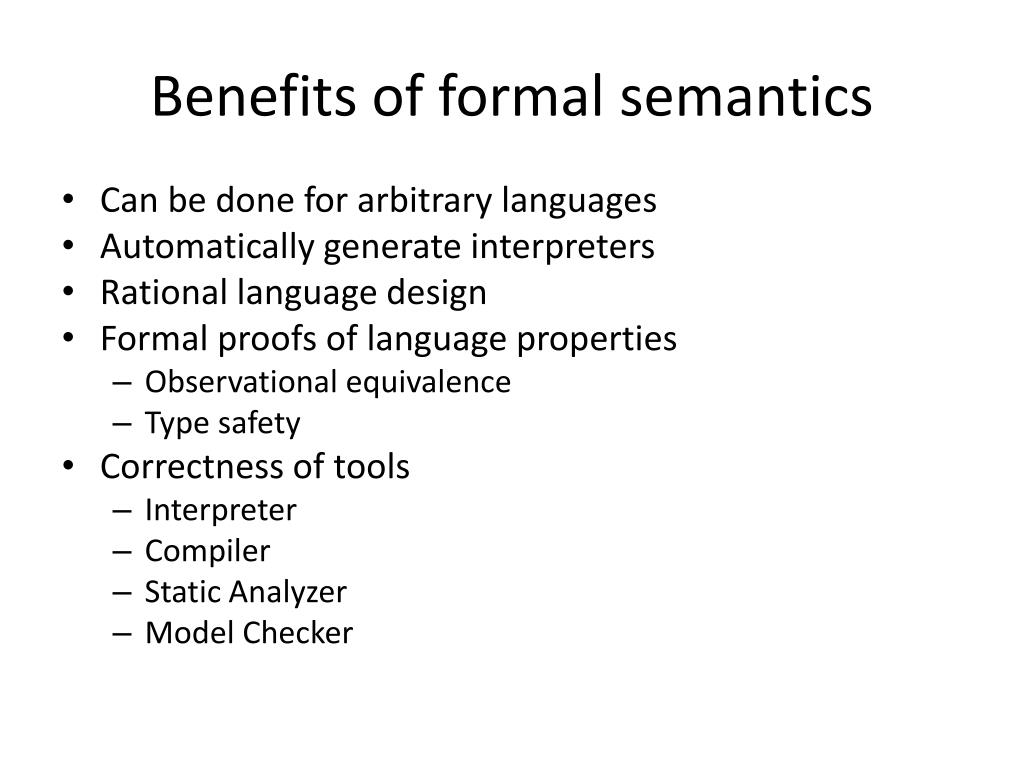

  19. Benefits of formal semantics • Can be done for arbitrary languages • Automatically generate interpreters • Rational language design • Formal proofs of language properties • Observational equivalence • Type safety • Correctness of tools • Interpreter • Compiler • Static Analyzer • Model Checker

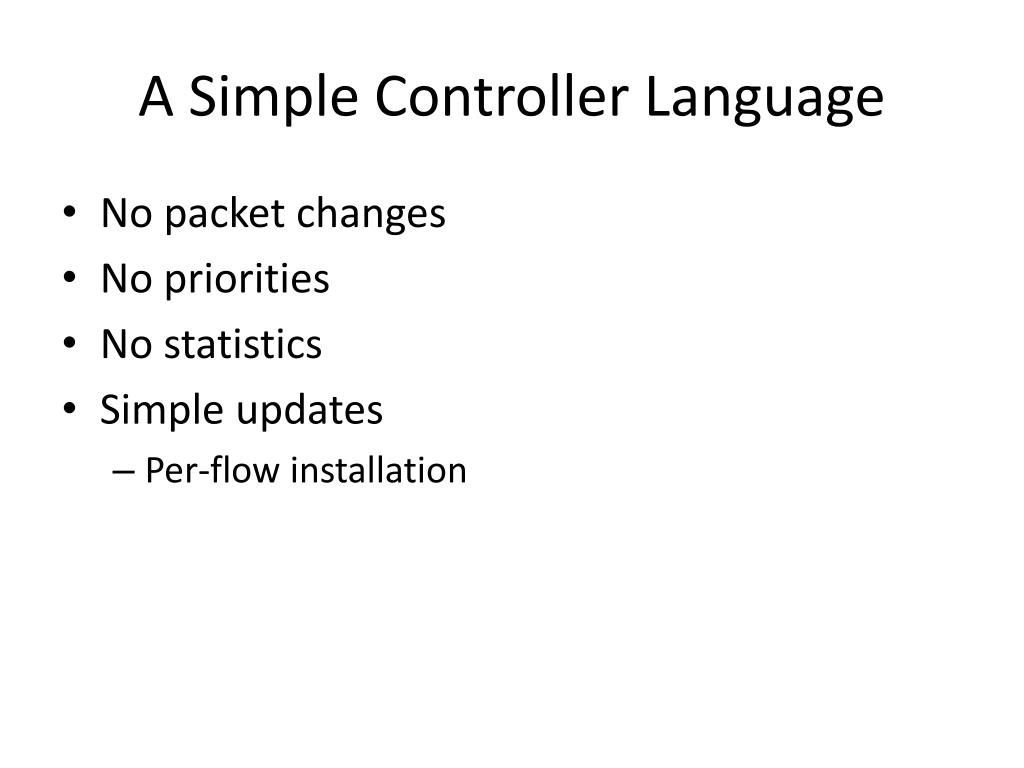

  20. A Simple Controller Language • No packet changes • No priorities • No statistics • Simple updates • Per-flow installation

  21. A Simple Controller Language • <controller> ::= <reld>* <evnt> • <reld> ::= rel <rid> (<tid>*) // auxiliary relations • <evnt> ::= packetIn (sid, pid, <pr>)  <com>* • <pr> ::= port(int) • <com> ::= send(<pr>) | install (sid, pid, <pr>, <opr>) // update flow table |id.insert(<pred>*) // update auxiliary relations| ifrid(<exp>*)then <com>* else <com>* | ifrid(<exp>*) then <com>* | <com> ; < com> • <opr> ::= <pr>|none // drop the package • <exp> ::= id | id (exp) | <pr>

  22. Learning Switch with 3 ports rel connected (Sw, Pr, Ho) PacketIn(s, p, port(1)) -> connected.insert (s, port(1), p.src) if connected(s, port(2), p.dst) then { send(s, p, port(2)) install(s, p, port(1), port(2)) } else if connected(s, port(3), p.dst) then { send (port(3)) install(s, p, port(1), port(3)) } else { // flood send (port(2)) send (port(3)) } PacketIn(s, p, port(2)) -> … PacketIn(s, p, port(3)) -> …

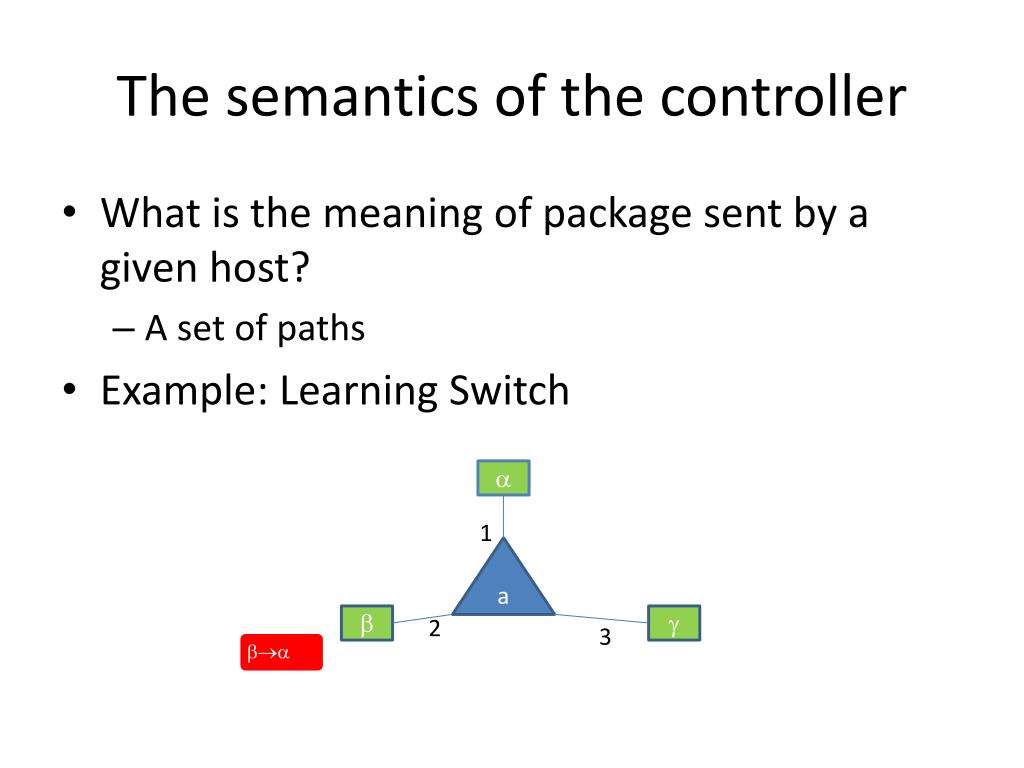

  23. The semantics of the controller • What is the meaning of package sent by a given host? • A set of paths • Example: Learning Switch  1 a   2 3

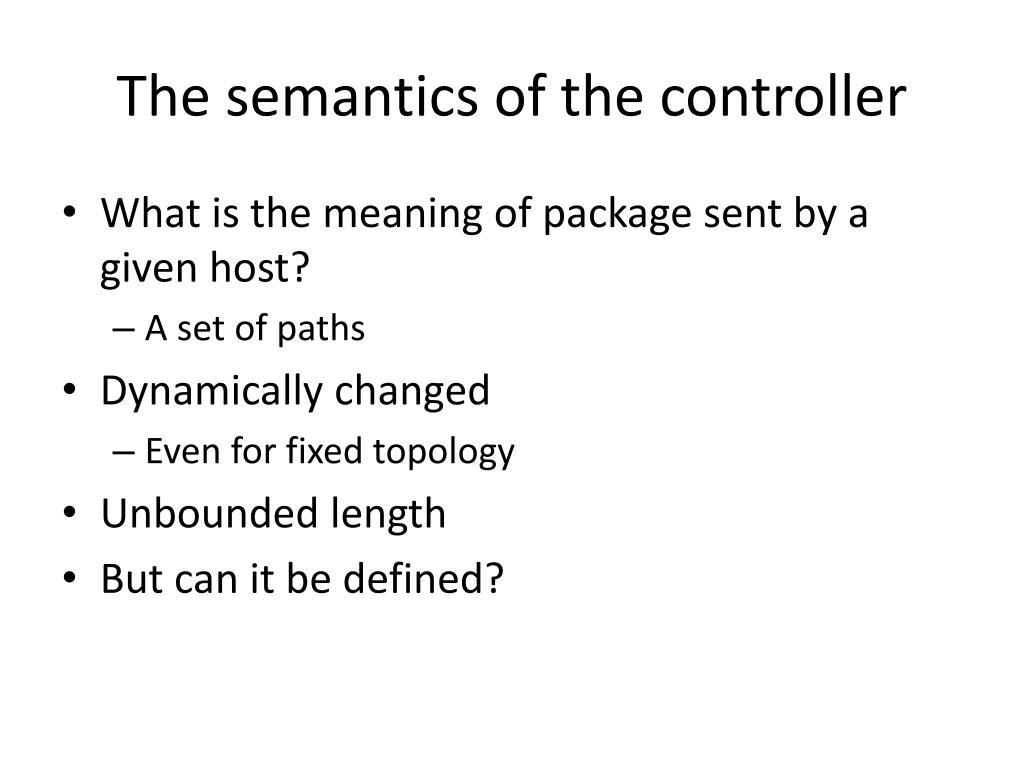

  24. The semantics of the controller • What is the meaning of package sent by a given host? • A set of paths • Dynamically changed • Even for fixed topology • Unbounded length • But can it be defined?

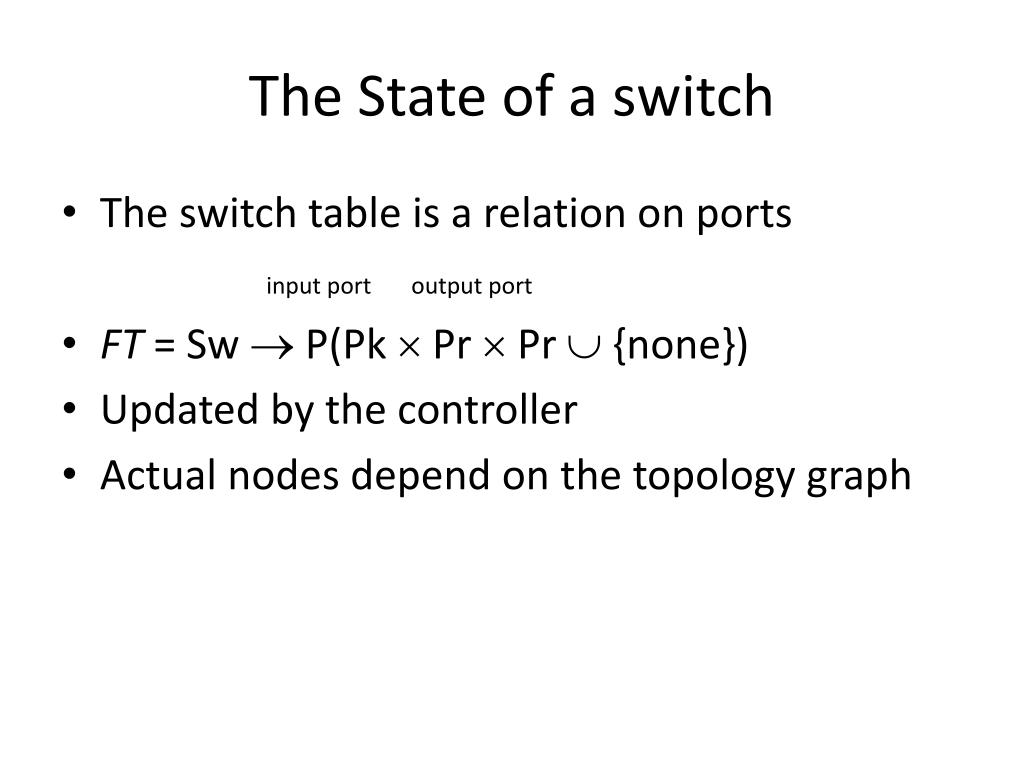

  25. The State of a switch • The switch table is a relation on ports • FT= Sw  P(Pk Pr  Pr  {none}) • Updated by the controller • Actual nodes depend on the topology graph input port output port

  26. The Semantics of Expressions • <exp> ::= id | id (exp) | <Pr> • Val = Int Pr {P(Tt1  …Ttk | t1, …, tkare valid types} • Controller State  such that : Var  Val • E id   =  id • Eid(e)  =Fid (Ee) • Eport(n) = n

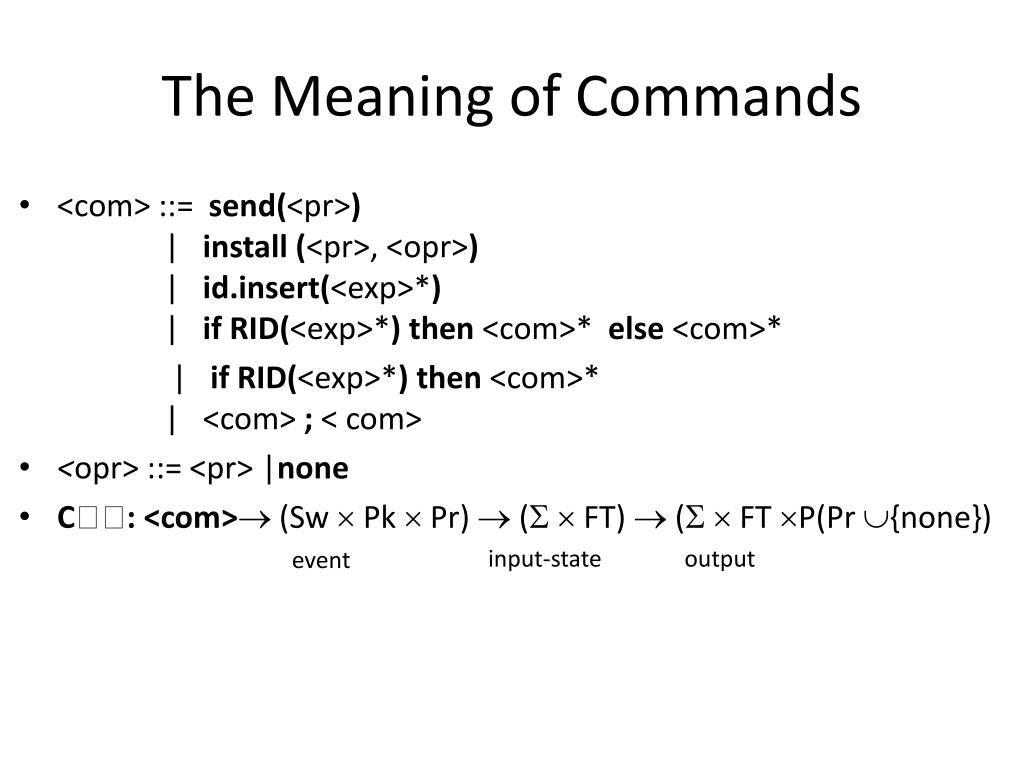

  27. The Meaning of Commands • <com> ::= send(<pr>) | install (<pr>, <opr>) |id.insert(<exp>*) | ifRID(<exp>*)then <com>* else <com>* | ifRID(<exp>*) then <com>* | <com> ; < com> • <opr> ::= <pr>|none • C: <com> (Sw  Pk  Pr)  (  FT)  (  FT P(Pr {none}) input-state output event

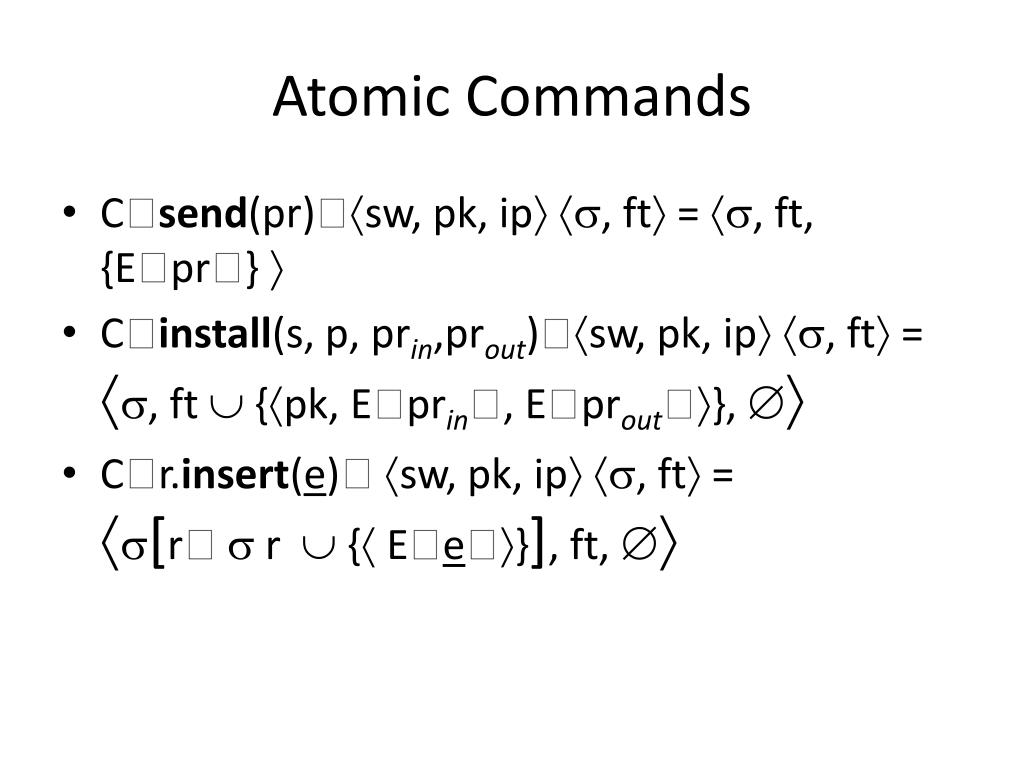

  28. Atomic Commands • Csend(pr)sw, pk, ip , ft = , ft, {Epr}  • Cinstall(s, p, prin,prout)sw, pk, ip , ft = , ft  {pk, Eprin, Eprout},  • Cr.insert(e) sw, pk, ip , ft = [r  r  { Ee}], ft, 

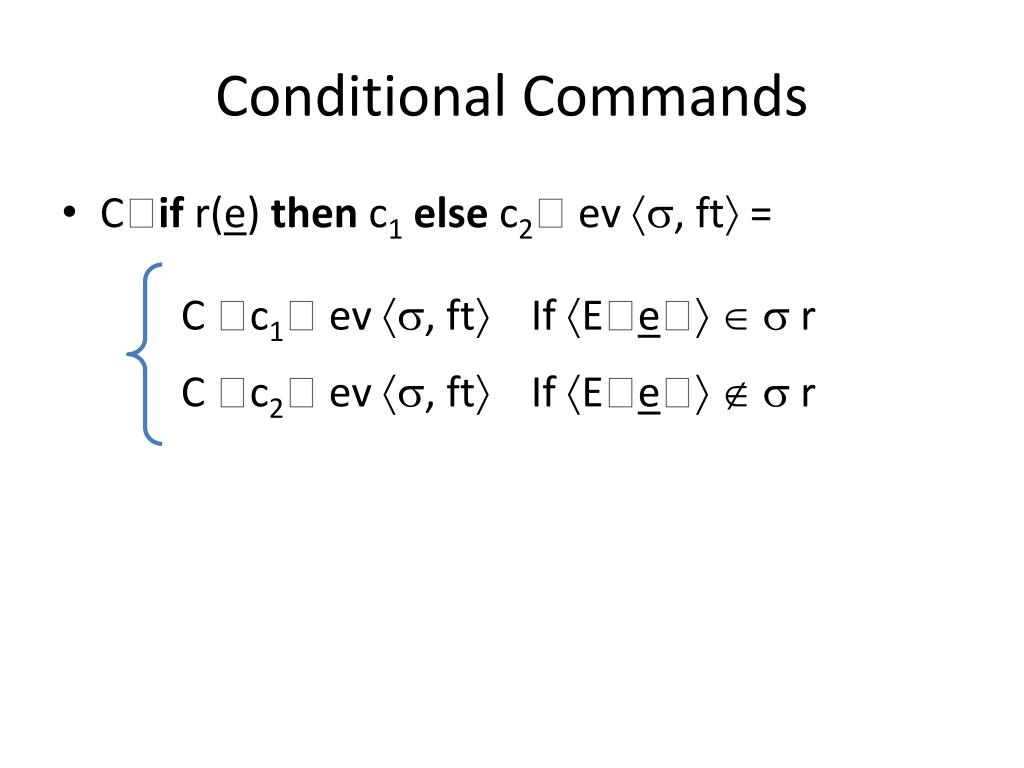

  29. Conditional Commands • Cif r(e) then c1else c2 ev , ft = C c1 ev , ft If Ee  r C c2 ev , ft If Ee  r

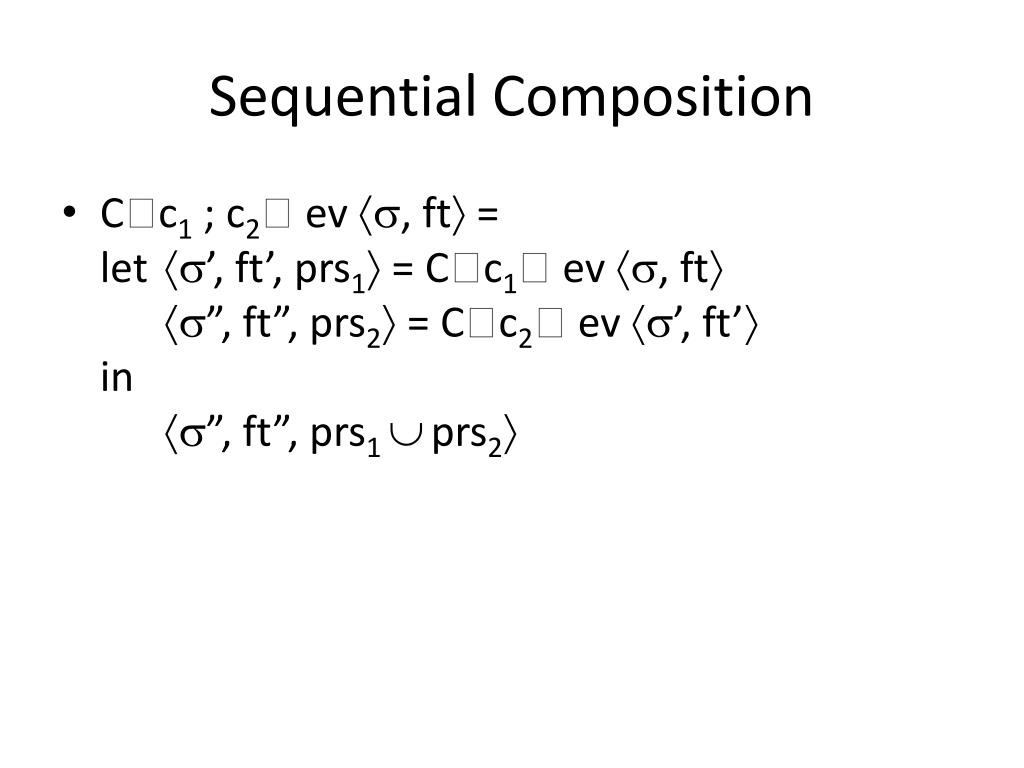

  30. Sequential Composition • Cc1 ; c2 ev , ft = let ’, ft’, prs1 = Cc1ev , ft ”, ft”, prs2 = Cc2ev ’, ft’ in ”, ft”, prs1 prs2

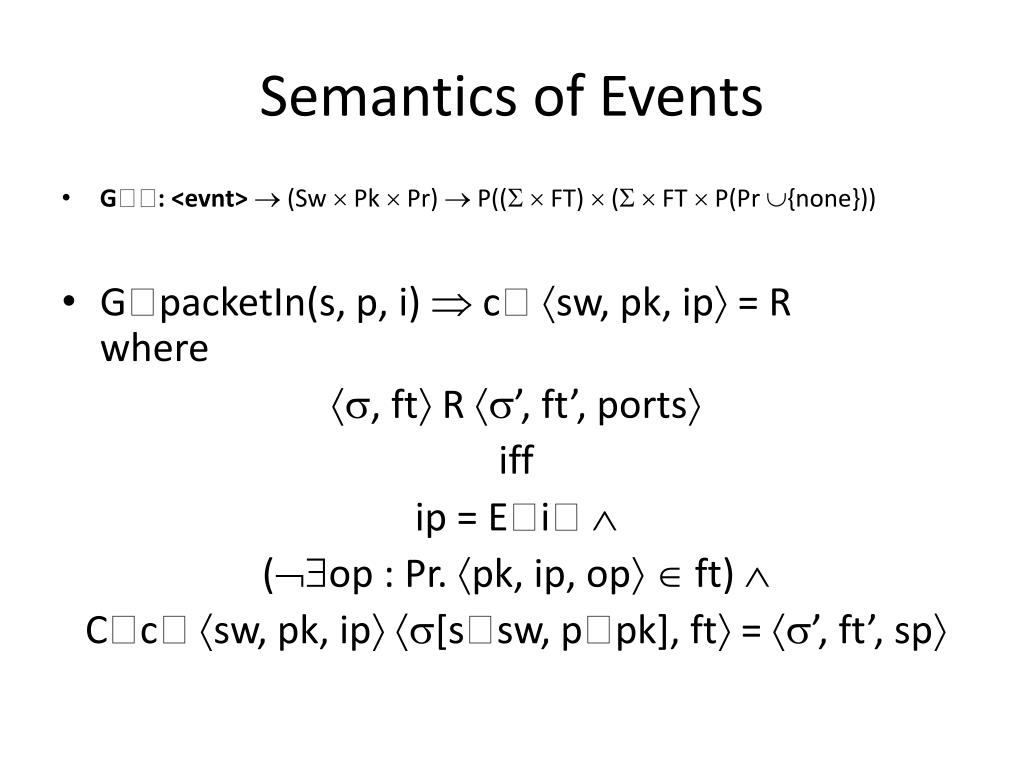

  31. Semantics of Events • G: <evnt>  (Sw  Pk  Pr)  P((  FT)  (  FT  P(Pr {none})) • GpacketIn(s, p, i)  c sw, pk, ip = Rwhere , ft R ’, ft’, ports iff ip = Ei  (op : Pr. pk, ip, op  ft)  Cc sw, pk, ip [ssw, ppk], ft = ’, ft’, sp

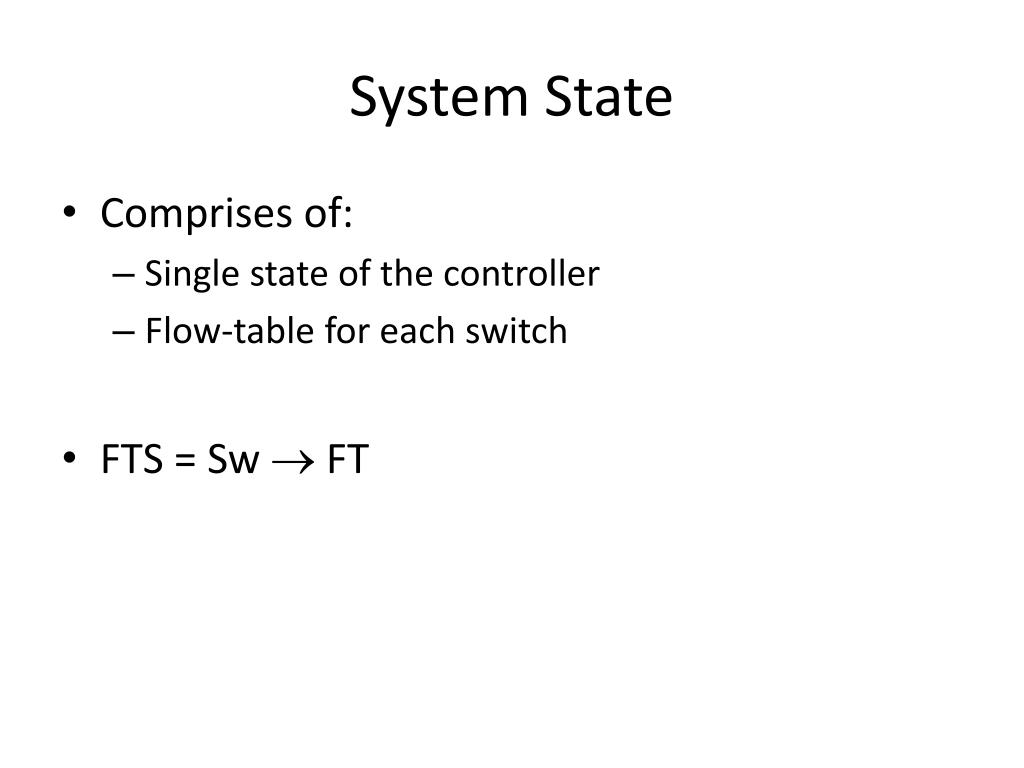

  32. System State • Comprises of: • Single state of the controller • Flow-table for each switch • FTS = Sw  FT

  33. Packet Histories • Packets can influence the routing of other packets • Histories can be seen as sequences of packet transmissions • HST= (SW  PR  PK  (PR  {none}))*

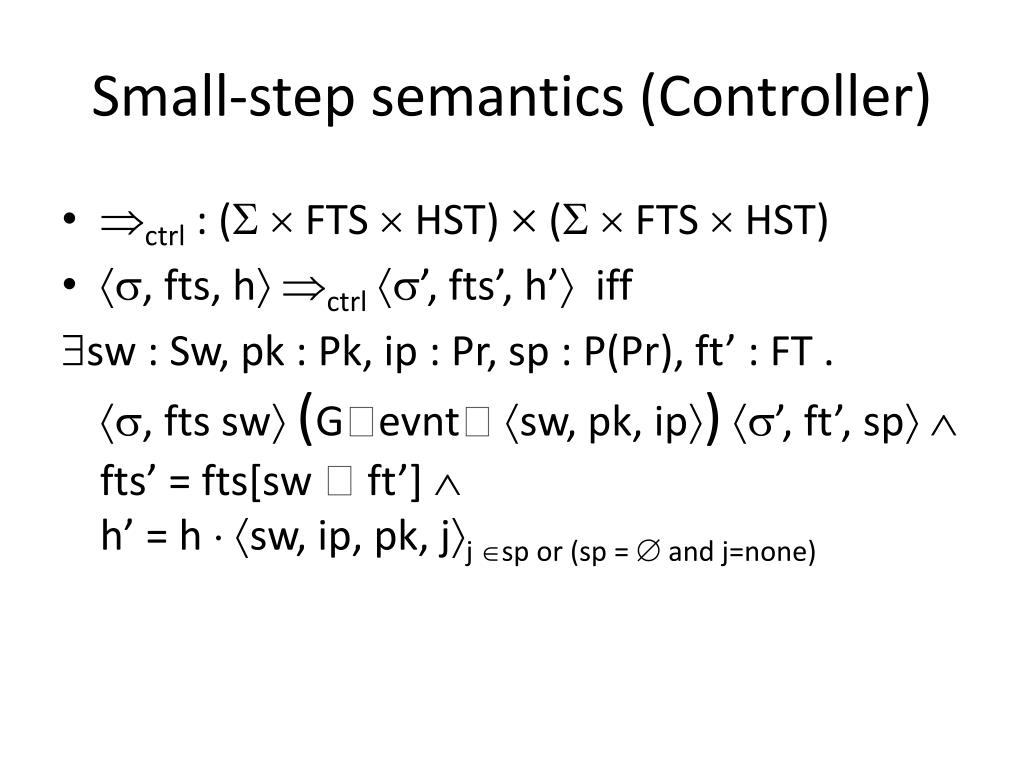

  34. Small-step semantics (Controller) • ctrl : (  FTS  HST)  (  FTS  HST) • , fts, h ctrl ’, fts’, h’ iff sw : Sw, pk : Pk, ip : Pr, sp : P(Pr), ft’ : FT . , ftssw (Gevnt sw, pk, ip) ’, ft’, sp fts’ = fts[sw ft’]  h’ = h  sw, ip, pk, jj sp or (sp =  and j=none)

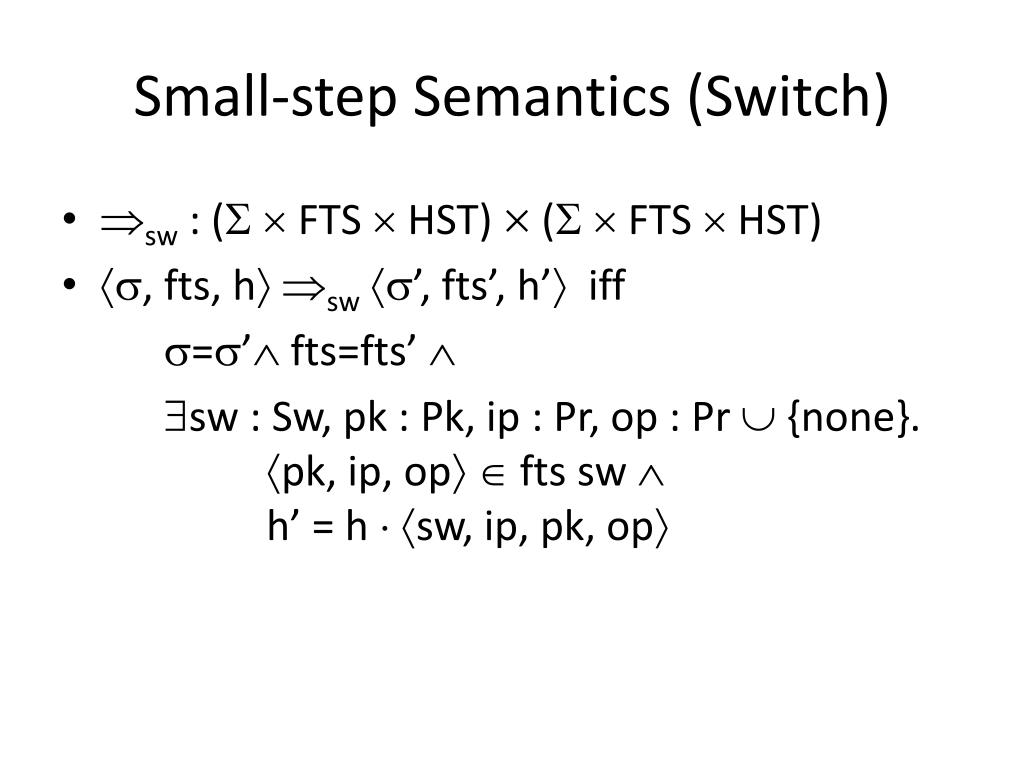

  35. Small-step Semantics (Switch) • sw : (  FTS  HST)  (  FTS  HST) • , fts, h sw ’, fts’, h’ iff =’ fts=fts’  sw : Sw, pk : Pk, ip : Pr, op : Pr  {none}. pk, ip, op  ftssw  h’ = h  sw, ip, pk, op

  36. Executions • Combined step semantics: • = ctrl  sw • A sequence of event processing steps has the from • a1  a2  …  an

  37. Feasible Histories • Given a topology graph G over V = Ho  (Sw  Pr) • A history h is feasibleiff for any packet pk  Pk, • any two consecutive entries for p in h: • sw1, ip1, pk, op1 and sw2, ip2, pk, op2 • there exists an edge between sw1, op1and sw2, ip2

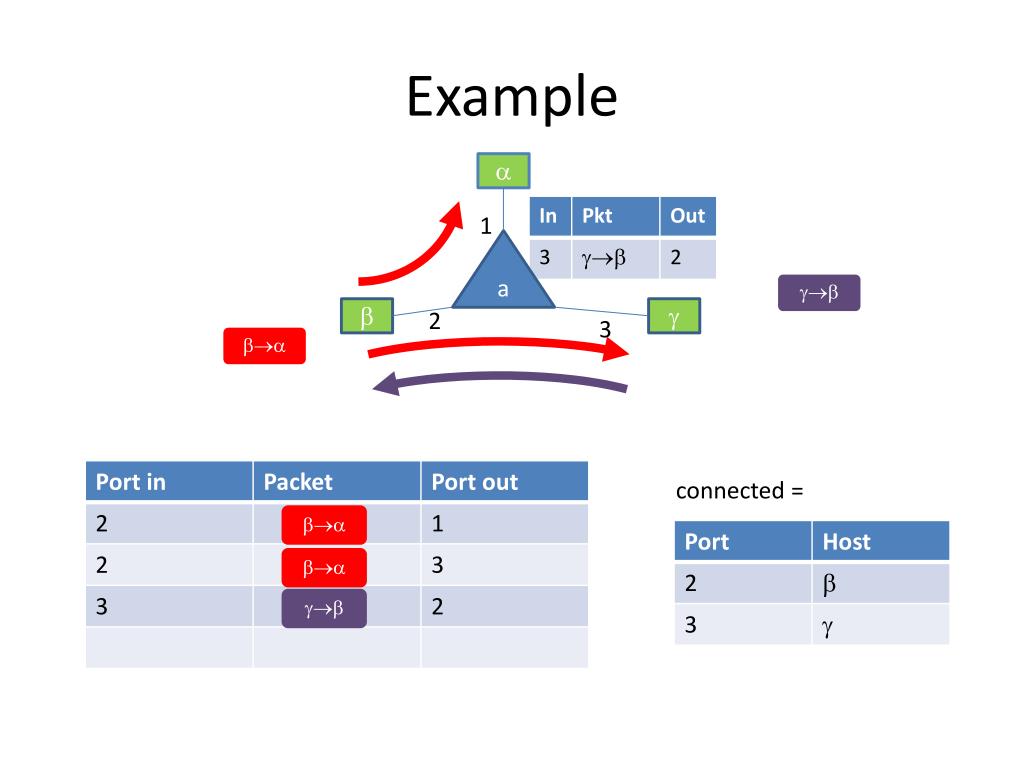

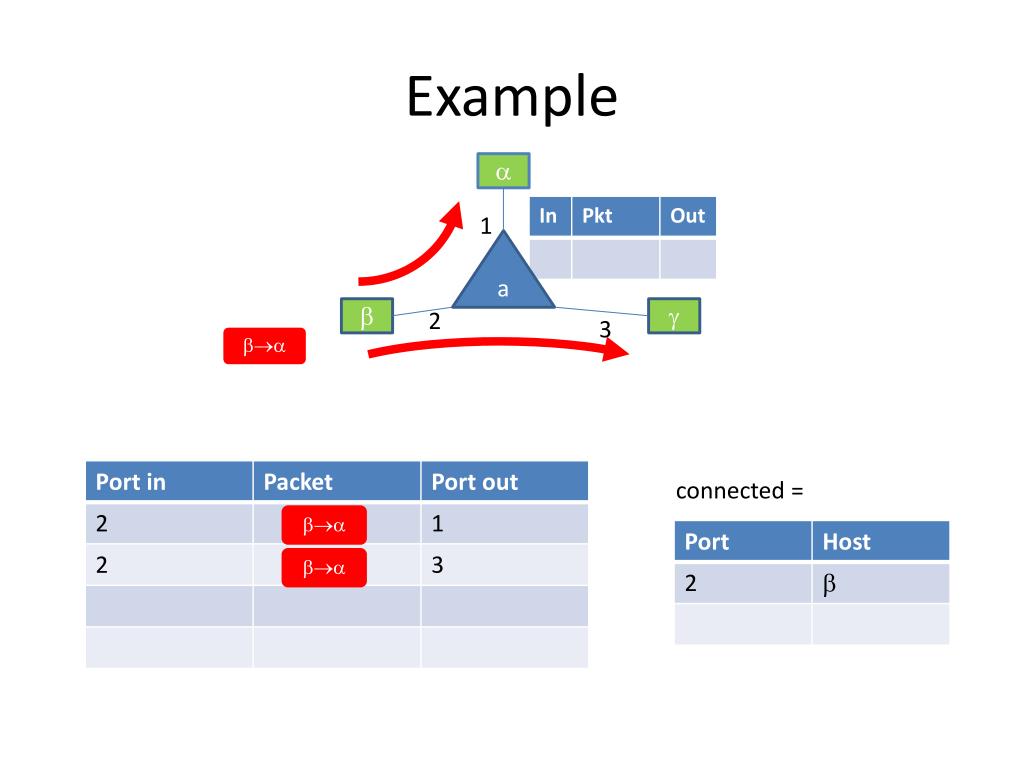

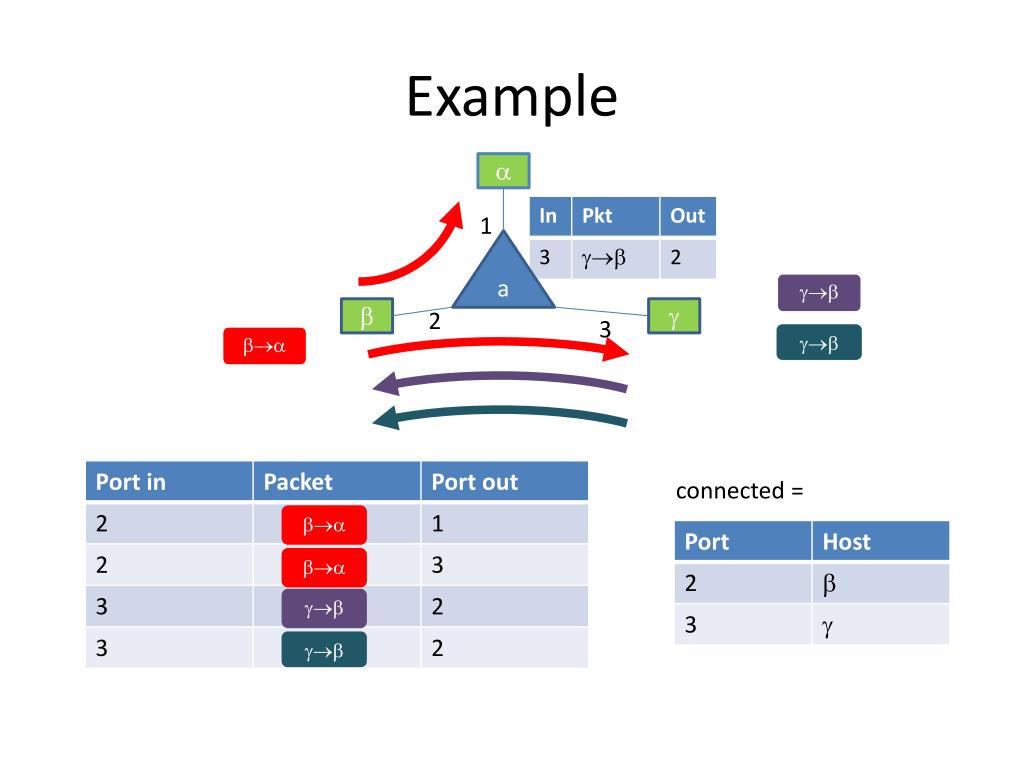

  38. Example  connected = 1 a   2 3

  39. Example  connected = 1 a   2 3

  40.  •  Example  connected = 1 a   2 3

  41.  •  Example   connected = 1 a   2 3 

  42. Useful Programming Language Tools • Interpreter • Compiler • Parser • Type Checker • Static Program Analysis • Verification Tool • Dynamic Program Analysis • Model checker

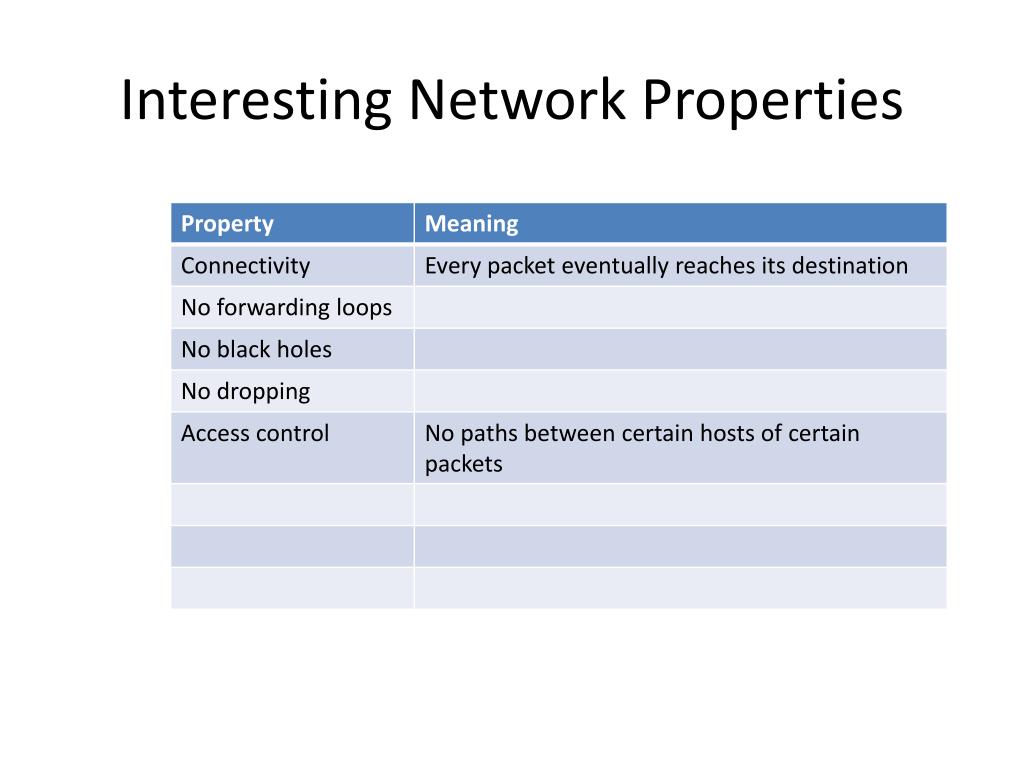

  43. Interesting Network Properties
