  1. SinuCom Update Agent • What’s new in version 03.00.05.00

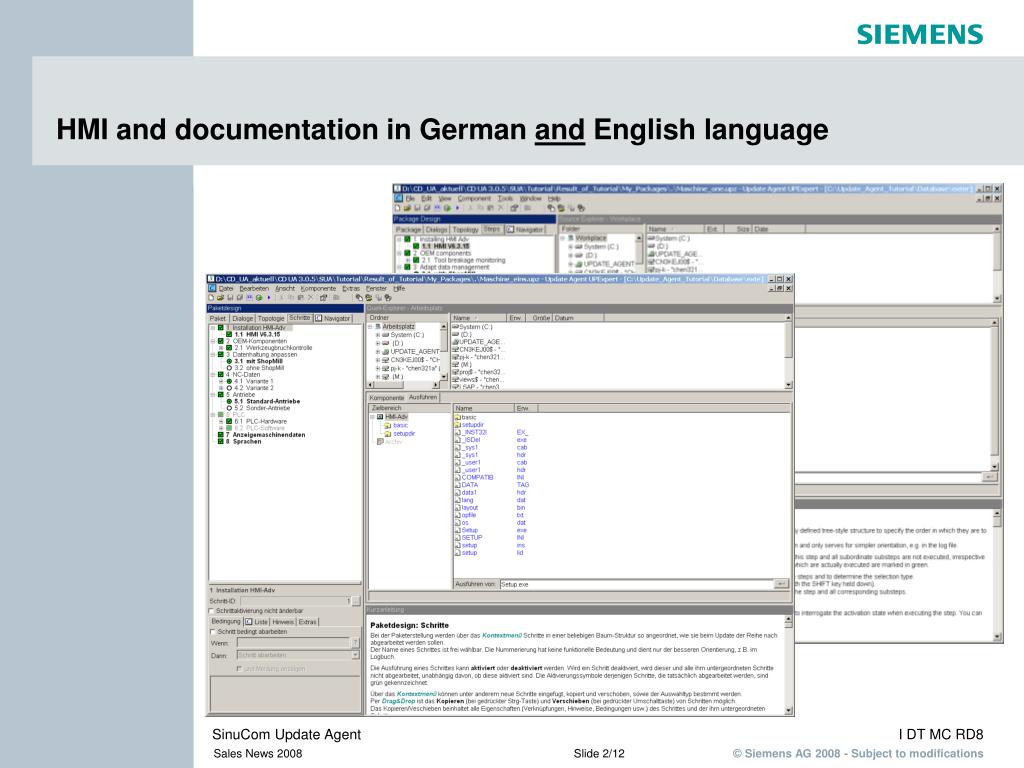

  2. HMI and documentation in German and English language

  3. NCU 7X0 NC-, PLC- and DRV data Type NCU UPShield (Linux) HMI sl OEM HMI PLC Drives NCK Linux USB device Software update NCU • SW 1.4  SW 1.4 • SW 1.4  SW 1.5 • SW 1.5  SW 1.5 • SW 2.4  SW 2.4 • SW 2.4  SW 2.5 • SW 2.5  SW 2.5 • SW 1.5  SW 2.5 • During an update, archive data (NC, PLC, DRV, and CP) are saved and finally restored. • The above listed updates x.4 to x.4 and x.5 to x.5 do represent the installation of a service pack or hotfix within a software level. • Update Agent V03.00.05 is applicable from SW1.4 HF1 or SW 2.4 HF4 respectively. • A rollback after an update from x.4 to x.5 is not possible because of the FAT partition. • An intended modification of new SINAMICS standard parameter in conjunction with an update x.4 to x.5 requires two separate update packages. (first firmware update, then parameter modification) with NCU 710.2720.1720.2730.2

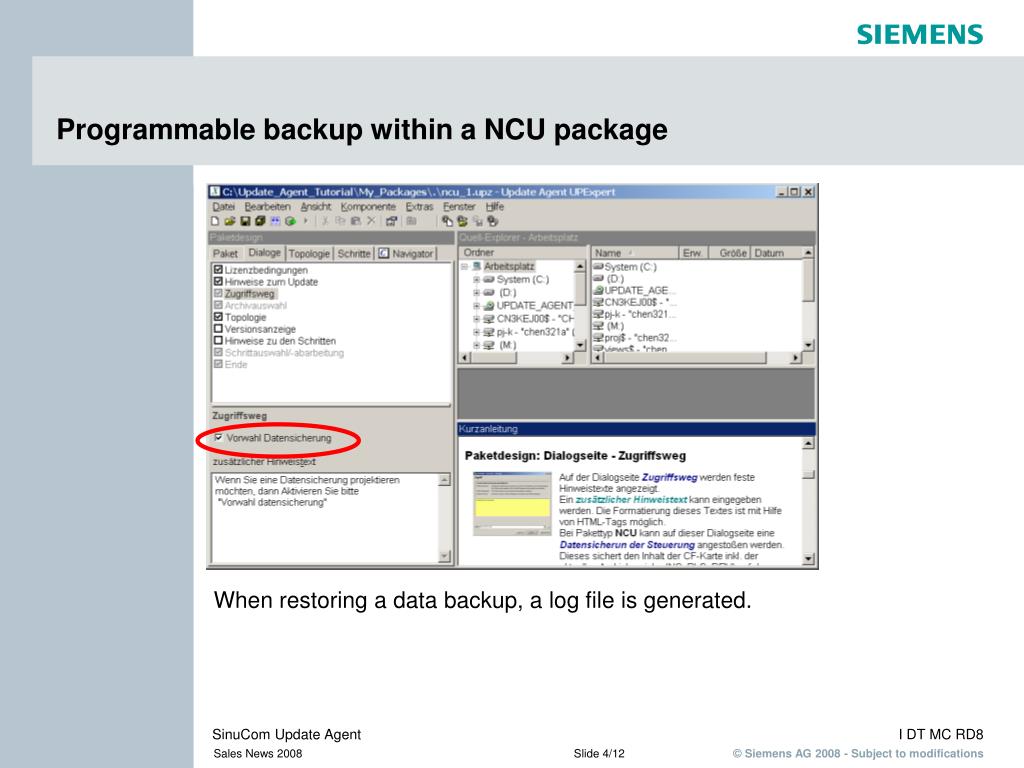

  4. Programmable backup within a NCU package When restoring a data backup, a log file is generated.

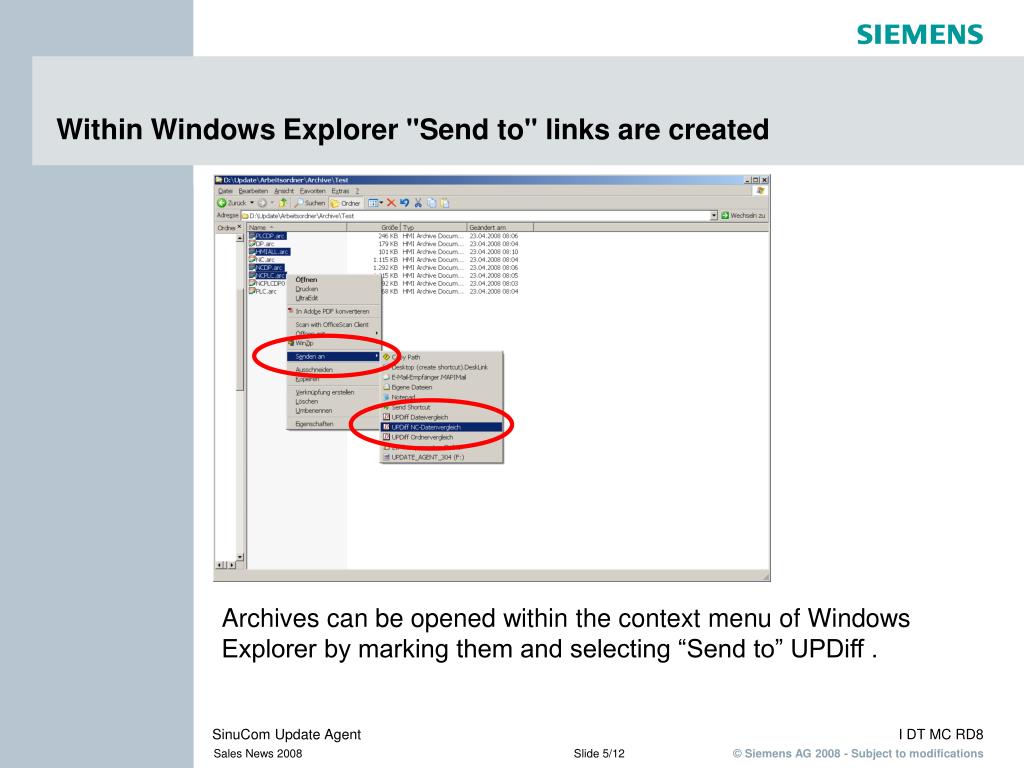

  5. Within Windows Explorer "Send to" links are created Archives can be opened within the context menu of Windows Explorer by marking them and selecting “Send to” UPDiff .

  6. Abbreviations of SINAMICS parameter Within NC data comparison of UPDiff, the abbreviations of SINAMICS parameter are also considered when copying or exporting.

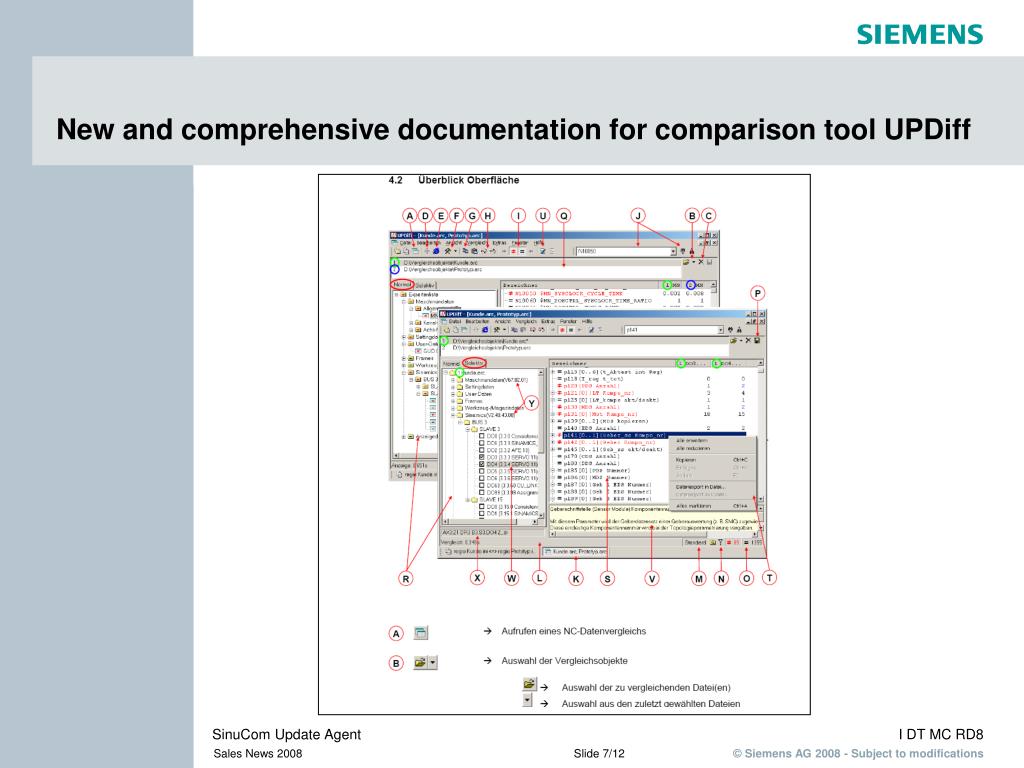

  7. New and comprehensive documentation for comparison tool UPDiff

  8. OEM-ID The OEM-ID enables the assignment of the SINAMICS-CU local component number to a uniquely defined OEM global label. Through predefinition within UPTopo, SINAMICS parameter p7859[component number] within DO1 can be written at the time of update package execution when evaluating a UP topology by UPShield.

  9.   UPShield: Improvement of archive handling on NCU . When running an installation package, only those archives are created that were checked. In this way, execution time can be reduced if no data of a certain archive need to be modified. However, when running an update, all source areas need to be checked.

  10. A certain step activation within the step tree can be exported/imported via context menu (step-xml-file) . The exported file (*.uss) can be stored together with the installation/update package. In this way, step selection is automatically performed when running an installation/update package (step selection within UPShield). The step selection file (*.uss) can also be created externally using an ECAD system.

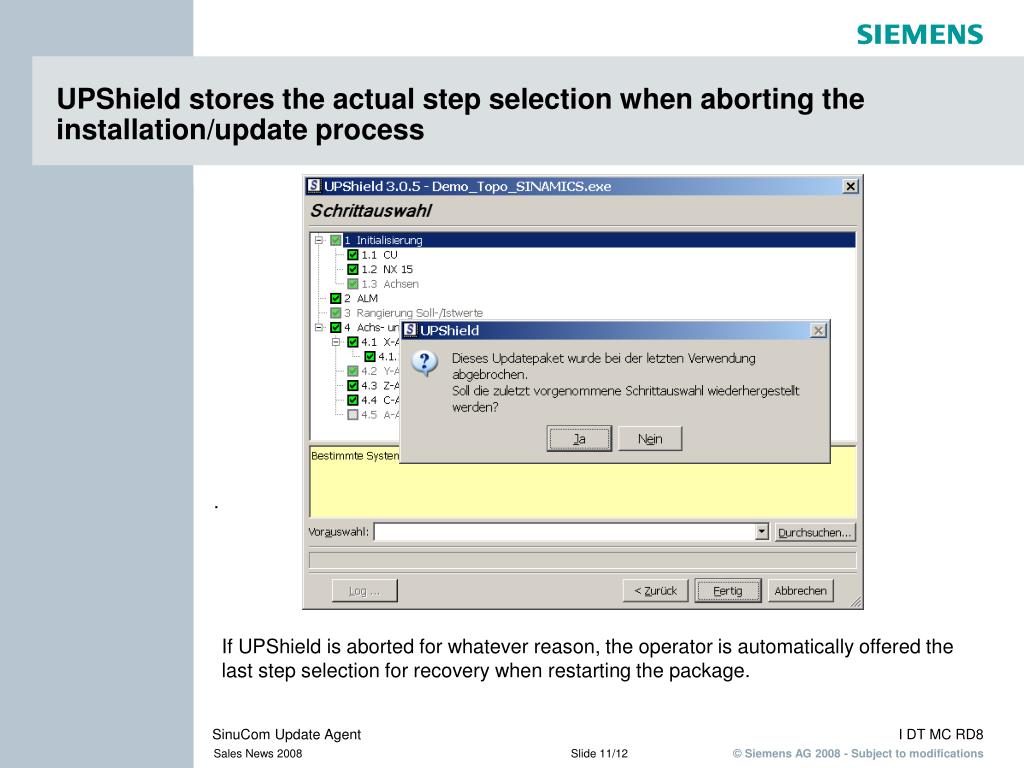

  11. UPShield stores the actual step selection when aborting the installation/update process . If UPShield is aborted for whatever reason, the operator is automatically offered the last step selection for recovery when restarting the package.

  12. Order information
