Check of the CAIN output for the initial condition of extraction line http://acfahep.kek.jp/subg/ir/cain21e/out/nominal/500.nominal.e.dat. CAIN Output. This is for head-on case. Not yet Lorents Boosted. In[10]:= DisruptedBeam

aquarius
Télécharger la présentation

CAIN Output

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Check of the CAIN output for the initial condition of extraction line http://acfahep.kek.jp/subg/ir/cain21e/out/nominal/500.nominal.e.dat CAIN Output This is for head-on case. Not yet Lorents Boosted. In[10]:= DisruptedBeam ct[m] | x[m] | y[m] | dE/E | px | py --------------+------------+-------------+------------+-------------+--------- 1.0102E-6 -5.479E-9 3.720E-10 -.0222705 2.0615E-6 -1.289E-7 | x | x' | y | y' | z | dp/p -----+-----------+------------+------------+-------------+------------+--------- x 4.221E-13 -1.14E-10 3.597E-17 7.339E-15 -1.71E-12 -1.71E-10 x' 3.8802E-8 -4.07E-14 1.258E-11 6.207E-10 3.6526E-8 y 7.157E-17 7.339E-15 -1.88E-13 4.655E-13 y' 7.112E-10 -3.15E-10 -1.880E-8 z 9.1222E-8 7.4388E-7 dE/E .0017511 sigx[m] | sigy[m] | sigz[m] | sigpx | sigpy | sigdE/E --------------+------------+-------------+------------+-------------+--------- 6.4971E-7 8.4596E-9 3.0203E-4 1.9698E-4 2.6669E-5 .0418462 emitx[m] | ax | bx[m] | emity[m] | ay | by[m] -------------+--------------+------------+------------+------------+--------- 5.803E-11 1.9657487 .0072744 1.898E-13 .6422067 3.7699E-4 etax[m] | etapx | etay[m] | etapy -------------+-------------+------------+--------- -9.752E-8 2.0859E-5 2.659E-10 -1.073E-5 Init.Condition used MARK BEG_EDL2=(AX =1.84 BX =.009673 AY =.6153 BY =3.401E-4 DP =.08 EMITX =6.3875E-11 EMITY =1.8107796E-13 ) Before collision $$$ AX ####### # -5.662E-6 $$$ BX ####### # .021000 $$$ AY ####### # 1.5655E-6 $$$ BY ####### # 4.0000E-4 $$$ EX ####### # -3.662E-8 $$$ EPX ####### # .008641

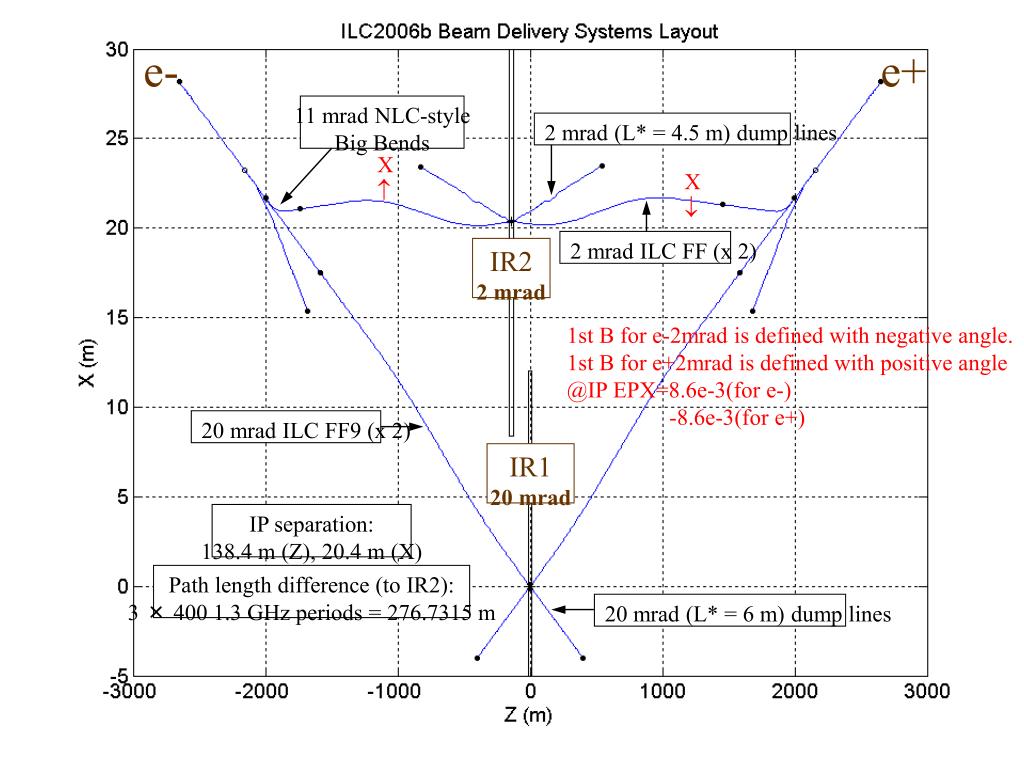

  2. e- e+ 11 mrad NLC-style Big Bends 2 mrad (L* = 4.5 m) dump lines X  X  2 mrad ILC FF (x 2) IR2 2 mrad 1st B for e-2mrad is defined with negative angle. 1st B for e+2mrad is defined with positive angle @IP EPX=8.6e-3(for e-) -8.6e-3(for e+) 20 mrad ILC FF9 (x 2) IR1 20 mrad IP separation: 138.4 m (Z), 20.4 m (X) Path length difference (to IR2): 3 × 400 1.3 GHz periods = 276.7315 m 20 mrad (L* = 6 m) dump lines
