  1. NEESGrid Data and MetaDataTechnologies Kincho Law, Jun Peng, Jim Eng, Terry Weymouth, Paul Hubbard, Charles Severance

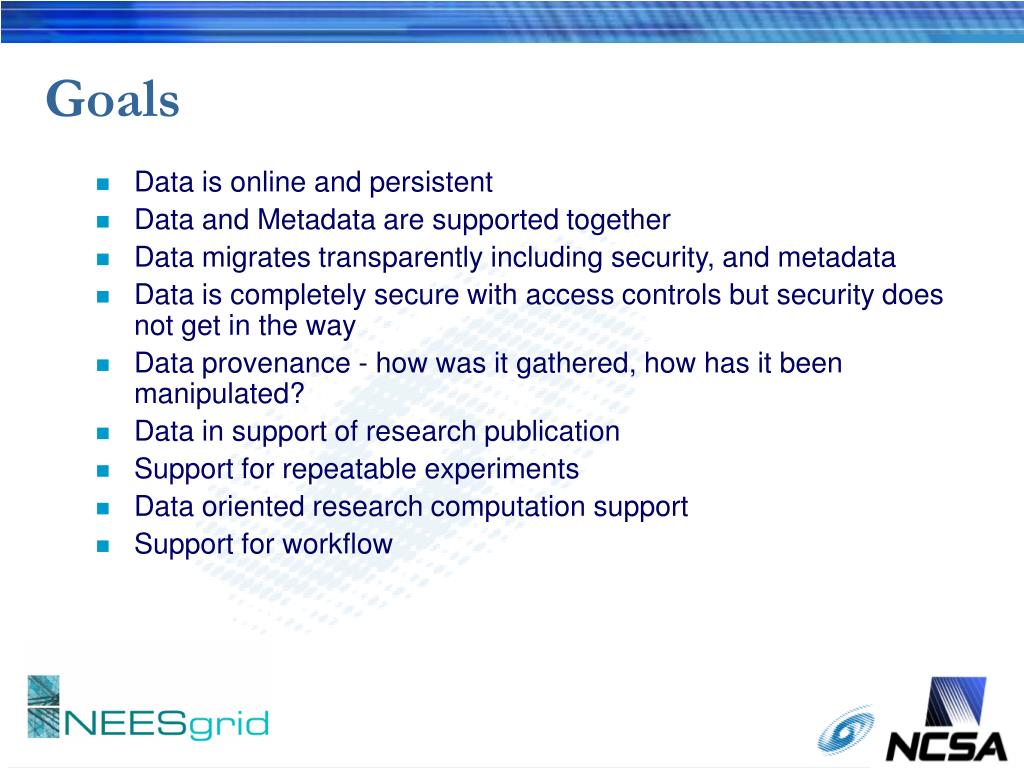

  2. Goals • Data is online and persistent • Data and Metadata are supported together • Data migrates transparently including security, and metadata • Data is completely secure with access controls but security does not get in the way • Data provenance - how was it gathered, how has it been manipulated? • Data in support of research publication • Support for repeatable experiments • Data oriented research computation support • Support for workflow

  3. Overview of tools and technologies • Model development in RDF • Project Browser • Data Repository • Electronic Notebook • Data Mappings • Data Viewer(s) • Data Turbine • Data As Video • Still Cameras 11/2003

  4. Models + Data Model Repo Data Load RDF <owl:ObjectProperty rdf:ID="hasPublications"> <rdfs:domain> <owl:Class> <owl:unionOf rdf:parseType="Collection"> <owl:Class rdf:about="#Project"/> <owl:Class rdf:about="#Task"/> </owl:unionOf> </owl:Class> </rdfs:domain> <rdfs:range rdf:resource="#Publications"/> </owl:ObjectProperty> Configure Models RDF/ OWL Configure

  5. Models + Data Model Repo Data Load RDF Configure Models Protégé - 2K RDF/ OWL Configure

  6. DOE ELN / Example

  7. Mappings and the Data Viewer • ISO 8601 Time channel • Column data with time recorded as a column • Column – generate time • Column – generate time – trigger filter Channel units: g,g,in,kip Time ATL1 ATT1 2002-11-13T15:48:55.26499 -0.006409 0.004272 2002-11-13T15:48:55.36499 -0.005798 -0.003662 100.000 0.435 0.161 -1.016 -0.981 0.430 0.161 -1.016 -0.977 0.435 0.161 -1.016 -0.977 public class NEESDataMap { public static boolean repoMap(File mainFile, File mappingFile, String mapping) { // Code here } }

  8. Data Turbine - Today rbnbjcap BT848 Axis DT Client Data Capture DAQ DT Client NTCP Plugin CTL NTCP Control Control Plugin DT Main System AXIS / DT Gateway NEES NSDS Driver

  9. Data Turbine Control Start NTCP Control Control Plugin DT Main System Thumbs Technology Celebration

  10. DT Capturing Still Capture PTZ/ USB DT Client rbnbjcap BT848 DT Client Audio Encoder Audio DT Client Data Capture DAQ DT Client Each still capture produces two channels - Small 1-5fps stream + large single images when picture is taken Camera Control Control Plugin DT Main System NEES NSDS Driver Still Capture - Minnesota / Paul Hubbard Video capture - From Creare Audio capture - From Creare (TBD) Data Capture - From sites (upwards compatible) NEES NSDS Driver - Paul Hubbard Camera Control Plugin - Mich / Minn

  11. User Views / Still Camera Still Image / Camera Control ^ < > ^ ~ < > Thumbnail + Audio + Data Data Viewer < > + Control Plugin Images as combination of time lapse with triggers, live video, and human-taken pictures DT Main System Thumbnail Process Quicktime Storage System Quicktime Slicing Tool

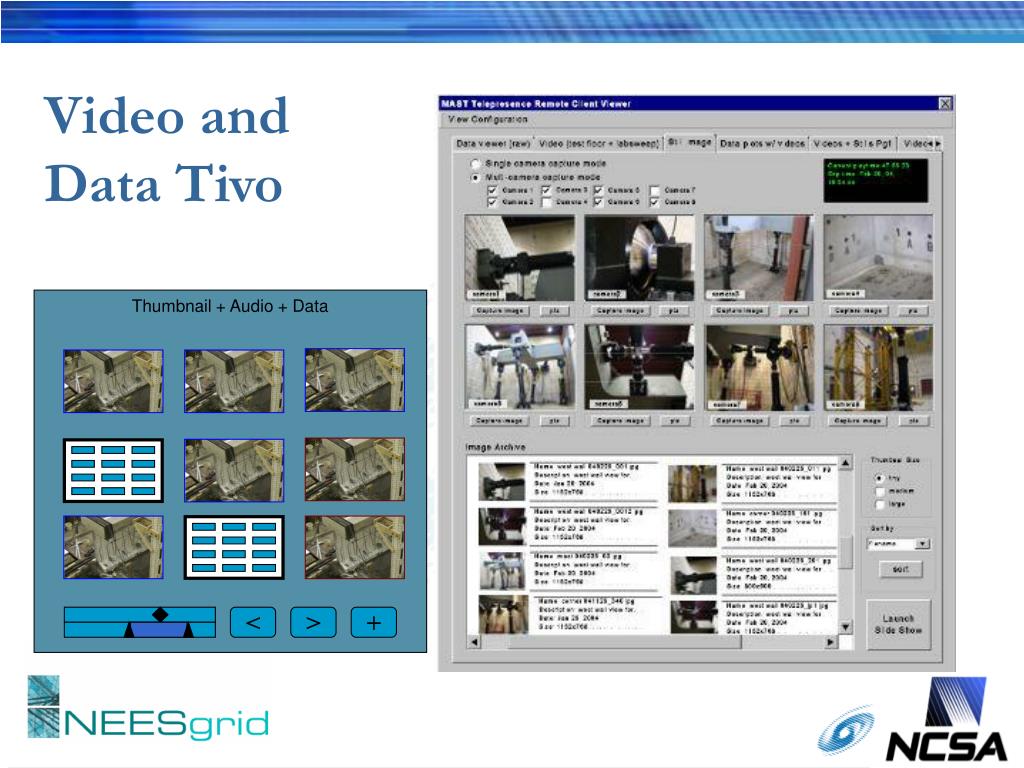

  12. Thumbnail + Audio + Data < > + Video andData Tivo

  13. Summary • We have many elements completed and working, but there is much more that is still not done: • Additional visualization capabilities • Improved tele-presense capabilities • Improved experiment management tools • Improved linking of simulation and experimental analysis • Central data repository curation • Data mining and knowledge creation • Federation of indexes and searching across many sites • Many incremental improvements - upgrading components, internationalization
