Presentation Transcript

  1. www.forth.gr

  2. ACTIVITIES of PEML • Performing the growth of metal oxide thin films onto various substrates • Growth process optimization for particular thin film applications • Structural, Optical, Electrical, Mechanical, Chemical characterization • Material design for passive and active coatings • Testing and optimization of prototype sensors

  3. Growth and Characterization • Metal-oxide film production (InOx, SnOx, ZnOx and doped) • physical vapor deposition systems • dc reactive magnetron sputtering • metal evaporator • Electrical characterization • DC / AC • Optical characterization (off and on-line) • UV/VIS Spectrophotometer (scan range 200-900nm) • FTIR 50-8000 wave numbers • Structural characterization • Thickness measurement • X-Ray Diffraction • Electron Microscopy (SEM, TEM) • Atomic Force Microscopy (AFM)

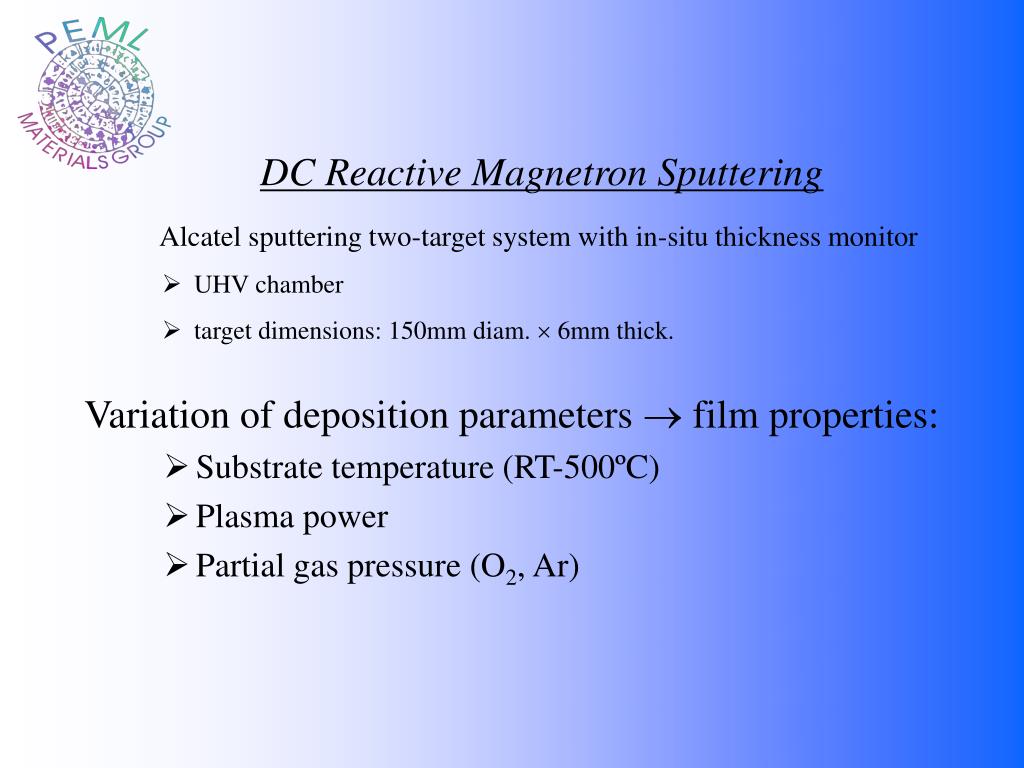

  4. DC Reactive Magnetron Sputtering • Alcatel sputtering two-target system with in-situ thickness monitor • UHV chamber • target dimensions: 150mm diam.  6mm thick. Variation of deposition parameters  film properties: • Substrate temperature (RT-500ºC) • Plasma power • Partial gas pressure (O2, Ar)

  5. Group Activities Photoreduction and oxidation of a 60-nm-thick InOx film deposited at room temperature • Metal-Oxide Film Production & Characterization • Optical image of a transducer Interdigitated structures of a SAW device

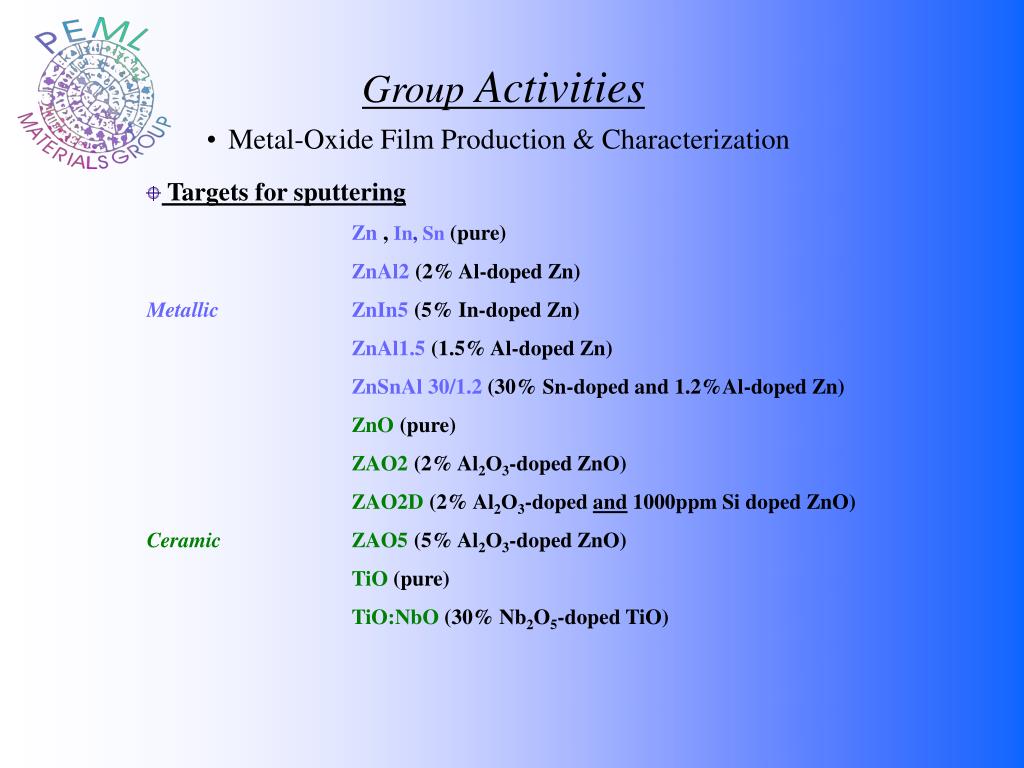

  6. Group Activities • Metal-Oxide Film Production & Characterization • Targets for sputtering • Zn , In, Sn(pure) • ZnAl2 (2% Al-doped Zn) • MetallicZnIn5 (5% In-doped Zn) • ZnAl1.5 (1.5% Al-doped Zn) • ZnSnAl 30/1.2 (30% Sn-doped and 1.2%Al-doped Zn) • ZnO (pure) • ZAO2 (2% Al2Ο3-doped ZnO) • ZAO2D (2% Al2Ο3-doped and 1000ppm Si doped ZnO) • Ceramic ZAO5 (5% Al2Ο3-doped ZnO) • TiO (pure) • TiO:NbO (30% Nb2O5-doped TiO)

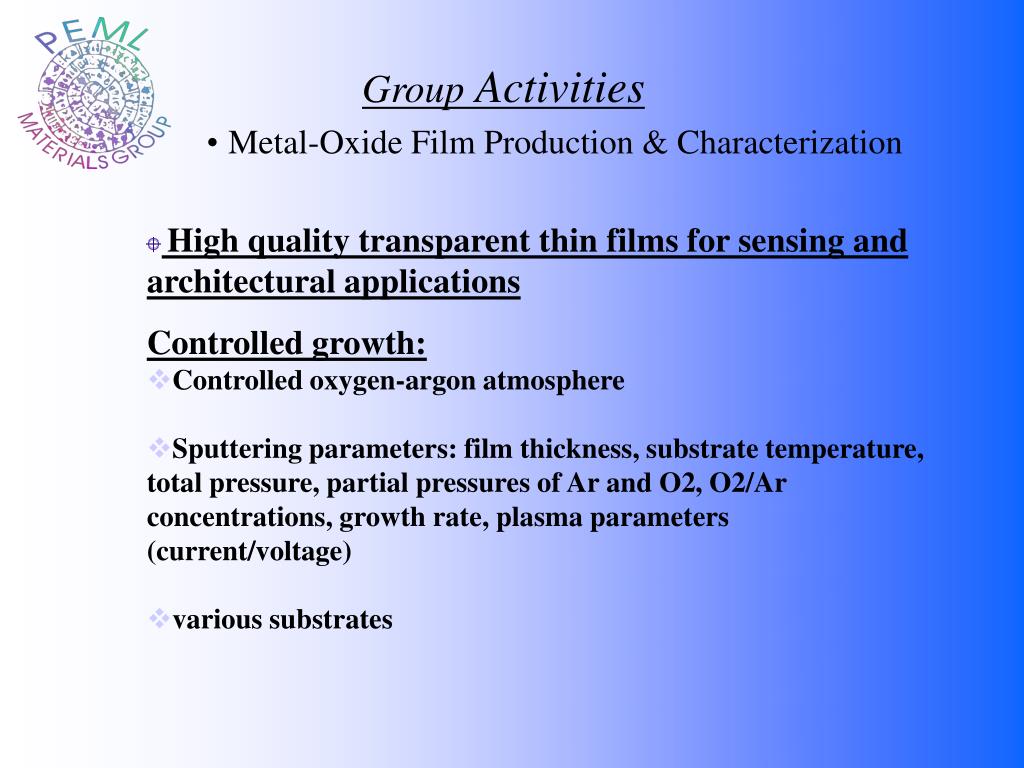

  7. Group Activities • Metal-Oxide Film Production & Characterization • High quality transparent thin films for sensing and architectural applications • Controlled growth: • Controlled oxygen-argon atmosphere • Sputtering parameters: film thickness, substrate temperature, total pressure, partial pressures of Ar and O2, O2­/Ar concentrations, growth rate, plasma parameters (current/voltage) • various substrates

  8. HIGHLIGHT of RESULTS The dynamic response of the InOx films towards nitrogen dioxide at an operating temperature of 200ºC.

  9. HIGHLIGHT of RESULTS • High conductivity changes under UV-exposure, reductive-oxidative gases. • Gas Sensor for NO2, NO, O3 in the sub-ppm range • Low operating temperature applications. • Sensor for oxidant VOC’s Schematic illustration of the apparatus used for the photoreduction and oxidation procedures of InOx films Typical photoreduction-oxidation conductivity curve for InOx thin films.

  10. HIGHLIGHT of RESULTS Electron Probe Micro Analysis (EPMA) In:O atomic ratio as a function of depth in the near surface region derived from SIMS-depth profiles

  11. HIGHLIGHT of RESULTS High transparent coatings (e.g. 2%Al doped ZnO) #484 RMS=0.906 nm Very smooth surfaces: Sub-nanometric RMS

  12. HIGHLIGHT of RESULTS Active coatings: titania TiO, 100nm, 0,195nm RMS • Extremely smooth Surfaces (see Z-Range: <4nm!), Roughness below 1nm • Amorphous • Film Resistances ~1010 Ω/cm2 • Highly Transparent ~85% • TiO and TiO:NbO films exhibit Hydrophobicity and Hydrophilicity under UV Exposure

  13. NetworkAnalyzer fo BW = 2f0 / NP BW IDT Frequency Response IDT Frequency Response

  14. HIGHLIGHT of RESULTS SAW devices Ozone Sensing Properties of InOx

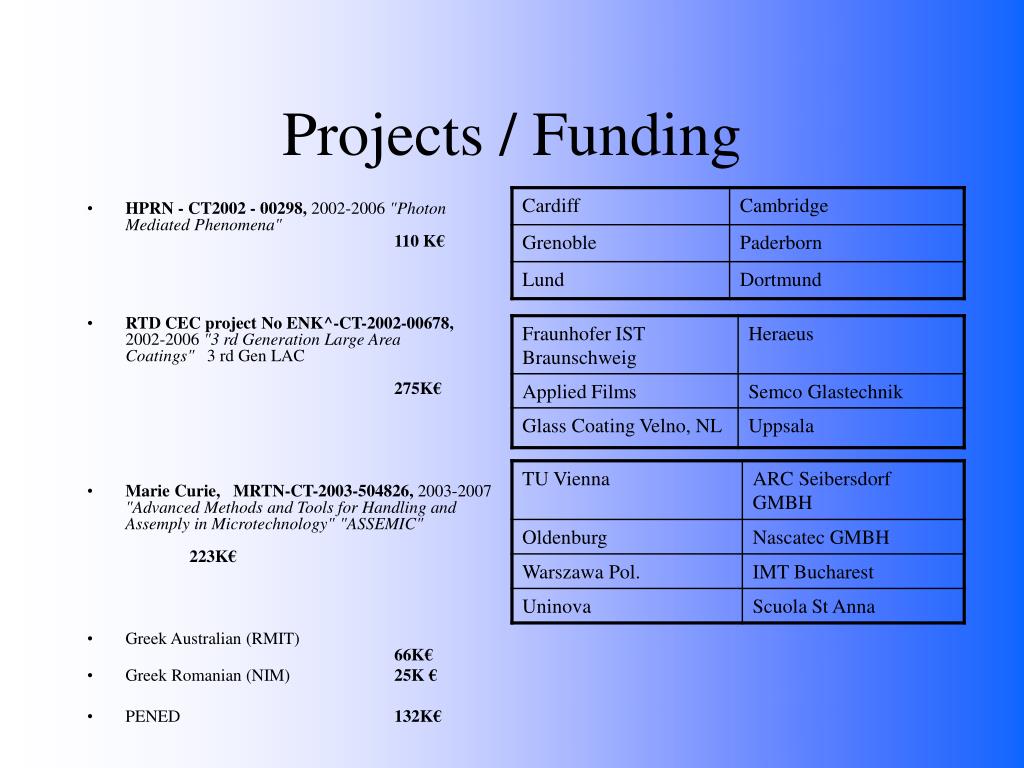

  15. Projects / Funding • HPRN - CT2002 - 00298, 2002-2006 "Photon Mediated Phenomena" 110 K€ • RTD CEC project No ENK^-CT-2002-00678, 2002-2006 "3 rd Generation Large Area Coatings"   3 rd Gen LAC 275K€ • Marie Curie,   MRTN-CT-2003-504826, 2003-2007 "Advanced Methods and Tools for Handling and Assemply in Microtechnology" "ASSEMIC" 223K€ • Greek Australian (RMIT) 66K€ • Greek Romanian (NIM) 25K € • PENED 132K€

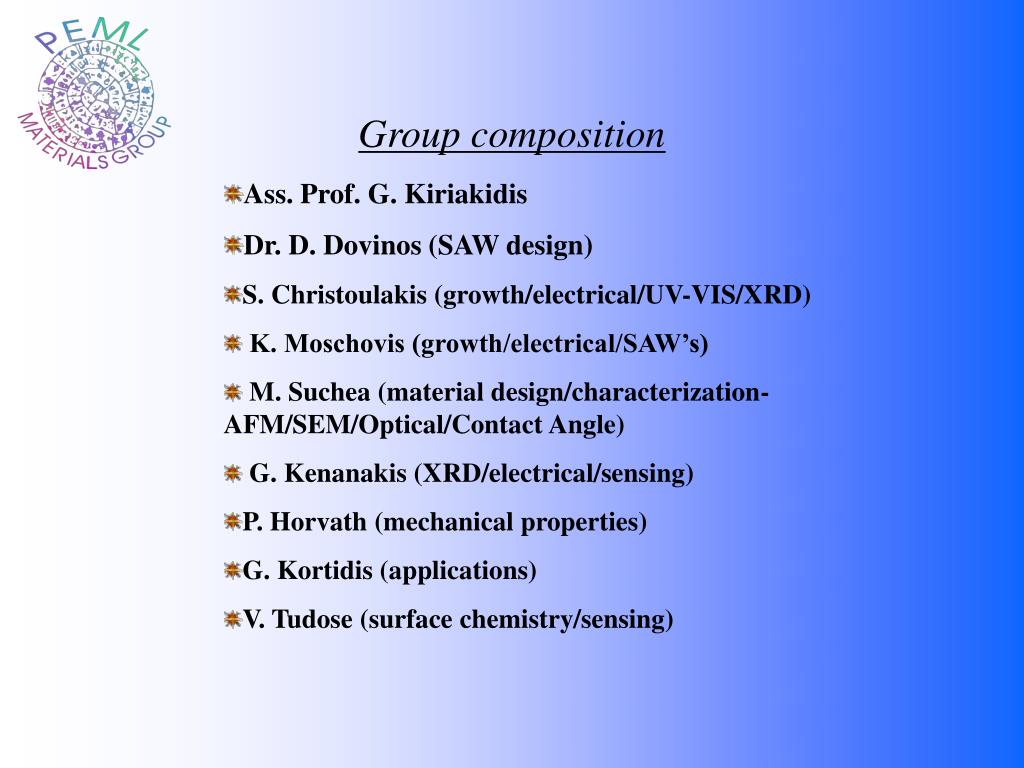

  16. Group composition • Ass. Prof.G. Kiriakidis • Dr. D. Dovinos (SAW design) • S. Christoulakis (growth/electrical/UV-VIS/XRD) • K. Moschovis (growth/electrical/SAW’s) • M. Suchea (material design/characterization- AFM/SEM/Optical/Contact Angle) • G. Kenanakis (XRD/electrical/sensing) • P. Horvath (mechanical properties) • G. Kortidis (applications) • V. Tudose (surface chemistry/sensing)

  17. People
