RADAR SIGNATURES of SUPERCELL THUNDERSTORMS. Leah Johnson M707  Remote Sensing. Hastings, Nebraska  May 22nd, 2004. HAS radar data from the WSR-88 Radar site at KUEX. Plotted using NCDC Radar Viewer. Images Courtesy of NOAA's National Weather Service. NOZ : Base Reflectivitiy.

archer
Télécharger la présentation

Hastings, Nebraska  May 22nd, 2004

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. RADAR SIGNATURES of SUPERCELL THUNDERSTORMS Leah Johnson M707  Remote Sensing Hastings, Nebraska  May 22nd, 2004 HAS radar data from the WSR-88 Radar site at KUEX. Plotted using NCDC Radar Viewer Images Courtesy of NOAA's National Weather Service

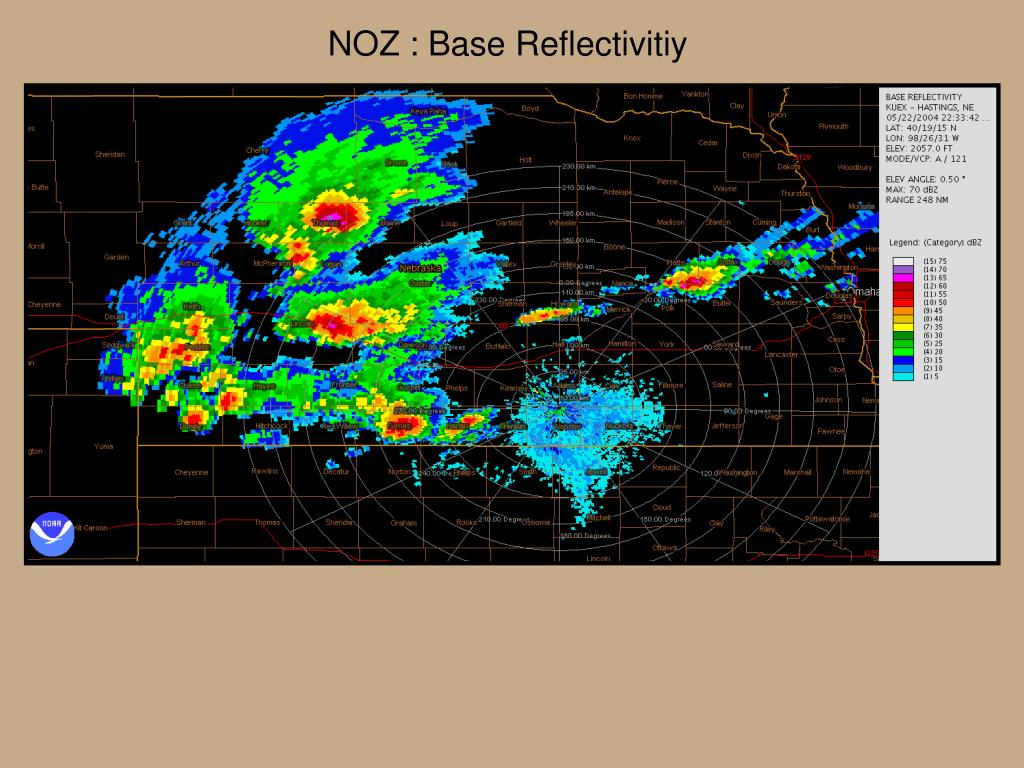

  2. NOZ : Base Reflectivitiy

  3. NOW : Base Velocity

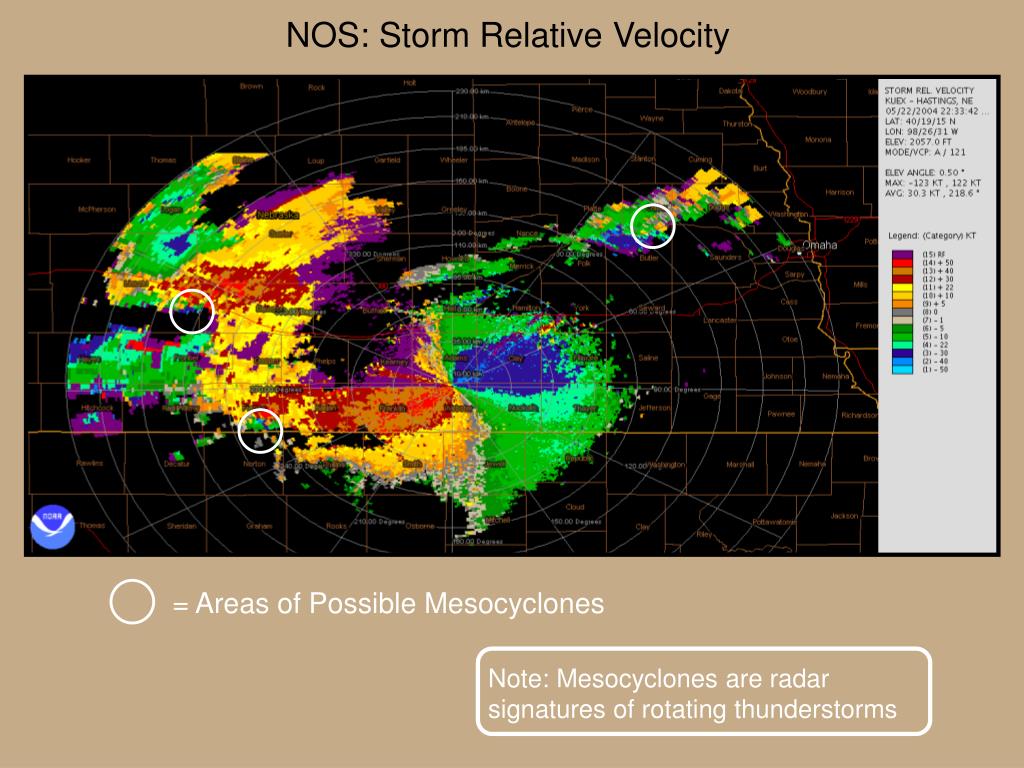

  4. NOS: Storm Relative Velocity = Areas of Possible Mesocyclones Note: Mesocyclones are radar signatures of rotating thunderstorms

  5. NVW: VAD Wind Profile

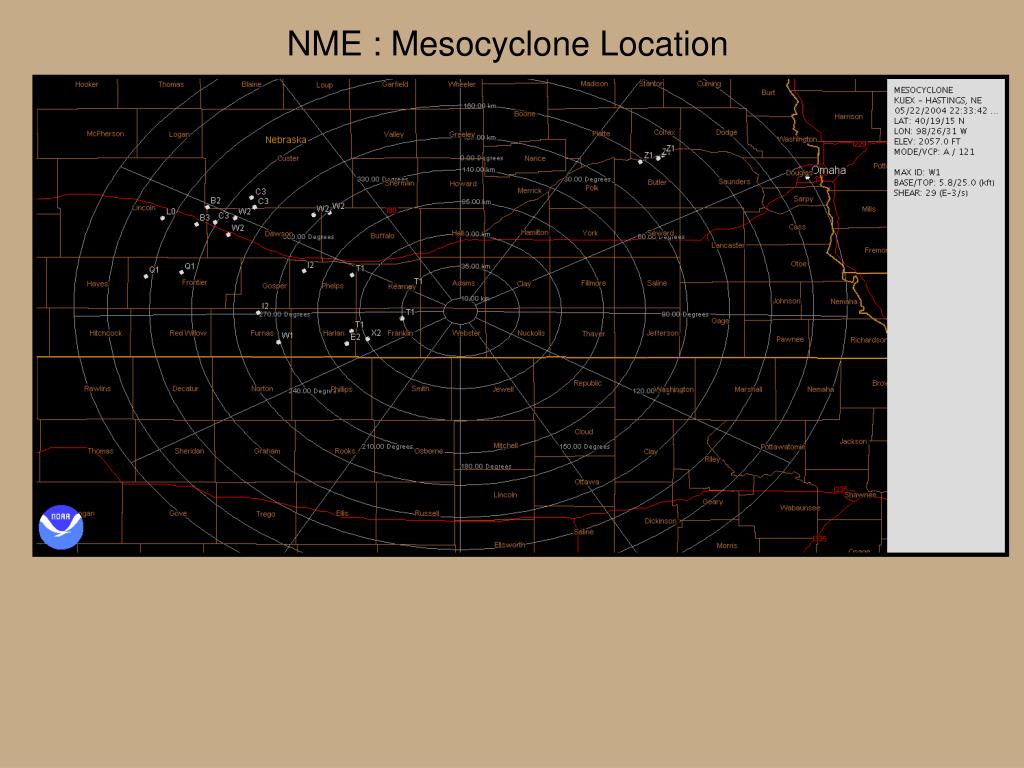

  6. NME : Mesocyclone Location

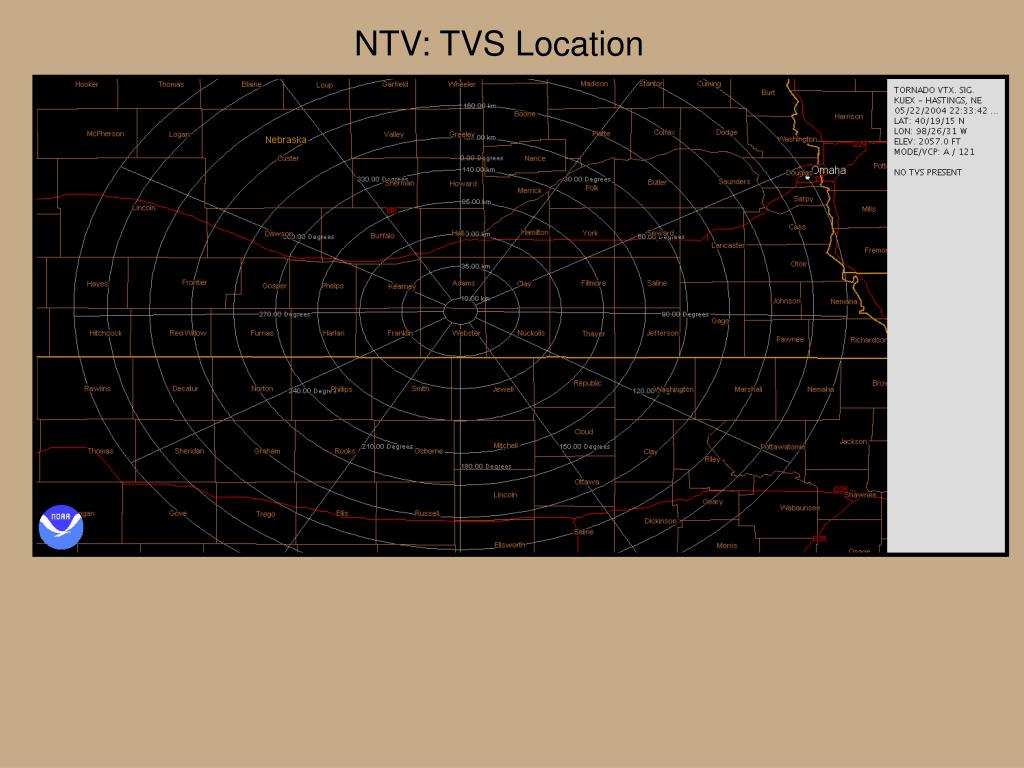

  7. NTV: TVS Location
