  1. Simulation of Diffraction Dissociation in Various ModelsV. Uzhinsky, 27.11.13 • Problem formulation • 2. Diffraction in Fritiof 1.6, Fritiof 7.0, UrQMD • Diquark fragmentation functions • Conclusion • Consideration 1 FTF results

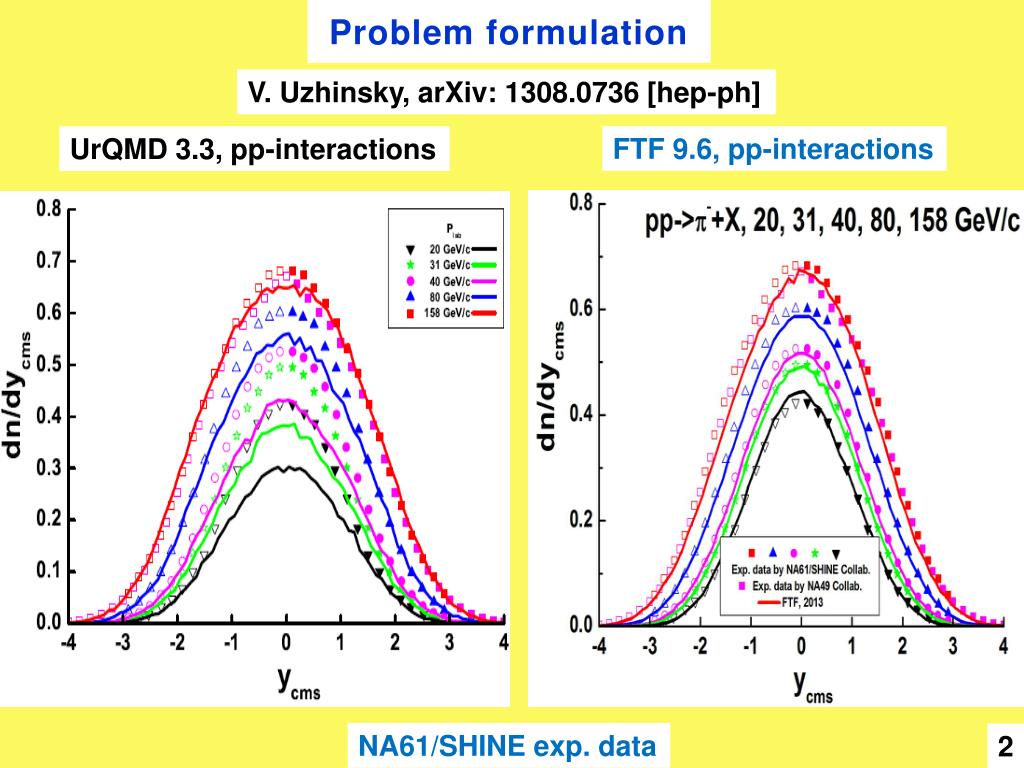

  2. Problem formulation V. Uzhinsky, arXiv: 1308.0736 [hep-ph] FTF 9.6, pp-interactions UrQMD 3.3, pp-interactions NA61/SHINE exp. data 2

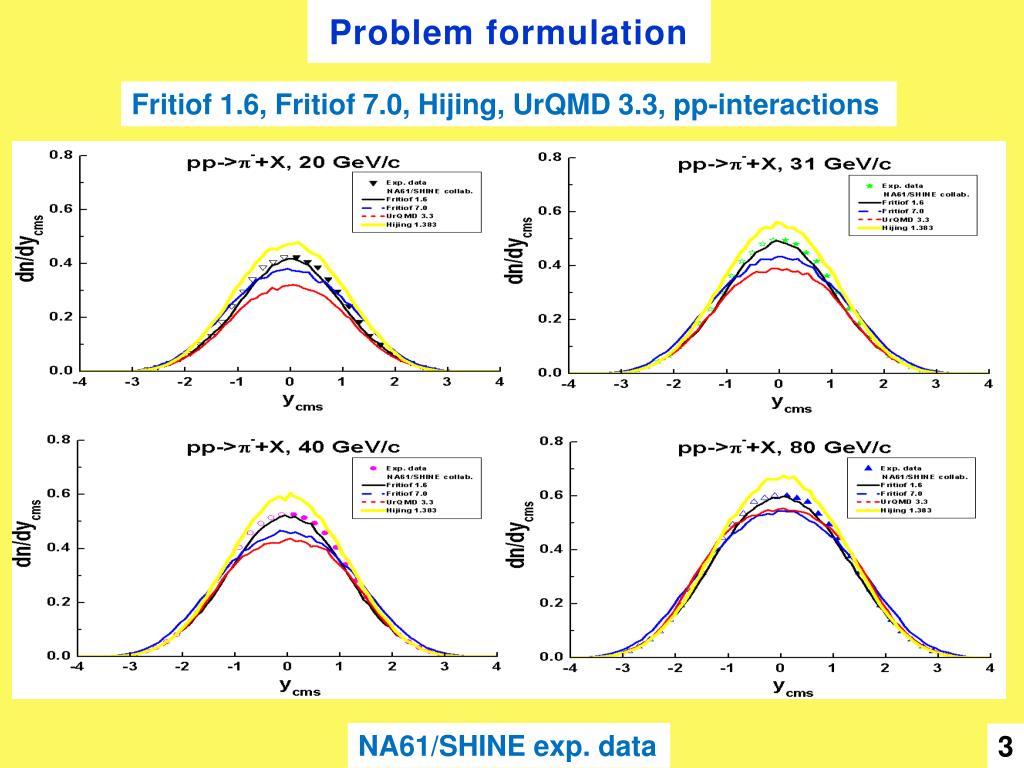

  3. Problem formulation Fritiof 1.6, Fritiof 7.0, Hijing, UrQMD 3.3, pp-interactions NA61/SHINE exp. data 3

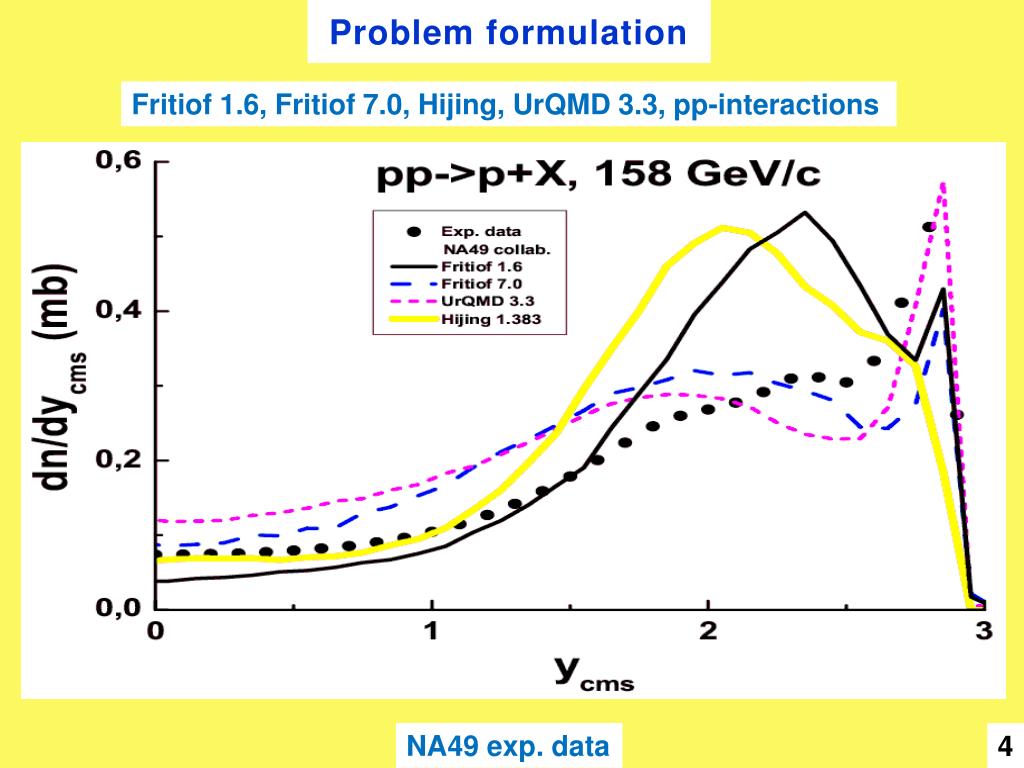

  4. Problem formulation Fritiof 1.6, Fritiof 7.0, Hijing, UrQMD 3.3, pp-interactions NA49 exp. data 4

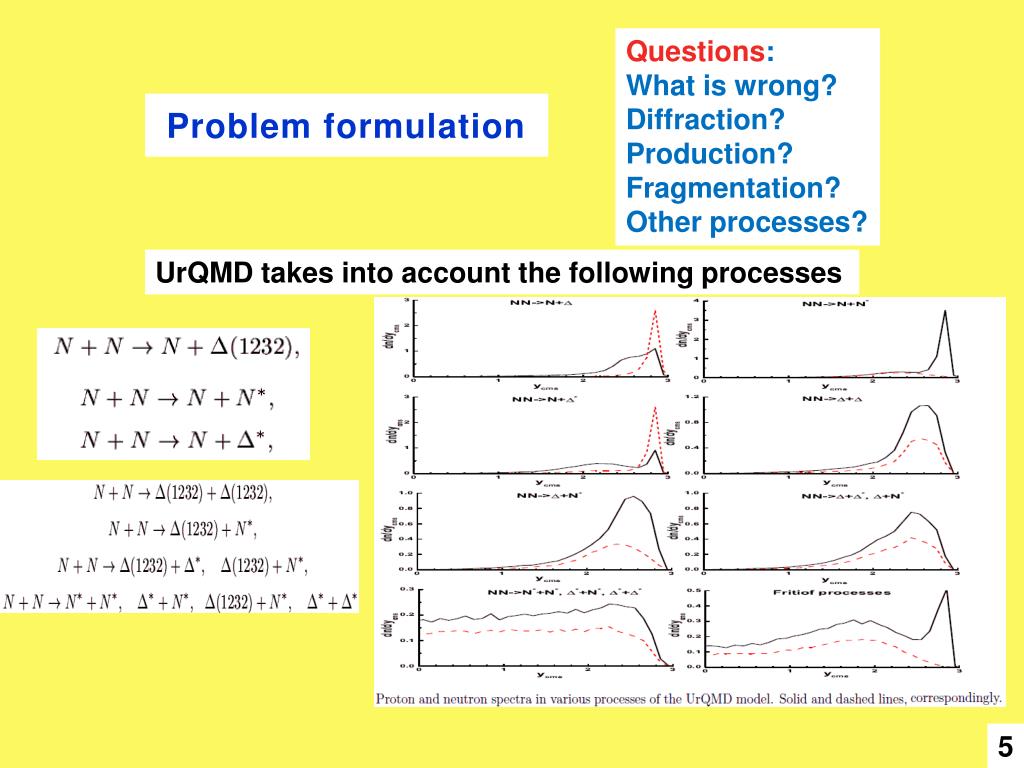

  5. Questions: What is wrong? Diffraction? Production? Fragmentation? Other processes? Problem formulation UrQMD takes into account the following processes 5

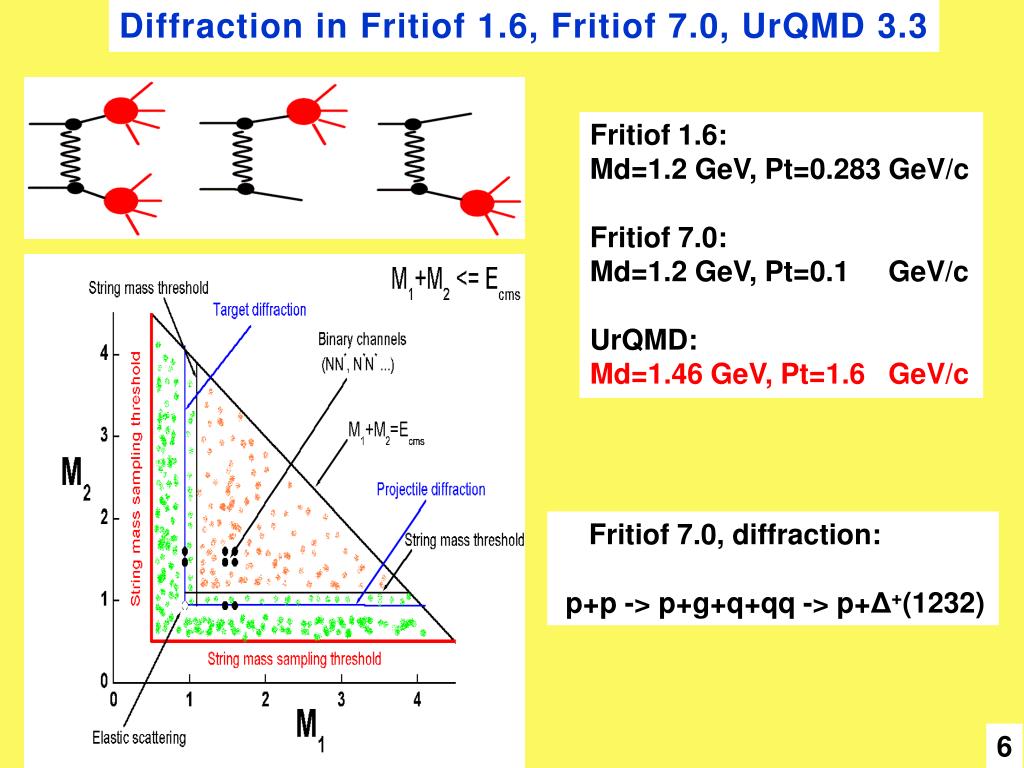

  6. Diffraction in Fritiof 1.6, Fritiof 7.0, UrQMD 3.3 Fritiof 1.6: Md=1.2 GeV, Pt=0.283 GeV/c Fritiof 7.0: Md=1.2 GeV, Pt=0.1 GeV/c UrQMD: Md=1.46 GeV, Pt=1.6 GeV/c Fritiof 7.0, diffraction: p+p -> p+g+q+qq -> p+Δ+(1232) 6

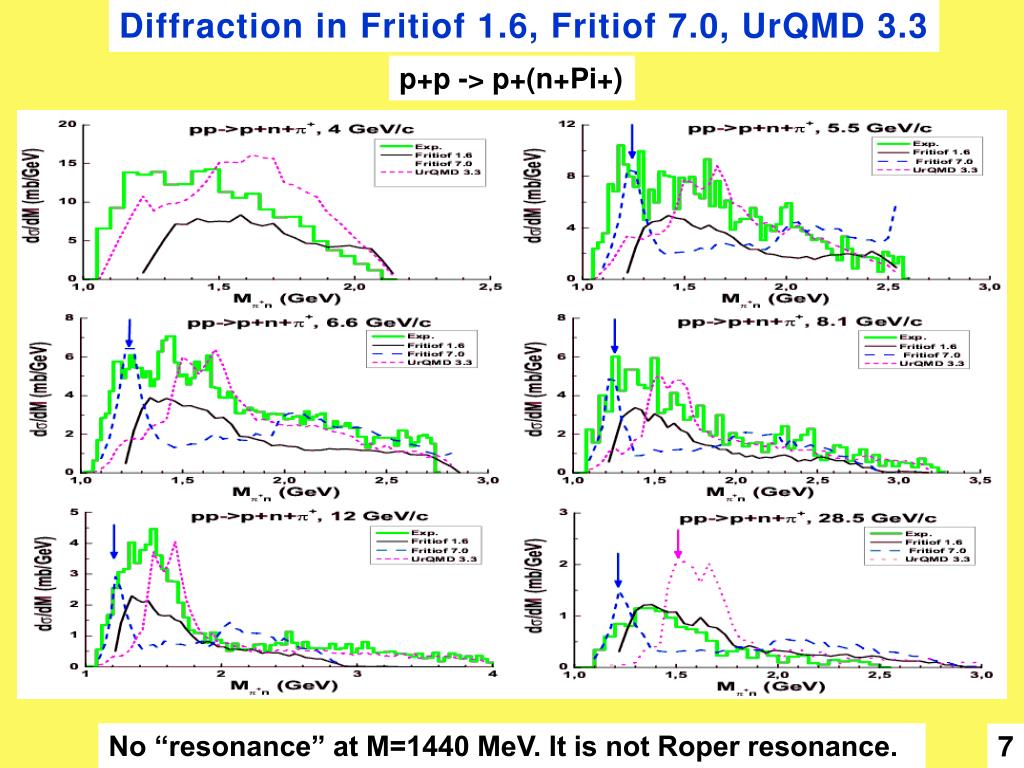

  7. Diffraction in Fritiof 1.6, Fritiof 7.0, UrQMD 3.3 p+p -> p+(n+Pi+) No “resonance” at M=1440 MeV. It is not Roper resonance. 7

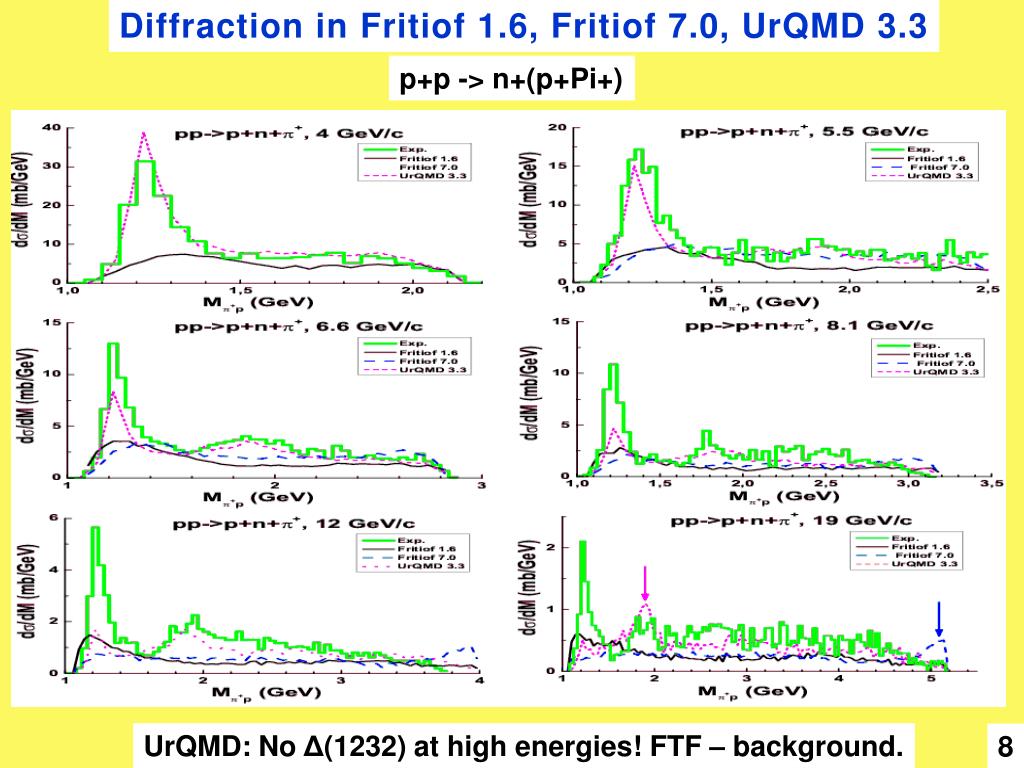

  8. Diffraction in Fritiof 1.6, Fritiof 7.0, UrQMD 3.3 p+p -> n+(p+Pi+) UrQMD: No Δ(1232) at high energies! FTF – background. 8

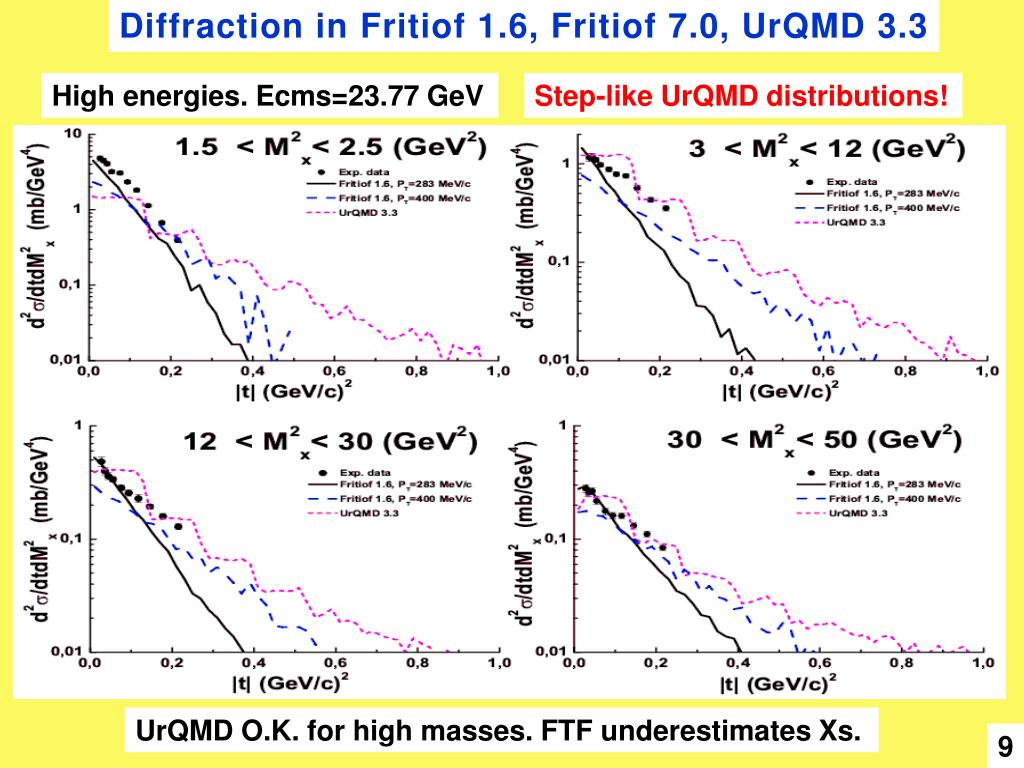

  9. Diffraction in Fritiof 1.6, Fritiof 7.0, UrQMD 3.3 High energies. Ecms=23.77 GeV Step-like UrQMD distributions! UrQMD O.K. for high masses. FTF underestimates Xs. 9

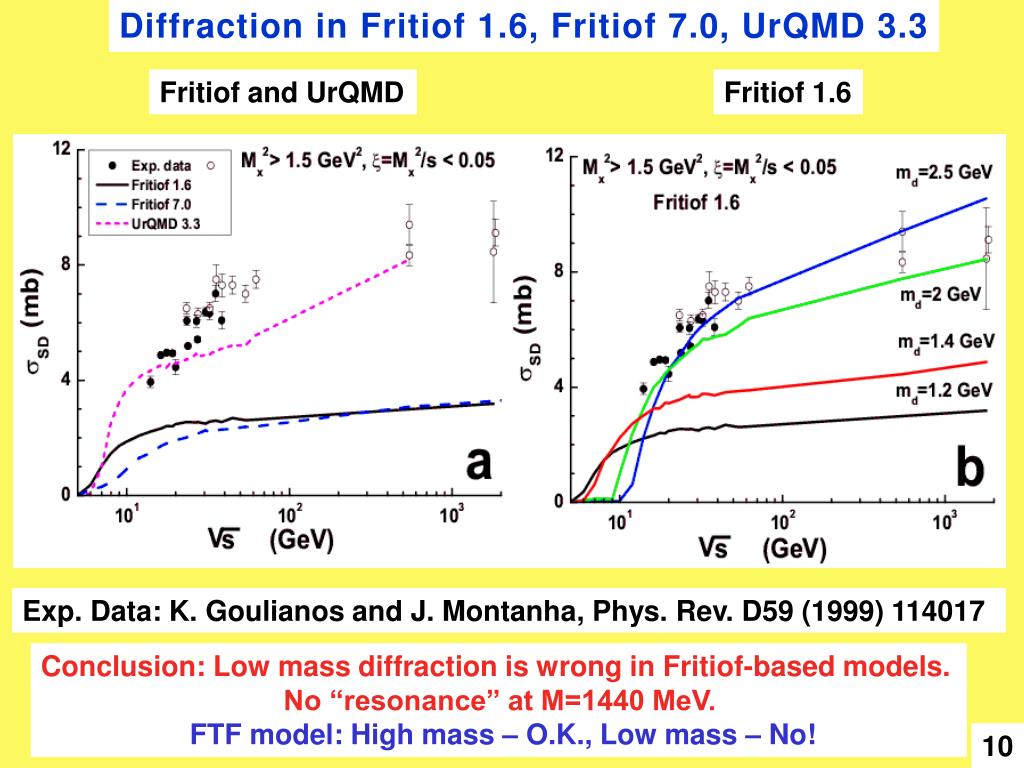

  10. Diffraction in Fritiof 1.6, Fritiof 7.0, UrQMD 3.3 Fritiof and UrQMD Fritiof 1.6 Exp. Data: K. Goulianos and J. Montanha, Phys. Rev. D59 (1999) 114017 Conclusion: Low mass diffraction is wrong in Fritiof-based models. No “resonance” at M=1440 MeV. FTF model: High mass – O.K., Low mass – No! 10

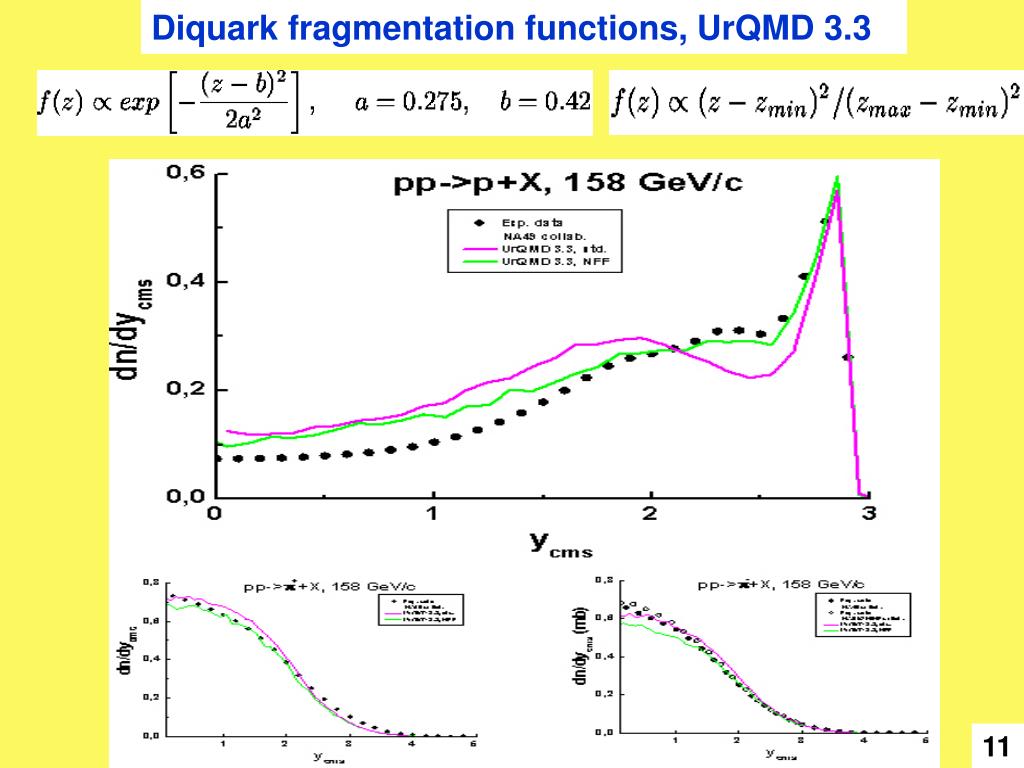

  11. Diquark fragmentation functions, UrQMD 3.3 11

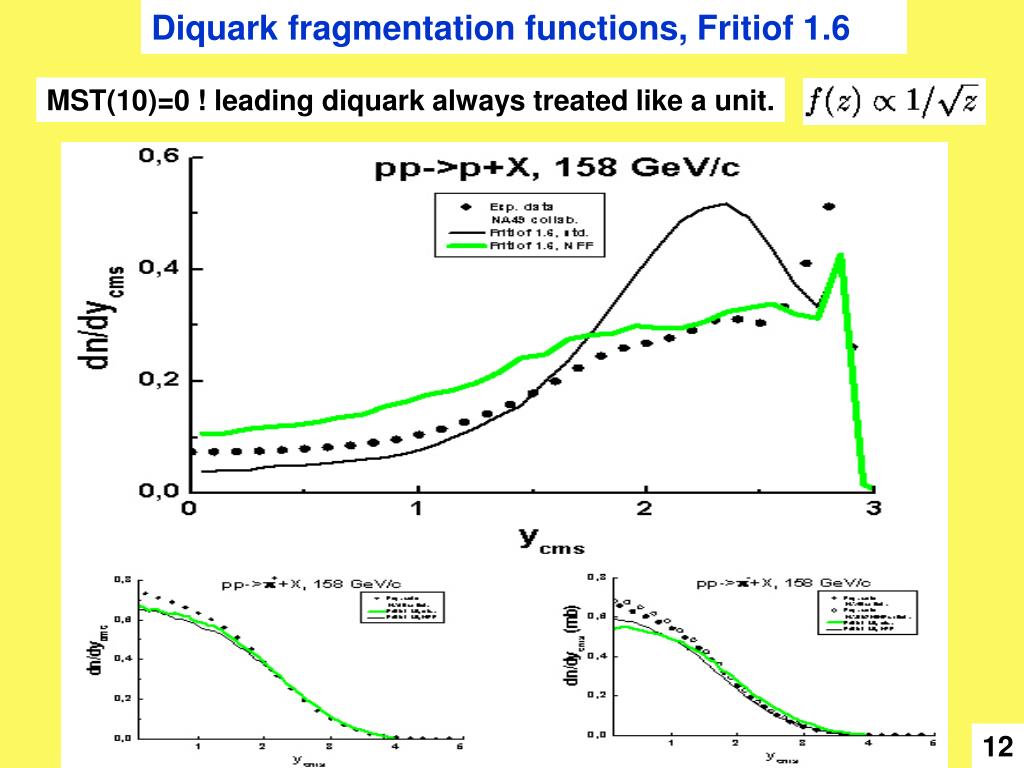

  12. Diquark fragmentation functions, Fritiof 1.6 MST(10)=0 ! leading diquark always treated like a unit. 12

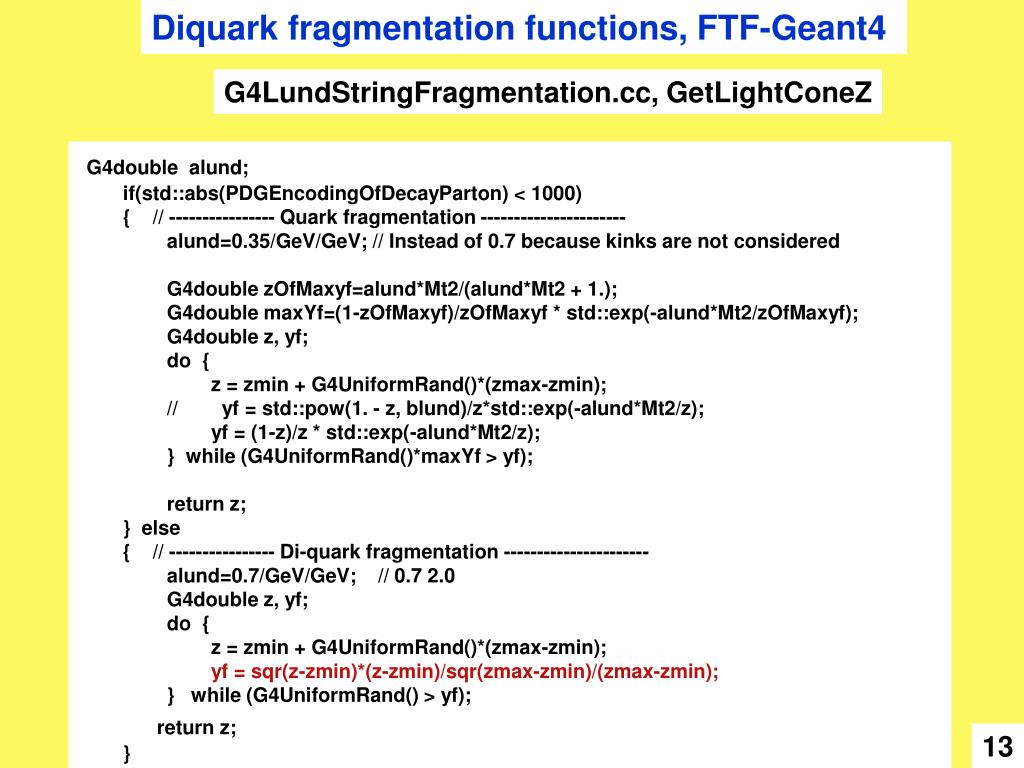

  13. Diquark fragmentation functions, FTF-Geant4 G4LundStringFragmentation.cc, GetLightConeZ G4double alund; if(std::abs(PDGEncodingOfDecayParton) < 1000) { // ---------------- Quark fragmentation ---------------------- alund=0.35/GeV/GeV; // Instead of 0.7 because kinks are not considered G4double zOfMaxyf=alund*Mt2/(alund*Mt2 + 1.); G4double maxYf=(1-zOfMaxyf)/zOfMaxyf * std::exp(-alund*Mt2/zOfMaxyf); G4double z, yf; do { z = zmin + G4UniformRand()*(zmax-zmin); // yf = std::pow(1. - z, blund)/z*std::exp(-alund*Mt2/z); yf = (1-z)/z * std::exp(-alund*Mt2/z); } while (G4UniformRand()*maxYf > yf); return z; } else { // ---------------- Di-quark fragmentation ---------------------- alund=0.7/GeV/GeV; // 0.7 2.0 G4double z, yf; do { z = zmin + G4UniformRand()*(zmax-zmin); yf = sqr(z-zmin)*(z-zmin)/sqr(zmax-zmin)/(zmax-zmin); } while (G4UniformRand() > yf); return z; } 13

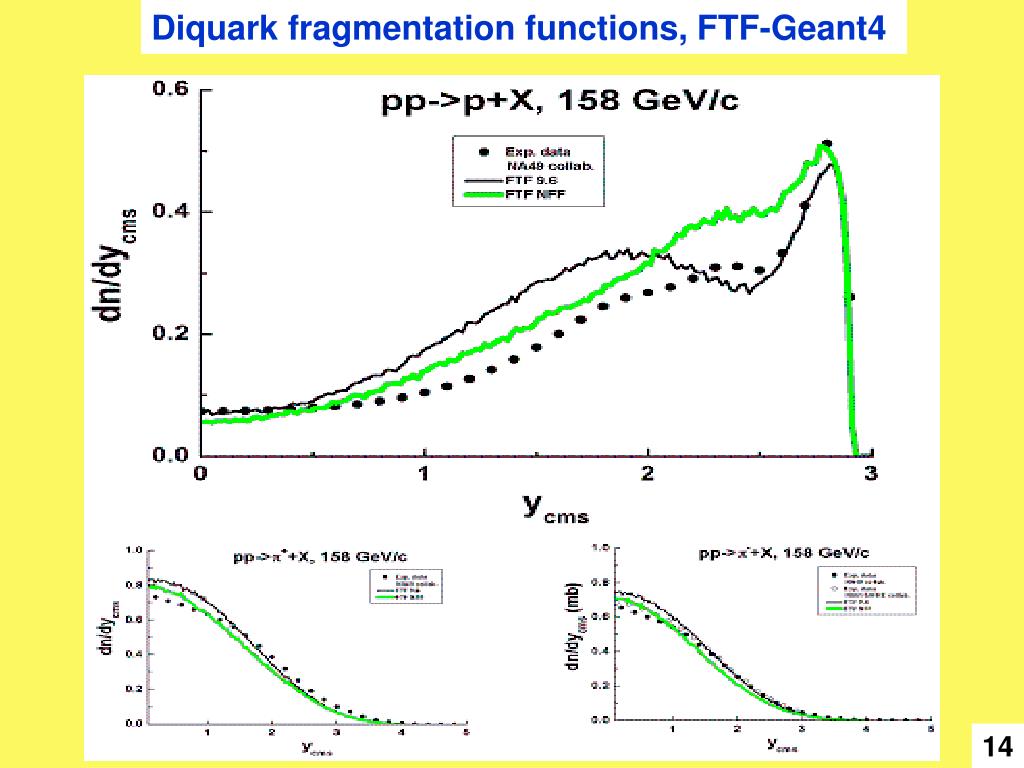

  14. Diquark fragmentation functions, FTF-Geant4 14

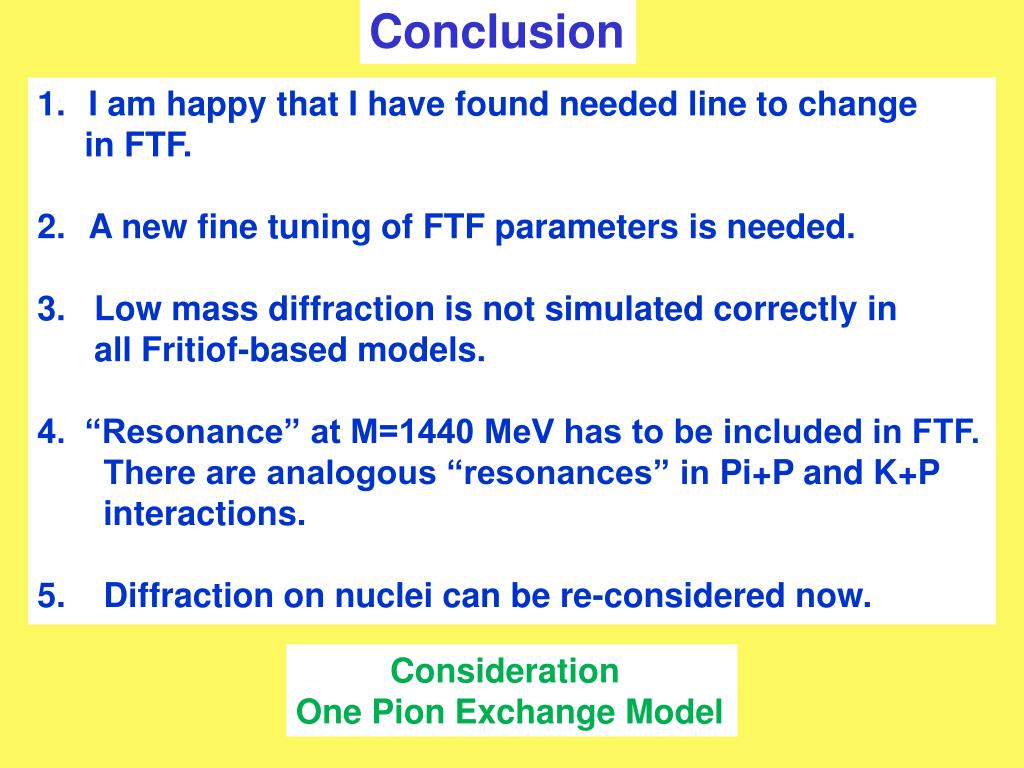

  15. Conclusion • I am happy that I have found needed line to change in FTF. • A new fine tuning of FTF parameters is needed. 3. Low mass diffraction is not simulated correctly in all Fritiof-based models. 4. “Resonance” at M=1440 MeV has to be included in FTF. There are analogous “resonances” in Pi+P and K+P interactions. 5. Diffraction on nuclei can be re-considered now. Consideration One Pion Exchange Model

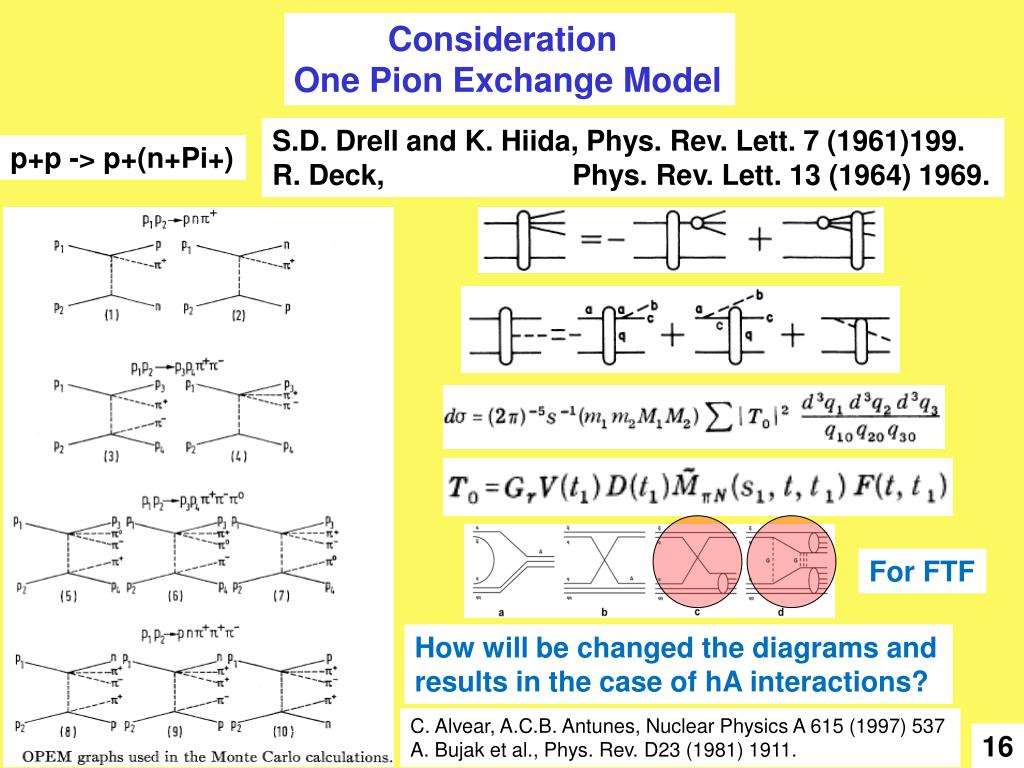

  16. Consideration One Pion Exchange Model S.D. Drell and K. Hiida, Phys. Rev. Lett. 7 (1961)199. R. Deck, Phys. Rev. Lett. 13 (1964) 1969. p+p -> p+(n+Pi+) For FTF How will be changed the diagrams and results in the case of hA interactions? C. Alvear, A.C.B. Antunes, Nuclear Physics A 615 (1997) 537 A. Bujak et al., Phys. Rev. D23 (1981) 1911. 16

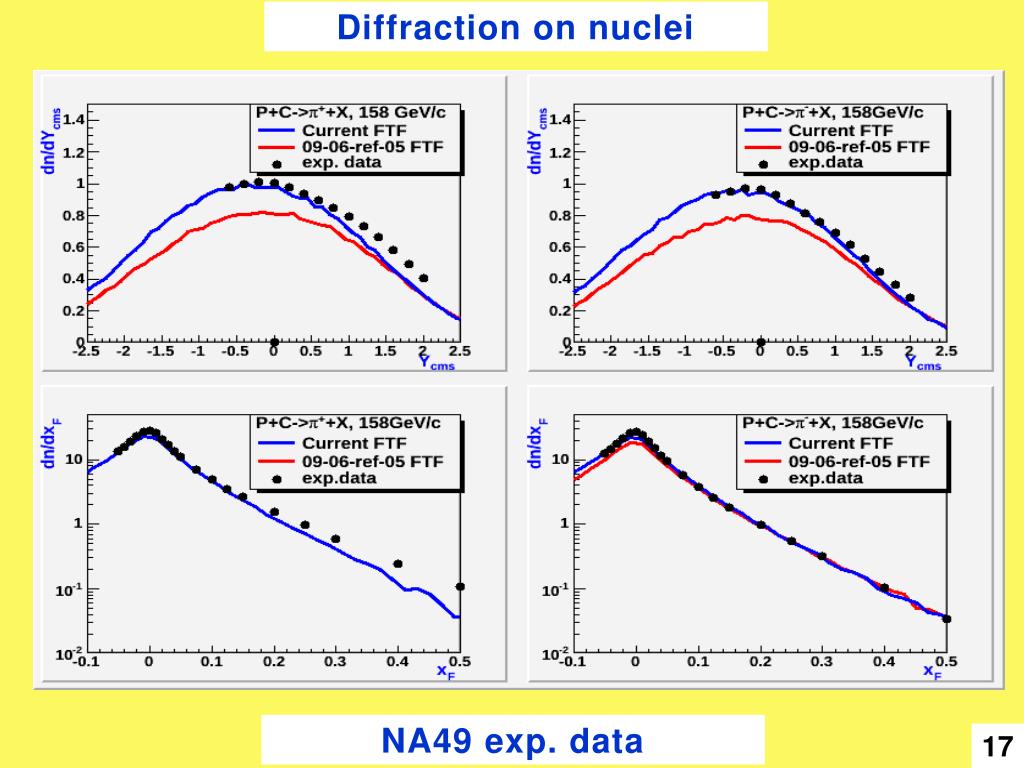

  17. Diffraction on nuclei NA49 exp. data 17

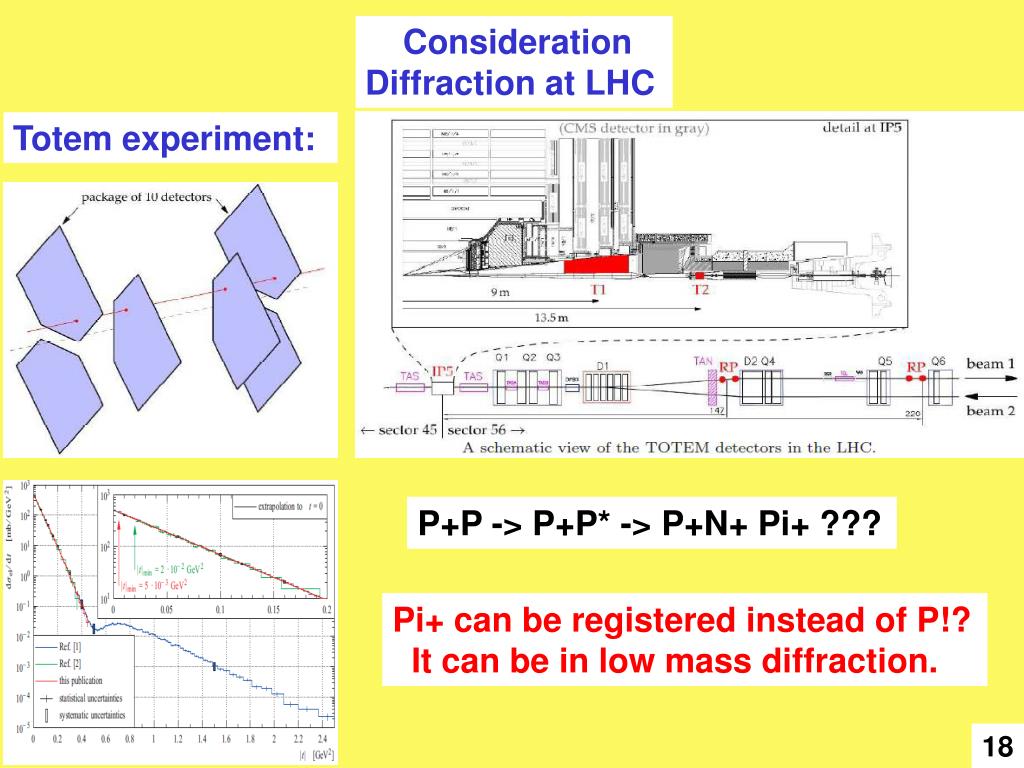

  18. Consideration Diffraction at LHC Totem experiment: P+P -> P+P* -> P+N+ Pi+ ??? Pi+ can be registered instead of P!? It can be in low mass diffraction. 18

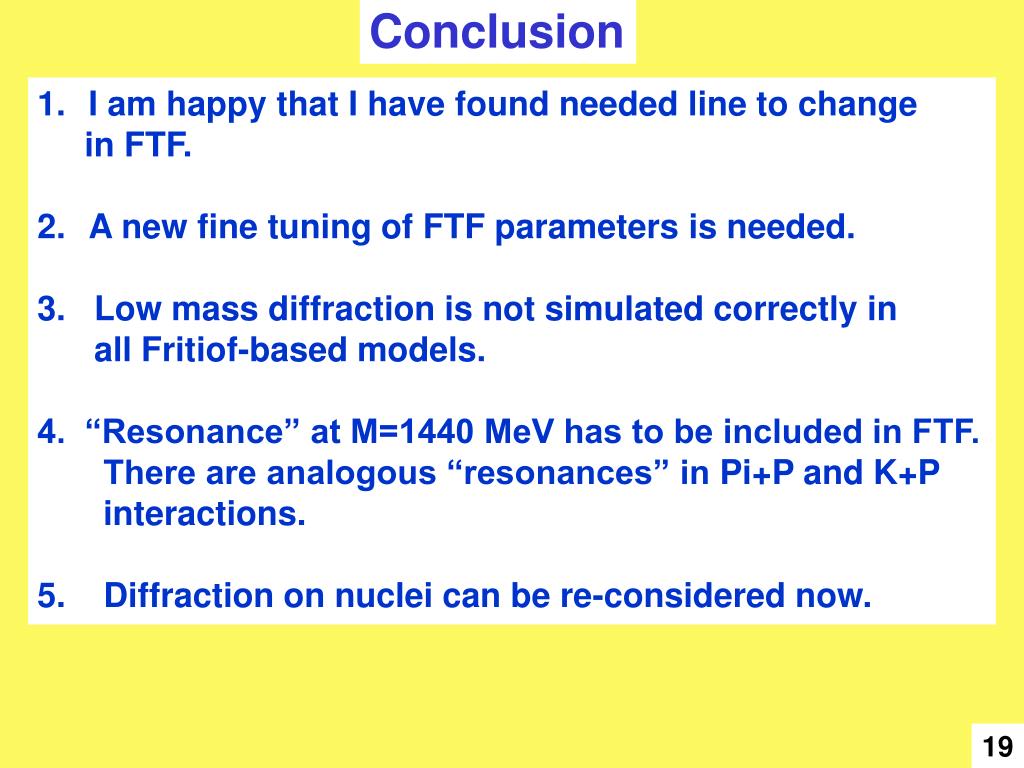

  19. Conclusion • I am happy that I have found needed line to change in FTF. • A new fine tuning of FTF parameters is needed. 3. Low mass diffraction is not simulated correctly in all Fritiof-based models. 4. “Resonance” at M=1440 MeV has to be included in FTF. There are analogous “resonances” in Pi+P and K+P interactions. 5. Diffraction on nuclei can be re-considered now. 19
