Bare rock model

Bare rock model. Assumptions Amount of energy coming into the planet from sunlight is equal the amount of energy leaving the earth as IR. F in = F out No atmosphere. Energy Balance of a Bare Rock. T earth = 259 K = -14° C = 6°F. How much solar energy reaches the Earth?.

aric
Télécharger la présentation

Bare rock model

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Bare rock model Assumptions Amount of energy coming into the planet from sunlight is equal the amount of energy leaving the earth as IR. Fin = Fout No atmosphere

  2. Energy Balance of a Bare Rock Tearth = 259 K = -14° C = 6°F

  3. How much solar energy reaches the Earth? • Sun is a nearly constant source of energy • Solar constant is the energy flux density of the solar emission at a distance (d) • As energy moves away from the sun, it is spread over a greater and greater area. • solar constant for Earth, So = 1367 W/m2

  4. We know the solar constantS= 1367 W/m2 But not all solar energy is absorbed by the Earth. Some is reflected. Earth albedo Albedo is the fraction of sunlight which is reflected off a planet. The average albedo of the Earth is about 0.33. For the Earth,α = 0.33 (33%) (1)

  5. Some Basic Information: Area of a circle =  r2 Area of a sphere = 4 r2

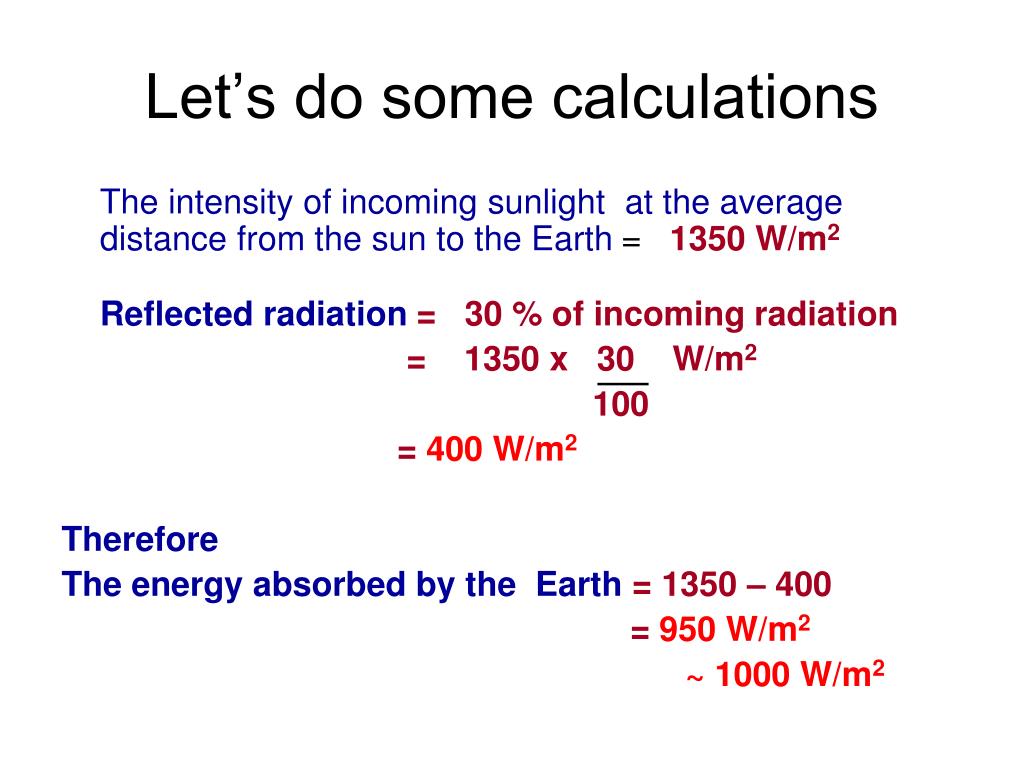

  6. Let’s do some calculations The intensity of incoming sunlight at the average distance from the sun to the Earth = 1350 W/m2 Reflected radiation = 30 % of incoming radiation = 1350 x 30 W/m2 100 = 400 W/m2 Therefore The energy absorbed by the Earth = 1350 – 400 = 950 W/m2 ~ 1000 W/m2

  7. The total absorbed solar radiation = 1000 Wm-2 x Area of the circular shadow Fin = 1000 Wm-2 X ( r2) Where r = radius of the Earth

  8. Eout Energy radiated from the Earth IR radiation emitted by the Earth = σ T4 W/m2 Total energy going out of earth as IR radiation = σ T4 X Area of the sphere Fout = σ T4 x 4r2 Fout =σ T4 x 4r2 Fout = 5.67 x 10-8 x T4 x 4r2

  9. Fin= 350 Wm-2 X ( r2) Fout = 5.67 x 10-8 x T4 x 4r2 Fin = Fout 1000 Wm-2 X ( r2)m2 = 5.67 x 10-8 Wm-2K-4 x T4 x 4r2 m2 1000 = 5.67 x 10-8 K-4 x T4 x 4 T4 = 1000 4 x 5.67 x 10-8 K-4 T = 257 K

  10. Simply the temperature of the Earth can be written as T4 = S x ( 1- α) 4σ Where s - Solar constant σ – Stephan constant - 5.67 x 10-8W/m2K4 Α - albedo If we know S and α we can calculate the temperature of the Earth. It is the temperature we would expect if Earth behaves like a blackbody. NOTE : This calculation can be done for any planet, provided we know its solar (S )constant and albedo (α).

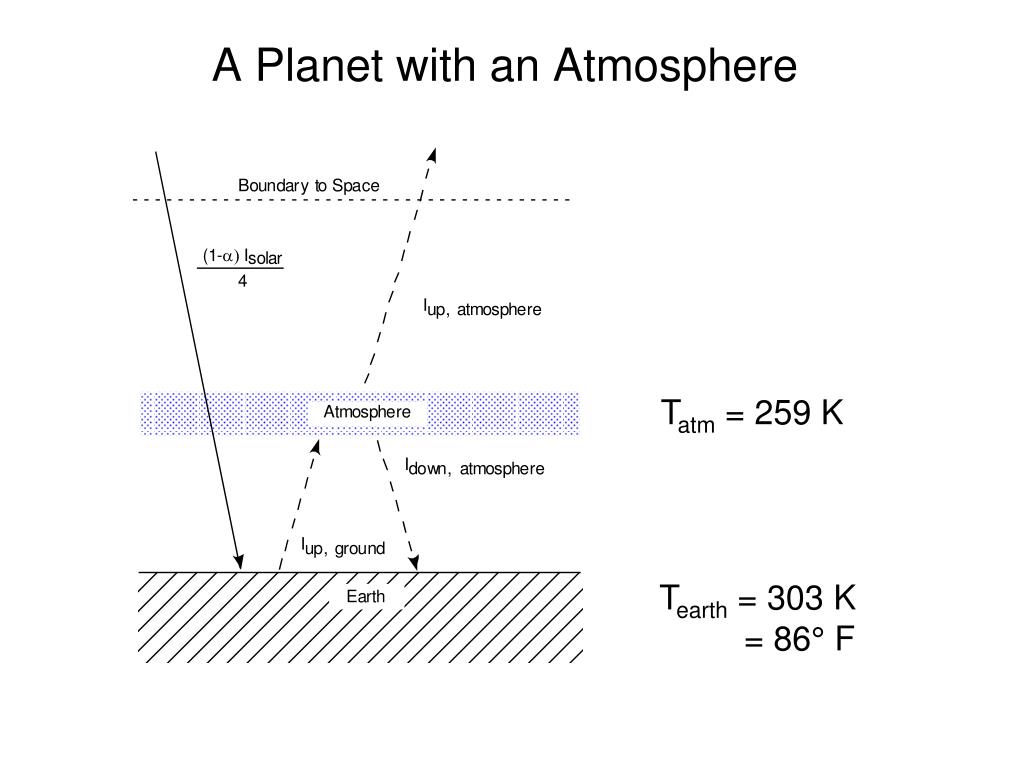

  11. A Planet with an Atmosphere Tatm = 259 K Tearth = 303 K = 86° F
