  1. Working Length Determination Presented by: Josef Ma. Karlos S. Bringas, D.M.D., D.D.S., M.S. Department of Endodontics

  2. Radiographic Length • The length of the tooth as it appears on the radiograph.

  3. Estimated Working Length • Radiographic length minus 1mm.

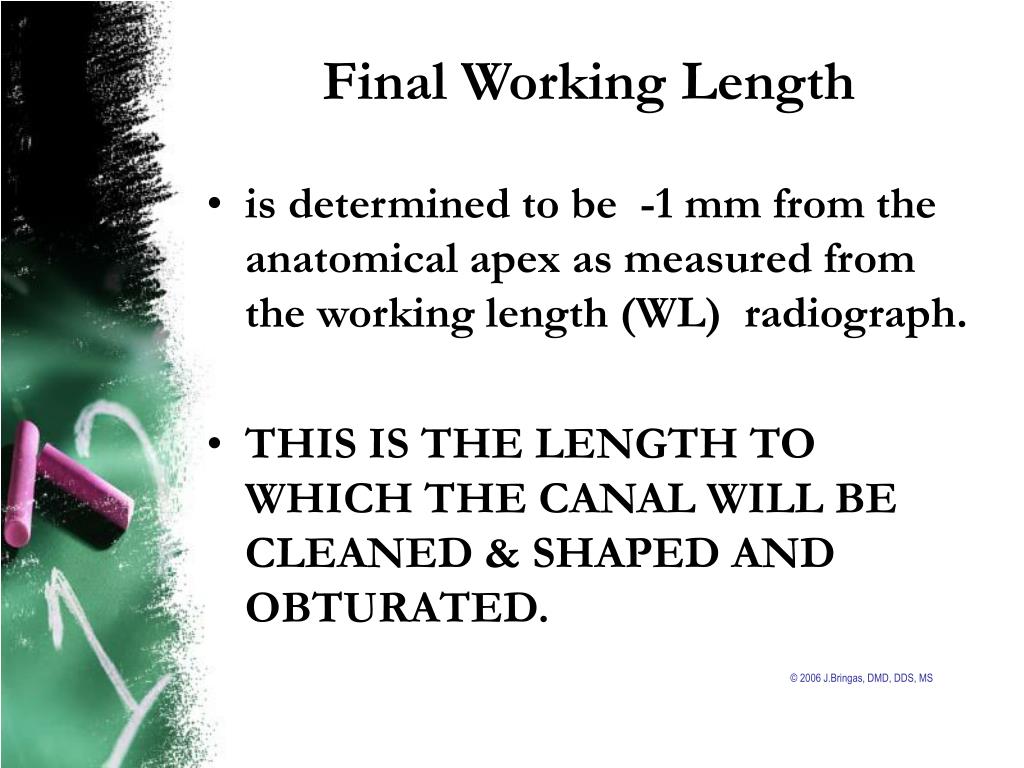

  4. Final Working Length • is determined to be -1 mm from the anatomical apex as measured from the working length (WL) radiograph. • THIS IS THE LENGTH TO WHICH THE CANAL WILL BE CLEANED & SHAPED AND OBTURATED.

  5. Select a Reference Point

  6. Take a Preoperative Radiograph

  7. Preoperative Radiograph • Measure the radiographic length. Apex Reference pt.

  8. Measure the radiographic length Ex. 22mm

  9. Compute for Estimated Length • Estimated Length is radiographic length minus 1mm. Ex. 22mm - 1mm = 21mm

  10. Treatment Record

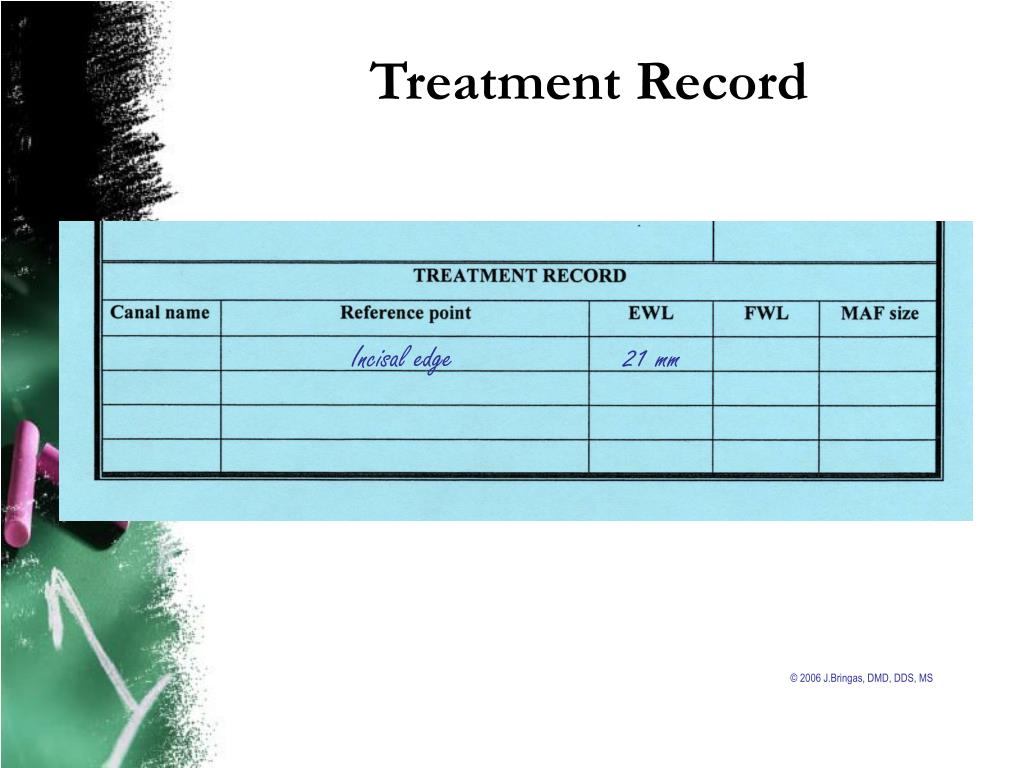

  11. Treatment Record Incisal edge 21 mm

  12. Set #15 file to Estimated Length Insert the file into the canal to stopper length and take a radiograph at this time.

  13. Working Length Radiograph • The best case scenario is that there is no radiographic distortion with the preoperative radiograph. • The working length radiograph should show that the file ends 1mm short of the apex.

  14. Working Length Radiograph • File appears to end 1mm short of the apex. • No need to adjust the final working length.

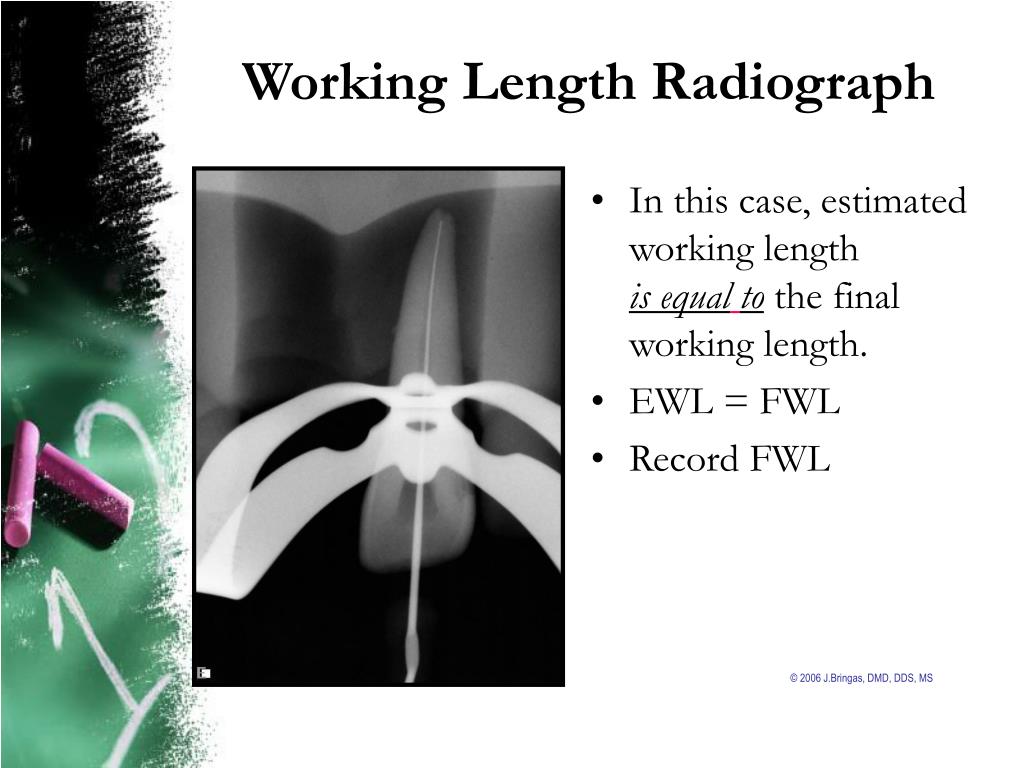

  15. Working Length Radiograph • In this case, estimated working length is equalto the final working length. • EWL = FWL • Record FWL

  16. Treatment Record Incisal edge 21 mm 21 mm

  17. Working Length Radiograph • Sometimes, the radiograph shows that the file extends more apical than the ideal. • This means that the EWL is long. • Deduct this discrepancy from your EWL to arrive at the Final Working Length.

  18. Working Length Radiograph

  19. Working Length Radiograph • Example: EWL=21mm • Since radiograph shows that file is 1mm long then… 1mm

  20. Working Length Radiograph • Example: • EWL – 1mm = FWL • 21mm – 1mm = 20mm 1mm

  21. Working Length Radiograph • Example: • EWL – 1mm = FWL • 21mm – 1mm = 20mm 1mm

  22. Treatment Record Incisal edge 21 mm 20 mm

  23. Working Length Radiograph • Sometimes, the radiograph shows that the file does not reach the ideal length. • This means that the EWL is short. • Add this discrepancy to your EWL to arrive at the Final Working Length.

  24. Working Length Radiograph

  25. Working Length Radiograph • Example: • EWL=21mm • Since radiograph shows that file is 0.5mm short then… 0.5mm

  26. Working Length Radiograph • Example: • EWL+0.5 mm=FWL • 21mm+0.5mm=21.5mm 0.5mm

  27. Treatment Record Incisal edge 21 mm 21.5 mm

  28. Working Length Radiograph • If the radiograph shows that the discrepancy is more than 2mm, then a new radiograph should be taken after computing for the working length.

  29. Unacceptable discrepancy
