Integrating OPeNDAP with ECHO for Enhanced Data Discovery and Analysis

The demo presented at the CEOS WGISS 22 conference in September 2006 showcased the integration of OPeNDAP and ECHO services to enhance data discovery and analysis within a MATLAB environment. OPeNDAP offers simplified data access, while ECHO provides robust metadata and service registries for extensive product searching. This collaboration aims to streamline how scientists can access and validate data, particularly in scenarios involving remote observations and modeling. Key achievements include prototype development and user interaction enhancements, allowing seamless spatial and temporal queries through improved software frameworks.

arlais
Télécharger la présentation

Integrating OPeNDAP with ECHO for Enhanced Data Discovery and Analysis

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. OPeNDAP/ECHO DemoIntegrating and Chaining services September, 2006 CEOS WGISS 22 Annapolis, MD

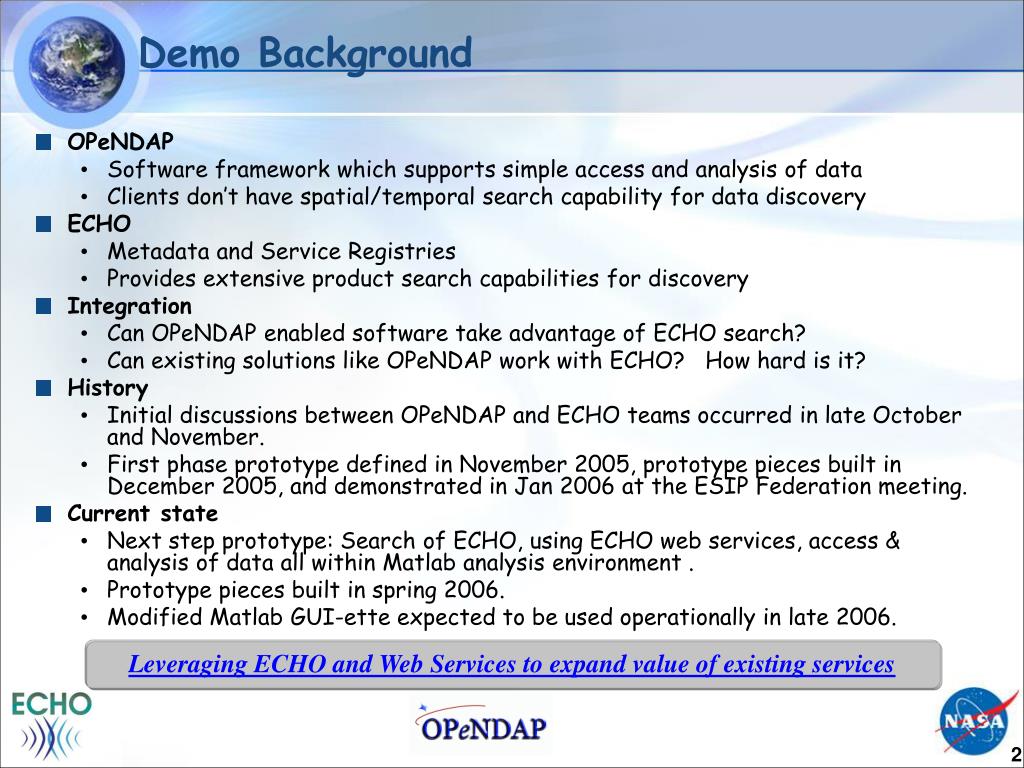

  2. Demo Background • OPeNDAP • Software framework which supports simple access and analysis of data • Clients don’t have spatial/temporal search capability for data discovery • ECHO • Metadata and Service Registries • Provides extensive product search capabilities for discovery • Integration • Can OPeNDAP enabled software take advantage of ECHO search? • Can existing solutions like OPeNDAP work with ECHO? How hard is it? • History • Initial discussions between OPeNDAP and ECHO teams occurred in late October and November. • First phase prototype defined in November 2005, prototype pieces built in December 2005, and demonstrated in Jan 2006 at the ESIP Federation meeting. • Current state • Next step prototype: Search of ECHO, using ECHO web services, access & analysis of data all within Matlab analysis environment . • Prototype pieces built in spring 2006. • Modified Matlab GUI-ette expected to be used operationally in late 2006. Leveraging ECHO and Web Services to expand value of existing services

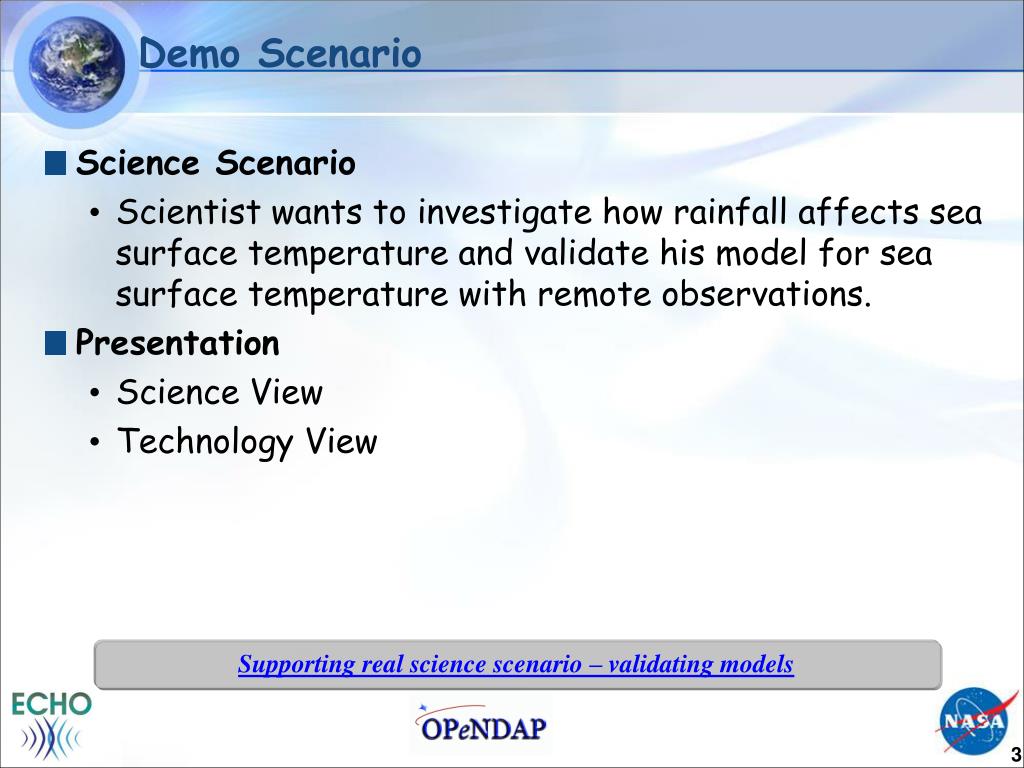

  3. Demo Scenario • Science Scenario • Scientist wants to investigate how rainfall affects sea surface temperature and validate his model for sea surface temperature with remote observations. • Presentation • Science View • Technology View Supporting real science scenario – validating models

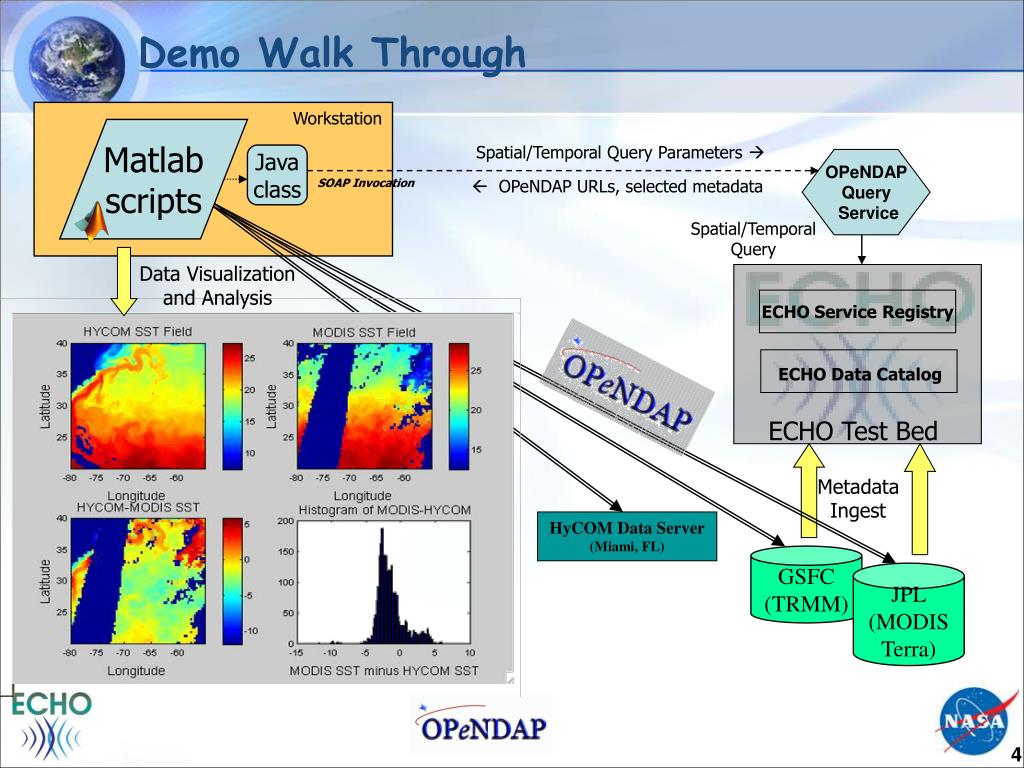

  4. Matlab scripts ECHO Service Registry ECHO Data Catalog ECHO Test Bed Demo Walk Through Workstation Spatial/Temporal Query Parameters  Java class OPeNDAP Query Service SOAP Invocation  OPeNDAP URLs, selected metadata Spatial/Temporal Query Data Visualization and Analysis Metadata Ingest HyCOM Data Server (Miami, FL) GSFC (TRMM) JPL (MODISTerra)

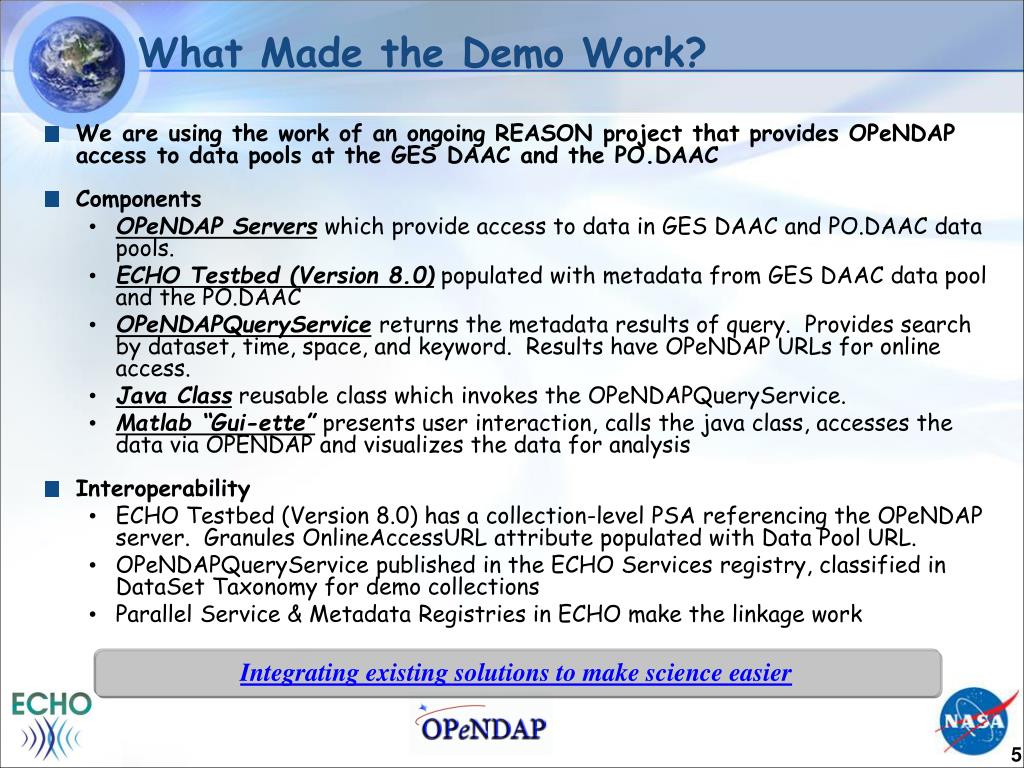

  5. What Made the Demo Work? • We are using the work of an ongoing REASON project that provides OPeNDAP access to data pools at the GES DAAC and the PO.DAAC • Components • OPeNDAP Servers which provide access to data in GES DAAC and PO.DAAC data pools. • ECHO Testbed (Version 8.0) populated with metadata from GES DAAC data pool and the PO.DAAC • OPeNDAPQueryService returns the metadata results of query. Provides search by dataset, time, space, and keyword. Results have OPeNDAP URLs for online access. • Java Class reusable class which invokes the OPeNDAPQueryService. • Matlab “Gui-ette” presents user interaction, calls the java class, accesses the data via OPENDAP and visualizes the data for analysis • Interoperability • ECHO Testbed (Version 8.0) has a collection-level PSA referencing the OPeNDAP server. Granules OnlineAccessURL attribute populated with Data Pool URL. • OPeNDAPQueryService published in the ECHO Services registry, classified in DataSet Taxonomy for demo collections • Parallel Service & Metadata Registries in ECHO make the linkage work Integrating existing solutions to make science easier

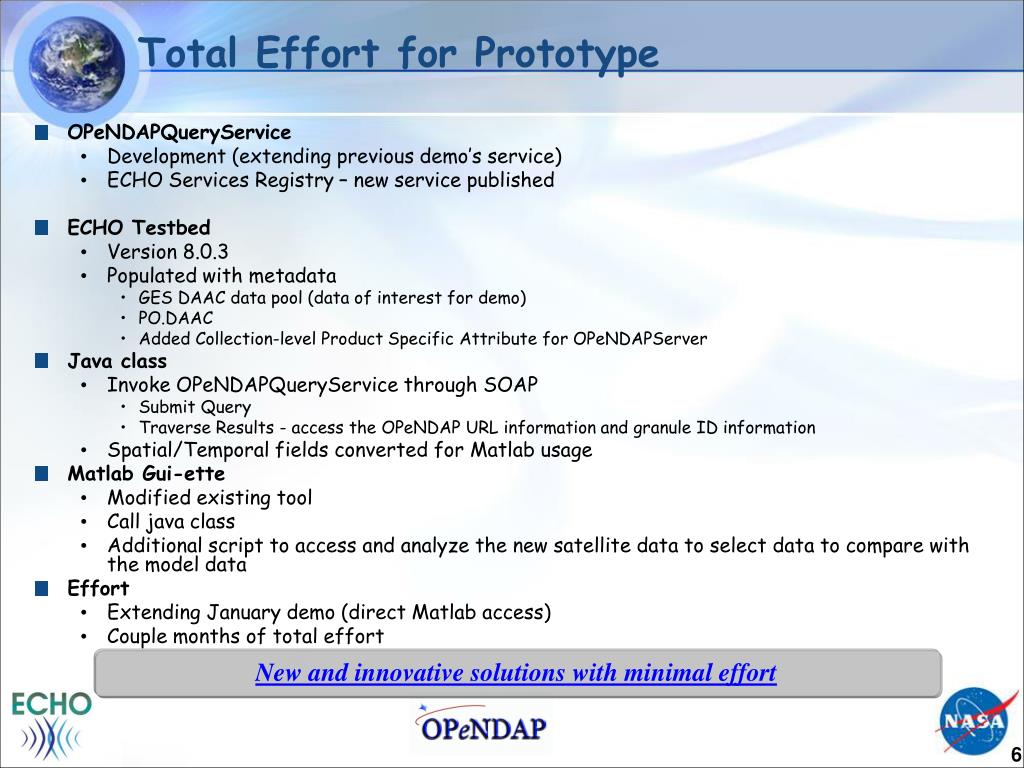

  6. Total Effort for Prototype • OPeNDAPQueryService • Development (extending previous demo’s service) • ECHO Services Registry – new service published • ECHO Testbed • Version 8.0.3 • Populated with metadata • GES DAAC data pool (data of interest for demo) • PO.DAAC • Added Collection-level Product Specific Attribute for OPeNDAPServer • Java class • Invoke OPeNDAPQueryService through SOAP • Submit Query • Traverse Results - access the OPeNDAP URL information and granule ID information • Spatial/Temporal fields converted for Matlab usage • Matlab Gui-ette • Modified existing tool • Call java class • Additional script to access and analyze the new satellite data to select data to compare with the model data • Effort • Extending January demo (direct Matlab access) • Couple months of total effort New and innovative solutions with minimal effort

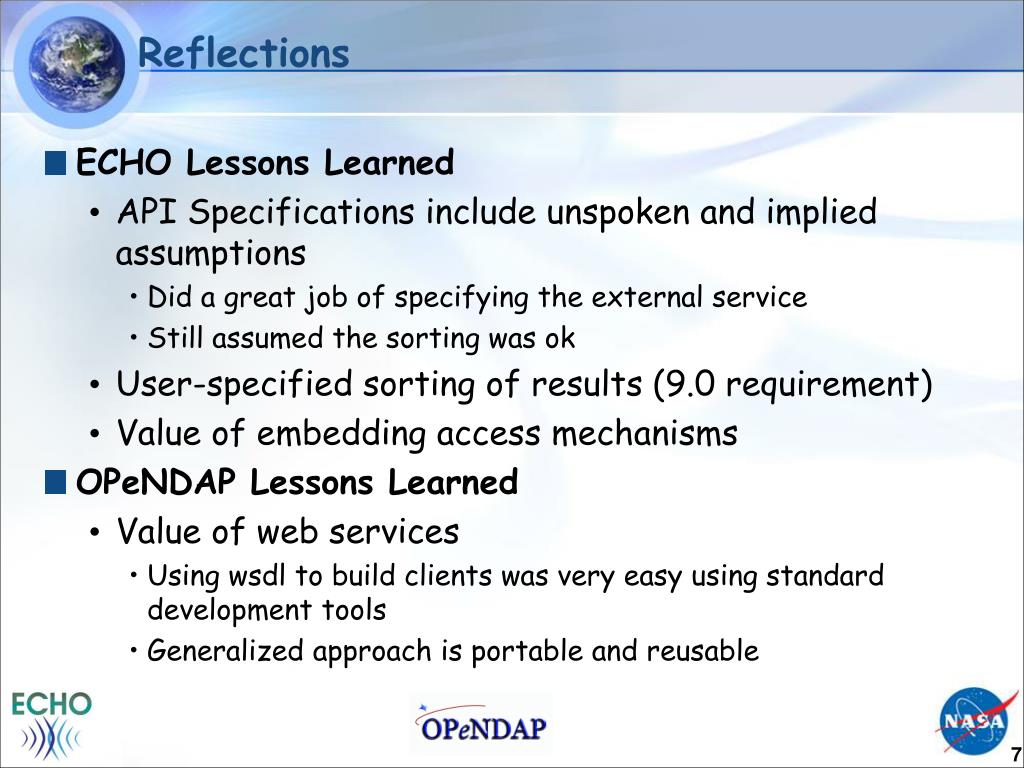

  7. Reflections • ECHO Lessons Learned • API Specifications include unspoken and implied assumptions • Did a great job of specifying the external service • Still assumed the sorting was ok • User-specified sorting of results (9.0 requirement) • Value of embedding access mechanisms • OPeNDAP Lessons Learned • Value of web services • Using wsdl to build clients was very easy using standard development tools • Generalized approach is portable and reusable

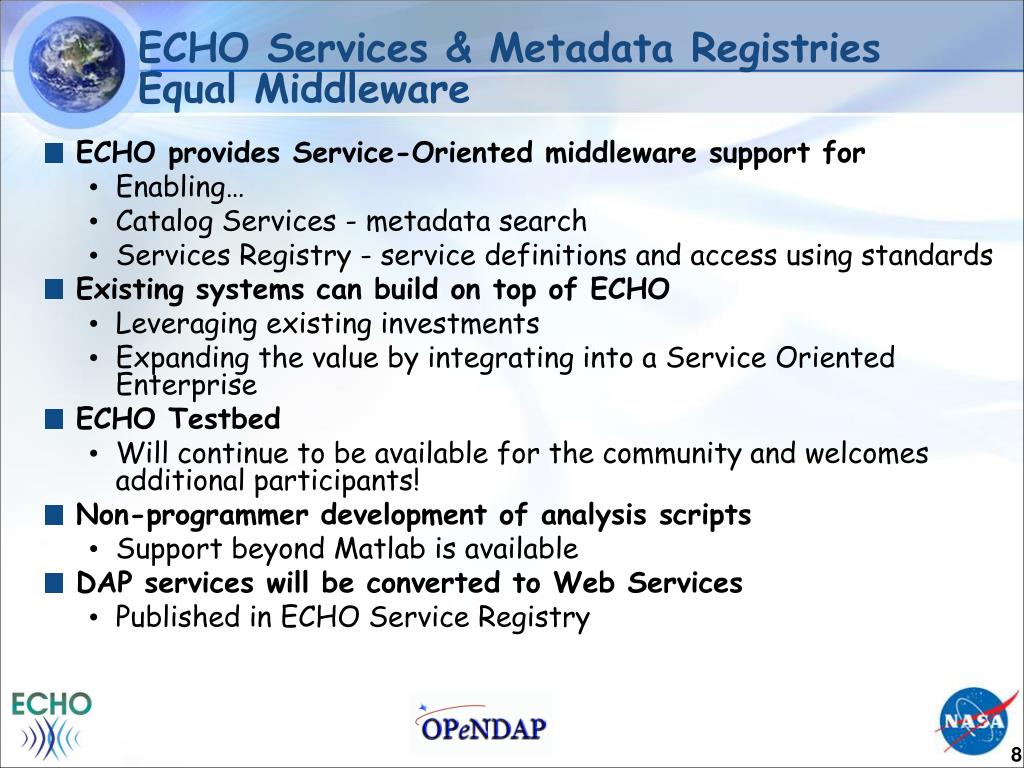

  8. ECHO Services & Metadata Registries Equal Middleware • ECHO provides Service-Oriented middleware support for • Enabling… • Catalog Services - metadata search • Services Registry - service definitions and access using standards • Existing systems can build on top of ECHO • Leveraging existing investments • Expanding the value by integrating into a Service Oriented Enterprise • ECHO Testbed • Will continue to be available for the community and welcomes additional participants! • Non-programmer development of analysis scripts • Support beyond Matlab is available • DAP services will be converted to Web Services • Published in ECHO Service Registry

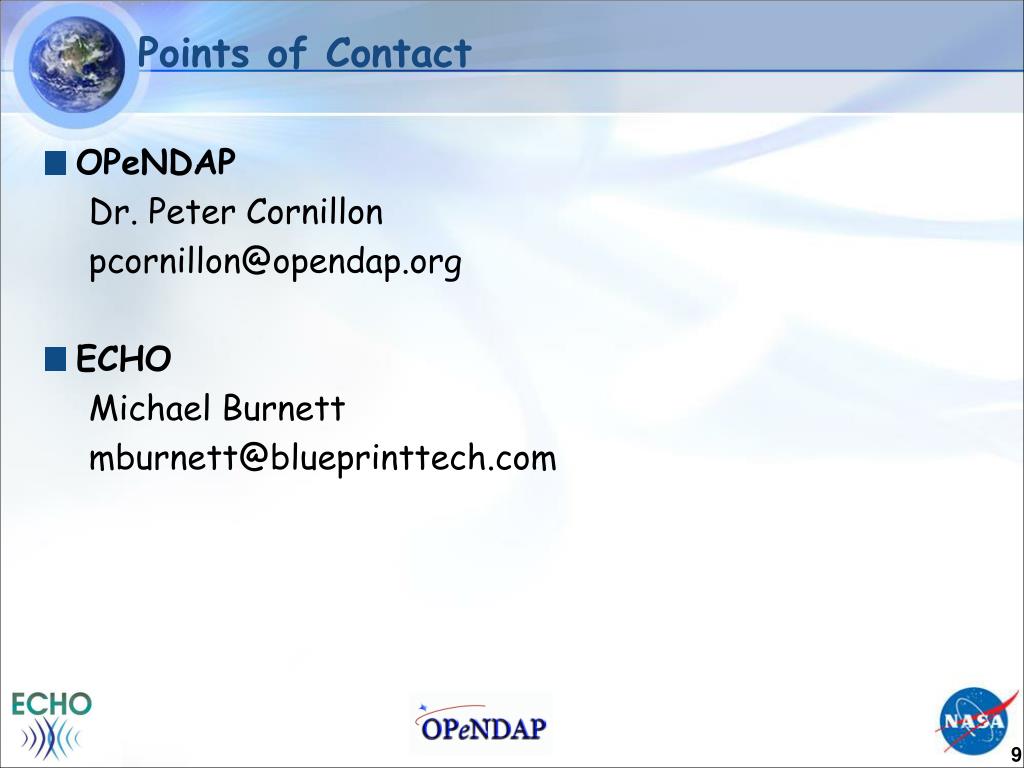

  9. Points of Contact • OPeNDAP Dr. Peter Cornillon pcornillon@opendap.org • ECHO Michael Burnett mburnett@blueprinttech.com
