  1. Yuan Ren, Jeff Z. Pan and Kevin Lee University of Aberdeen, UK, NICTA, Australia, JIST2011 Parallel ABox Reasoning of EL Ontologies

  2. Motivation • Computing infrastructure has significantly improved in the last decades. • Computer networks  cloud computing • Integrated circuits  multi-core processors • Computation can be, and have already been parallelised in my applications. • But most off-the-shelf DL reasoners do not support parallelised reasoning.

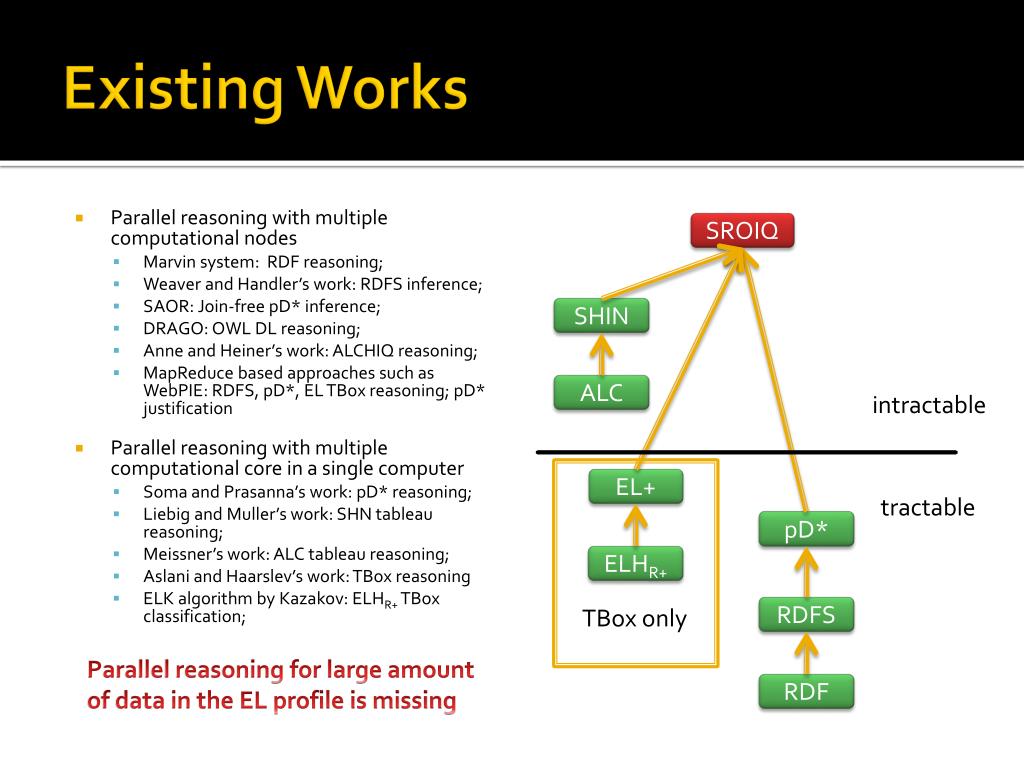

  3. Existing Works • Parallel reasoning with multiple computational nodes • Marvin system: RDF reasoning; • Weaver and Handler’s work: RDFS inference; • SAOR: Join-free pD* inference; • DRAGO: OWL DL reasoning; • Anne and Heiner’s work: ALCHIQ reasoning; • MapReduce based approaches such as WebPIE: RDFS, pD*, EL TBox reasoning; pD* justification • Parallel reasoning with multiple computational core in a single computer • Soma and Prasanna’s work: pD* reasoning; • Liebig and Muller’s work: SHN tableau reasoning; • Meissner’s work: ALC tableau reasoning; • Aslani and Haarslev’s work: TBox reasoning • ELK algorithm by Kazakov: ELHR+TBox classification; SROIQ SHIN ALC intractable EL+ tractable pD* ELHR+ TBox only RDFS Parallel reasoning for large amount of data in the EL profile is missing RDF

  4. Supporting ELHbottom, R+ ABox Reasoning • Why EL family? • Some of the well-known largest terminologies are in the EL family, • E.g. SNOMED CT; • Why ABox reasoning? • Semantic applications will populate terminologies with data • E.g. Chintan Patel et al (SWJ2007) populated SMOMED CT with 59 million ABox assertions. • Why the “bottom” is non-trivial? • Enables inconsistency checking • E.g. in SNOMED CT, Groin is defined as Abdomen AND Leg, which is inaccurate and can be detected if Abdomen and Leg are disjoint. • Role hierarchy can not be pre-computed

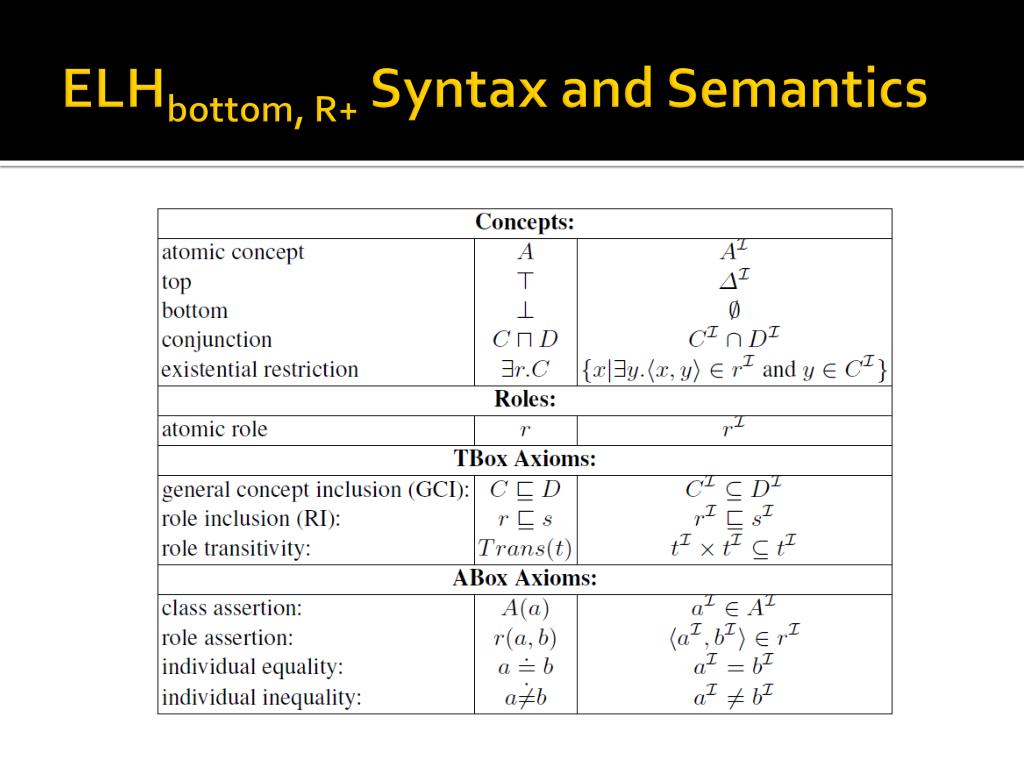

  5. ELHbottom, R+ Syntax and Semantics

  6. TBox Reasoning in ELHR+ • EL reasoning is realised by applying completion rules • Starting from the original axioms • Check which axioms can be joined to trigger rules • Increase the entailment set until closed under the rules

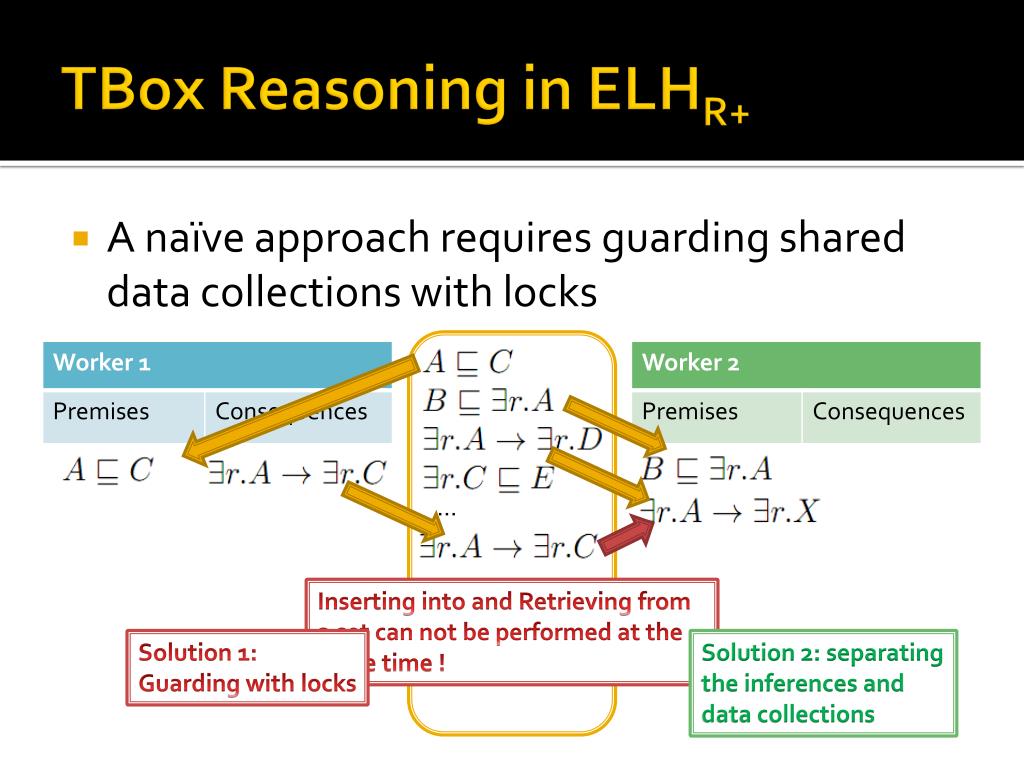

  7. TBox Reasoning in ELHR+ • A naïve approach requires guarding shared data collections with locks … Inserting into and Retrieving from a set can not be performed at the same time ! Solution 1: Guarding with locks Solution 2: separating the inferences and data collections

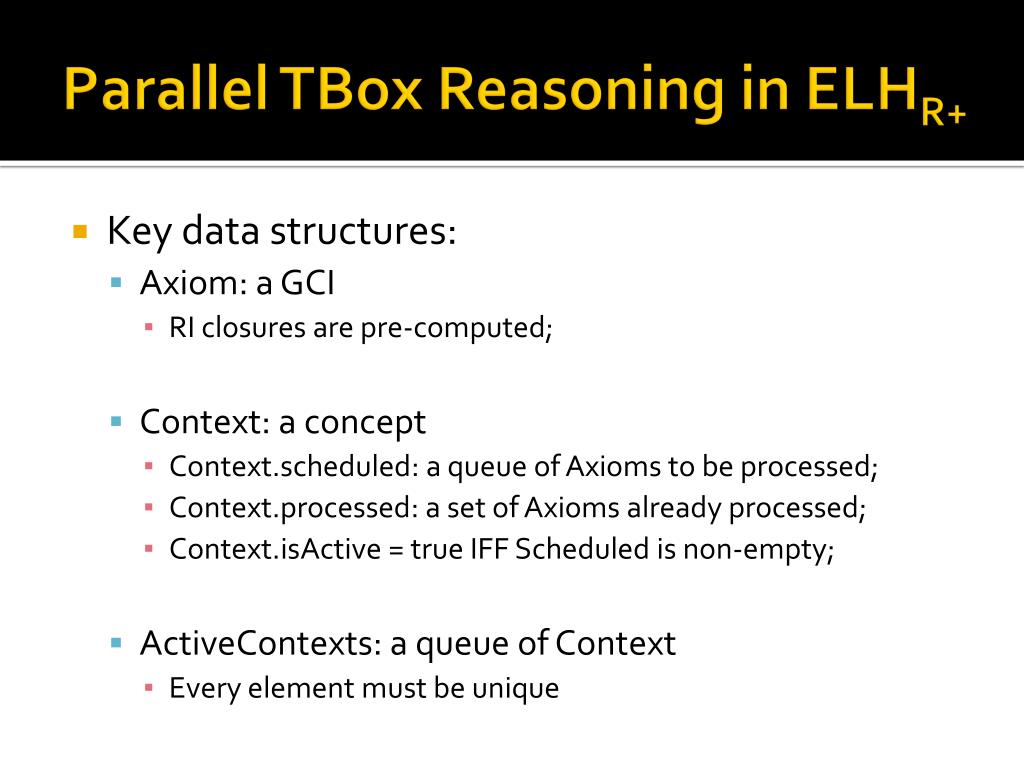

  8. Parallel TBox Reasoning in ELHR+ • Key data structures: • Axiom: a GCI • RI closures are pre-computed; • Context: a concept • Context.scheduled: a queue of Axioms to be processed; • Context.processed: a set of Axioms already processed; • Context.isActive = true IFF Scheduled is non-empty; • ActiveContexts: a queue of Context • Every element must be unique

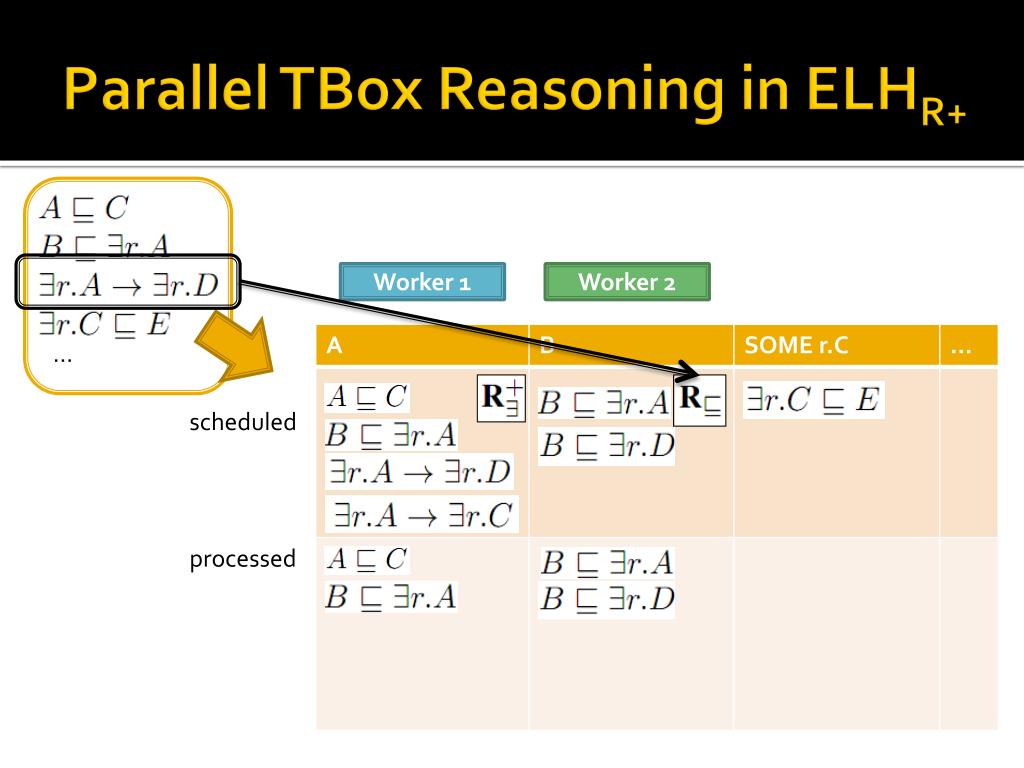

  9. Parallel TBox Reasoning in ELHR+ Worker 1 Worker 2 … scheduled processed

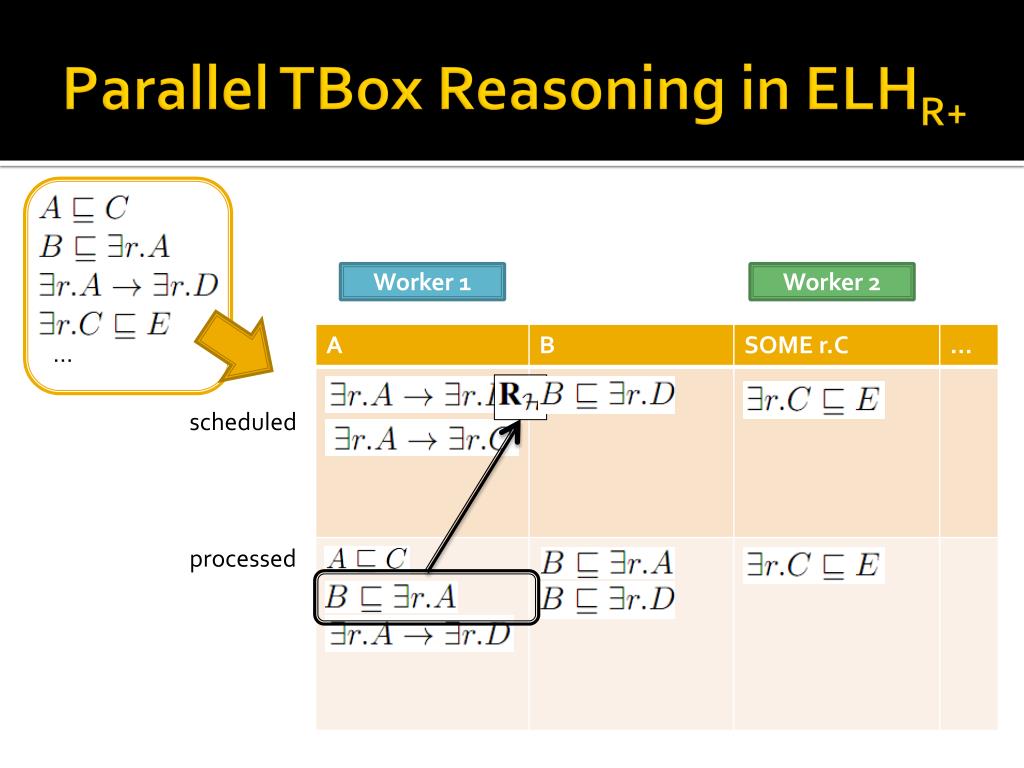

  10. Parallel TBox Reasoning in ELHR+ Worker 1 Worker 2 … scheduled processed

  11. Parallel TBox Reasoning in ELHR+ Worker 1 Worker 2 … scheduled processed

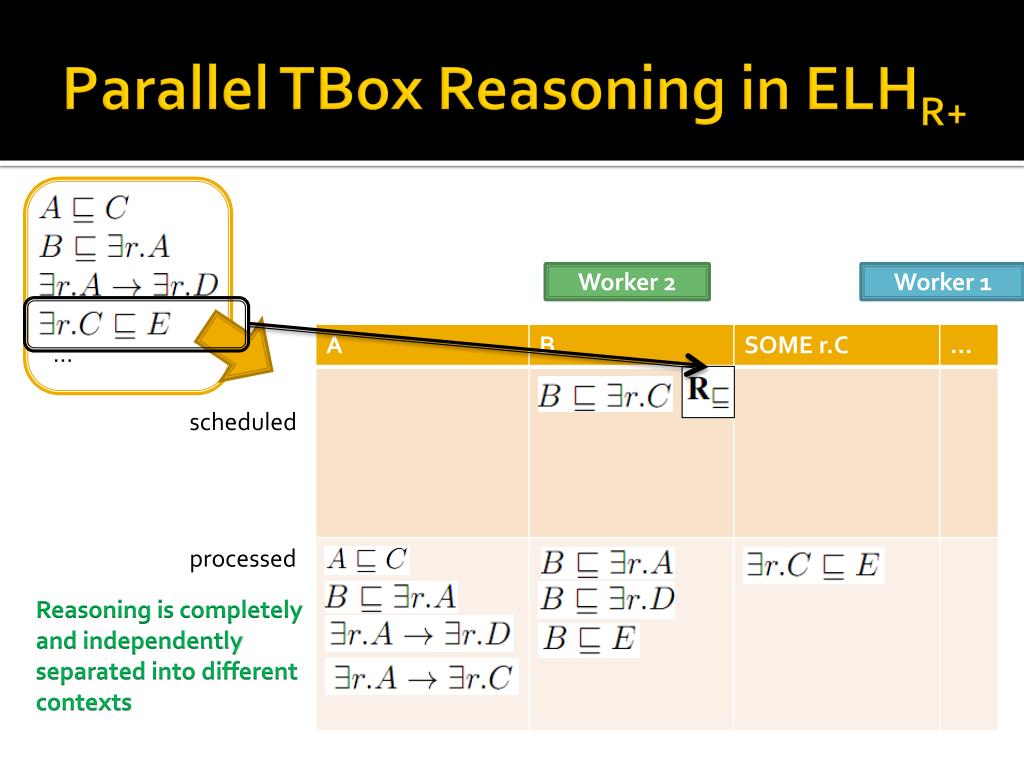

  12. Parallel TBox Reasoning in ELHR+ Worker 2 Worker 1 … scheduled processed Reasoning is completely and independently separated into different contexts

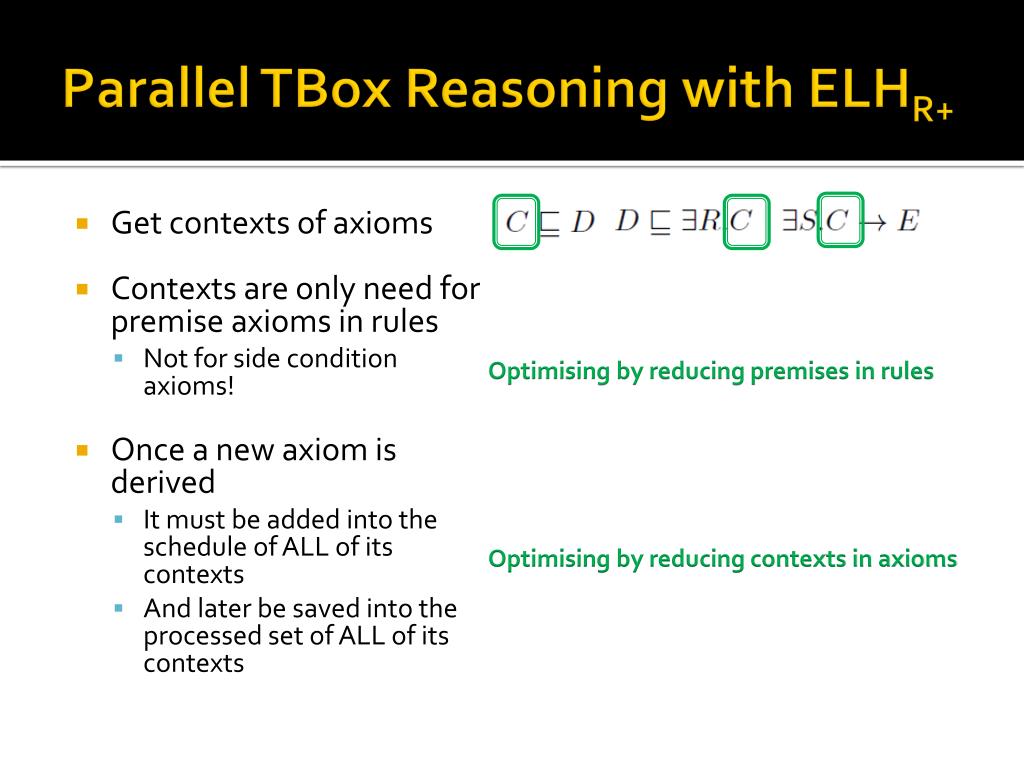

  13. Parallel TBox Reasoning with ELHR+ • Get contexts of axioms • Contexts are only need for premise axioms in rules • Not for side condition axioms! • Once a new axiom is derived • It must be added into the schedule of ALL of its contexts • And later be saved into the processed set of ALL of its contexts Optimising by reducing premises in rules Optimising by reducing contexts in axioms

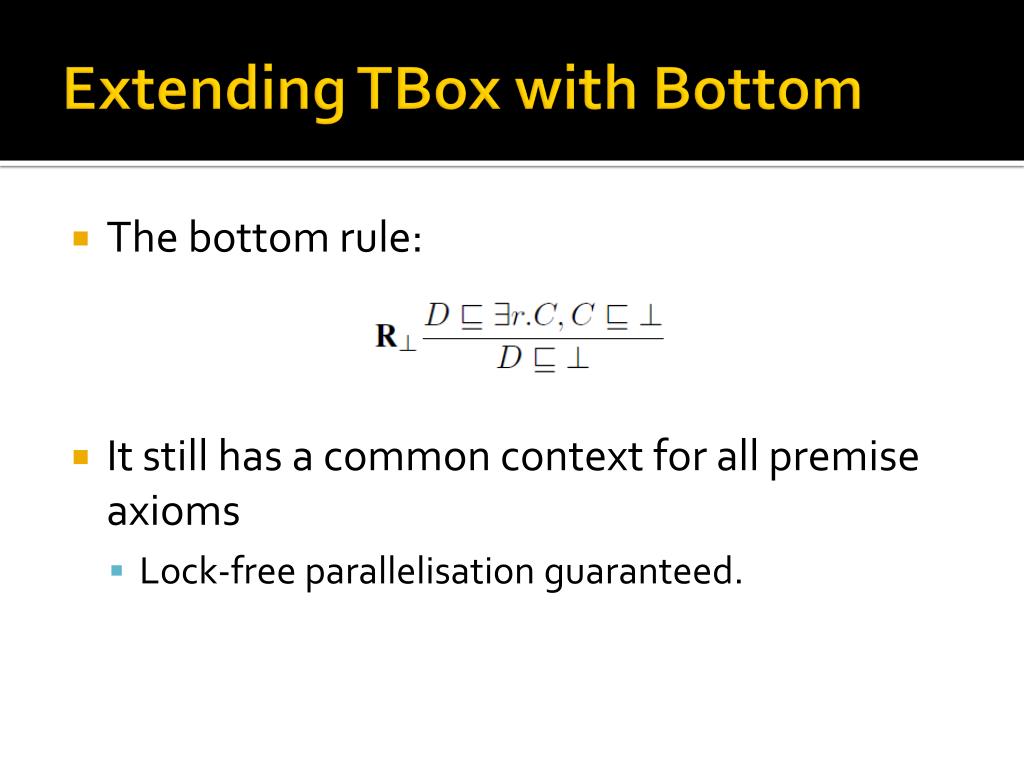

  14. Extending TBox with Bottom • The bottom rule: • It still has a common context for all premise axioms • Lock-free parallelisation guaranteed.

  15. Extending to ABox Reasoning • ABox reasoning • Computing the atomic types of all individuals • Computing the atomic relations between all individuals • A simply approach by reusing the TBox algorithm • Internalising the ABox with nominals • Treating singleton nominals as atomic concepts

  16. Mixing TBox and ABox Reasoning • Introducing redundancies • has to be maintained in A.scheduled and A.processed, waiting for the derivation of . Worker 1 Worker 2 scheduled … processed

  17. Separating TBox and ABox Reasoning • C.scheduledC.processed • contains no nominal! • Can always be computed earlier than • Can be used as side conditions in rules. • C does not need to be a context in

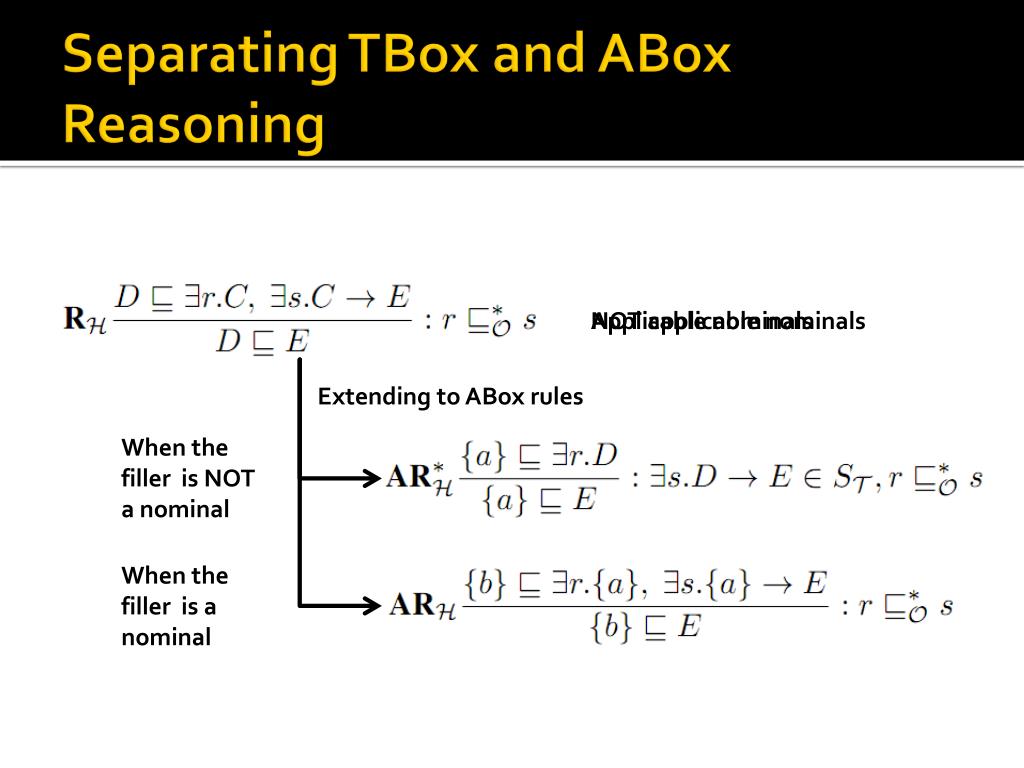

  18. Separating TBox and ABox Reasoning Applicable nominals NOT applicable nominals Extending to ABox rules When the filler is NOT a nominal When the filler is a nominal

  19. ABox Rules • First perform TBox reasoning • Only non-nominals are used as contexts • Perform ABox reasoning with ABox rules • Only singleton nominals are used as contexts • Sound & complete (Theorem 1)

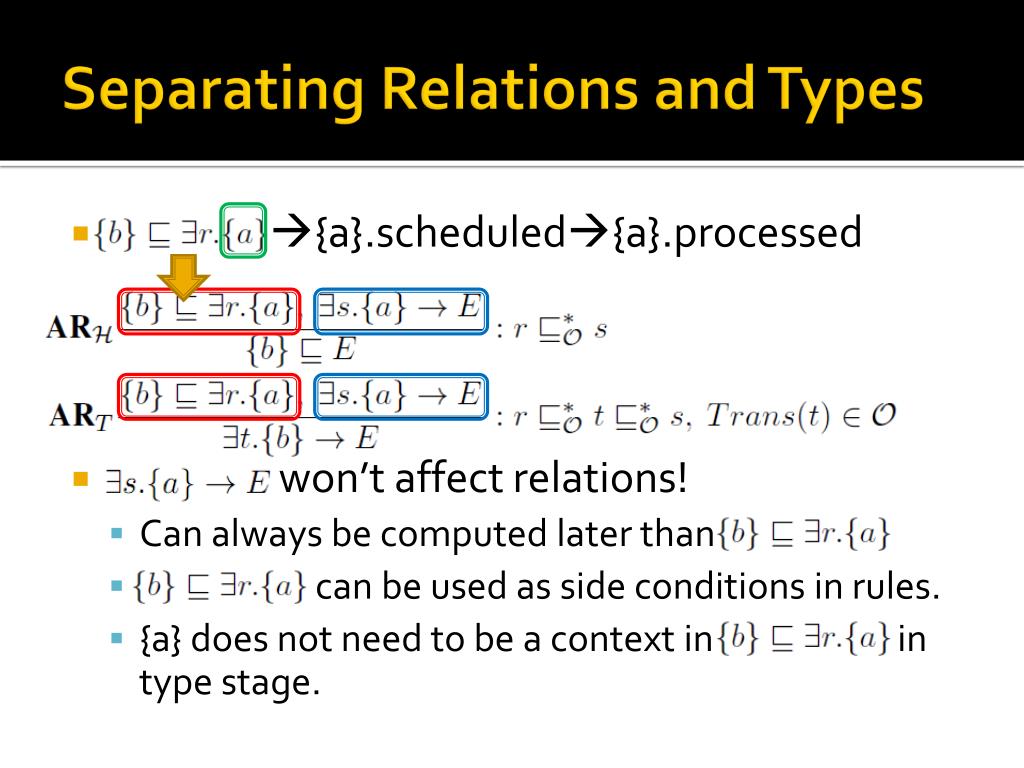

  20. Separating Relations and Types • {a}.scheduled{a}.processed • won’t affect relations! • Can always be computed later than • can be used as side conditions in rules. • {a} does not need to be a context in in type stage.

  21. Separating Relations and Types • Relation computations are perfectly parallelised • R(a,b)  S(a,b) with RIs as side conditions; • R(a,b)  R(c,b) with R(c,a) in ABox and trans(R) as side conditions; • R(a,b)  R(c,b) with a=c in ABox as side condition; • b=a R(c,b) with R(c,a) in ABox as side condition; • Relation computations can be performed in parallel with TBox classification

  22. Evaluation • Benchmark • VICODI ontology • NotGalenTBox + synthetic ABox generated by SyGENiA • Environment • AWS EC2 cloud computing, 64-bit Linux, 7G RAM, each worker ≈ 2.5-3.0 GHz Off-the-shelf Reasoners PEL

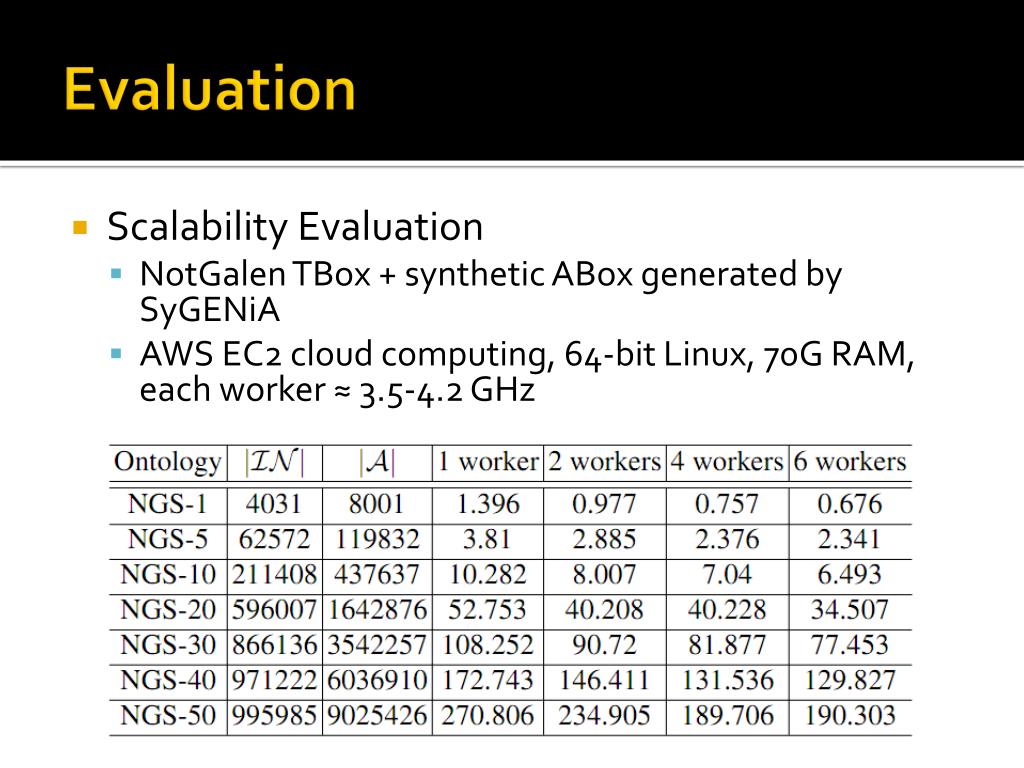

  23. Evaluation • Scalability Evaluation • NotGalenTBox + synthetic ABox generated by SyGENiA • AWS EC2 cloud computing, 64-bit Linux, 70G RAM, each worker ≈ 3.5-4.2 GHz

  24. Summary • Parallel ABox reasoning can handle 1 million individuals and 9 million ABox assertions • Optimising the orders of different inferences can reduce redundancies. • Parallel ABox reasoning can still be improved • Do not scale linearly • Frequent RAM I/O vs. limited bandwidth can be a potential cause. • Distributed reasoning as a future work • Language is still not expressive enough • Role chains and nominals in TBox are hard to parallelise • Extension to other language as a future work • Full materialisation is too memory-consuming • Target-oriented QA algorithm and optimisation as a future work

  25. Thank You! • Q & A
