BGPSEC Protocol Error Handling Insights from IETF 87 in Berlin

armand avatar
8 diapositives · 230 Views · Jul 31, 2014

This document outlines the critical aspects of error handling in the BGPSEC protocol, as discussed during the SIDR meeting at IETF 87 in Berlin, Germany from July 31 to August 2, 2013. It analyzes the steps for managing errors, specifically in BGPSEC_Path attributes, and emphasizes the importance of notifying operators about errors following established RFCs. It also delves into validation algorithms, response choices for errors, and the implications of improperly formed updates, while considering how these aspects align with existing BGP standards.

BGPSEC Protocol Error Handling Insights from IETF 87 in Berlin - slide 1
01 / 8BGPSEC Protocol Error Handling Insights from IETF 87 in Berlin
1 / 17

Télécharger la présentation

BGPSEC Protocol Error Handling Insights from IETF 87 in Berlin
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

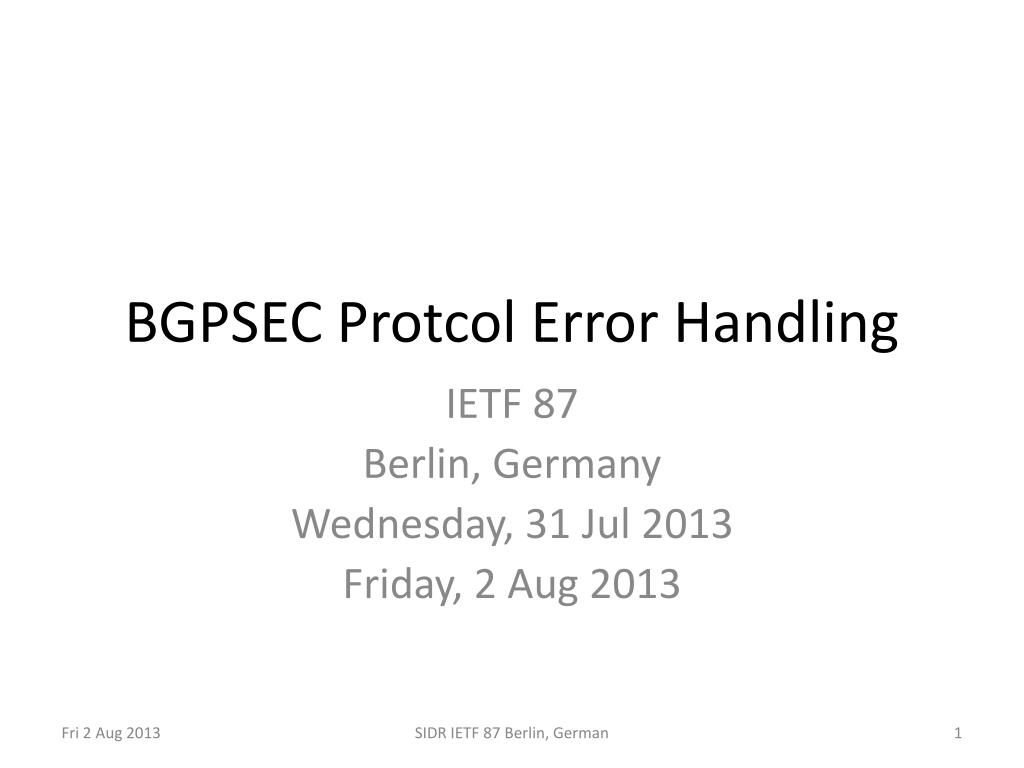

  1. BGPSEC Protcol Error Handling IETF 87 Berlin, Germany Wednesday, 31 Jul 2013 Friday, 2 Aug 2013 SIDR IETF 87 Berlin, German

  2. BGPSEC-Protocol Errors Noted • MUST/MUST NOT in various places • Error handing mentioned in some of them • Section 5.2: Validation Algorithm • “properly formed” – steps 1-5 • dealing with signatures and validity SIDR IETF 87 Berlin, German

  3. BGPSEC Protocol Error Response • Section 5.2: • If any of these checks identify an error in the BGPSEC_Pathattribute, then the implementation should notify the operator that an error has occurred and treat the update in a manner consistent with other BGP errors (i.e., following RFC 4271[2] or any future updates to that document). • Section 4.3: • Such an error is treated in exactly the same way as receipt of a non-BGPSEC update message containing an AS_CONFED_SEQUENCE from a peer that is not a member of the same AS confederation. SIDR IETF 87 Berlin, German

  4. BGP Error Handling • RFC4271 – Usually NOTIFICATION messageis sent with code/subcode and the BGP connection is closed • RFC5065 - error handling for confederations (AS_CONFED_SEQUENCE presence from non-confed member and vice versa) – another NOTIFICATION subcode • IDR draft draft-ietf-idr-error-handling-04.txt • Three possible responses • "session reset” • "treat-as-withdraw" • "attribute discard” SIDR IETF 87 Berlin, German

  5. What to Do? • Should response be more specific? • Response Choice: • Follow RFC4271 (Notification with code/subcode and close session)? • Follow idr error handling draft? • If so, which errors get which response? SIDR IETF 87 Berlin, German

  6. BGPSEC-Protocol Draft Error Handling • “Properly formed” checks in Section 5.2 • check syntactic correctness • each Signature_Block has one Signature for each Secure Path segment • check that AS_PATH not present • for non-confed-member neighbor, ensure Confed_Sequence flag is not set • pcount=0 but peer is not configured to use pcount=0 • “treat the update in a manner consistent with other BGP errors” SIDR IETF 87 Berlin, German

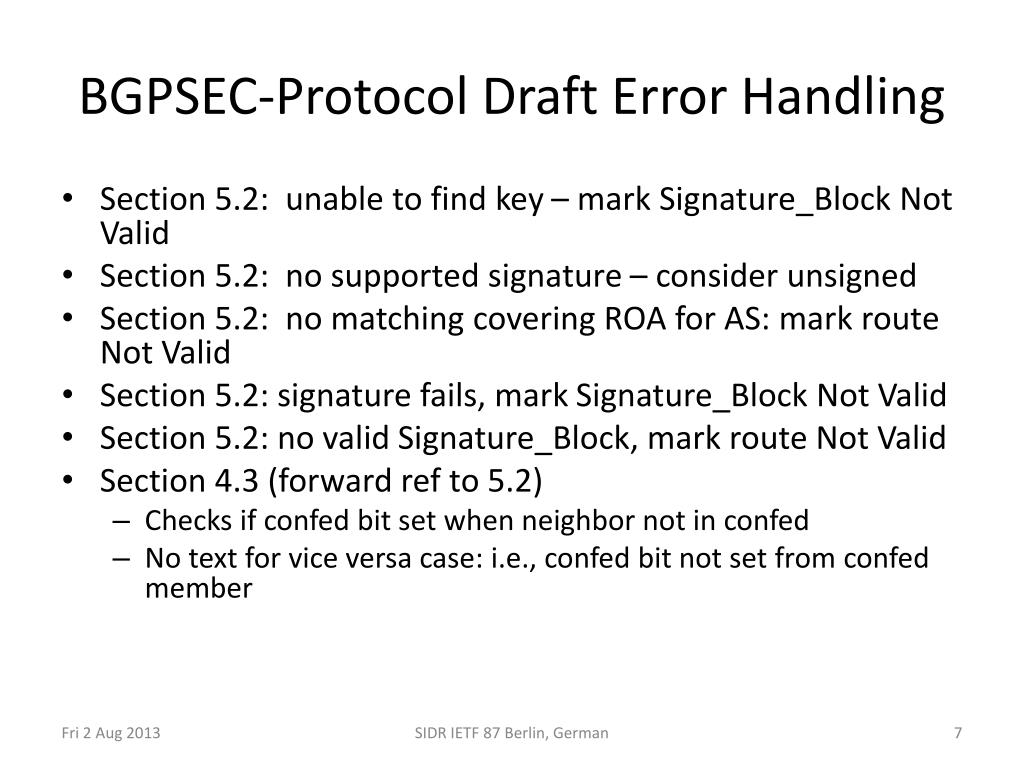

  7. BGPSEC-Protocol Draft Error Handling • Section 5.2: unable to find key – mark Signature_Block Not Valid • Section 5.2: no supported signature – consider unsigned • Section 5.2: no matching covering ROA for AS: mark route Not Valid • Section 5.2: signature fails, mark Signature_Block Not Valid • Section 5.2: no valid Signature_Block, mark route Not Valid • Section 4.3 (forward ref to 5.2) • Checks if confed bit set when neighbor not in confed • No text for vice versa case: i.e., confedbit not set from confed member SIDR IETF 87 Berlin, German

  8. BGPSEC-Protocol Draft Error Handling • Error handling for MUST NOT? • E.g., Section 4.2 If a BGPSEC router has received only a non-BGPSEC update message (without the BGPSEC_Path attribute), …. then it MUST NOT attach any BGPSEC_Path attribute to the corresponding update being propagated. • If neighbor messes up and produces a BGPSEC_PATH attribute anyway, and strips the AS_PATH, will that be caught? SIDR IETF 87 Berlin, German
