  1. Oracle8i Analytical SQL Features

  2. Analytical SQL Features Overview • Available in Oracle 8.1.6 and above • Analytical Features/Enhancements • GROUP BY Extensions • SQL GROUP BY clause has been augmented to make querying and reporting easier • Analytical SQL Functions • Analytical functions enabling rankings, moving window calculations, lead/lag analysis • CASE Expressions • Increased/Efficient ‘if-then-else’ capabilities provided Willie Albino

  3. Oracle8i Analytical SQL Features GROUP BY Extensions

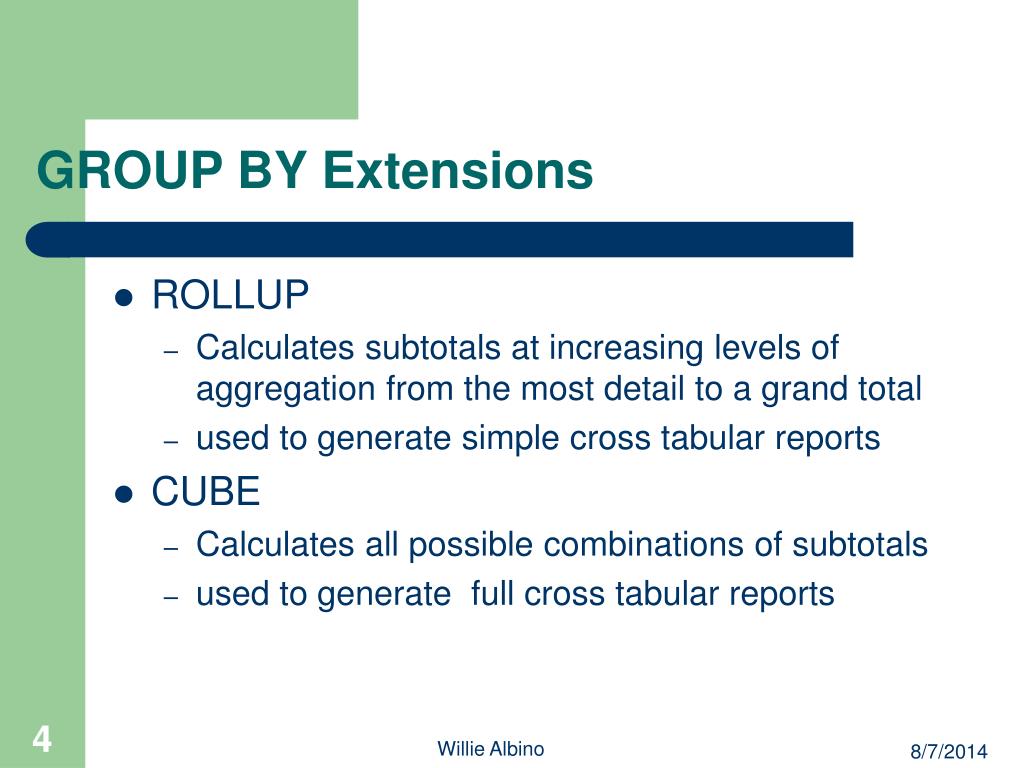

  4. GROUP BY Extensions • ROLLUP • Calculates subtotals at increasing levels of aggregation from the most detail to a grand total • used to generate simple cross tabular reports • CUBE • Calculates all possible combinations of subtotals • used to generate full cross tabular reports Willie Albino

  5. GROUP BY Extensions Syntax ROLLUP: SELECT <column list> FROM <table…> GROUP BY ROLLUP(column_list); CUBE: SELECT <column list> FROM <table…> GROUP BY CUBE(column_list); Willie Albino

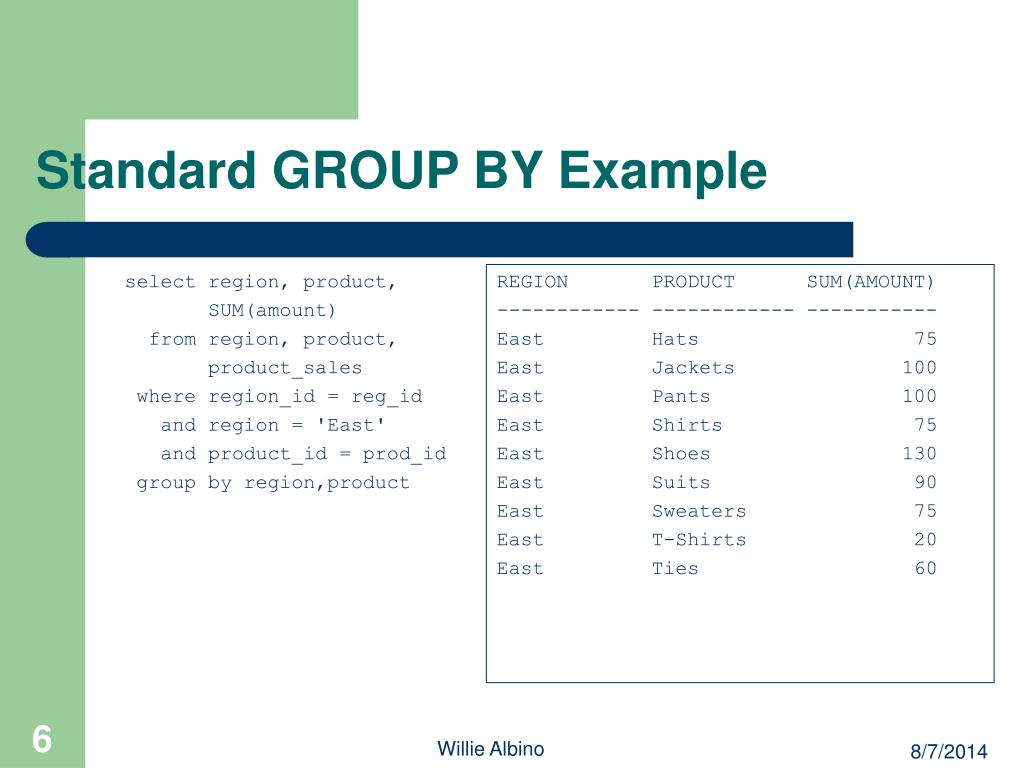

  6. select region, product, SUM(amount) from region, product, product_sales where region_id = reg_id and region = 'East' and product_id = prod_id group by region,product REGION PRODUCT SUM(AMOUNT) ------------ ------------ ----------- East Hats 75 East Jackets 100 East Pants 100 East Shirts 75 East Shoes 130 East Suits 90 East Sweaters 75 East T-Shirts 20 East Ties 60 Standard GROUP BY Example Willie Albino

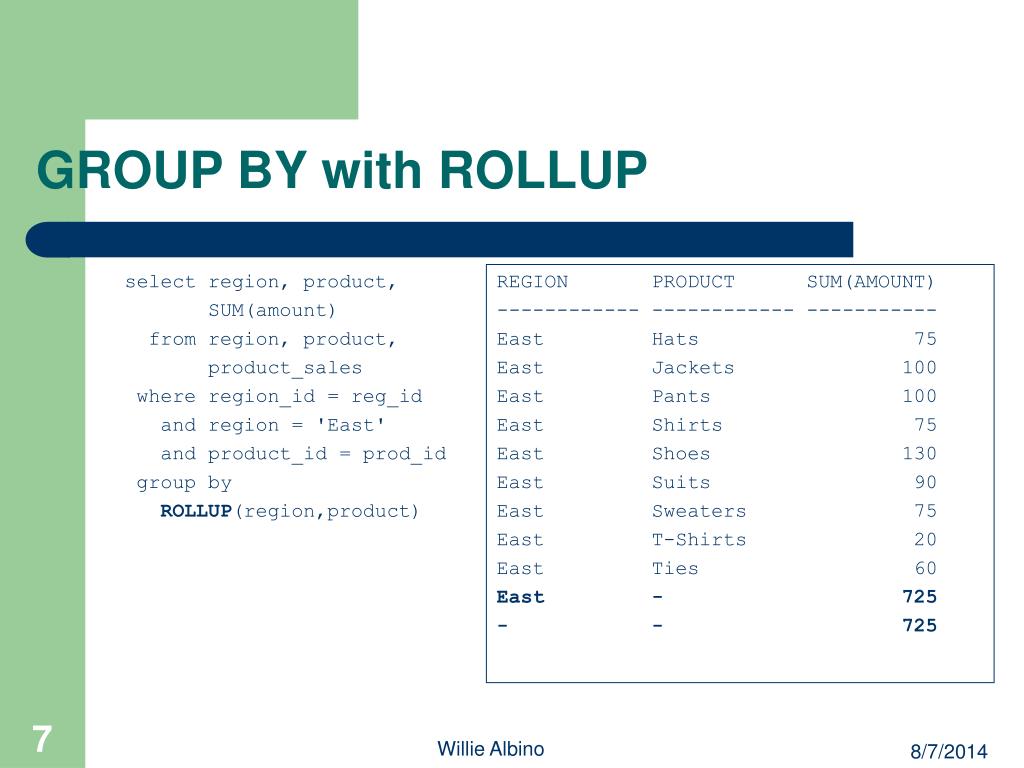

  7. GROUP BY with ROLLUP select region, product, SUM(amount) from region, product, product_sales where region_id = reg_id and region = 'East' and product_id = prod_id group by ROLLUP(region,product) REGION PRODUCT SUM(AMOUNT) ------------ ------------ ----------- East Hats 75 East Jackets 100 East Pants 100 East Shirts 75 East Shoes 130 East Suits 90 East Sweaters 75 East T-Shirts 20 East Ties 60 East - 725 - - 725 Willie Albino

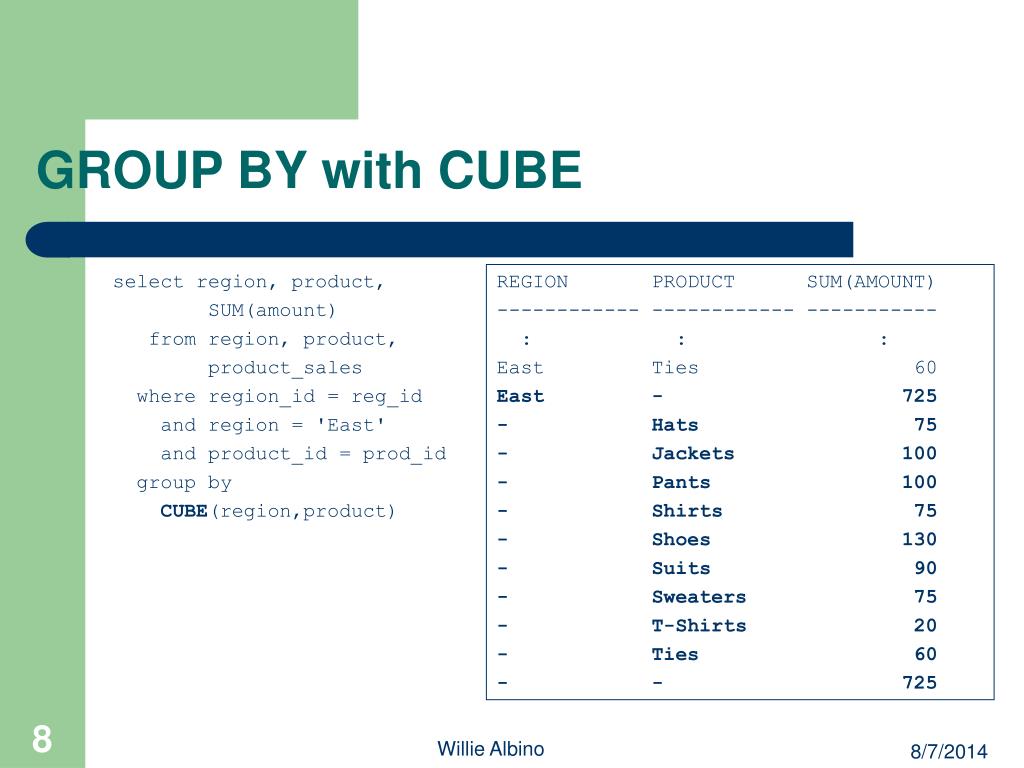

  8. GROUP BY with CUBE select region, product, SUM(amount) from region, product, product_sales where region_id = reg_id and region = 'East' and product_id = prod_id group by CUBE(region,product) REGION PRODUCT SUM(AMOUNT) ------------ ------------ ----------- : : : East Ties 60 East - 725 - Hats 75 - Jackets 100 - Pants 100 - Shirts 75 - Shoes 130 - Suits 90 - Sweaters 75 - T-Shirts 20 - Ties 60 - - 725 Willie Albino

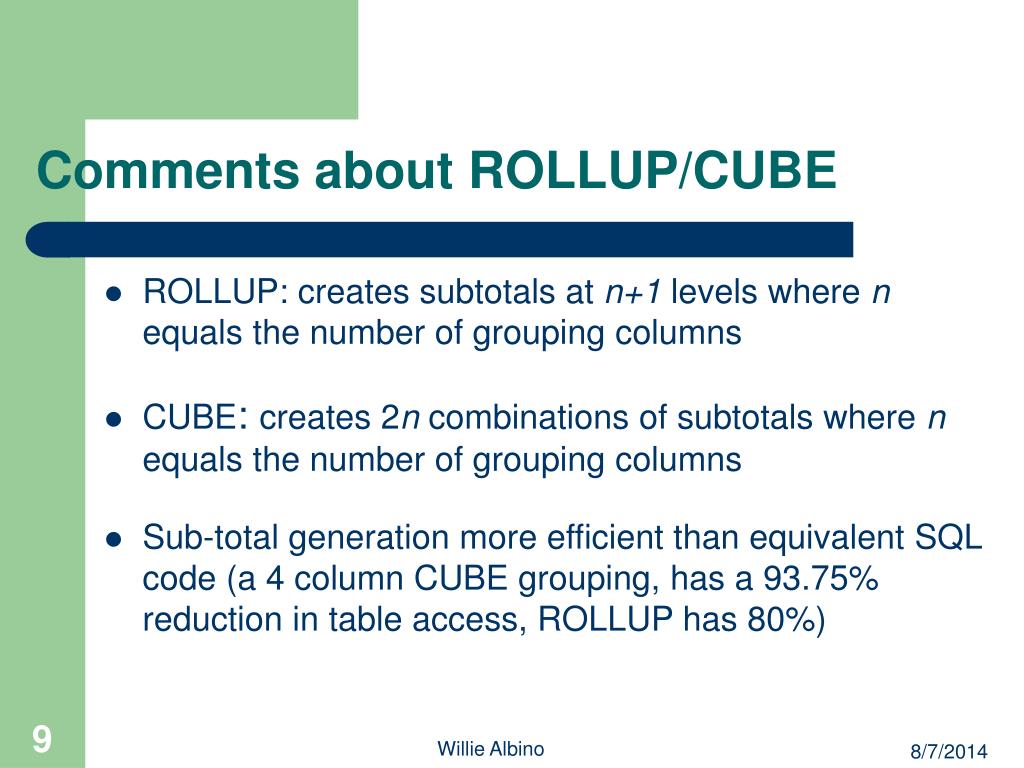

  9. Comments about ROLLUP/CUBE • ROLLUP: creates subtotals at n+1 levels where n equals the number of grouping columns • CUBE: creates 2n combinations of subtotals where n equals the number of grouping columns • Sub-total generation more efficient than equivalent SQL code (a 4 column CUBE grouping, has a 93.75% reduction in table access, ROLLUP has 80%) Willie Albino

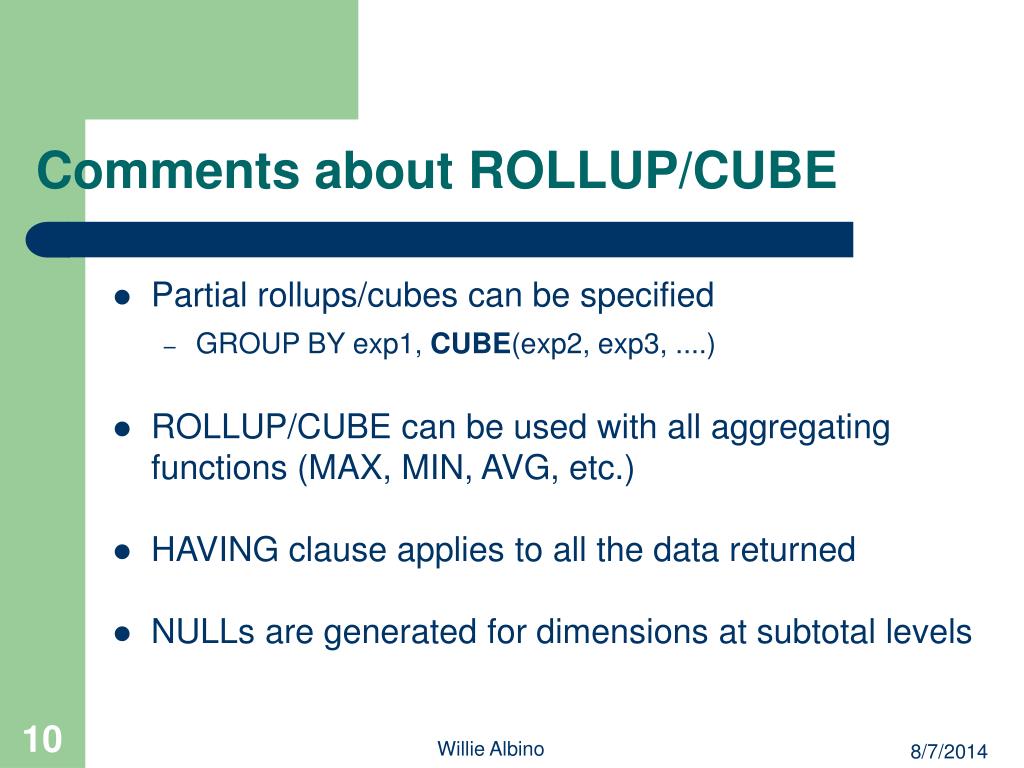

  10. Comments about ROLLUP/CUBE • Partial rollups/cubes can be specified • GROUP BY exp1, CUBE(exp2, exp3, ....) • ROLLUP/CUBE can be used with all aggregating functions (MAX, MIN, AVG, etc.) • HAVING clause applies to all the data returned • NULLs are generated for dimensions at subtotal levels Willie Albino

  11. GROUPING() Function • Used to distinguish between NULLs in data and NULLs generated by ROLLUP/CUBE extensions • GROUPING() return values: • 1 for extension-generated NULLs, 0 for NULL data values • Can be passed to DECODE for custom interpretation • SYNTAX: • SELECT .. GROUPING(column name) .. GROUP BY .. • SELECT .. DECODE(GROUPING(col), 1, ‘Sub’, col)) … Willie Albino

  12. GROUPING() Function Example select DECODE(GROUPING(region), 1, 'All Regions', 0, region) region, DECODE(GROUPING(product), 1, 'All Products', 0, product) product, SUM(amount) from region, product, product_sales where region_id = reg_id and region = 'East' and product_id = prod_id group by CUBE(region,product) REGION PRODUCT SUM(AMOUNT) ------------ ------------ ----------- : : : East Ties 60 East All Products 725 All Regions Hats 75 All Regions Jackets 100 All Regions Pants 100 All Regions Shirts 75 All Regions Shoes 130 All Regions Suits 90 All Regions Sweaters 75 All Regions T-Shirts 20 All Regions Ties 60 All RegionsAll Products 725 Willie Albino

  13. Oracle8i Analytical SQL Features Analytical SQL Functions

  14. Analytical SQL Functions • Analytical Function Categories: • Ranking Functions • Windowing Functions • Reporting Functions • Lag/Lead Functions • Statistics Functions • Functions are applied after all joins, WHERE, GROUP BY and HAVING clauses are performed, but before the ORDER BY clause is applied Willie Albino

  15. Basic Analytical Function Syntax Syntax: <function_name>() OVER ( [PARTITION BY <exp1> [, …]] ORDER BY <exp2> [ASC|DESC] [NULLS FIRST|NULLS LAST] ) Example: SELECT RANK(amount) OVER (PARTITION BY region ORDER BY amount) FROM REG_SALES; Willie Albino

  16. Function Syntax Comments • PARTITION BY<exp> [, …] - this clause divides the query result into groups within which the analytical function operates • If the PARTITION BY clause is missing, the function operates over the entire dataset • <exp> can be any valid expression involving column references Willie Albino

  17. Function Syntax Comments • ORDER BY <exp>[ASC|DESC][NULLS FIRST|NULLS LAST] • specifies how the data is ordered within a group (partition) • ASC|DESC specifies the sorting order for the grouping. The default sorting order is ASC. • The presence of ORDER BY affects the outcome of analytical functions • With ORDER BY, the set of rows used is the current row and all preceding rows in the partition (a growing window) • Without ORDER BY, all the rows in the partition will be used • The ORDER BY clause can be used to resolve ties between repeated values in a set. Willie Albino

  18. Function Syntax Comments • ORDER BY <exp>[ASC|DESC][NULLS FIRST|NULLS LAST] • The NULLS FIRST|NULLS LAST clause determines the position of NULLs in the ordered sequence. If omitted, the position depends on the ASC, DESC arguments. • NULLs are considered to be larger than any other values. • It is not guaranteed that the data will be sorted on the measures. Use the ORDER BY clause to specify the ordering sequence. Willie Albino

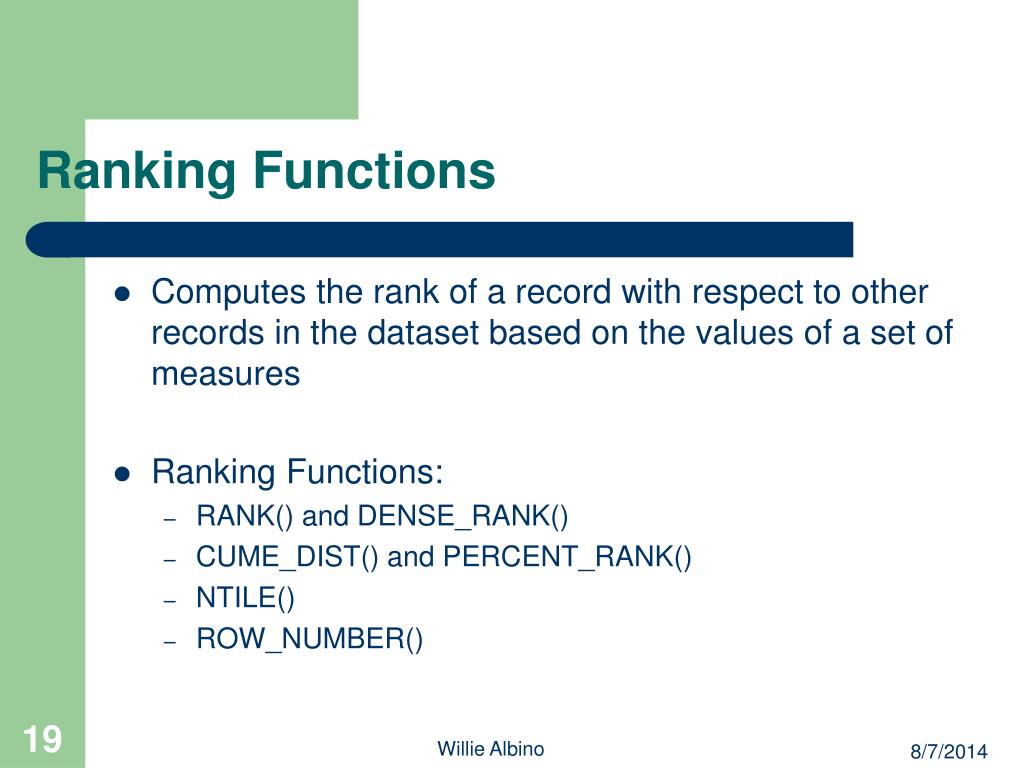

  19. Ranking Functions • Computes the rank of a record with respect to other records in the dataset based on the values of a set of measures • Ranking Functions: • RANK() and DENSE_RANK() • CUME_DIST() and PERCENT_RANK() • NTILE() • ROW_NUMBER() Willie Albino

  20. RANK() and DENSE_RANK() Functions • The RANK() and DENSE_RANK() functions allow you to rank items in a dataset or sub-group. • The RANK() function leaves gaps in the ranking sequence when there are ties in the rankings. • The DENSE_RANK() function does not leave gaps in the ranking sequence when there are ties in the rankings. Willie Albino

  21. Example of RANK()/DENSE_RANK() select amount, RANK() OVER (ORDER BY amount) AS rank_asc, DENSE_RANK() OVER (ORDER BY amount) AS dense_rank from product_sales, product, region where prod_id=product_id and region_id=reg_id and region='East' order by amount; AMOUNT RANK_ASC DENSE_RANK ------------ ------------ ----------- 20 1 1 60 2 2 75 3 3 75 3 3 75 3 3 90 6 4 100 7 5 100 7 5 130 9 6 NOTES: - Ranking value will repeat (leaving gaps) when the same data values are found in the dataset - The order or the rows with repeated values is non-deterministic - DENSE_RANK() does not leave gaps in the rank values for repeated data values (RANK() does) - The largest rank value produced by DENSE_RANK equals the number of distinct values in the dataset Willie Albino

  22. Using RANK() For Top-N Values List select * from ( select region, product,SUM(amount) amt, SUM(profit) profit, RANK() OVER (PARTITION BY region ORDER BY SUM(amount) DESC) AS rank from product_sales, product, region where prod_id=product_id and region_id=reg_id GROUP BY region, product ) where rank_sum_amt < 4 Region Product Amt Profit Rank ------ ------- ---- ------ ---- Central Sweaters 242 92 1 Central Shirts 213 87 2 Central Pants 123 57 3 East Shoes 130 30 1 East Jackets 100 28 2 East Pants 100 24 2 West Shoes 100 13 1 West Jackets 99 17 2 West T-Shirts 89 23 3 NOTES: - Using RANK() or DENSE_RANK(), you can get the top N ranks within a dataset - DENSE_RANK() could yield different results than RANK() depending on repeated values within the dataset. (The function ROW_NUMBER() would provide more accurate results.) - The bottom N rankings can be generated by changing the ordering sequence within the rank expression (e.g., ORDER BY SUM(amount) ASC)) Willie Albino

  23. CUME_DIST() and PERCENT_RANK() • CUME_DIST() computes the position of a specified value relative to the set of values (also known as inverse of percentile in statistics books) • CD = (# values different from or equal to x)/(total # of values) • Return values are between 0 and 1 • PERCENT_RANK() returns the percent rank of a value relative to a group of values • PR = (rank of row in partition - 1)/(# of rows in the partition - 1) Willie Albino

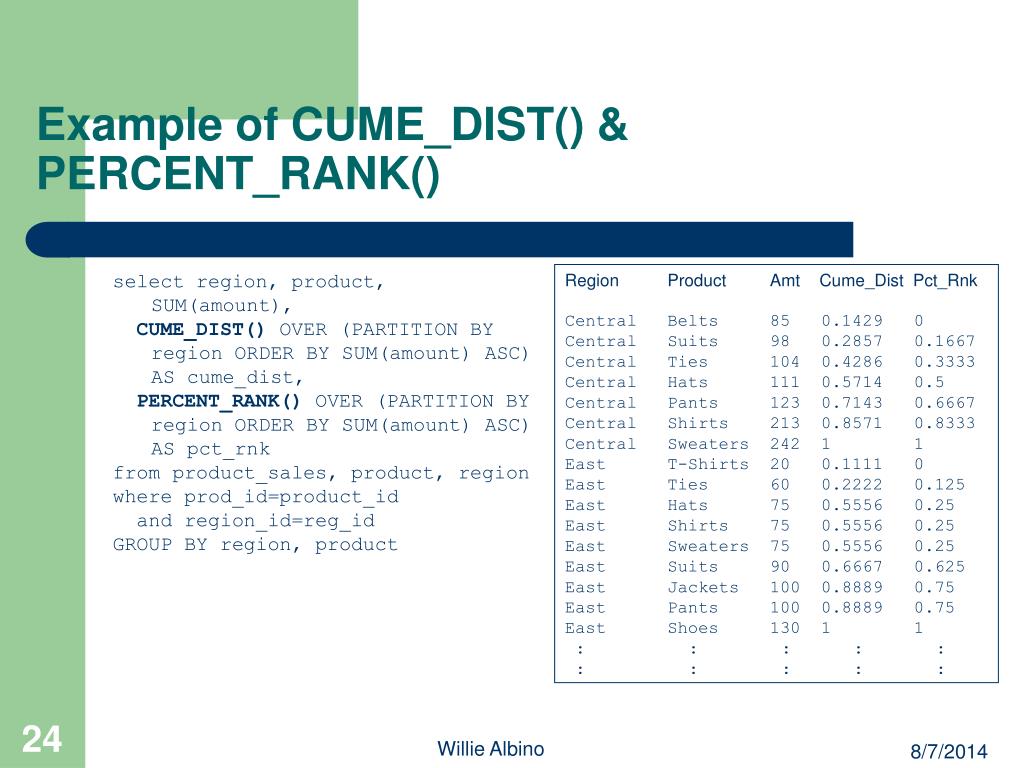

  24. Example of CUME_DIST() & PERCENT_RANK() select region, product, SUM(amount), CUME_DIST() OVER (PARTITION BY region ORDER BY SUM(amount) ASC) AS cume_dist, PERCENT_RANK() OVER (PARTITION BY region ORDER BY SUM(amount) ASC) AS pct_rnk from product_sales, product, region where prod_id=product_id and region_id=reg_id GROUP BY region, product Region Product Amt Cume_Dist Pct_Rnk Central Belts 85 0.1429 0 Central Suits 98 0.2857 0.1667 Central Ties 104 0.4286 0.3333 Central Hats 111 0.5714 0.5 Central Pants 123 0.7143 0.6667 Central Shirts 213 0.8571 0.8333 Central Sweaters 242 1 1 East T-Shirts 20 0.1111 0 East Ties 60 0.2222 0.125 East Hats 75 0.5556 0.25 East Shirts 75 0.5556 0.25 East Sweaters 75 0.5556 0.25 East Suits 90 0.6667 0.625 East Jackets 100 0.8889 0.75 East Pants 100 0.8889 0.75 East Shoes 130 1 1 : : : : : : : : : : Willie Albino

  25. NTILE(n) and ROW_NUMBER() • NTILE(n) • Divides dataset into a specified number of buckets • Takes the number of buckets as an argument • ROW_NUMBER() • assigns a unique number to each row within a partition • row numbers start with 1 and increase sequentially within each partition • better than RANK() or DENSE_RANK() for top-N queries • Rows with rankings that are ties will not necessarily be assigned to the same bucket (if they span buckets) or the same row number in subsequent runs of the query using the same dataset Willie Albino

  26. Example of NTILE() & ROW_NUMBER() select region, product, SUM(amount), NTILE(3) OVER (PARTITION BY region ORDER BY SUM(amount) ASC) AS bucket, ROW_NUMBER() OVER (PARTITION BY region ORDER BY SUM(amount) ASC) AS row from product_sales, product, region where prod_id=product_id and region_id=reg_id GROUP BY region, product Region Product Amt Bucket Row ----------- ------------- ------- ------------ ----- Central Belts 85 1 1 Central Suits 98 1 2 Central Ties 104 1 3 Central Hats 111 2 4 Central Pants 123 2 5 Central Shirts 213 3 6 Central Sweaters 242 3 7 East T-Shirts 20 1 1 East Ties 60 1 2 East Hats 75 1 3 East Shirts 75 2 4 East Sweaters 75 2 5 East Suits 90 2 6 East Jackets 100 3 7 East Pants 100 3 8 East Shoes 130 3 9 Willie Albino

  27. Oracle8i Analytical SQL Features Windowing Functions

  28. Windowing Functions • Used to compute cumulative, moving or centered aggregates • Returns a value for each row in a dataset which depends on other rows in the corresponding window • Windowing functions include moving sum, moving average, moving min/max, cumulative sum and statistical functions, first and last value in window Willie Albino

  29. Windowing Function Syntax {SUM|AVG|MAX|MIN|COUNT|FIRST_VALUE|LAST_VALUE} OVER ( PARTITION BY <exp1> [, …] ORDER BY <exp2> [ASC|DESC] [NULLS FIRST|NULLS LAST] ROWS | RANGE { UNBOUNDED PRECEDING | <exp3> PRECEDING} | BETWEEN {UNBOUNDED PRECEDING | <exp4> PRECEDING} AND {CURRENT ROW | <exp5> FOLLOWING} } ) Willie Albino

  30. Windowing Function Syntax Comments • <exp> • Must be a constant or an expression which evaluates to a positive value • If ROWS was specified, it’s a physical offset which represents number of rows in the window • If RANGE was specified, it’s a logical offset (value or interval literal) • An interval literal is specified as follows: RANGE INTERVAL n DAYS|MONTHS|YEARS RANGE x PRECEDING|FOLLOWING Willie Albino

  31. Windowing Function Syntax Comments • ROWS | RANGE • ROWS specifies the window in physical units • RANGE specifies the window as a logical offset • BETWEEN … AND … • Specifies the start and end point of the window • If BETWEEN is omitted and an end point is specified, that point will be considered the start point and the current row will be used as the end point Willie Albino

  32. Windowing Function Syntax Comments • UNBOUNDED PRECEDING • Specifies that the window starts at the first row of the partition, (or the start of the dataset, if the PARTITION BY clause is omitted) • UNBOUNDED FOLLOWING • Specifies that the window ends at the last row of the partition, (or the last row of the dataset, if the PARTITION BY clause is omitted) Willie Albino

  33. Windowing Function Syntax Comments • CURRENT_ROW • As a start point: • If ROWS was specified, makes the current row the start of the window. • If RANGE was specified, then the current value is the start of the window • As an end point: • If ROWS was specified, makes the current row the end of the window. • If RANGE was specified, then the current value is the end of the window Willie Albino

  34. Windowing Function Syntax Comments • <exp> FOLLOWING • If this is the start point, then the end point must be <exp> FOLLOWING or UNBOUNDED FOLLOWING • <exp> PRECEDING • If this is the end point, then the start point must be <exp> PRECEDING or UNBOUNDED PRECEDING • This applies whether ROWS or RANGE was specified Willie Albino

  35. Example of a Partition (Sub-Grouping) Based Moving Window QUERY: Calculate a running total of the amount of sales by region select region, amount, SUM(amount) OVER (PARTITION BY region ORDER BY amount ROWS UNBOUNDED PRECEDING) as mov_amt_sum from product_sales, product, region where prod_id=product_id and region_id=reg_id REGION AMOUNT MOV_AMT_SUM ------------ ------------ ----------- Central 85 85 Central 98 183 Central 104 287 Central 111 398 Central 123 521 Central 213 734 Central 242 976 East 20 20 East 60 80 East 75 155 East 75 230 East 75 305 East 90 395 East 100 495 East 100 595 East 130 725 Willie Albino

  36. Example of Date Based Moving Window Summaries select cust_id, trans_dt, amt, sum(amt) over (partition by cust_id order by trans_dt range interval '1' month preceding) sum_1_mnth, sum(amt) over (partition by cust_id order by trans_dt range between interval '1' month preceding and interval '1' month following) sum_2_mnth, sum(amt) over (partition by cust_id order by trans_dt range between interval '7' DAY preceding and interval '7' DAY following) sum_wk from cust_daily_summary order by cust_id, trans_dt cust_id Trans_dt Amt Sum_1_mth Sum_2_mth Sum_wk ------- ------- ------ ------ --------- ------ 1643060 3/15/00 -3.08 -3.08 118.78 -3.08 1643060 4/15/00 121.86 118.78 103.27 121.86 1643060 5/11/00 -6.80 115.06 101.85 -15.51 1643060 5/12/00 0.25 115.31 100.88 -15.51 1643060 5/13/00 -0.85 114.46 96.63 -15.51 1643060 5/14/00 -1.68 112.78 92.06 -15.51 1643060 5/15/00 -6.43 106.35 88.95 -15.51 1643060 6/11/00 -4.50 -20.01 -36.91 -17.40 1643060 6/12/00 -0.97 -14.18 -32.51 -17.40 1643060 6/13/00 -4.25 -18.68 -35.76 -17.40 1643060 6/14/00 -4.57 -22.40 -35.42 -17.40 1643060 6/15/00 -3.11 -23.83 -34.63 -17.40 1643060 7/11/00 -4.00 -21.40 -28.95 -10.80 1643060 7/12/00 -2.40 -19.30 -27.57 -10.80 1643060 7/13/00 -3.00 -21.33 -27.73 -10.80 1643060 7/14/00 -0.51 -17.59 -24.83 -10.80 1643060 7/15/00 -0.89 -13.91 -23.82 -10.80 Willie Albino

  37. Oracle8i Analytical SQL Features Reporting Functions

  38. Reporting Functions • Allow for the calculation of aggregate values within a data partition • Return the same aggregate value for every row in a partition • Syntax: • {SUM | AVG | MAX | MIN | COUNT | STDDEV | VARIANCE} ([ALL | DISTINCT] {<value expression1> | *}) OVER ([PARTITION BY <value expression2>[,...]]) Willie Albino

  39. Example of Using Reporting Functions Query: Find the region where each product was best seller SELECT product, region, sum_amt FROM (SELECT product, region, SUM(amount) AS sum_amt, MAX(SUM(amount)) OVER (PARTITION BY product) AS max_sum_amt FROM product_sales, region, product WHERE region_id=reg_id AND product_id=prod_id GROUP BY product, region) WHERE sum_amt = max_sum_amt REGION REGION SUM_AMT ------------ ------------ --------- BELTS Central 85 HATS Central 111 JACKETS East 100 JEANS West 50 PANTS Central 123 SHIRTS Central 213 SHOES East 130 SOCKS West 78 SUITS Central 98 SWEATERS Central 242 T-SHIRTS West 89 TIES Central 104 Willie Albino

  40. New Reporting Functions • RATIO_TO_REPORT(exp) • Computes the ratio of a value to the sum of a set of values • LEAD() and LAG() • Useful for comparing values in different time period • Allows access to more than one row in a table without a self-join • LAG() provides access to a prior row (at a given offset) • LEAD() provides access to a row after the current position • These functions are position, not value based Willie Albino

  41. New Reporting Function Syntax • Syntax • RATIO_TO_REPORT(<exp1>) OVER ([PARTITION BY <exp2> [,…]]) • LEAD | LAG (<exp1> [,<offset> [, <default>]]) OVER ([PARTITION BY <exp2> [,…]]) ORDER BY <exp3> [ASC|DESC] [NULLS FIRST | NULLS LAST] [,…]) • <offset> is optional and defaults to 1 • <default> is optional and is the value returned if the <offset> falls outside the bounds of the dataset Willie Albino

  42. Example of RATIO_TO_REPORT() Query: Find ratio of total sales per product to total sales SELECT product, SUM(amount) AS sum_amt, SUM(SUM(amount)) OVER() AS total_amt, RATIO_TO_REPORT(SUM(amount)) OVER () AS ratio FROM product_sales, product, region WHERE prod_id = product_id AND region='East' GROUP BY product PRODUCT SUM_AMT TOTAL_AMT RATIO -------- ------- ---------- ------- Belts 150 2443 .061 Hats 186 2443 .076 Jackets 199 2443 .081 Jeans 50 2443 .020 Pants 268 2443 .110 Shirts 363 2443 .149 Shoes 230 2443 .094 Socks 78 2443 .032 Suits 188 2443 .077 Sweaters 392 2443 .160 T-Shirts 109 2443 .045 Ties 230 2443 .094 Willie Albino

  43. Example of LAG Function Query: Compare cust’s present amount to the amount 2 days ago SELECT cust_id, acct_date, sum(amt_usd) amount, LAG(SUM(amt_usd),2,-999) OVER (PARTITION BY cust_id ORDER BY acct_trans_date ) AS old_amt FROM acct WHERE acct_date > '01-NOV-00' GROUP BY cust_id, acct_date cust_ID ACCT_DATE AMOUNT OLD_AMT -------- ---------- ------- ------- 1643060 11/11/2000 147.47 -999 1643060 11/12/2000 -5.5 -999 1643060 11/13/2000 -2.27 147.47 1643060 11/14/2000 -11.72 -5.5 1643060 11/15/2000 -4.25 -2.27 1643060 12/11/2000 -7.15 -11.72 1643060 12/12/2000 -2.25 -4.25 1643060 12/13/2000 -2.05 -7.15 1643060 12/14/2000 -15.13 -2.25 1643060 12/15/2000 -0.71 -2.05 1659880 11/11/2000 169.17 -999 1659880 11/12/2000 -14.25 -999 1659880 11/13/2000 -12.5 169.17 Willie Albino

  44. Oracle8i Analytical SQL Features CASE Expressions

  45. CASE Expressions • Used for bucketing data • allows for differently sized buckets • Very similar to DECODE statement • Provides more flexibility and logical power • Offers better performance and is easier to read • Syntax: • CASE WHEN <cond1> THEN <v1> WHEN <cond2> THEN <v2> … [ ELSE <vn> ] END Willie Albino

  46. Example #1 of Using CASE Expressions SELECT SUM(CASE WHEN SUM(amount) BETWEEN 0 AND 50 THEN 1 ELSE 0 END) AS "0-50", SUM(CASE WHEN SUM(amount) BETWEEN 51 AND 150 THEN 1 ELSE 0 END) AS "51-150", SUM(CASE WHEN SUM(amount) BETWEEN 151 AND 250 THEN 1 ELSE 0 END) AS "151-250", SUM(CASE WHEN SUM(amount) > 251 THEN 1 ELSE 0 END) "251+" FROM product_sales, product, region WHERE prod_id = product_id AND region='East' GROUP BY product 0-50 51-150 151-250 251+ ---- ------ ------- ---- 1 3 5 5 Willie Albino

  47. Example #2 of Using CASE Expressions SELECT CASE WHEN amount BETWEEN 0 AND 50 THEN ' 0-50' WHEN amount BETWEEN 51 AND 150 THEN ' 51-150' WHEN amount BETWEEN 151 AND 250 THEN '151-250' WHEN amount > 250 THEN '251+' END bucket, COUNT(*) cnt, SUM(amount) amt FROM product_sales, product, region WHERE prod_id = product_id AND region='East' GROUP BY CASE WHEN amount BETWEEN 0 AND 50 THEN ’ 0-50' WHEN amount BETWEEN 51 AND 150 THEN ’ 51-150' WHEN amount BETWEEN 151 AND 250 THEN '151-250' WHEN amount > 250 THEN '251+' END ORDER BY bucket BUCKET CNT AMT ------ --- ---- 0-50 3 115 51-150 21 1873 151-250 2 455 251+ 3 176 Willie Albino

  48. Summary • New analytical functionality in Oracle 8.1.6 (+) • Makes it easier to code certain types of SQL • Allows for more efficient SQL code when compared to the equivalent pure SQL implementation • Enhancements include • SQL GROUP BY clause has been augmented to make querying and reporting easier • Analytical functions enabling rankings, moving window calculations, lead/lag analysis • Better ‘if-then-else’ capabilities provided through CASE Willie Albino
