  1. Physics A Mathematical Science

  2. Science • An organized way of studying our surroundings

  3. Technology • Applied science • Using discoveries to create useful products

  4. Physics • Study of matter and energy and their relationships • Experimental • Research using equipment • Theoretical • Construction of theory using mathematics to explain experimental data • Basic to all other sciences • Chemistry, engineering, architecture, medicine • A few laws describe most physical relationships

  5. Traits Helpful to a Physicist: • Knowledge • Insight • Creativity • Imagination • Patience

  6. Scientific Method Use observations Recognize the Problem Make predictions Revise/ repeat experiment Draw Conclusions Form a Hypothesis Test the Hypothesis Collect data Design an experiment Conduct the experiment

  7. Data Analysis Chapter 2

  8. Measurement • quantitative description • Requirements: • Know property attempting to measure • Must have a standard for comparison • Must have a method of comparison

  9. International System of Measurement • SI • Created by the French in 1795 • Used by most countries • Units are related to powers of 10 • No fractions are used

  10. Peta - 1015 Tera - 1012 Giga - 109 Mega - 106 Kilo - 103 Hecto - 102 Deka - 101 Deci – 10-1 Centi – 10-2 Milli – 10-3 Micro – 10-6 Nano – 10-9 Pico – 10-12 Femto - 10-15 Powers of ten

  11. SI base units

  12. SI base units

  13. Derived units • made from basic units • Volume: amount of space occupied • Volume may determined by: • Calculating from dimensions • Graduated cylinder – if liquid • Water displacement – if irregular in shape • Acceptable units: L, mL, m3, cm3, dm3

  14. Determining Volume from Dimensions V = l x w x h = 1 dm3 = 1 L 1000 cm3 = 1000 mL 1 cm3 = 1 mL 1 dm 1 dm 1 dm

  15. Other Derived Units • Density – mass per unit volume • D = m/V • units: g/cm3 • can be used to identify an unknown sample of matter • Weight – measure of force of gravity between 2 objects • W = mg • Newton (kg·m/s2) • Measured with a spring scale

  16. Scientific Notation • way to express extremely large or small numbers as powers of ten M x 10n M = # between 1 and 10 n = any whole number +n – # is larger than 1 -n – # is smaller than 1

  17. Examples: 123456778 = 1.23456778x 108 0.0000456 = 4.56 x 10-5

  18. To add or subtract, exponents must be the same. Adjust exponents and decimal place Add or subtract M’s Keep n the same Adjust exponent and decimal on final answer if needed Example: 2 x 102 + 3 x 103 2 x 102 30 x 102 = 32 x 102 = 3.2 x 103 Operations:

  19. To multiply: multiply M’s Add n’s To divide: Divide M’s Subtract n’s Example: (2.0 x 102)(3.0 x 103) = 6.0 x 10(2 + 3) = 6.0 x 105 Operations

  20. Using a Calculator for Scientific Notation • Locate or • This stands for “x 10” • Example: (2.0 x 102)(3.0 x 103) • Enter “2.0 EE 2 times 3.0 EE 3 = ” • 6.0 x 105 should appear on the display • Use the +/- key to enter negative exponents • If the answer does not appear in sci. not., check the mode or punch SCI. EE EXP

  21. Solving Problems Using Dimensional Analysis • AKA: factor-label method, conversion factors, bridge method • Units are treated as factors • Multiply by a series of factors to cancel the unwanted units • No need to memorize lists of formulas • You do have to know the conversion factors

  22. Factors are equivalent. 1 m or 1 min 100 cm 60 s Ex: ? m = 500 cm ? m = 500 cm 1 m 100 cm = 5 m

  23. Arrange factors to cancel unwanted units • Multiply by numbers on the top of the bar • Divide by numbers on the bottom • If the units match on each side of the =, the problem should be correct.

  24. Uncertainties of Measurement: • All instruments are subject to external forces and interpretation by people

  25. Accuracy and Precision: • Describe the reliability of a measurement • Accuracy: how close a measurement is to the correct value • May be expressed as percent error % error = accepted value – experimental value x 100 accepted value

  26. Accuracy and Precision: • Precision: how close repeated measurements are to each other • Depends on the exactness of the instrument scale • Measurements are recorded using the correct number of significant digits

  27. Parallax • Apparent shift in position of an object when viewed from various angles • Meter reading • Graduated cylinder reading

  28. Significant digits • All definitely known digits plus one estimated digit. • The number of sig. digs. should be observed in all calculations using measurements. • Rules for determining number of sig digs in a recorded measurement are on page 39. • Nonzero digits • Captured zeroes • Zeros after a decimal and after a number

  29. Examples • 300 m 1 sig dig • 303 m 3 sig digs • 3030 m 3 sig digs • 30.0 m 3 sig digs • 0.3 m 1 sig dig • 0.0003 m 1 sig dig • 0.00300 m 3 sig digs • 0.03030 m 4 sig digs

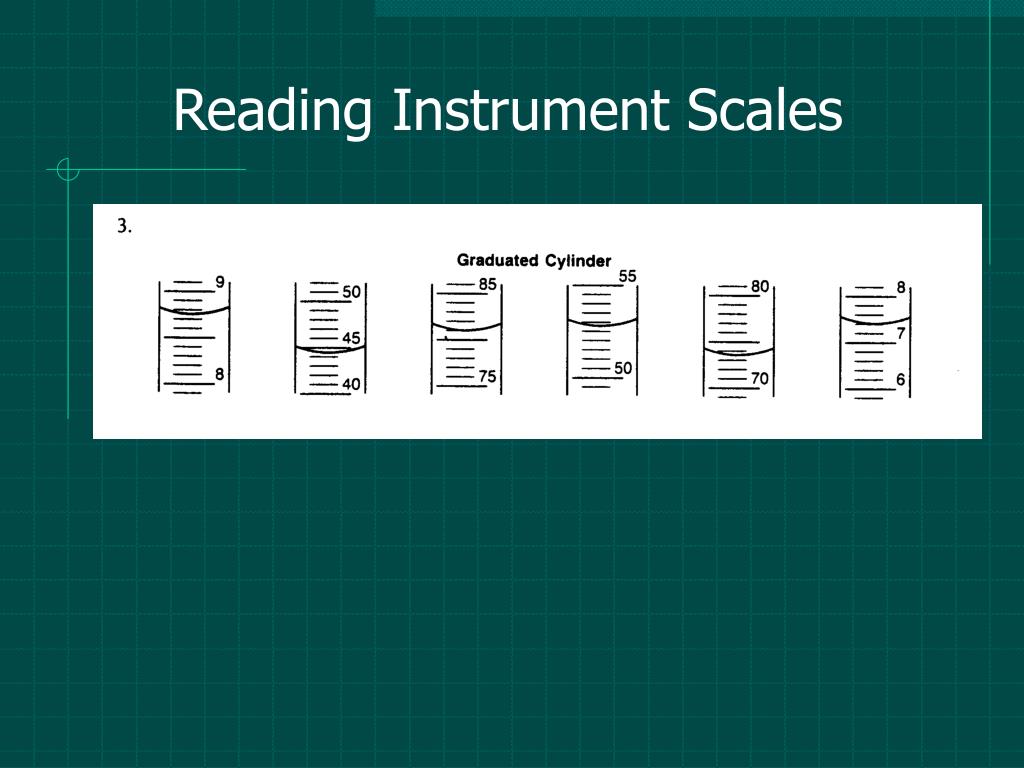

  30. Reading Instrument Scales

  31. Reading Instrument Scales

  32. Reading Instrument Scales

  33. Reading Instrument Scales

  34. Rounding Off Numbers • If adding or subtracting measurements, round your answer to the least number of decimal places. • If multiplying or dividing measurements, round your answer to the least number of significant digits. Problems – pages 27-28

  35. Solving Equations Using Algebra • Isolate unknown on the left side of the equation before plugging in known values when possible • Remember the order of operations. • Perform same operations to both sides of equation • Example: Solve the following expression for b. 3y = 6x + 2ab2

  36. Units in Equations: • Operations performed on numbers are also performed on units • Proper units = correct answer • Good check method • Measurements of the same type must have the same units • Make conversions using dimensional analysis • Example: 6 cm + 5 m + 2 mm

  37. Representing Data observations →charts → graphs →equations • Graph – visual display • Circle – parts of a whole (percents) • Bar – how one quantity varies with another • Line – (same as bar) • Determine relationship (verbal or equation) • Determine slope (rate of change of y to x) • Interpolate – read between data points • Extrapolate – read beyond data points (predict)

  38. Variables • Independent – one manipulated in an experiment • Plotted on the x-axis • Dependent – changes as a result of manipulating independent variable • Plotted on the y-axis

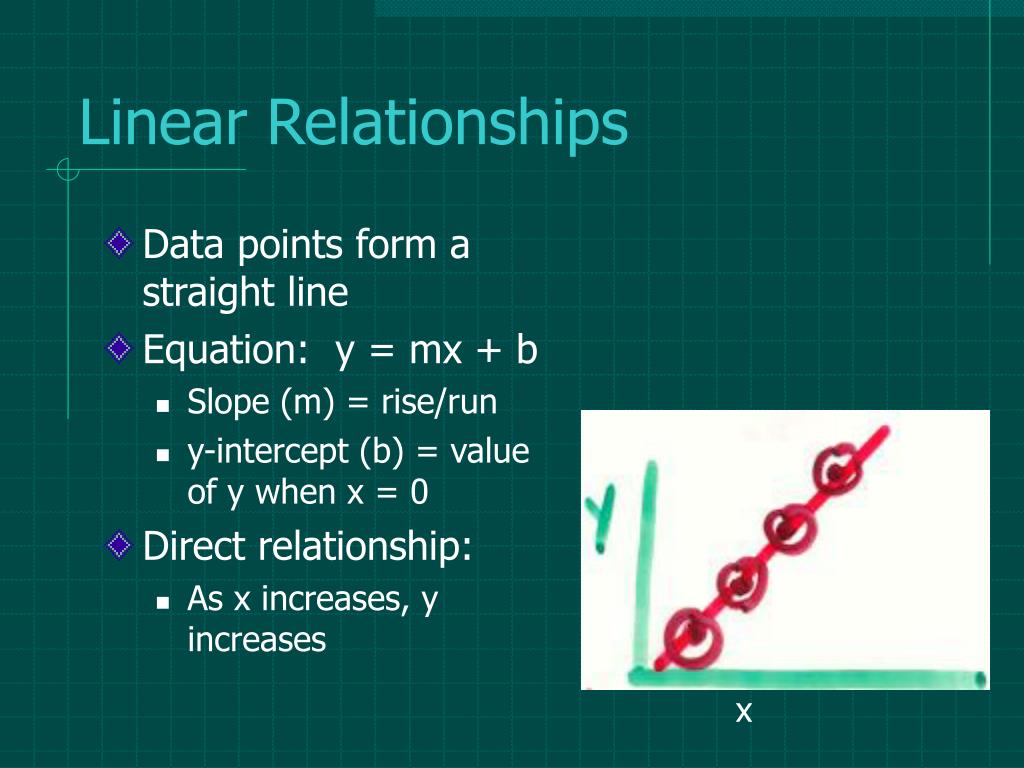

  39. Linear Relationships • Data points form a straight line • Equation: y = mx + b • Slope (m) = rise/run • y-intercept (b) = value of y when x = 0 • Direct relationship: • As x increases, y increases x

  40. Parabolic Relationship • Data forms an upward curve (parabola) • Equation: y = kx2 • K = constant = y/x2 • Power curve: as x increases, y increases more each time x

  41.  y is greater for each increment of x

  42. Root Curve • Data points form a an upward curve which levels off • Equation: y = kx

  43. Inverse Relationship • Data points slope downward (hyperbola) • Equation: y = k/x • As x increases, y decreases x

  44. Identify these relationships:
