  1. Intermediate report on Performance Analysis of Zigbee Wireless Personal Area Networks By, Vaddina Prakash Rao Under the Guidance of, Mr. Dimitri Marandin 25th August 2005 http://www.ifn.et.tu-dresden.de/tk/

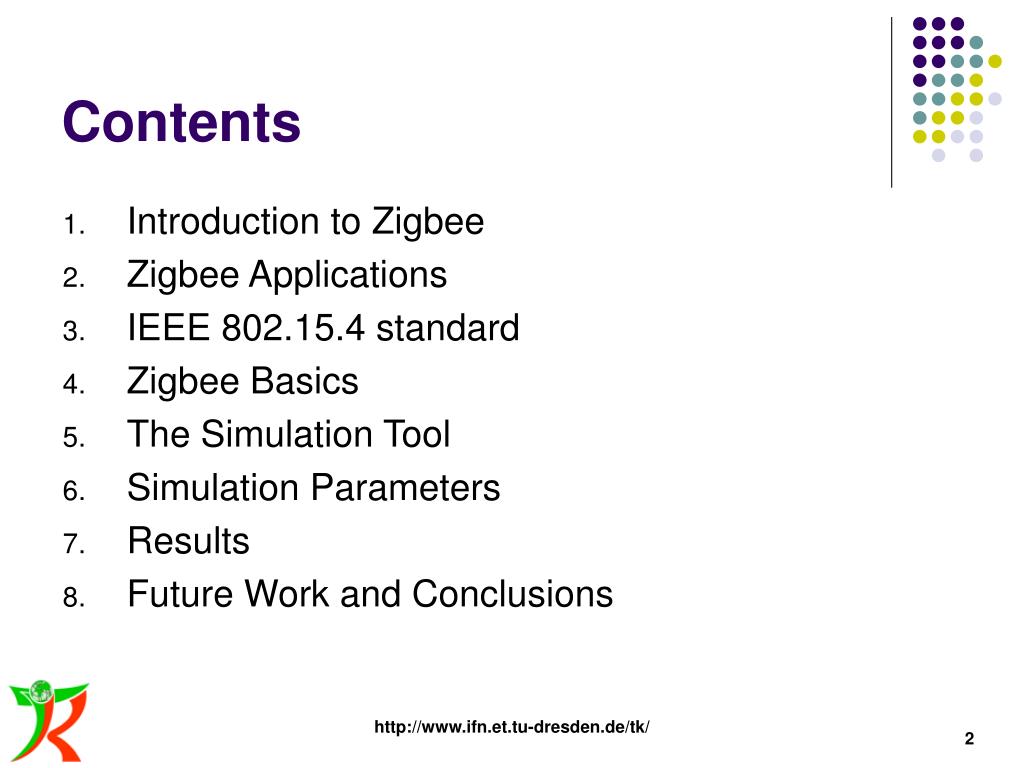

  2. Contents • Introduction to Zigbee • Zigbee Applications • IEEE 802.15.4 standard • Zigbee Basics • The Simulation Tool • Simulation Parameters • Results • Future Work and Conclusions http://www.ifn.et.tu-dresden.de/tk/

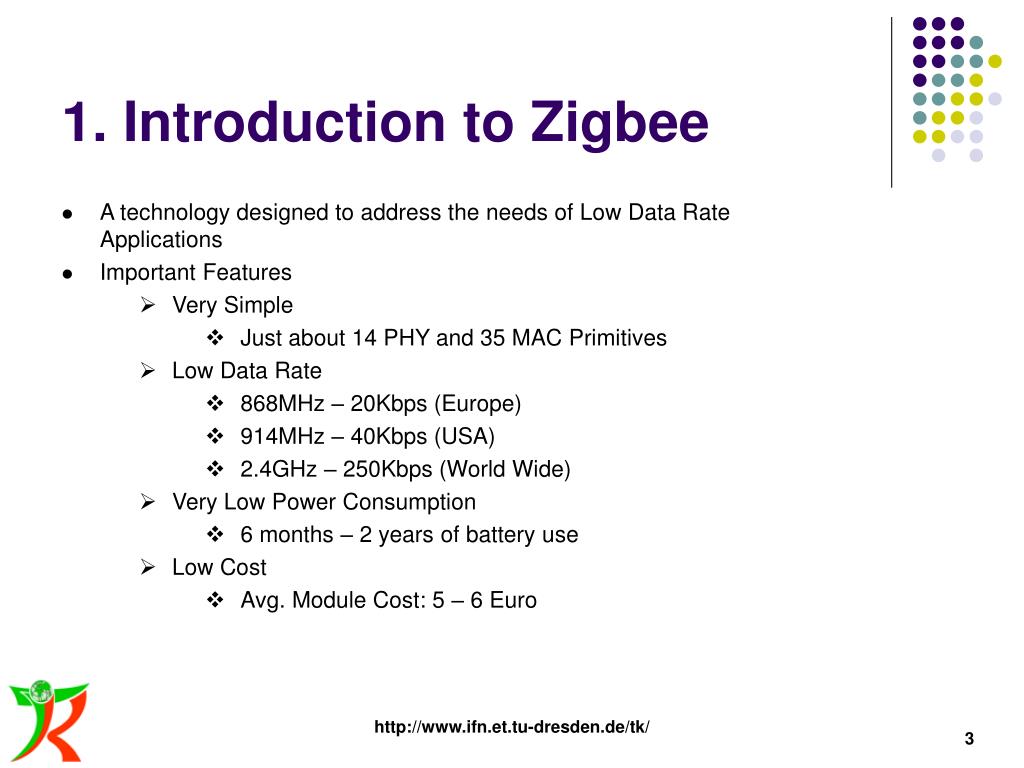

  3. 1. Introduction to Zigbee • A technology designed to address the needs of Low Data Rate Applications • Important Features • Very Simple • Just about 14 PHY and 35 MAC Primitives • Low Data Rate • 868MHz – 20Kbps (Europe) • 914MHz – 40Kbps (USA) • 2.4GHz – 250Kbps (World Wide) • Very Low Power Consumption • 6 months – 2 years of battery use • Low Cost • Avg. Module Cost: 5 – 6 Euro http://www.ifn.et.tu-dresden.de/tk/

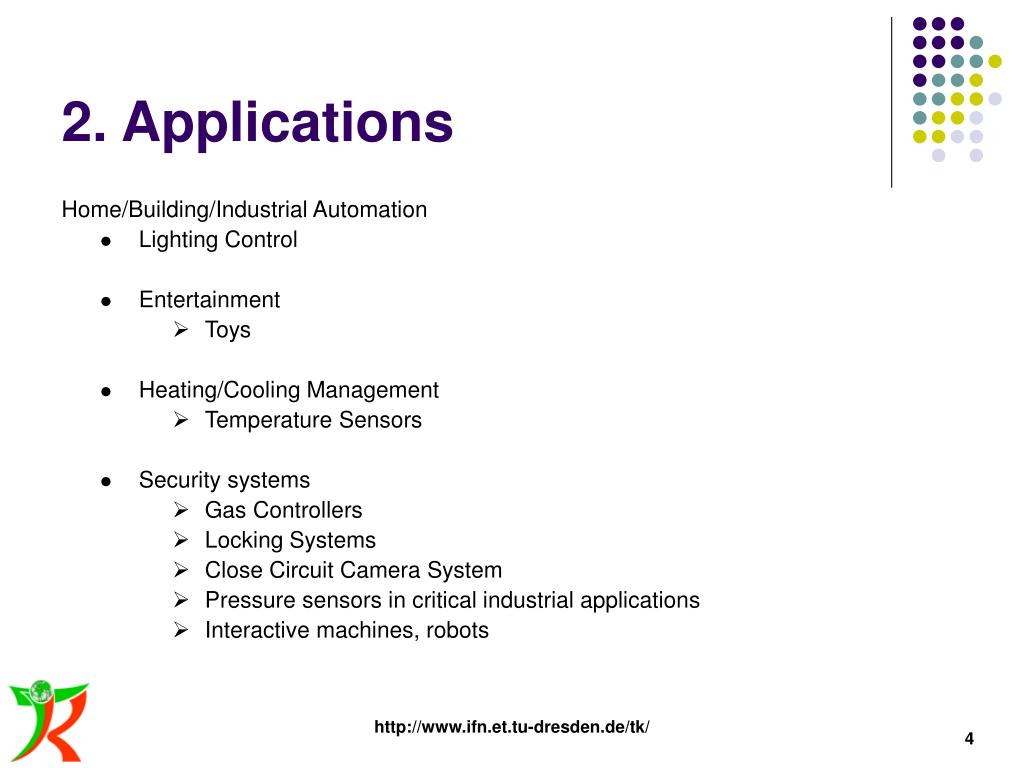

  4. 2. Applications Home/Building/Industrial Automation • Lighting Control • Entertainment • Toys • Heating/Cooling Management • Temperature Sensors • Security systems • Gas Controllers • Locking Systems • Close Circuit Camera System • Pressure sensors in critical industrial applications • Interactive machines, robots http://www.ifn.et.tu-dresden.de/tk/

  5. Upper Layers 802.2 LLC SSCS Beacon Management, Channel Access, GTS allocation, Association, Disassociation, Ack. Frame delivery MAC Activate/Deactivate Receiver, Energy Detection, Link Quality Indication, Association, Channel Frequency selection, Data transmission and reception PHY SSCS –Service Specific Convergence Layer GTS – Guaranteed time slot 3. IEEE 802.15.4 Standard http://www.ifn.et.tu-dresden.de/tk/

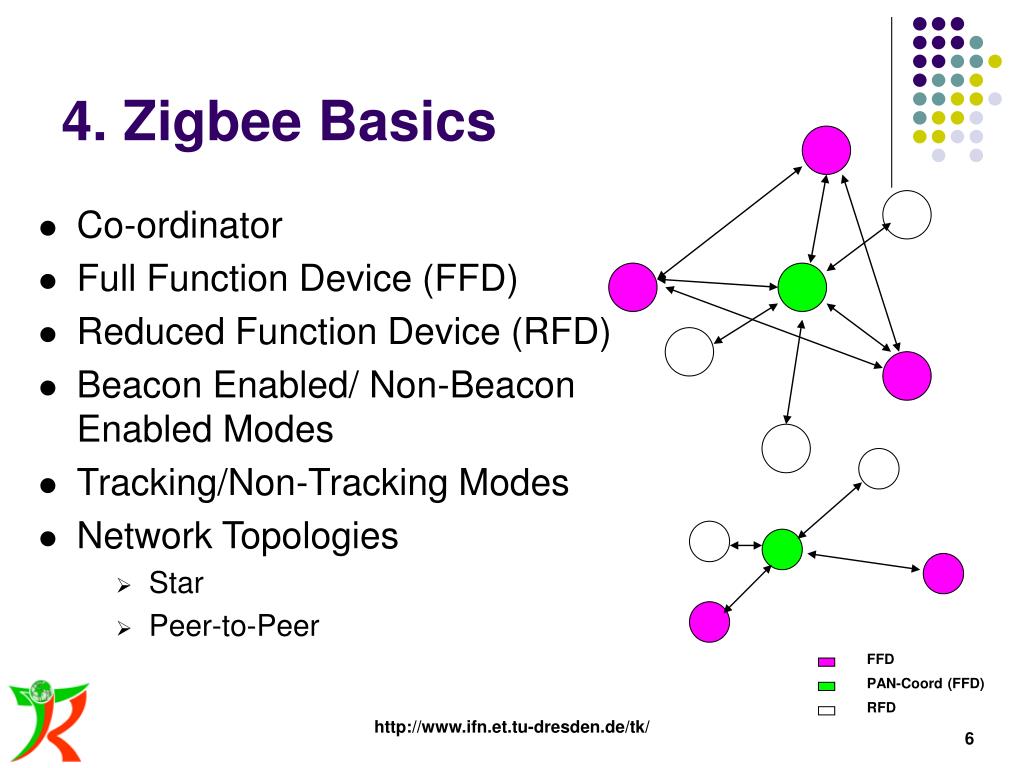

  6. FFD PAN-Coord (FFD) RFD 4. Zigbee Basics • Co-ordinator • Full Function Device (FFD) • Reduced Function Device (RFD) • Beacon Enabled/ Non-Beacon Enabled Modes • Tracking/Non-Tracking Modes • Network Topologies • Star • Peer-to-Peer http://www.ifn.et.tu-dresden.de/tk/

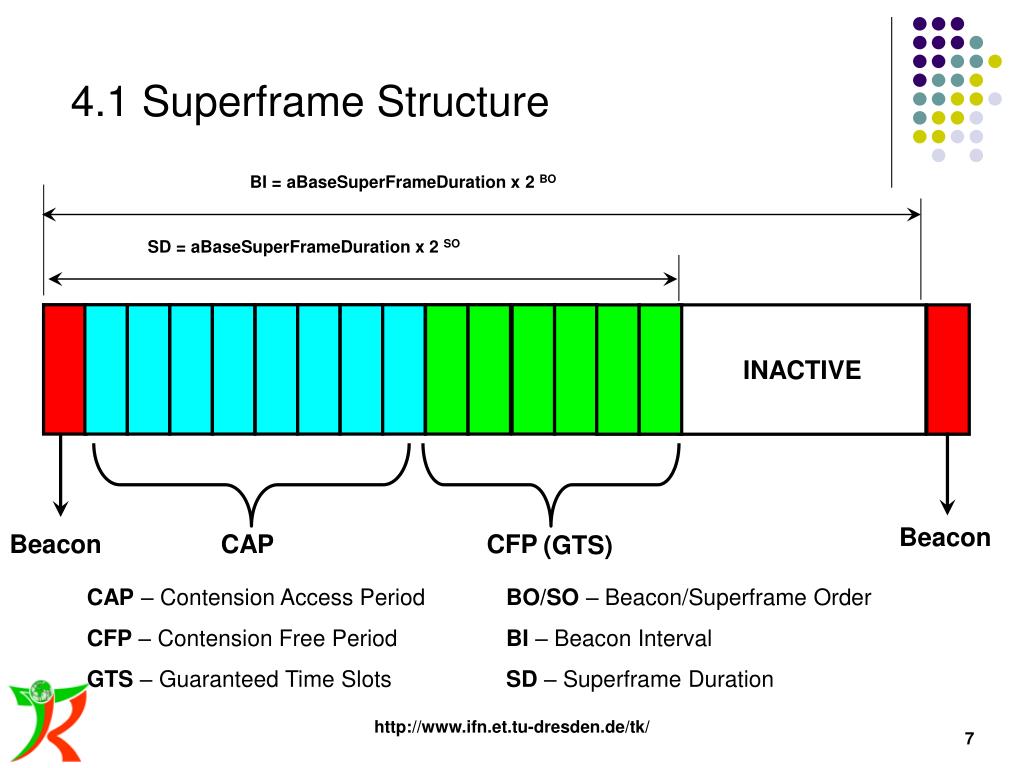

  7. INACTIVE 4.1 Superframe Structure BI = aBaseSuperFrameDuration x 2 BO SD = aBaseSuperFrameDuration x 2 SO Beacon Beacon CAP CFP (GTS) CAP – Contension Access Period CFP – Contension Free Period GTS – Guaranteed Time Slots BO/SO – Beacon/Superframe Order BI – Beacon Interval SD – Superframe Duration http://www.ifn.et.tu-dresden.de/tk/

  8. Legend FFD PAN-Coord (FFD) RFD SCANNING BEACON 4.2 Network formation 1(0) 1 4(0) 4 8 8(0) PAN Co-ord 3 3(0) 0 0 2(0) 2 5(0) 5 7 7(0) 6(0) 6 http://www.ifn.et.tu-dresden.de/tk/

  9. Legend FFD PAN-Coord (FFD) DATA ACK 4.3 Data Transmission 4.3.1 Network Device to Coordinator 1. Coord: Beacon Transmission 2. Node: Synchronizes to the Super frame structure 3. Node: Waits for its turn of transmission using CSMA-CA PAN coord Node 0 1 4. Node: On its turn, transmits data 5. Coord: (Optional) Acknowledges the data reception http://www.ifn.et.tu-dresden.de/tk/

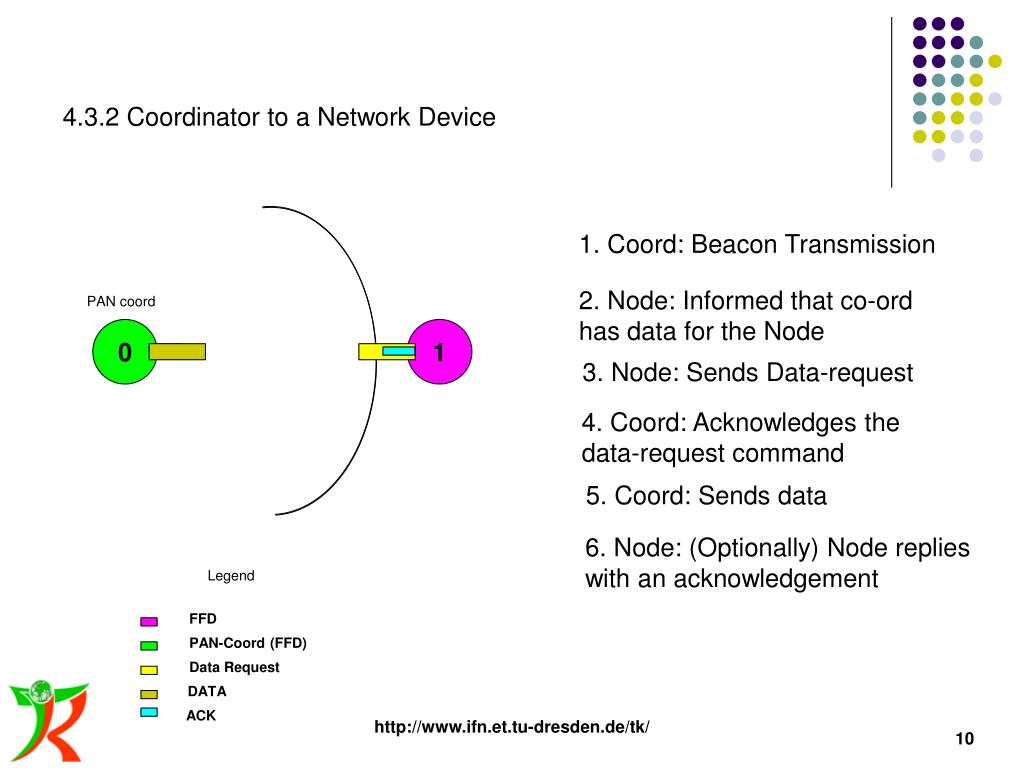

  10. Legend FFD PAN-Coord (FFD) Data Request DATA ACK 4.3.2 Coordinator to a Network Device 1. Coord: Beacon Transmission 2. Node: Informed that co-ord has data for the Node PAN coord 0 1 3. Node: Sends Data-request 4. Coord: Acknowledges the data-request command 5. Coord: Sends data 6. Node: (Optionally) Node replies with an acknowledgement http://www.ifn.et.tu-dresden.de/tk/

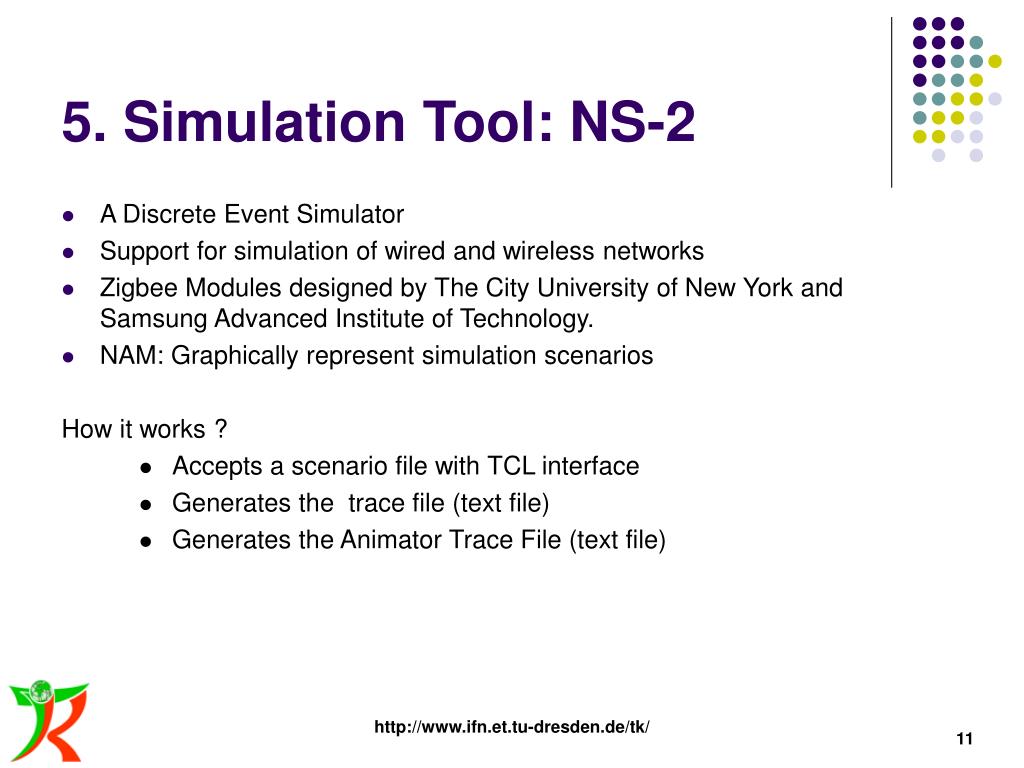

  11. 5. Simulation Tool: NS-2 • A Discrete Event Simulator • Support for simulation of wired and wireless networks • Zigbee Modules designed by The City University of New York and Samsung Advanced Institute of Technology. • NAM: Graphically represent simulation scenarios How it works ? • Accepts a scenario file with TCL interface • Generates the trace file (text file) • Generates the Animator Trace File (text file) http://www.ifn.et.tu-dresden.de/tk/

  12. 5.1 Nam Snapshot http://www.ifn.et.tu-dresden.de/tk/

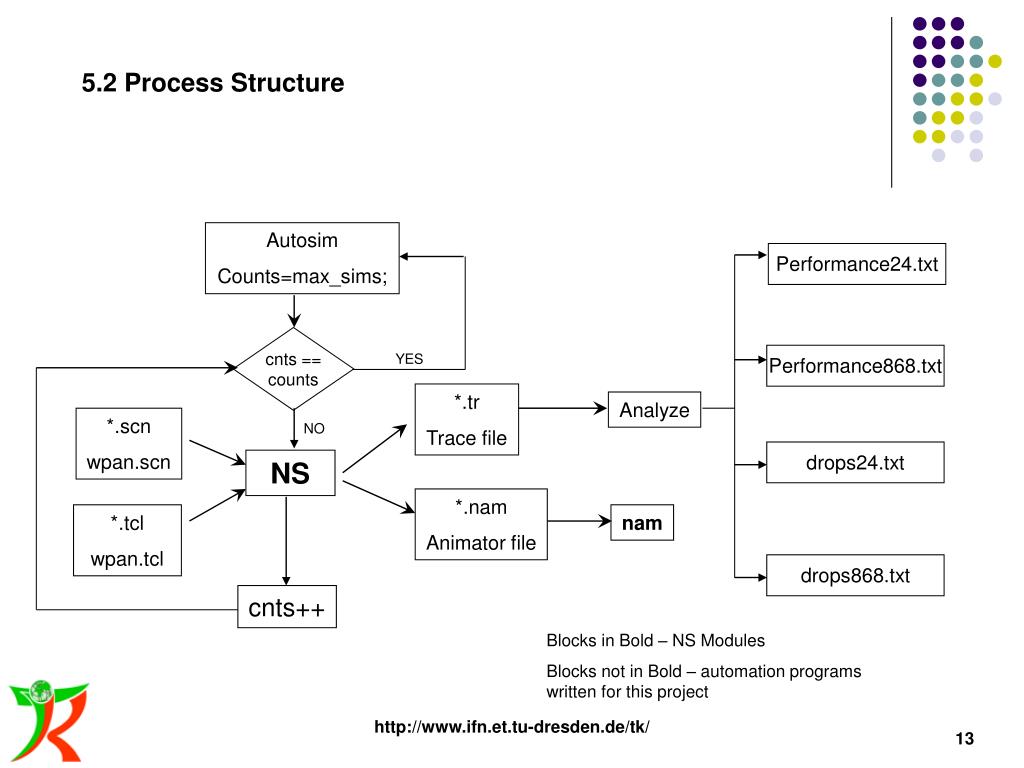

  13. Autosim Counts=max_sims; Performance24.txt cnts == counts Performance868.txt YES *.tr Trace file Analyze *.scn wpan.scn NO drops24.txt NS *.nam Animator file *.tcl wpan.tcl nam drops868.txt cnts++ 5.2 Process Structure Blocks in Bold – NS Modules Blocks not in Bold – automation programs written for this project http://www.ifn.et.tu-dresden.de/tk/

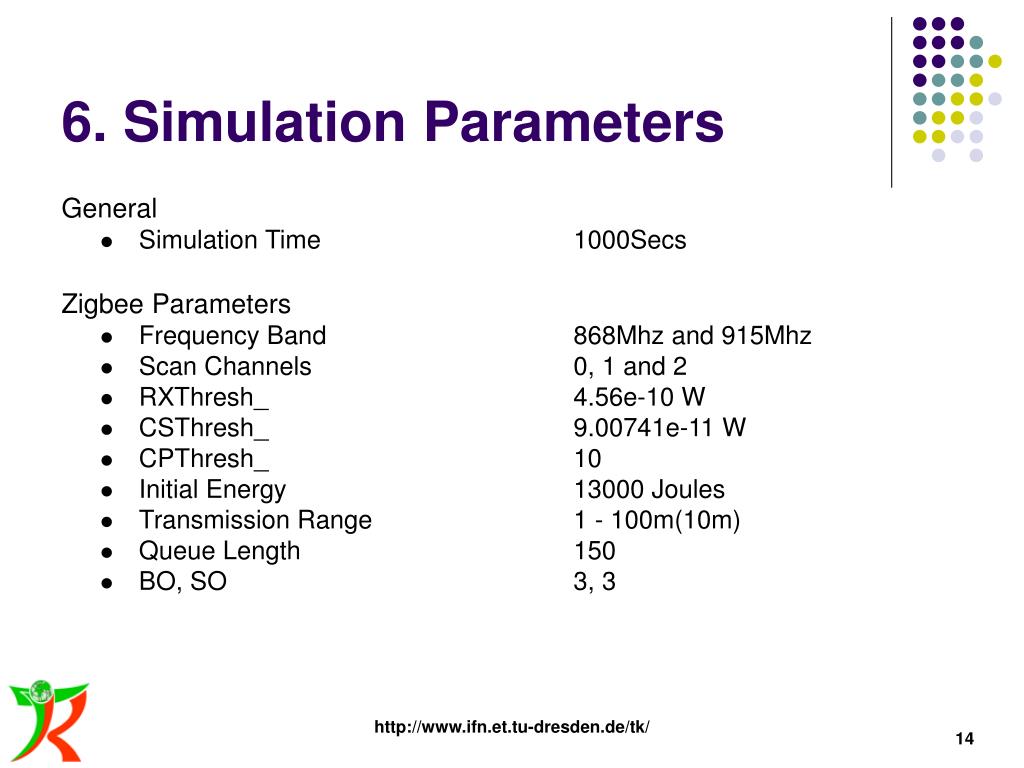

  14. 6. Simulation Parameters General • Simulation Time 1000Secs Zigbee Parameters • Frequency Band 868Mhz and 915Mhz • Scan Channels 0, 1 and 2 • RXThresh_ 4.56e-10 W • CSThresh_ 9.00741e-11 W • CPThresh_ 10 • Initial Energy 13000 Joules • Transmission Range 1 - 100m(10m) • Queue Length 150 • BO, SO 3, 3 http://www.ifn.et.tu-dresden.de/tk/

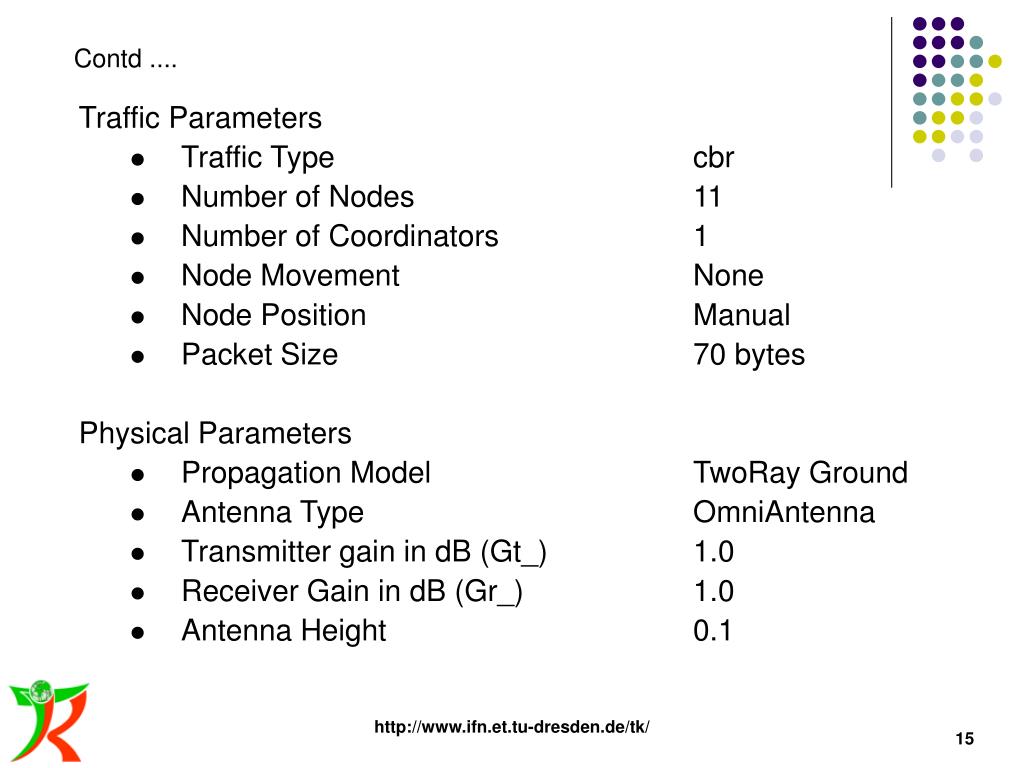

  15. Contd .... • Traffic Parameters • Traffic Type cbr • Number of Nodes 11 • Number of Coordinators 1 • Node Movement None • Node Position Manual • Packet Size 70 bytes Physical Parameters • Propagation Model TwoRay Ground • Antenna Type OmniAntenna • Transmitter gain in dB (Gt_) 1.0 • Receiver Gain in dB (Gr_) 1.0 • Antenna Height 0.1 http://www.ifn.et.tu-dresden.de/tk/

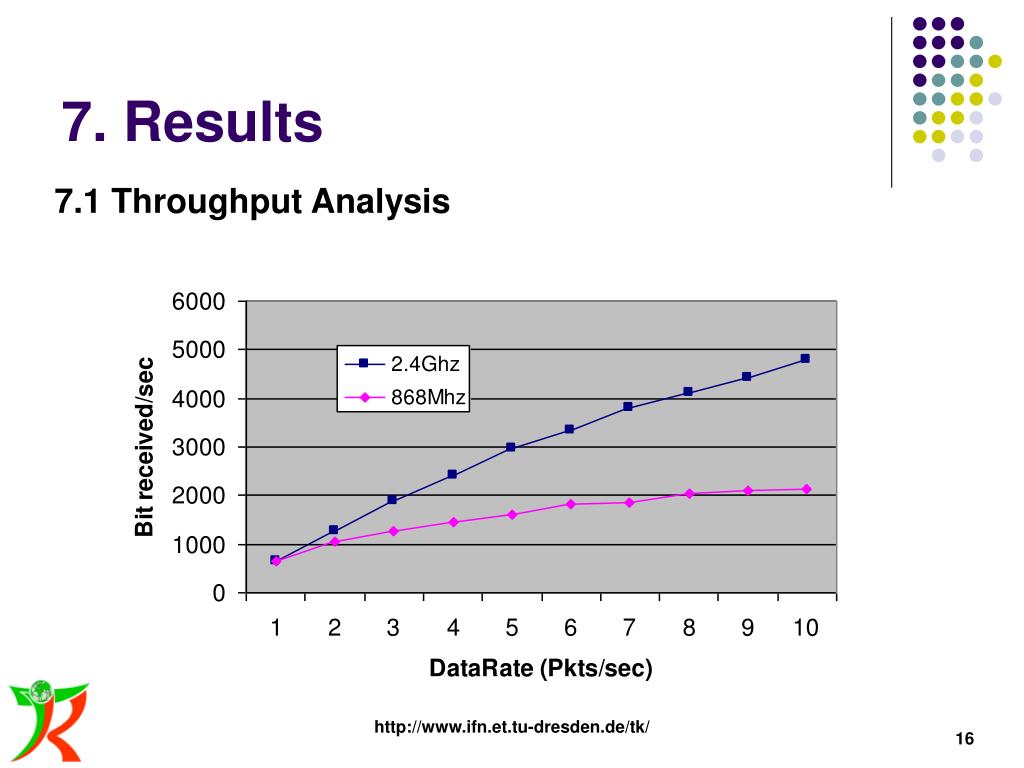

  16. 7. Results 7.1 Throughput Analysis http://www.ifn.et.tu-dresden.de/tk/

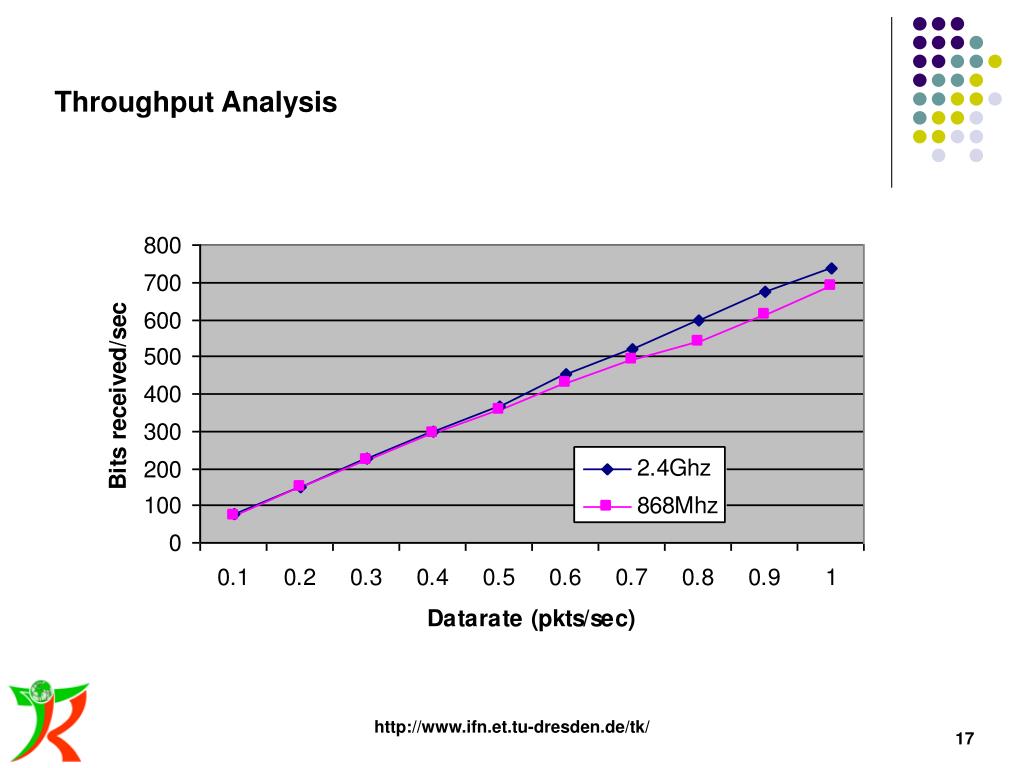

  17. Throughput Analysis http://www.ifn.et.tu-dresden.de/tk/

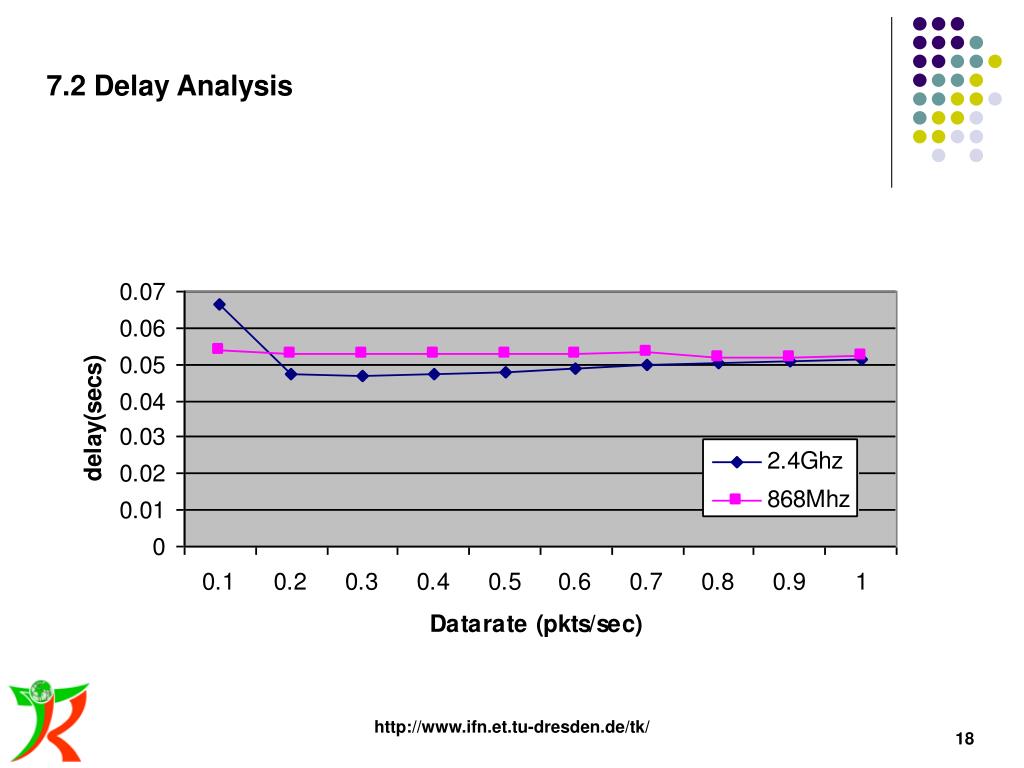

  18. 7.2 Delay Analysis http://www.ifn.et.tu-dresden.de/tk/

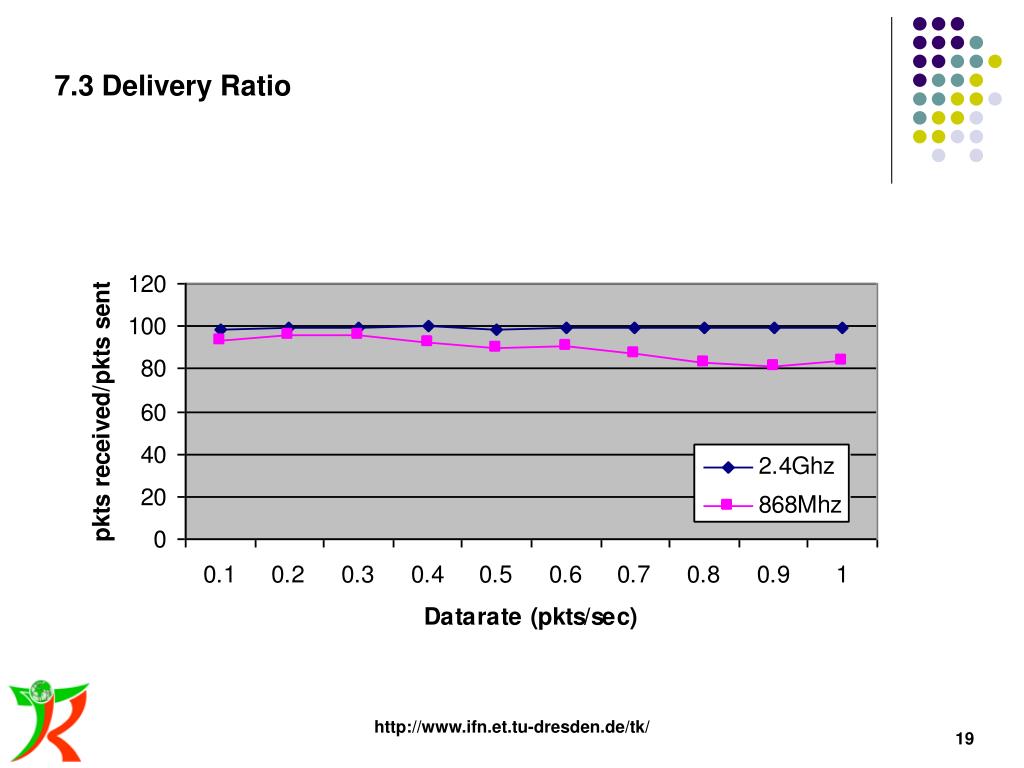

  19. 7.3 Delivery Ratio http://www.ifn.et.tu-dresden.de/tk/

  20. Delivery Ratio http://www.ifn.et.tu-dresden.de/tk/

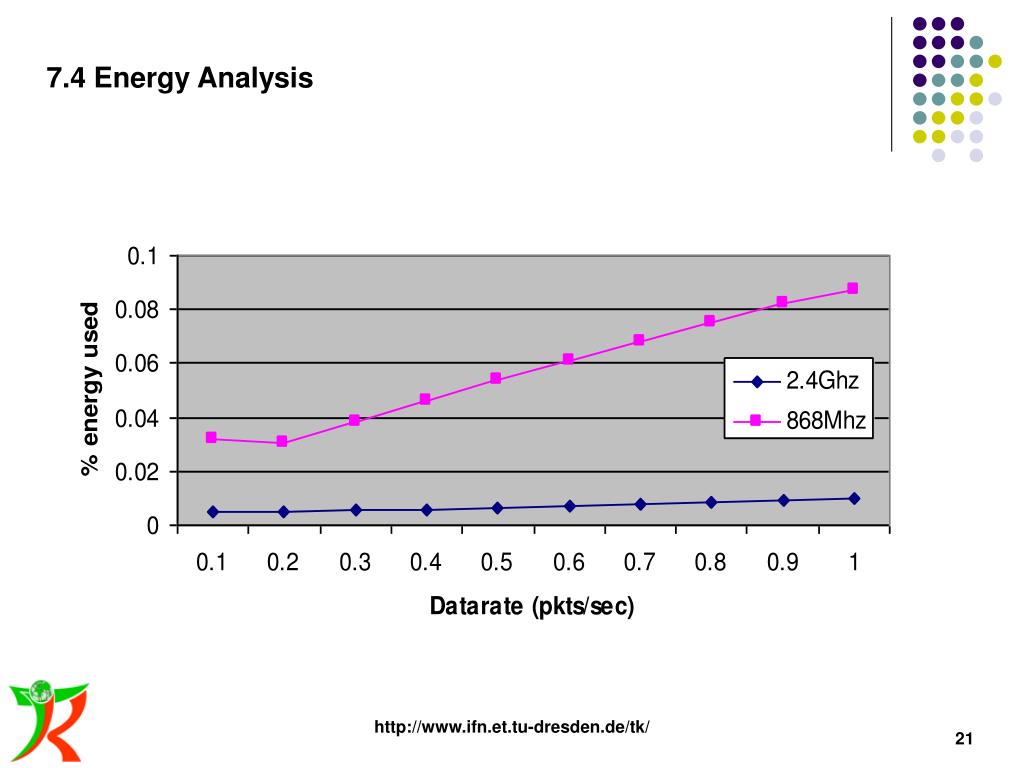

  21. 7.4 Energy Analysis http://www.ifn.et.tu-dresden.de/tk/

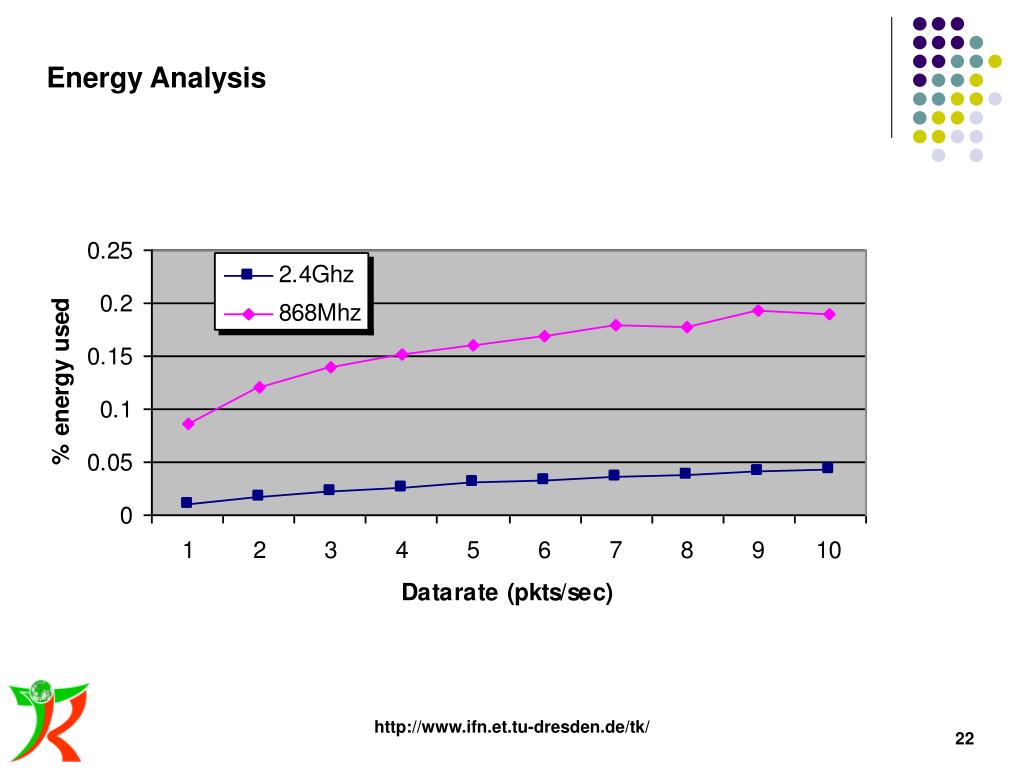

  22. Energy Analysis http://www.ifn.et.tu-dresden.de/tk/

  23. 7.4 Drop Statistics http://www.ifn.et.tu-dresden.de/tk/

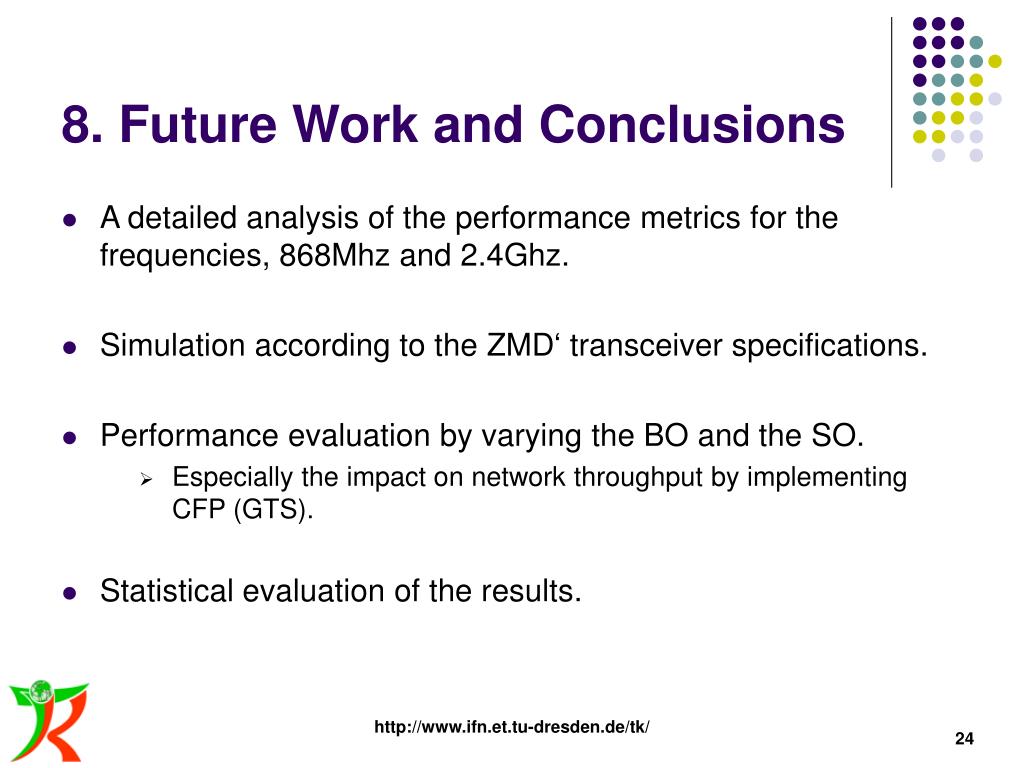

  24. 8. Future Work and Conclusions • A detailed analysis of the performance metrics for the frequencies, 868Mhz and 2.4Ghz. • Simulation according to the ZMD‘ transceiver specifications. • Performance evaluation by varying the BO and the SO. • Especially the impact on network throughput by implementing CFP (GTS). • Statistical evaluation of the results. http://www.ifn.et.tu-dresden.de/tk/

  25. Thank you and Welcome to my final thesis presentation http://www.ifn.et.tu-dresden.de/tk/
