  1. Cisco Networking AcademyS2 C9 TCP/IP

  2. TCP/IP • ensure communication across any set of interconnected networks • Stack components such as protocols to support file transfer, e-mail, remote login • UDP unreliable transport • TCP reliable transport • ICMP provides control & message functions at network layer

  3. TCP/IP and OSI Comparison • Protocols • TCP/IP Application/transport/Internet • OSI Application/Presentation/Session • Networks • TCP/IP Network Access • OSI Physical, Datalink, Network, Transport • Protocol Stack • Transport to Transport • Network to Internet • Data Link & Physical to Network Access

  4. TCP/IP is Important • TCP/IP is a universally available protocol that you likely will use at work. • TCP/IP is a useful reference for understanding other protocols because it includes elements that are representative of other protocols. • TCP/IP is important because the router uses it as a configuration tool. TCP/IP enables communication among any set of interconnected networks and is equally well suited for both LAN and WAN communication

  5. Transport Layer • UDP • Connectionless, unreliable, no acknowledgements, is fast • TCP • Connection oriented, flow control through sliding windows, re-sends anything not received, supplies virtual circuit between end-user applications; guaranteed delivery of segments

  6. DNS Hosts File E-mail FTP Telnet Tracert Netscape Explorer Ping NEBstat NETstat Application Layer

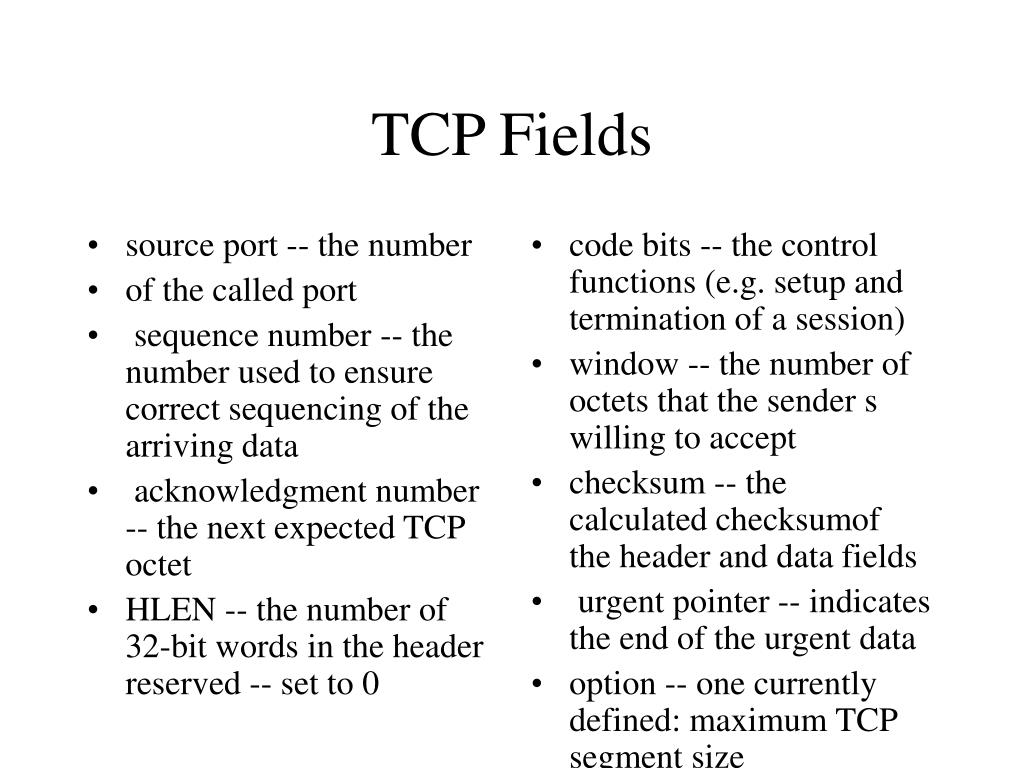

  7. source port -- the number of the called port sequence number -- the number used to ensure correct sequencing of the arriving data acknowledgment number -- the next expected TCP octet HLEN -- the number of 32-bit words in the header reserved -- set to 0 code bits -- the control functions (e.g. setup and termination of a session) window -- the number of octets that the sender s willing to accept checksum -- the calculated checksumof the header and data fields urgent pointer -- indicates the end of the urgent data option -- one currently defined: maximum TCP segment size TCP Fields

  8. UDP Segment Format • Source Port • Destination Port • Length • Checksum • Data

  9. 21 FTP 23 Telnet 25 TMTP 53 DNS 69 TFTP 161 SNMP Port Numbers

  10. Three-Way Handshake • A three-way handshake is necessary because TCPs may use different mechanisms for picking the ISN. • either side can break the communication because TCP is a peer-to-peer (balanced) communication method • TCP uses expectational acknowledgments, meaning that the acknowledgment number refers to the octet expected next.

  11. Network Layer • IP Internet Protocol • ICMP Internet Control Message Protocol • ARP Address Resolution Protocol • RARP Reverse Address Resolution Protocol

  12. VERS HLEN Type of Service Total Length Identification Flags Frag offset TTL Protocol Header Checksum Source IP address Destination IP address IP options Data IP Datagram

  13. Destination Unreachable Time to Live Exceeded Parameter Problem Source Quench Redirect Echo Echo Reply Timestamp Timestamp Reply Information Request Information Reply Address Request Address Reply Echo is a successful reply to a ping command ICMP Defined Messages
