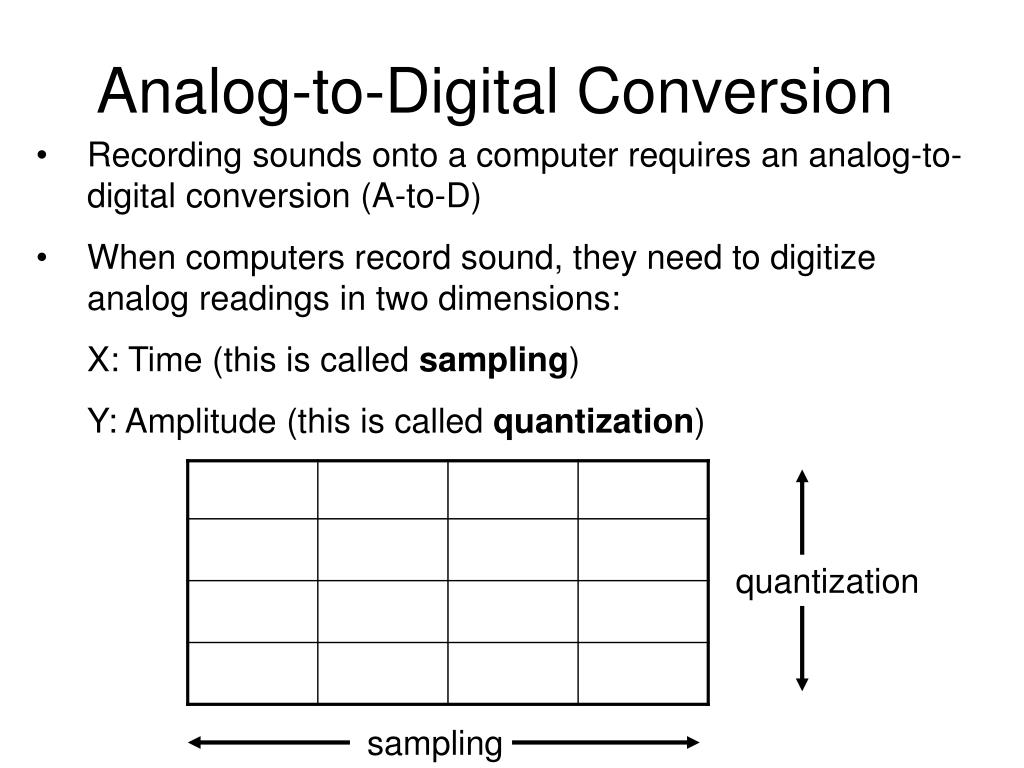

Basic Acoustics + Digital Signal Processing. January 14, 2014. Just so you know. Some ideas for finding consultants: Kijiji and “couch surfing” For today: Part 1: Go through a review of the basics of (analog) acoustics. Part 2: Converting sound from analog to digital format.

Télécharger la présentation
## Basic Acoustics + Digital Signal Processing

**An Image/Link below is provided (as is) to download presentation**
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.
Content is provided to you AS IS for your information and personal use only.
Download presentation by click this link.
While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

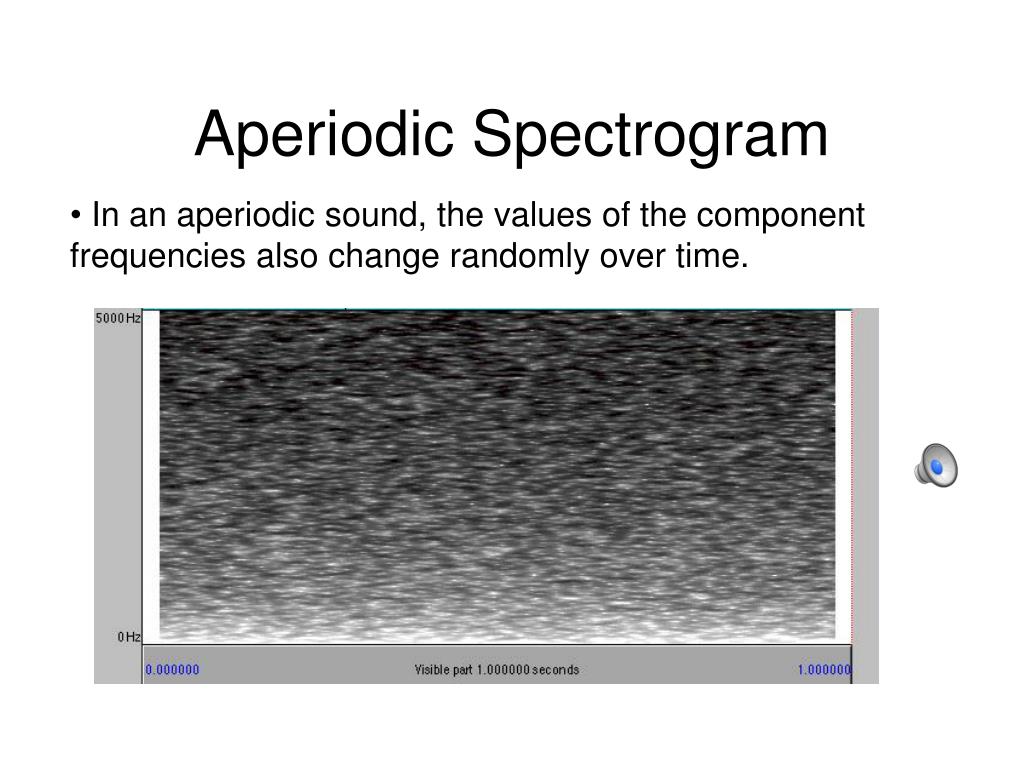

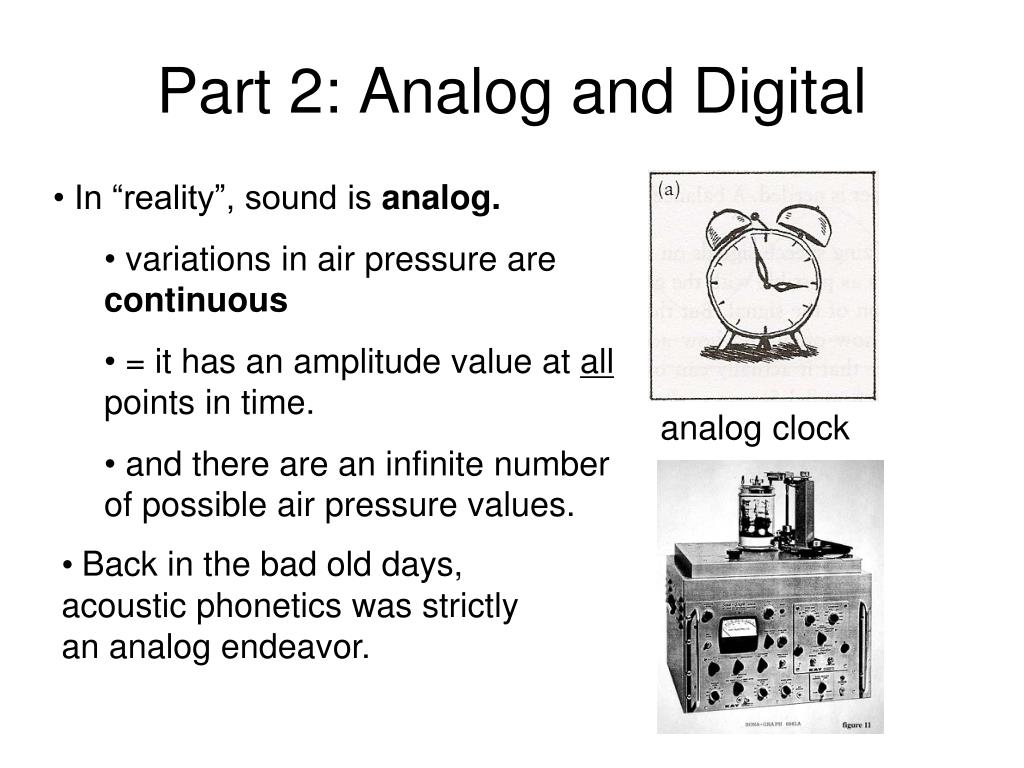

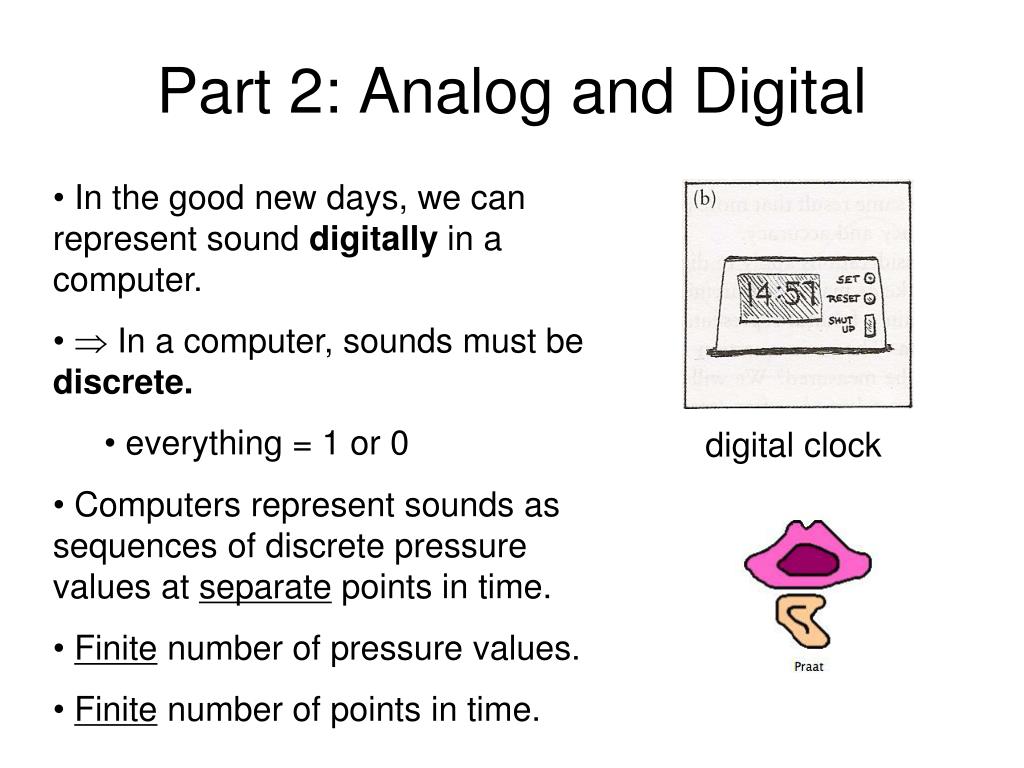

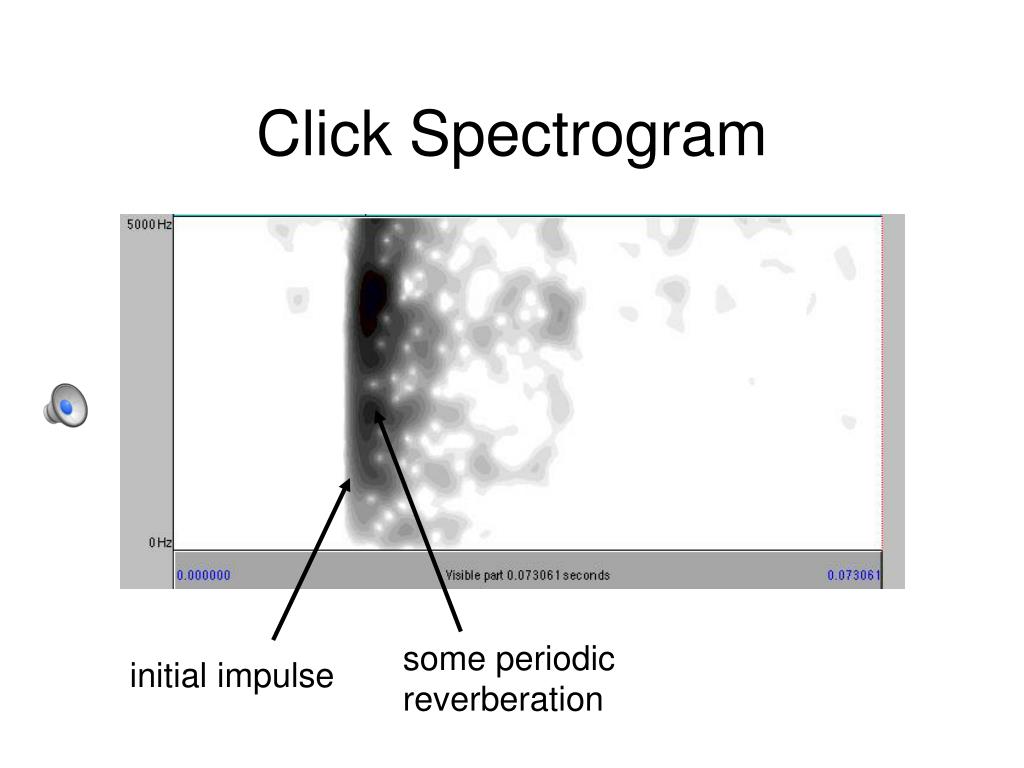

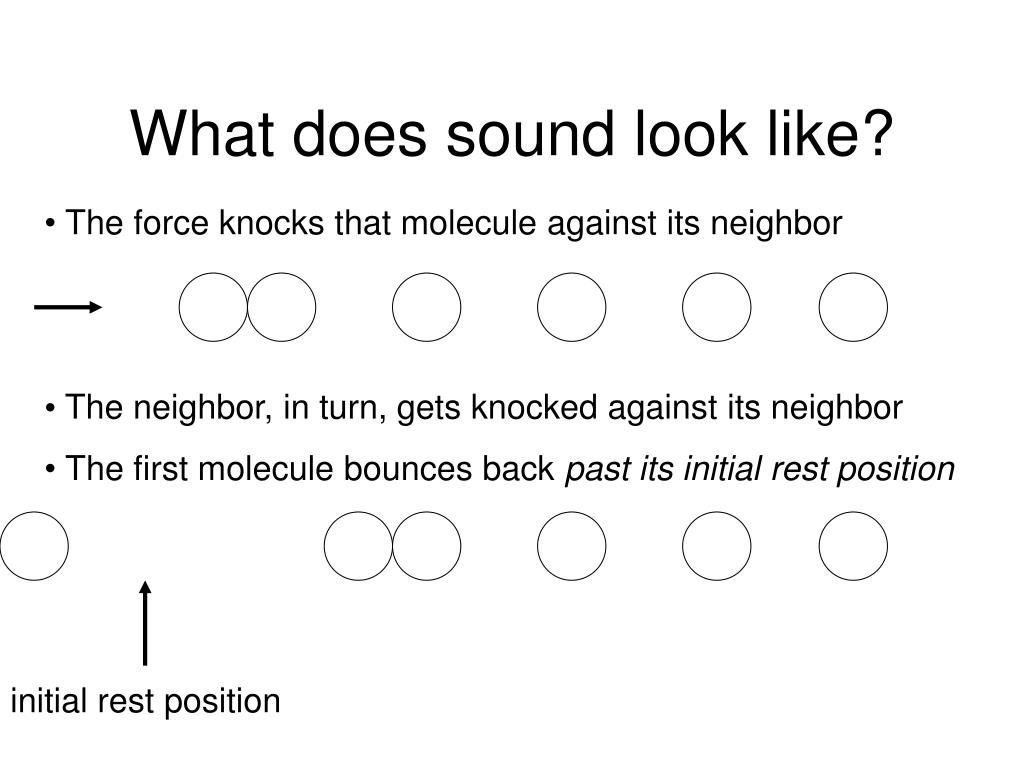

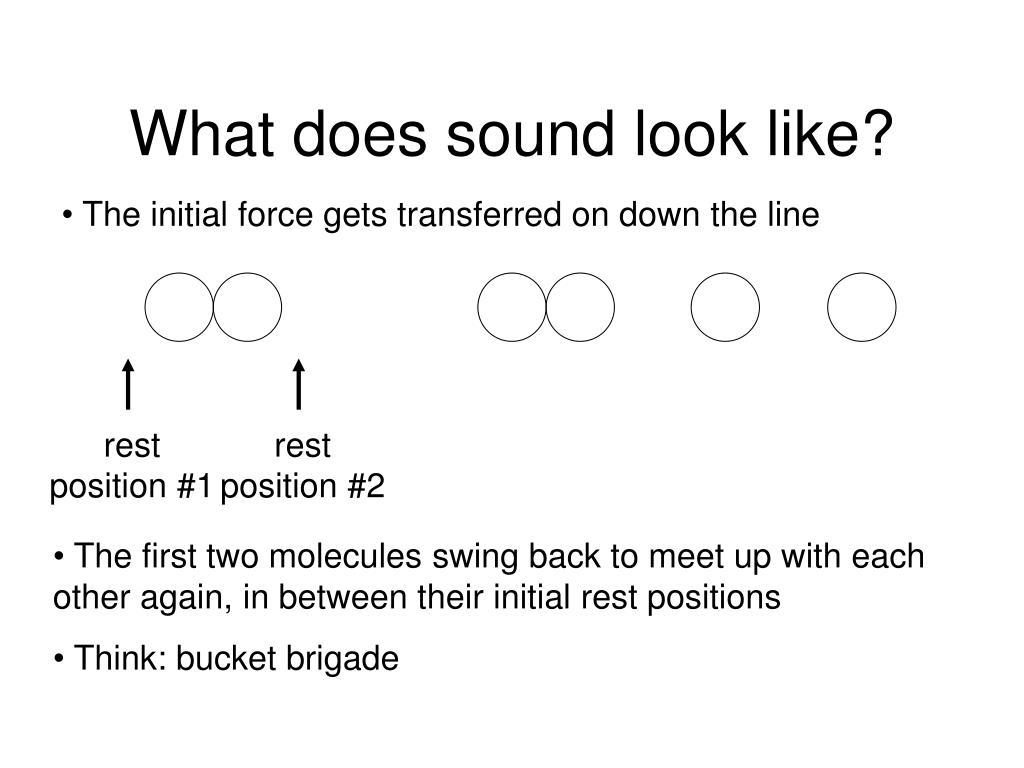

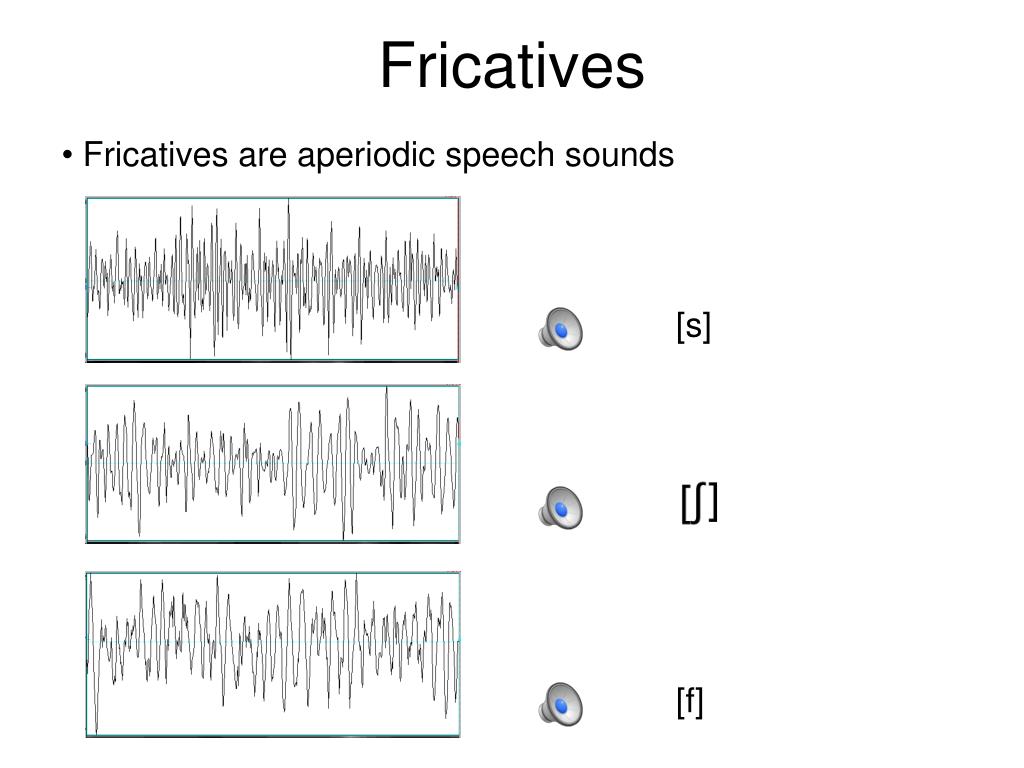

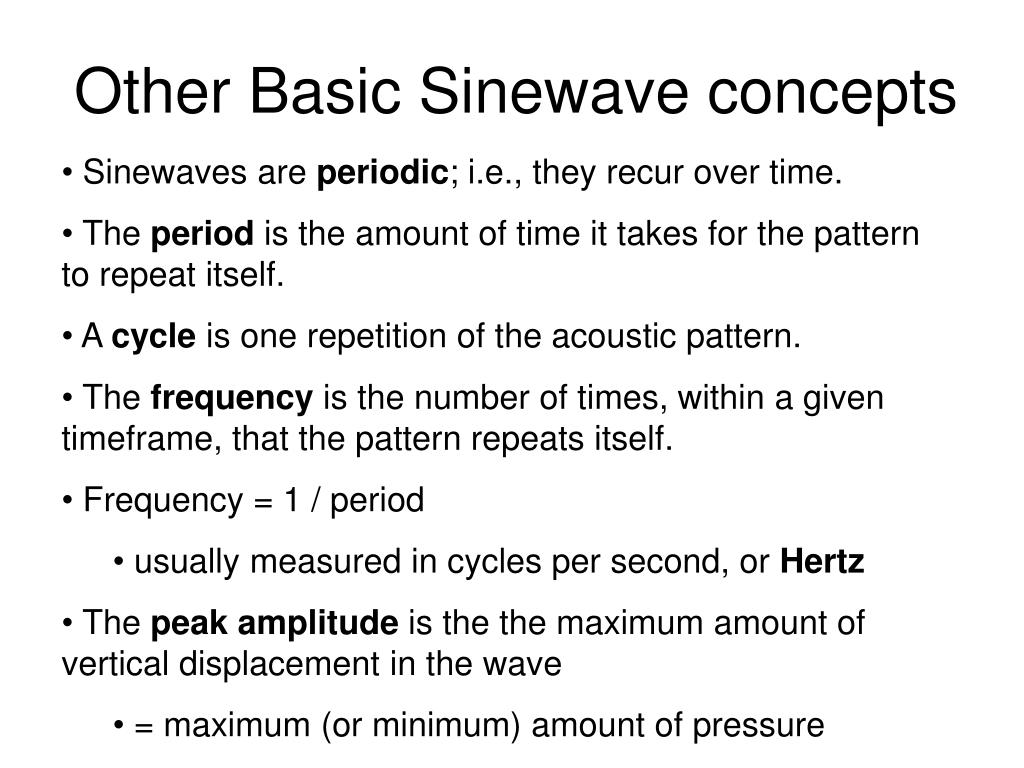

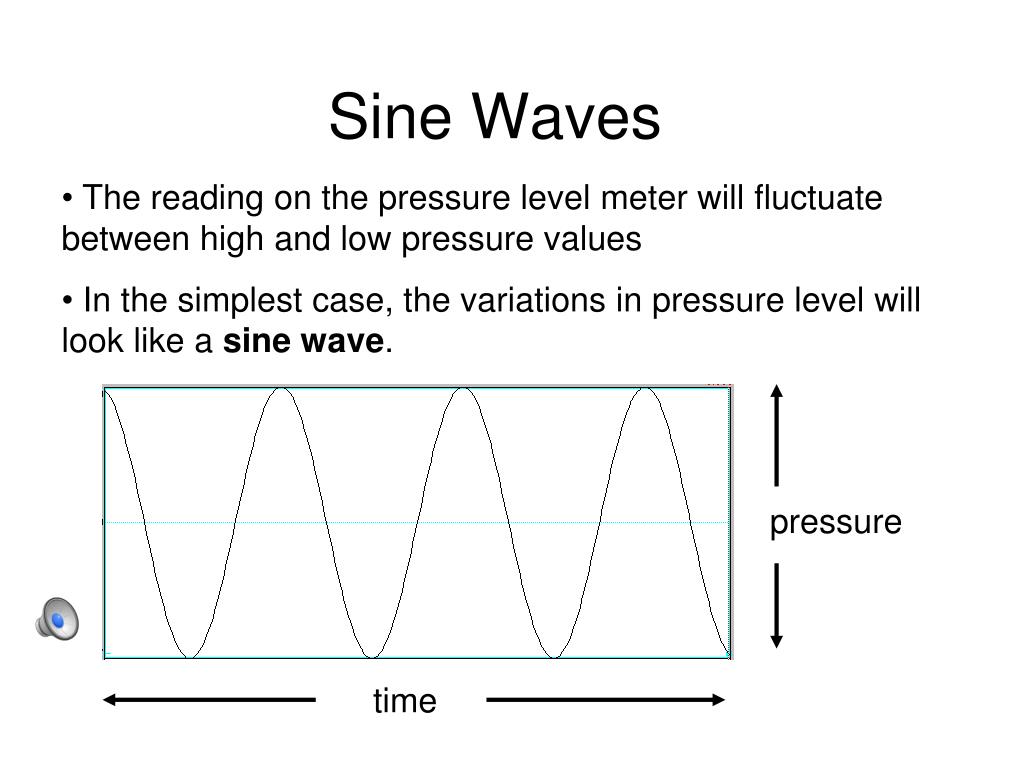

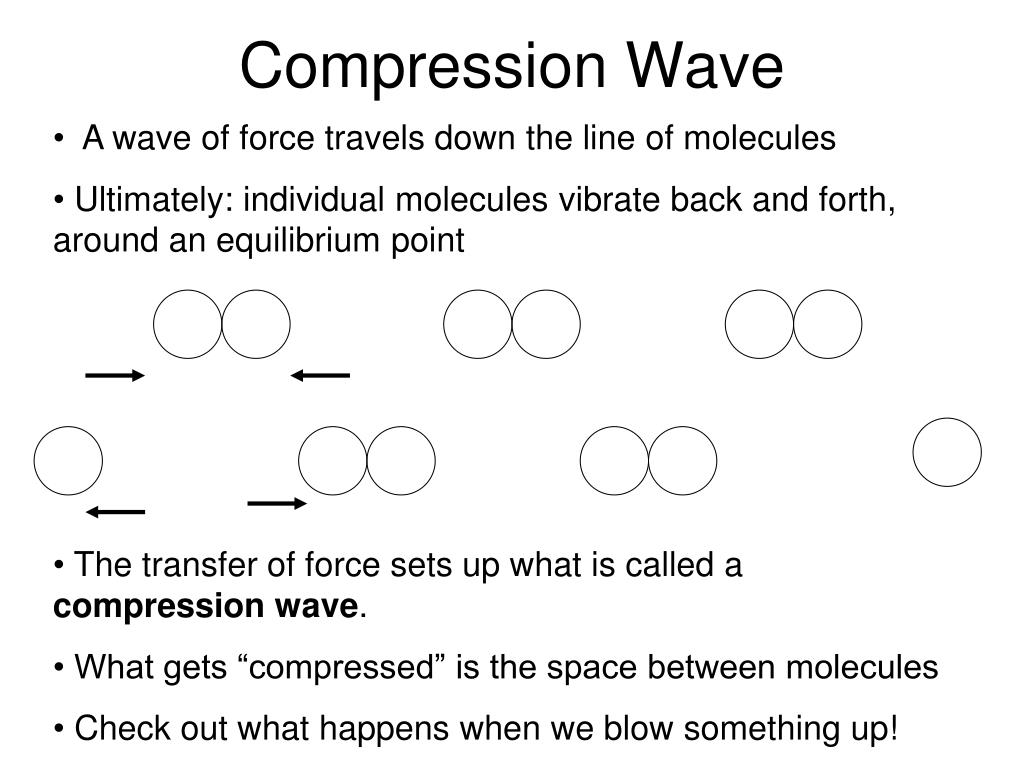

**Basic Acoustics + Digital Signal Processing**January 14, 2014**Just so you know...**• Some ideas for finding consultants: • Kijiji and “couch surfing” • For today: • Part 1: Go through a review of the basics of (analog) acoustics. • Part 2: Converting sound from analog to digital format. • Any questions so far?**Part 1: An Acoustic Dichotomy**• Acoustically speaking, there are two basic kinds of sounds: • Periodic • = an acoustic pattern which repeats, over time • The “period” is the length of time it takes for the pattern to repeat • Periodic speech sounds = voiced segments + trills 2. Aperiodic • Continuous acoustic energy which does not exhibit a repeating pattern • Aperiodic speech sounds = fricatives**The Third Wheel**• There are also acoustic transients. • = aperiodic speech sounds which are not continuous • i.e., they are usually very brief • Transient speech sounds: • stop release bursts • clicks • also (potentially) individual pulses in a trill • Let’s look at the acoustic properties of each type of sound in turn…**Acoustics: Basics**• How is a periodic sound transmitted through the air? • Consider a bilabial trill: Fad Pin Fad**What does sound look like?**• Air consists of floating air molecules • Normally, the molecules are suspended and evenly spaced apart from each other • What happens when we push on one molecule?**What does sound look like?**• The force knocks that molecule against its neighbor • The neighbor, in turn, gets knocked against its neighbor • The first molecule bounces back past its initial rest position initial rest position**What does sound look like?**• The initial force gets transferred on down the line rest position #1 rest position #2 • The first two molecules swing back to meet up with each other again, in between their initial rest positions • Think: bucket brigade**Compression Wave**• A wave of force travels down the line of molecules • Ultimately: individual molecules vibrate back and forth, around an equilibrium point • The transfer of force sets up what is called a compression wave. • What gets “compressed” is the space between molecules • Check out what happens when we blow something up!**Compression Wave**area of high pressure (compression) area of low pressure (rarefaction) • Compression waves consist of alternating areas of high and low pressure**Pressure Level Meters**• Microphones • Have diaphragms, which move back and forth with air pressure variations • Pressure variations are converted into electrical voltage • Ears • Eardrums move back and forth with pressure variations • Amplified by components of middle ear • Eventually converted into neurochemical signals • We experience fluctuations in air pressure as sound**Measuring Sound**• What if we set up a pressure level meter at one point in the wave? Time pressure level meter**Sine Waves**• The reading on the pressure level meter will fluctuate between high and low pressure values • In the simplest case, the variations in pressure level will look like a sine wave. pressure time**Other Basic Sinewave concepts**• Sinewaves are periodic; i.e., they recur over time. • The period is the amount of time it takes for the pattern to repeat itself. • A cycle is one repetition of the acoustic pattern. • The frequency is the number of times, within a given timeframe, that the pattern repeats itself. • Frequency = 1 / period • usually measured in cycles per second, or Hertz • The peakamplitude is the the maximum amount of vertical displacement in the wave • = maximum (or minimum) amount of pressure**Waveforms**• A waveform plots air pressure on the y axis against time on the x axis.**Phase Shift**• Even if two sinewaves have the same period and amplitude, they may differ in phase. • Phase essentially describes where in the sinewave cycle the wave begins. • This doesn’t affect the way that we hear the waveform. • Check out: sine waves vs. cosine waves!**Complex Waves**• It is possible to combine more than one sinewave together into a complex wave. • At any given time, each wave will have some amplitude value. • A1(t1) := Amplitude value of sinewave 1 at time 1 • A2(t1) := Amplitude value of sinewave 2 at time 1 • The amplitude value of the complex wave is the sum of these values. • Ac(t1) = A1 (t1) + A2 (t1)**Complex Wave Example**• Take waveform 1: • high amplitude • low frequency + • Add waveform 2: • low amplitude • high frequency = • The sum is this complex waveform:**A Real-Life Example**• 480 Hz tone • 620 Hz tone • the combo = ?**Spectra**• One way to represent complex waves is with waveforms: • y-axis: air pressure • x-axis: time • Another way to represent a complex wave is with a power spectrum (or spectrum, for short). • Remember, each sinewave has two parameters: • amplitude • frequency • A power spectrum shows: • amplitude on the y-axis • frequency on the x-axis**One Way to Look At It**• Combining 100 Hz and 1000 Hz sinewaves results in the following complex waveform: amplitude time**The Other Way**• The same combination of 100 Hz and 1000 Hz sinewaves results in the following power spectrum: amplitude frequency**The Third Way**• A spectrogram shows how the spectrum of a complex sound changes over time. time frequency 1000 Hz 100 Hz • intensity (related to amplitude) is represented by shading in the z-dimension.**Fundamental Frequency**• One last point about periodic sounds: • Every complex wave has a fundamental frequency (F0). • = the frequency at which the complex wave pattern repeats itself. • This frequency happens to be the greatest common denominator of the frequencies of the component waves. • Example: greatest common denominator of 100 and 1000 is 100. • GCD of 480 and 620 Hz is 20. • GCD of 600 and 800 Hz is 200, etc.**Aperiodic sounds**• Not all sounds are periodic • Aperiodic sounds are noisy • Their pressure values vary randomly over time “white noise” • Interestingly: • White noise sounds the same, no matter how fast or slow you play it.**Fricatives**• Fricatives are aperiodic speech sounds [s] [f]**Aperiodic Spectra**• The power spectrum of white noise has component frequencies of random amplitude across the board:**Aperiodic Spectrogram**• In an aperiodic sound, the values of the component frequencies also change randomly over time.**Transients**• A transient is: • “a sudden pressure fluctuation that is not sustained or repeated over time.” • An ideal transient waveform:**A Transient Spectrum**• An ideal transient spectrum is perfectly flat:**As a matter of fact**• Note: white noise and a pure transient are idealizations • We can create them electronically… • But they are not found in pure form in nature. • Transient-like natural sounds include: • Hand clapping • Finger snapping • Drum beats • Tongue clicking**Click Waveform**some periodic reverberation initial impulse**Click Spectrum**• Reverberation emphasizes some frequencies more than others**Click Spectrogram**some periodic reverberation initial impulse**Part 2: Analog and Digital**• In “reality”, sound is analog. • variations in air pressure are continuous • = it has an amplitude value at all points in time. • and there are an infinite number of possible air pressure values. analog clock • Back in the bad old days, acoustic phonetics was strictly an analog endeavor.**Part 2: Analog and Digital**• In the good new days, we can represent sound digitally in a computer. • In a computer, sounds must be discrete. • everything = 1 or 0 digital clock • Computers represent sounds as sequences of discrete pressure values at separate points in time. • Finite number of pressure values. • Finite number of points in time.**Analog-to-Digital Conversion**• Recording sounds onto a computer requires an analog-to-digital conversion (A-to-D) • When computers record sound, they need to digitize analog readings in two dimensions: X: Time (this is called sampling) Y: Amplitude (this is called quantization) quantization sampling**Thanks to Chilin Shih for making these materials available.**Sampling Example**Sampling Rate**• Sampling rate = frequency at which samples are taken. • What’s a good sampling rate for speech? • Typical options include: • 22050 Hz, 44100 Hz, 48000 Hz • sometimes even 96000 Hz and 192000 Hz • Higher sampling rate preserves sound quality. • Lower sampling rate saves disk space. • (which is no longer much of an issue) • Young, healthy human ears are sensitive to sounds from 20 Hz to 20,000 Hz**One Consideration**• The Nyquist Frequency • = highest frequency component that can be captured with a given sampling rate • = one-half the sampling rate Harry Nyquist (1889-1976) • Problematic Example: • 100 Hz sound • 100 Hz sampling rate samples 1 2 3**Nyquist’s Implication**• An adequate sampling rate has to be… • at least twice as much as any frequency components in the signal that you’d like to capture. • 100 Hz sound • 200 Hz sampling rate samples 1 2 3 4 5 6
