  1. Building Windows Phone Applications with Silverlight (Part 1) Mike Harsh Program Manager, Microsoft

  2. Silverlight for Windows Phone • Silverlight and the XNA framework are the basis of the Windows Phone application platform • In-browser Silverlight is not part of the first Windows Phone release • These sessions will be a lap around the platform

  3. Parts 1 & 2 Mike • Introduction • Output • Input • Web Browser • OS App Integration Peter • App model • Navigation • Templates and Styles • Services

  4. Silverlight for Windows Phone Goal Seamless code and knowledge sharing across Silverlight projects

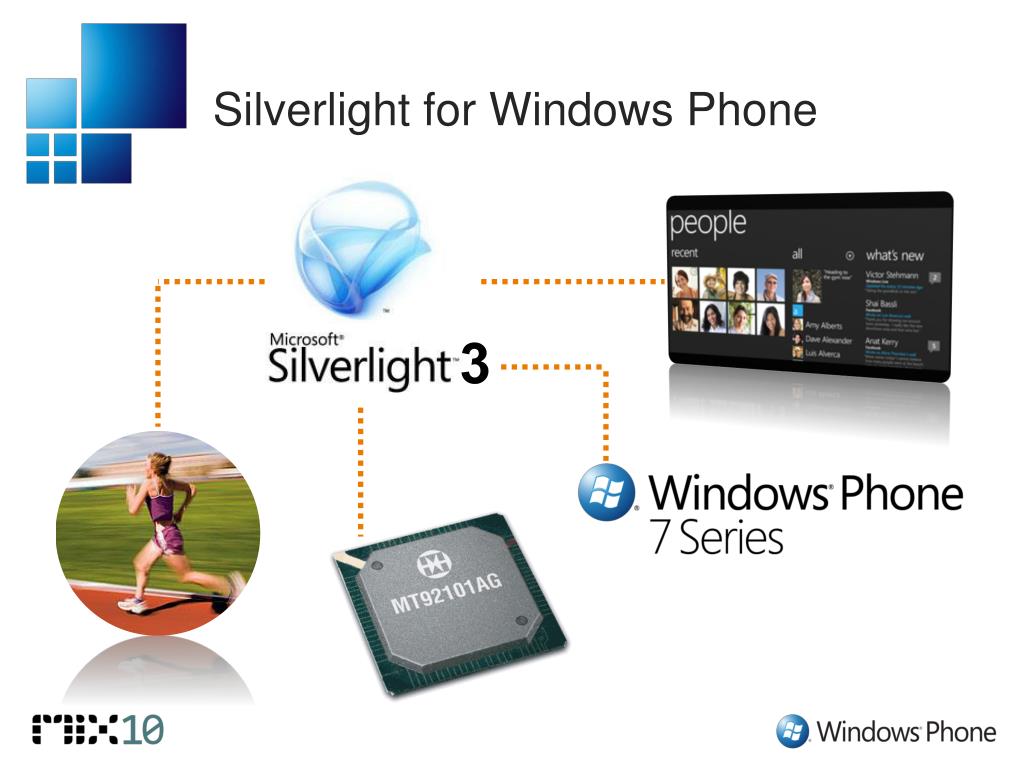

  5. Silverlight for Windows Phone 3

  6. Parts 1 & 2 Mike • Introduction • Output • Input • Web Browser • OS App Integration Peter • App model • Navigation • Templates and Styles • Services

  7. Media & Vibrate

  8. Media • Media support • H/W decode • MediaStreamSource • PlayReady DRM • XNA framework sound effect API • Supports polyphonic, looping wav data • MediaElement Limitations • One MediaElement only • No VideoBrush

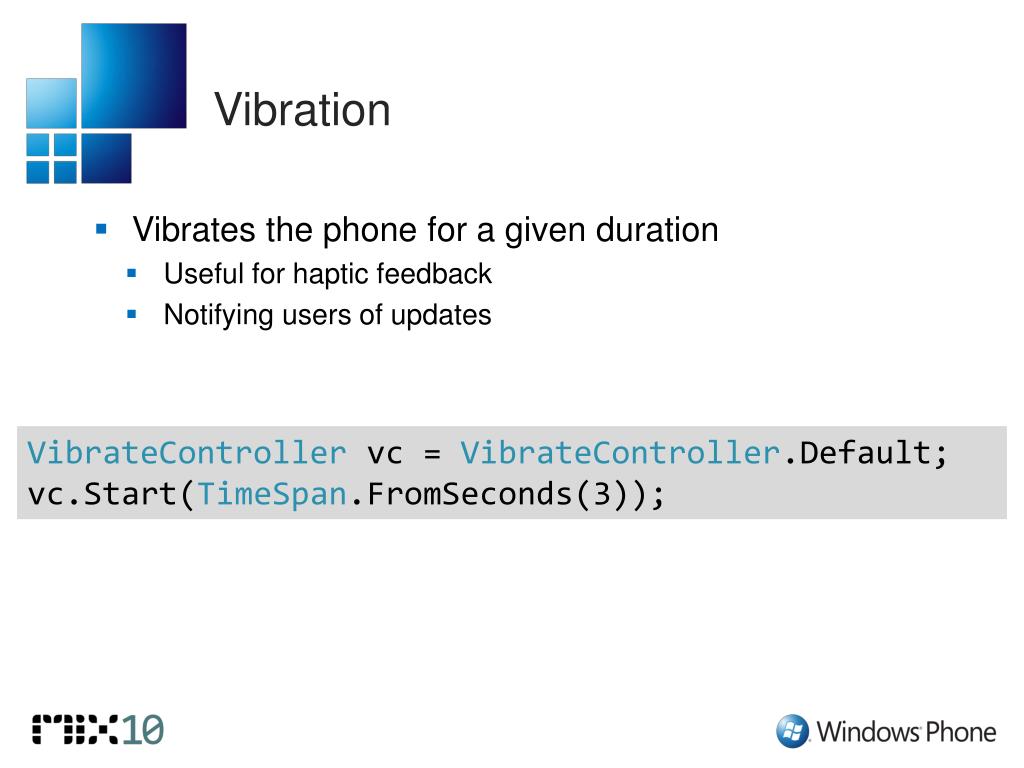

  9. Vibration • Vibrates the phone for a given duration • Useful for haptic feedback • Notifying users of updates VibrateControllervc = VibrateController.Default; vc.Start(TimeSpan.FromSeconds(3));

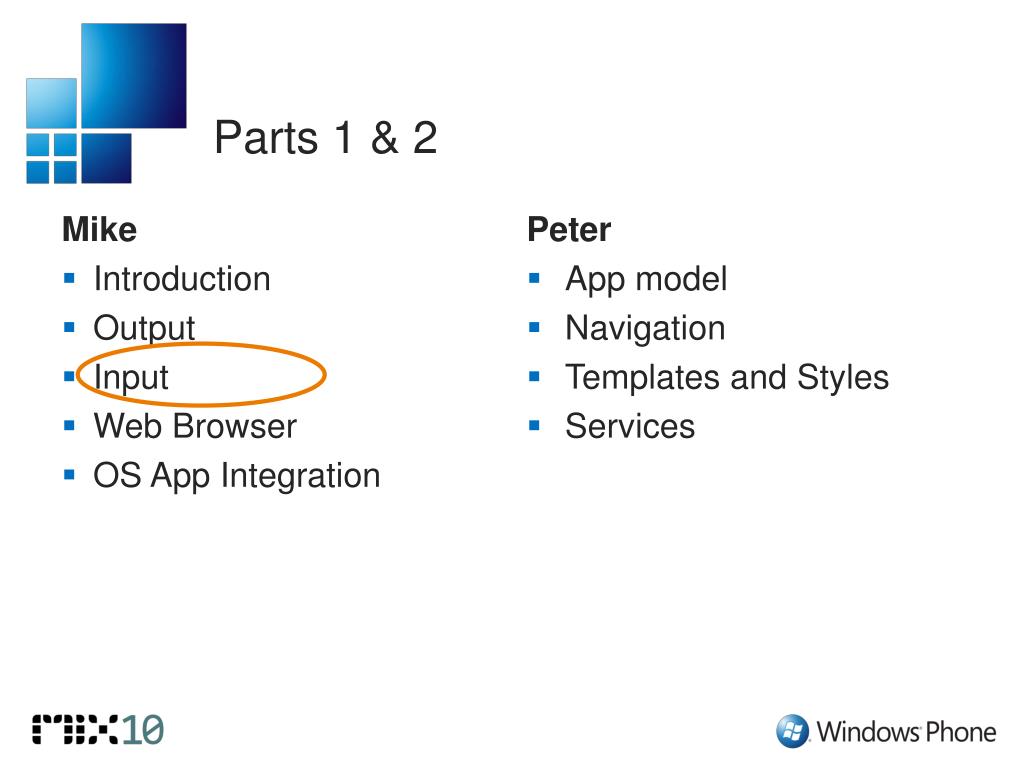

  10. Parts 1 & 2 Mike • Introduction • Output • Input • Web Browser • OS App Integration Peter • App model • Navigation • Templates and Styles • Services

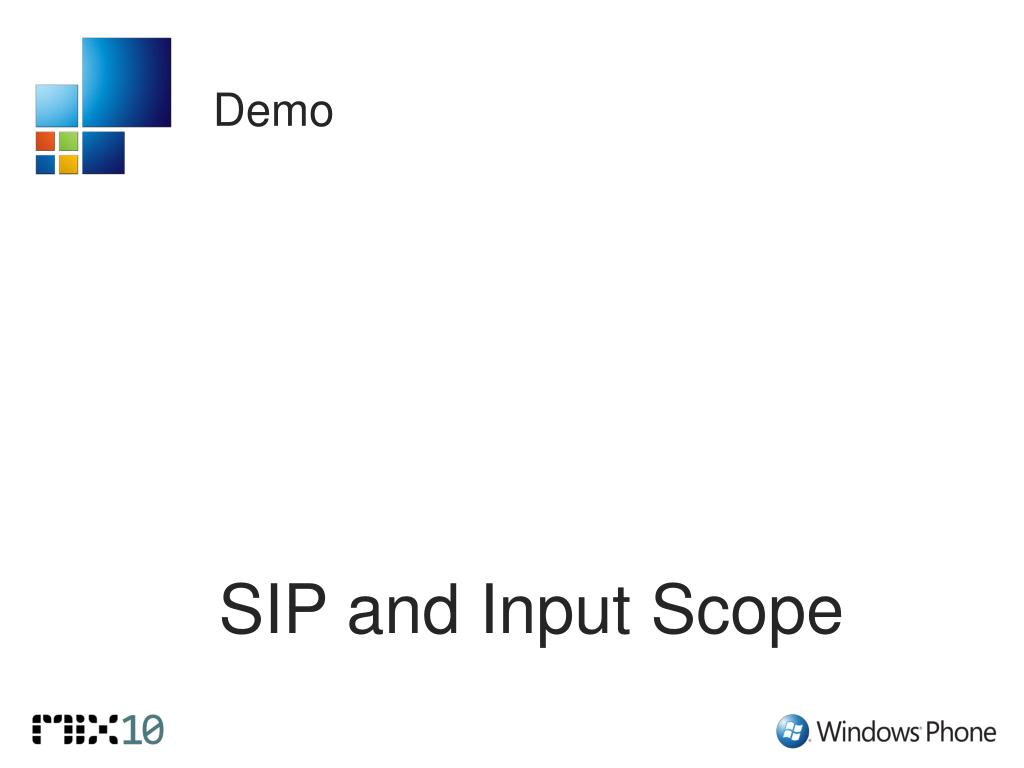

  11. SIP and Input Scope

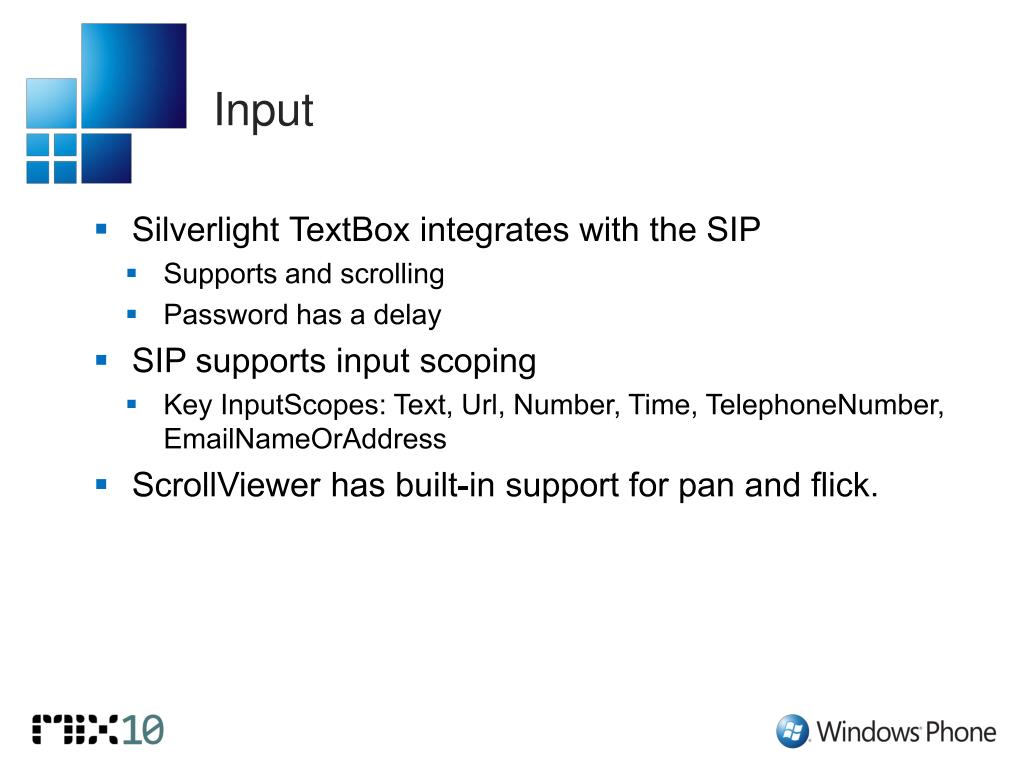

  12. Input • Silverlight TextBox integrates with the SIP • Supports and scrolling • Password has a delay • SIP supports input scoping • Key InputScopes: Text, Url, Number, Time, TelephoneNumber, EmailNameOrAddress • ScrollViewer has built-in support for pan and flick.

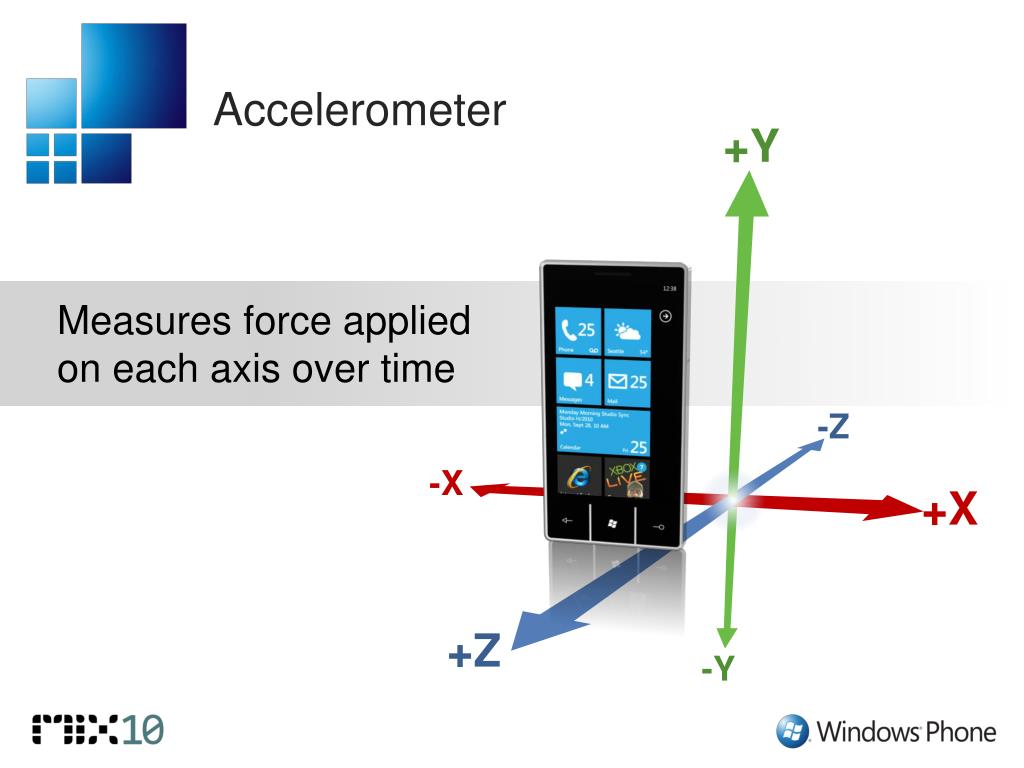

  13. Accelerometer +Y Measures force applied on each axis over time -Z -X +X +Z -Y

  14. Accelerometer

  15. Audio Input • Mic input • Gives access to raw PCM WAV data • Calls BufferReadyevent at regular intervals • Call the GetData method from the BufferReady event or as often as your app requires • 10ms latency

  16. Parts 1 & 2 Mike • Introduction • Output • Input • Web Browser • OS App Integration Peter • App model • Navigation • Templates and Styles • Services

  17. Web Browser Control • Displays network and local content • Supports pan, double tap and pinch to zoom • Supports transforms • Application can interact with javascript • Disabled by default

  18. Silverlight to Script Silverlight string out = wb.InvokeScript("runScriptStuff", arg1, arg2); javascript function runScriptStuff(arg1, arg2) { return “awesome”; }

  19. Script to Silverlight Silverlight void wb_ScriptNotify(object s, NotifyEventArgs e) { string return = e.Value; } javascript window.external.Notify(string);

  20. Web Browser Control

  21. Parts 1 & 2 Mike • Introduction • Output • Input • Web Browser • OS App Integration Peter • App model • Navigation • Templates and Styles • Services

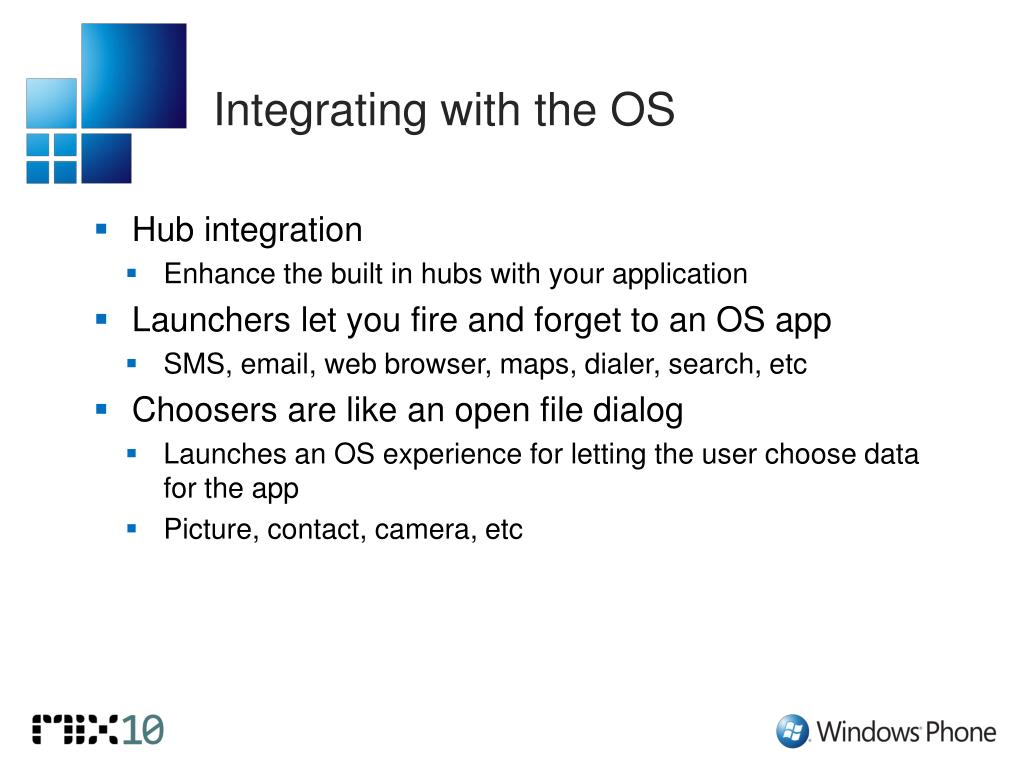

  22. Integrating with the OS • Hub integration • Enhance the built in hubs with your application • Launchers let you fire and forget to an OS app • SMS, email, web browser, maps, dialer, search, etc • Choosers are like an open file dialog • Launches an OS experience for letting the user choose data for the app • Picture, contact, camera, etc

  23. Hub Integration – Media History • Apps can insert entries into the history list

  24. Hub Integration - Photos • Your app can integrate with the OS image viewer • One click away from extras menu

  25. SMS and Camera Capture

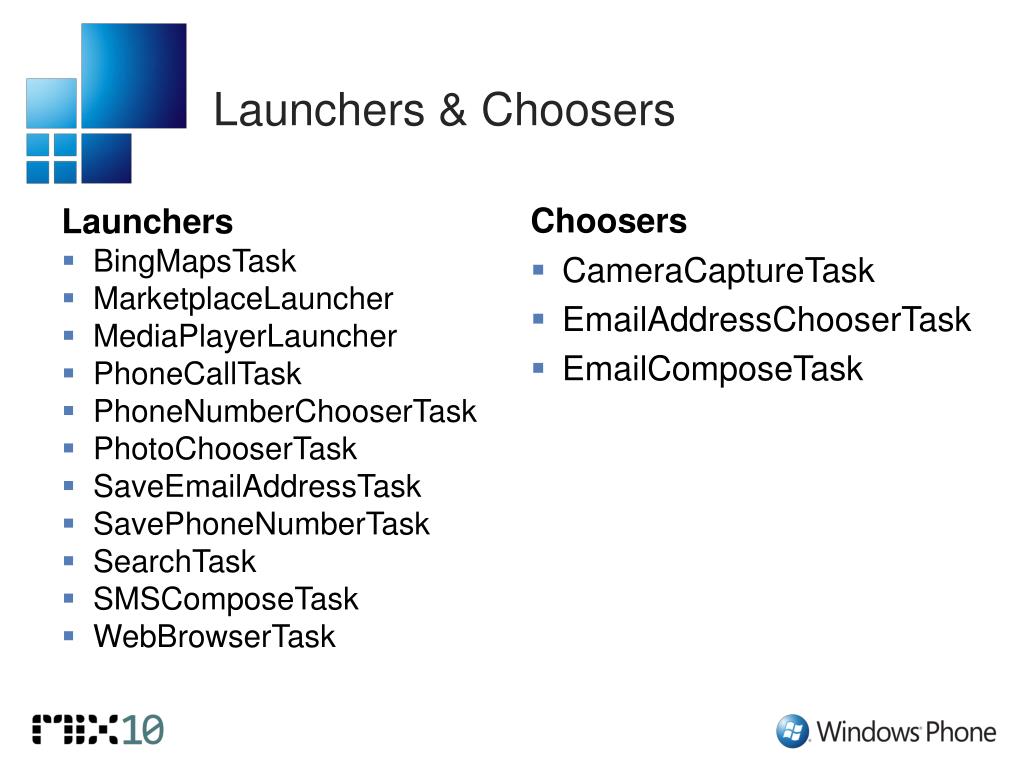

  26. Launchers & Choosers Choosers Launchers • BingMapsTask • MarketplaceLauncher • MediaPlayerLauncher • PhoneCallTask • PhoneNumberChooserTask • PhotoChooserTask • SaveEmailAddressTask • SavePhoneNumberTask • SearchTask • SMSComposeTask • WebBrowserTask • CameraCaptureTask • EmailAddressChooserTask • EmailComposeTask

  27. Silverlight 3 API Delta • Application model • Out of Browser APIs • Browser & plug-in specific APIs • HTML Dom Bridge • Machine information • GpuInformation • Analytics • Custom shaders • Media markers and attributes

  28. There will be Windows Phone focus groups on Wednesday, March 17th at 10am, 11:30am, and 2pm in the Mandalay Bay If you are interested in participating in these focus groups or future Windows Phone research, please email SusanTo@microsoft.com Usability Study

  29. Further Information • <Insert docs reference> • http://blogs.msdn.com/mharsh

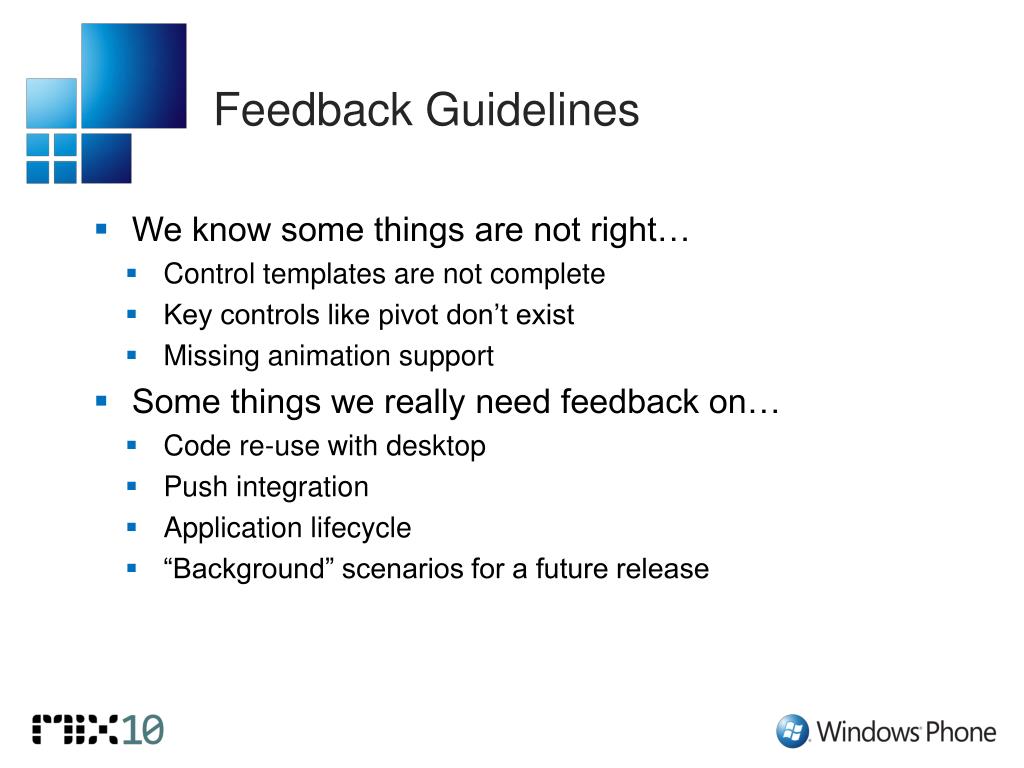

  30. Feedback Guidelines • We know some things are not right… • Control templates are not complete • Key controls like pivot don’t exist • Missing animation support • Some things we really need feedback on… • Code re-use with desktop • Push integration • Application lifecycle • “Background” scenarios for a future release

  31. Please fill out the evaluation form!

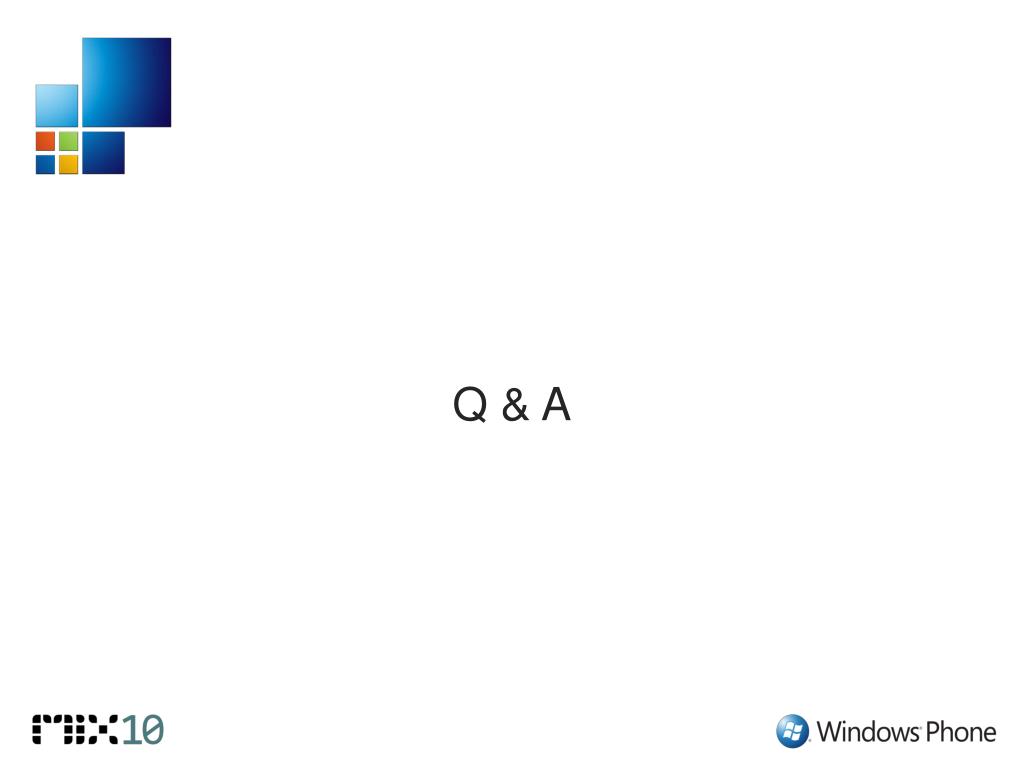

  32. Q & A
