Research and Cluster Computing at SDSU

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Research and Cluster Computingat SDSU Summer, 2014 Division of Technology and Security University Networking and Research Computing (UNRC) Brian.Moore@sdstate.edu

  2. About UNRC Some information is available athttp://wiki.sdstate.edu/User:UNRC/UNRC(not all is up-to-date). Mailing list UNRC_RESEARCHCOMUTING@lists.sdstate.edu New users should be automatically added. Each message has an unsubscribe link. Go to http://lists.sdstate.edu/scripts to view list, re-subscribe, etc.

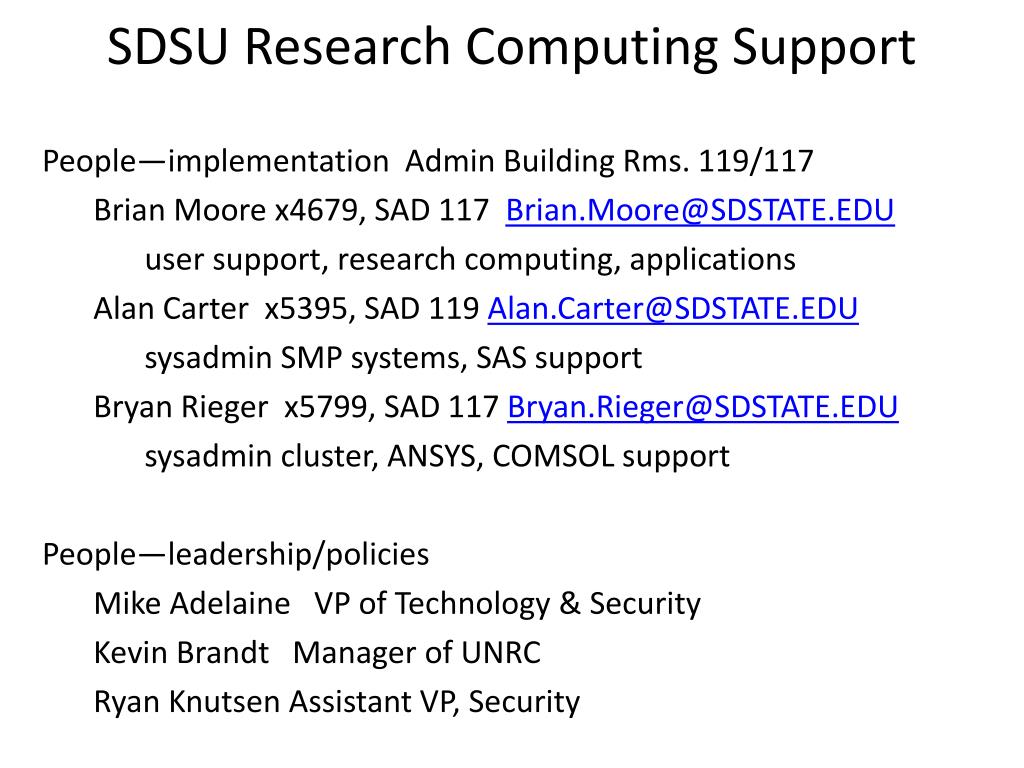

  3. SDSU Research Computing Support People—implementation Admin Building Rms. 119/117 Brian Moore x4679, SAD 117 Brian.Moore@SDSTATE.EDU user support, research computing, applications Alan Carter x5395, SAD 119 Alan.Carter@SDSTATE.EDU sysadmin SMP systems, SAS support Bryan Riegerx5799, SAD 117 Bryan.Rieger@SDSTATE.EDU sysadmin cluster, ANSYS, COMSOL support People—leadership/policies Mike Adelaine VP of Technology & Security Kevin Brandt Manager of UNRC Ryan KnutsenAssistant VP, Security

  4. Main research cluster: “bigjack” • bigjack • IBM IdataPlex, IBM DX350 M3 nodes, 71 nodes • Each node: 12 cores, two hex-core Intel Xeon X5670 (Westmere), 2.93 GHz • 48 GB RAM on each node (a few with 96 GB) • Infiniband – high speed low latency interconnect – to each node, as well as gigabit ethernet • Nine nodes have dual GPU: Nvidia Tesla 2090 series • SLES 11.1 operating system • SAN storage allows flexible deployment of large partitions to head node Three nodes for interactive use: bigjack—for submission to nodes via Moab/PBS scheduler kojack—for visualization flapjack—general interactive use and GPU development/compile All three interactive nodes share same credentials and storage.

  5. Also available: special project SMP servers • silvertip • IBM x3755, 24 cores, four hex-core AMD 8435, 2.6 GHz • 128GB RAM, OpenSUSE • silvertip2 and silvertip3 • IBM x3755 M3's, 64 cores, four 16 core AMD 6282SE,2.6GHz • 512 GB RAM, OpenSUSE/SLES • yeti • HP Z820 workstation, 16 cores, two 8 core Intel Xeon E5-2690, 2.90 GHz • 256 GB RAM, SLED 11.2 • Main use is CLC Genomics Workbench • sasquatch • HP Z820 workstation, 16 cores, two 8 core Intel Xeon E5-2690, 2.90 GHz • Two Nvidia Tesla 2050 GPUs • 128 GB RAM, SLED 11.2 • GPU development, Virtual Machines

  6. Some software examplesmain theme—all Linux/UNIX • ANSYS • BLAST (and related) • CLC Workbench • COMSOL • Gaussian • MATLAB • MERLIN • NAMD • NWCHEM • PETSc • R • SAS • SPSS • CPMD • ESRI • ERDAS • Compilers (gcc/gfortran, pgi, IBM XL)

  7. Getting connected, logged on • Access software—Windows • PuTTY (http://www.chiark.greenend.org.uk/~sgtatham/putty/download.html) • WinSCP (http://winscp.net) • VNC (http://www.realvnc.com/download/viewer/) • Mac: Terminal App and FileZilla (or similar) • Linux: Terminal and file manager, Nautilus (or similar) • All UNRC servers are behind campus firewall—no direct incoming network connections from outside allowed

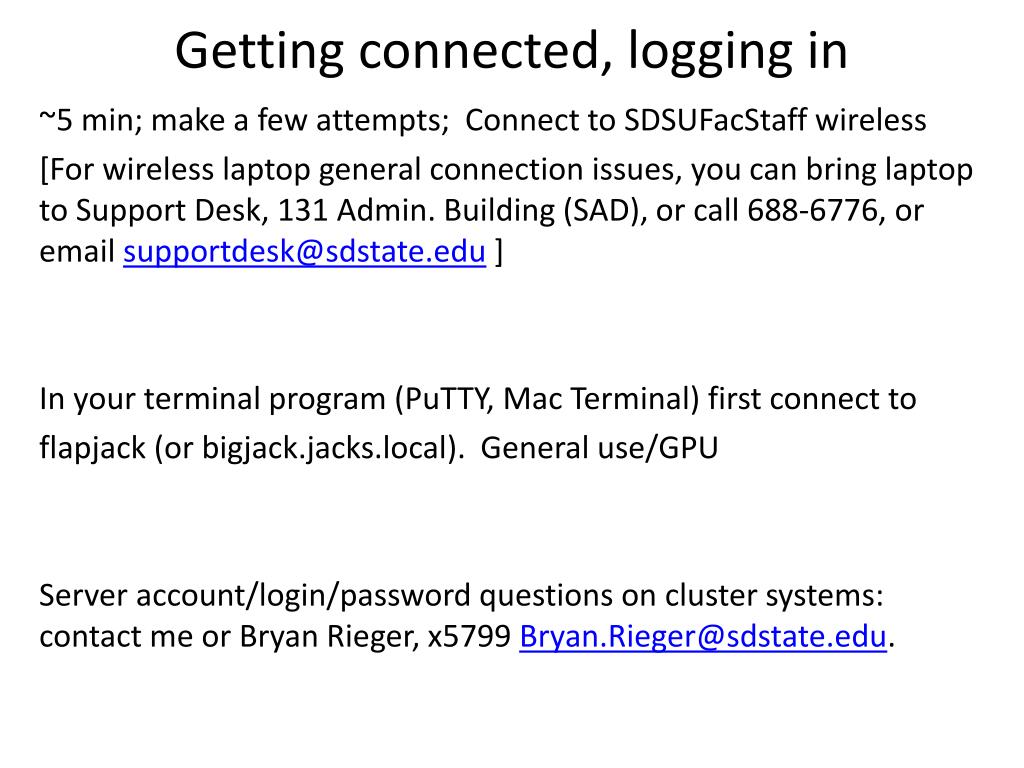

  8. Getting connected, logging in ~5 min; make a few attempts; Connect to SDSUFacStaff wireless [For wireless laptop general connection issues, you can bring laptop to Support Desk, 131 Admin. Building (SAD), or call 688-6776, or email supportdesk@sdstate.edu ] In your terminal program (PuTTY, Mac Terminal) first connect to flapjack (or bigjack.jacks.local). General use/GPU Server account/login/password questions on cluster systems: contact me or Bryan Rieger, x5799 Bryan.Rieger@sdstate.edu.

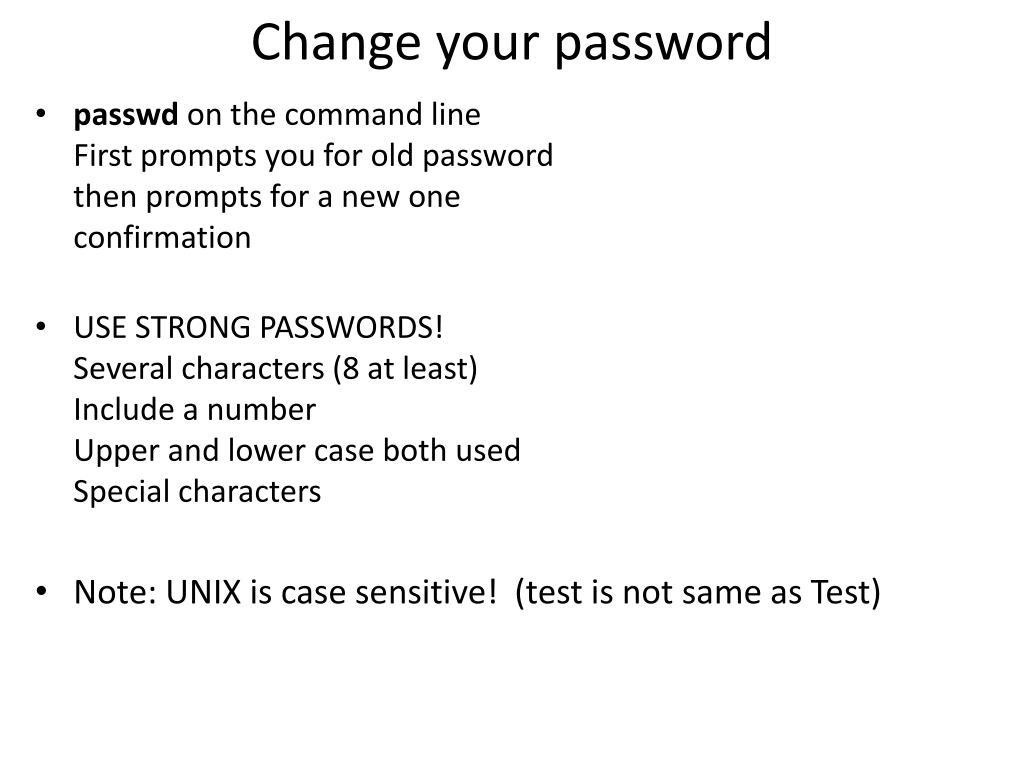

  9. Change your password • passwdon the command lineFirst prompts you for old passwordthen prompts for a new oneconfirmation • USE STRONG PASSWORDS!Several characters (8 at least)Include a numberUpper and lower case both usedSpecial characters • Note: UNIX is case sensitive! (test is not same as Test)

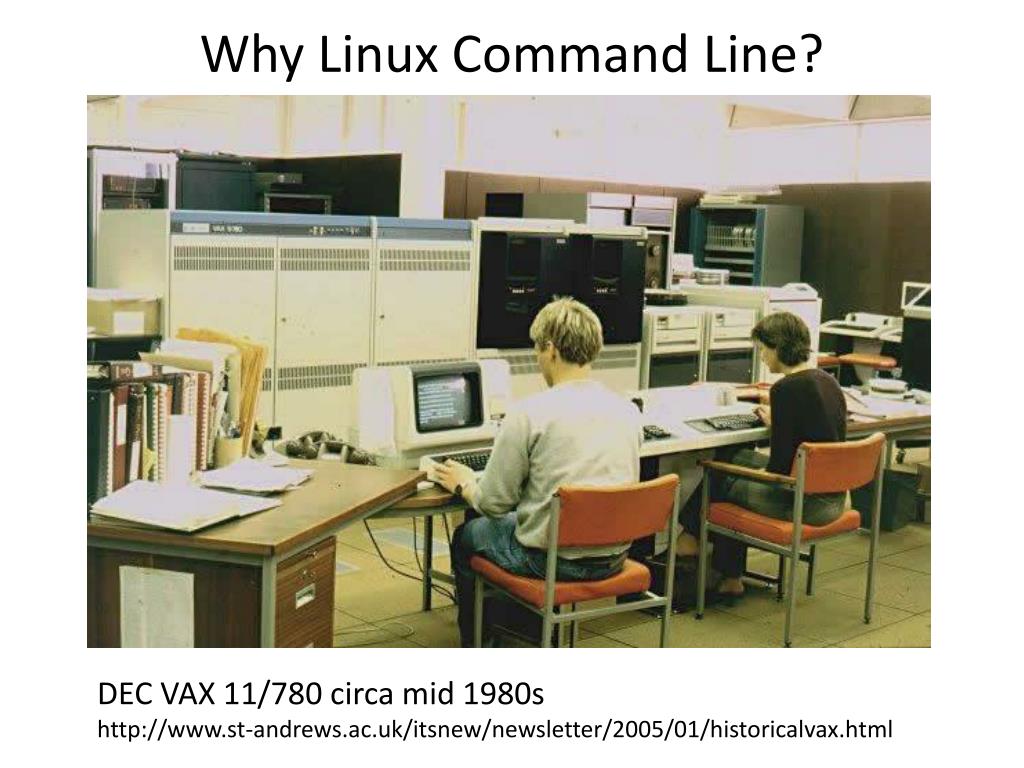

  10. Why Linux Command Line? DEC VAX 11/780 circa mid 1980s http://www.st-andrews.ac.uk/itsnew/newsletter/2005/01/historicalvax.html

  11. https://www.tacc.utexas.edu/user-services/training/course-materialshttps://www.tacc.utexas.edu/user-services/training/course-materials
